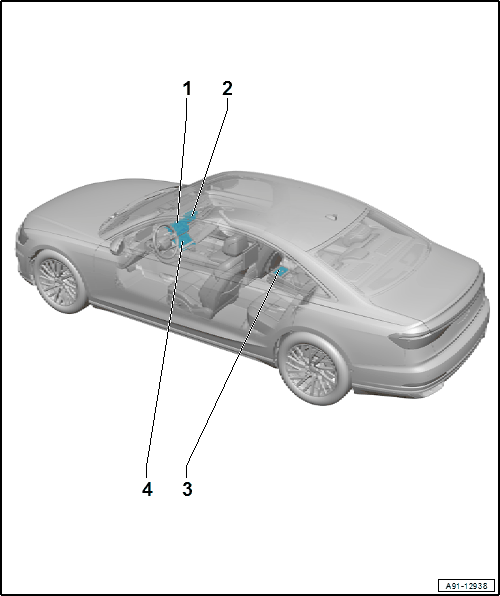

Component Location Overview - Infotainment System
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Auxiliary Display Control Head 1 -E857-
- In the rear center console
- Removing and Installing. Refer to Auxiliary Display Control Head 1 -E857-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Wireless Control Head 1 -E859-
- Removing and Installing. Refer to Wireless Control Head 1 -E859-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- Front Information Display Control Head 2 -J1060-
- In the front center console
- Removing and Installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
Driver Volume Control -E67-
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
