Overview - Instrument Cluster

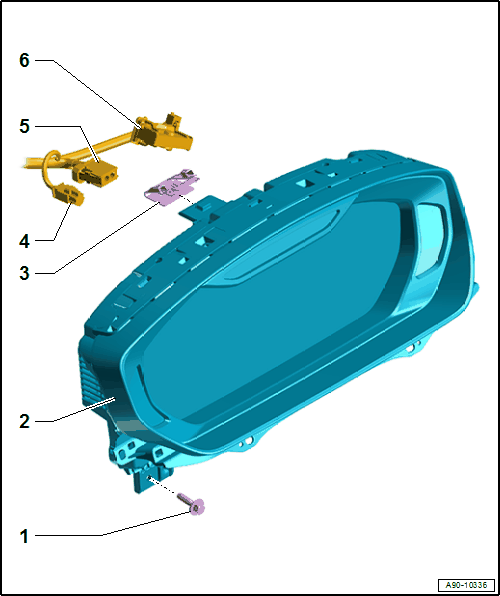

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2 or 3
- 3 Nm
Instrument Cluster
- There are different versions. Refer to the Parts Information.
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
Clip
Antenna Wire
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
Connector
- For the instrument cluster
