Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

-- Remove the instrument cluster. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .

-- Remove the instrument panel air duct. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

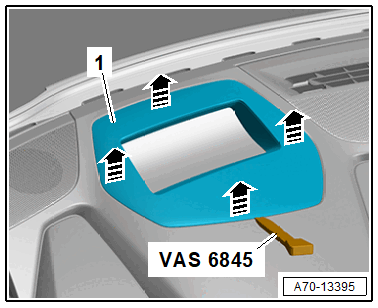

-- Using the scraper from the Scraper Set : VAS 6845  , unclip the windshield projection -1- in the direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

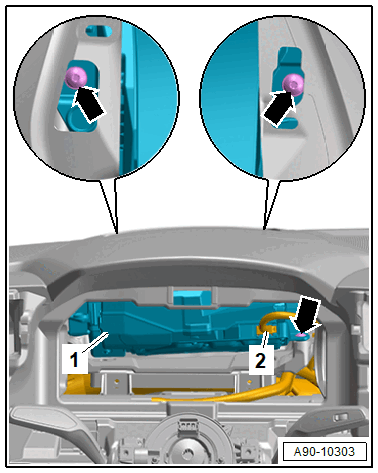

-- Cover the control module -1- with a soft towel.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolts -arrows-.

-- Remove control module.
