Heater Control Module -J65- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In centre instrument panel.

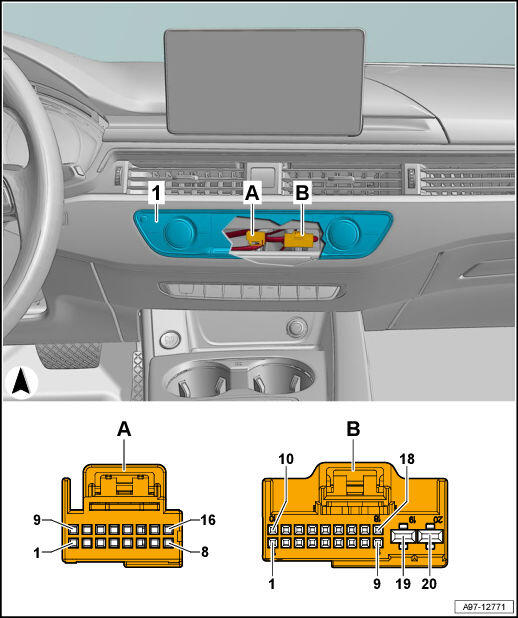

Fig 1: Heater Control Module -J65- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Heater Control Module -J65-
• A -  16-Pin Connector -T16j-, black
• B -  20-Pin Connector -T20p-, black
