Repair and Diagnosis: Transmission: Clutches: Description

Clutch is dry, single plate, diaphragm spring type. Clutch release system is self-adjusting and hydraulically actuated. Pedal travel is only adjustment required in system.

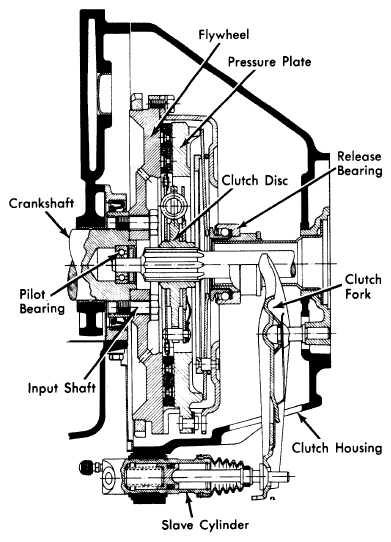

Fig 1: Sectional View of Clutch Assembly (3.0 Shown)

Courtesy of BMW OF NORTH AMERICA, INC.
