Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Active Check Control Unit | Above rear view mirror. |
| Central Locking Control Unit | Above right front speaker. |
| Cruise Control Unit | Under left side of dash. |
| Evaporator Temperature Regulator | On left side of evaporator housing. |
| Heater Regulator | Behind A/C selector switch. |
| Idle Speed Control Unit | Above glove box. |
| Lock Heater Control Unit | In left front door. |
| Motronic Control Unit | Above glove box. |
| On-Board Computer | Under left side of dash. |

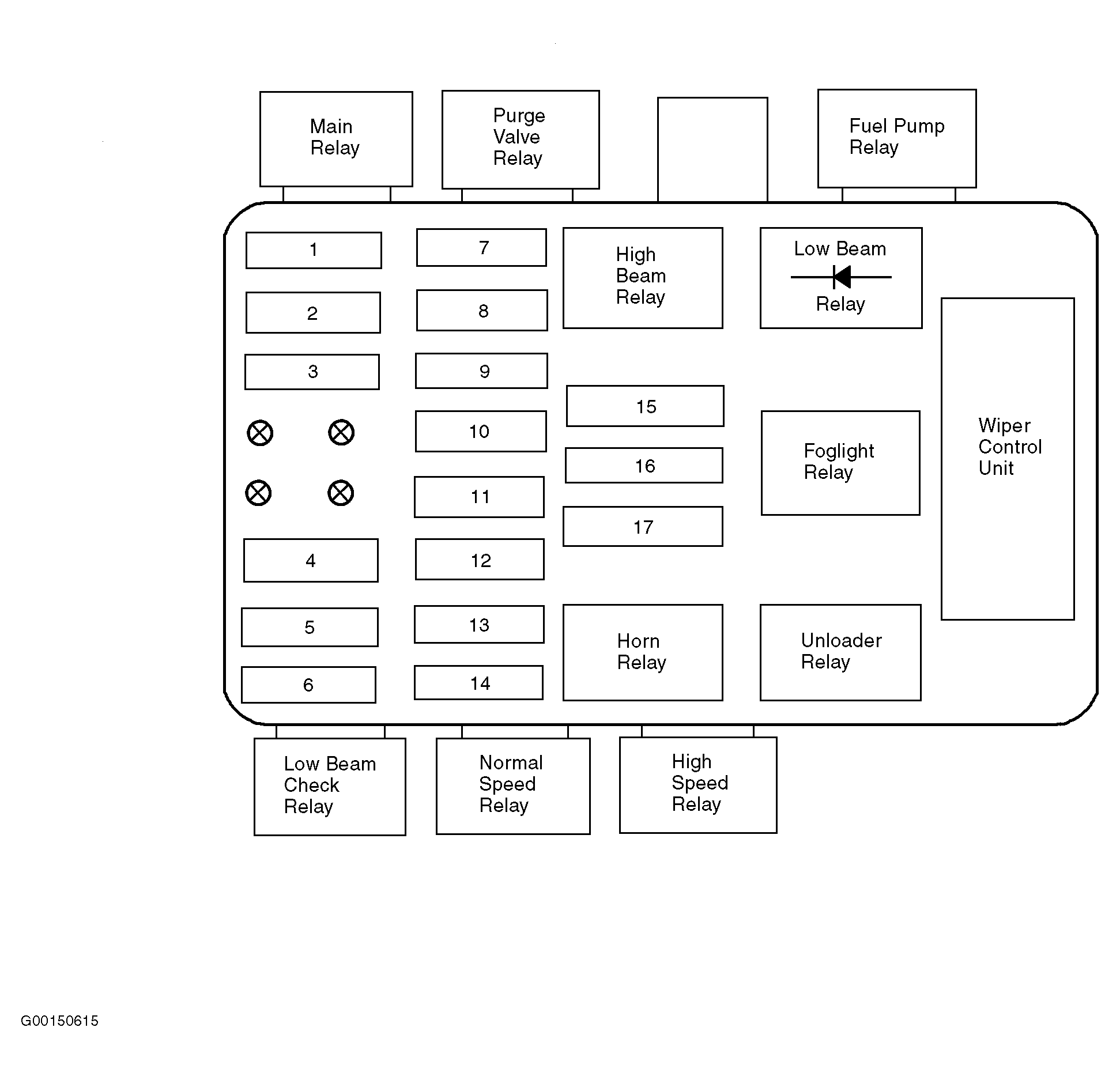

| Wiper Control Unit | On power distribution box. See Figure . |
