Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Central Locking Control Unit | Below and behind left front speaker. |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Ignition Control Module | On firewall, above brake booster. |
| Injection Control Module (318i) | Under right side of dash, above glove box. |
| Motronic Control Module (325e) | Under right side of dash, above glove box. |
| Vacuum Advance Control (318i) | On bracket, ahead of front left shock tower. |
| Motronic Advance Control (325e) | On bracket, ahead of front left shock tower. |

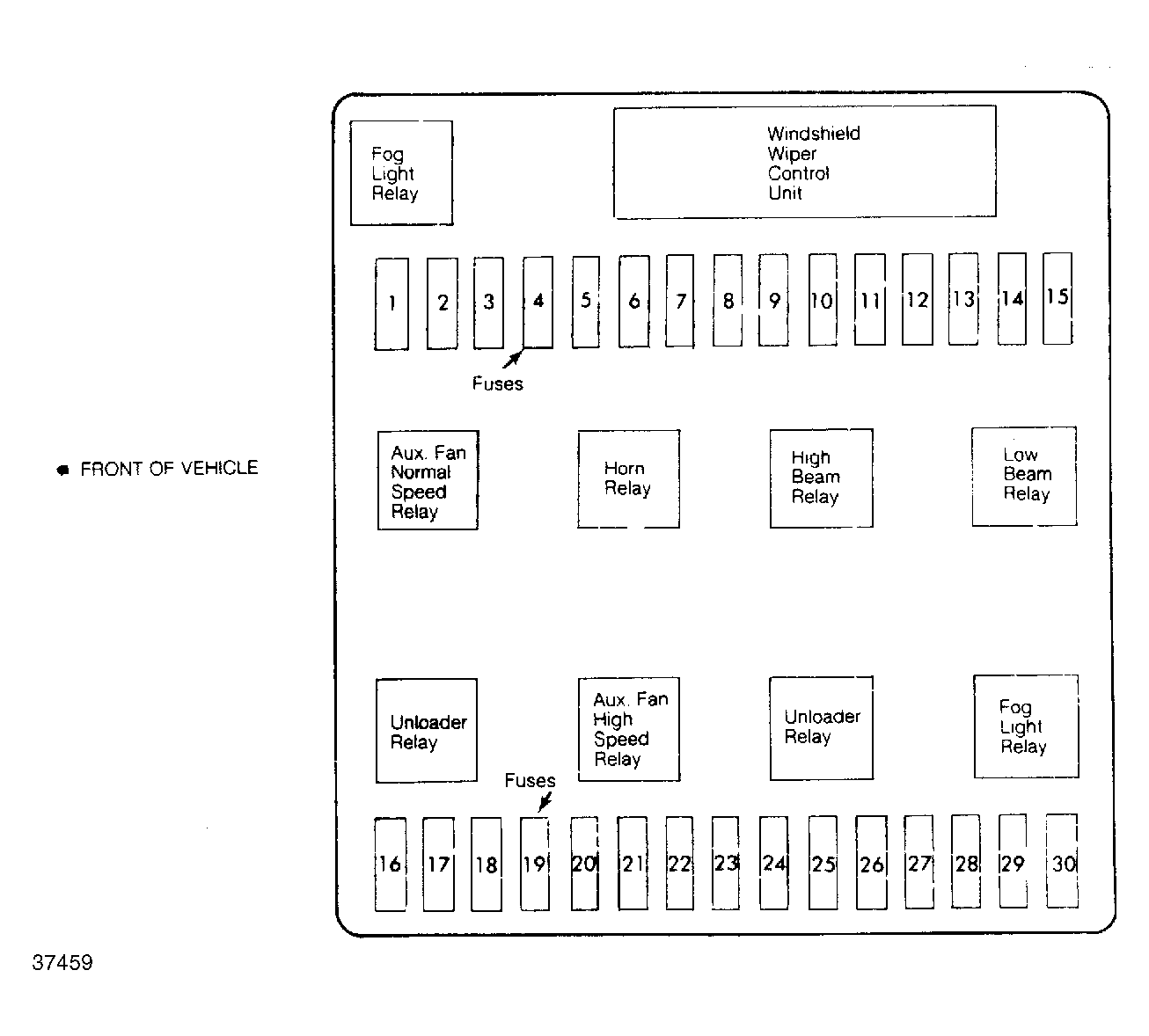

| Windshield Wiper Control Unit | In main fuse/relay block. See Figure . |
