Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under right side of dash. |

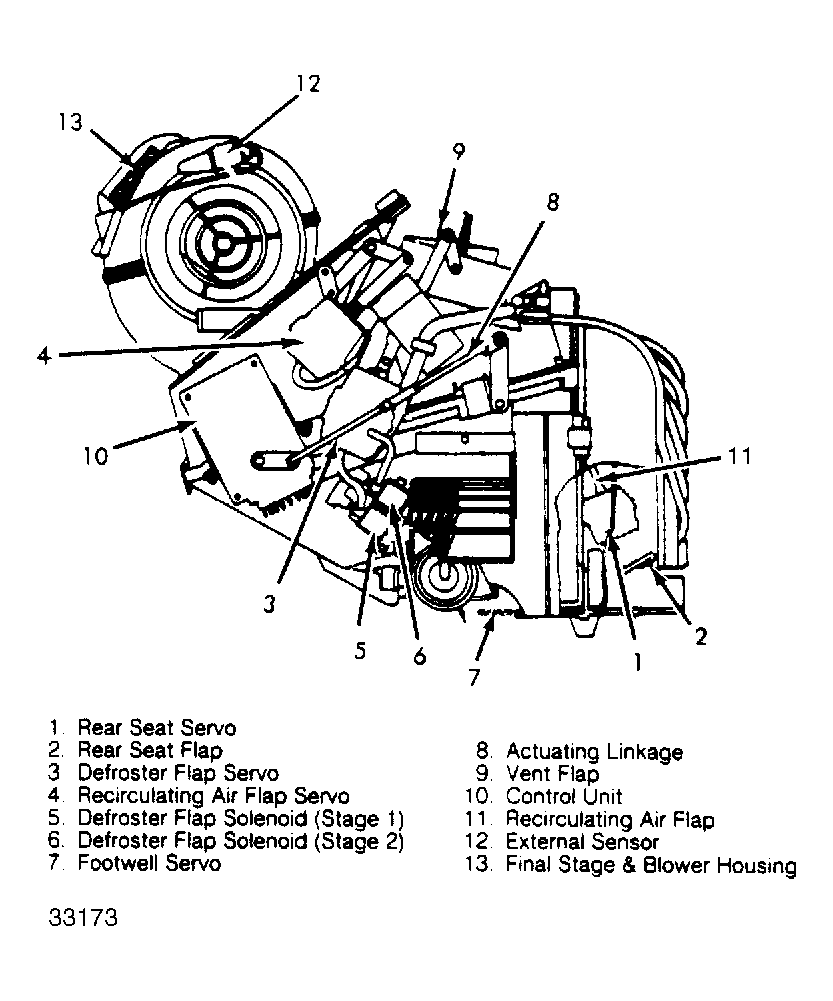

| A/C Control Unit | On left side of evaporator housing. See Figure. |
| Central Locking Control Unit | Under dash, above left front speaker. |
| Cruise Control Unit | Behind left front speaker. |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Lock Heater Control Unit | In left front door. |
| Motronic Control Unit | Behind right front speaker. |
| On-Board Computer | Behind left front speaker. |

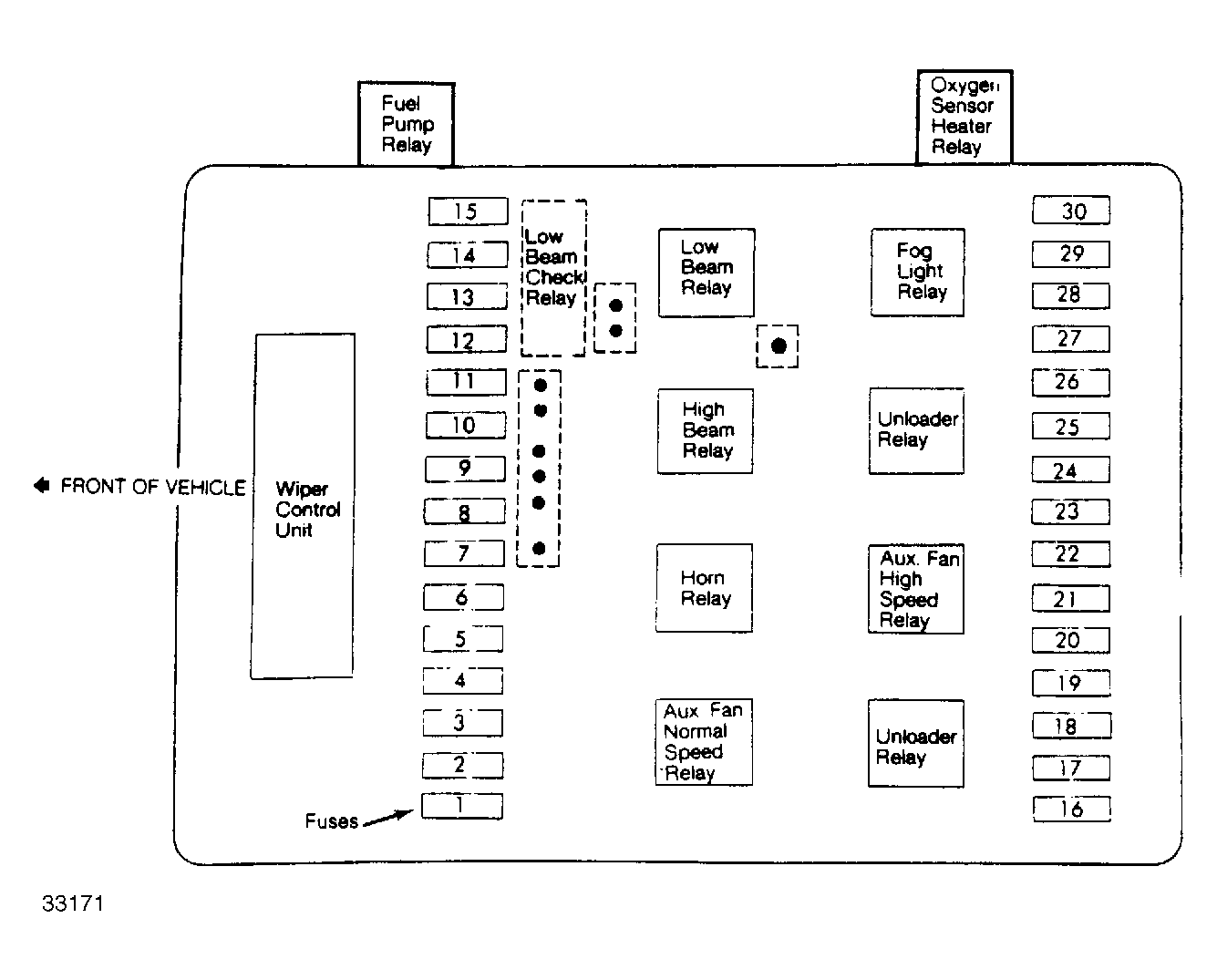

| Windshield Wiper Control Unit | In fuse/relay block. See Figure. |
