Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under right side of dash. |
| Active Check Control Unit | Above rear view mirror. |
| Central Locking Control Unit | Above right front speaker. |
| Chime Module | Under left side of dash. See Figure . |
| Cruise Control Unit | Under left side of dash. See Figure . |
| Idle Speed Control Unit | Under right side of dash, above glove box. |
| Lock Heater Control Unit | In left front door. |
| Motronic Control Unit | Above glove box. |
| On-Board Computer | Under left side of dash. |
| Transmission Control Unit | Under left side of dash. |
| Windshield Washer Pump | On right front wheelwell, in washer reservoir. See Figure . |

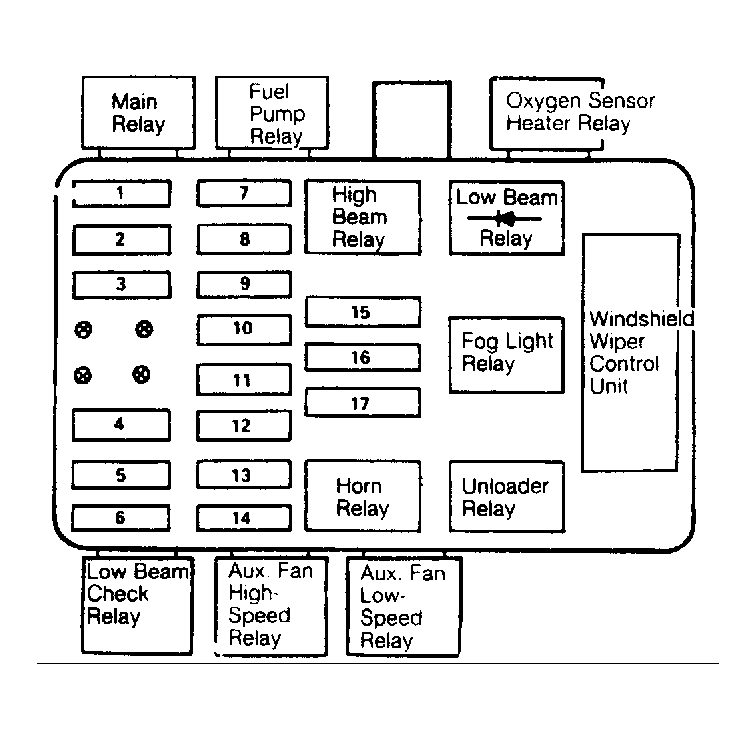

| Windshield Wiper Control Unit | In fuse/relay block. See Figure . |
