Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake Control Unit | Behind right shock tower module closest to shock tower). |
| A/C Compressor Control Unit | Behind left kick panel. |

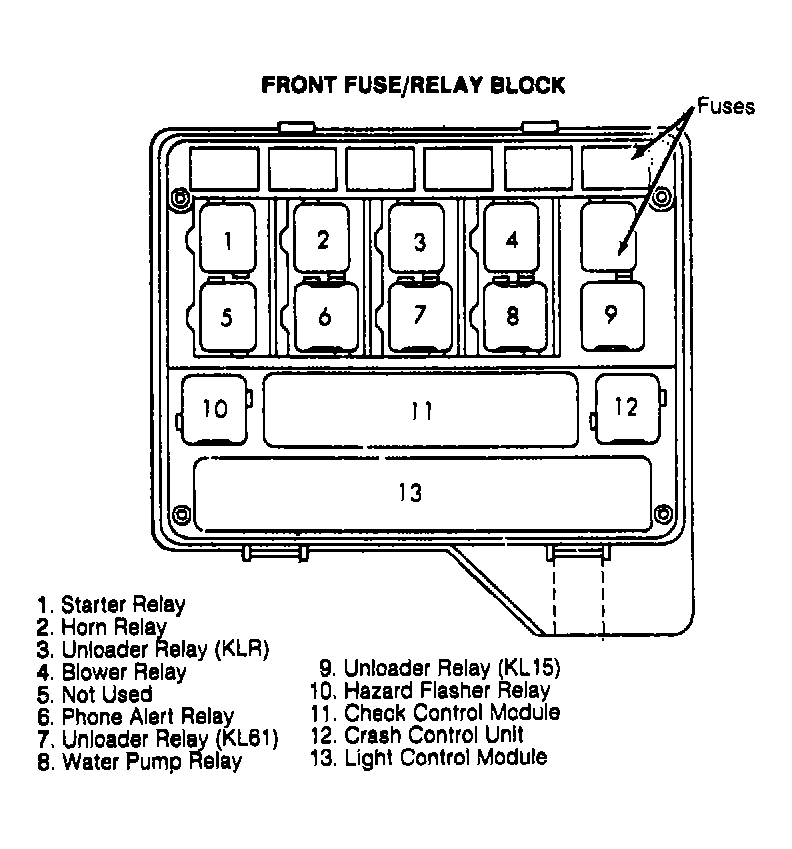

| Check Control Module | On fuse/relay block, in engine compartment. See Figure. |
| Chime Module | Under left side of dash (round unit with 3-pin & 4-pin connectors). |
| Crash Control Unit | On fuse/relay block, in engine compartment. See Figure. |
| Cruise Control Unit | Behind right shock tower second module (forward of firewall). |
| Defogger Control Unit | Behind right center of dash, on right side of A/C-Heater plenum. |
| Electronic Transmission Control Unit (A/T) | Behind right kick panel. |
| Final Stage Unit | Behind right center of dash, on right side of A/C-heater plenum. |

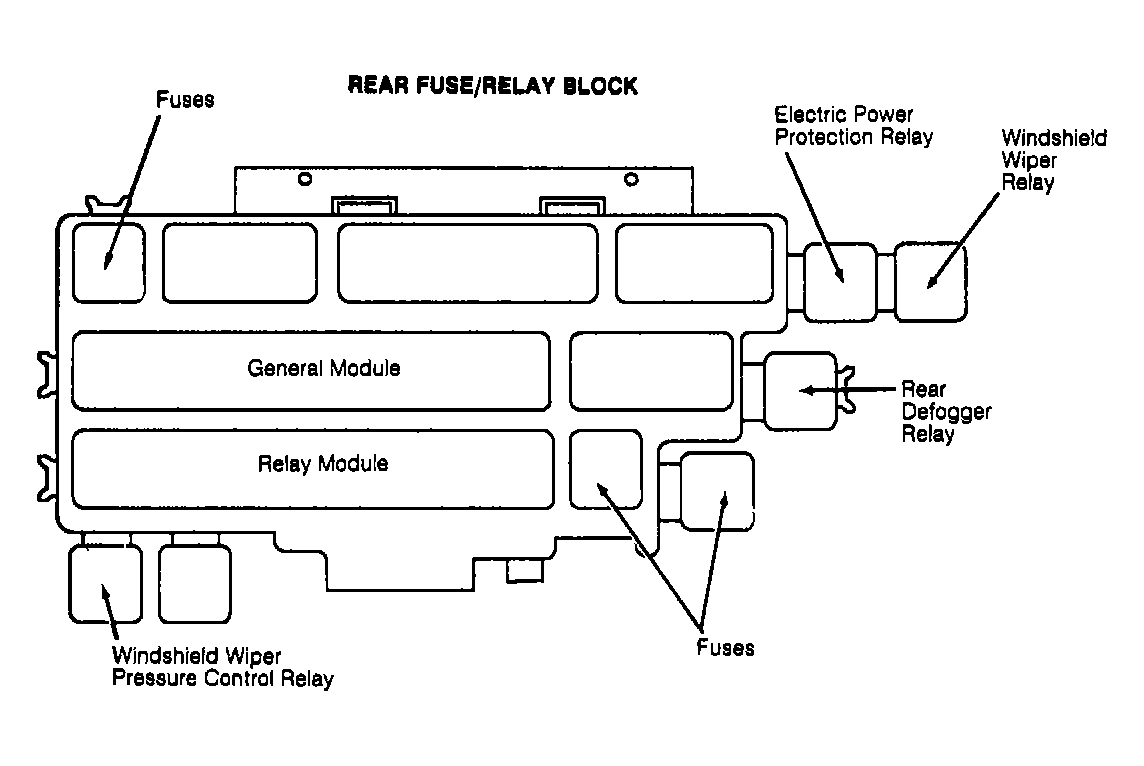

| General Module | Under left side of rear seat, in rear fuse/rear block. See Figure. |
| Integrated Climate Regulation Control Unit | Behind left center of dash, on left side of A/C-heater plenum. |
| Light Control Module | On fuse/relay block, in engine compartment. See Figure. |
| Motronic Control Unit (ECU) | Behind right shock tower (module closest to firewall). |
| On-Board Computer Module | At center of dash, to right of radio. |
| Relay Module | Under left rear seat, in rear fuse/relay block. See Figure. |
| SRS Diagnostic Module (Air Bag) | Behind left side of dash, to left of steering column. |
