Control Units/Modules
CONTROL UNITS/MODULES LOCATION
| Component | Location |
|---|---|
| Anti-Theft Module | Under left side of rear seat, in front of rear fuse/relay box. |
| Automatic A/C Control Unit | Behind front footwell, ahead of plenum. |
| ABS Electronic Control Unit | In electrical box, behind right front shock tower. |

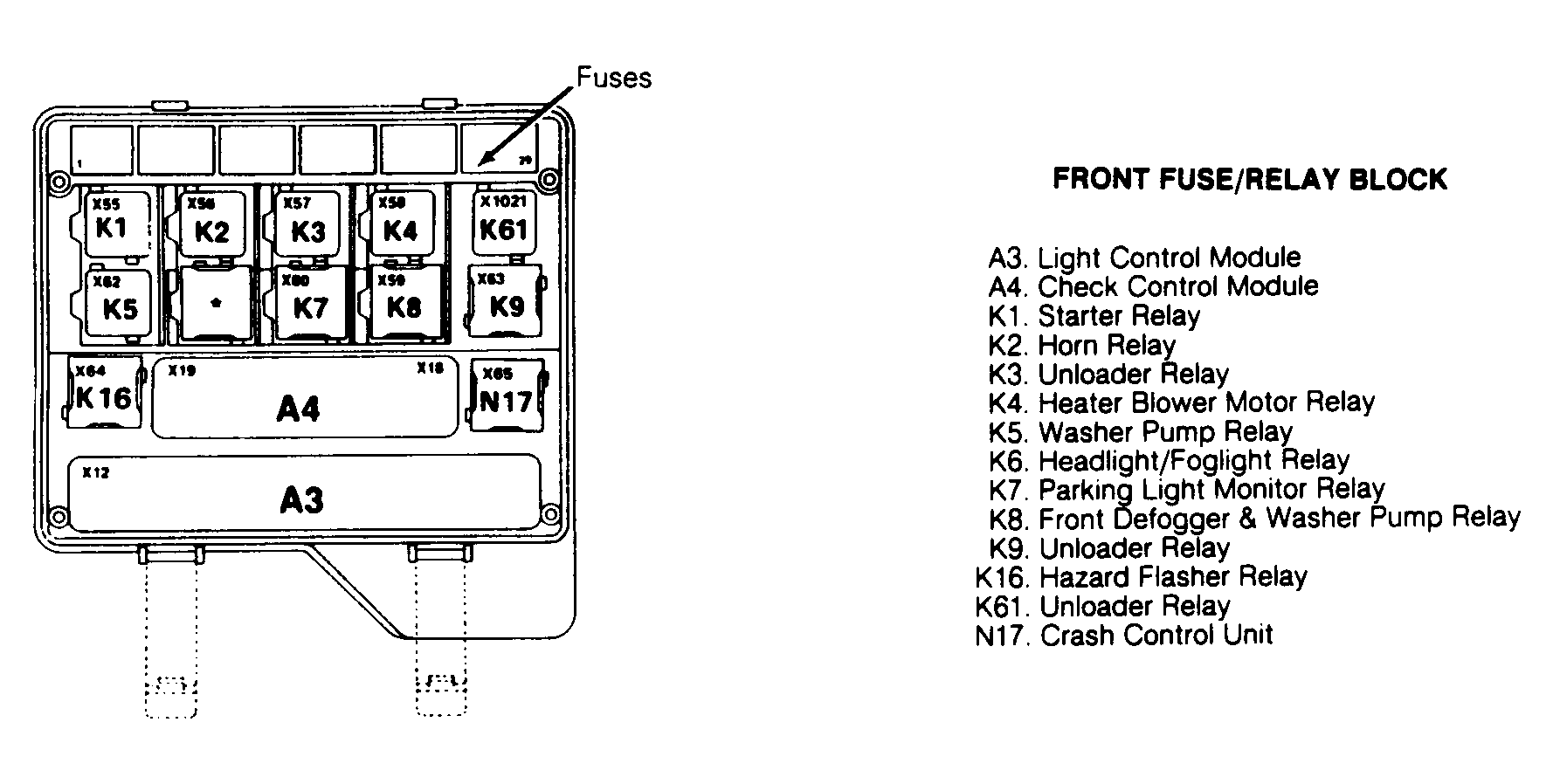

| Check Control Module | In front fuse/relay block. See Figure . |
| Chime Module | Behind left side of dash, on hush panel. |
| Cruise Control Module | In electrical box, behind right front shock tower. |
| Crash Control Unit | In front fuse/relay block. See Figure . |
| EDC Electronic Control Unit | Under right side of rear seat. |
| Electronic Heater Control Unit | Behind front footwells, ahead of plenum. |
| Electronic Throttle Control Unit | In electrical box, behind right front shock tower. |
| Final Stage Unit | On left side of right footwell. |

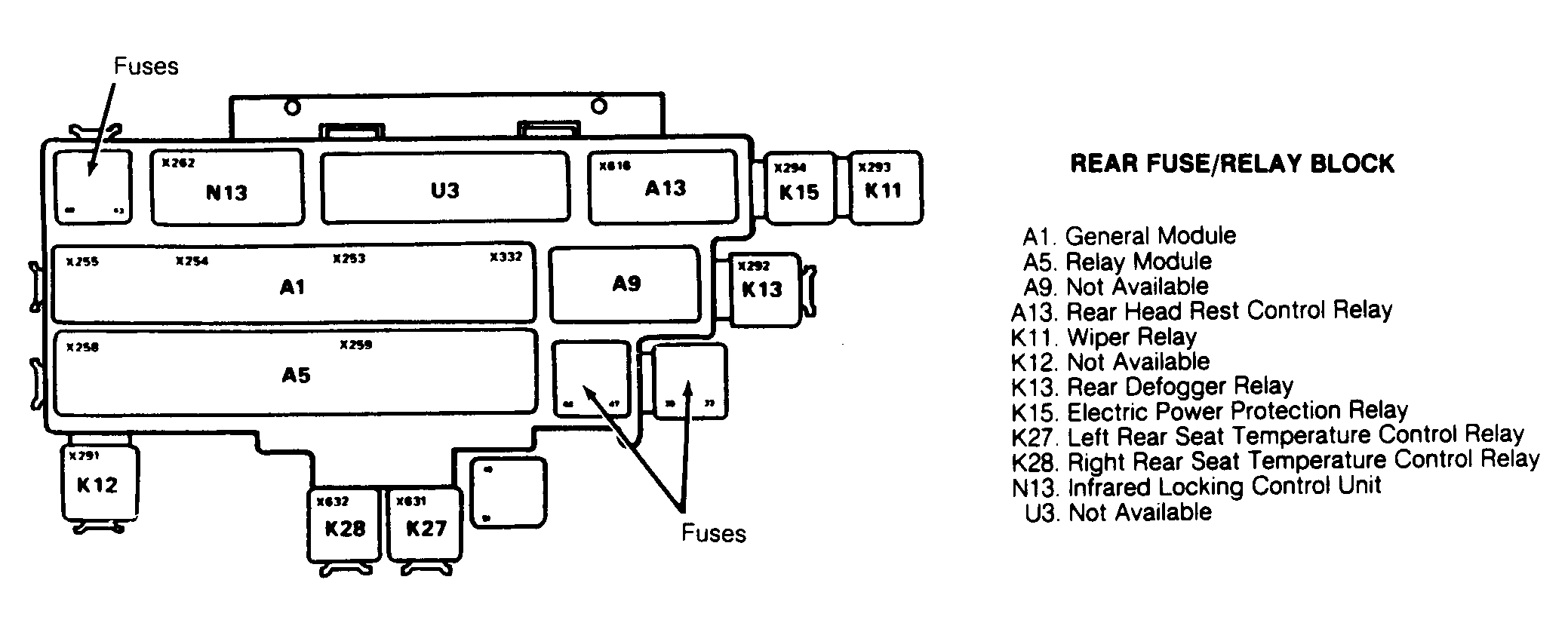

| General Module | In rear fuse/relay block. See Figure . |
| Headlight/Fog Light Module | On left side of engine compartment, in auxiliary fuse/relay block. See Figure . |
| Infrared Logic Control Unit | In rear fuse/relay block. See Figure . |
| Light Control Module | In front fuse/relay block. See Figure . |
| Level Control Unit | Under car, to left of differential. |
| Memory Seat Control Unit | Under driver's seat. |
| Motronic Control Unit | In electrical box, behind right front shock tower. |
| Relay Module | In rear fuse/relay block. See Figure . |
| Seat Belt Control Module | In rear fuse/relay block. See Figure . |
| Servotronic Control Unit | By driver's foot rest, behind speaker. |
| SRS Diagnostic Module | Behind left side of dash, left of steering column. |
| Trailer Control Module | In left side rear corner of trunk. |
| Transmission Control Unit | Behind right kick panel. |
| Wheel Camber Control Unit | Under car, below right side halfshaft. |
