Steering Column: Overhaul

NOTE: Overhaul information not available. For exploded views of steering column and components, see Fig 1 -Fig 5 .

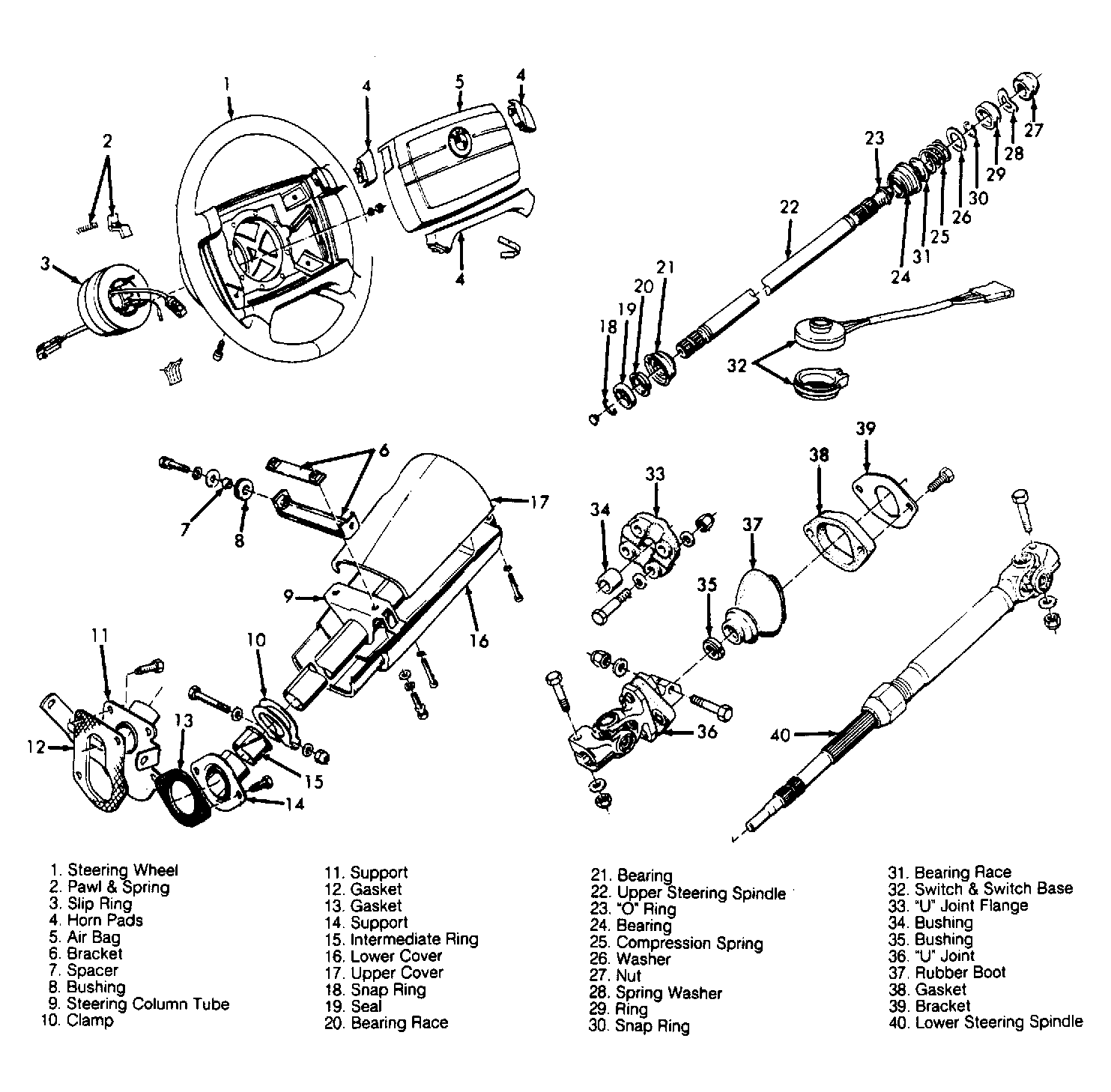

Fig 1: 3 Series Upper & Lower Steering Column Components

Courtesy of BMW OF NORTH AMERICA.

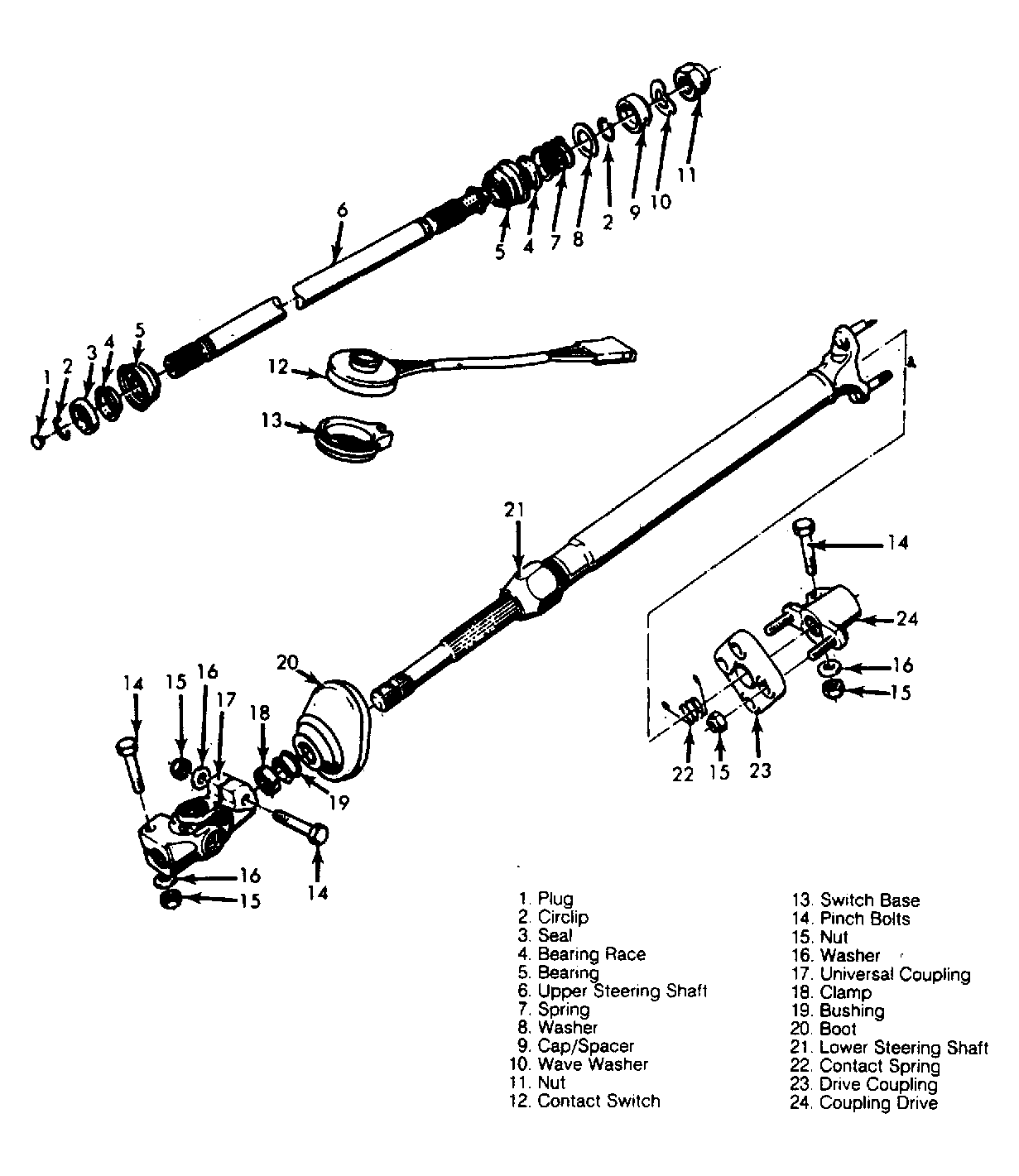

Fig 2: 7 Series Upper & Lower Steering Shafts (5 Series Similar)

Courtesy of BMW OF NORTH AMERICA.

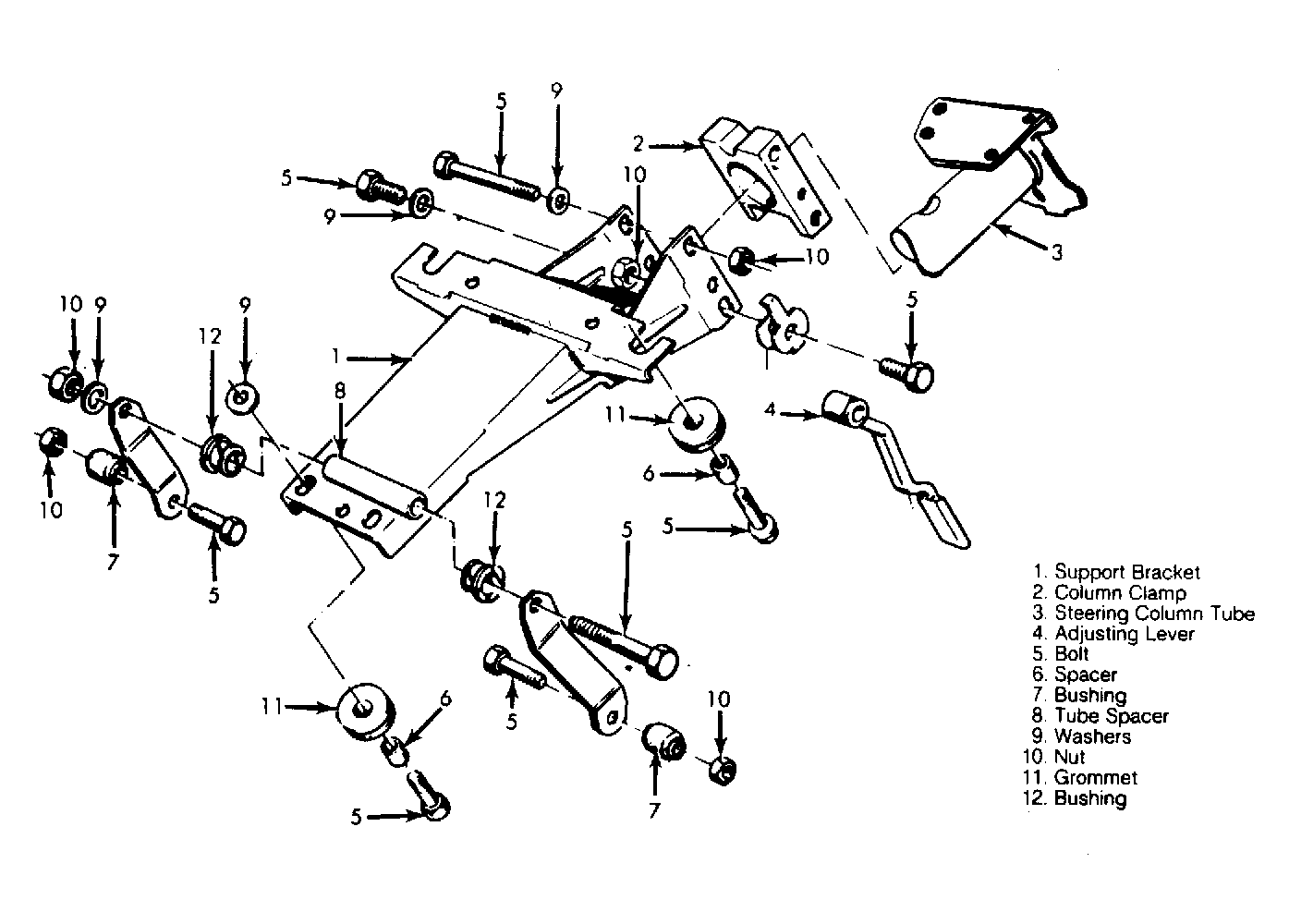

Fig 3: 7 Series Adjustable Column Support System (5 Series Similar)

Courtesy of BMW OF NORTH AMERICA.

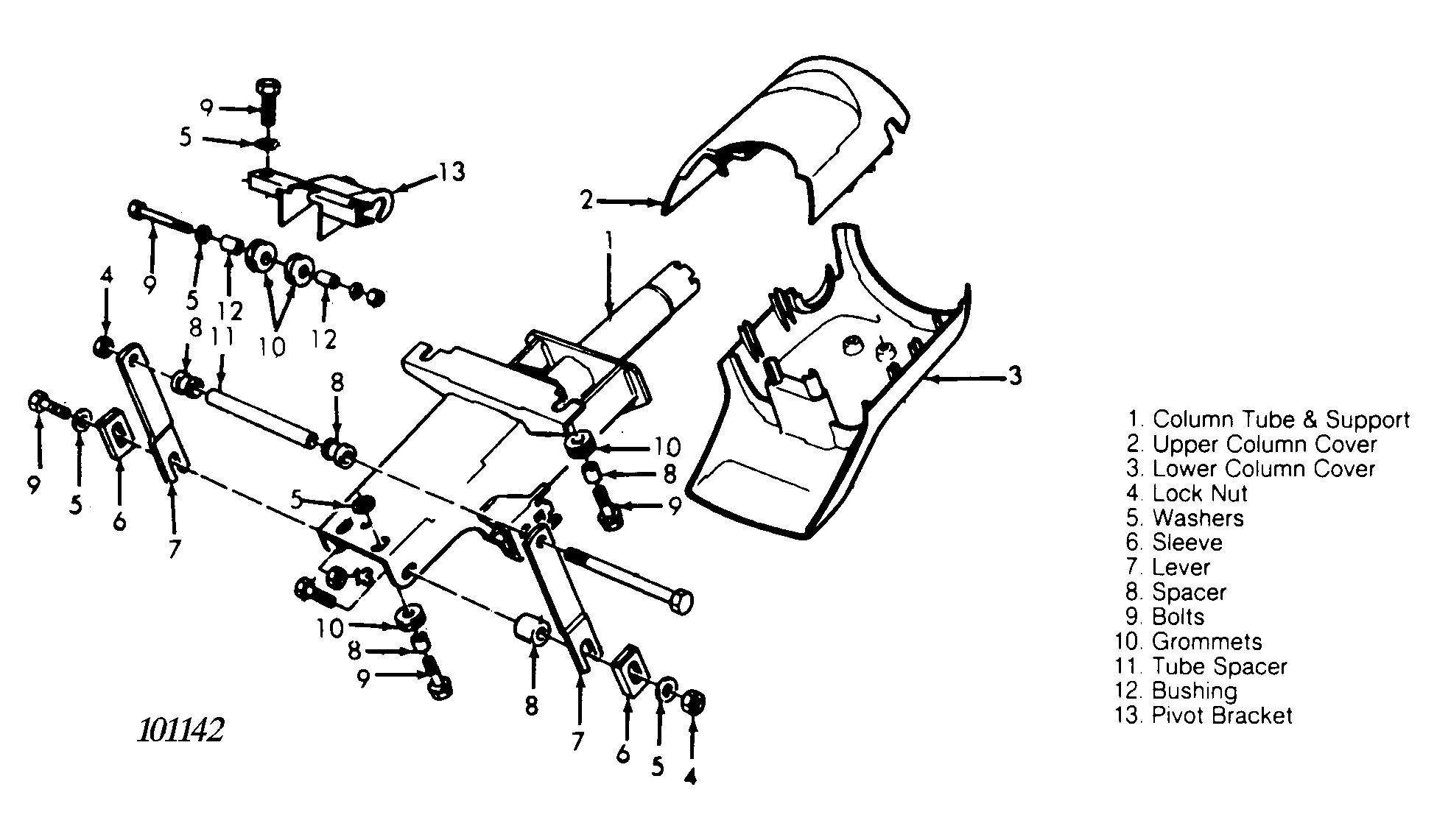

Fig 4: 7 Series Column Support - With SRS (5 Series Similar)

Courtesy of BMW OF NORTH AMERICA.

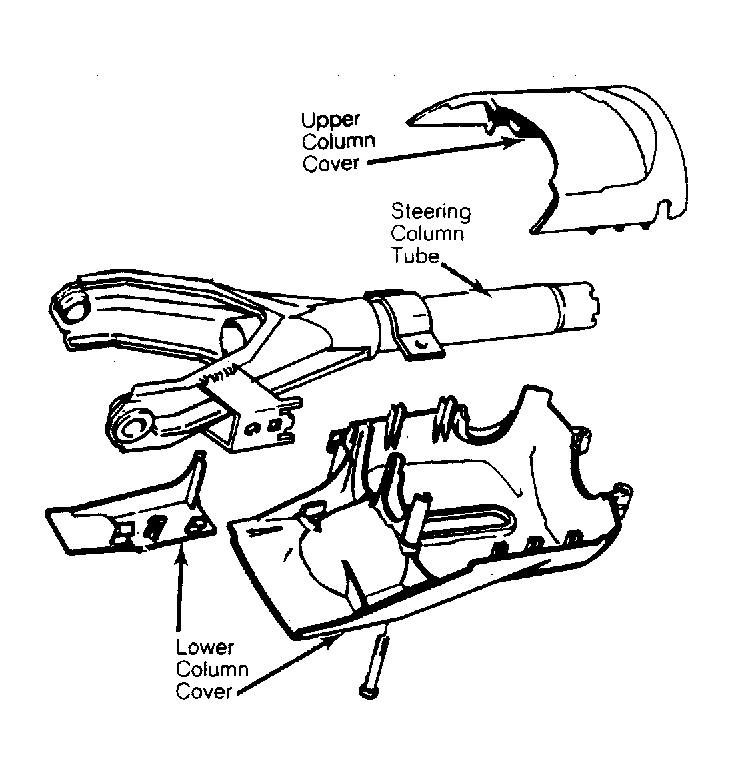

Fig 5: 7 Series Upper Column Tube (5 Series Similar)

Courtesy of BMW OF NORTH AMERICA.
