Control Units/Modules
CONTROL UNITS/MODULES LOCATION
| Component | Location |
|---|---|
| Automatic Heating & A/C Control Unit | Between front footwells, ahead of plenum. |
| ABS Electronic Control Unit | Behind right front shock tower, in E-Box. |
| ABS/ASC Electronic Control Unit | Behind right front shock tower, in E-Box. |
| ABS/ASC + T Control Unit | Behind right front shock tower, in E-Box. |
| Anti-Theft Module (Alpine) | Below left side of dash. |

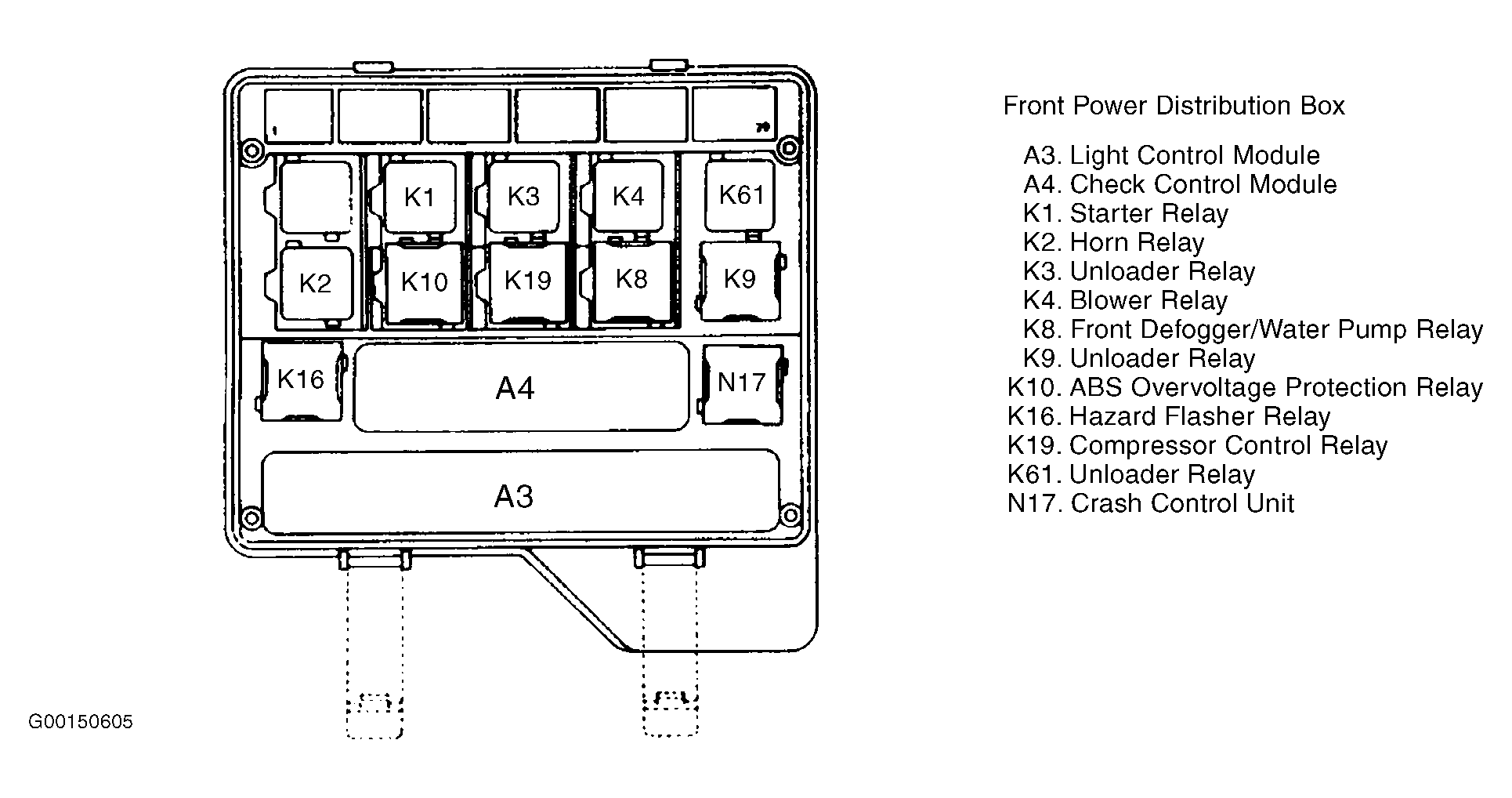

| Check Control Module | In front power distribution box. See Figure . |
| Chime Module | Under left side of dash, left of steering column. |
| Crash Control Unit | In front power distribution box. See Figure . |
| Cruise Control Module | Behind right front shock tower, in E-Box. |
| EDC Electronic Control Unit | Below right side of rear seat, near battery. |
| Electronic Transmission Control Unit | Behind right kick panel. |
| EML Electronic Control Unit | Behind right front shock tower, in E-Box. |

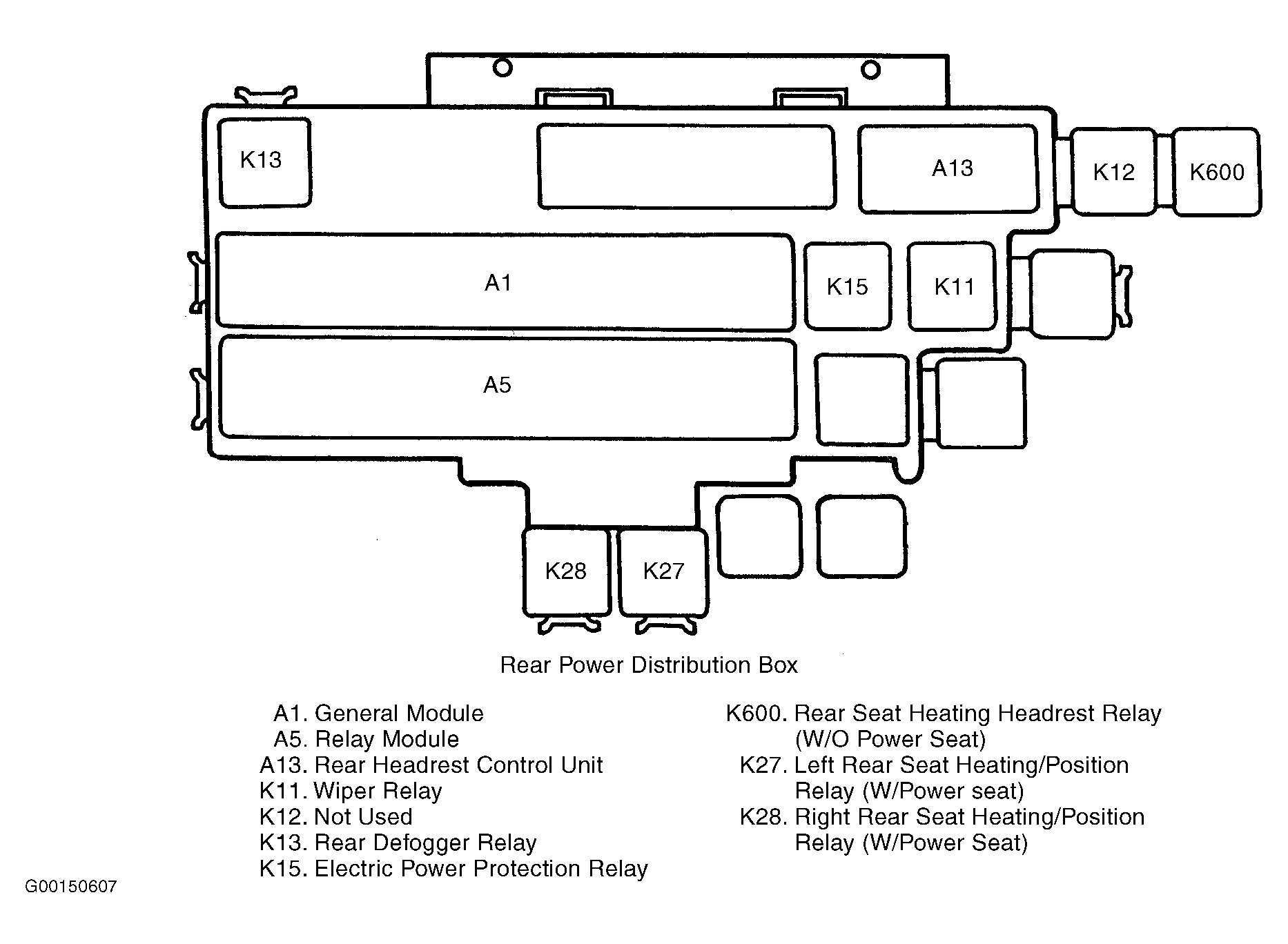

| General Module | In rear power distribution box. See Figure . |

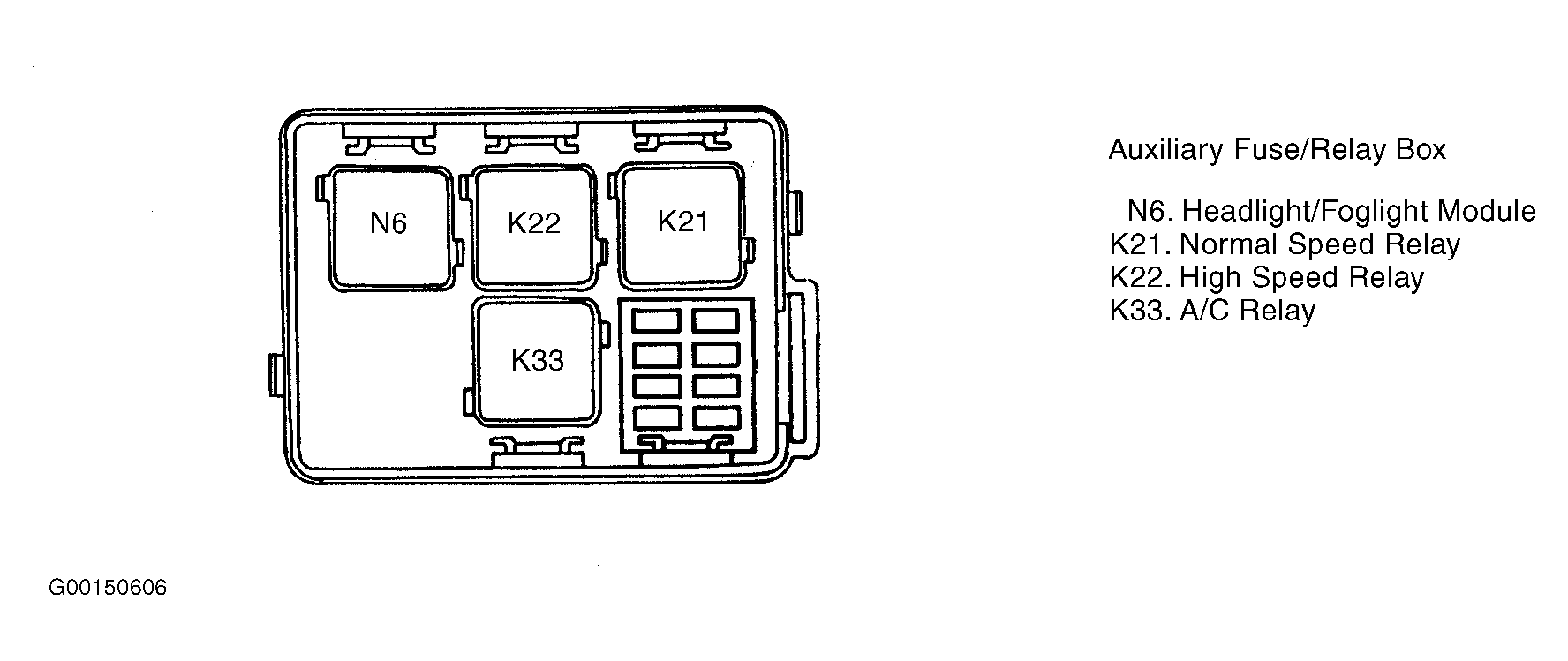

| Headlight/Foglight Module | On left side of engine compartment, in auxiliary fuse/relay box. See Figure . |
| Light Control Module | In front power distribution box. See Figure . |
| Lock Sensor Control Unit | Behind left kick panel. |
| Motronic Control Unit I | Behind right front shock tower, in E-Box. |
| Motronic Control Unit II | Behind right front shock tower, in E-Box. |
| On-Board Computer | Right of radio. |
| Park/Ventilation Relay Box | Above glove box. |
| Rear Headrest Control Unit | In rear power distribution box. See Figure . |
| Relay Module | In rear power distribution box. See Figure . |
| Seat/Mirror/Steering Column Memory Control Module | Under driver seat. |
| Servotronic Control Unit | Behind left kick panel. |
| Supplemental Restraints System Diagnostic Module | Behind left side of dash, left of steering column. |
| Wheel Camber Control Unit | Under car, above right half-shaft. |
