Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

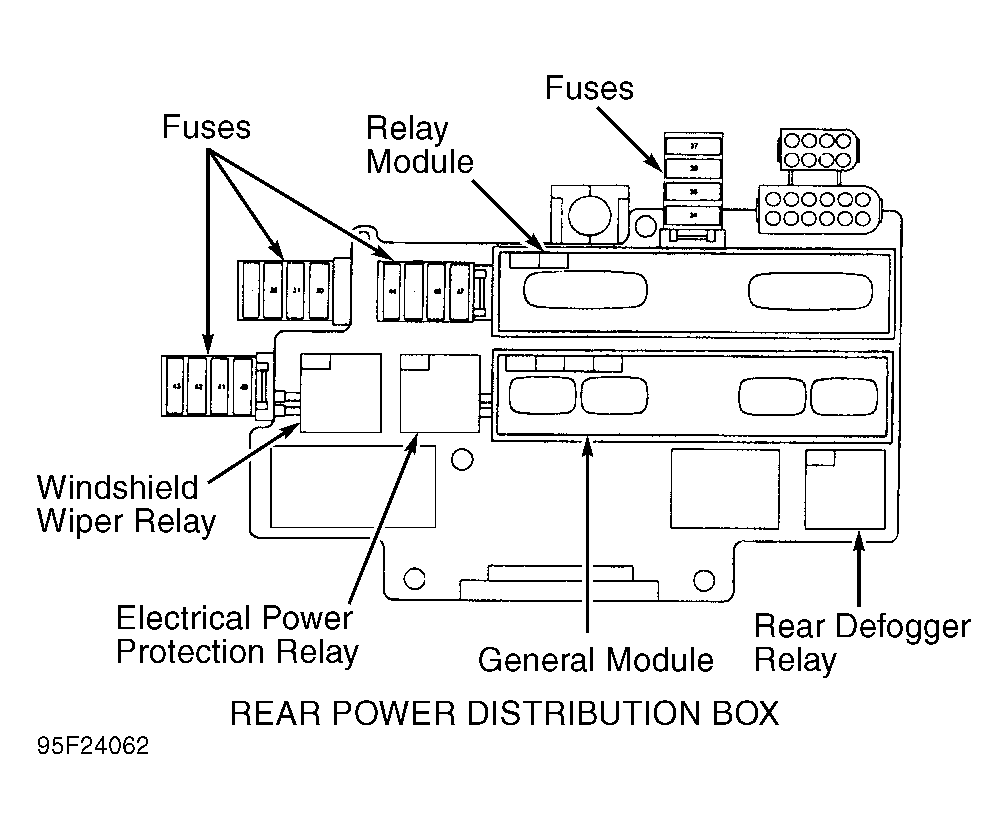

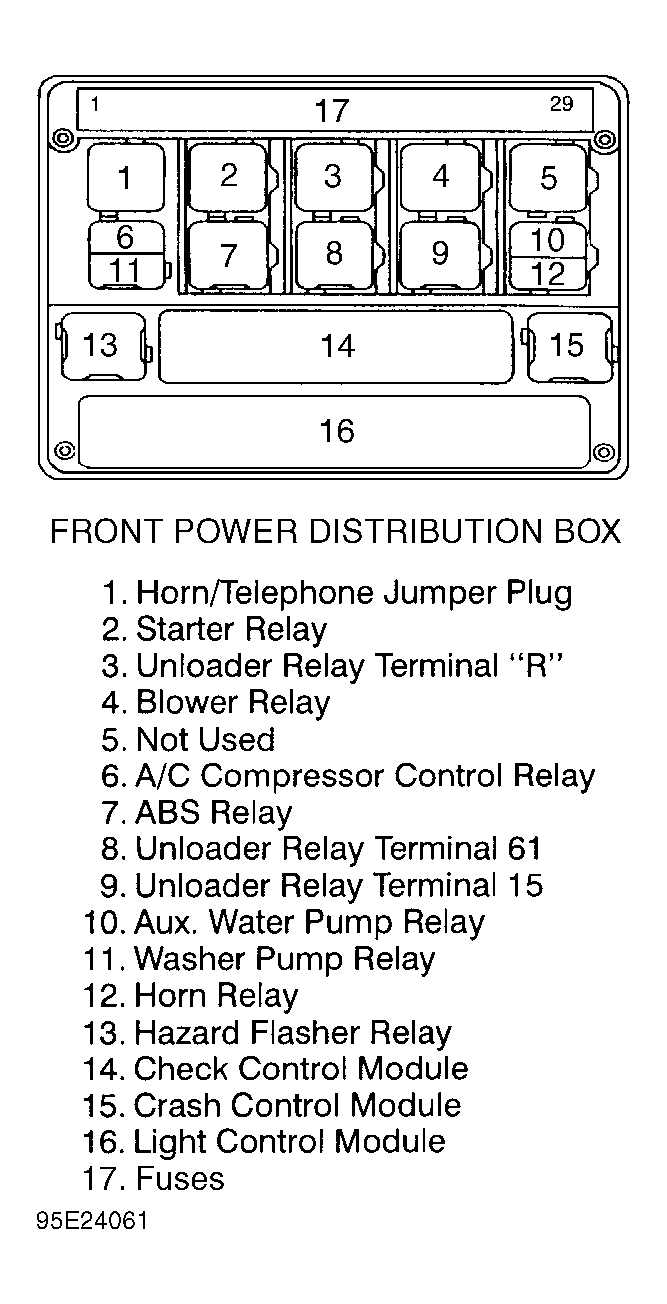

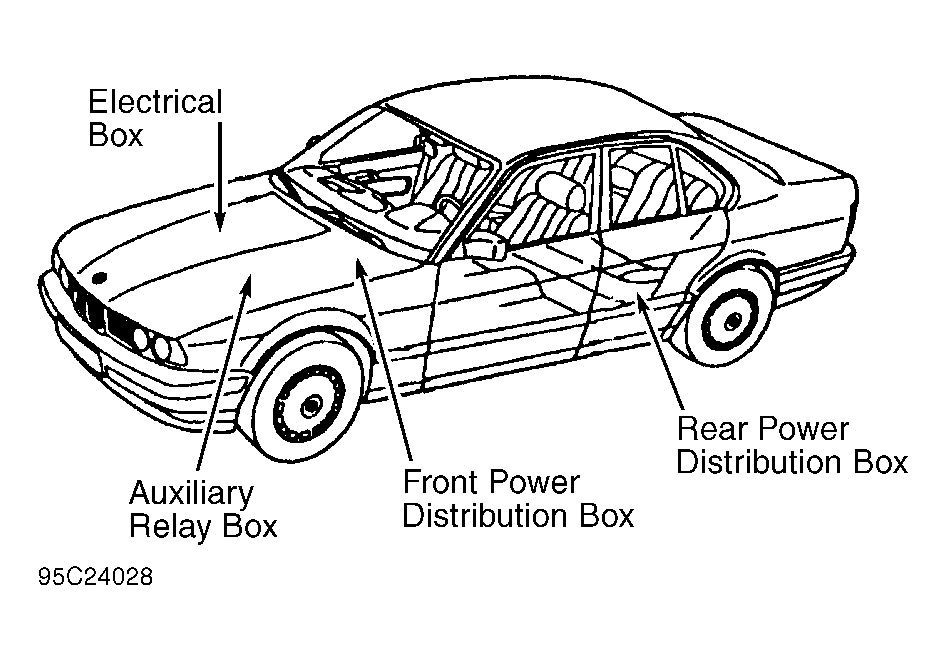

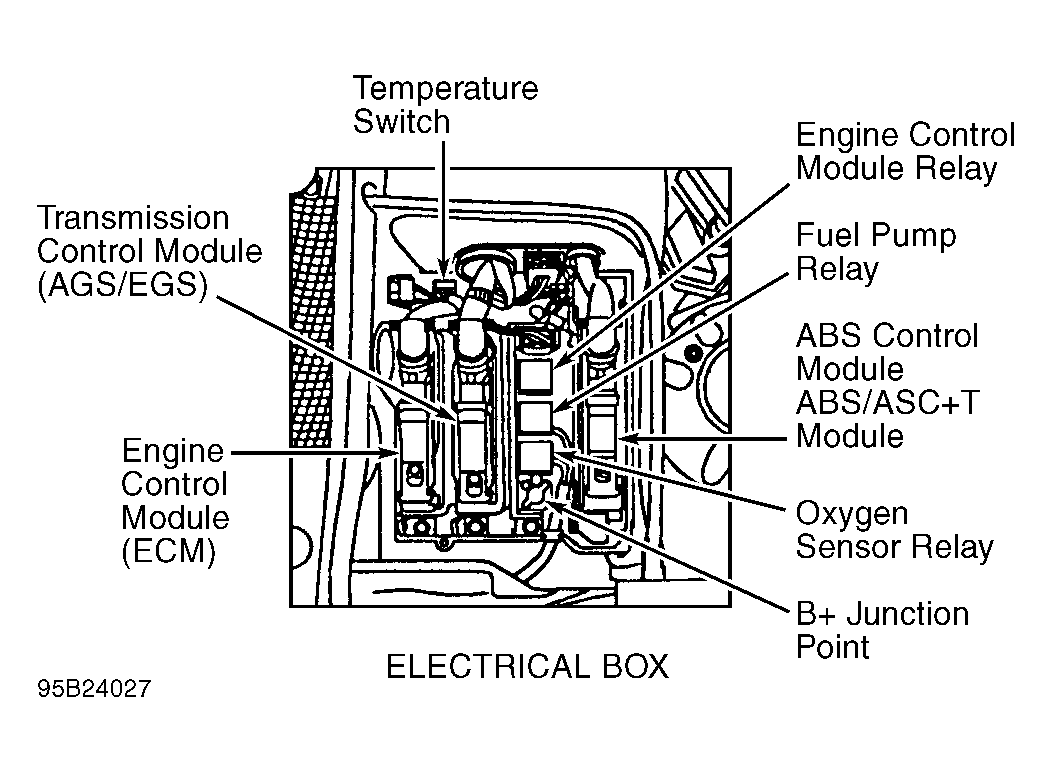

Fig 1: Component Locations (1 Of 5)

Fig 2: Component Locations (2 Of 5)

Fig 3: Component Locations (3 Of 5)

Fig 4: Component Locations (4 Of 5)

Fig 5: Component Locations (5 Of 5)
