Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | On left rear side of engine compartment. |

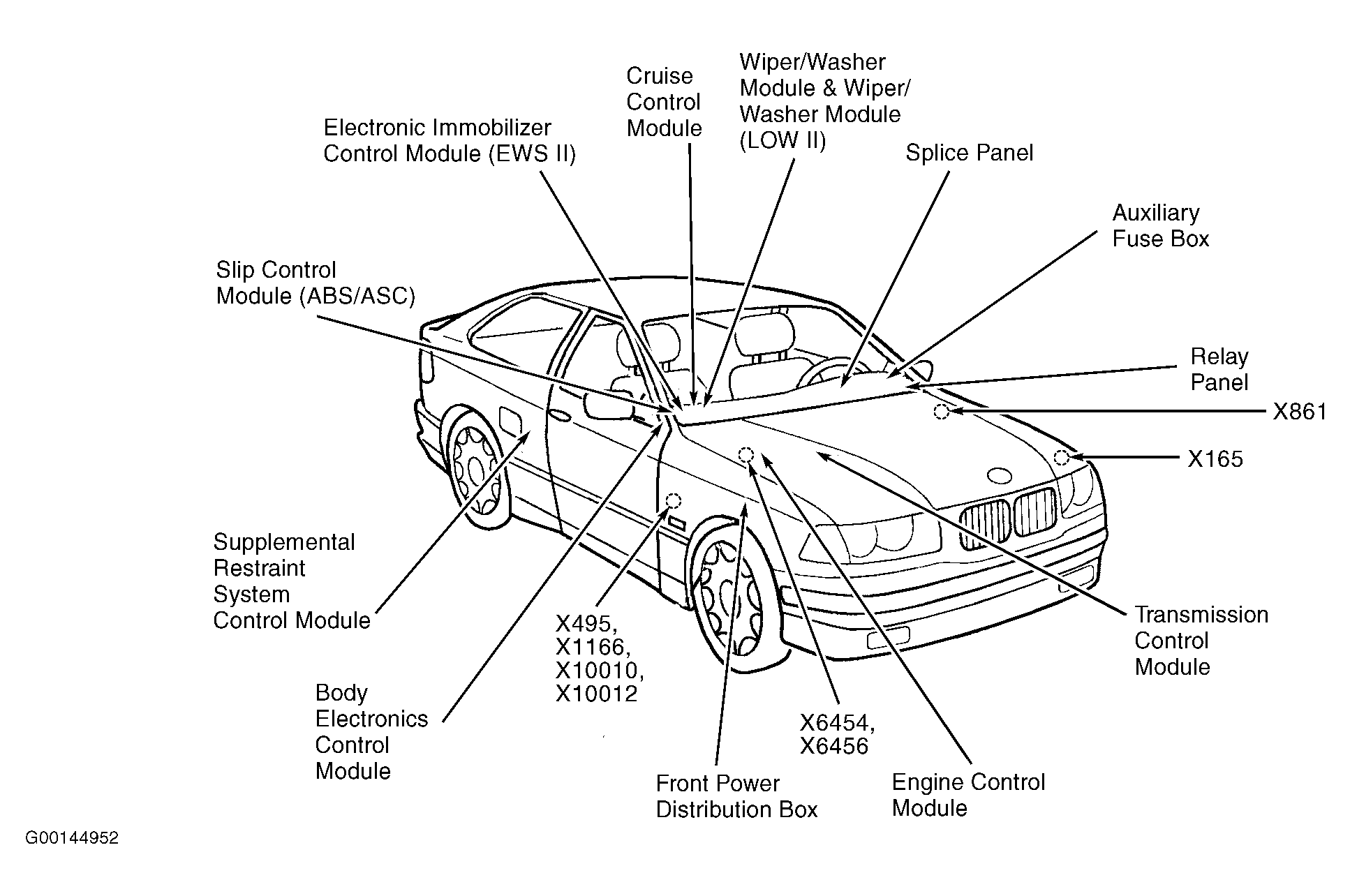

| Body Electronics Control Module | Behind glove compartment. See Figure . |
| Chime Module | Below left side of dash. |

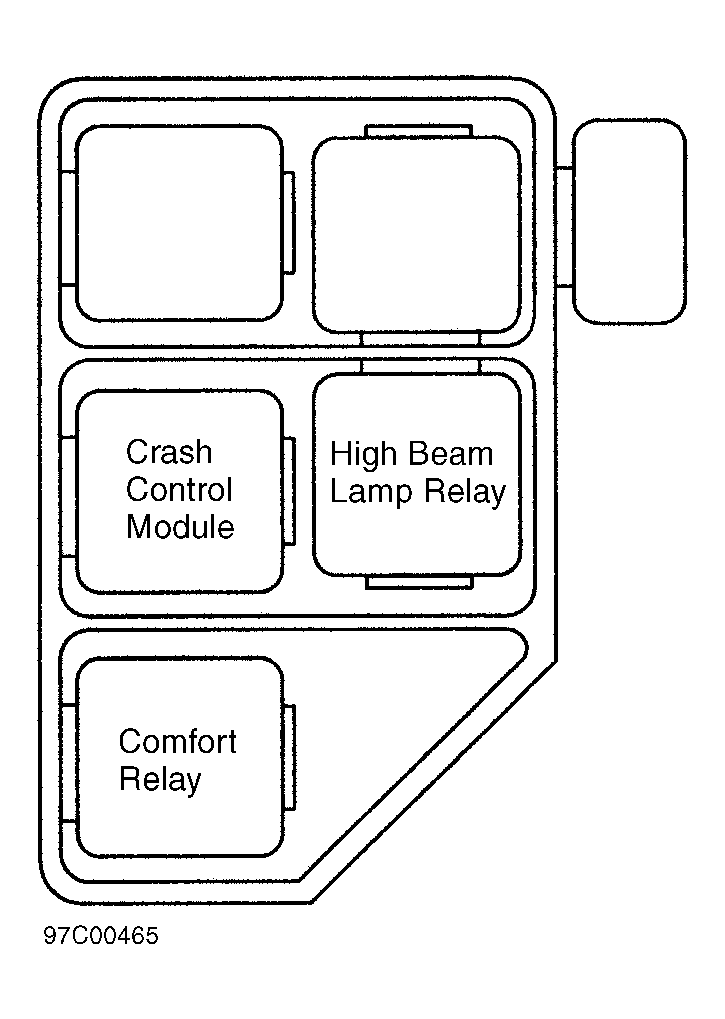

| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Module | Under right side of dash, behind glove compartment. See Figure . |
| Electronic Immobilizer Control Module (EWS II) | Under right side of dash, behind glove compartment. See Figure . |
| Engine Control Module | On right rear corner of engine compartment. See Figure . |
| Integrated Heating - and Climate Control Module | In center of center console. |
| Rear Wiper/Washer Interval Control Module | In liftgate. |
| Slip Control Module (ABS/ASC) | Behind glove compartment. See Figure . |
| Sun Roof Control Assembly | Under roof center panel. |
| Supplemental Restraint System Control Module | Under right rear seat. See Figure . |
| Transmission Control Module | On right rear corner of engine compartment. See Figure . |
| Transmitter Module (EWS II) | On left side of steering column. |
| Wiper/Washer Module | Behind glove compartment. See Figure . |
| Wiper/Washer Module (LOW II) | Behind glove compartment. See Figure . |
