Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

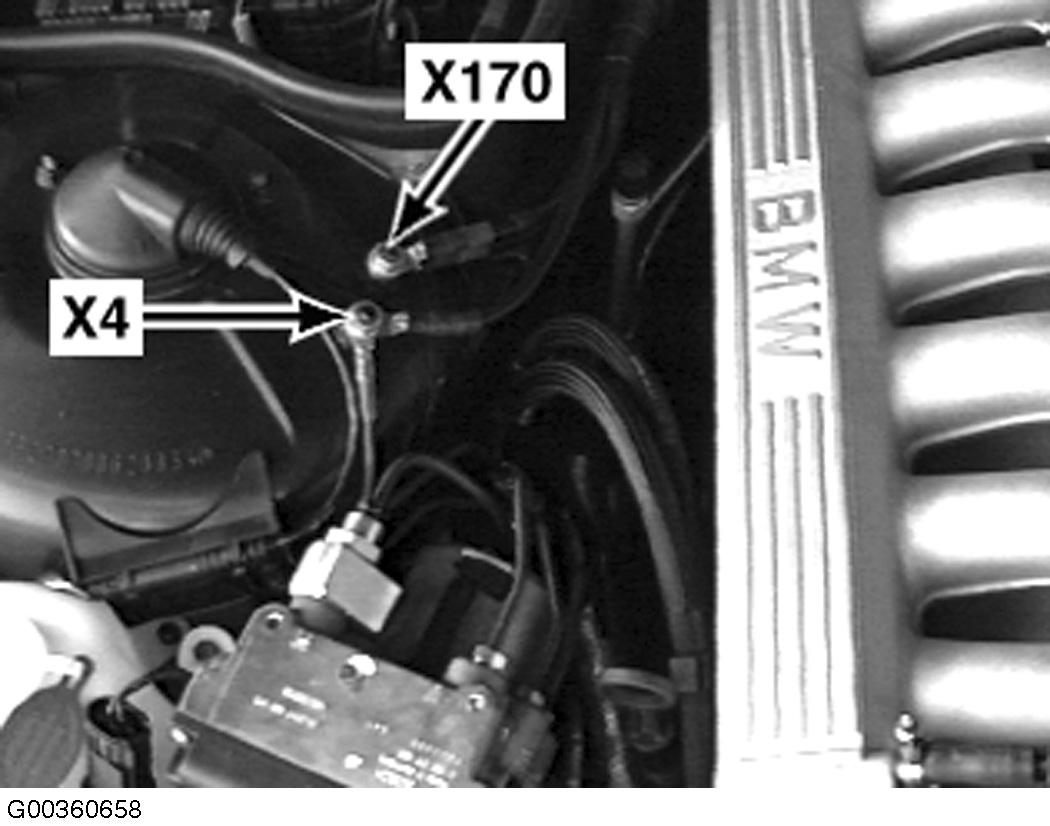

Fig 1: Right Side Of Engine Compartment

G00360658

Courtesy of BMW OF NORTH AMERICA, INC.

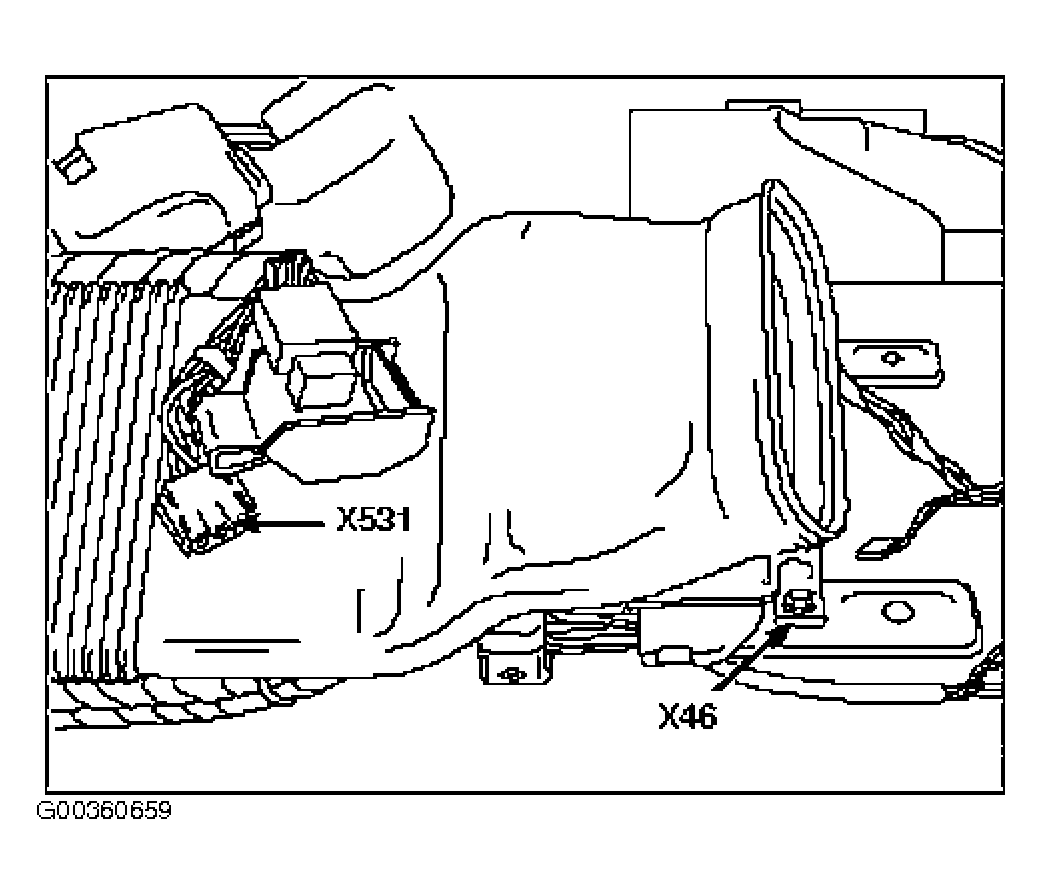

Fig 2: Rear Center Console

G00360659

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Left Door Sill

G00360660

Courtesy of BMW OF NORTH AMERICA, INC.

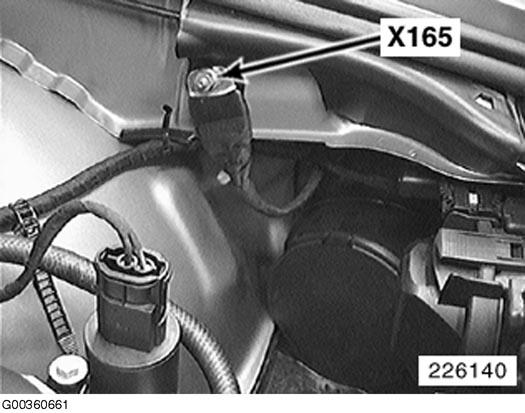

Fig 4: Left Front Of Engine Compartment

G00360661

Courtesy of BMW OF NORTH AMERICA, INC.

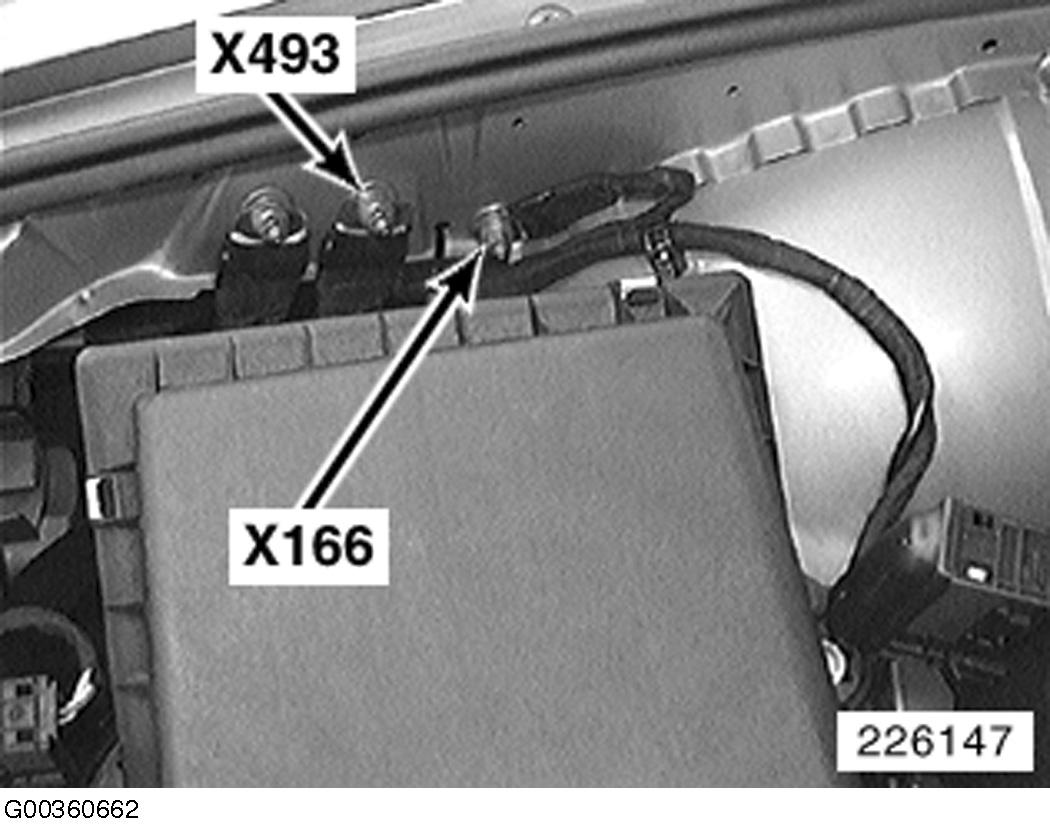

Fig 5: Right Front Of Engine Compartment

G00360662

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Below Glove Box

G00360663

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Below Glove Box

G00360664

Courtesy of BMW OF NORTH AMERICA, INC.

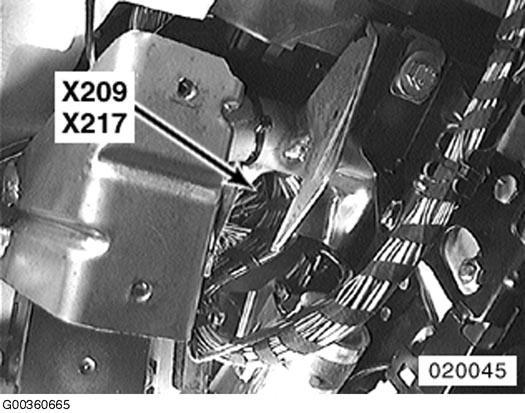

Fig 8: Below Left Side Of Dash

G00360665

Courtesy of BMW OF NORTH AMERICA, INC.

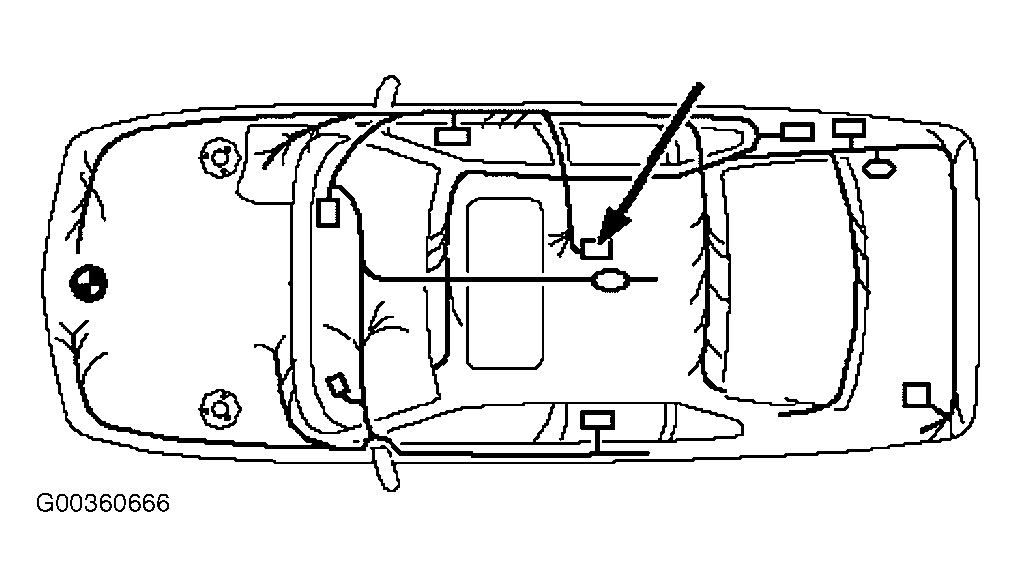

Fig 9: Rear Center Console

G00360666

Courtesy of BMW OF NORTH AMERICA, INC.

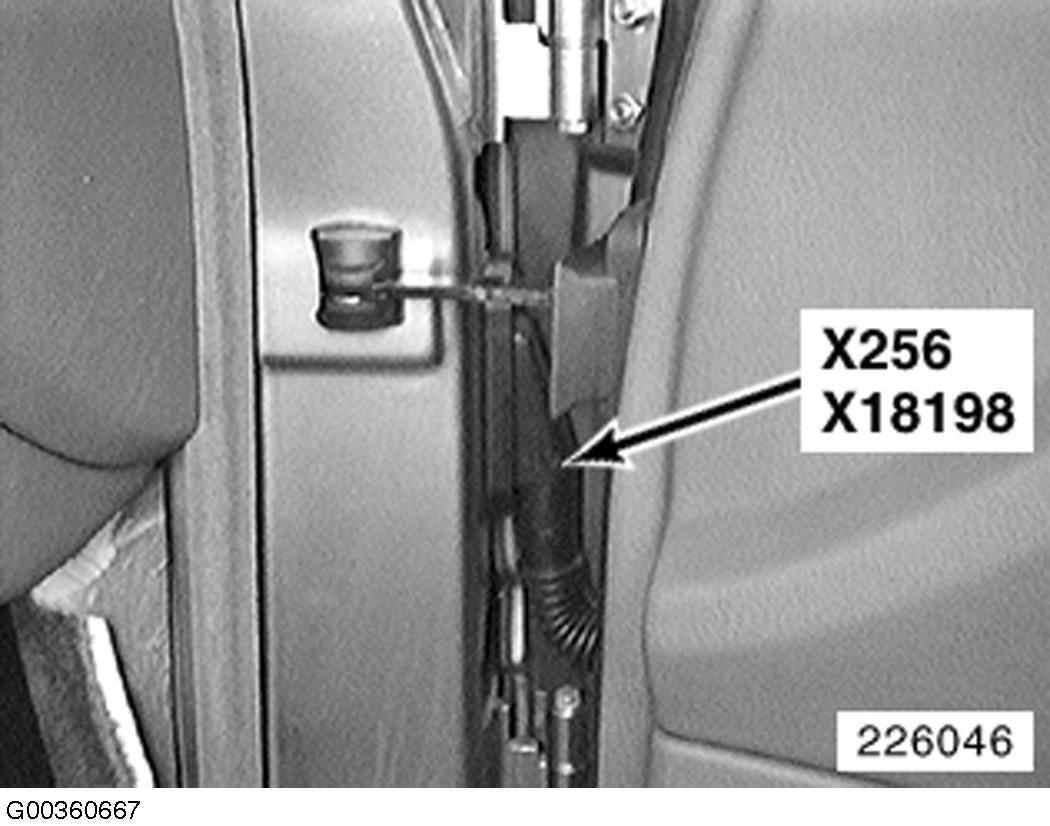

Fig 10: Lower Right "A" Pillar

G00360667

Courtesy of BMW OF NORTH AMERICA, INC.

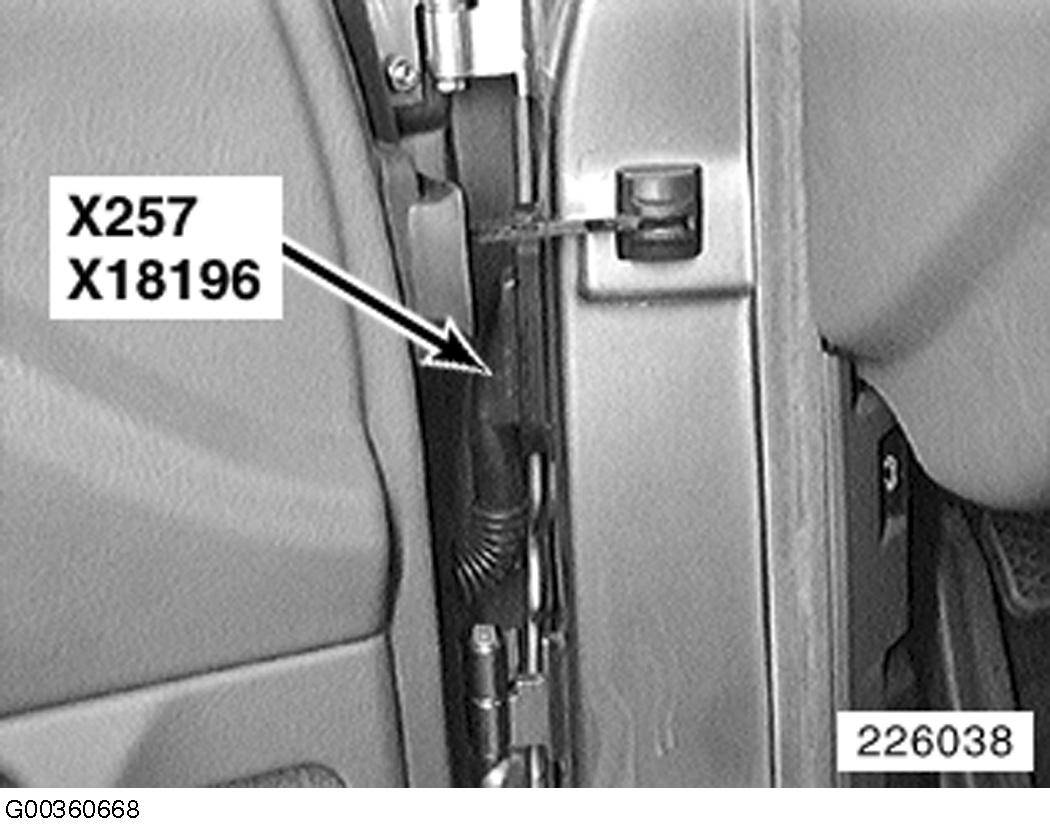

Fig 11: Lower Left "A" Pillar

G00360668

Courtesy of BMW OF NORTH AMERICA, INC.

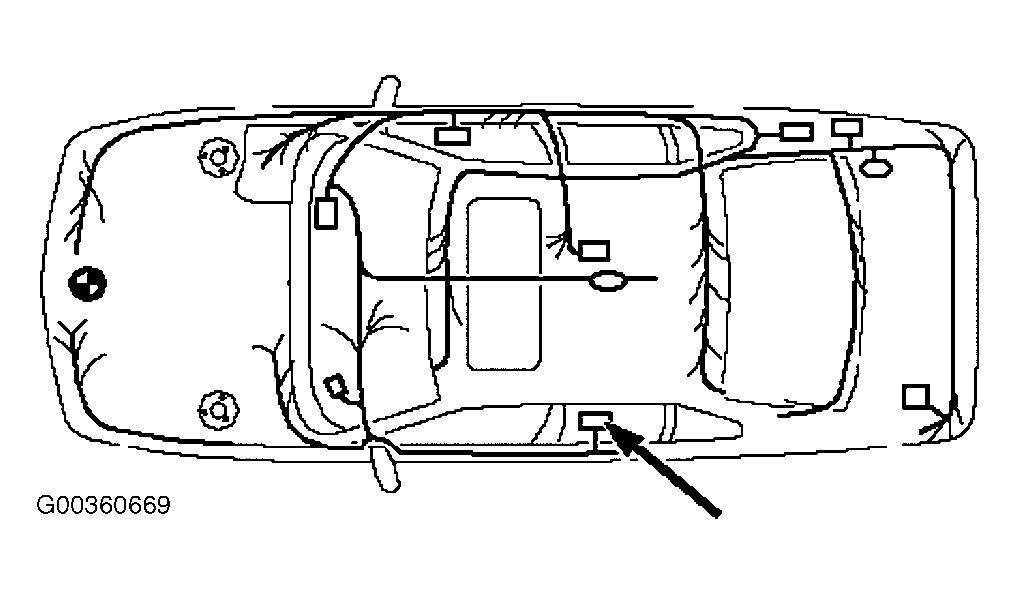

Fig 12: Left Rear Sill

G00360669

Courtesy of BMW OF NORTH AMERICA, INC.

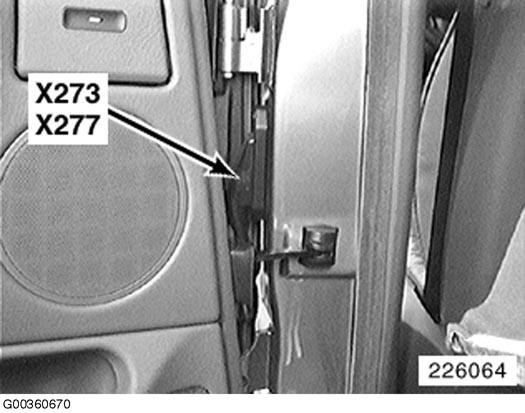

Fig 13: Lower Left "B" Pillar

G00360670

Courtesy of BMW OF NORTH AMERICA, INC.

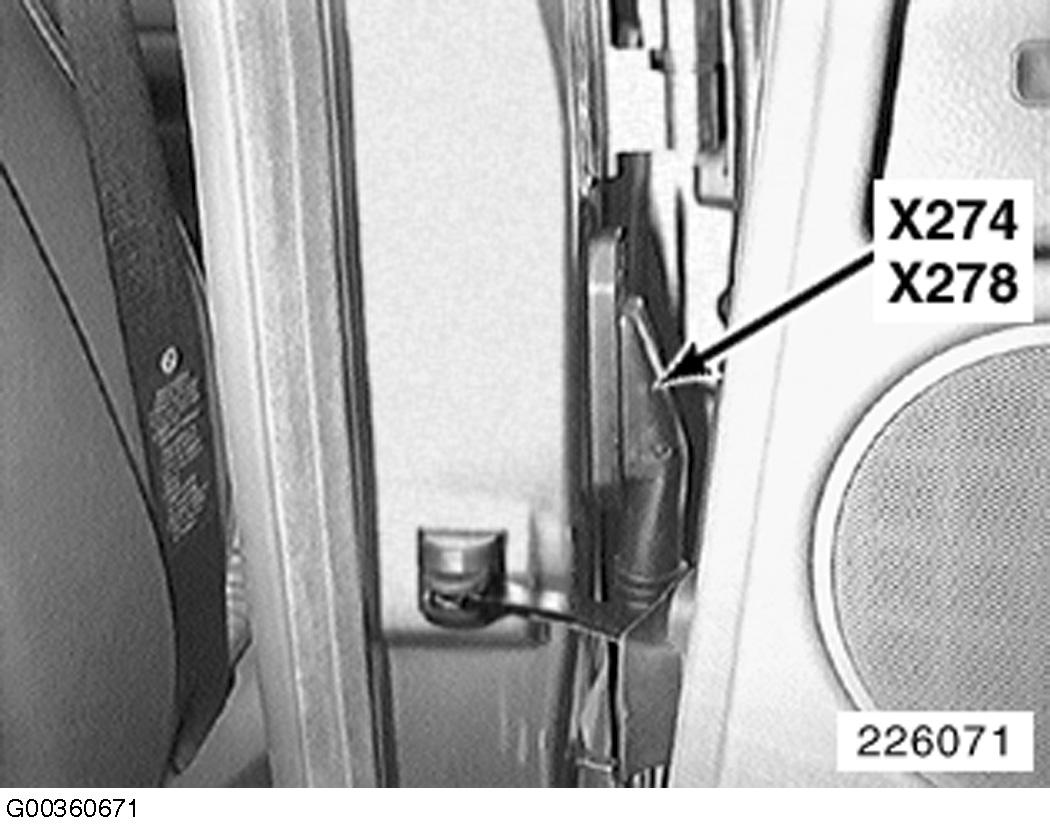

Fig 14: Lower Right "B" Pillar

G00360671

Courtesy of BMW OF NORTH AMERICA, INC.

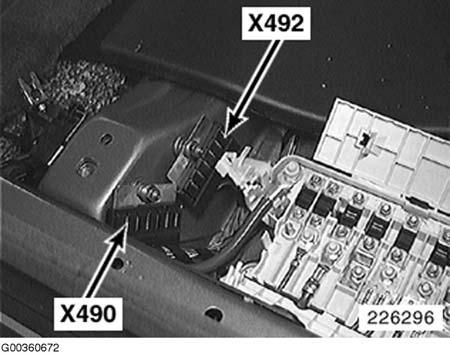

Fig 15: Right Door Sill

G00360672

Courtesy of BMW OF NORTH AMERICA, INC.

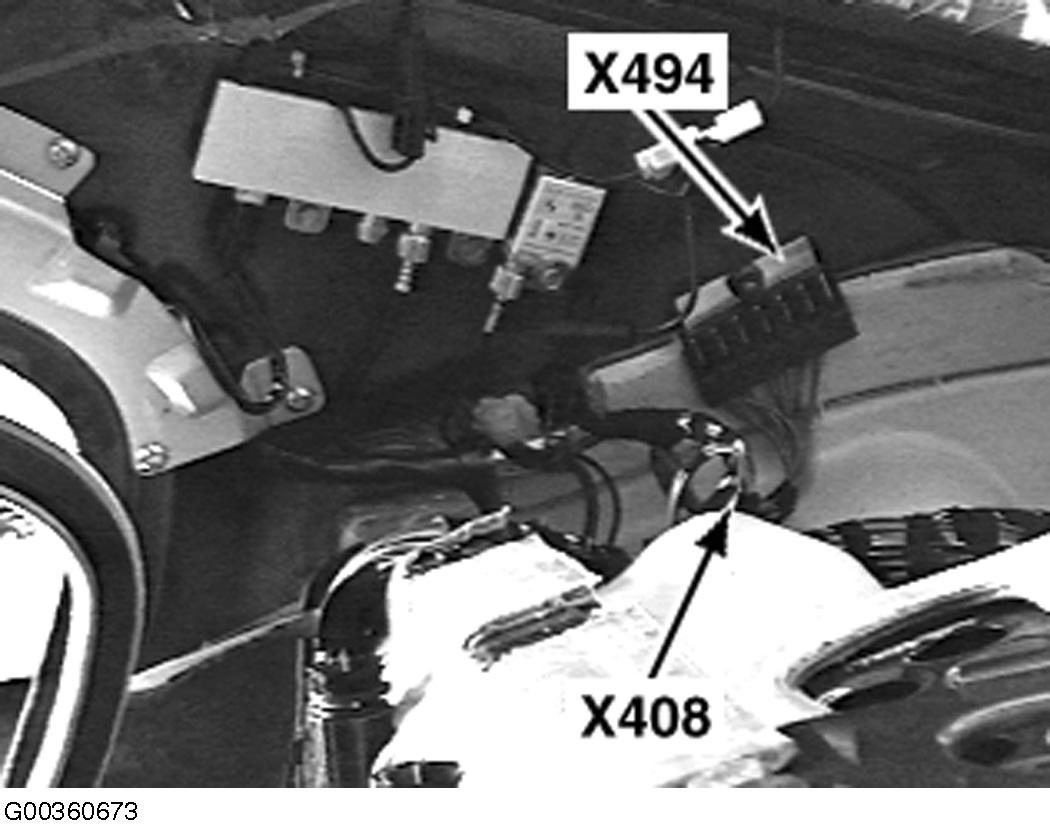

Fig 16: Right "C" Pillar

G00360673

Courtesy of BMW OF NORTH AMERICA, INC.

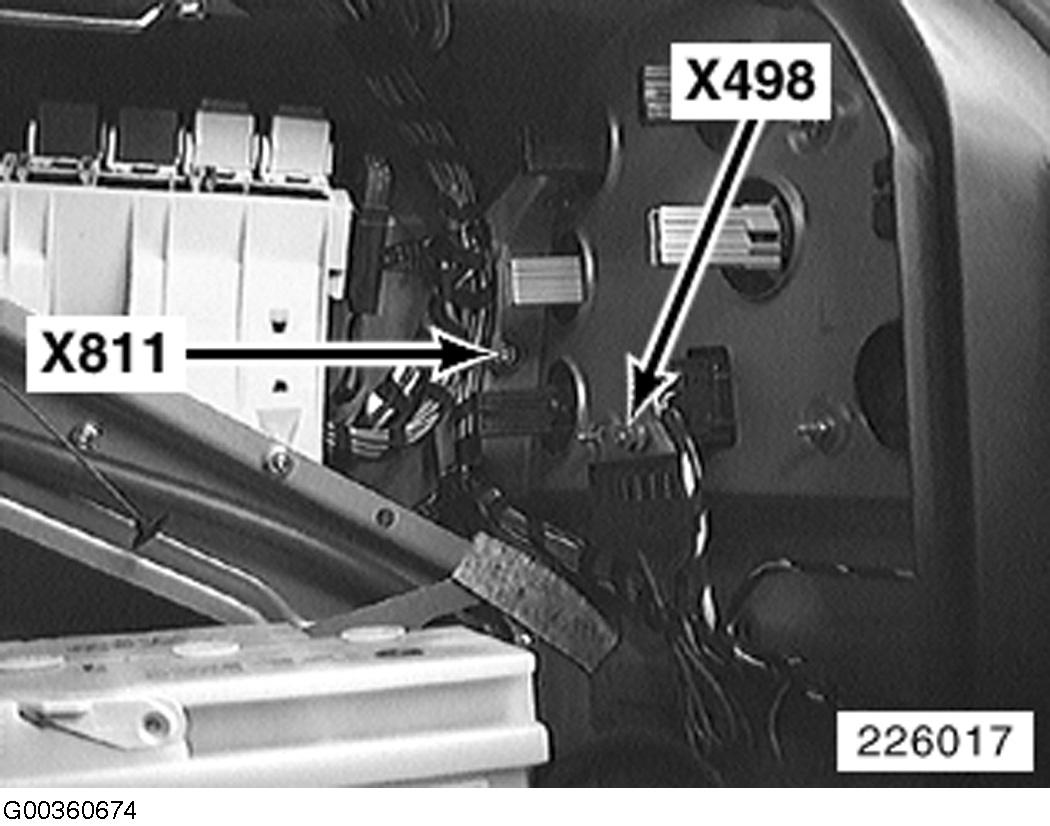

Fig 17: Right Rear Of Luggage Compartment

G00360674

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Below Glove Box

G00360675

Courtesy of BMW OF NORTH AMERICA, INC.

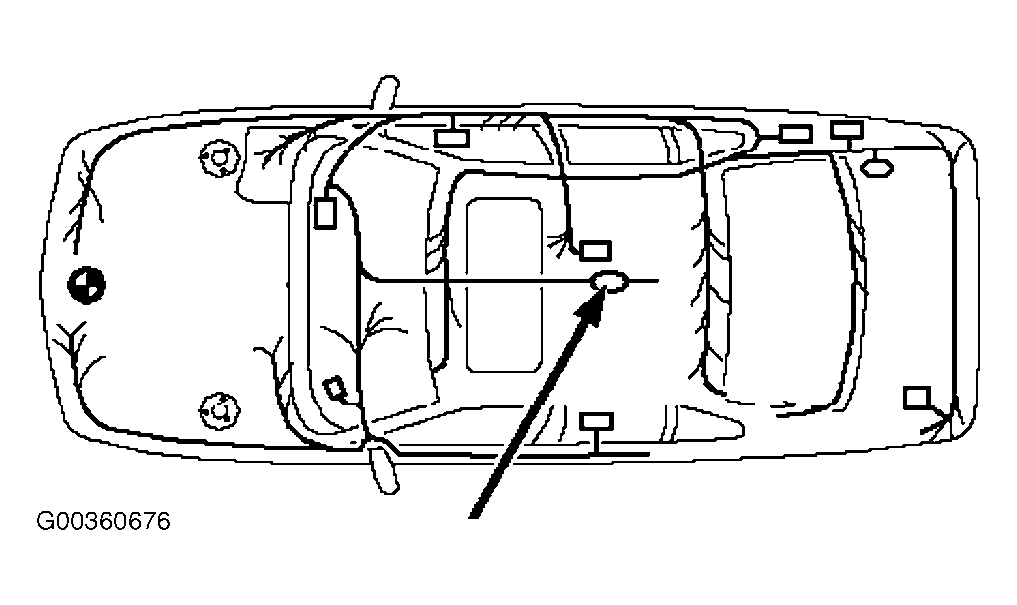

Fig 19: Rear Center Console

G00360676

Courtesy of BMW OF NORTH AMERICA, INC.

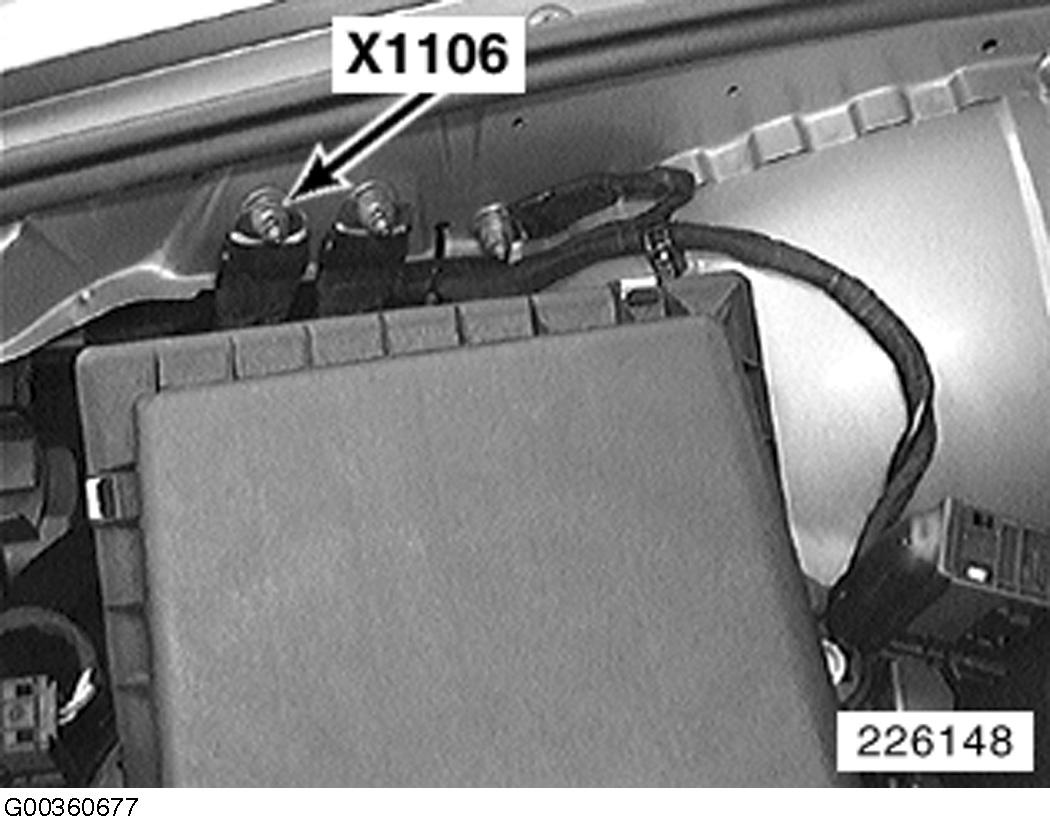

Fig 20: Right Side Of Engine Compartment

G00360677

Courtesy of BMW OF NORTH AMERICA, INC.

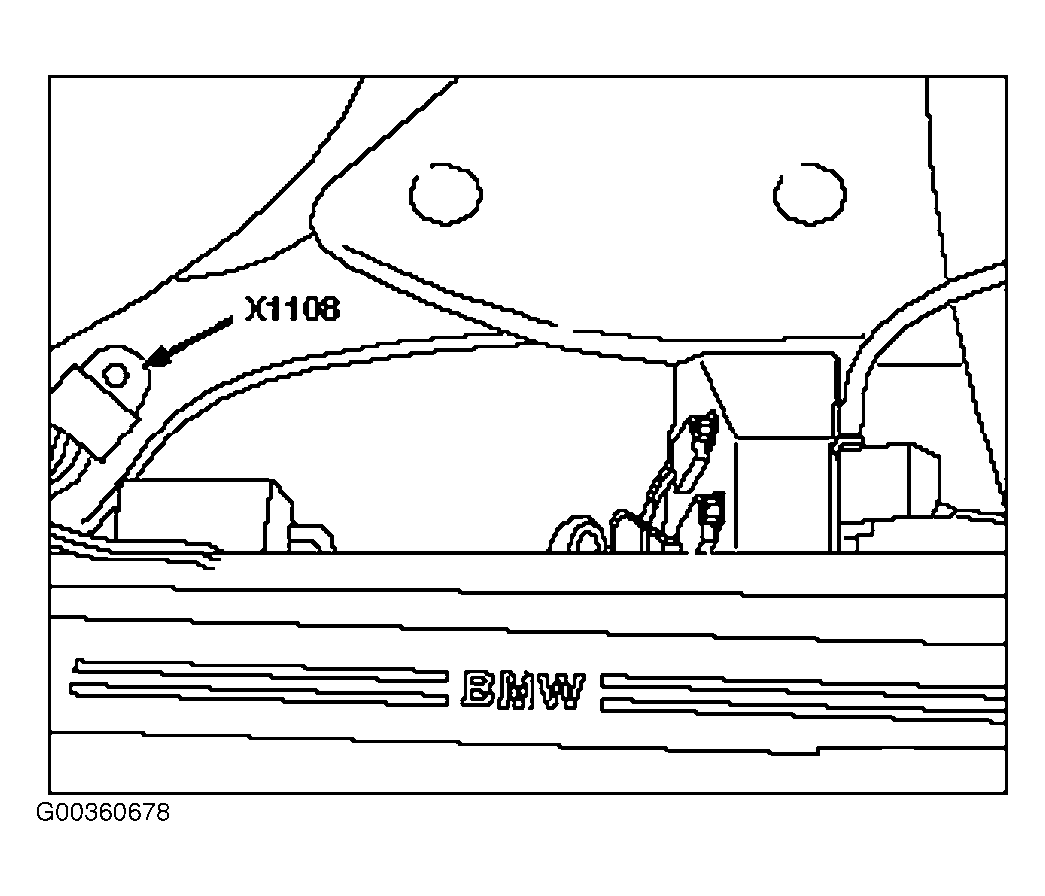

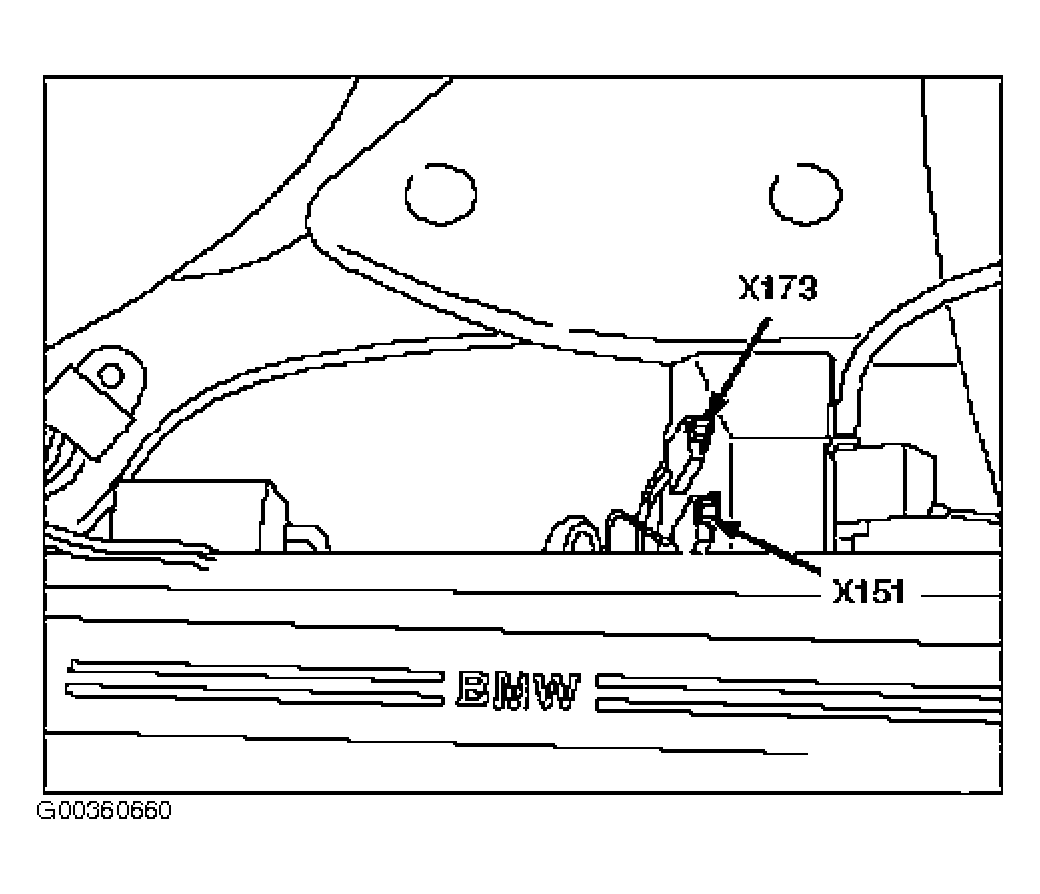

Fig 21: Left Door Sill

G00360678

Courtesy of BMW OF NORTH AMERICA, INC.

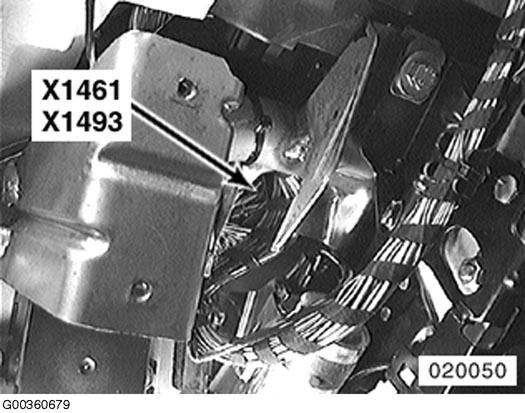

Fig 22: Left Side Of Dash

G00360679

Courtesy of BMW OF NORTH AMERICA, INC.

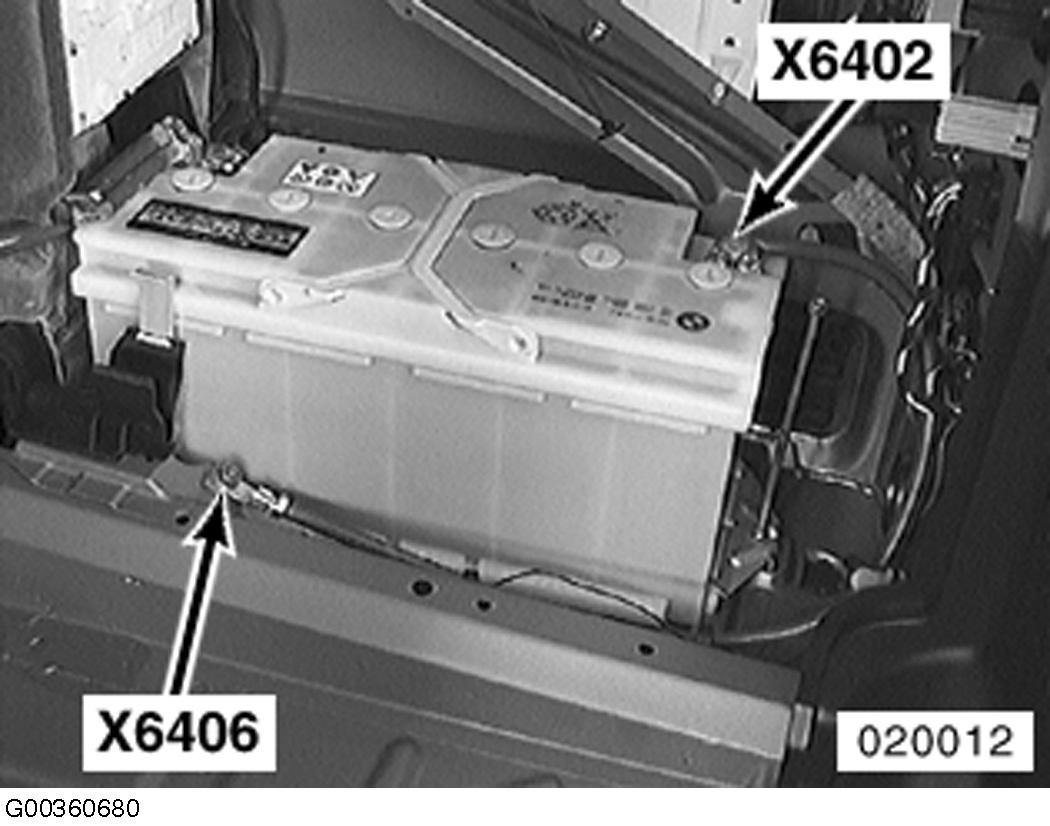

Fig 23: Right Rear Of Luggage Compartment

G00360680

Courtesy of BMW OF NORTH AMERICA, INC.

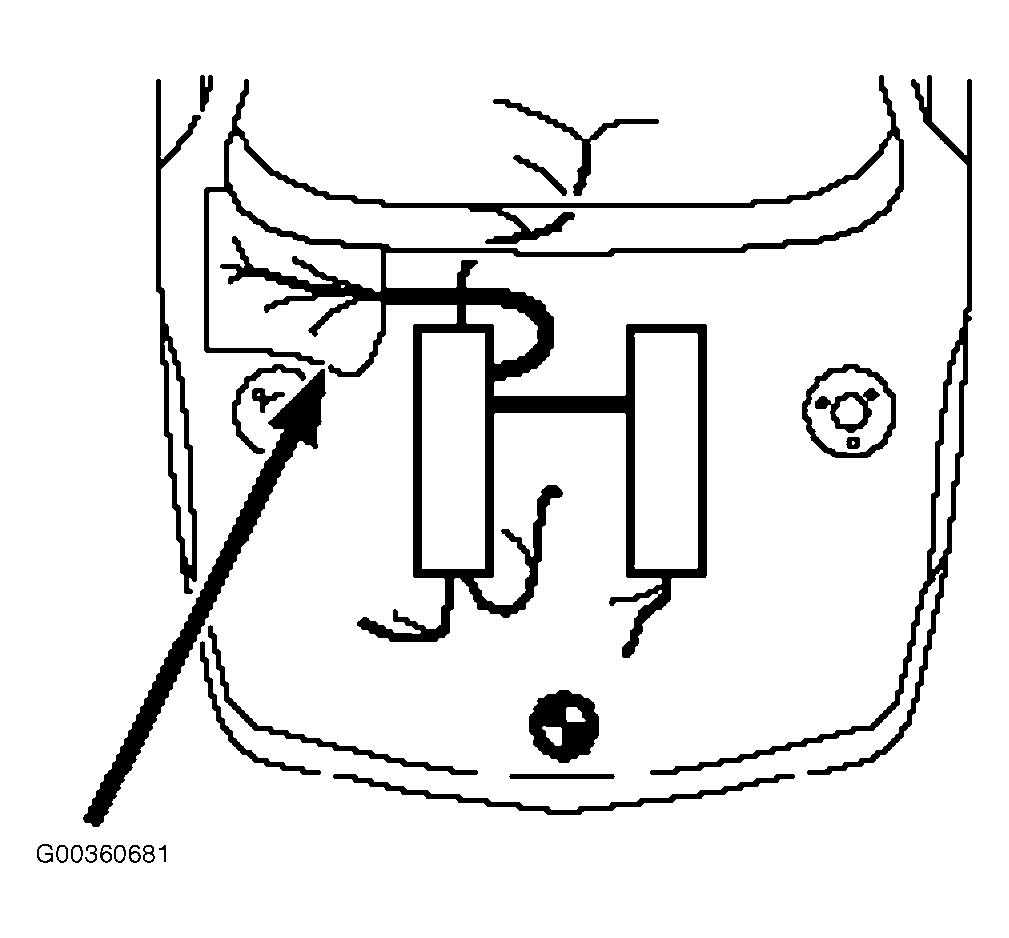

Fig 24: Right Rear Of Engine Compartment

G00360681

Courtesy of BMW OF NORTH AMERICA, INC.

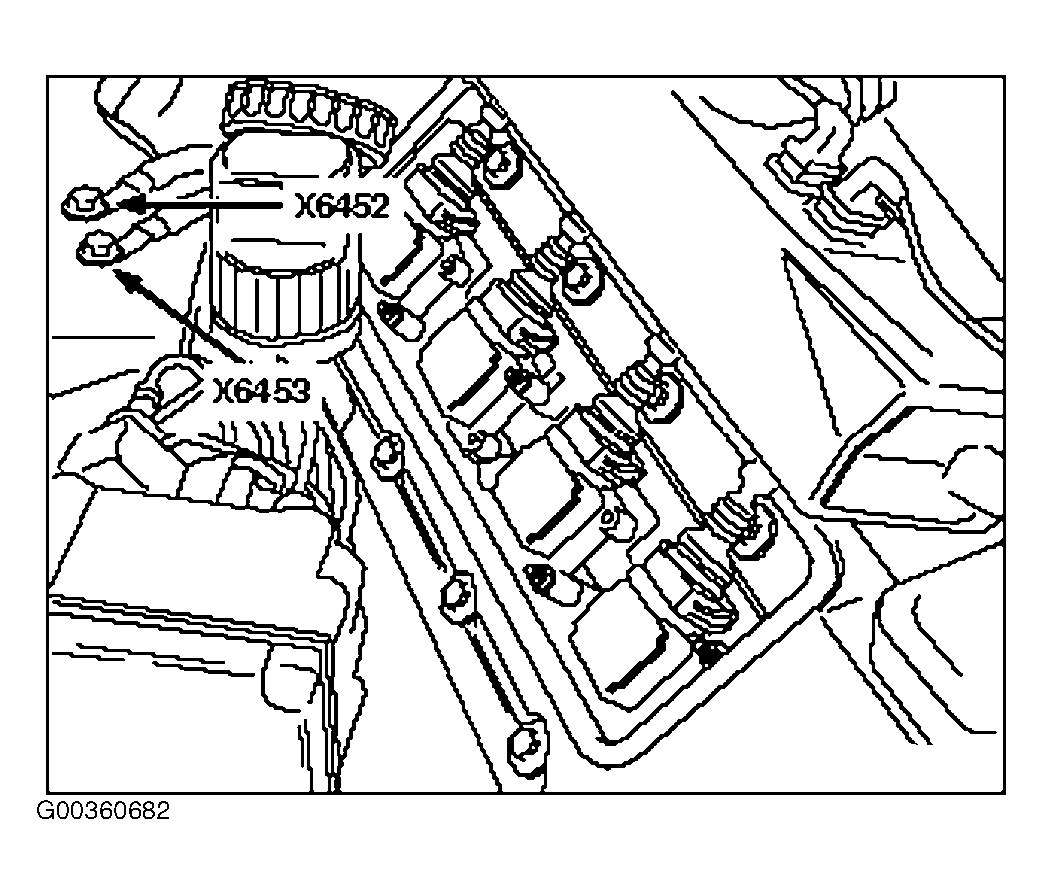

Fig 25: Right Front Shock Tower

G00360682

Courtesy of BMW OF NORTH AMERICA, INC.

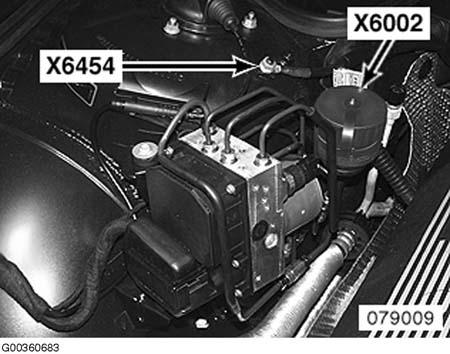

Fig 26: Right Side Of Engine Compartment

G00360683

Courtesy of BMW OF NORTH AMERICA, INC.

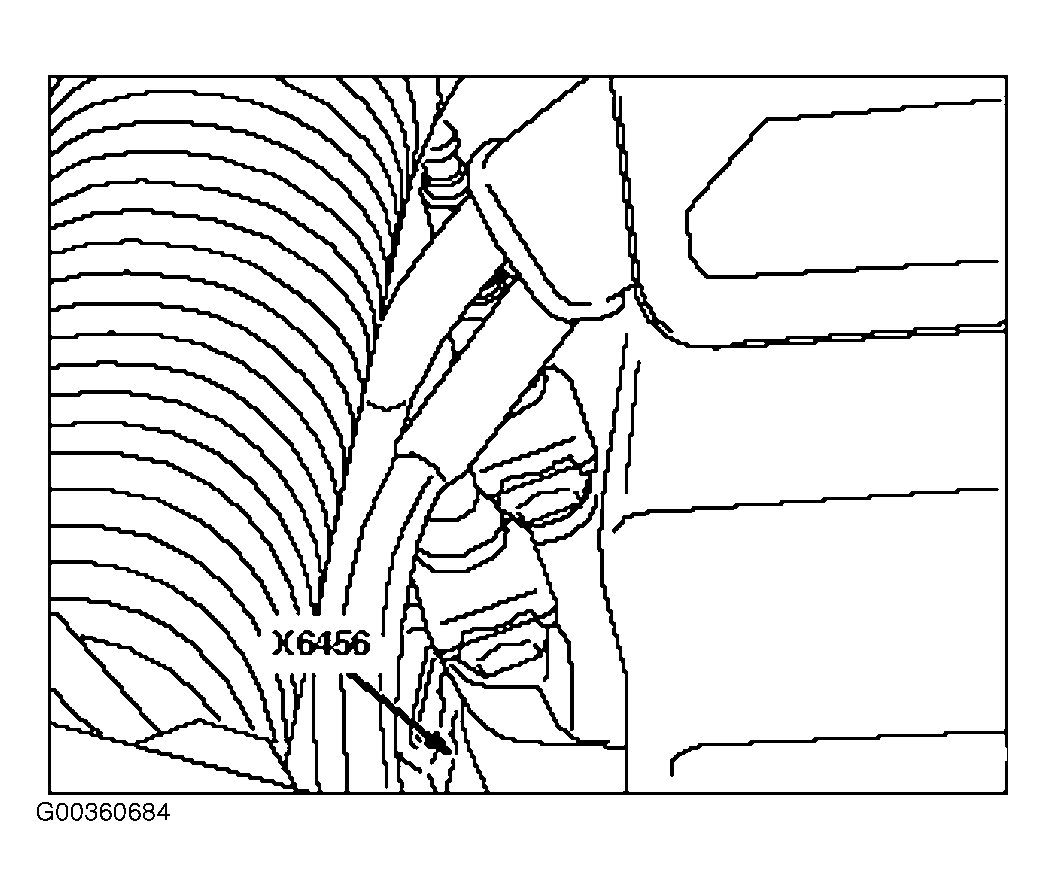

Fig 27: Right Side Of Engine Compartment

G00360684

Courtesy of BMW OF NORTH AMERICA, INC.

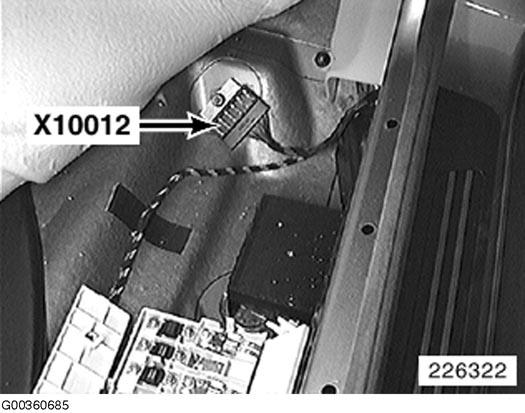

Fig 28: Right Side Of Right Footwell

G00360685

Courtesy of BMW OF NORTH AMERICA, INC.

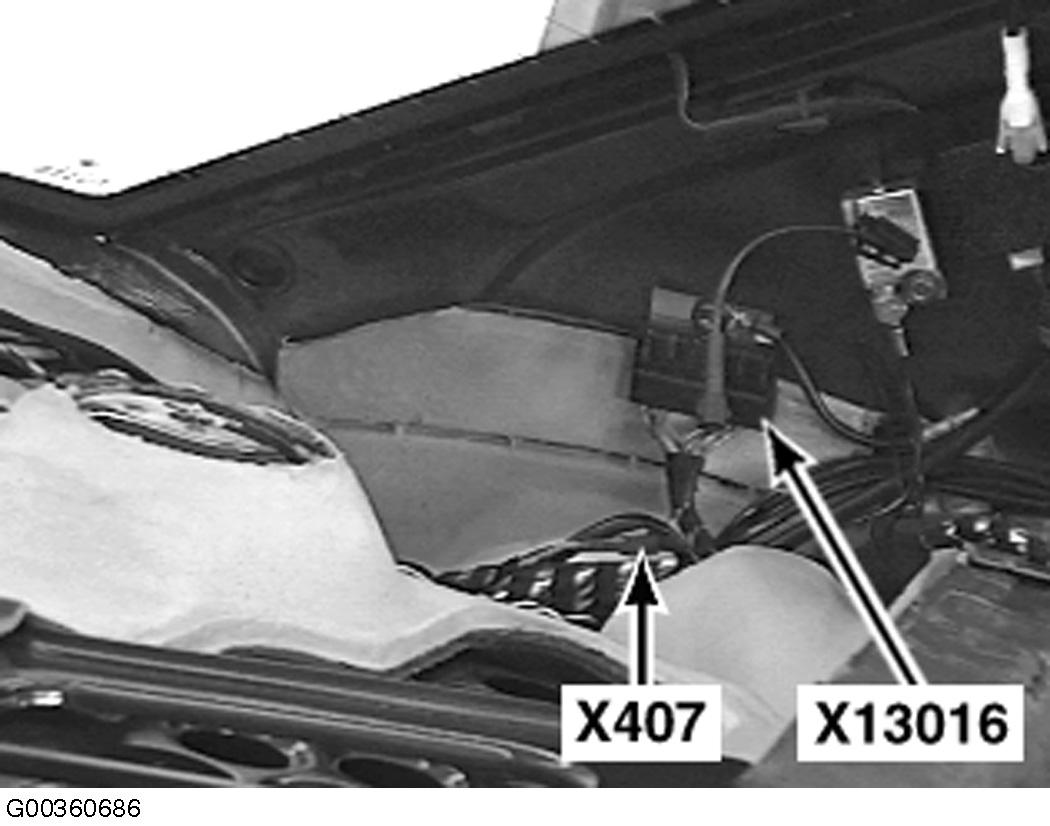

Fig 29: Left "C" Pillar

G00360686

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Right Rear Of Luggage Compartment

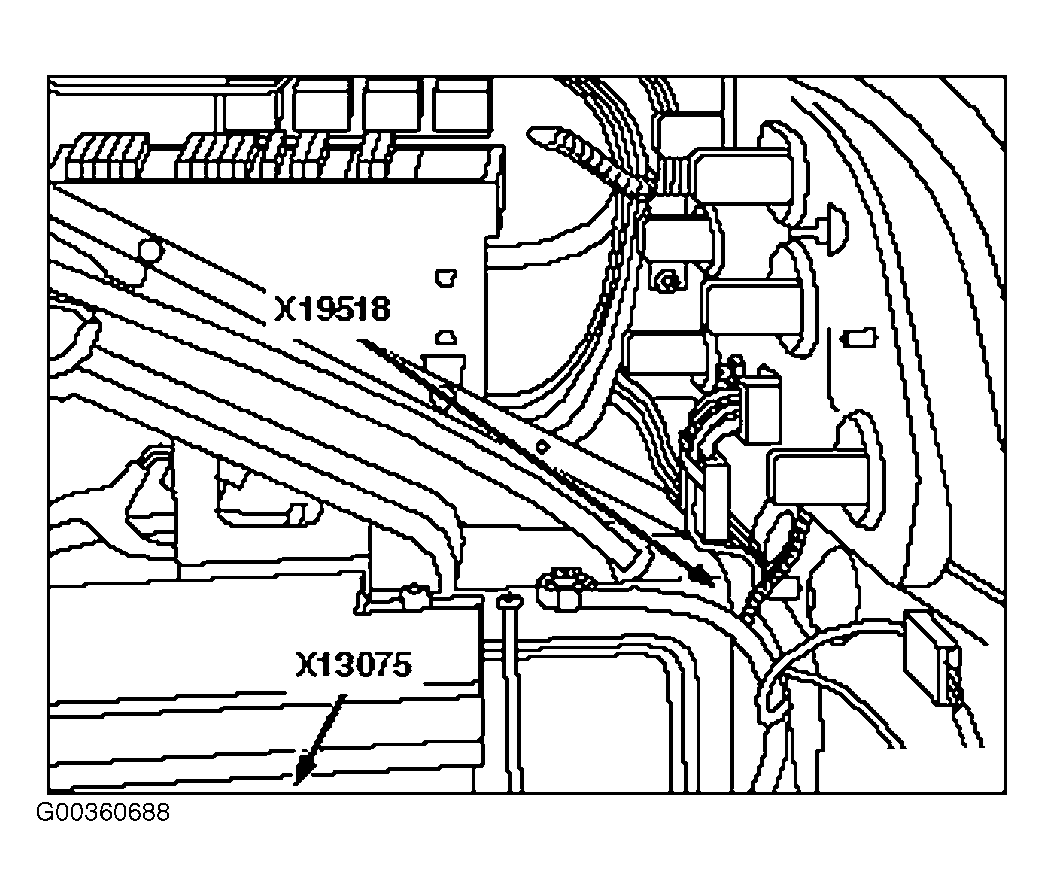

G00360688

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Behind Glove Box

G00360689

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Right Side Of Right Footwell

G00360690

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Right Rear Of Engine Compartment

G00360691

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Rear Center Console

G00360692

Courtesy of BMW OF NORTH AMERICA, INC.

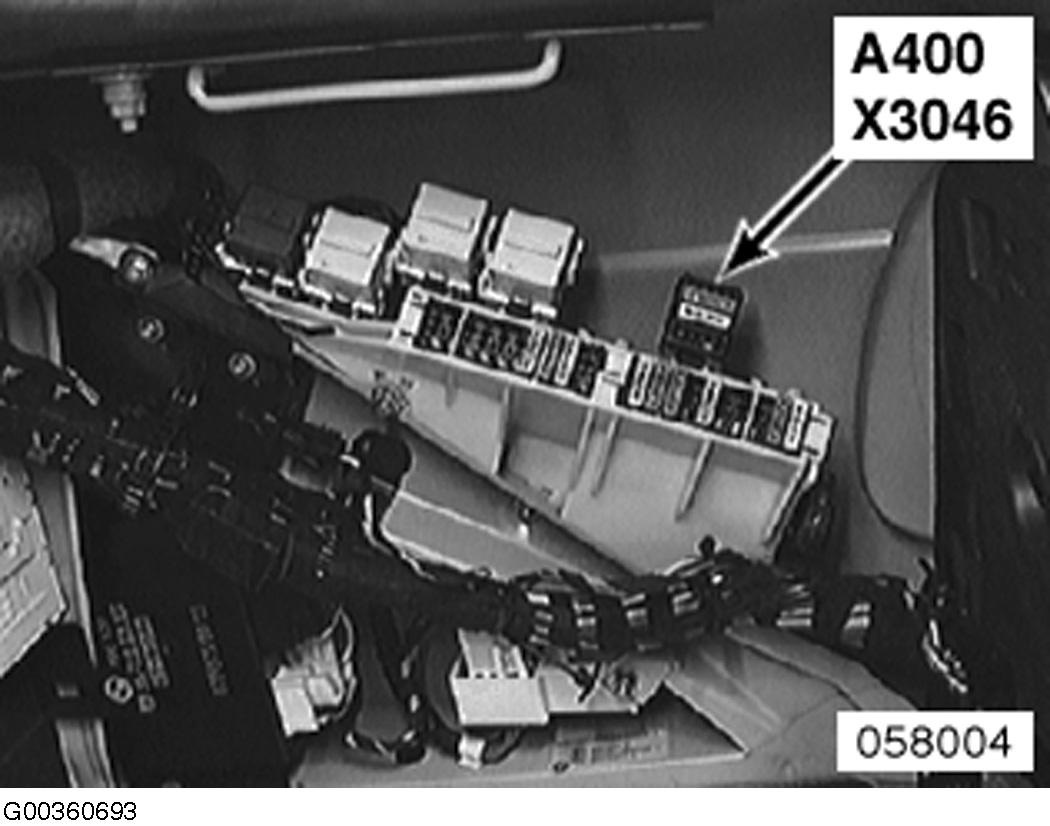

Fig 35: Right Side Of Luggage Compartment

G00360693

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Behind Glove Box

G00360694

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Behind Glove Box

G00360695

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Below Right Rear Seat

G00360696

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Below Rear Seat

G00360697

Courtesy of BMW OF NORTH AMERICA, INC.

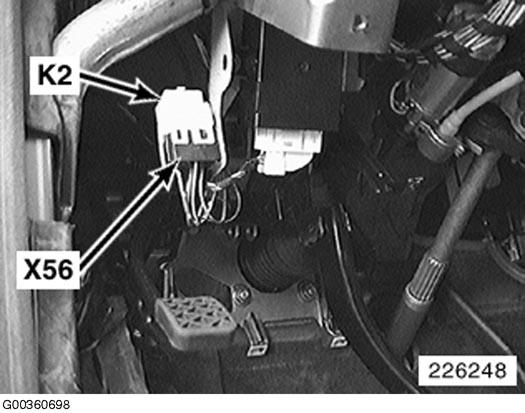

Fig 40: Left Side Of Dash

G00360698

Courtesy of BMW OF NORTH AMERICA, INC.

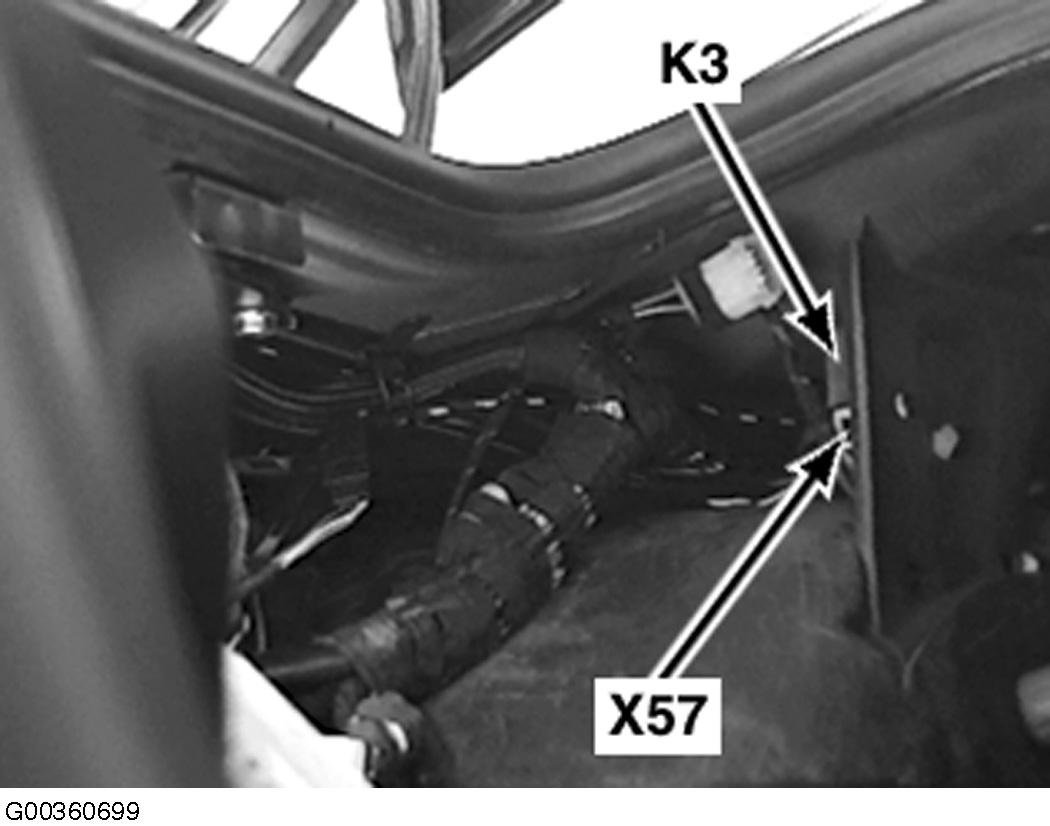

Fig 41: Left Side Of Luggage Compartment

G00360699

Courtesy of BMW OF NORTH AMERICA, INC.

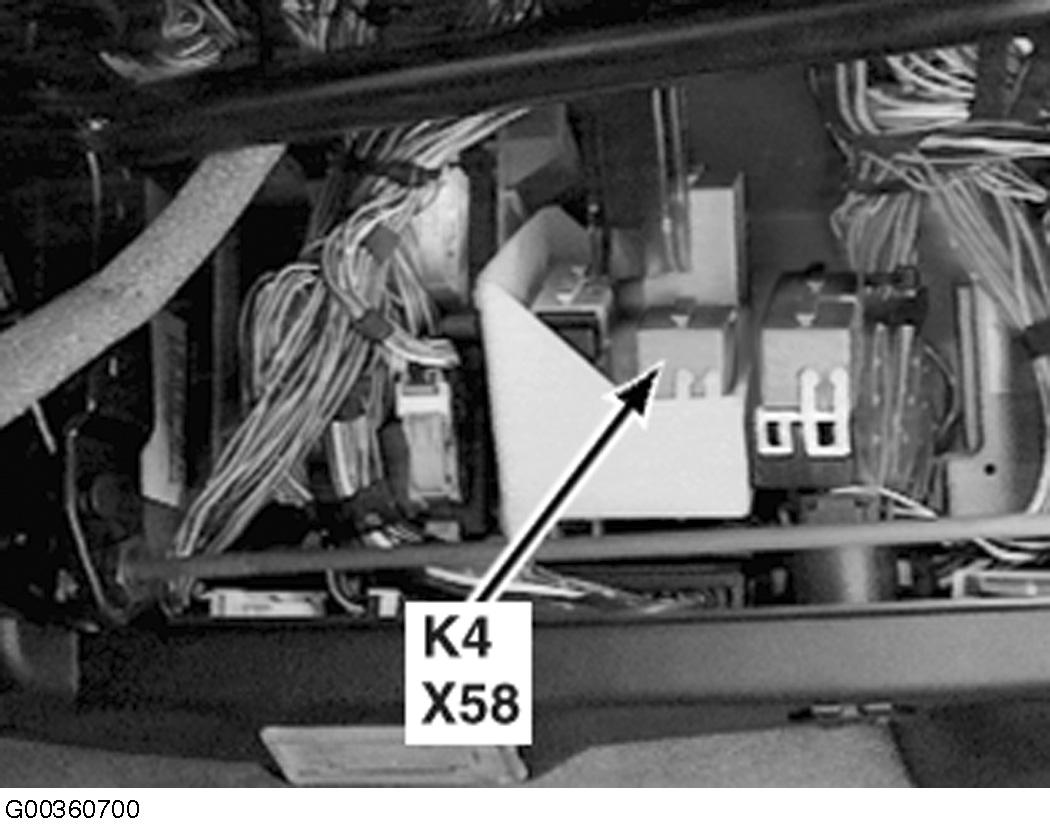

Fig 42: Behind Glove Box

G00360700

Courtesy of BMW OF NORTH AMERICA, INC.

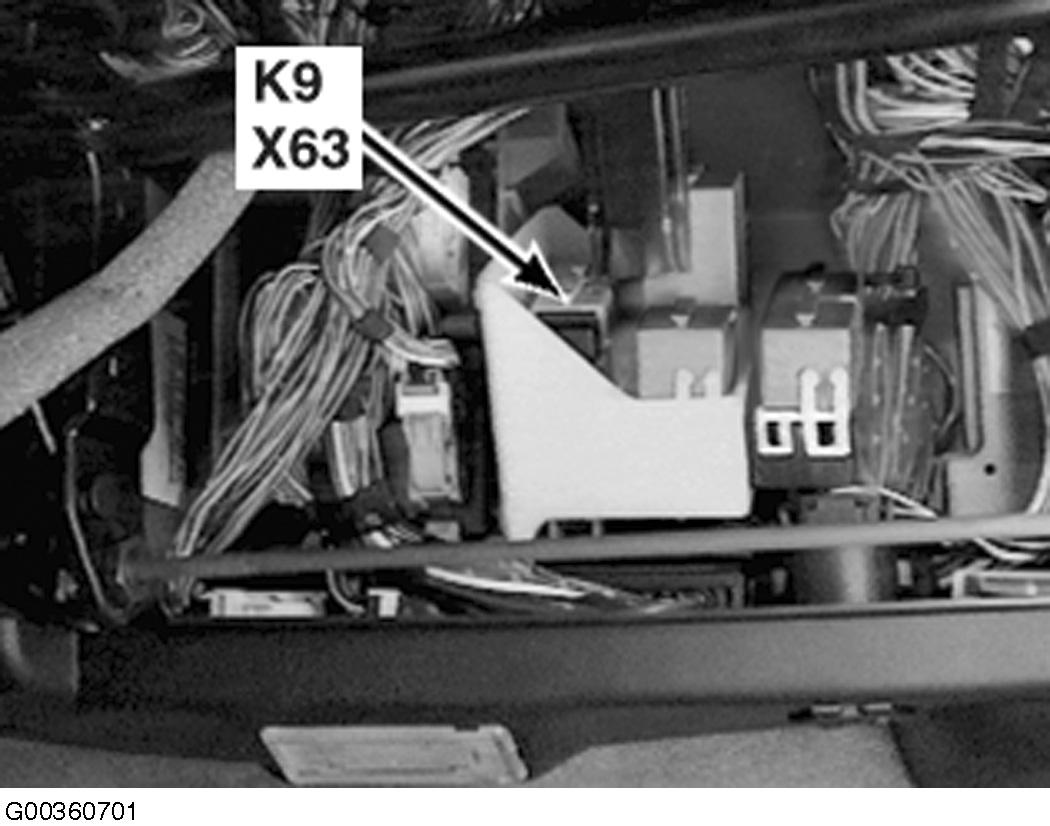

Fig 43: Behind Glove Box

G00360701

Courtesy of BMW OF NORTH AMERICA, INC.

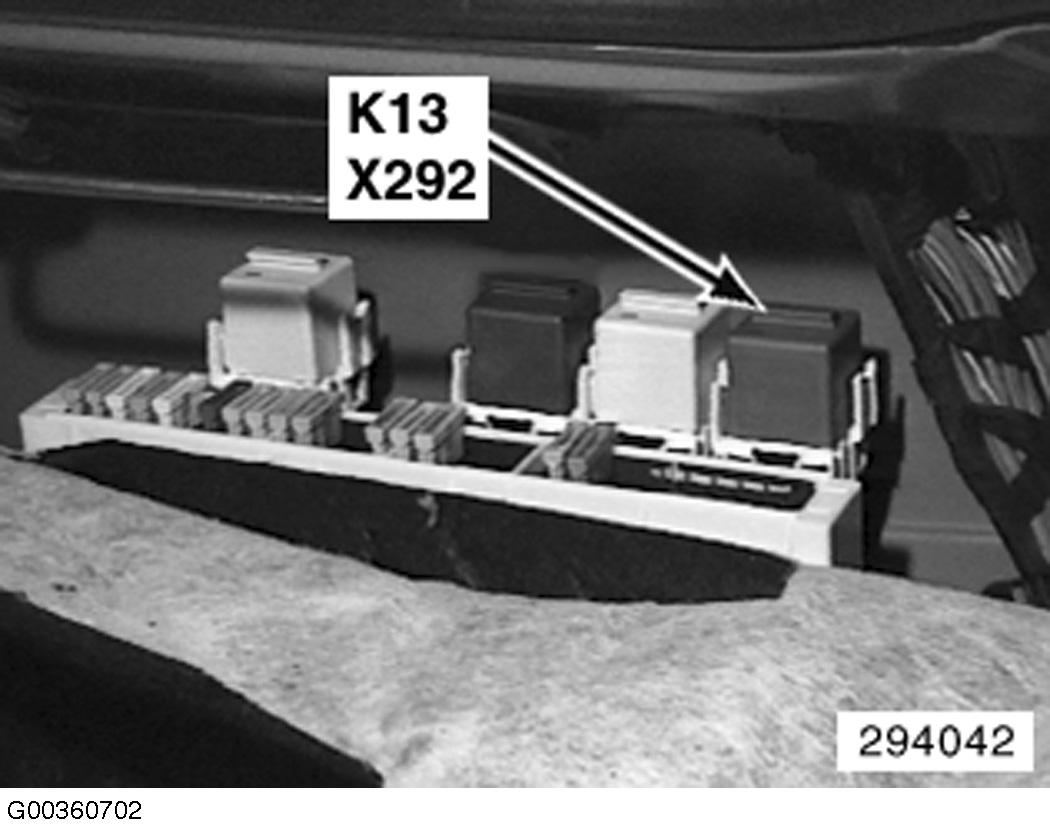

Fig 44: Right Rear Of Luggage Compartment

G00360702

Courtesy of BMW OF NORTH AMERICA, INC.

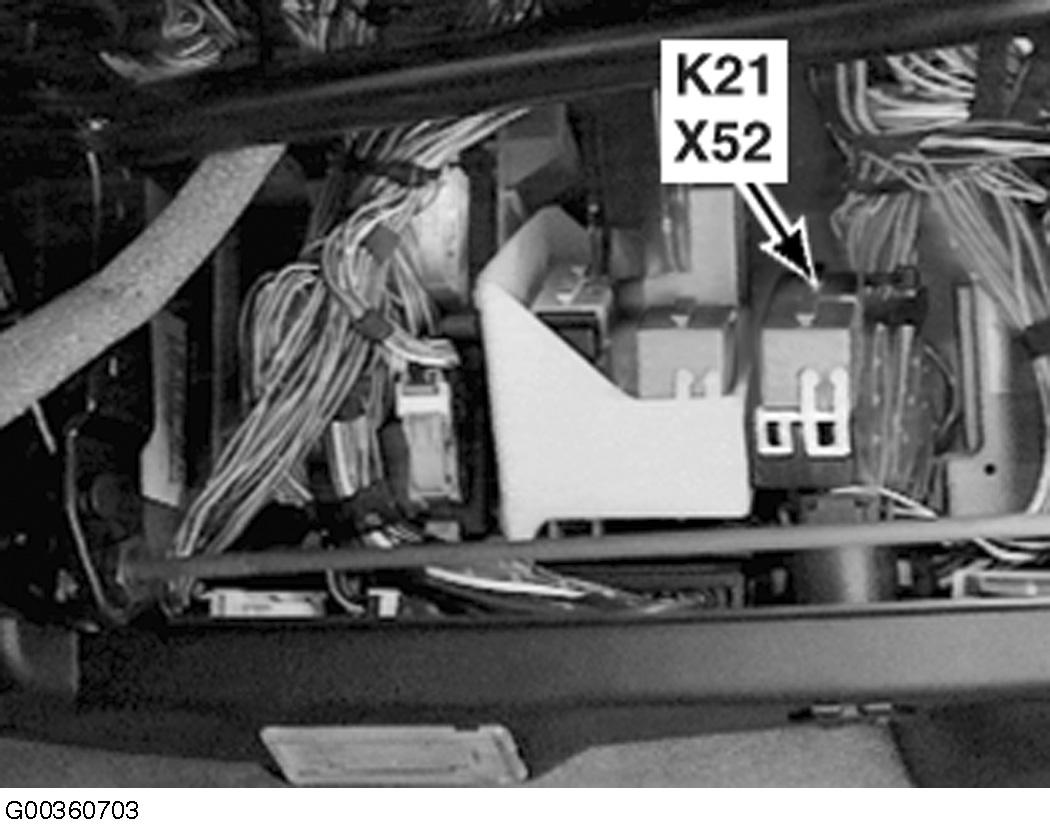

Fig 45: Behind Glove Box

G00360703

Courtesy of BMW OF NORTH AMERICA, INC.

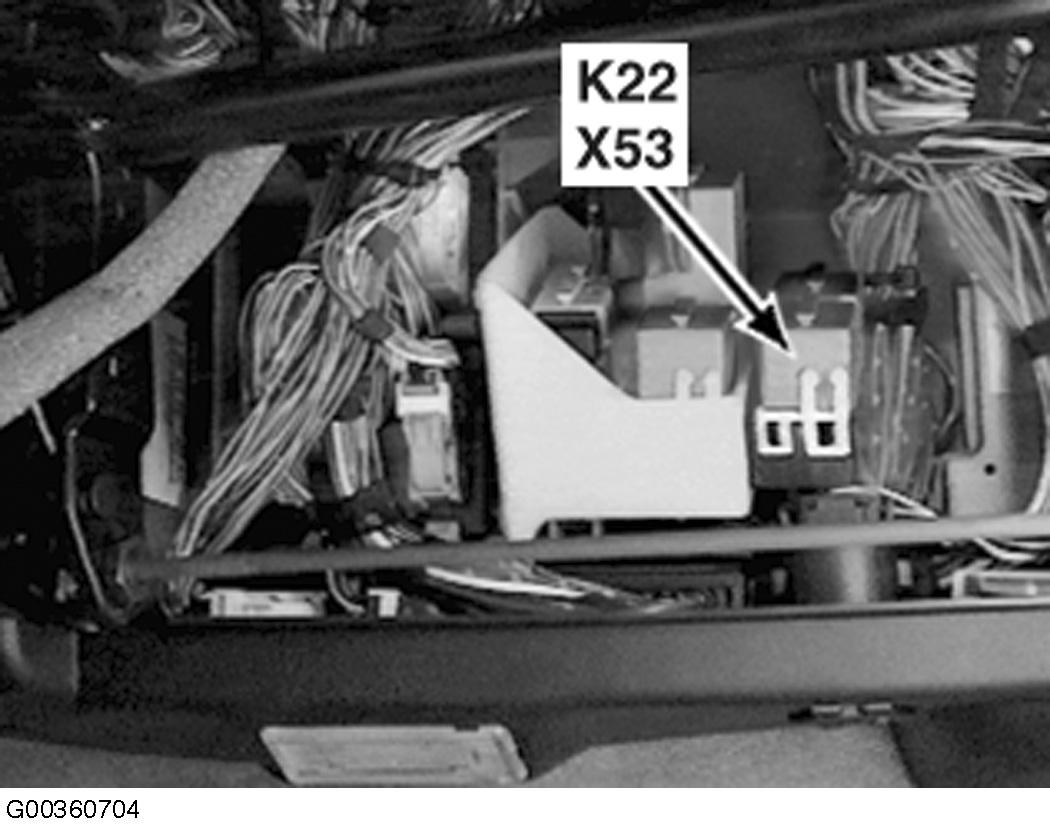

Fig 46: Behind Glove Box

G00360704

Courtesy of BMW OF NORTH AMERICA, INC.

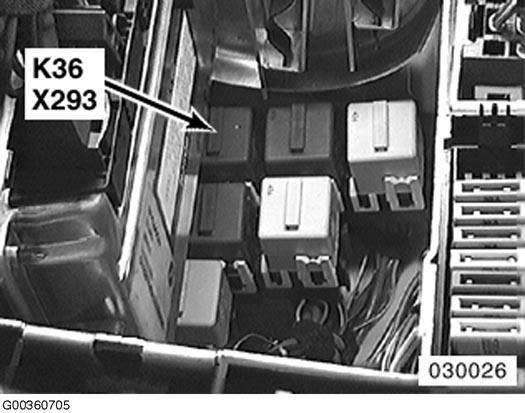

Fig 47: Right Rear Of Engine Compartment

G00360705

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Right Rear Of Engine Compartment

G00360706

Courtesy of BMW OF NORTH AMERICA, INC.

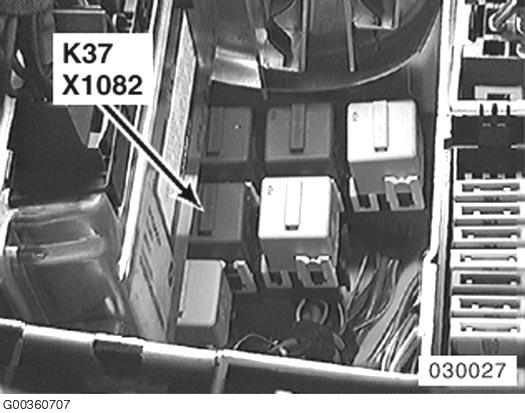

Fig 49: Right Rear Of Engine Compartment

G00360707

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Right Rear Of Engine Compartment

G00360708

Courtesy of BMW OF NORTH AMERICA, INC.

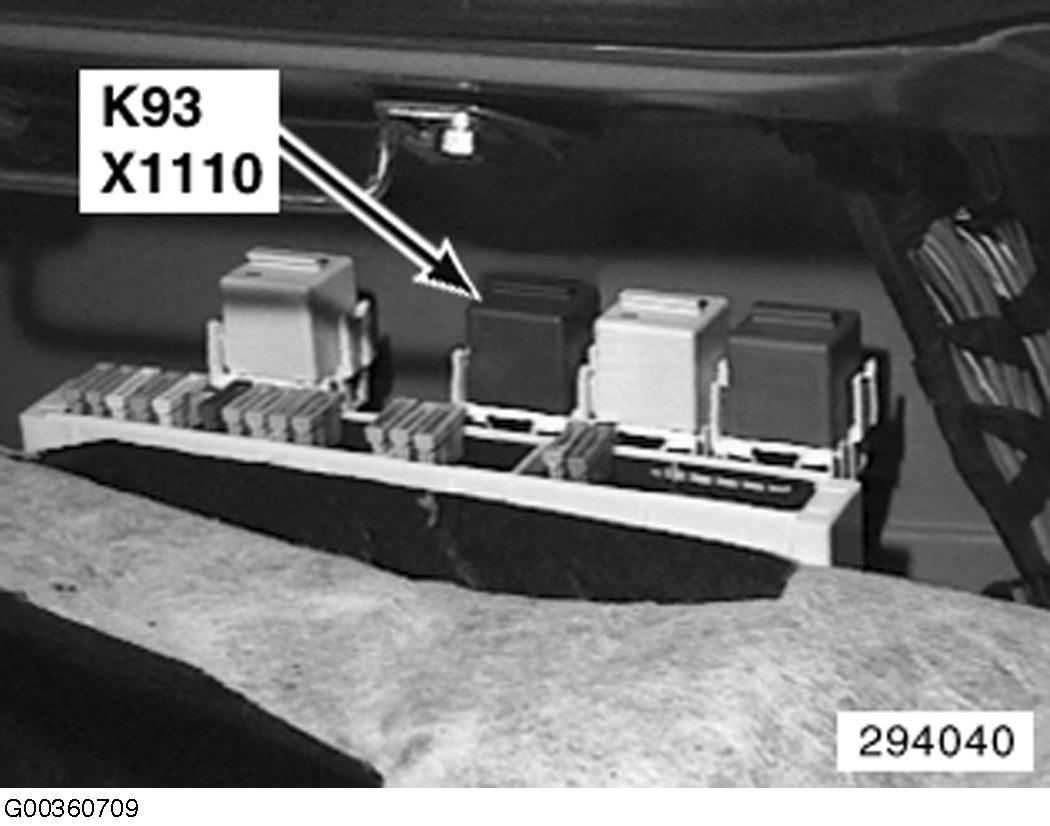

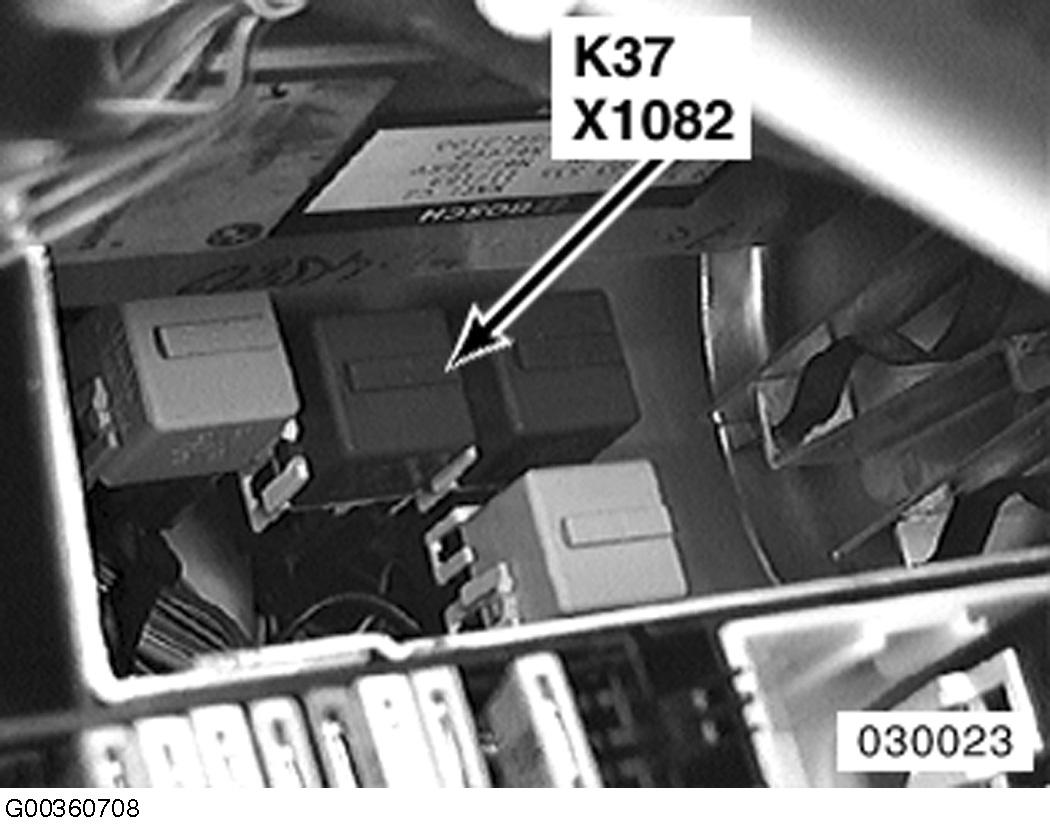

Fig 51: Right Rear Of Luggage Compartment

G00360709

Courtesy of BMW OF NORTH AMERICA, INC.

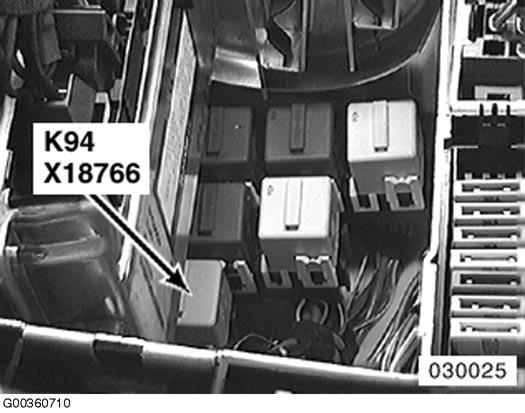

Fig 52: Right Rear Of Engine Compartment

G00360710

Courtesy of BMW OF NORTH AMERICA, INC.

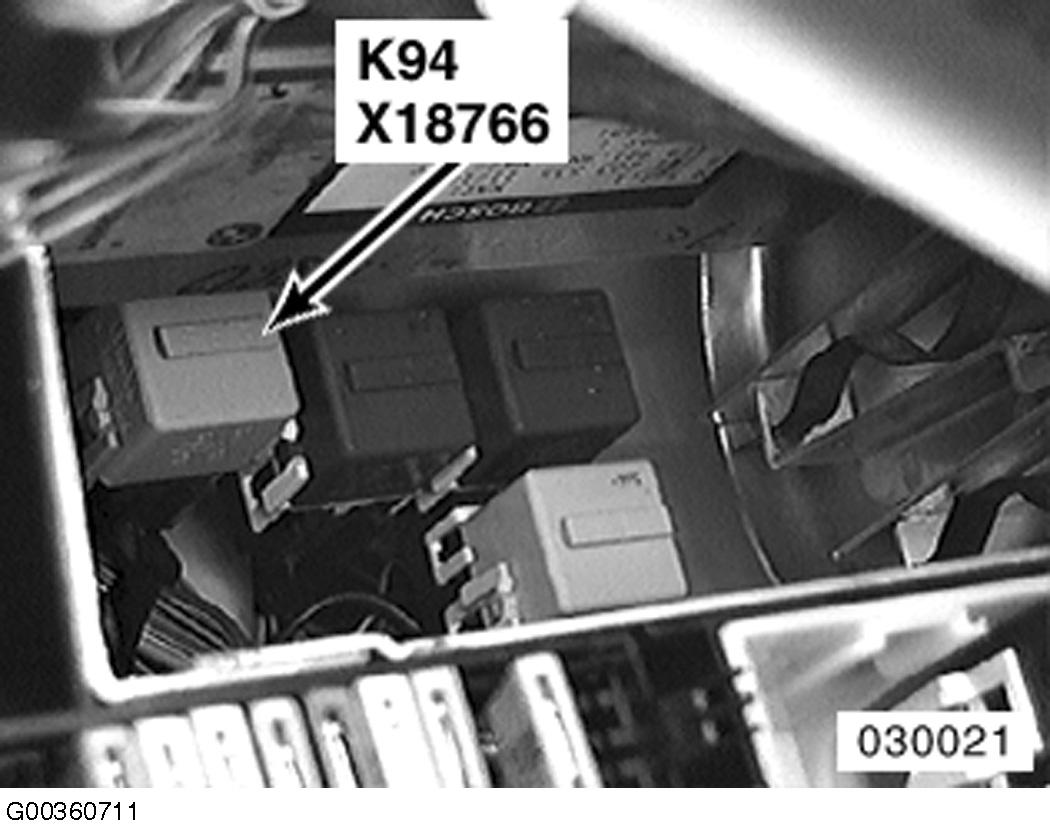

Fig 53: Right Rear Of Engine Compartment

G00360711

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Behind Glove Box

G00360712

Courtesy of BMW OF NORTH AMERICA, INC.

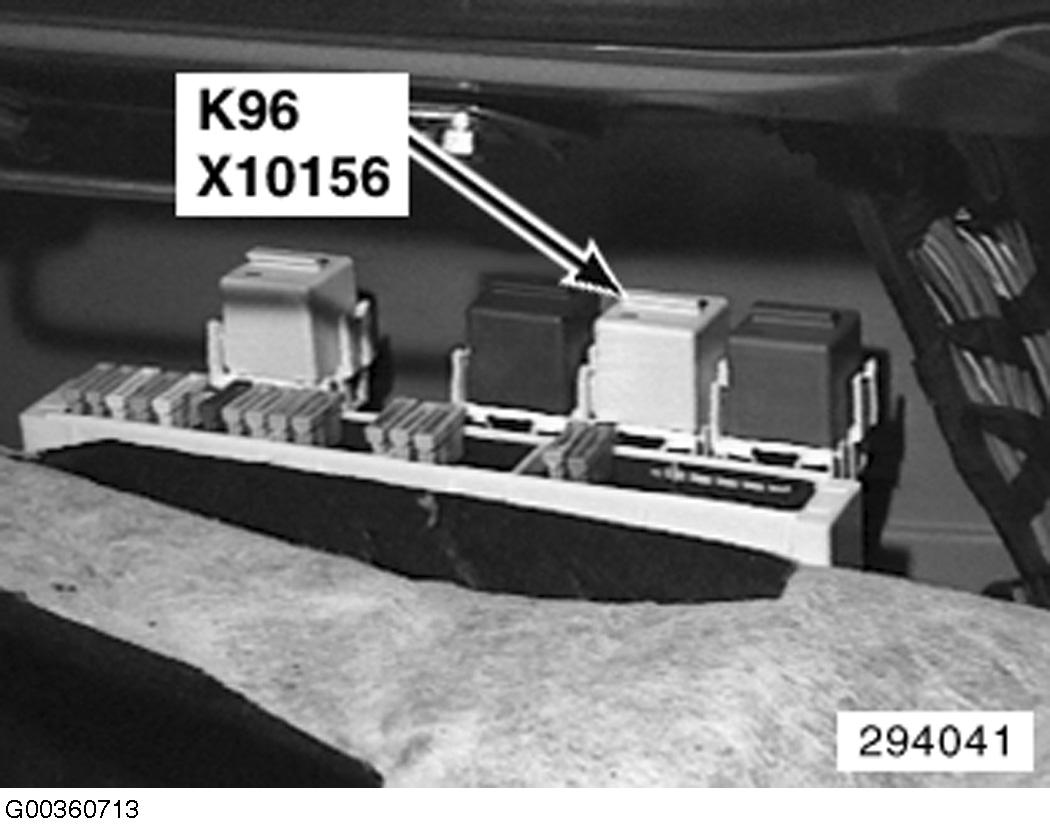

Fig 55: Right Rear Of Luggage Compartment

G00360713

Courtesy of BMW OF NORTH AMERICA, INC.

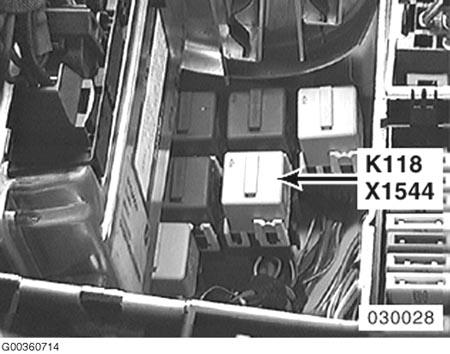

Fig 56: Right Rear Of Engine Compartment

G00360714

Courtesy of BMW OF NORTH AMERICA, INC.

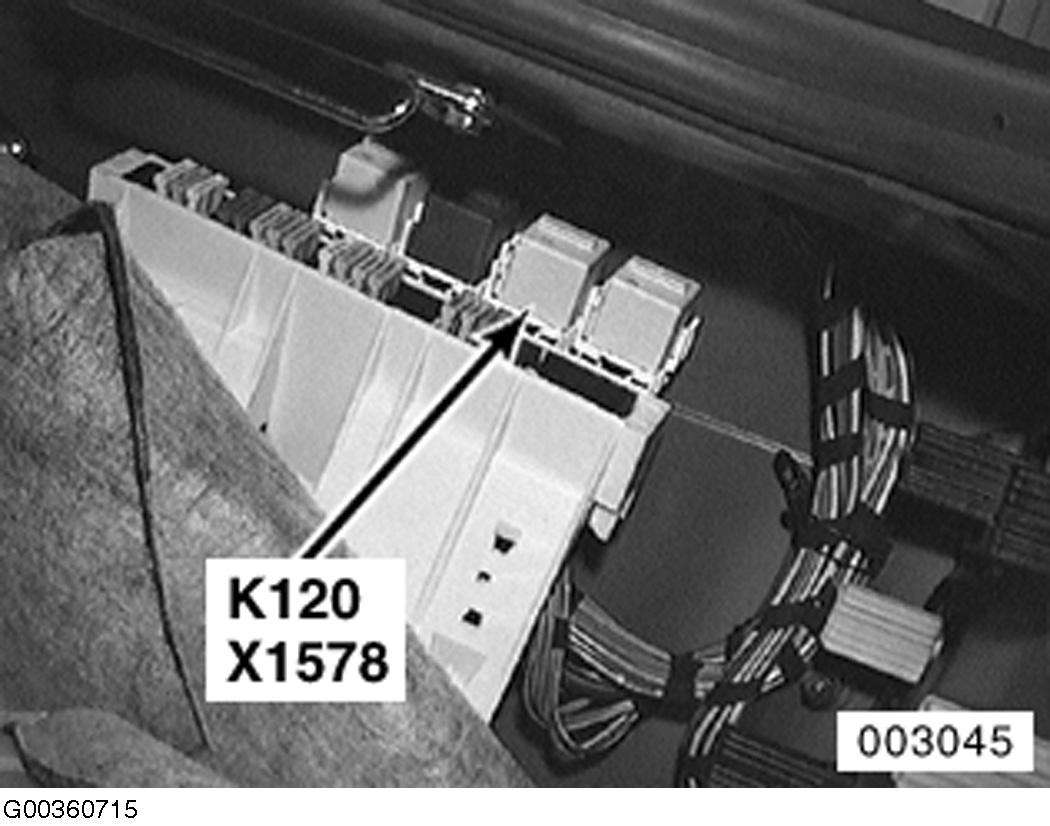

Fig 57: Right Rear Of Luggage Compartment

G00360715

Courtesy of BMW OF NORTH AMERICA, INC.

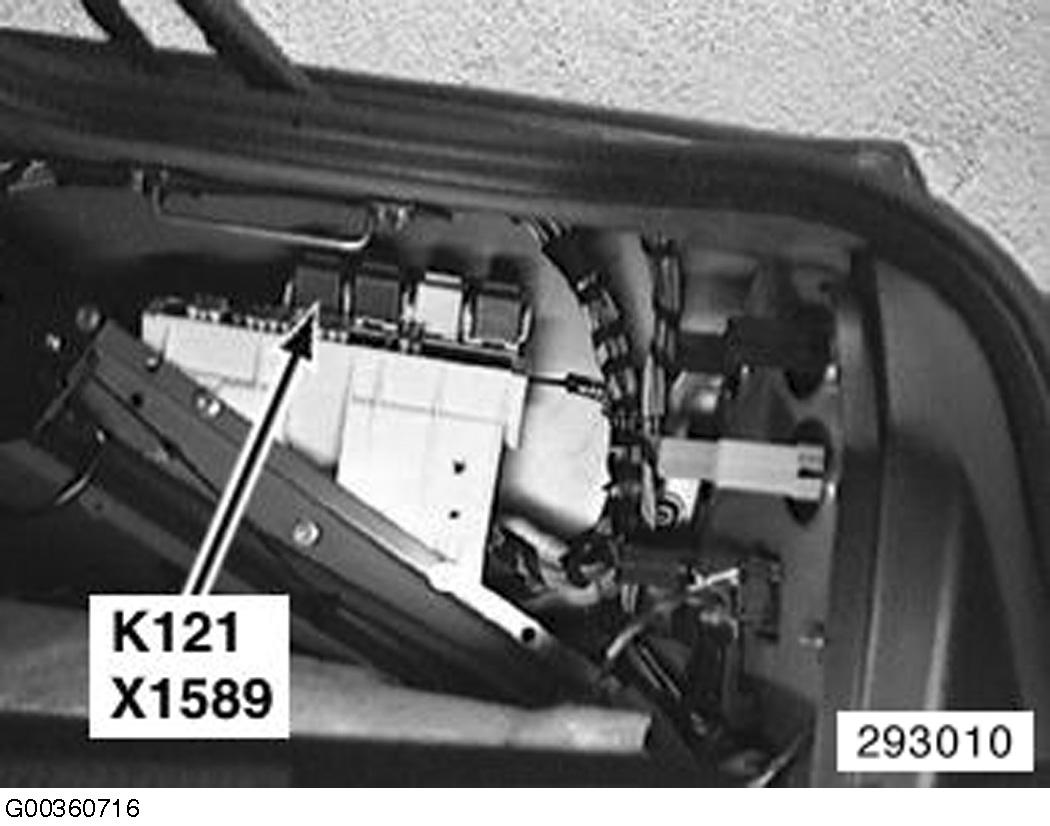

Fig 58: Right Rear Of Luggage Compartment

G00360716

Courtesy of BMW OF NORTH AMERICA, INC.

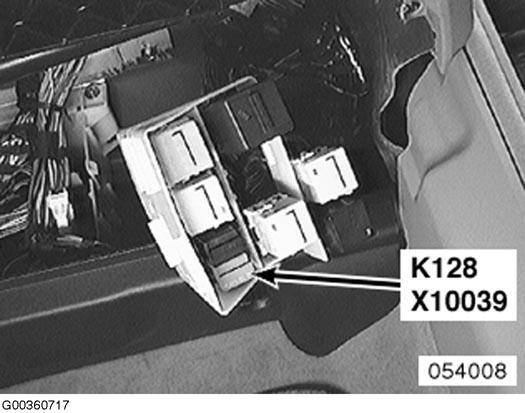

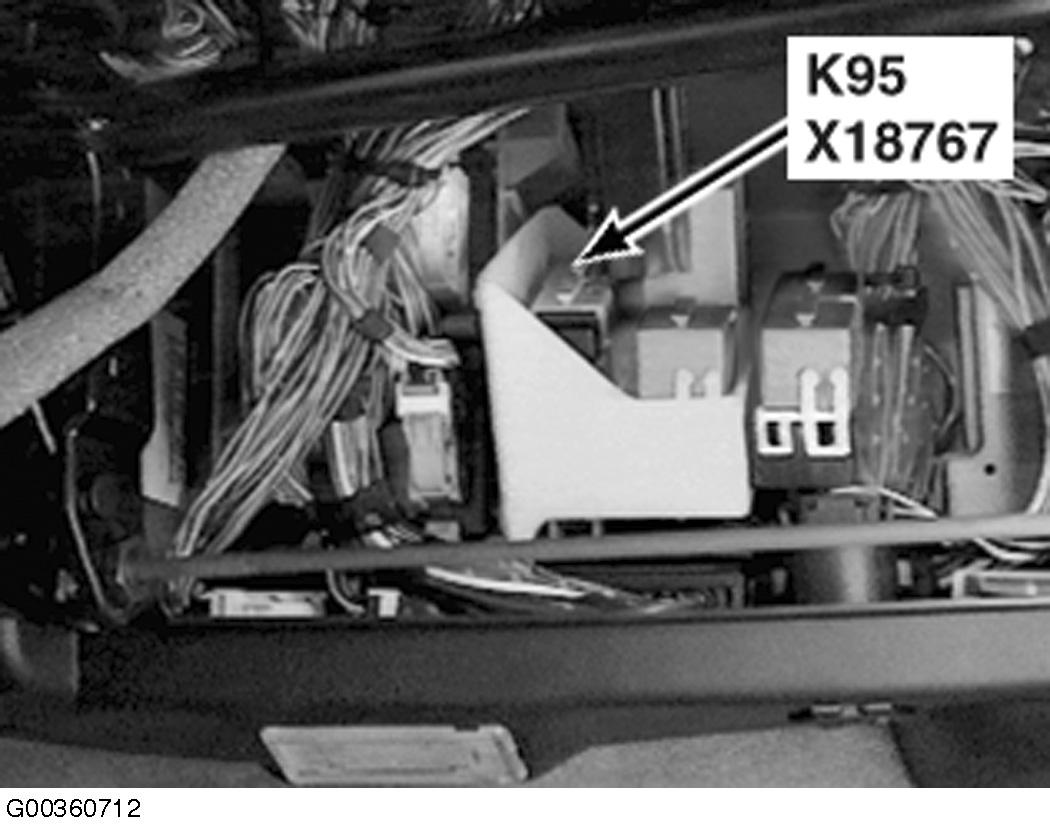

Fig 59: Behind Glove Box

G00360717

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 60: Behind Glove Box

G00360718

Courtesy of BMW OF NORTH AMERICA, INC.

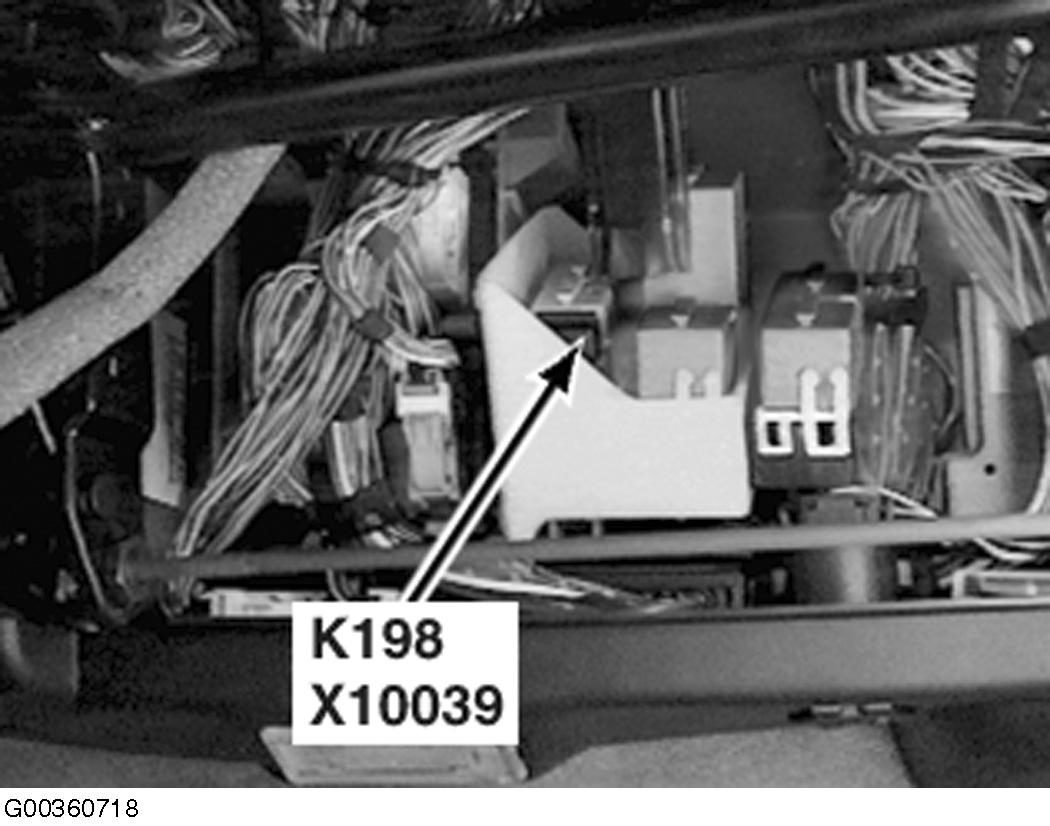

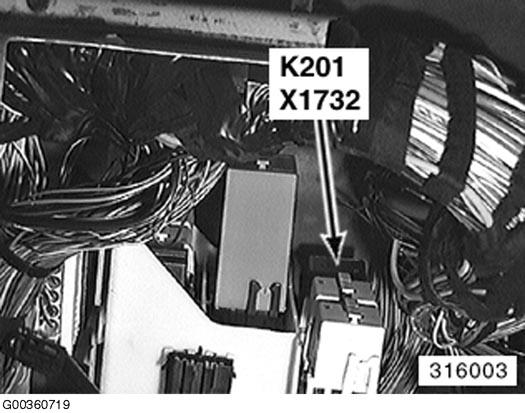

Fig 61: Behind Glove Box

G00360719

Courtesy of BMW OF NORTH AMERICA, INC.

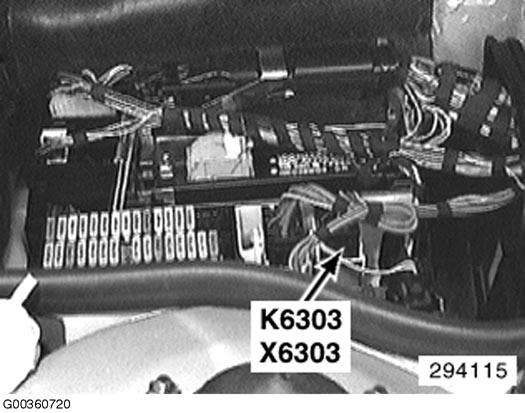

Fig 62: Right Rear Of Engine Compartment

G00360720

Courtesy of BMW OF NORTH AMERICA, INC.

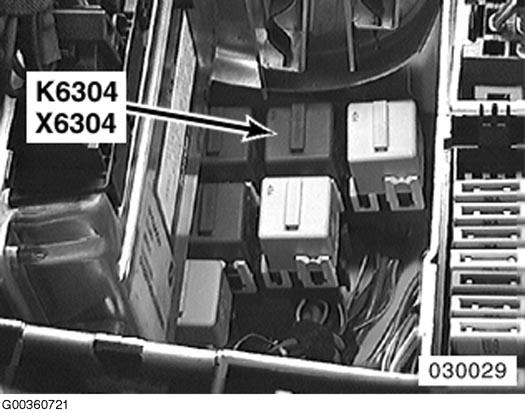

Fig 63: Right Rear Of Engine Compartment

G00360721

Courtesy of BMW OF NORTH AMERICA, INC.

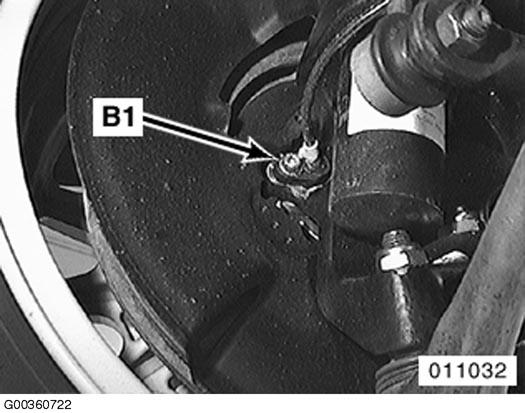

Fig 64: Right Front Wheel Hub

G00360722

Courtesy of BMW OF NORTH AMERICA, INC.

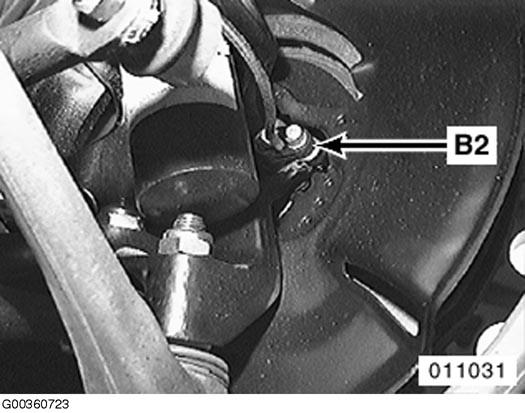

Fig 65: Left Front Wheel Hub

G00360723

Courtesy of BMW OF NORTH AMERICA, INC.

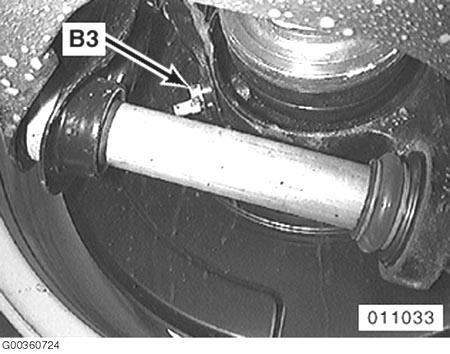

Fig 66: Right Rear Wheel Hub

G00360724

Courtesy of BMW OF NORTH AMERICA, INC.

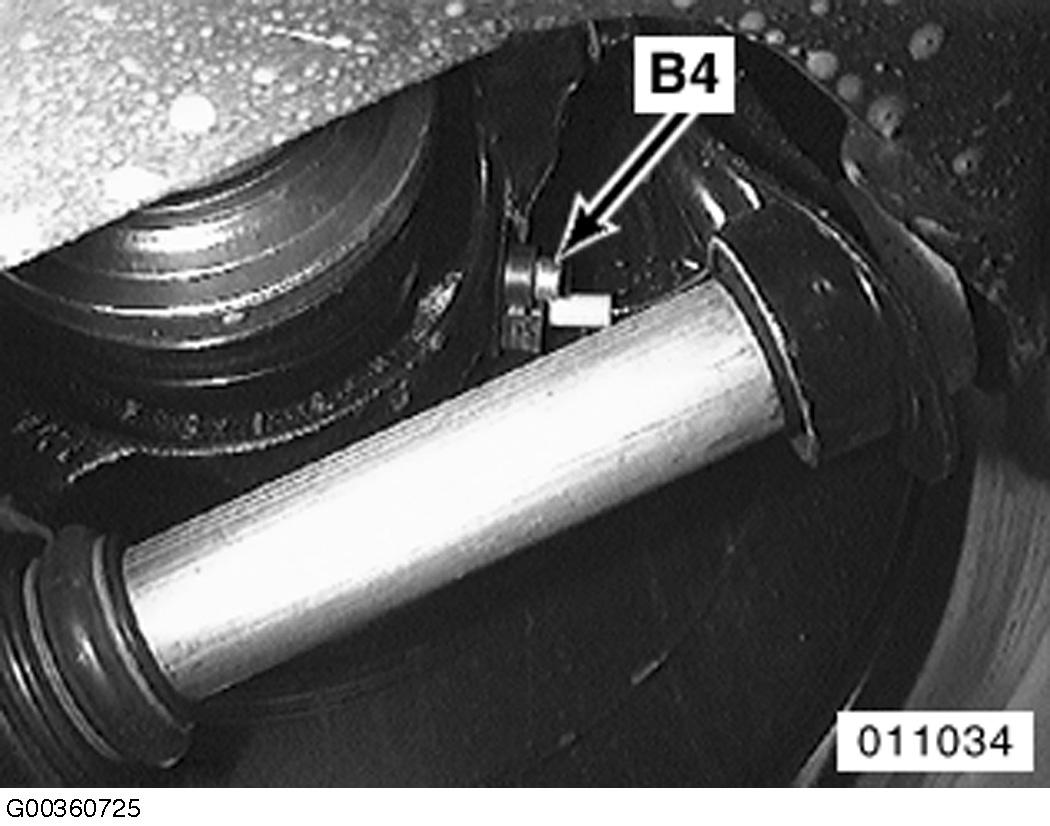

Fig 67: Left Rear Wheel Hub

G00360725

Courtesy of BMW OF NORTH AMERICA, INC.

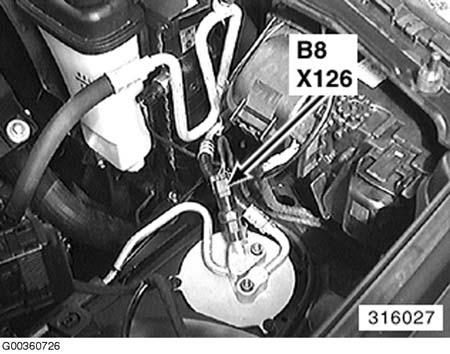

Fig 68: Right Front Of Engine Compartment

G00360726

Courtesy of BMW OF NORTH AMERICA, INC.

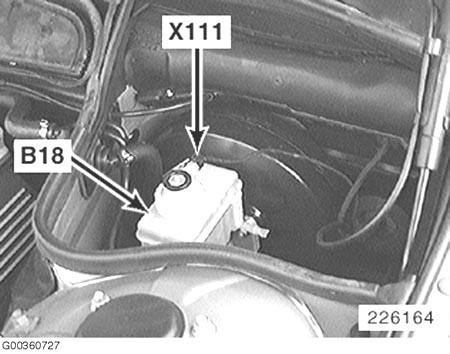

Fig 69: Left Rear Of Engine Compartment

G00360727

Courtesy of BMW OF NORTH AMERICA, INC.

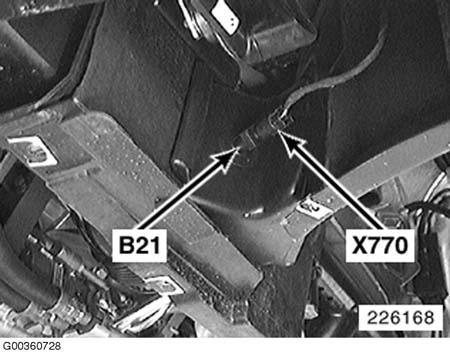

Fig 70: Left Front Ventilation Duct

G00360728

Courtesy of BMW OF NORTH AMERICA, INC.

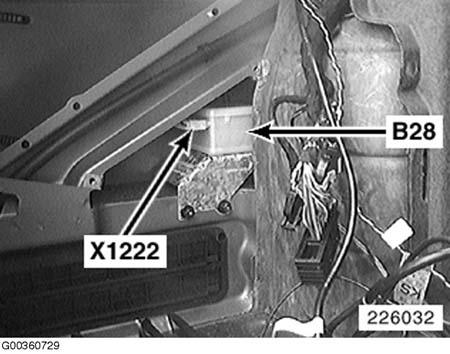

Fig 71: Left Rear Of Luggage Compartment

G00360729

Courtesy of BMW OF NORTH AMERICA, INC.

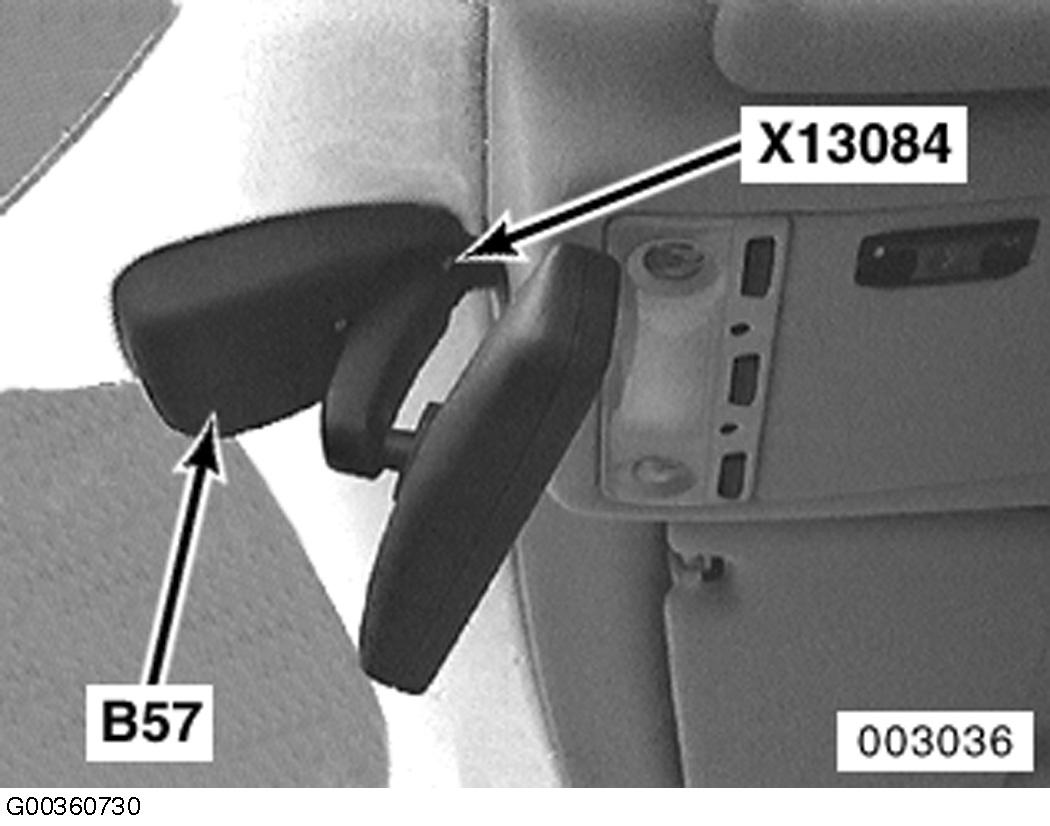

Fig 72: Near Rear View Mirror

G00360730

Courtesy of BMW OF NORTH AMERICA, INC.

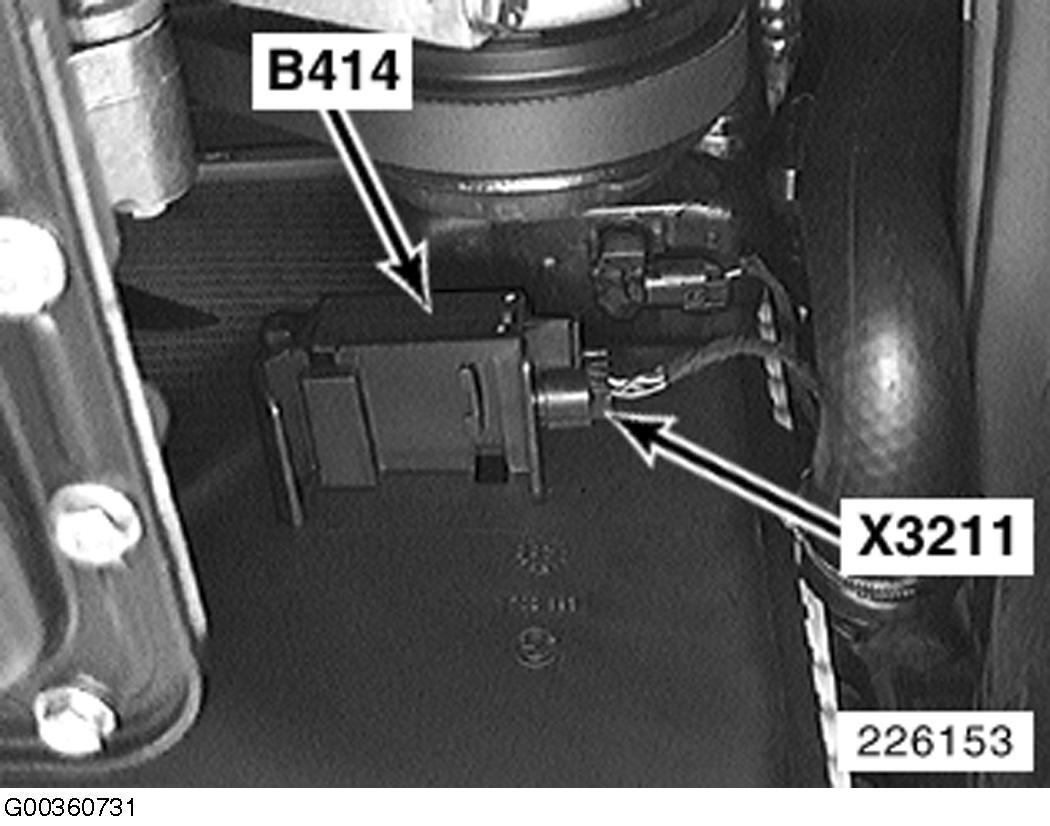

Fig 73: Right Front Of Engine Compartment

G00360731

Courtesy of BMW OF NORTH AMERICA, INC.

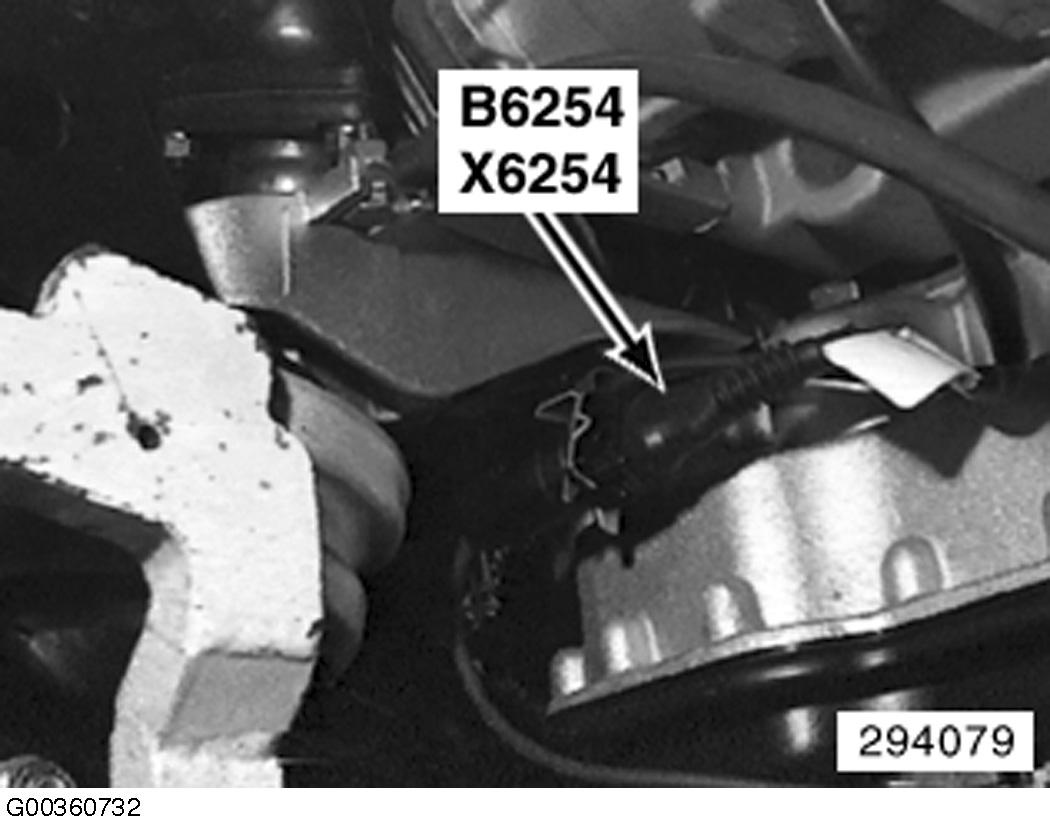

Fig 74: Lower Left Side Of Engine

G00360732

Courtesy of BMW OF NORTH AMERICA, INC.

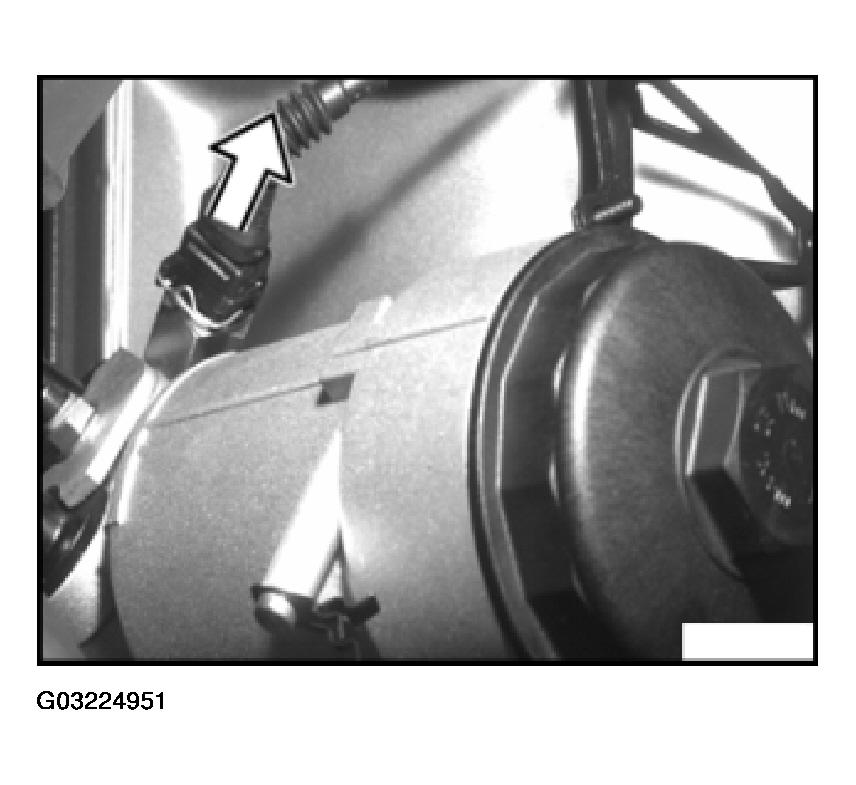

Fig 75: Oil Pressure Switch Under Oil Filter

G03224951

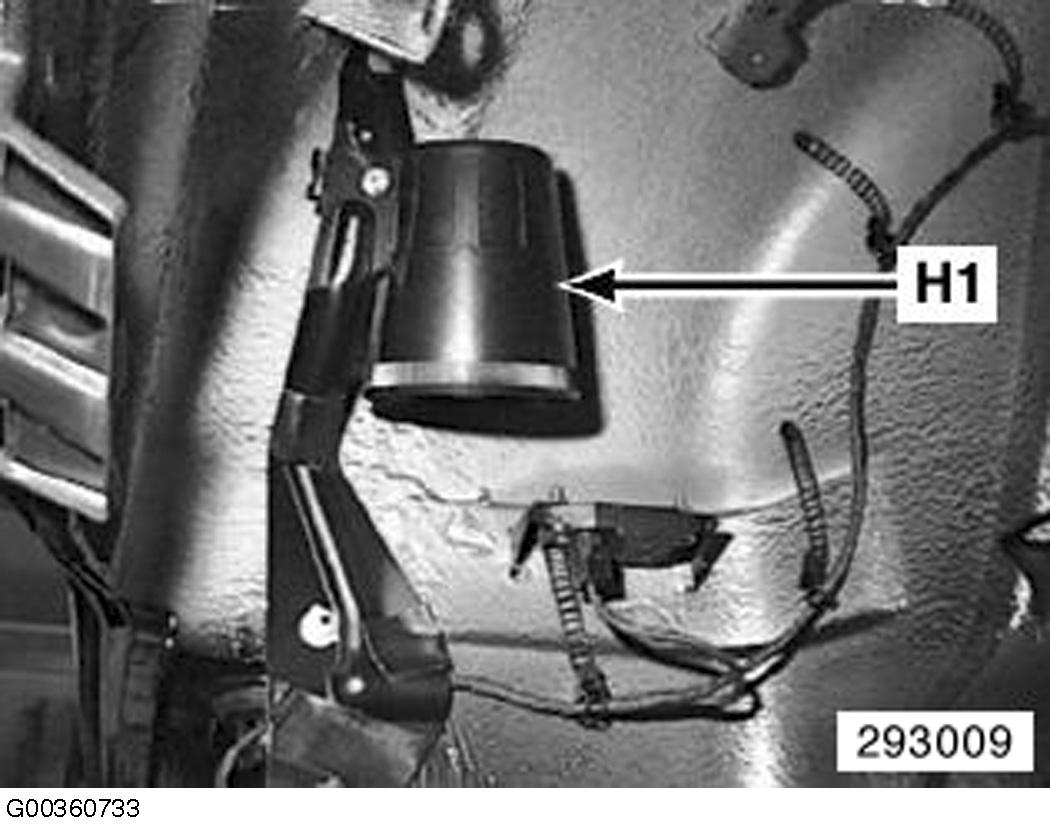

Fig 76: Right Rear Wheelwell

G00360733

Courtesy of BMW OF NORTH AMERICA, INC.

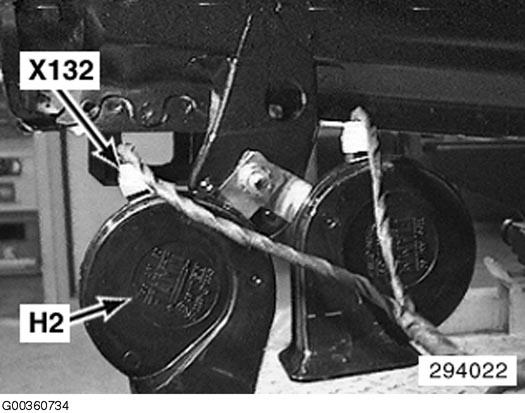

Fig 77: Under Right Front Bumper

G00360734

Courtesy of BMW OF NORTH AMERICA, INC.

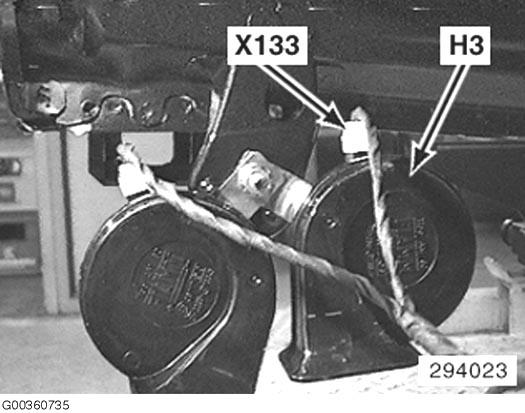

Fig 78: Under Right Front Bumper

G00360735

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Under Glove Box

G00360736

Courtesy of BMW OF NORTH AMERICA, INC.

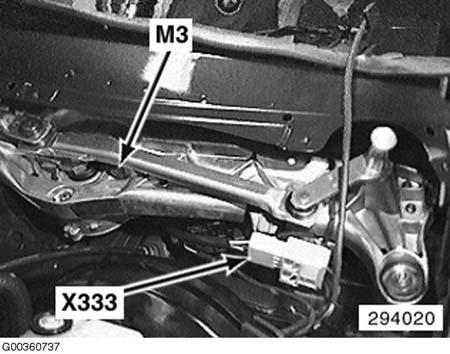

Fig 80: Left Rear Of Engine Compartment

G00360737

Courtesy of BMW OF NORTH AMERICA, INC.

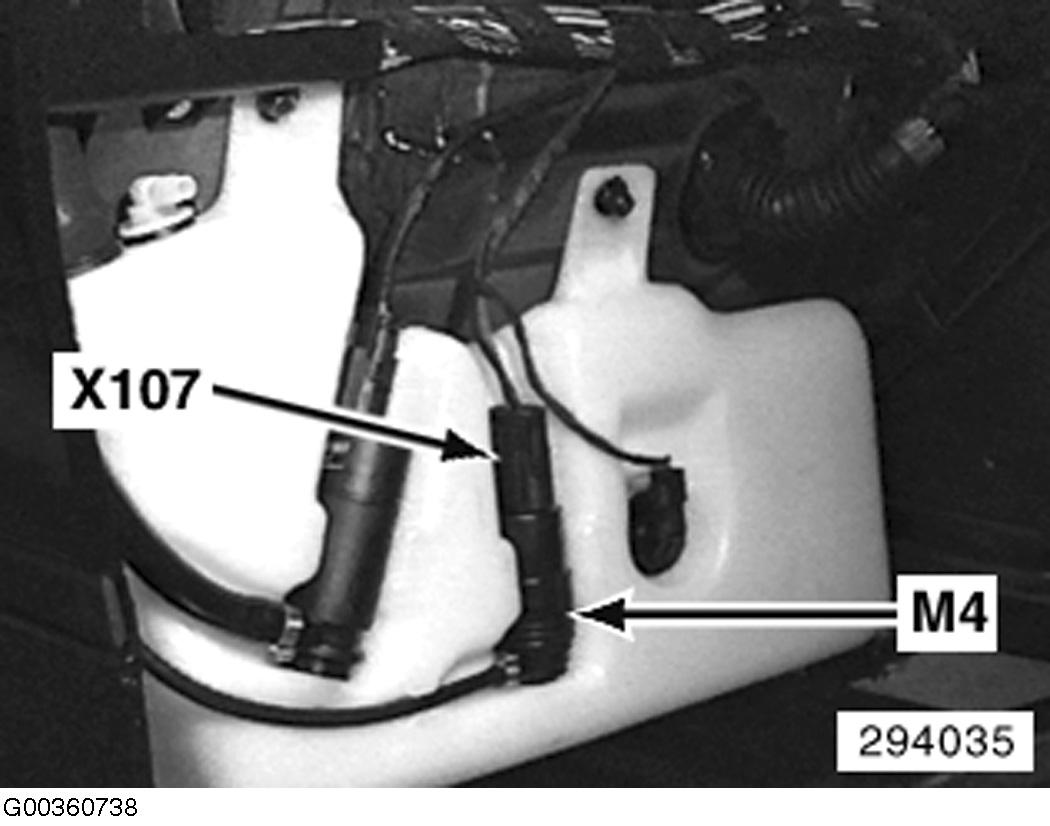

Fig 81: Washer Reservoir

G00360738

Courtesy of BMW OF NORTH AMERICA, INC.

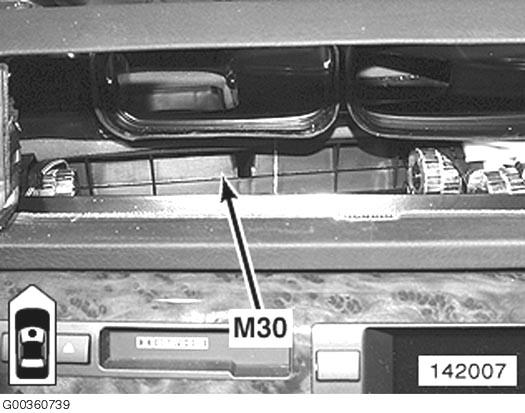

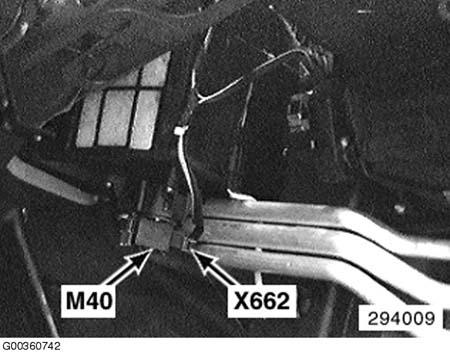

Fig 82: Behind Center Of Dash

G00360739

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 83: Center Of Dash

G00360740

Courtesy of BMW OF NORTH AMERICA, INC.

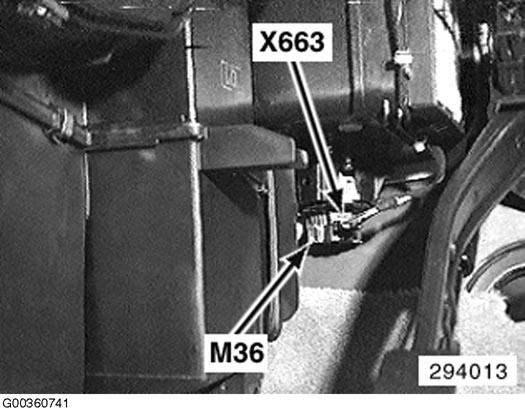

Fig 84: Center Of Dash

G00360741

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 85: Center Of Dash

G00360742

Courtesy of BMW OF NORTH AMERICA, INC.

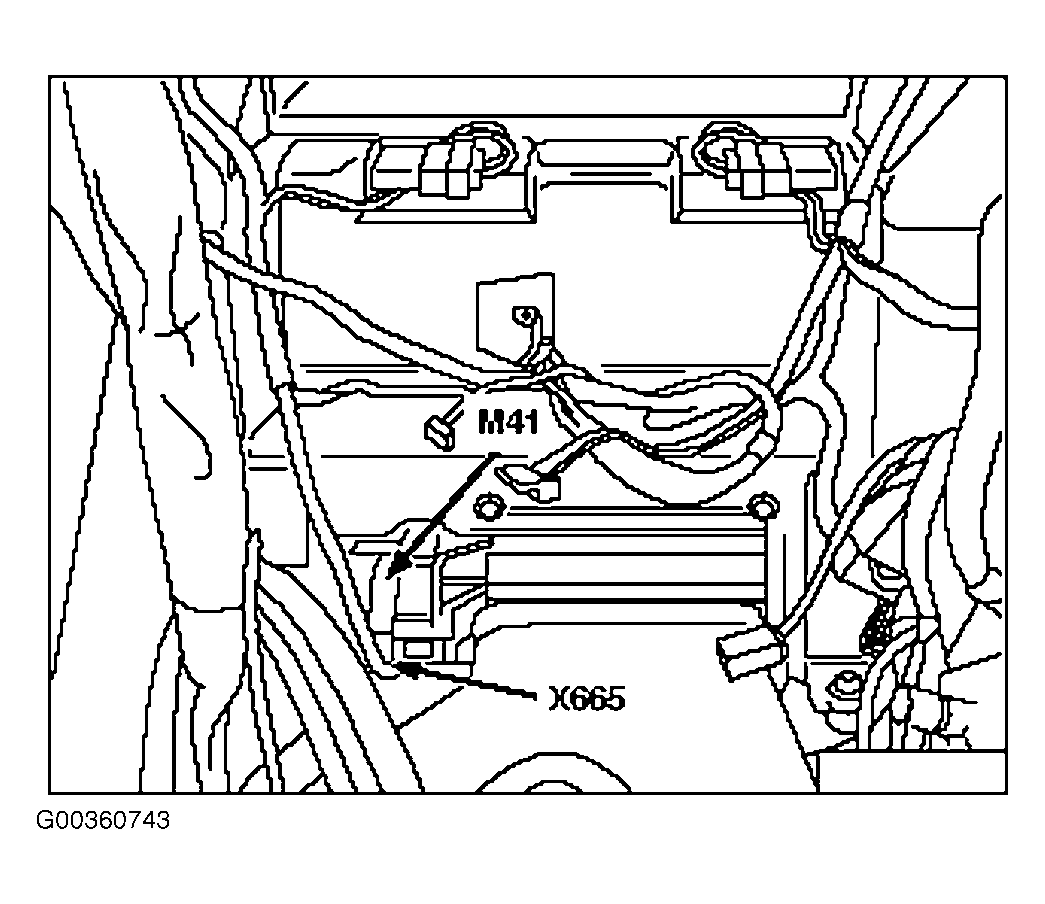

Fig 86: Behind Center Console

G00360743

Courtesy of BMW OF NORTH AMERICA, INC.

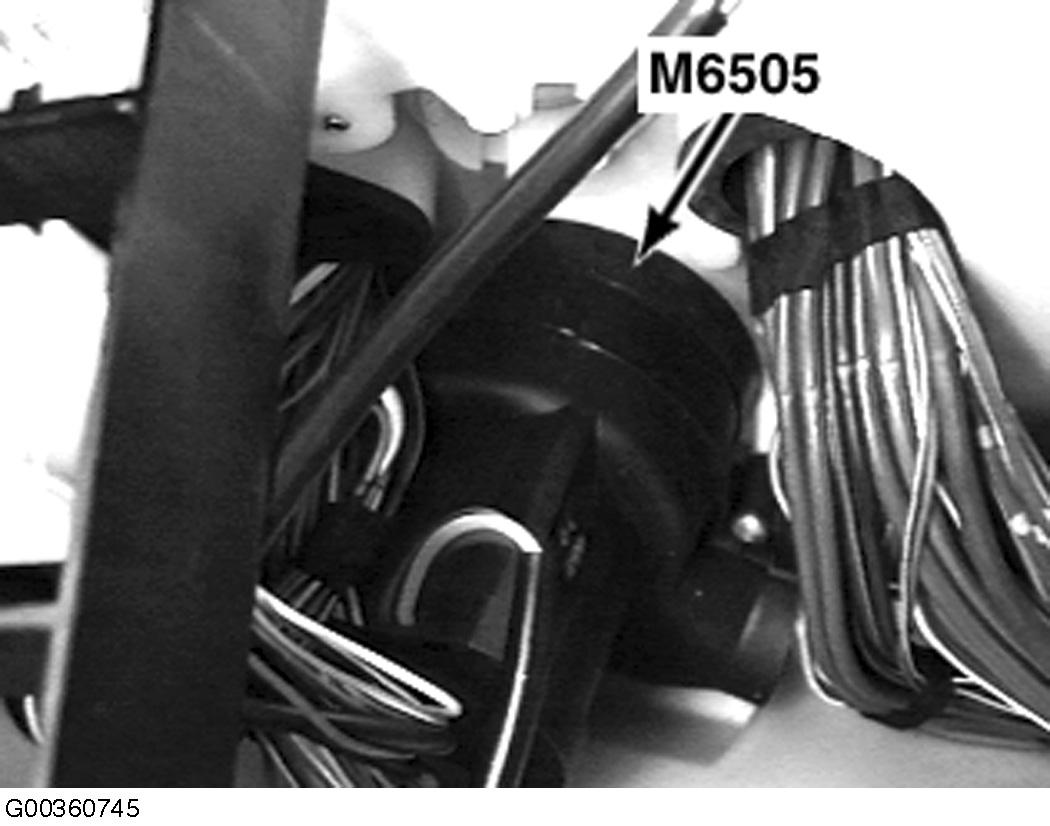

Fig 87: Right Rear Of Engine Compartment

G00360745

Courtesy of BMW OF NORTH AMERICA, INC.

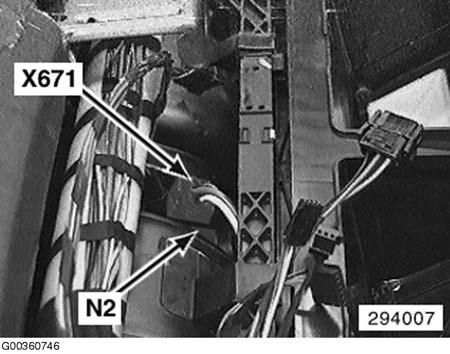

Fig 88: Center Top Of Dash

G00360746

Courtesy of BMW OF NORTH AMERICA, INC.

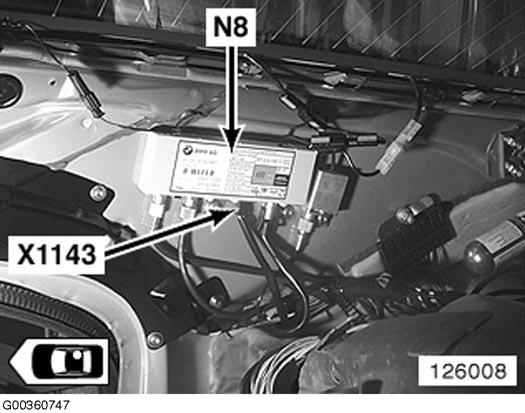

Fig 89: Right "C" Pillar

G00360747

Courtesy of BMW OF NORTH AMERICA, INC.

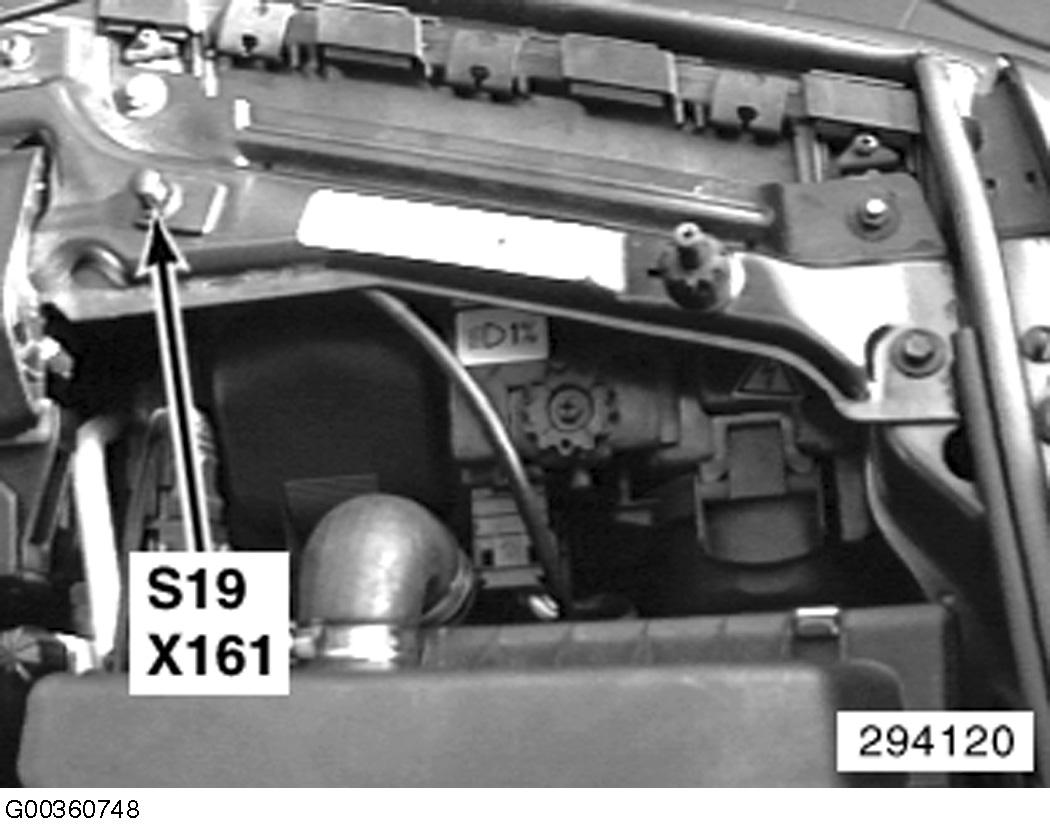

Fig 90: Right Front Of Engine Compartment

G00360748

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 91: Left Side Of Dash

G00360749

Courtesy of BMW OF NORTH AMERICA, INC.

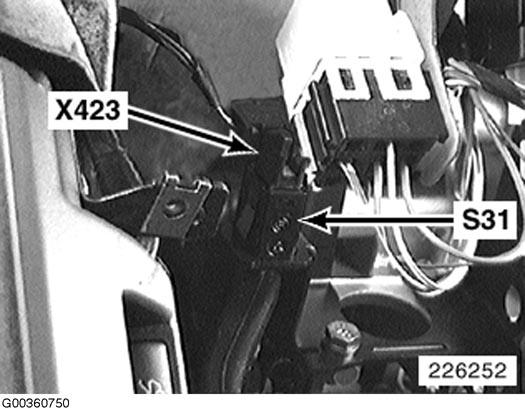

Fig 92: Left Side Of Dash

G00360750

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Right Front Of Engine Compartment

G00360751

Courtesy of BMW OF NORTH AMERICA, INC.

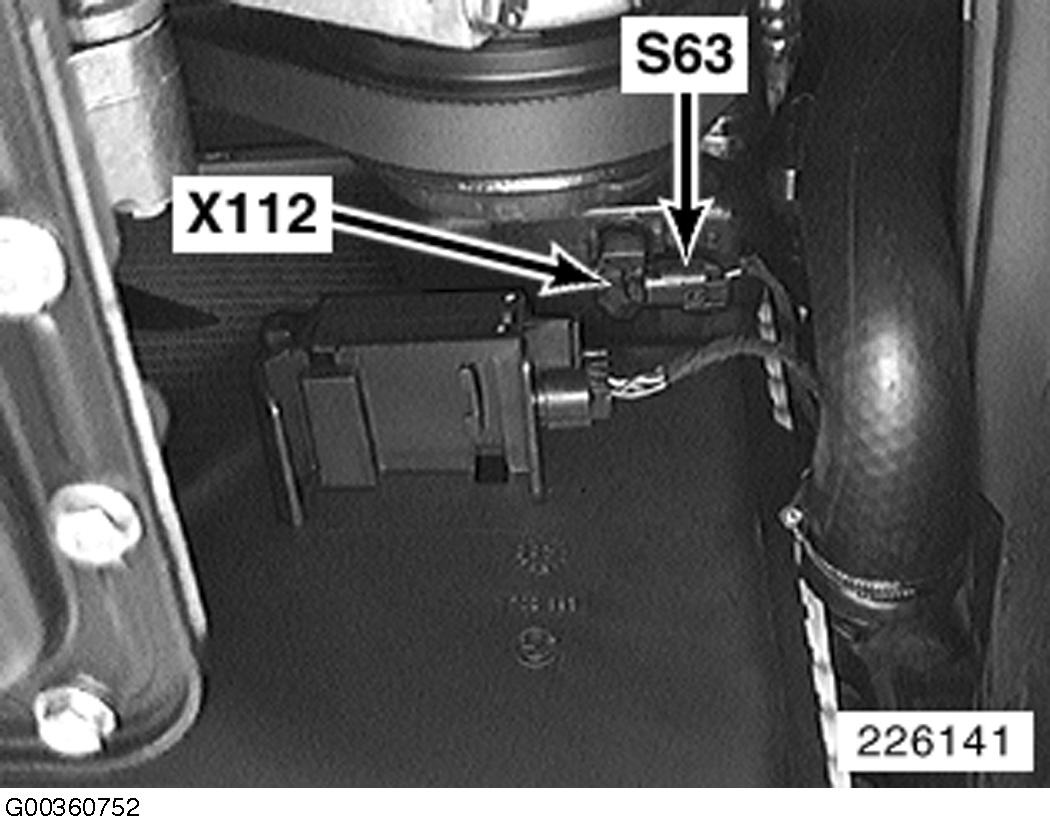

Fig 94: Right Front Of Engine Compartment

G00360752

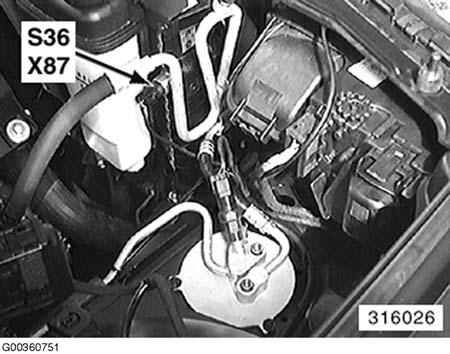

Courtesy of BMW OF NORTH AMERICA, INC.

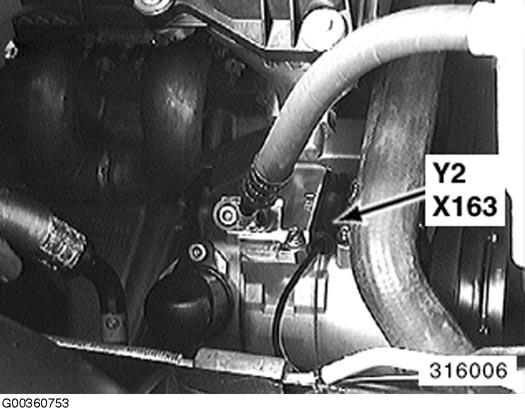

Fig 95: Right Front Of Engine Compartment

G00360753

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 96: Driver's Seatback

G00360754

Courtesy of BMW OF NORTH AMERICA, INC.

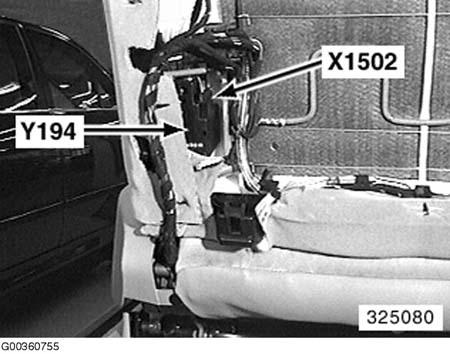

Fig 97: Passenger's Seatback

G00360755

Courtesy of BMW OF NORTH AMERICA, INC.

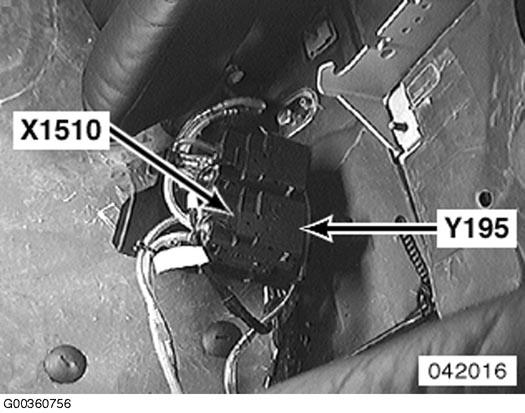

Fig 98: Below Rear Seat

G00360756

Courtesy of BMW OF NORTH AMERICA, INC.

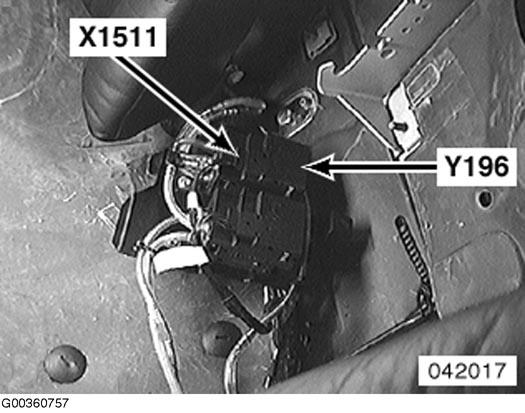

Fig 99: Below Rear Seat

G00360757
