Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

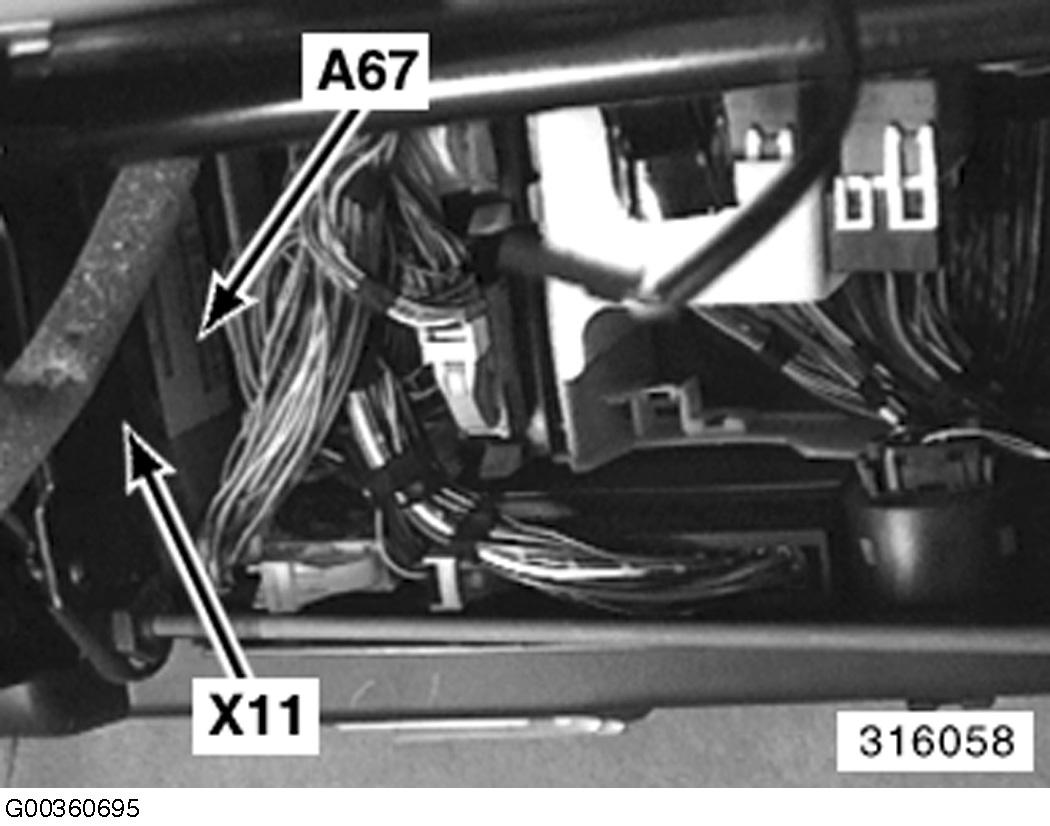

| ABS Control Module (A67) | Behind glove box. See Figure. |

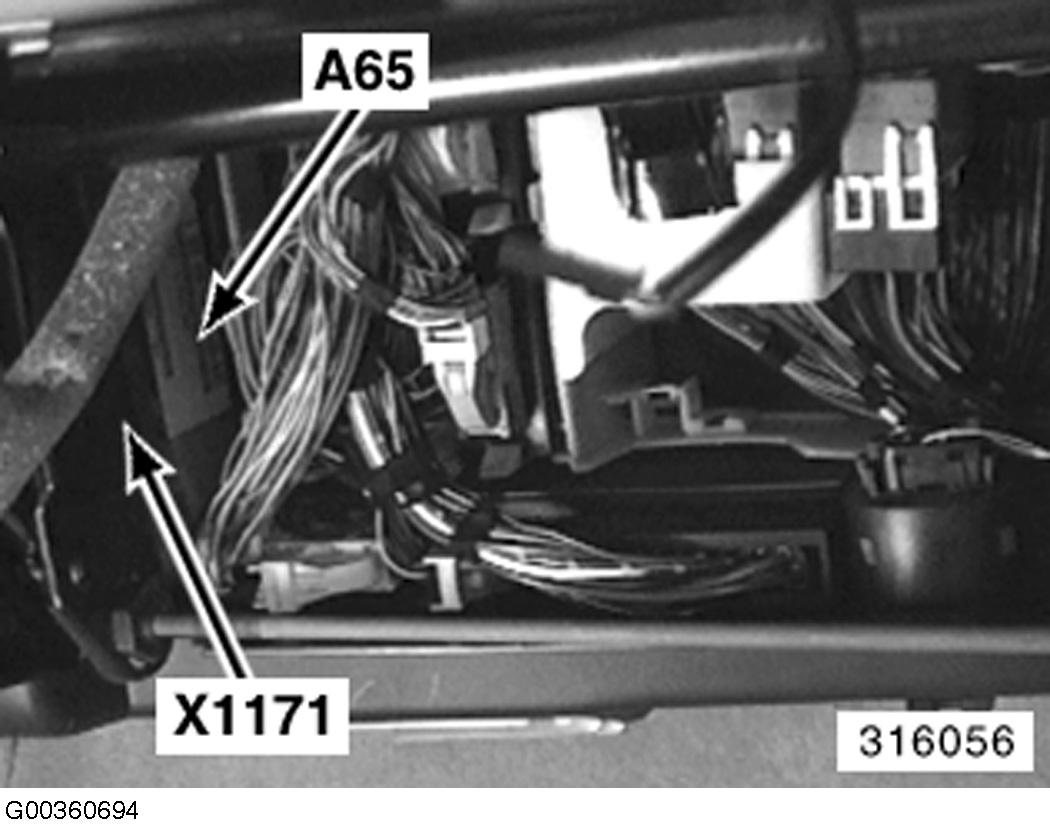

| ABS/DSC Control Module (A65) | Behind glove box. See Figure. |

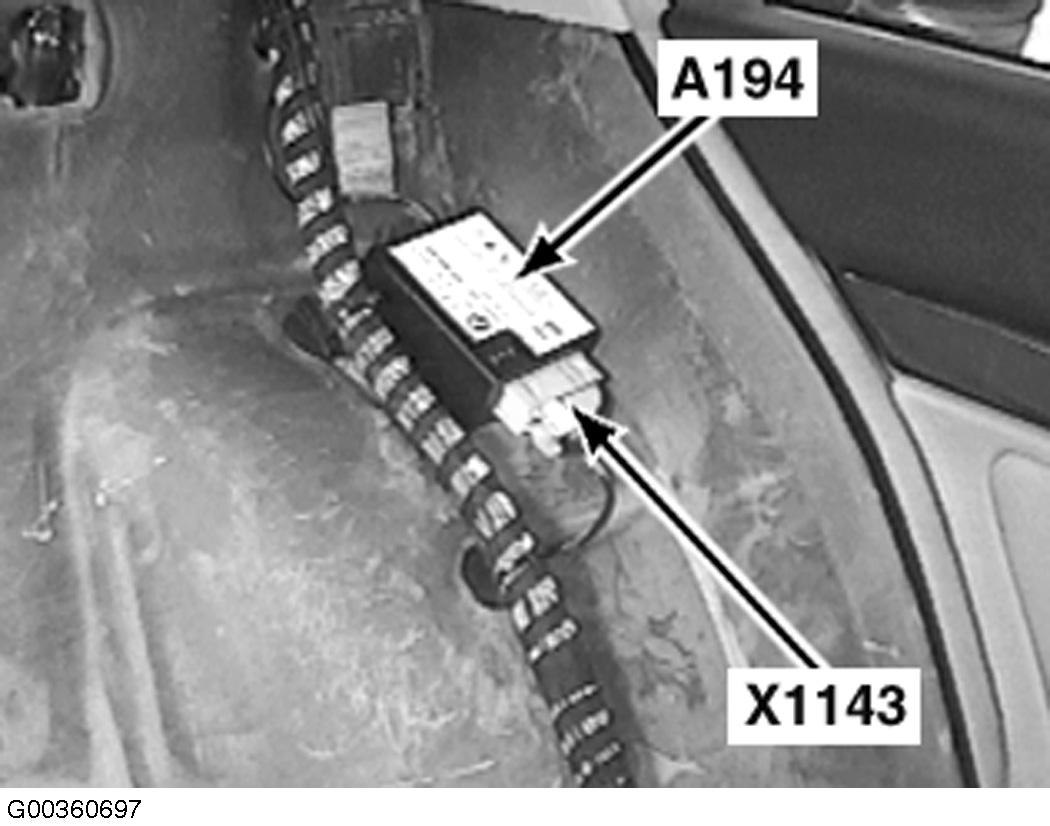

| Central Locking Remote Control (A194) | Below rear seat. See Figure. |

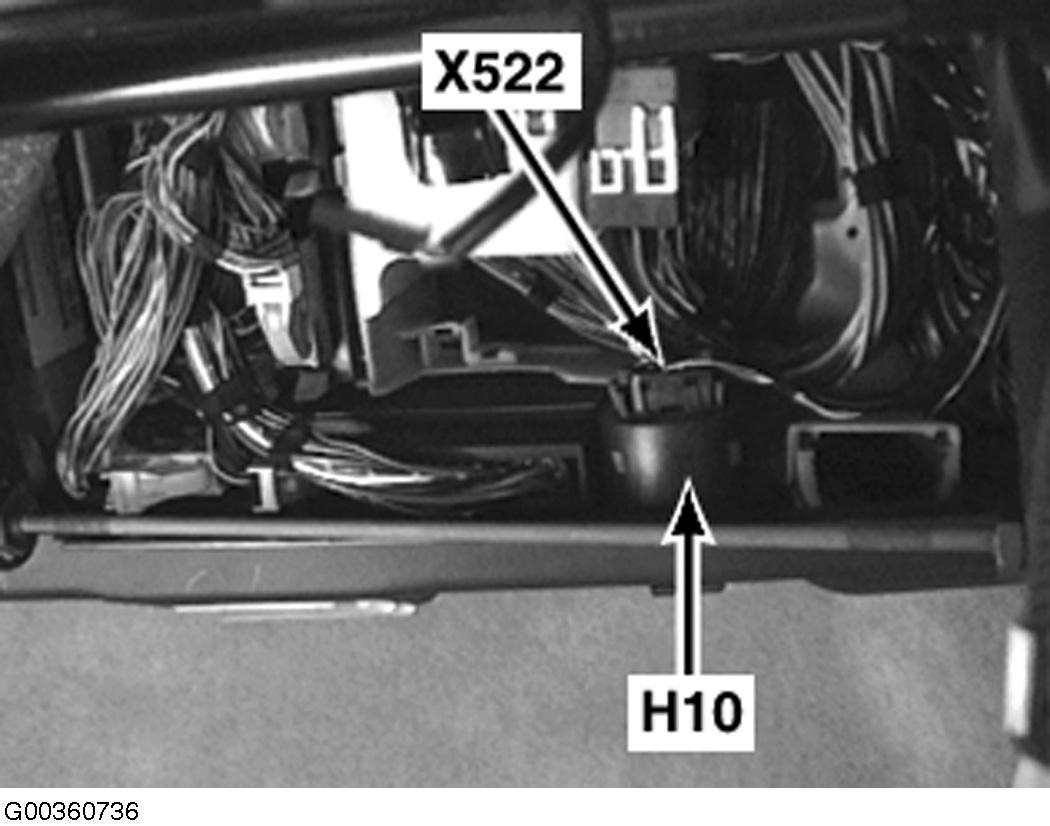

| Chime Module (H10) | Under glove box. See Figure. |

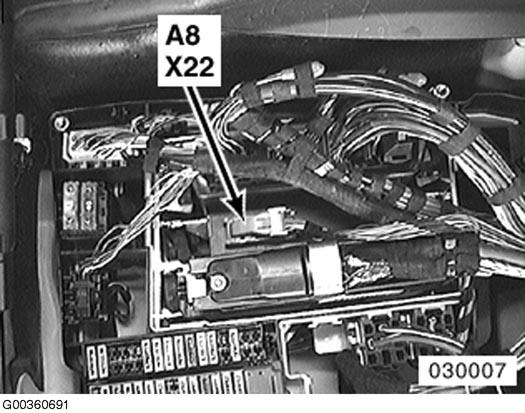

| Cruise Control Module (Tempomat) (A8) | Right rear of engine compartment. See Figure. |
| Engine Control Module I (DME) (A6010) | Right rear of engine compartment. |
| Engine Control Module II (DME) (A6020) | Right rear of engine compartment. |

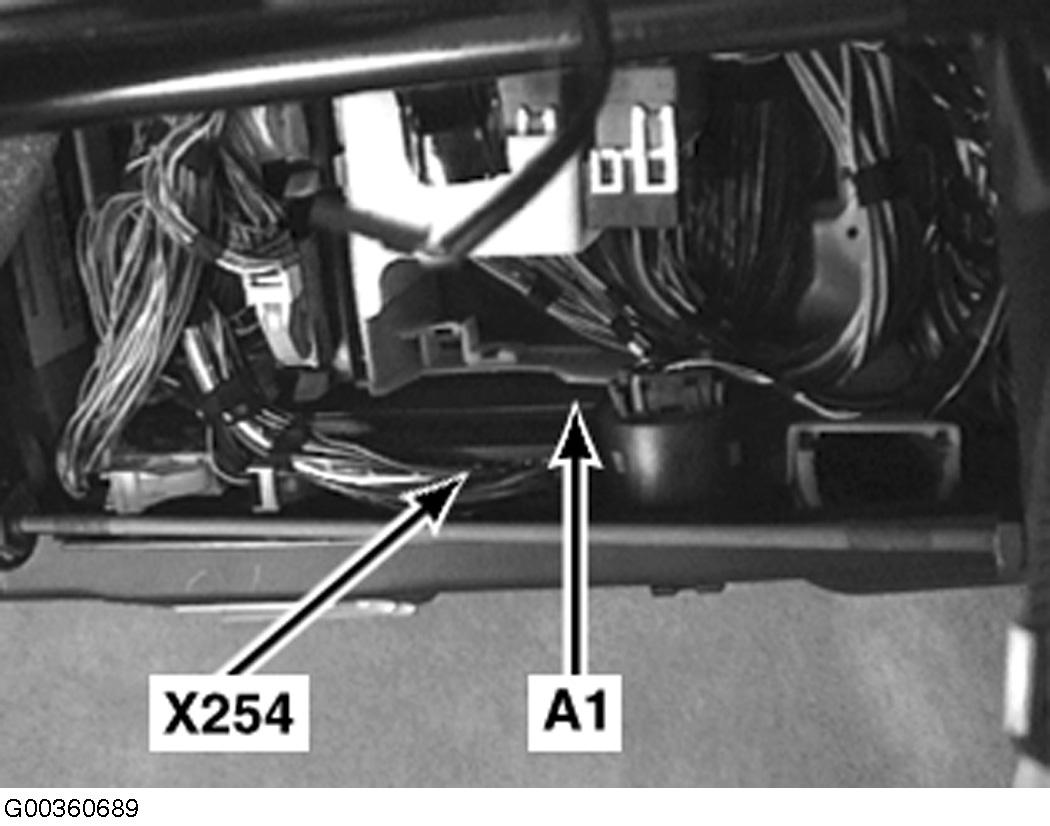

| General Module (A1) | Behind glove box. See Figure. |

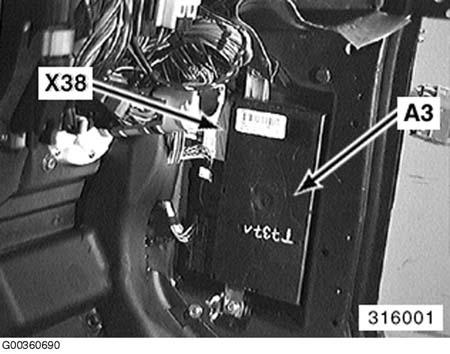

| Light Module (A3) | Right side of right footwell. See Figure. |
| Sun Blind Control Module (A82) | Below right rear seat. See Figure. |

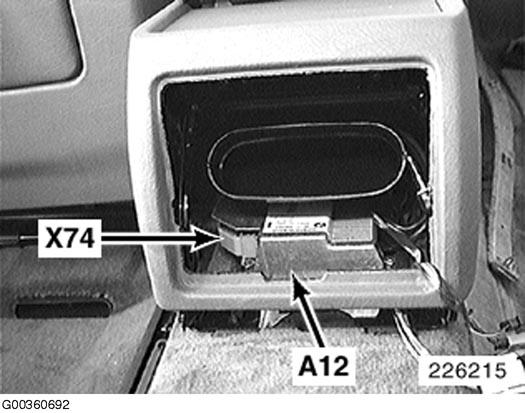

| Supplemental Restraint System Control Module (A12) | Rear center console. See Figure. |
| Transmission Control Module (AGS) (A8600) | Right rear of engine compartment. |
