Component Locations

Fig 1: Component Locations (1 Of 45)

G00076606

Courtesy of BMW OF NORTH AMERICA, INC.

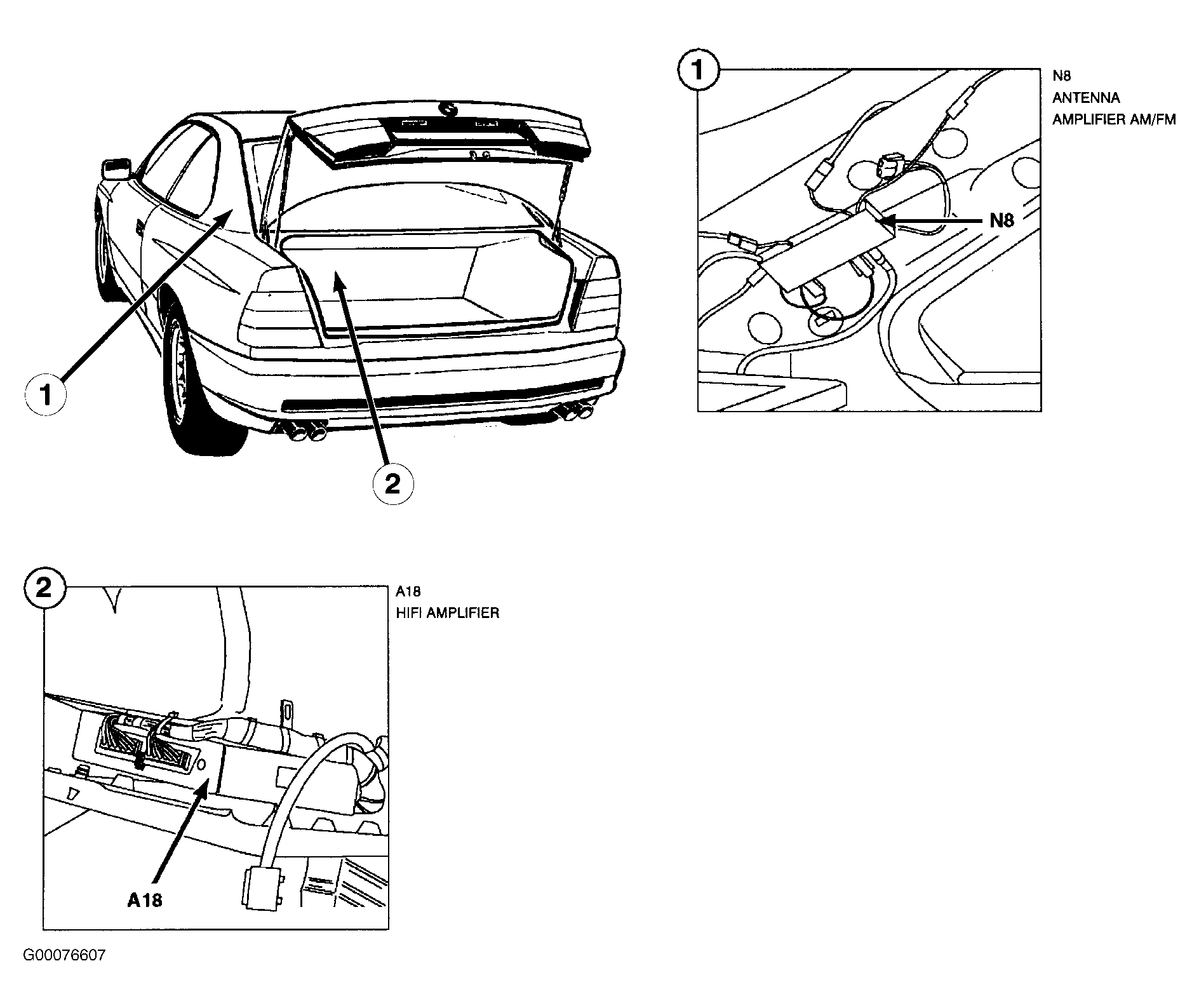

Fig 2: Component Locations (2 Of 45)

G00076607

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Component Locations (3 Of 45)

G00076608

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Component Locations (4 Of 45)

G00076609

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Component Locations (5 Of 45)

G00076610

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Component Locations (6 Of 45)

G00076611

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Component Locations (7 Of 45)

G00076612

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Component Locations (8 Of 45)

G00076613

Courtesy of BMW OF NORTH AMERICA, INC.

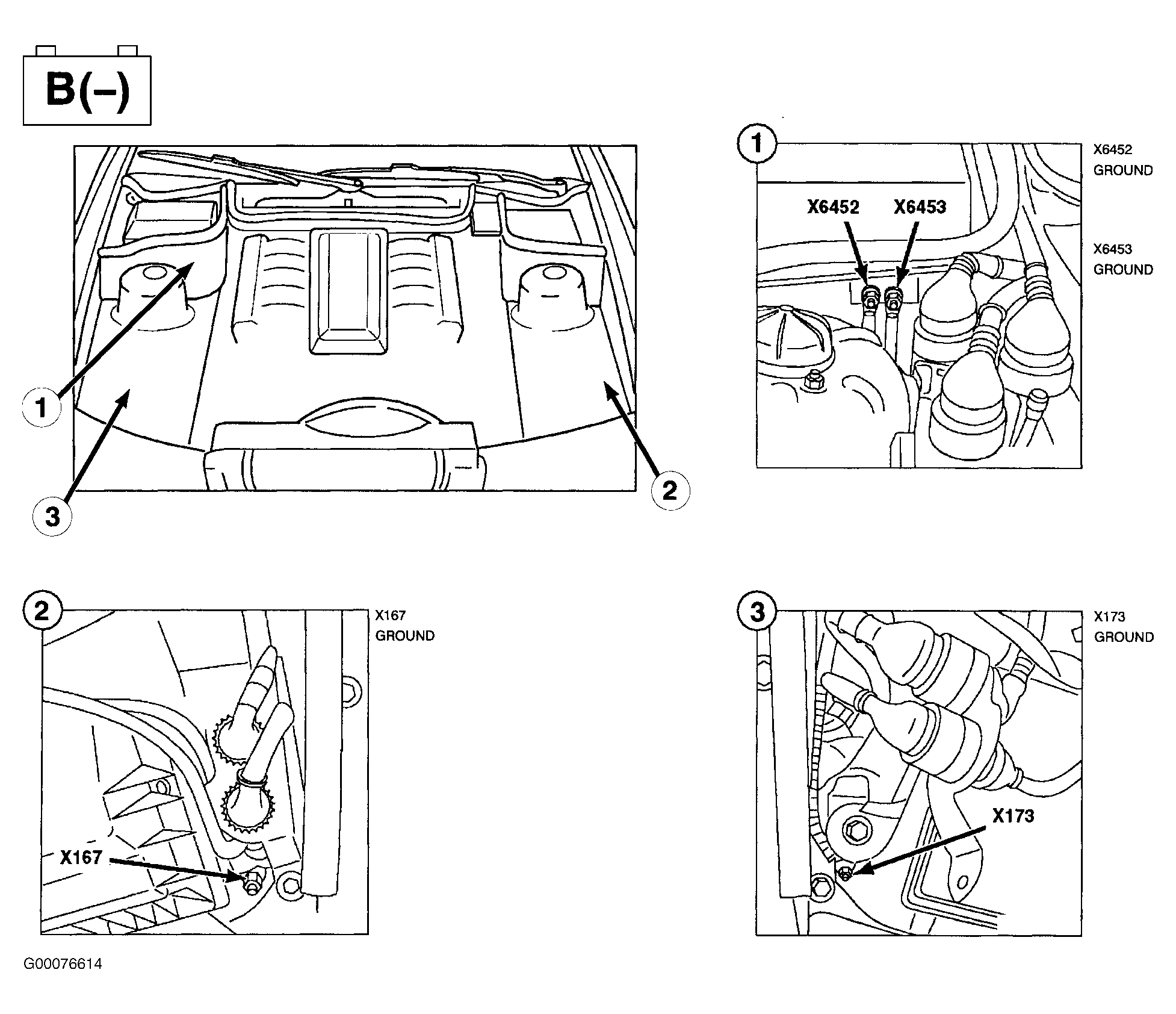

Fig 9: Component Locations (9 Of 45)

G00076614

Courtesy of BMW OF NORTH AMERICA, INC.

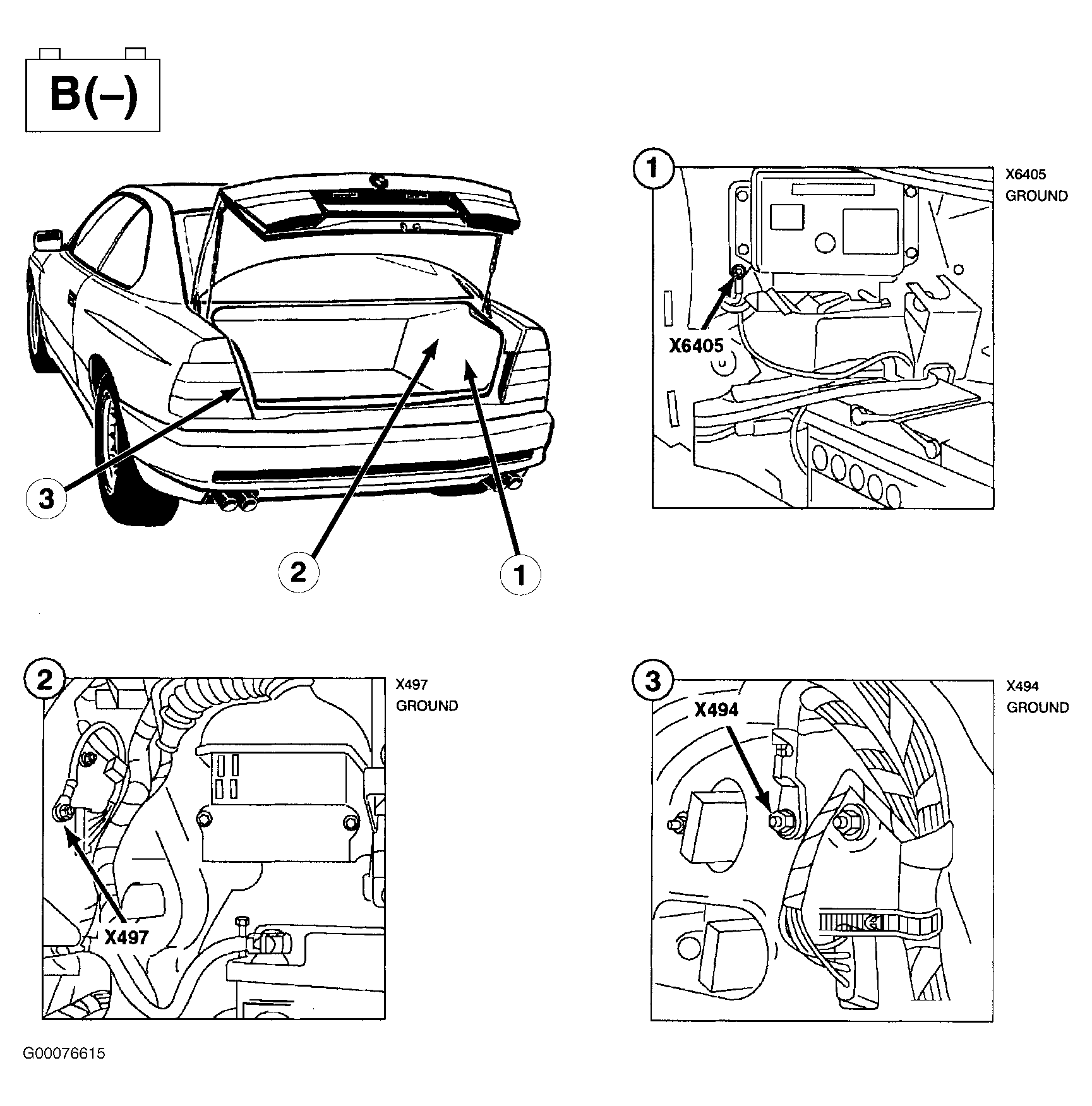

Fig 10: Component Locations (10 Of 45)

G00076615

Courtesy of BMW OF NORTH AMERICA, INC.

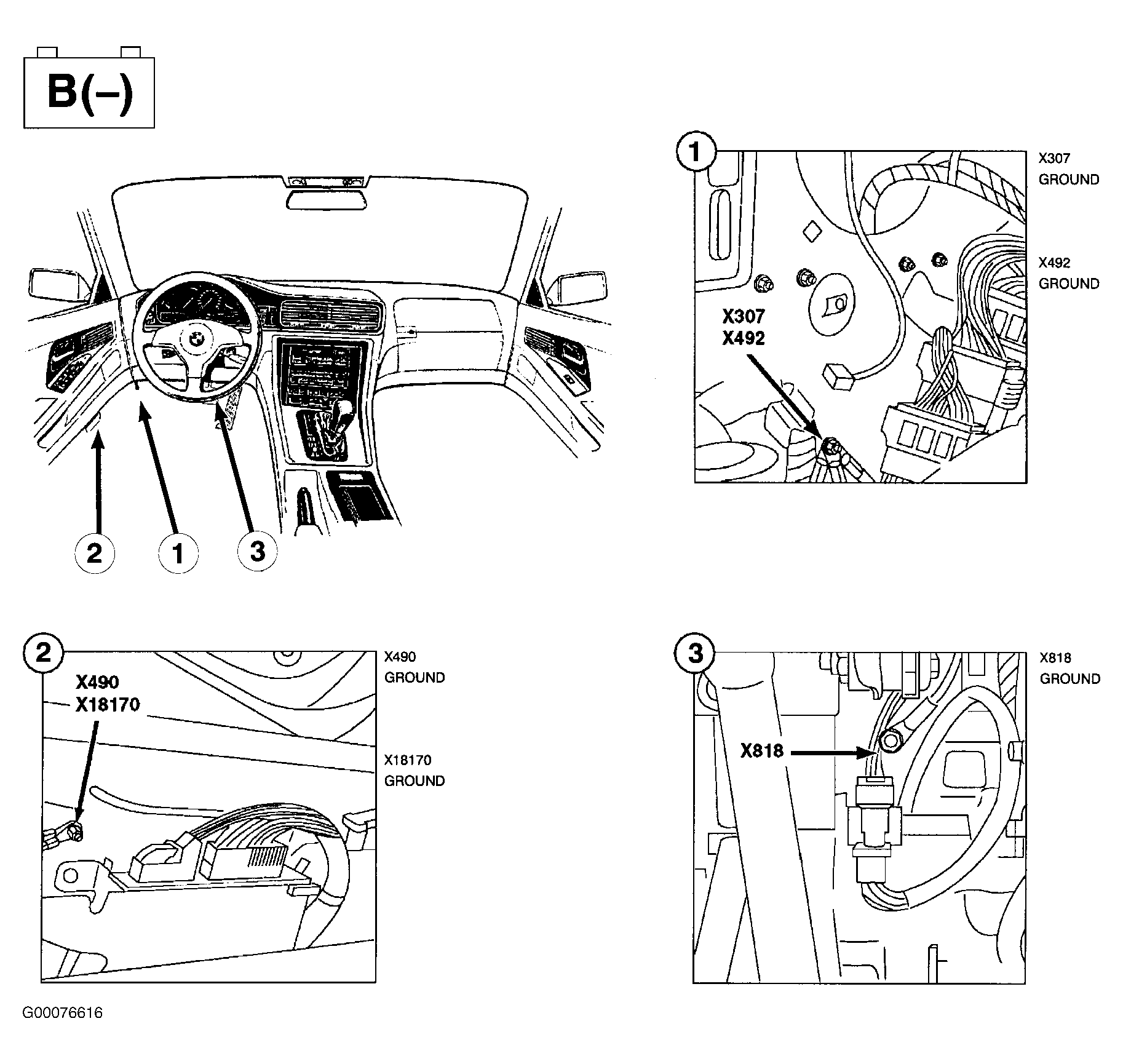

Fig 11: Component Locations (11 Of 45)

G00076616

Courtesy of BMW OF NORTH AMERICA, INC.

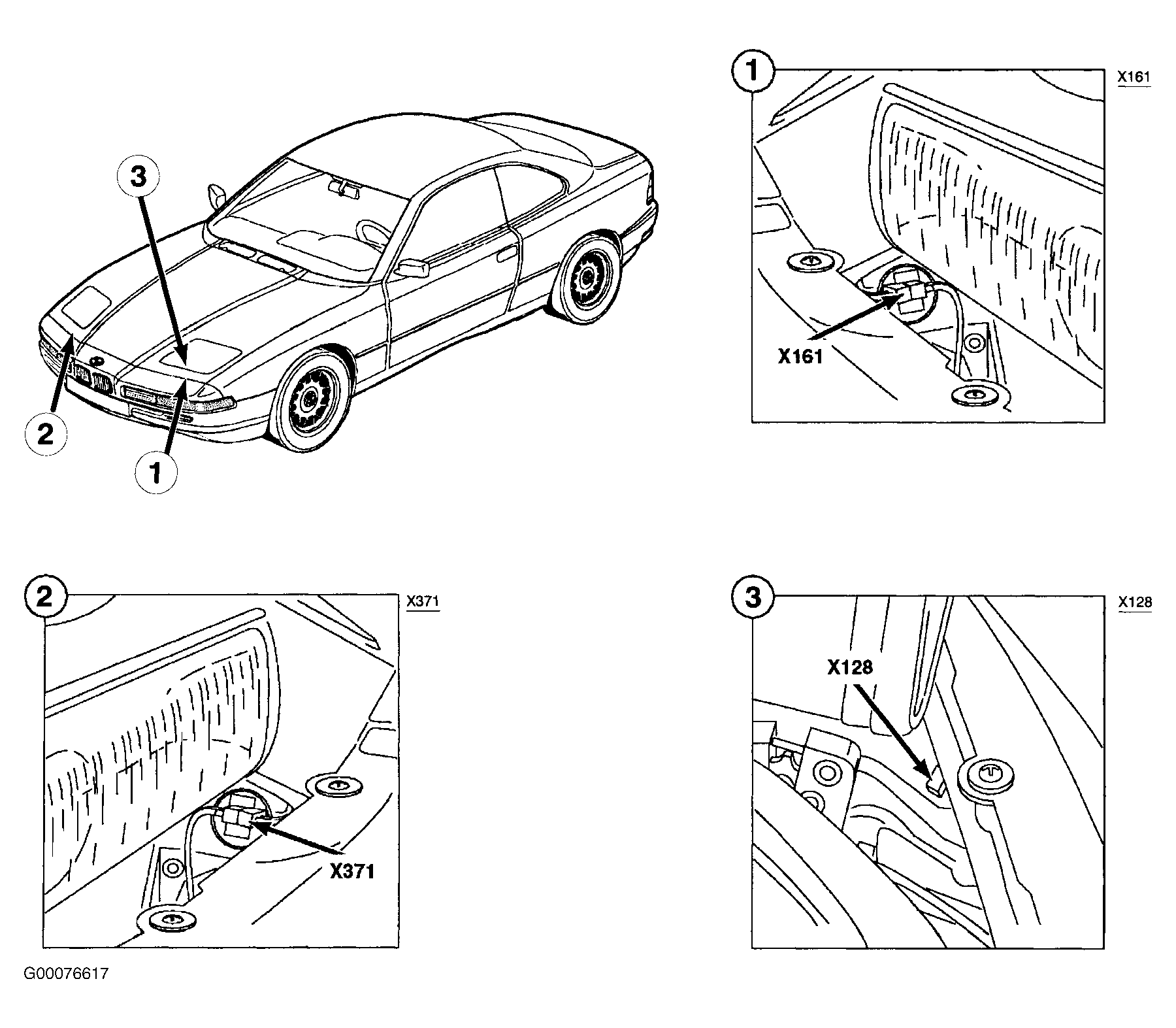

Fig 12: Component Locations (12 Of 45)

G00076617

Courtesy of BMW OF NORTH AMERICA, INC.

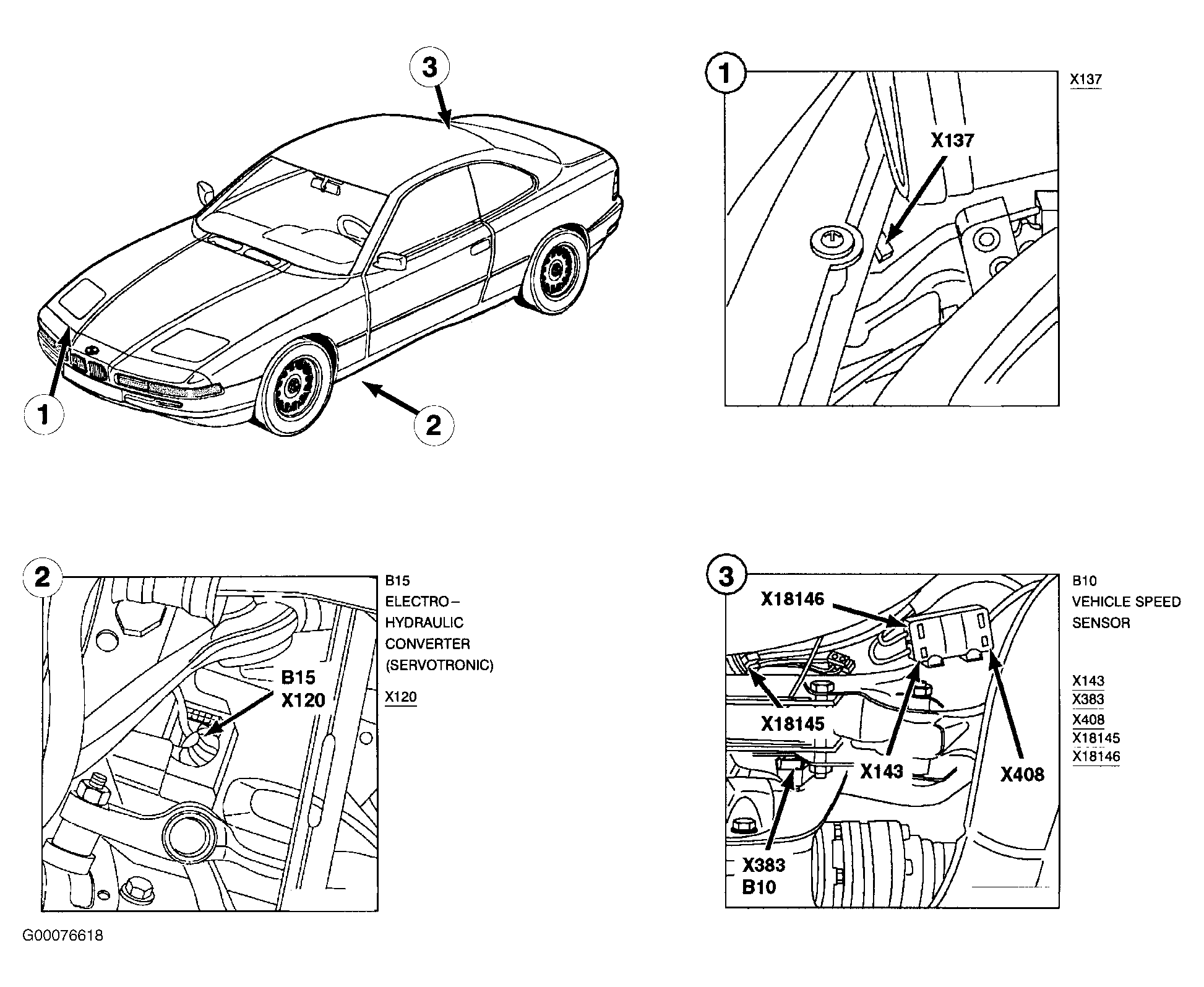

Fig 13: Component Locations (13 Of 45)

G00076618

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Component Locations (14 Of 45)

G00076619

Courtesy of BMW OF NORTH AMERICA, INC.

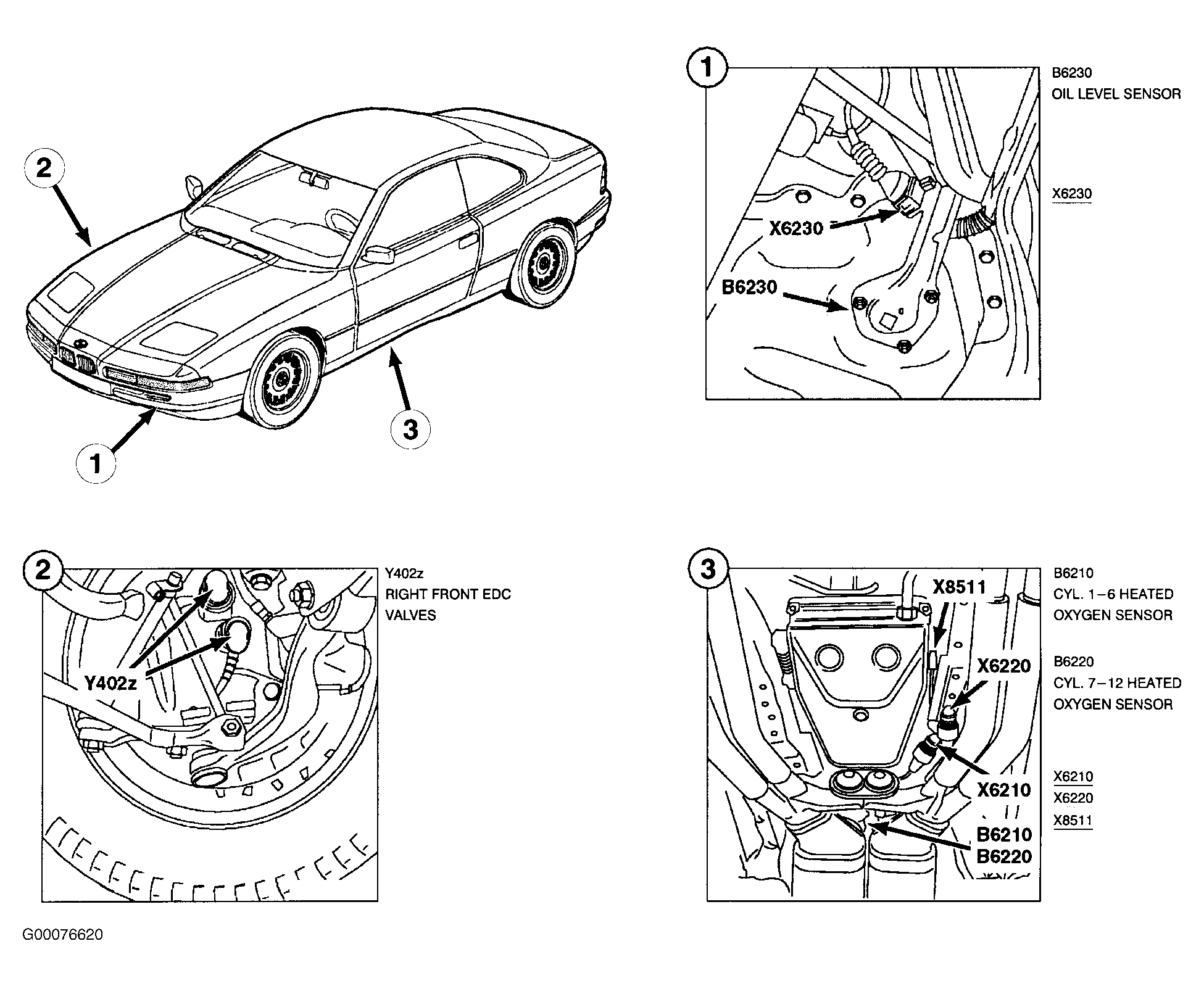

Fig 15: Component Locations (15 Of 45)

G00076620

Courtesy of BMW OF NORTH AMERICA, INC.

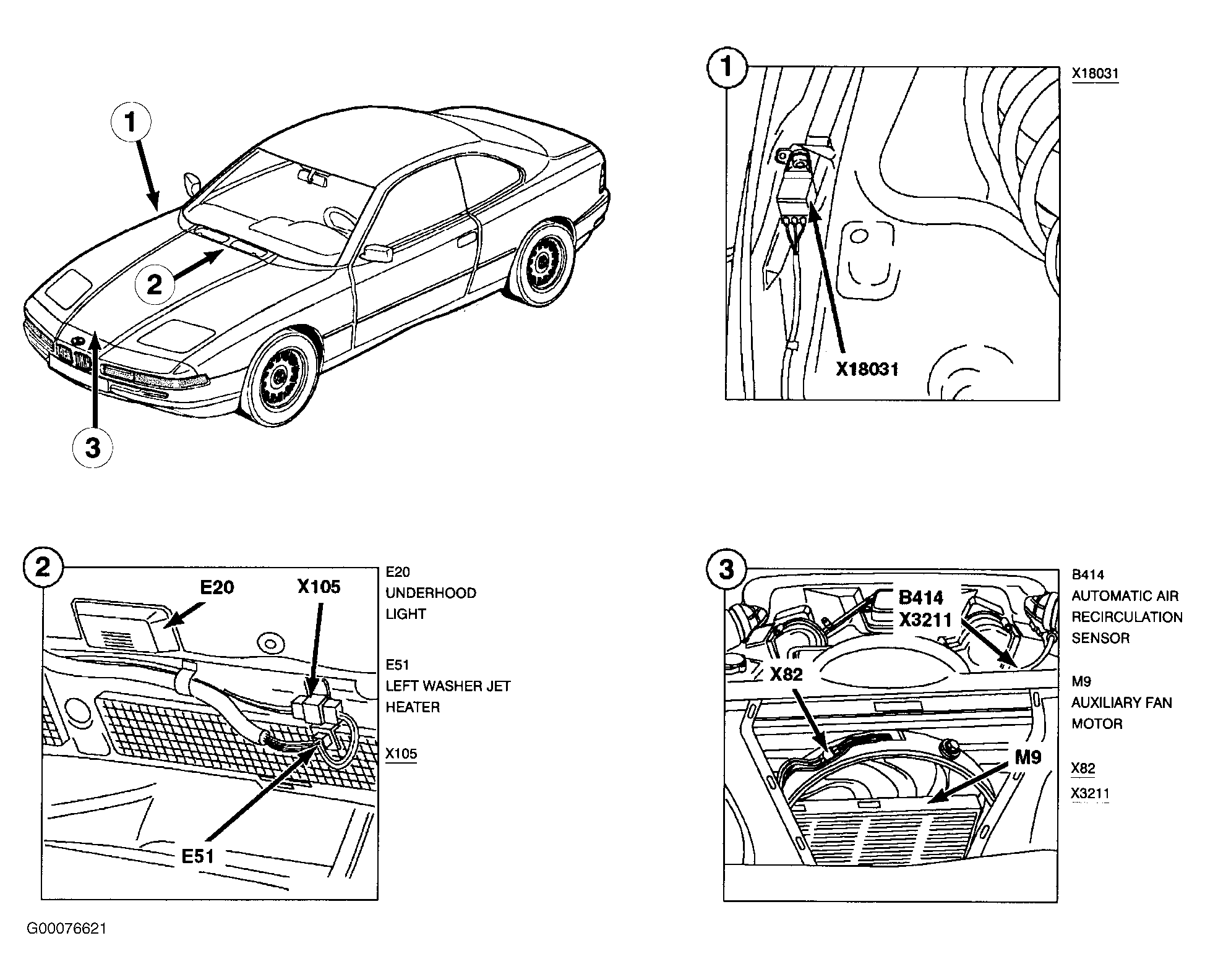

Fig 16: Component Locations (16 Of 45)

G00076621

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 17: Component Locations (17 Of 45)

G00076622

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Component Locations (18 Of 45)

G00076623

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Component Locations (19 Of 45)

G00076624

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Component Locations (20 Of 45)

G00076625

Courtesy of BMW OF NORTH AMERICA, INC.

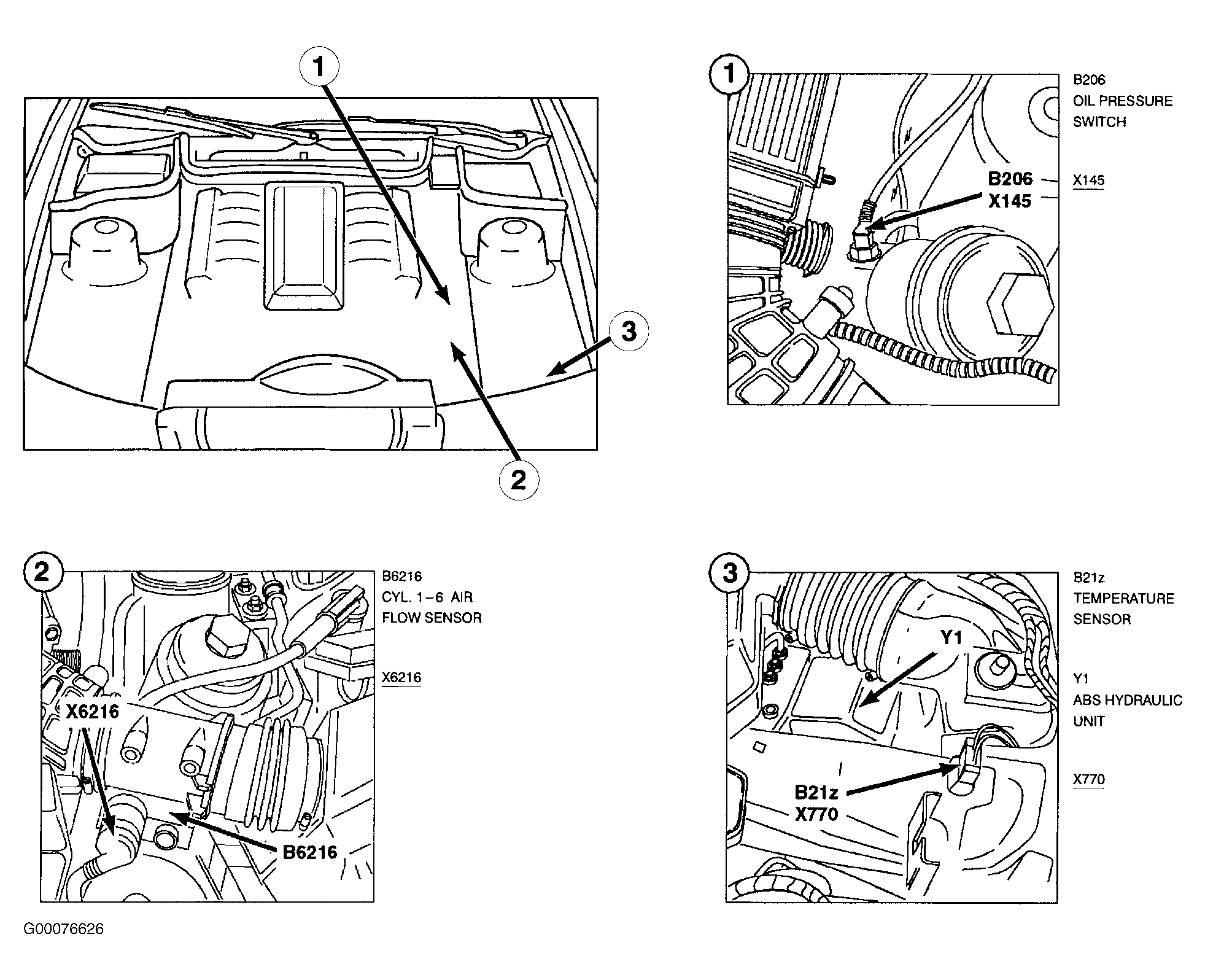

Fig 21: Component Locations (21 Of 45)

G00076626

Courtesy of BMW OF NORTH AMERICA, INC.

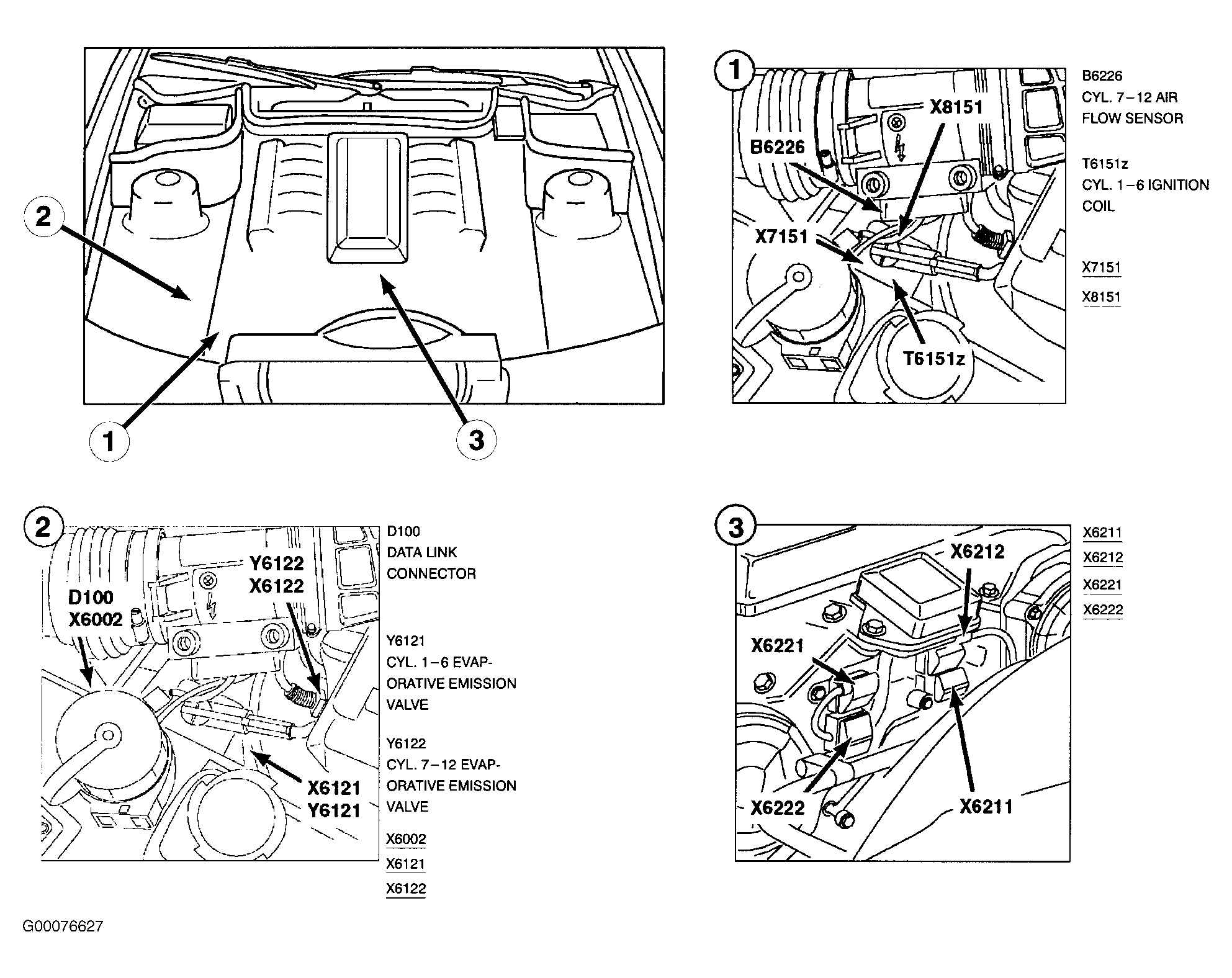

Fig 22: Component Locations (22 Of 45)

G00076627

Courtesy of BMW OF NORTH AMERICA, INC.

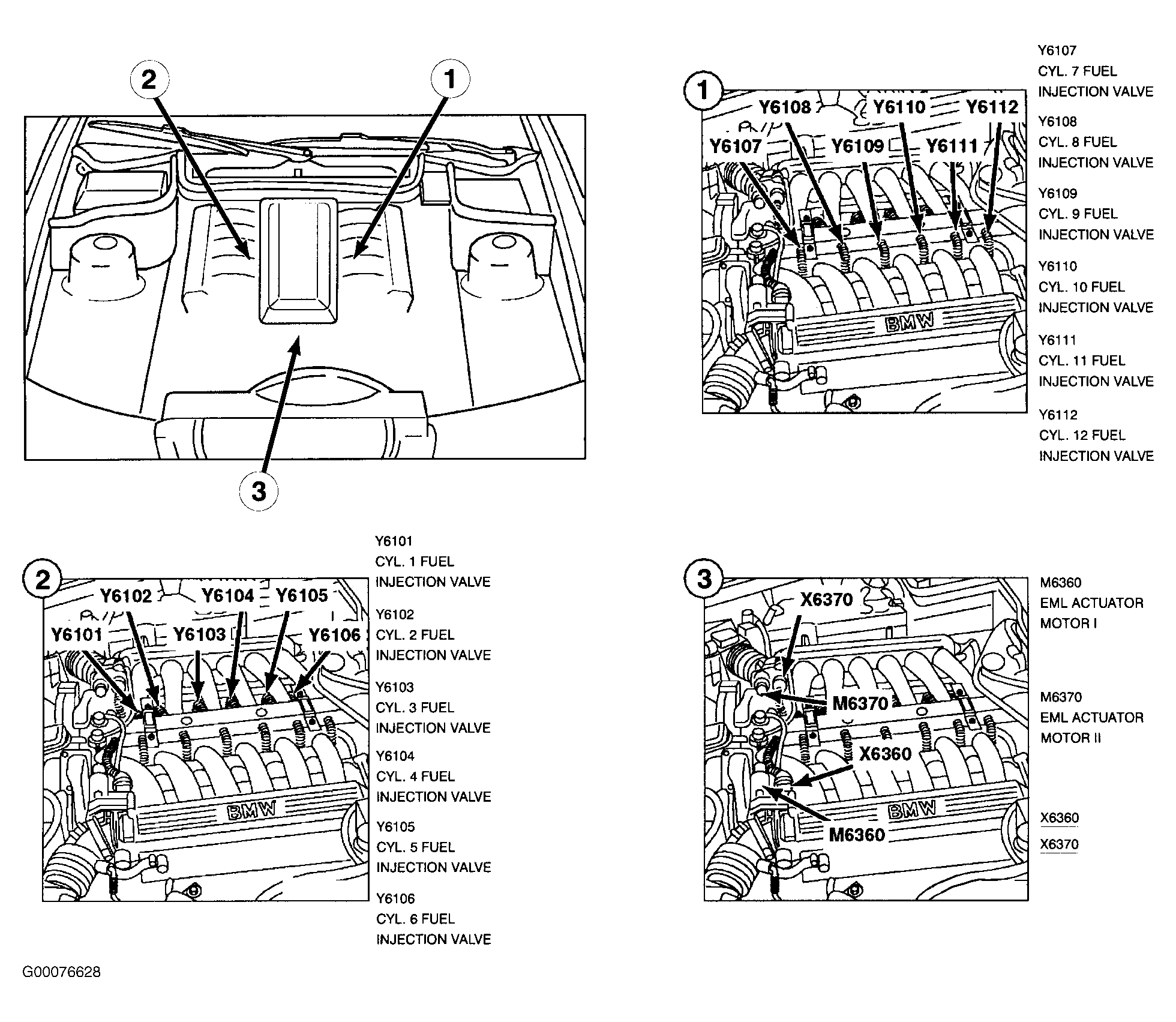

Fig 23: Component Locations (23 Of 45)

G00076628

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Component Locations (24 Of 45)

G00076629

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Component Locations (25 Of 45)

G00076630

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Component Locations (26 Of 45)

G00076631

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Component Locations (27 Of 45)

G00076632

Courtesy of BMW OF NORTH AMERICA, INC.

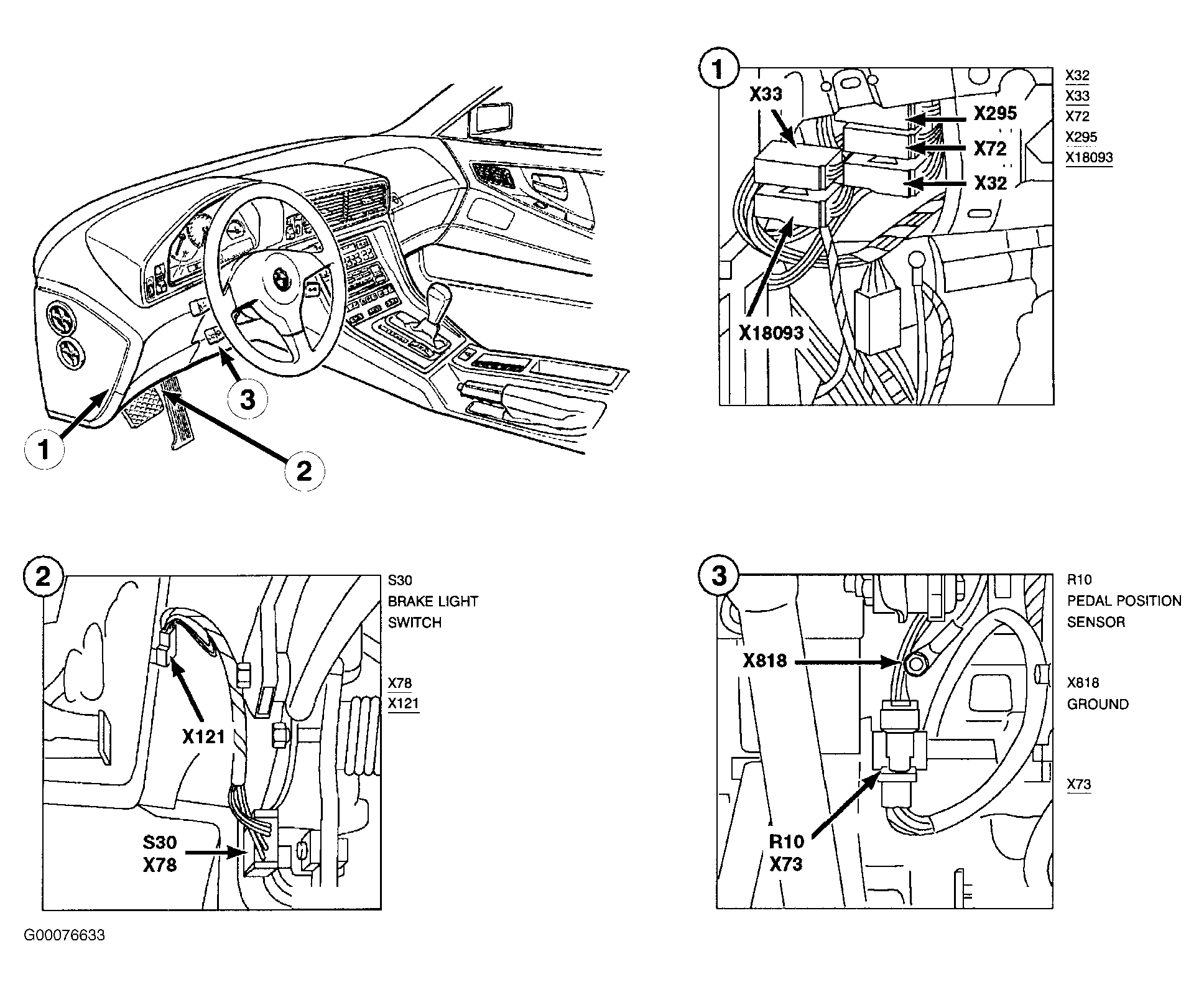

Fig 28: Component Locations (28 Of 45)

G00076633

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Component Locations (29 Of 45)

G00076634

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Component Locations (30 Of 45)

G00076635

Courtesy of BMW OF NORTH AMERICA, INC.

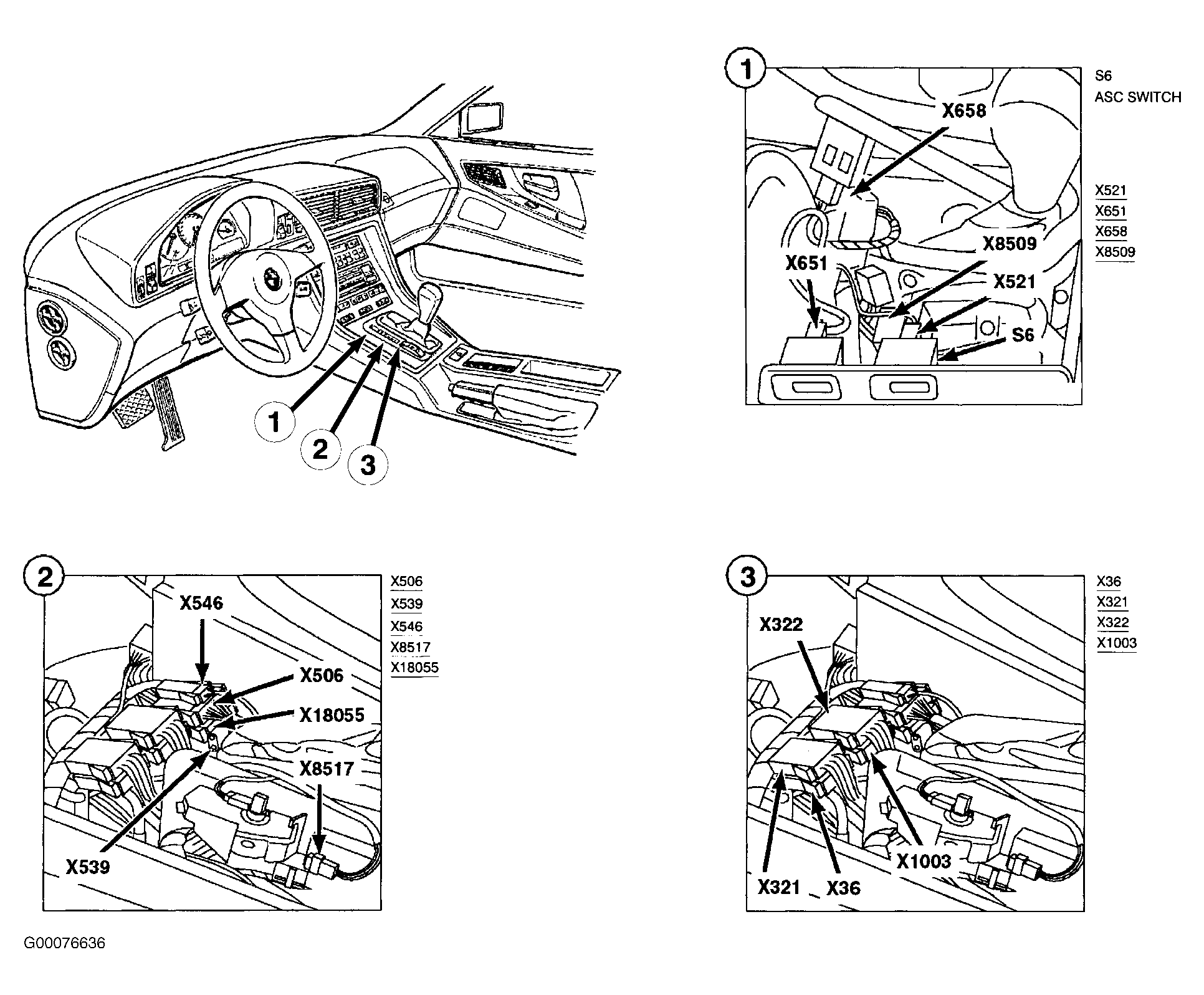

Fig 31: Component Locations (31 Of 45)

G00076636

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Component Locations (32 Of 45)

G00076637

Courtesy of BMW OF NORTH AMERICA, INC.

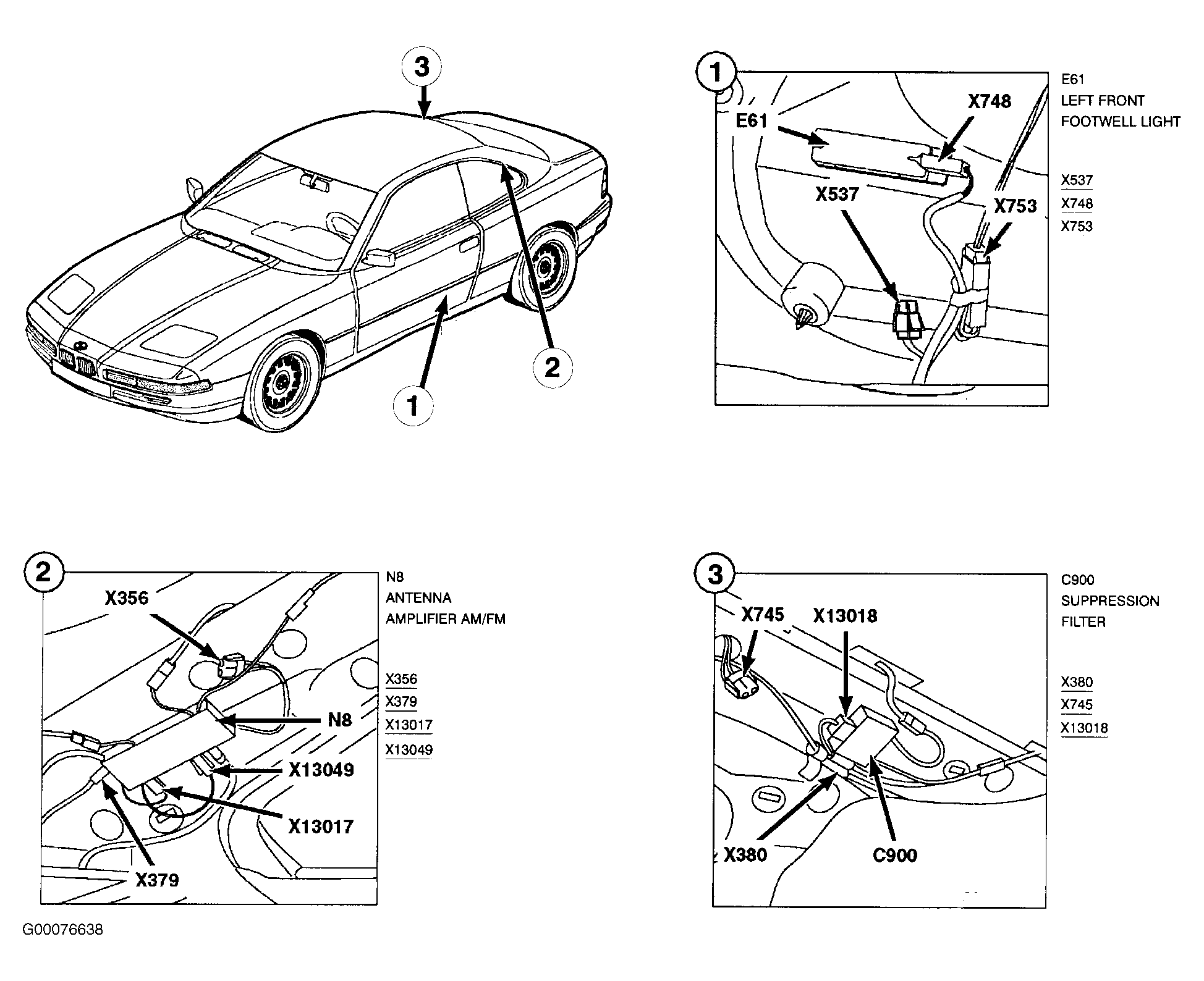

Fig 33: Component Locations (33 Of 45)

G00076638

Courtesy of BMW OF NORTH AMERICA, INC.

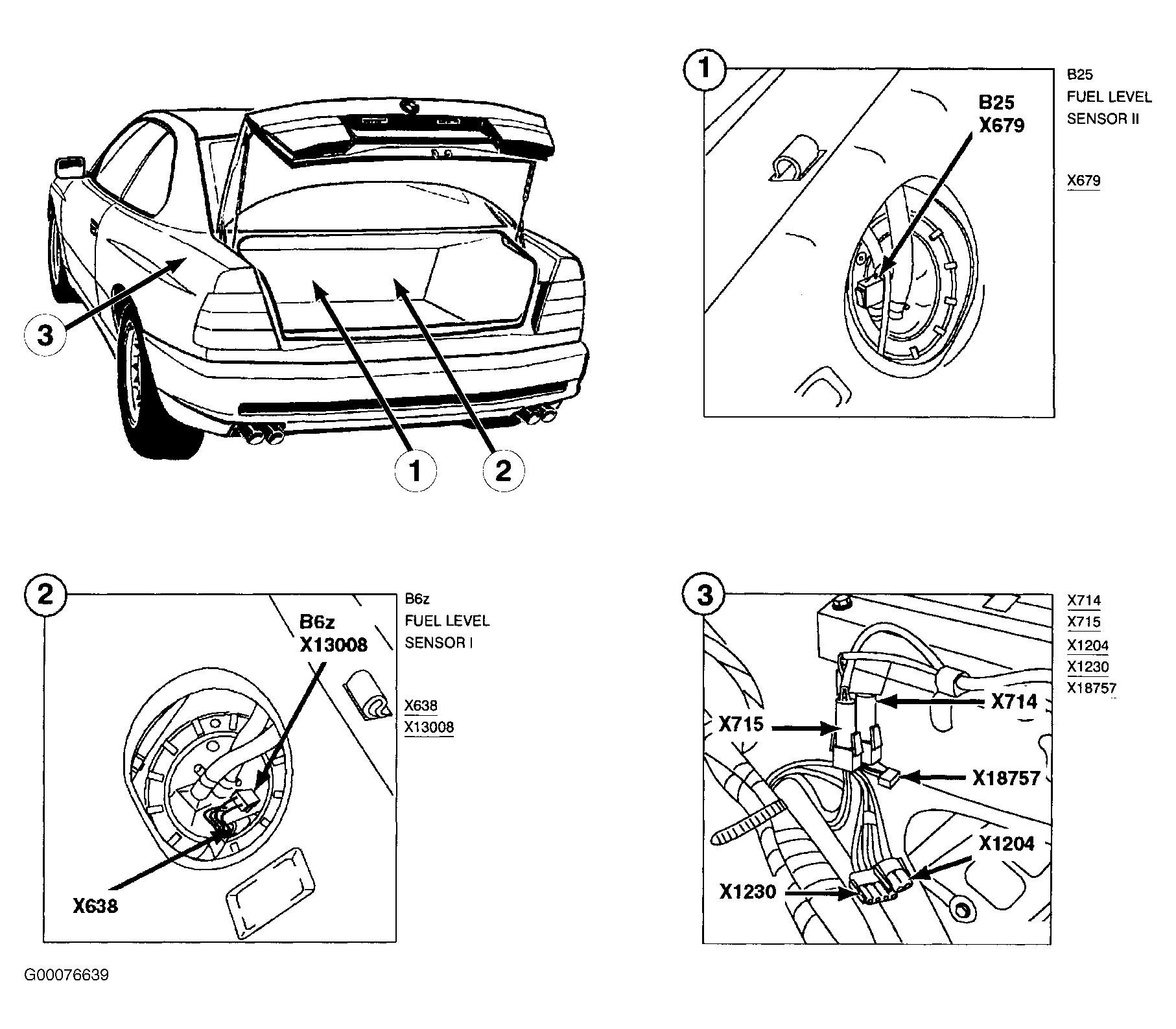

Fig 34: Component Locations (34 Of 45)

G00076639

Courtesy of BMW OF NORTH AMERICA, INC.

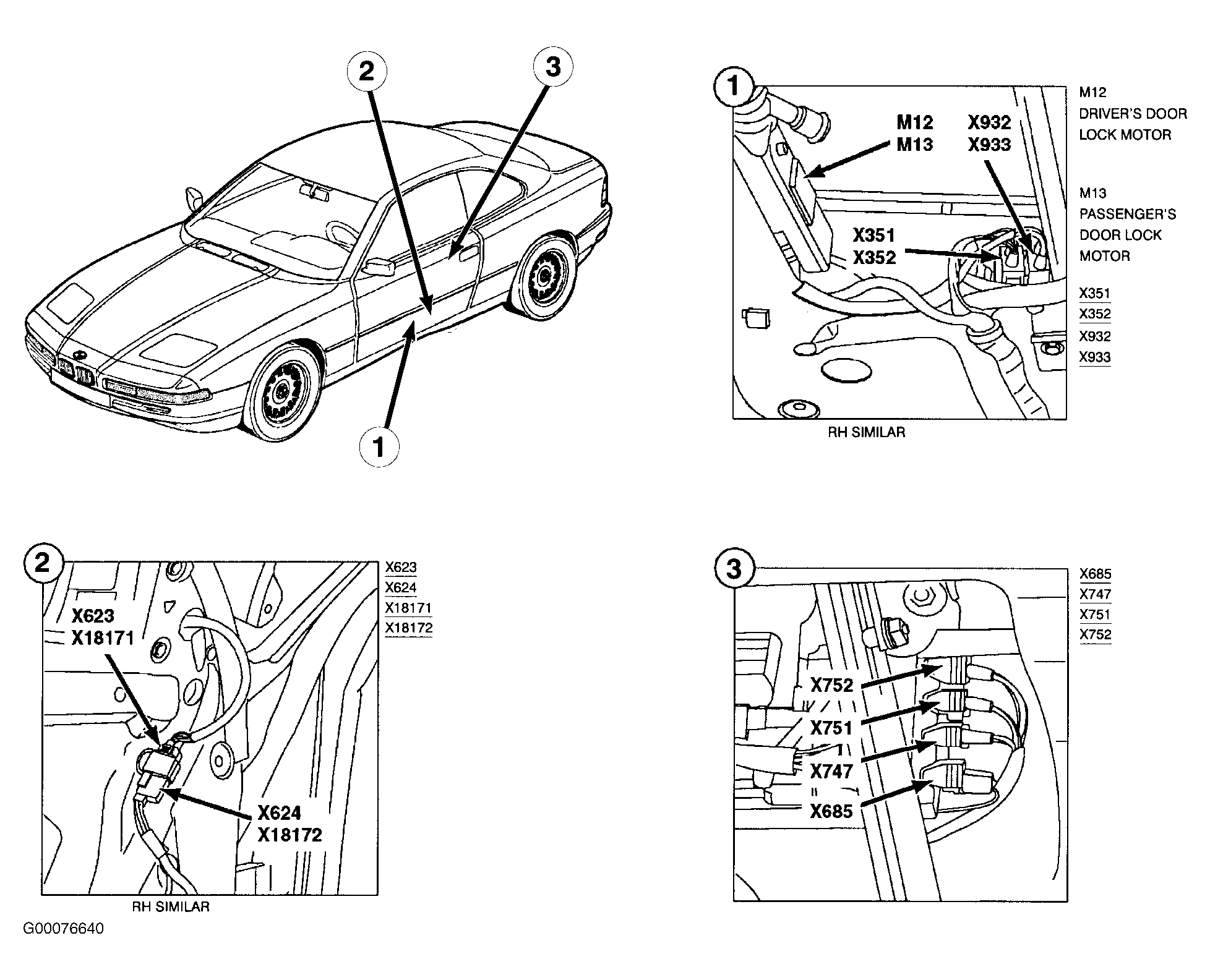

Fig 35: Component Locations (35 Of 45)

G00076640

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Component Locations (36 Of 45)

G00076641

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Component Locations (37 Of 45)

G00076642

Courtesy of BMW OF NORTH AMERICA, INC.

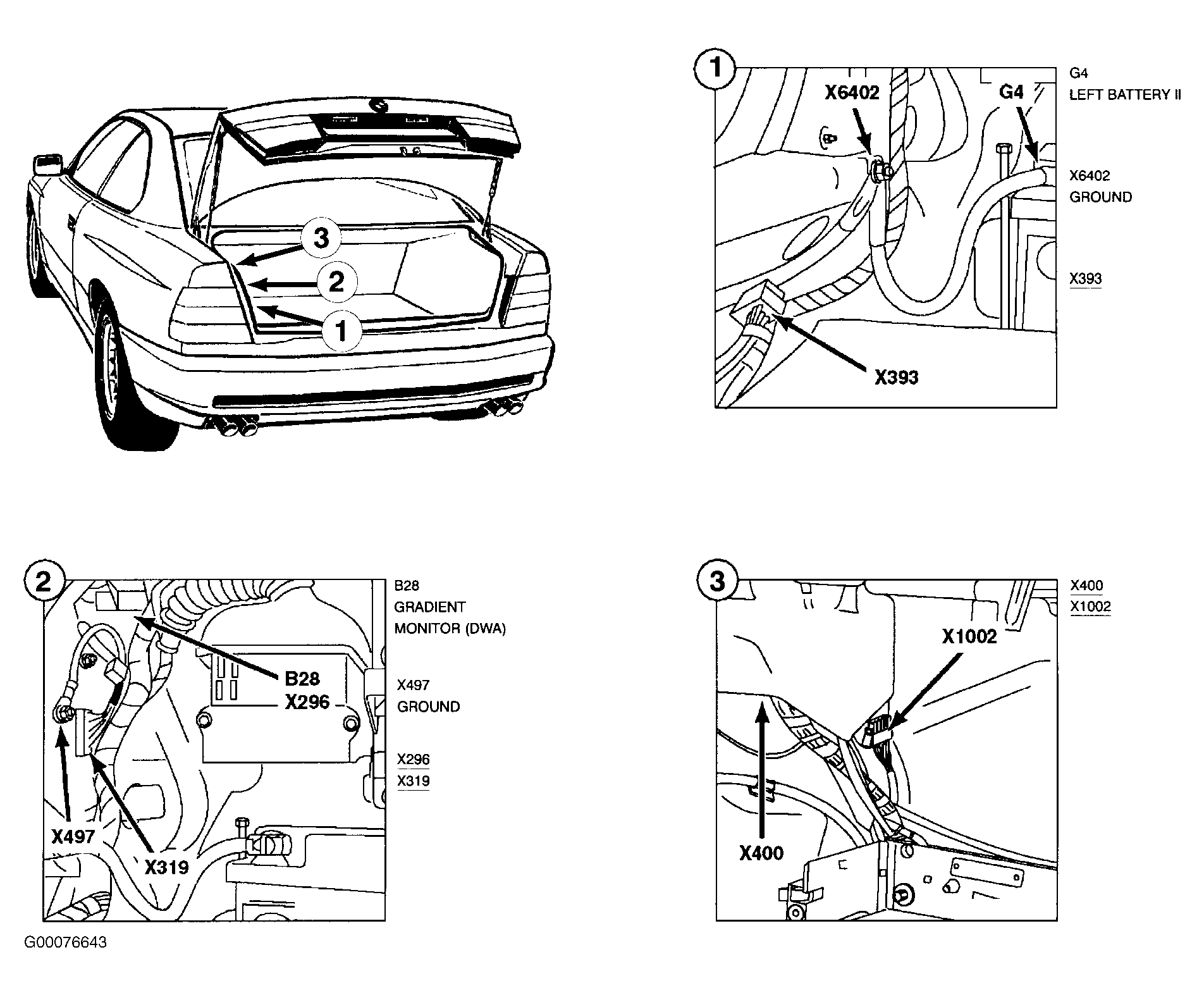

Fig 38: Component Locations (38 Of 45)

G00076643

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Component Locations (39 Of 45)

G00076644

Courtesy of BMW OF NORTH AMERICA, INC.

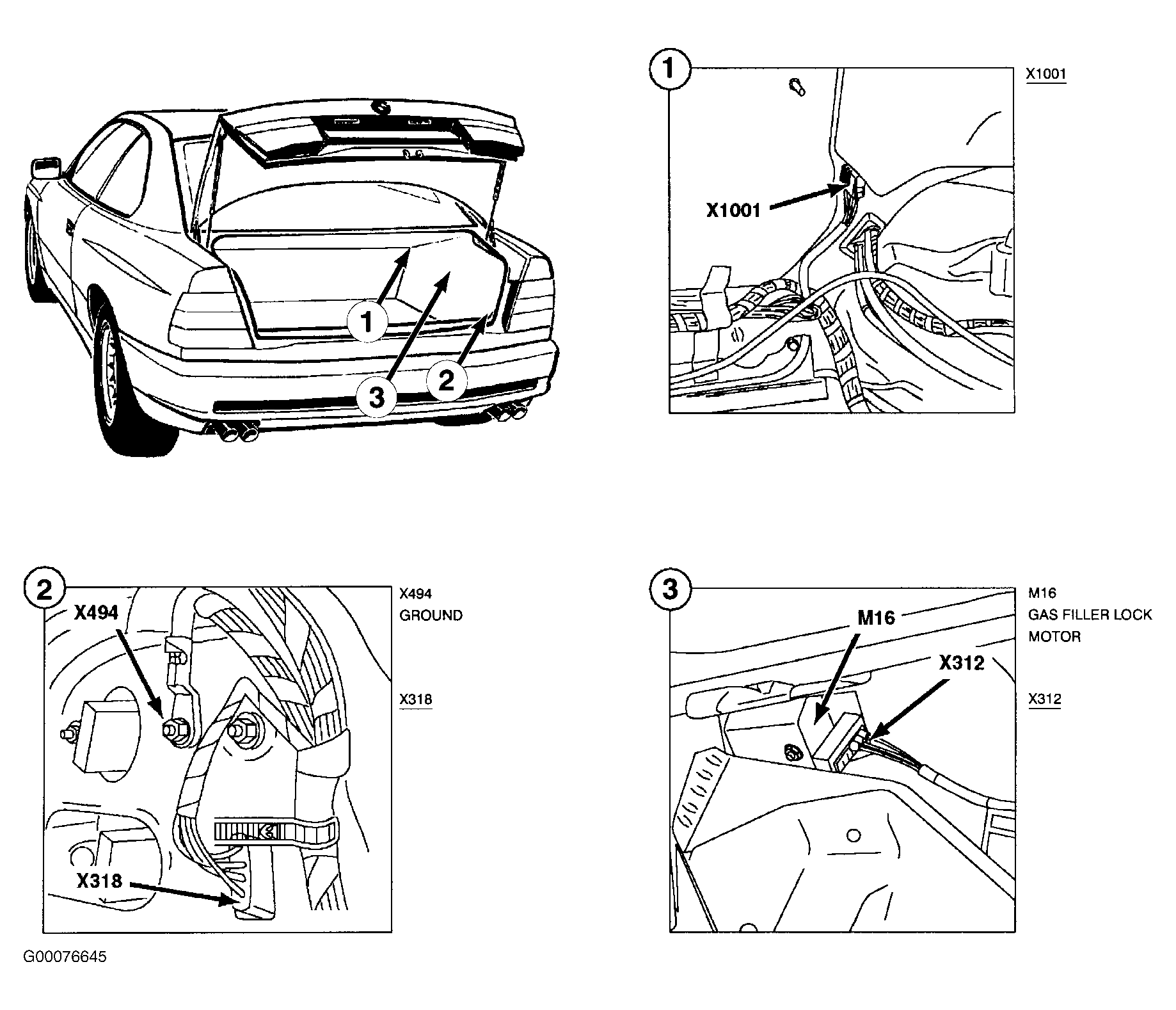

Fig 40: Component Locations (40 Of 45)

G00076645

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Component Locations (41 Of 45)

G00076646

Courtesy of BMW OF NORTH AMERICA, INC.

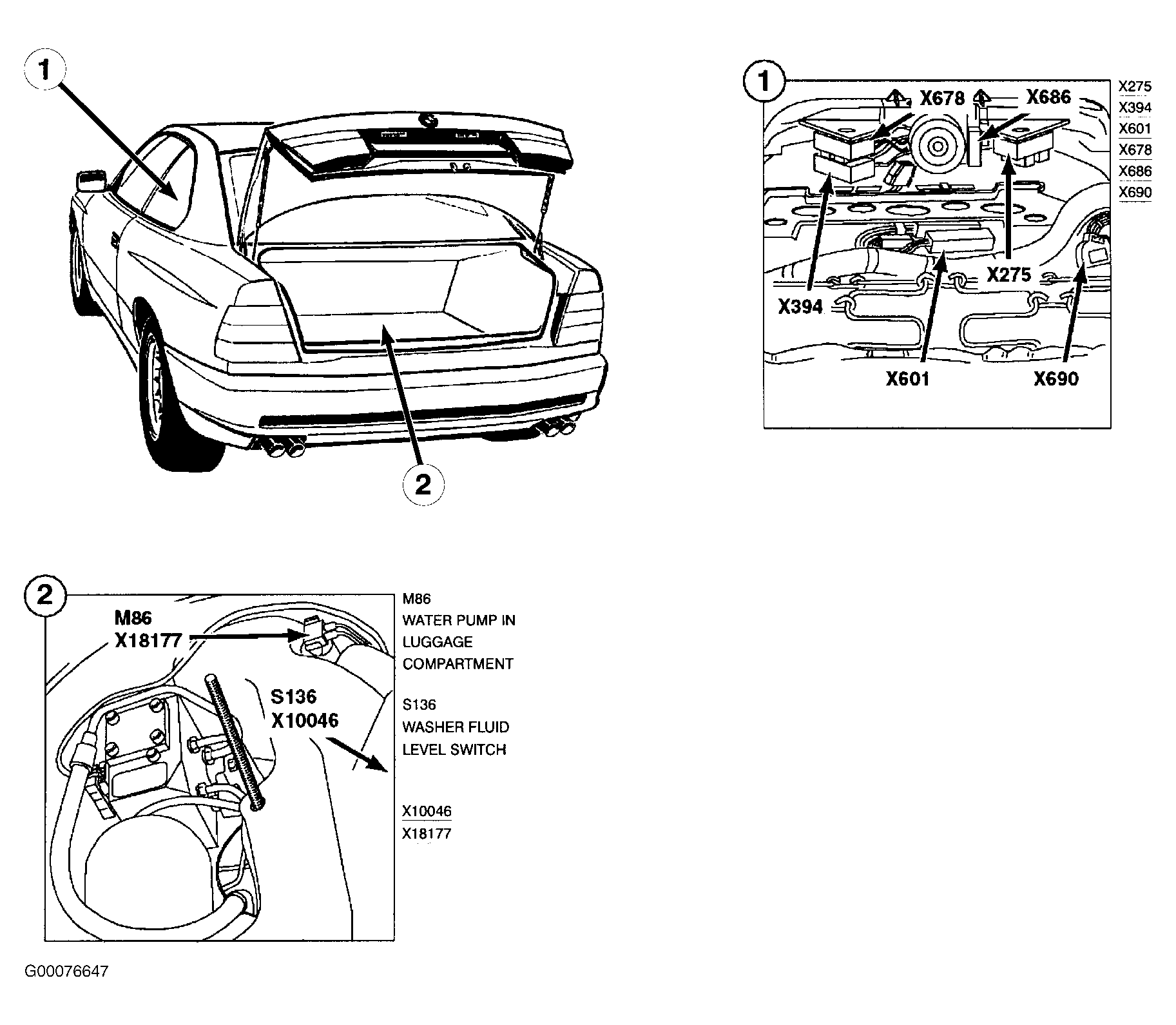

Fig 42: Component Locations (42 Of 45)

G00076647

Courtesy of BMW OF NORTH AMERICA, INC.

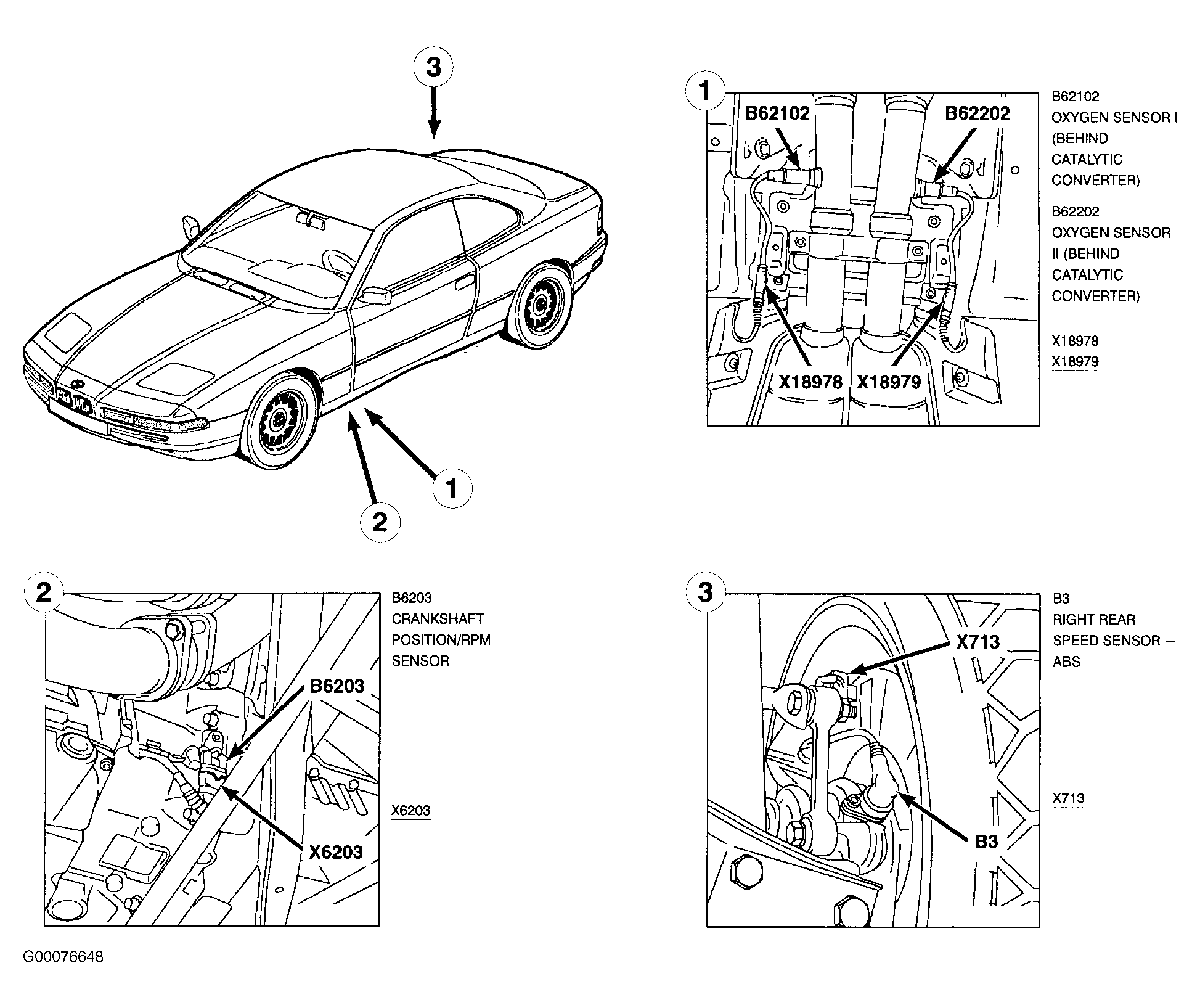

Fig 43: Component Locations (43 Of 45)

G00076648

Courtesy of BMW OF NORTH AMERICA, INC.

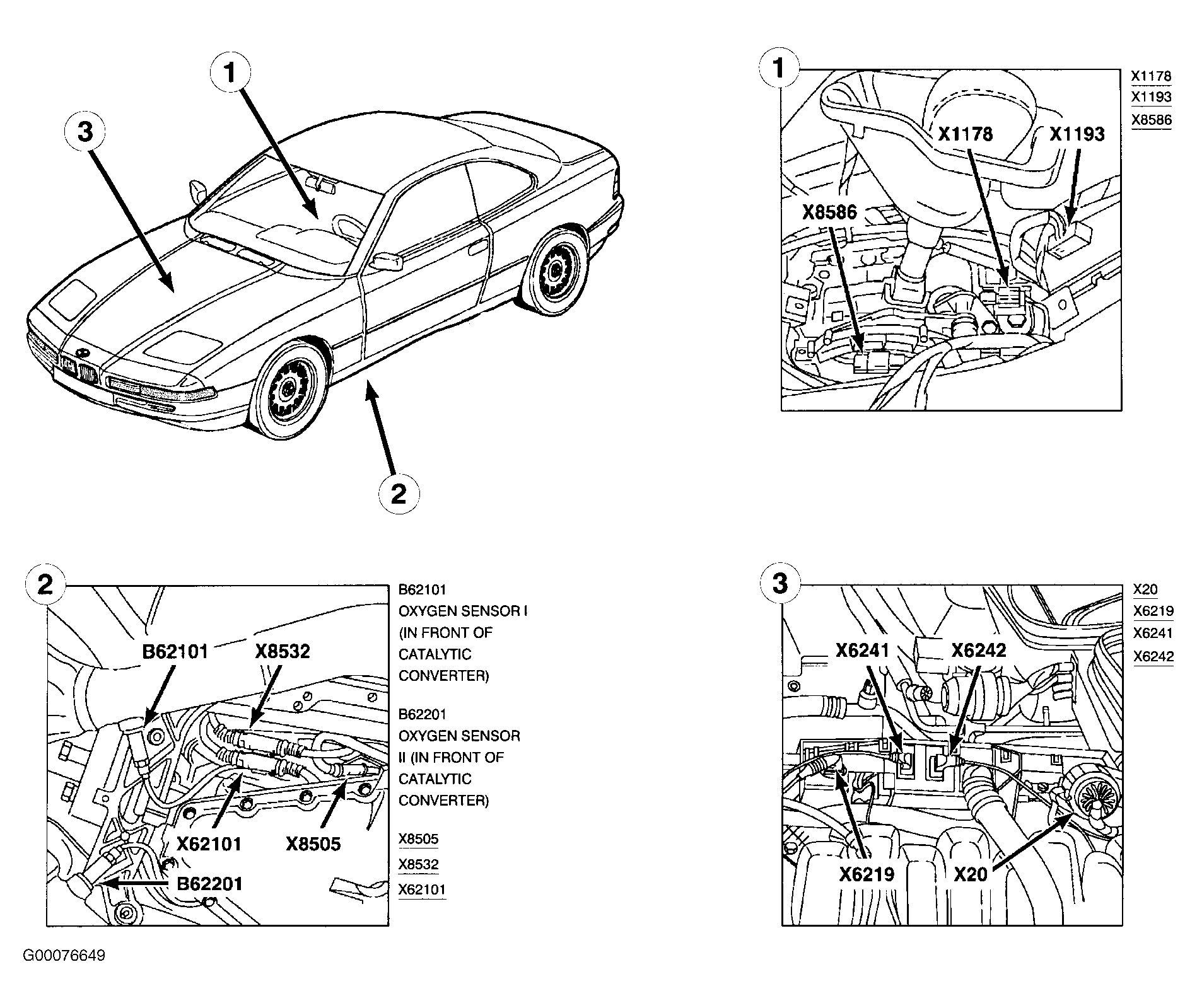

Fig 44: Component Locations (44 Of 45)

G00076649

Courtesy of BMW OF NORTH AMERICA, INC.

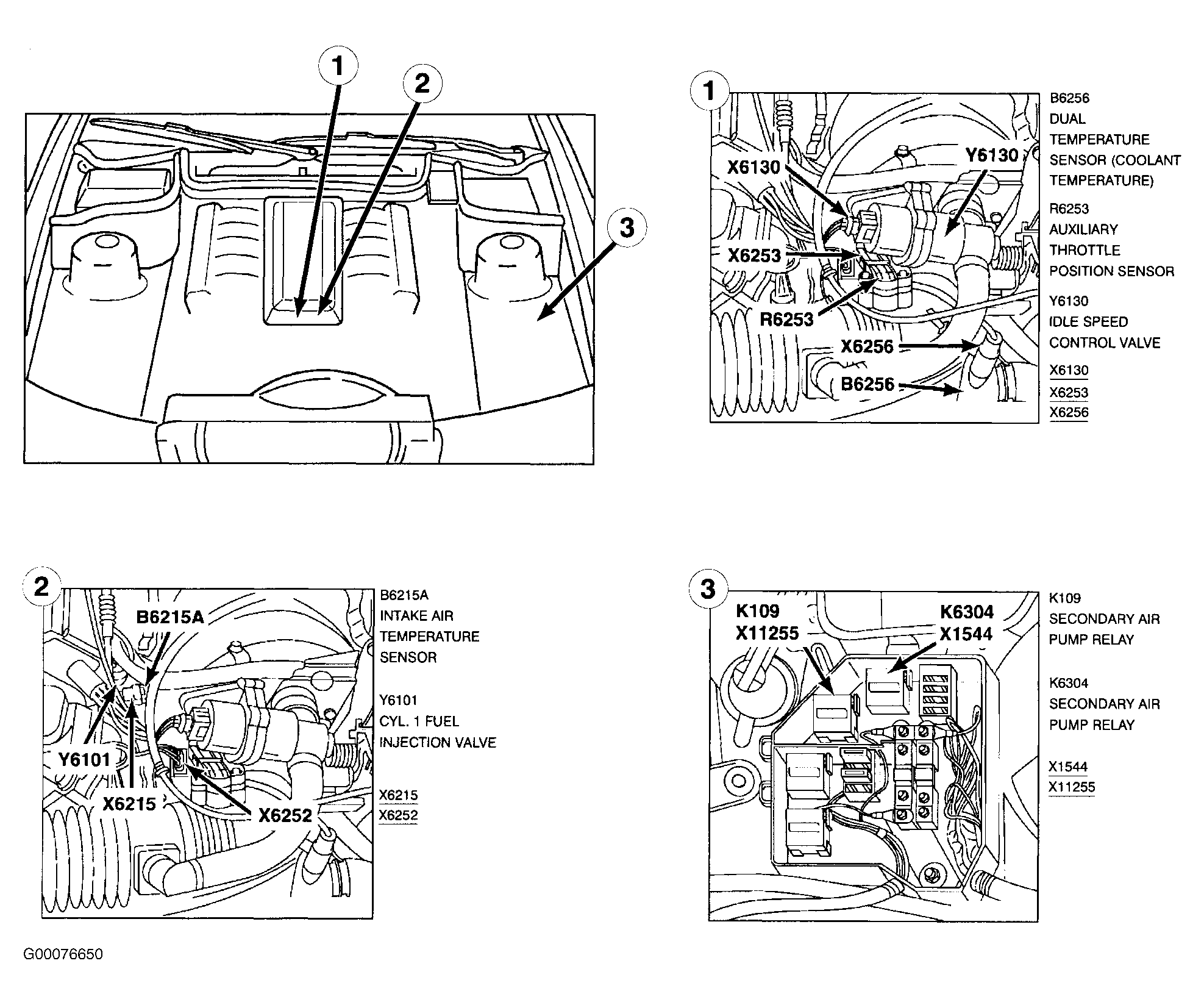

Fig 45: Component Locations (45 Of 45)

G00076650

Courtesy of BMW OF NORTH AMERICA, INC.
