Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | On left rear side of engine compartment. |
| ABS Hydraulic Unit (3.2L) | On left rear side of engine compartment. |
| Anti-Theft Control Module (Alpine) | Behind glove box. |
| Board Computer (BC) | Behind center console. |

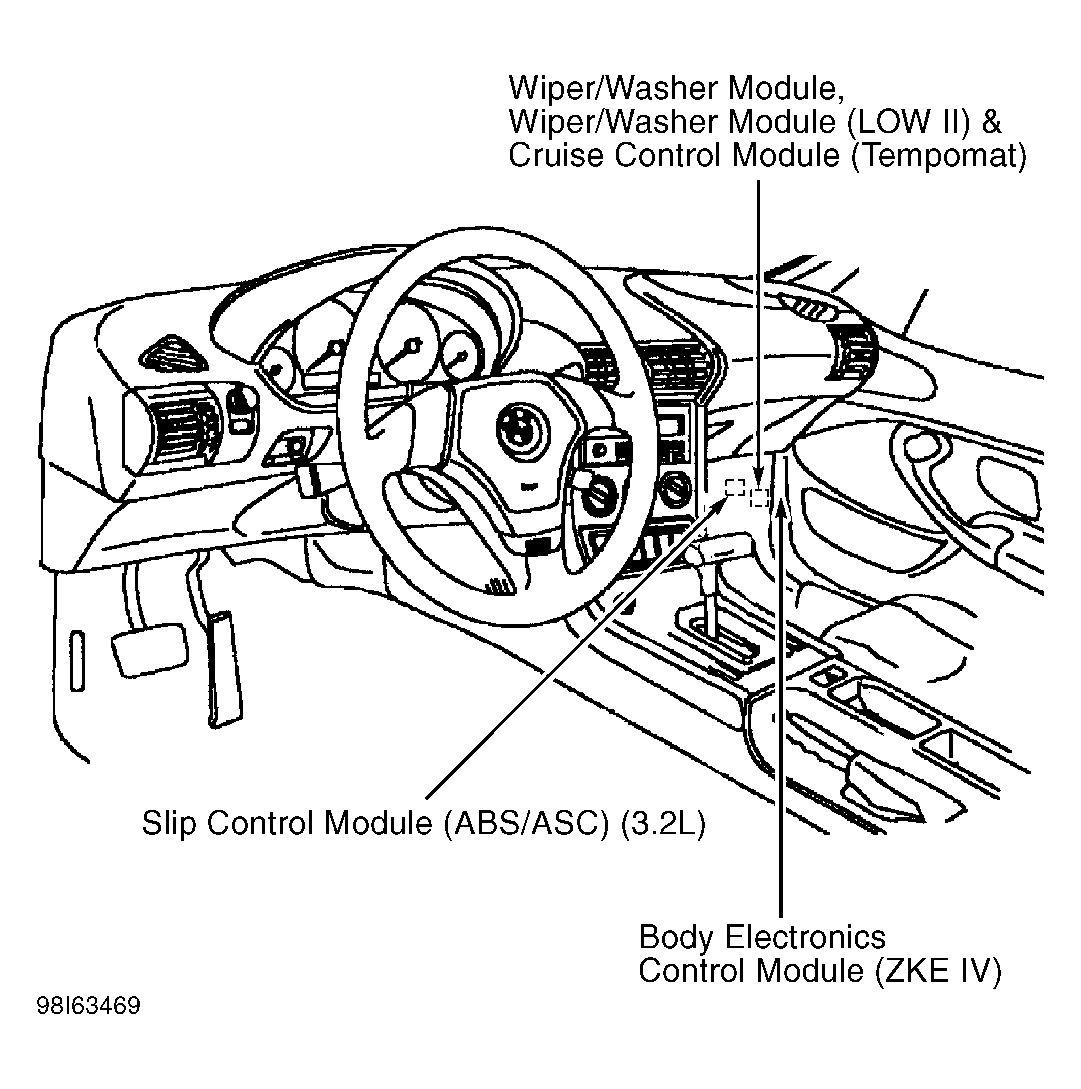

| Body Electronics Control Module (ZKE IV) | Behind glove box. See Figure . |
| Chime Module | Below left side of dash. |
| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Module (Tempomat) | Under right side of dash, behind glove box. See Figure . |
| Driver's Side Impact Sensor | Under driver's seat. |
| Electronic Immobilizer Control Module (EWS III) | Under left side of dash, left of steering column. |
| Engine Control Module (DME) | On right rear side of engine compartment, in E-box. |
| Evaporator Controller | On right side of left footwell. |
| Passenger's Side Impact Sensor | Under driver's seat. |
| Rear Wiper/Washer Interval Control Module | In liftgate. |
| Slip Control Module (ABS/ASC) (2.5L) | In left front side of engine compartment. |
| Slip Control Module (ABS/ASC) (2.8L) | In left front side of engine compartment. |
| Slip Control Module (ABS/ASC) (3.2L) | Under right side of dash, behind glove box. See Figure . |
| Supplemental Restraint System Control Module | Below center console. |
| Thermal Oil Level Sensor (TOENS) Control Module | Behind glove box. |
| Transmission Control Module (EGS) | On right rear side of engine compartment, in E-box. |
| Transmitter Module (EWS II) | Behind left side of dash, near steering column. |
| Wiper/Washer Module | Behind glove box. See Figure . |
| Wiper/Washer Module (LOW II) | Behind glove box. See Figure . |
