Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

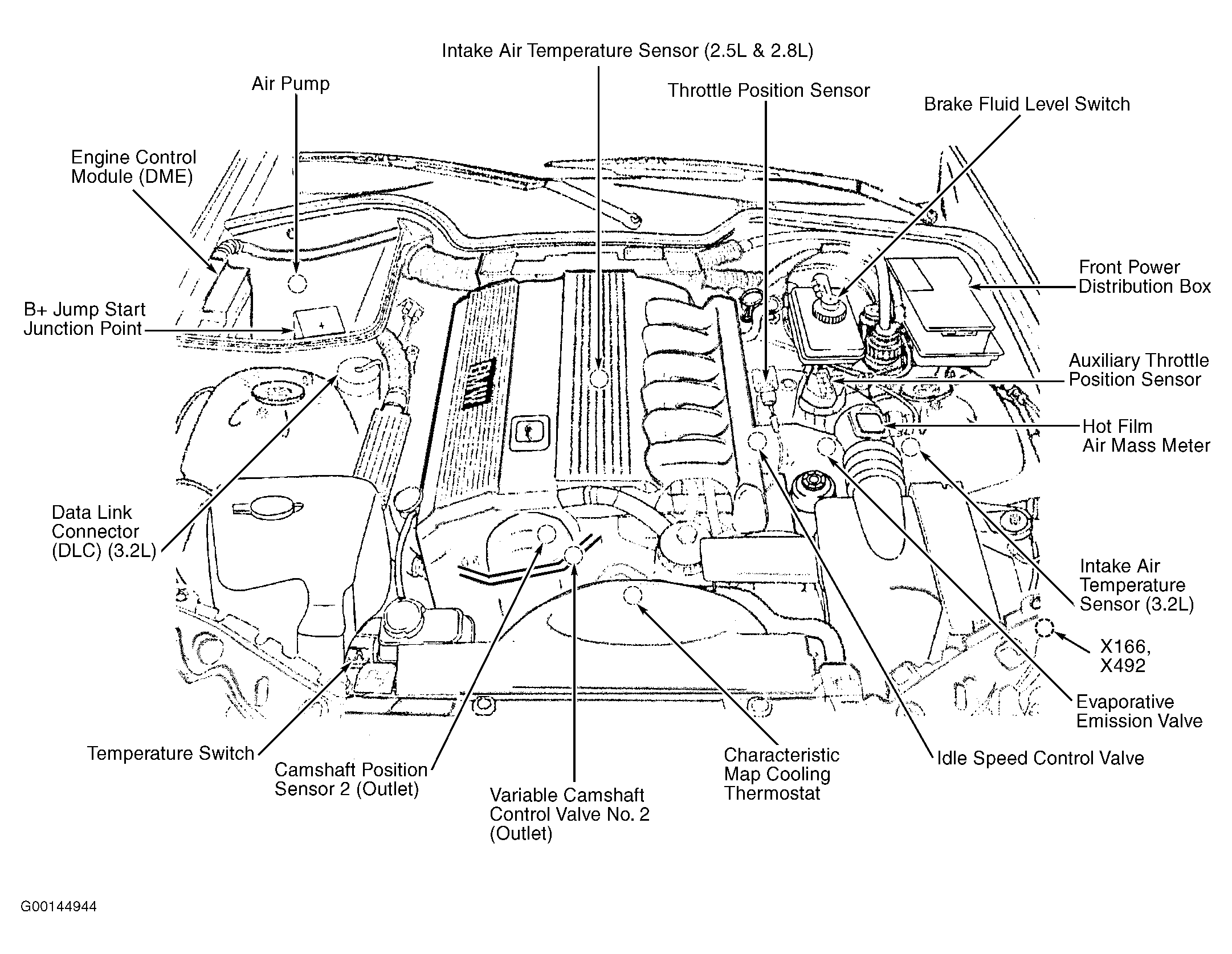

Fig 1: Engine Compartment

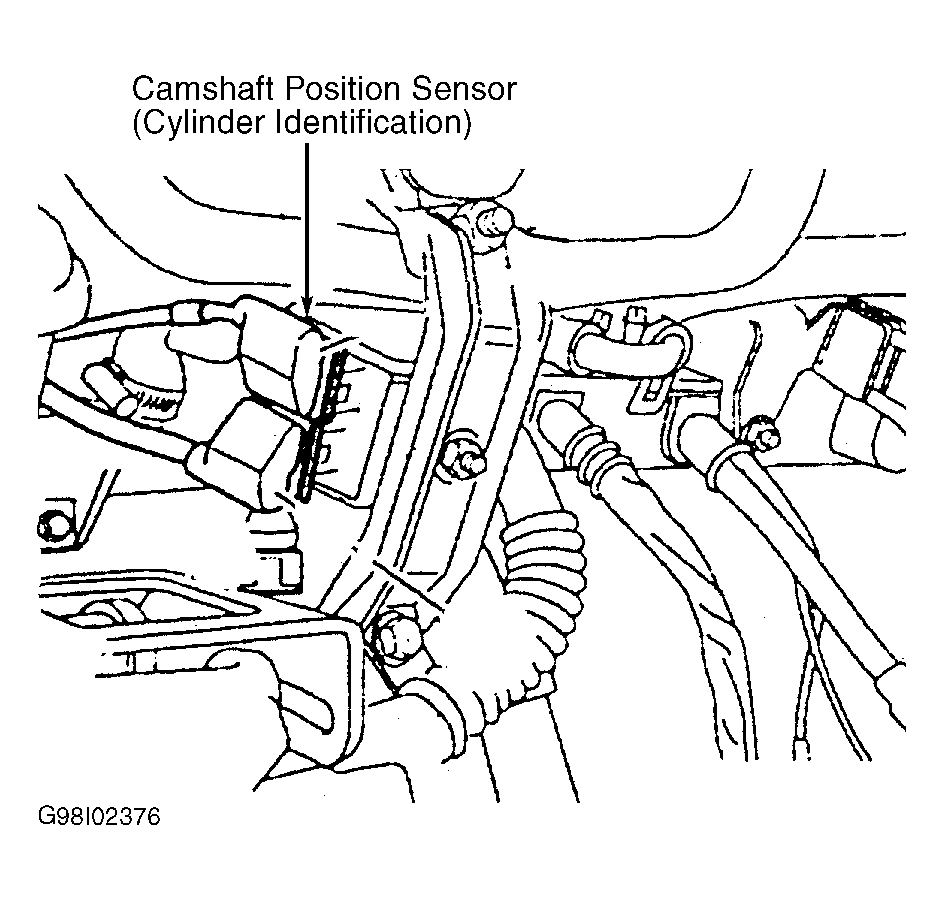

Fig 2: Left Front Of Engine

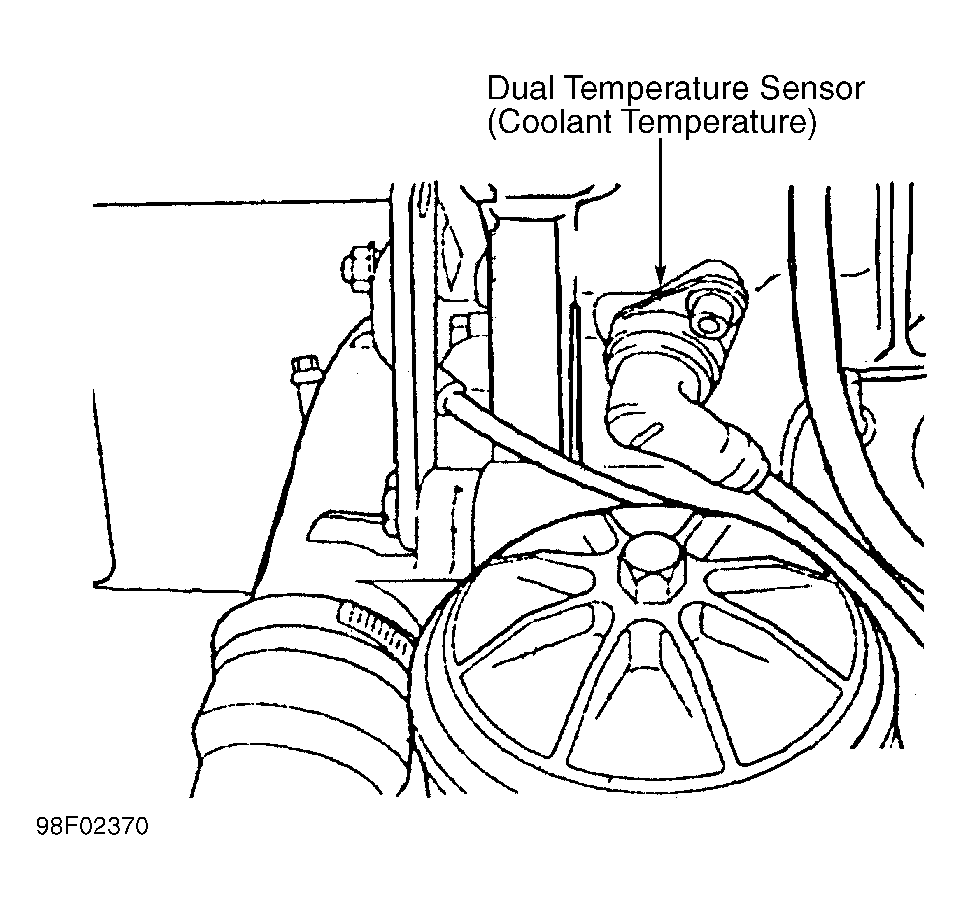

Fig 3: Front Of Engine

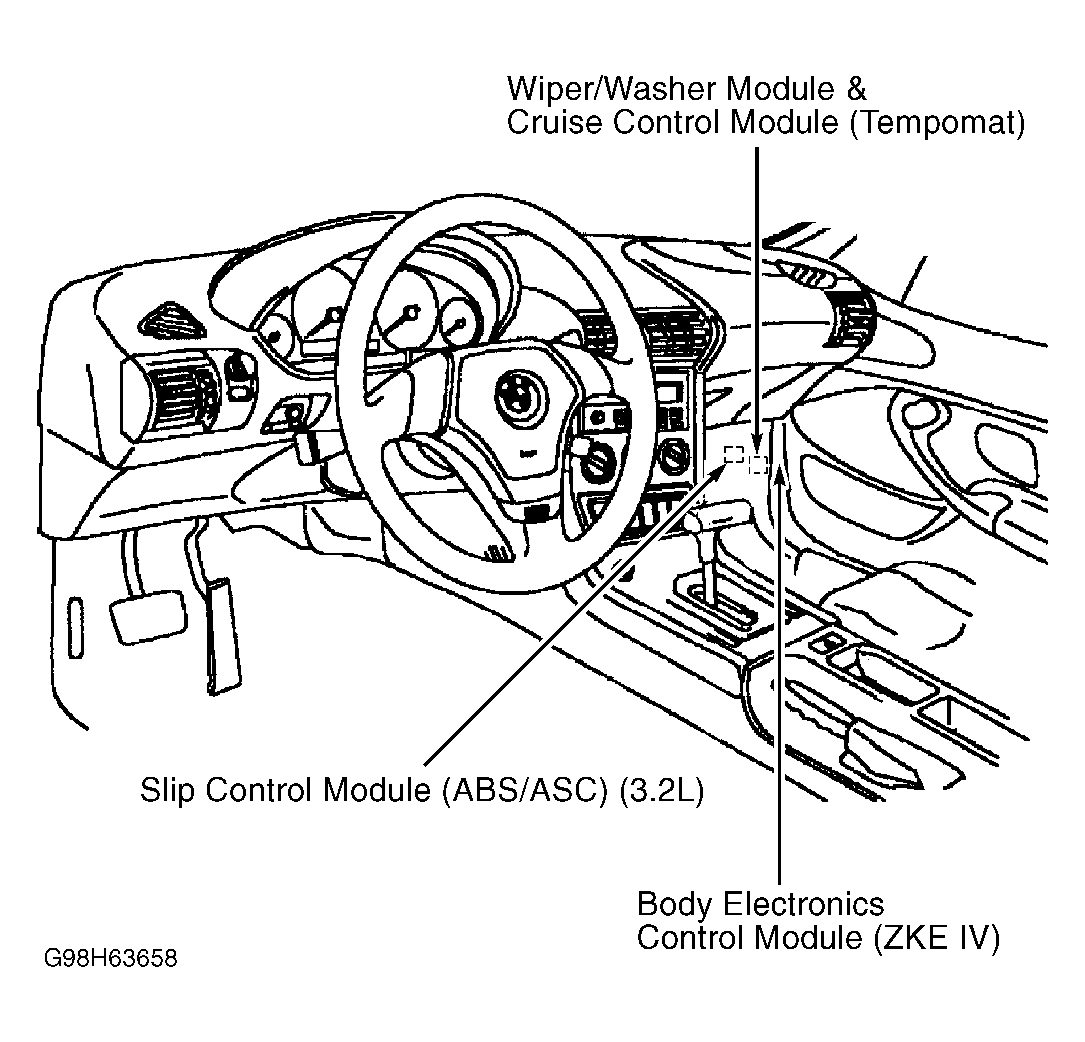

Fig 4: Passenger's Compartment

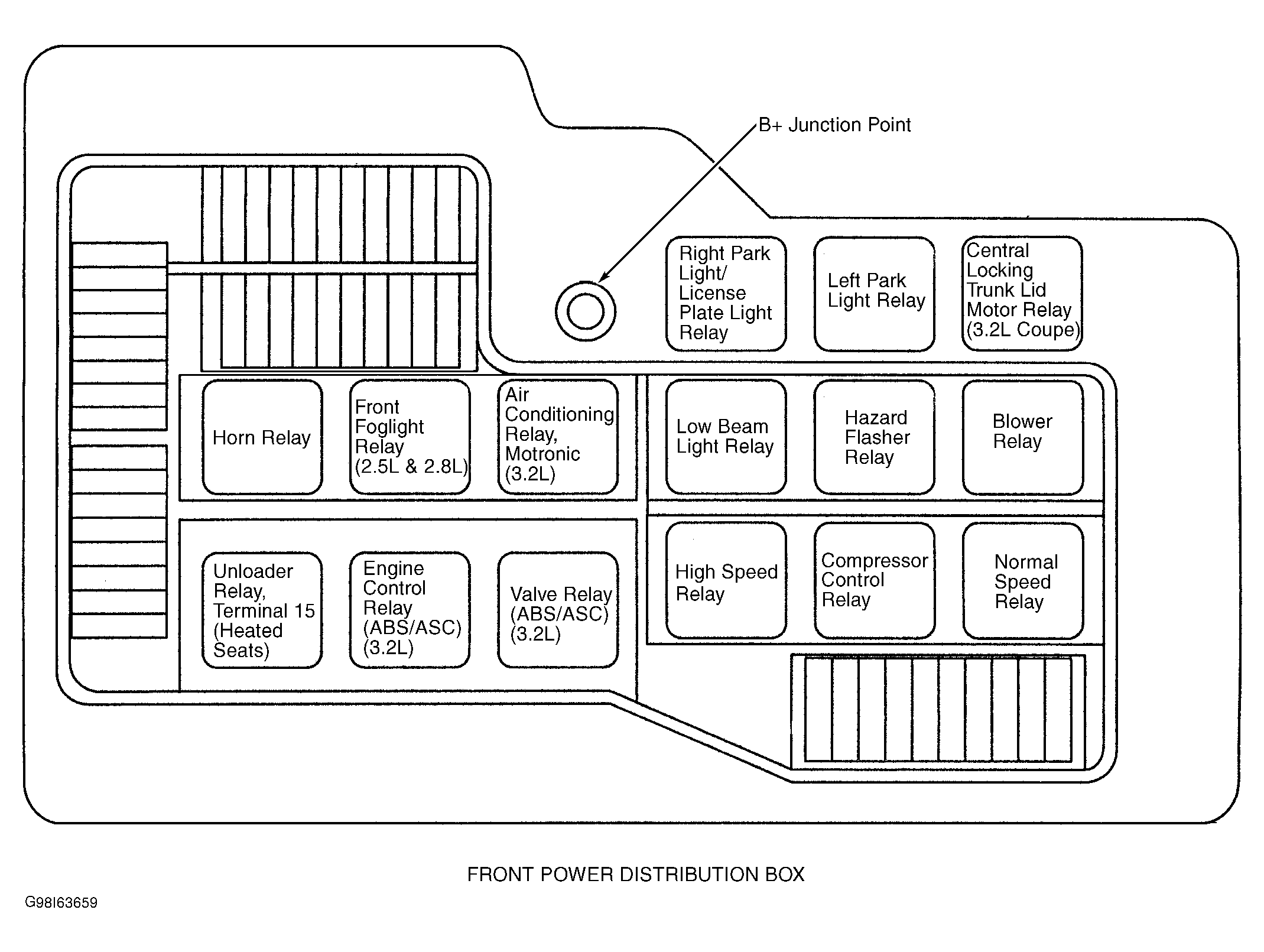

Fig 5: Front Power Distribution Box

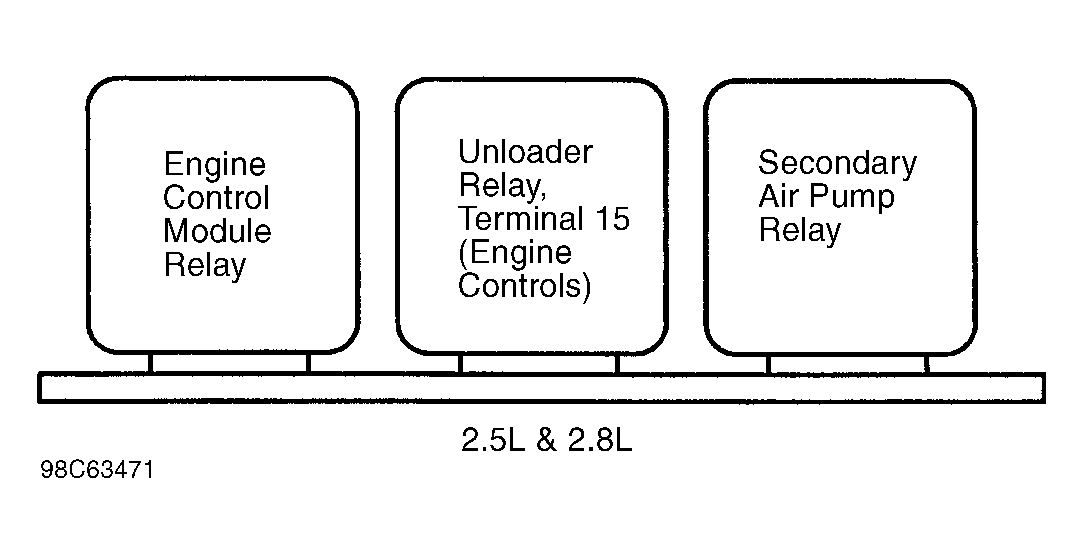

Fig 6: E-Box (2.5L & 2.8L)

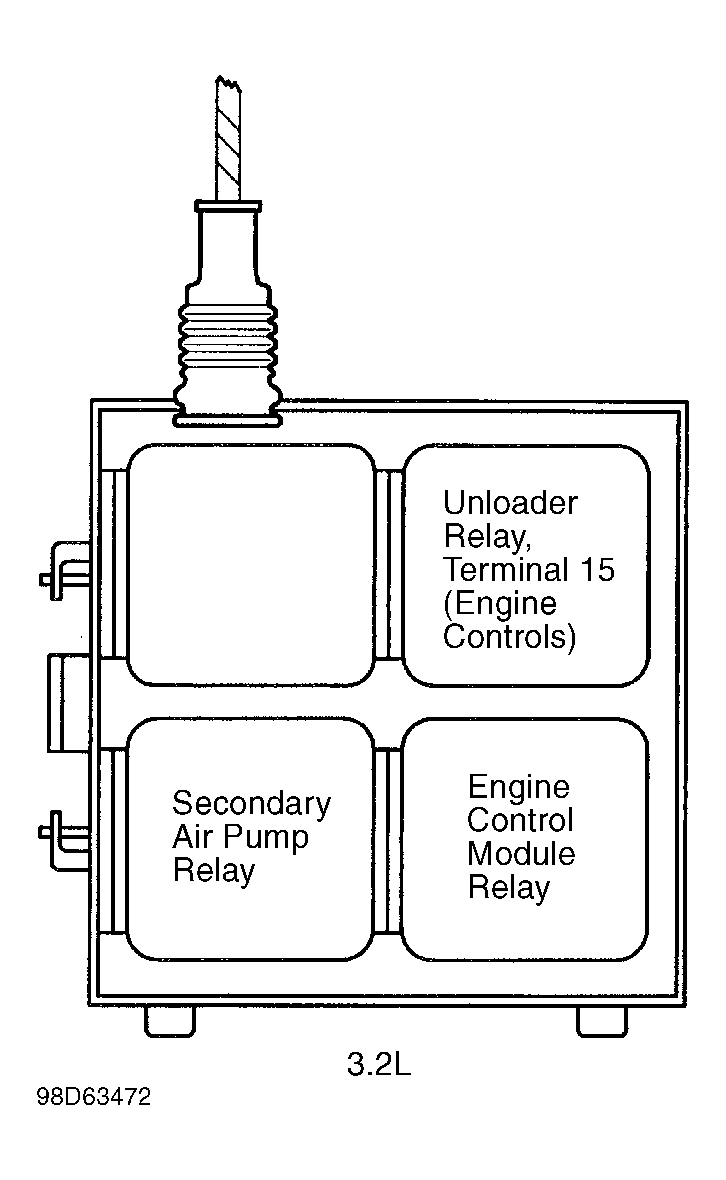

Fig 7: E-Box (3.2L)

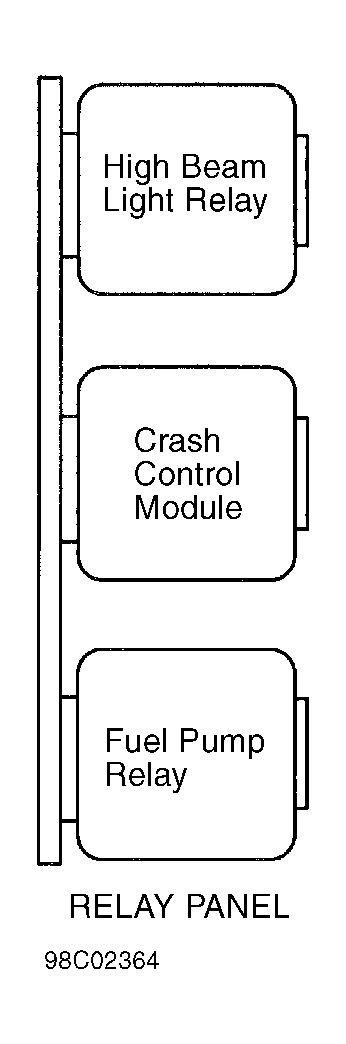

Fig 8: Relay Panel
