Instrument Cluster
The cluster is used to report information to the driver regarding transmission status. There are three items of information needed by the driver:

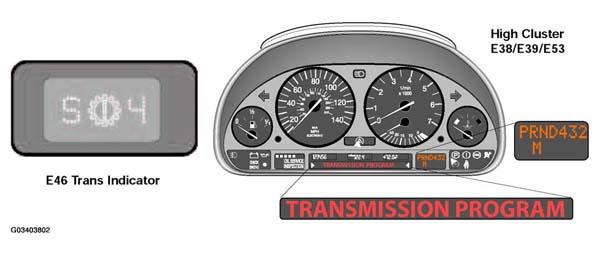

- Transmission Range - this indicates the position of the range selector lever. The driver needs to know whether the transmission is in P, R, N, D, 4, 3, or 2.
- Transmission Program - this indicates the mode of operation. There are 3 modes, Economy, Manual and Sport.
- Transmission Fault Information - the driver needs to know of there is a malfunction in the transmission. Depending upon application, transmission faults can be indicated by an icon or by a "Transmission Program" message in the instrument cluster display matrix.
Depending upon vehicle model and transmission, these pieces of information arrive at the cluster through different methods.

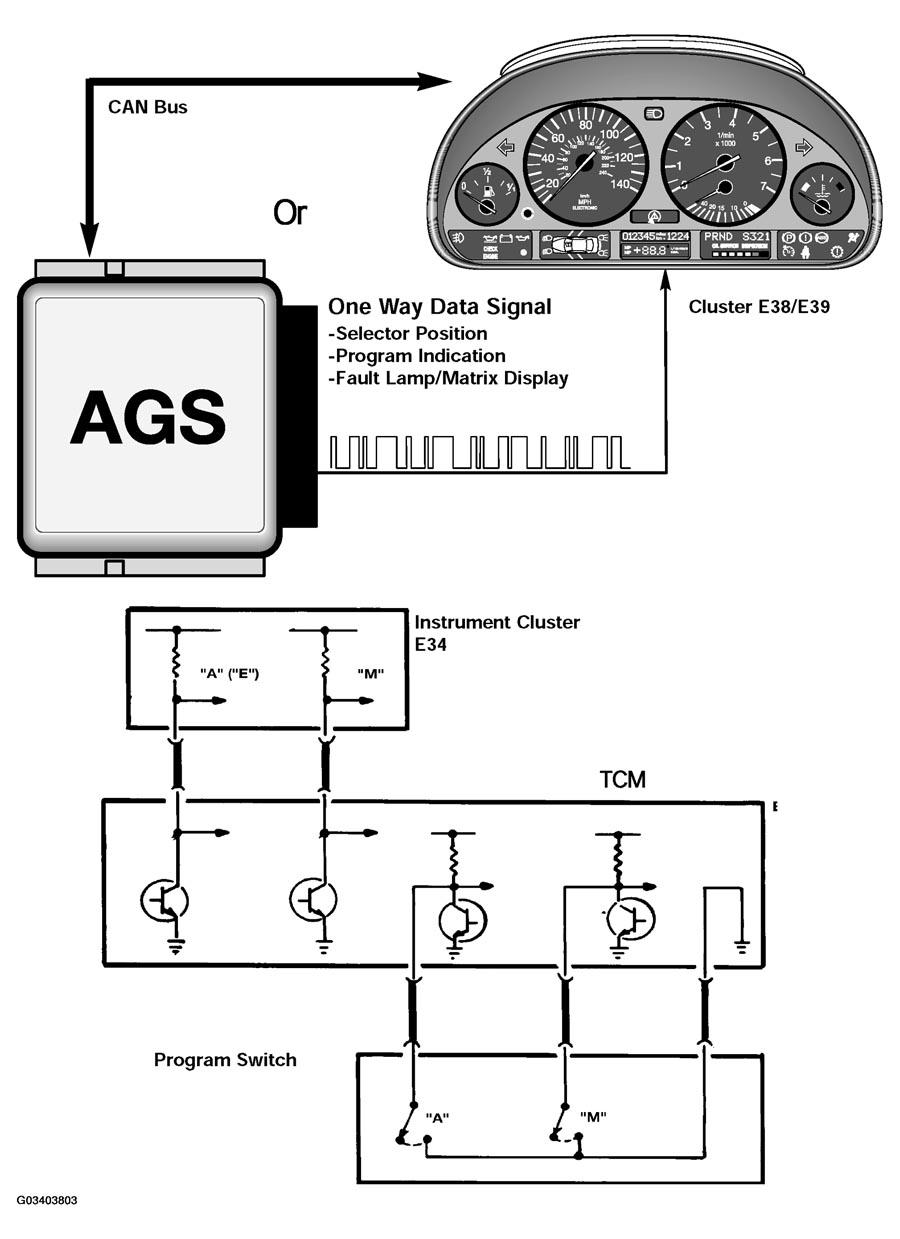

- The most current method for this information to arrive at the cluster is through the CAN bus. The cluster processes this information from the TCM via CAN.
- On early E38 and E39 vehicles these is a "One Way Data Signal" from the TCM to the cluster. There is a one way serial data line that transfers this information to the cluster. On later vehicles, the cluster was introduced to the CAN bus and this method was no longer used. This was used on the E38 vehicles to 5/97 and E39 vehicles to 8/97 production.
- Early vehicles such as E32, E34, E36 etc. used a various combination of methods to transfer this data. Some clusters use the "Coded Input" method for the program indicator. Fault indication is done by a ground circuit through the TCM. Transmission range indication is achieved by a direct connection between the range switch and cluster or by a coded input to cluster.
There will be a FC6 in the Kombi when the TCM goes into fail-safe mode.
