Overview Of Allowable Repairs

Currently, service of transmissions is limited to electrical, minor mechanical and hydraulic repairs as well as service adjustments. See Fig 1 . Part availability is limited to include the repair of the following:

• Oil Leaks - Radial seals and gaskets.
• Mechanical/Hydraulic Faults - Torque converter, valve body, parking pawl, oil pan, output shaft bearing.
• Electrical Faults - Solenoid valves, pressure regulator valves, wiring harness.
• Signal Sensing - Turbine and output speed sensors, CAN bus, temp sensor.

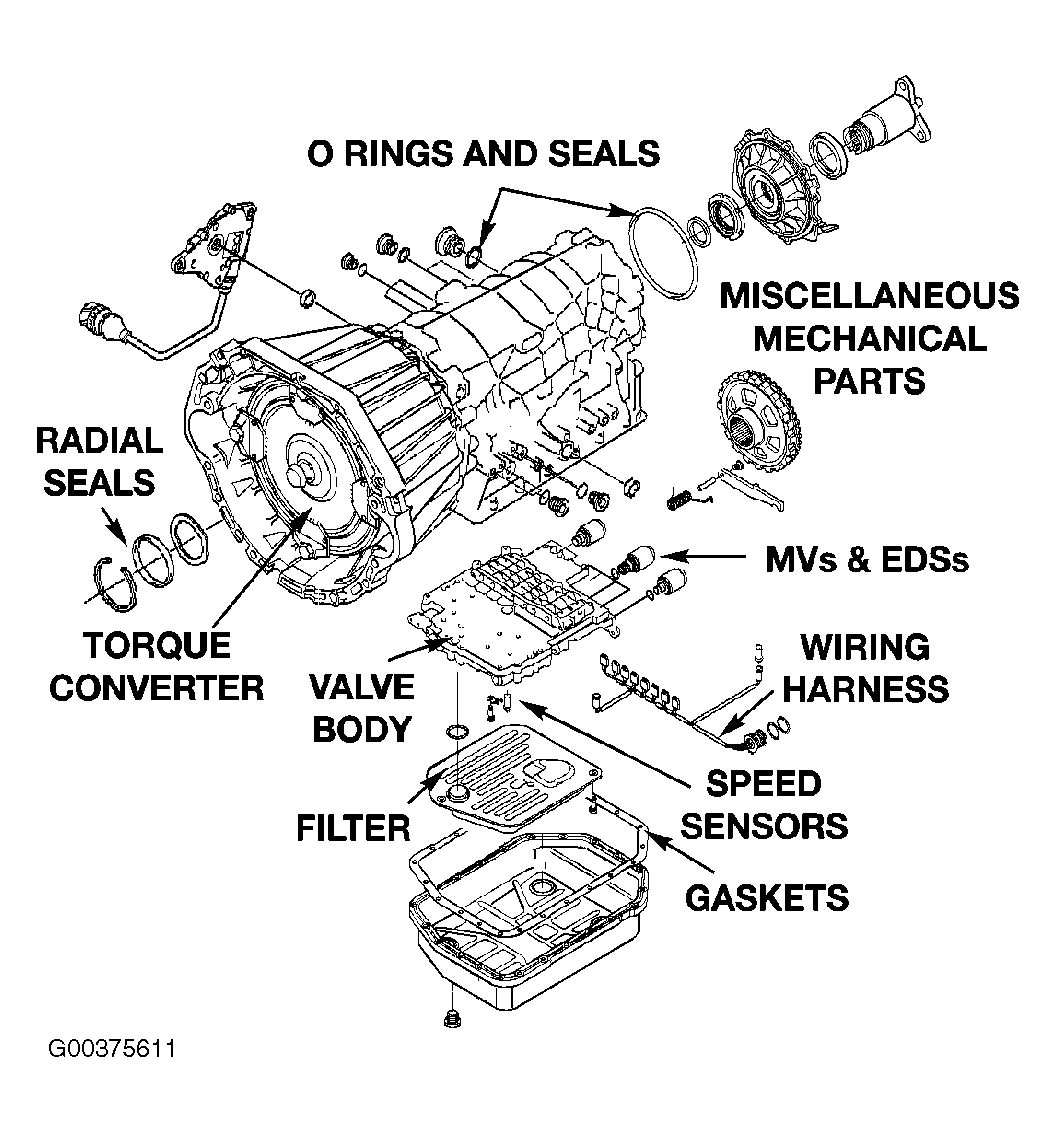

Fig 1: Identifying Allowable Repairs

Courtesy of BMW OF NORTH AMERICA, INC.
