Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Anti-Theft Control Module | Behind glove box. |
| Board Computer | Behind center console. |
| Chime Module | Below left side of dash. |

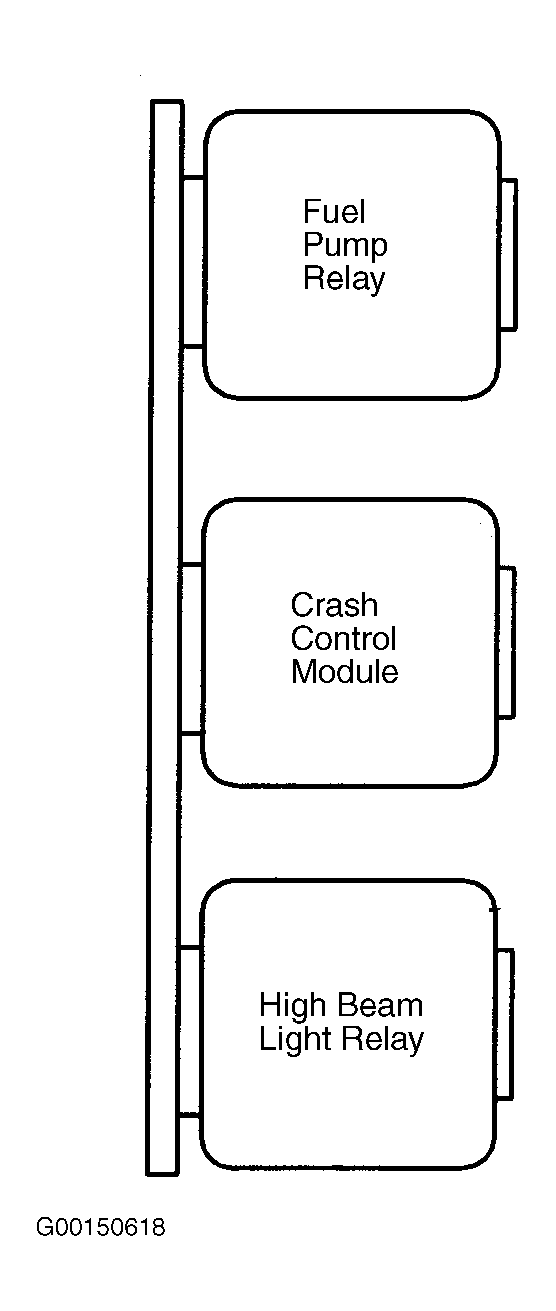

| Crash Control Module | On relay panel, under left side of dash. See Figure . |
| Cruise Control Module | Behind glove box. |
| Dynamic Stability Control Unit | On left side of engine compartment. |
| Electronic Immobilizer Control Module | Under left side of dash, left of steering column. |
| Evaporator Controller | On right side of left footwell. |
| Rear Wiper/Washer Interval Control Module | In liftgate. |
| Slip Control Module | Under right side of dash, behind glove box. |
| Supplemental Restraint System Control Module | Below center console. |
| Thermal Oil Level Sensor Control Module | Behind glove box. |
