Control Module Harness Testing

Remove the test loop.
Remove the SVS harness (6) from the module

Fig 1: Removing SVS Harness From Module
Courtesy of BMW OF NORTH AMERICA, INC.

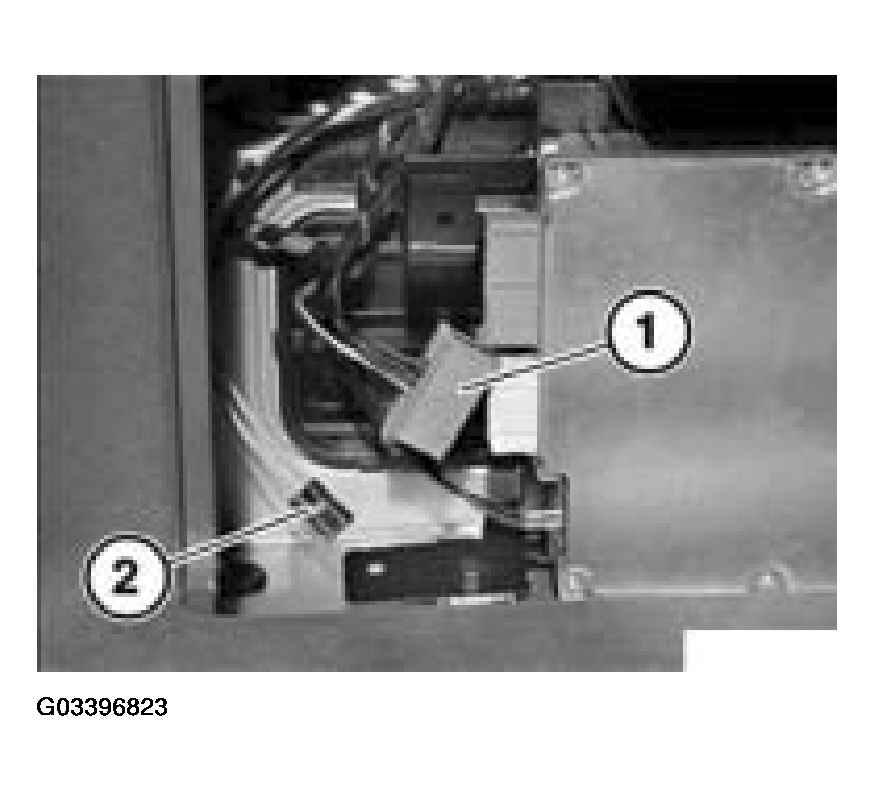

Remove the fiber optical insert (2) from the SVS harness plug (1)

Fig 2: Removing Fiber Optical Insert From SVS Harness Plug
Courtesy of BMW OF NORTH AMERICA, INC.

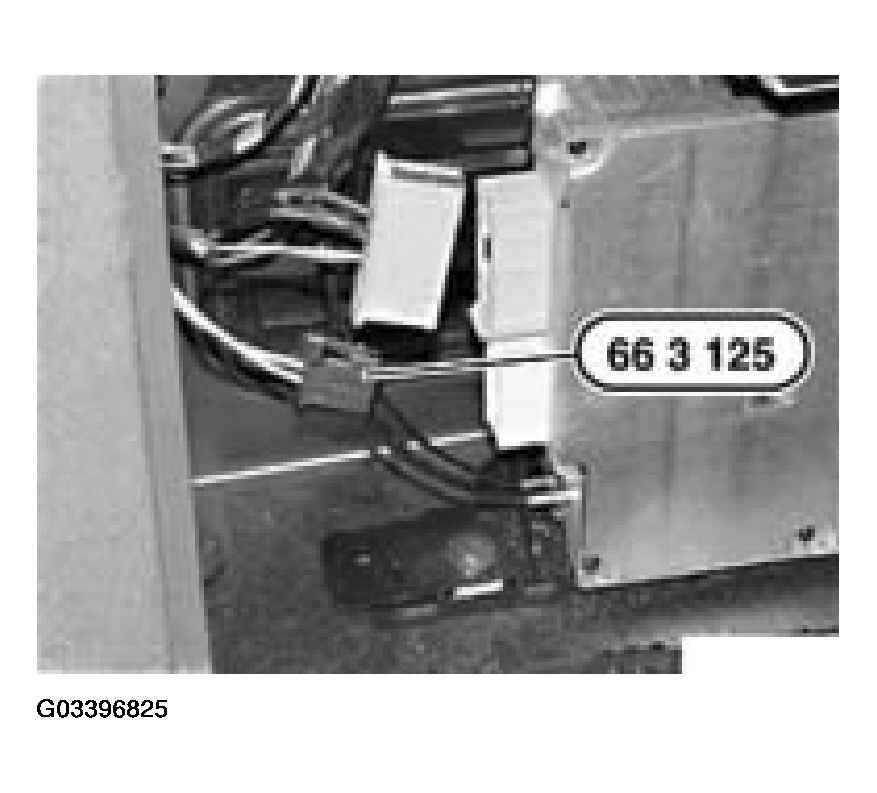

Plug a MOST attachment housing P/N 663 125

Fig 3: Locating MOST Attachment Housing P/N 663 125
Courtesy of BMW OF NORTH AMERICA, INC.
Into the MOST wiring harness

Fig 4: Identifying MOST Wiring Harness
Courtesy of BMW OF NORTH AMERICA, INC.

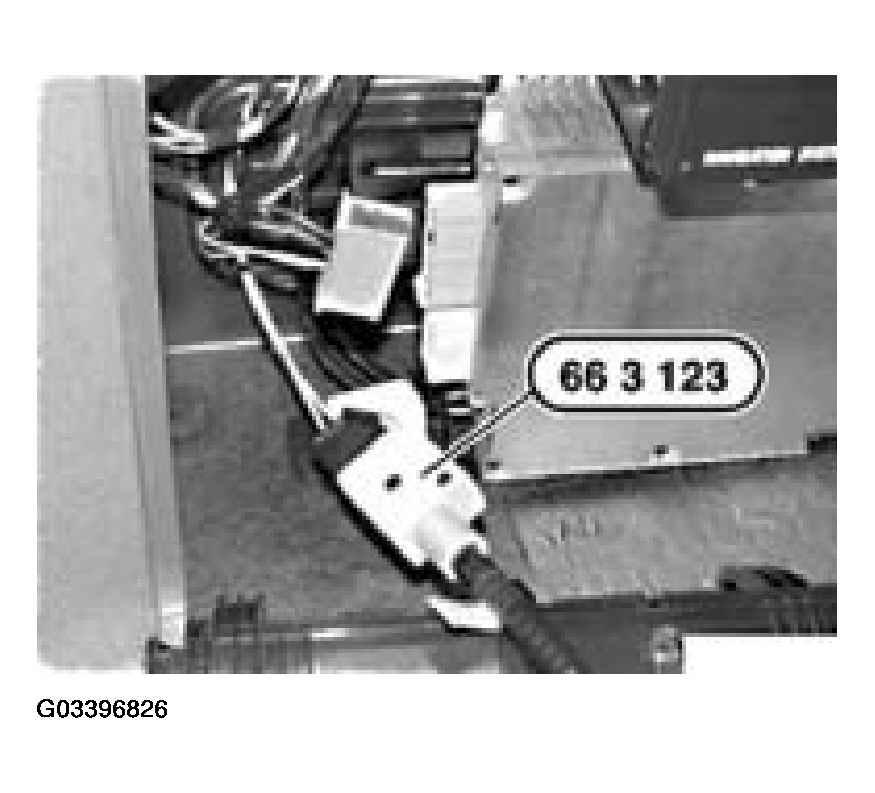

Plug the free end of the MOST wiring extension cable into the MOST attachment housing.
Follow the DISplus/GT1 test module instructions

Fig 5: Inserting Free End Of MOST Wiring Extension Cable Into MOST Attachment Housing
Courtesy of BMW OF NORTH AMERICA, INC.
