Recall Campaign 02V-150 Reprogram Fuel Pump (61 05 02)
Publication date: 2002-06-01Reference number: 61 05 02
RECALL CAMPAIGN 02V-150 REPROGRAM FUEL PUMP
SERVICE CAMPAIGN BULLETIN
| BMW: | E65, E66 (7 Series) |
| GROUP: | 61 - General Electrical Systems |
PERFORM THE PROCEDURE OUTLINED IN THIS SERVICE INFORMATION ON ALL AFFECTED VEHICLES BEFORE CUSTOMER DELIVERY OR THE NEXT TIME THEY ARE IN THE SHOP FOR MAINTENANCE OR REPAIRS.
Under the National Traffic and Motor Vehicle Safety Act of 1966, as amended, if there has been a recall campaign, dealers must assure that all new vehicles and new items of replacement equipment are free of safety defects and comply with all applicable Federal Motor Vehicle Safety Standards at the time of delivery to the consumer. This means that dealers may not deliver new motor vehicles or new items of replacement equipment to consumers unless the safety defect or noncompliance has been remedied before delivery.
The work in this recall will automatically recode the Satellite Sensor (SBSR) and Light Module (LM). As a result, the following bulletins have been cancelled:
SUBJECT
Recall Campaign 02V-150 Reprogram Fuel Pump
MODEL
E65, E66 (7 Series)
SITUATION
If the vehicle is operated with less than one third tank of fuel, fuel transfer from one side of the fuel tank to the other may be insufficient. In some cases the engine may stall and cannot be restarted, unless additional fuel is added to the fuel tank.
CAUSE
The speed at which the fuel pump was originally programmed to operate may result in insufficient fuel supply.
AFFECTED VEHICLES
This Recall involves E65 (745i) and E66 (745Li) vehicles produced from start of production to April 18, 2002.
In order to determine if a specific vehicle is affected by this Recall, it will be necessary to utilize the "Service Menu" of the DCS (Dealer Communication System). Based on the response of the system, either proceed with the corrective action or take no further action.
The Chassis Number Ranges listed below are only for informational purposes and are not to be considered as the only deciding factor.
| Model | Chassis Number Range |
|---|---|
| E65 | DP50000 - DP57806 |
| E66 | DR00001 - DR01023 |
CORRECTION
Program Control Units using CIP V 1.0, or later. Refer to SI B09 05 01 (Coding, Individualization and Programming) for programming instructions. Note that CIP will automatically reprogram all programmable control units that do not have the latest software.
LABEL INSTRUCTIONS
This Recall has been assigned code number 333. After the vehicle has been checked, and corrected if necessary, obtain a label (SD 92-180) and:
- emboss your BMW dealer warranty number in the middle of the label (1);
- punch out code number 333 printed on the label and,

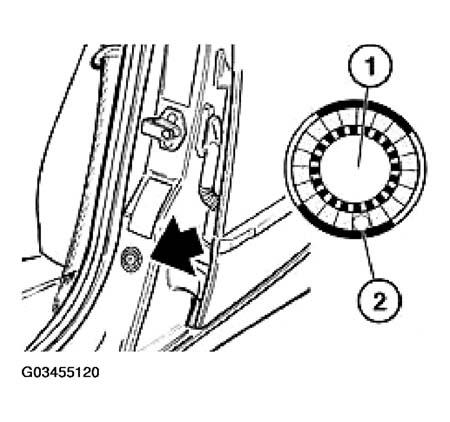

- affix the label to the B
pillar as shown.NOTE: If this Service Action is being carried out at the same time as a Recall, or other Service Action, please maximize the use of each service action label by punching out the number(s) of all campaigns being performed on the same label. This will keep the "B" pillar as neat and uncluttered as possible
If the vehicle already has a label from a previous Service Action/Recall Campaign, affix the new label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.
WARRANTY INFORMATION
Reimbursement for this Recall will be via Campaign Entry
Defect Code: 00 61 68 01 00
WORK PACKAGE #1
Program control units, including programming Navigation system
Labor Operation: 00 53 341
Labor Allowance: 18 FRU
WORK PACKAGE #2
Program control units, including programming CAS/ZAS
Labor Operation: 00 53 342
Labor Allowance: 17 FRU
WORK PACKAGE #3
Program control units, including programming CAS/ZAS and Navigation system
Labor Operation: 00 53 343
Labor Allowance: 20 FRU
WORK PACKAGE #4
Reprogramming completed by another repair (see note 1, below)
Labor Operation: 00 53 345
Labor Allowance: 1 FRU
NOTE 1: Should the vehicle be affected at the same time by another repair in which programming of control units is also required, programming may be claimed only once.
NOTE 2: In the case where CIP requires the replacement of control modules, or additional programming because certain control modules failed to program correctly, print out the Measures Plan and Status Report/Final Report as described in the CIP programming procedure (B09 05 01 ), and file these reports in the vehicle file. Defect Code, Labor Operation, and Labor Allowance for this additional work should be selected from the KSD.
