ASSORTED TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 10 02, Date of Issue: March 2002

BMW:	E65
GROUP:	04 - Tools and Equipment

SUBJECT

Assorted Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

90 88 6 119 260 (1)

Flywheel Lock

Price = $20.00

90 88 6 119 263 (3)

Bushing

Price = $5.40

90 88 6 119 264 (4)

N62 Attaching Bolt

Price = $00.30

Fig 1: Flywheel Lock

Used to lock the N62 flywheel when the transmission is removed. Refer to repair manual section 11 22 510.

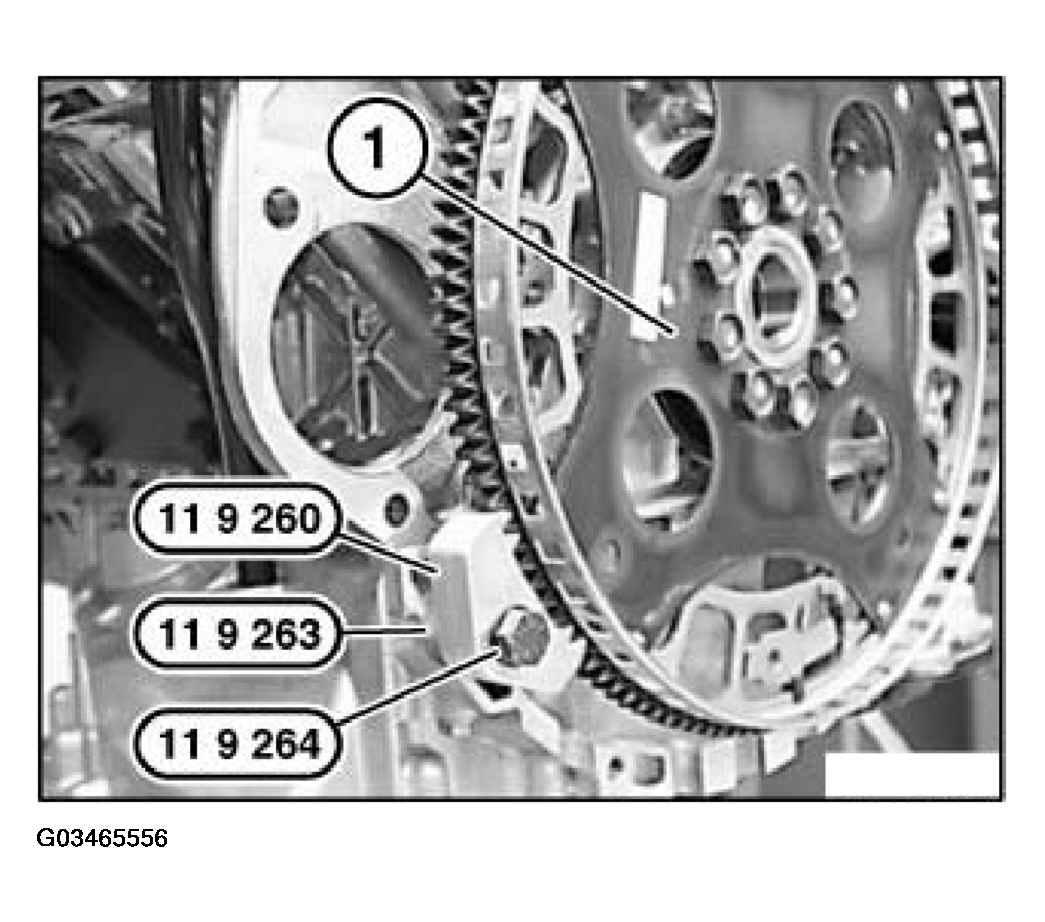

Fig 2: Locking Flywheel

9 Pin Adapter Cable

PN 90 88 6 612 140

Price = $132.10

Used in conjunction with the DISplus MFK cables to adapt to the 9-pin power window motor. Follow the instructions in the DISplus test plan.

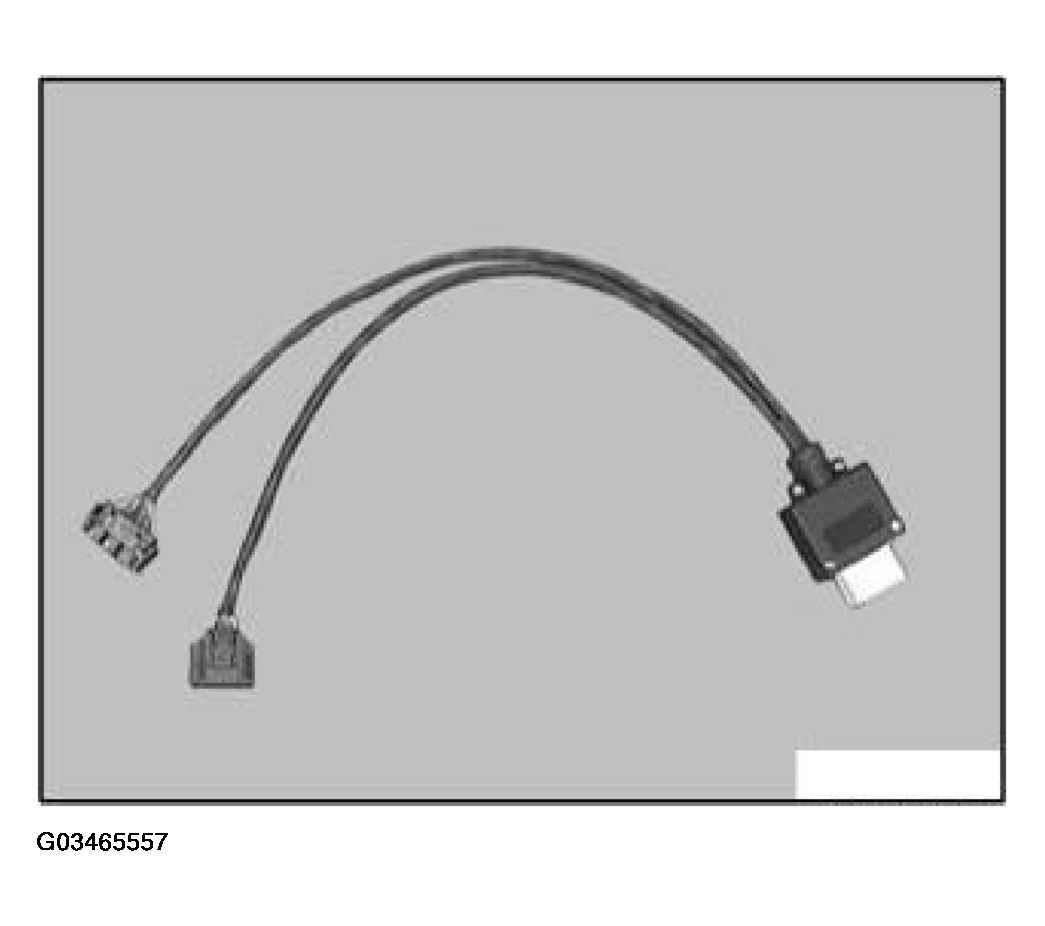

Fig 3: 9 Pin Adapter Cable

Fuel Line Plug

PN 90 88 6 161 060

Price = $8.10

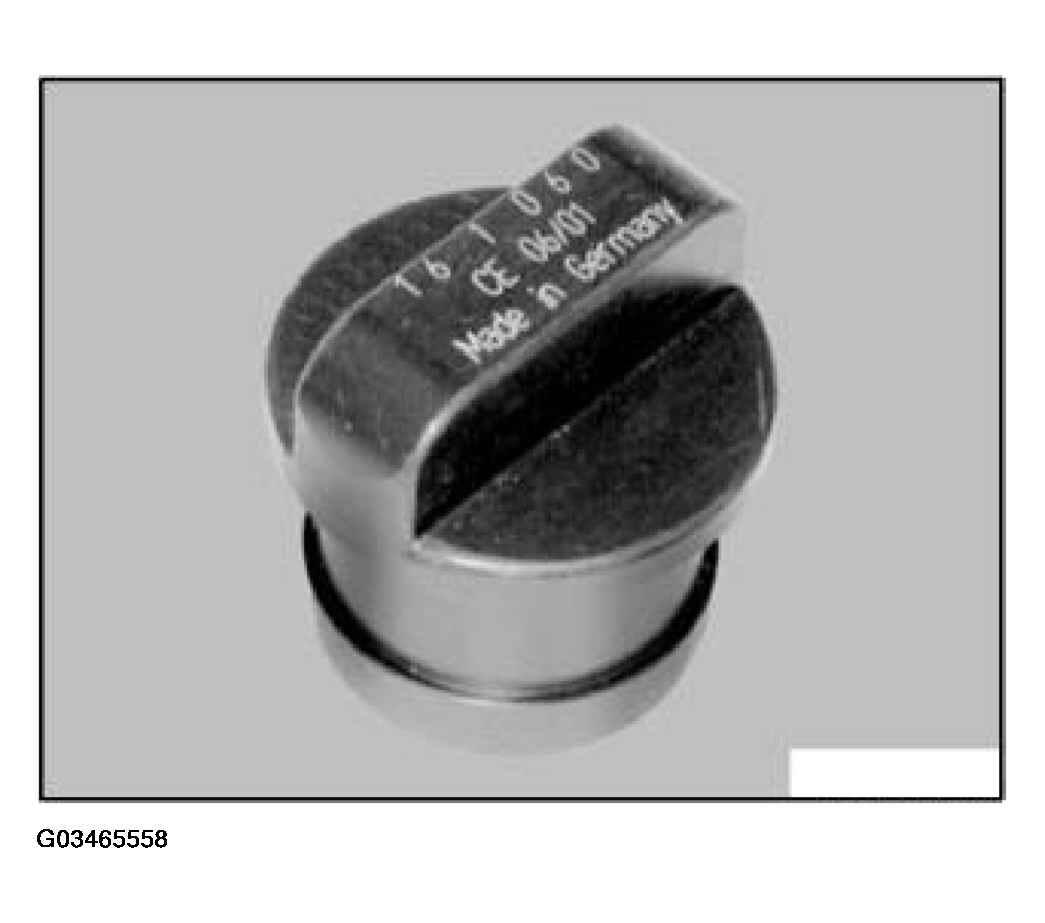

Fig 4: Fuel Line Plug

Used to plug the fuel line when removing the fuel tank. Refer to repair manual section 16 11 030.

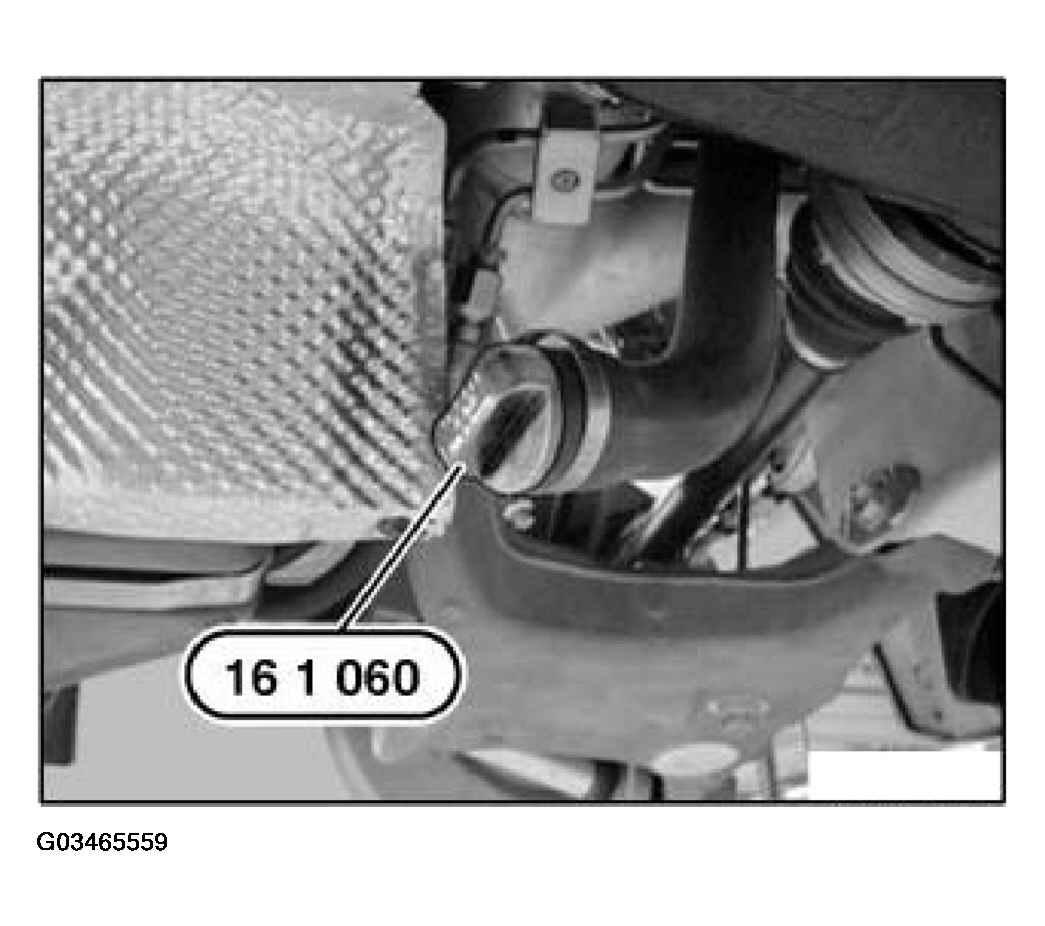

Fig 5: Plugging Fuel Line

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
