Engine Control - Overview - M3
>>
Ms S54
>>
Ms S54 ECM
Ms S54 ECM

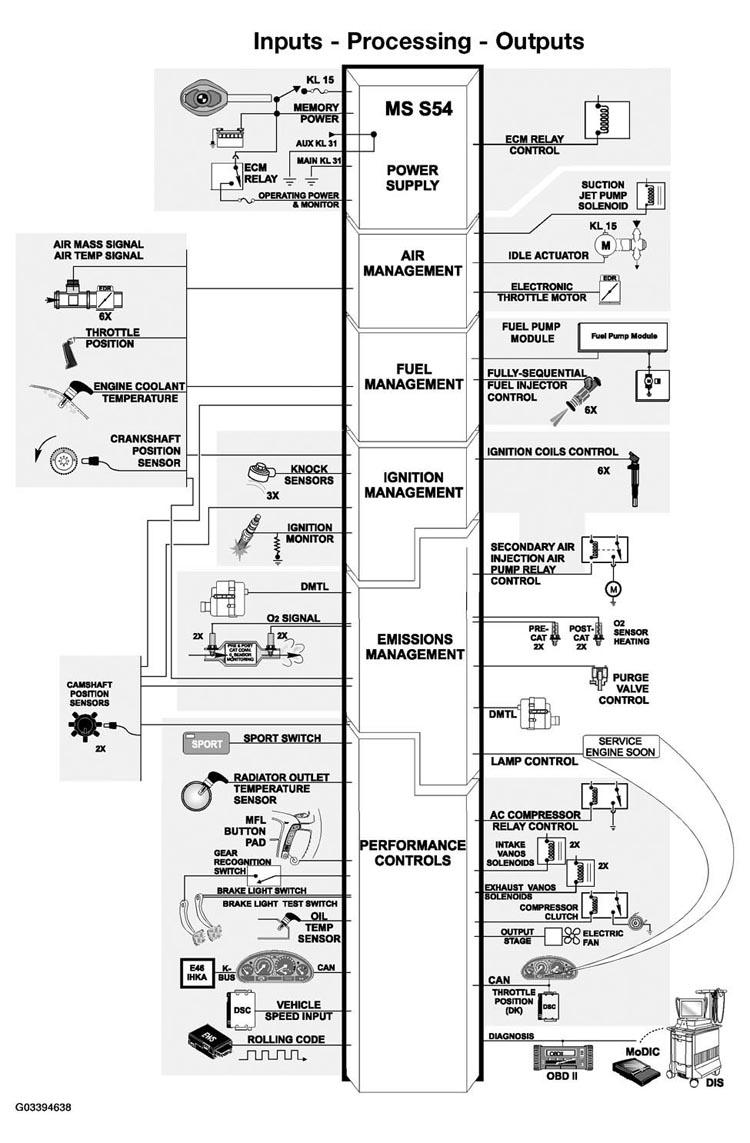

Fig 1: Identifying MS S54 ECM Inputs - Processing - Outputs
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
