Designated Value Signals: Notes

Designated values are produced through fixed resistance positions of a multi-position switch. As the switch is operated the voltage drop across the resistor(s) of each switch position causes the voltage level of the input signal to change to a predetermined voltage value.

These predetermined (designated) voltages signal the control module to perform specific functions.

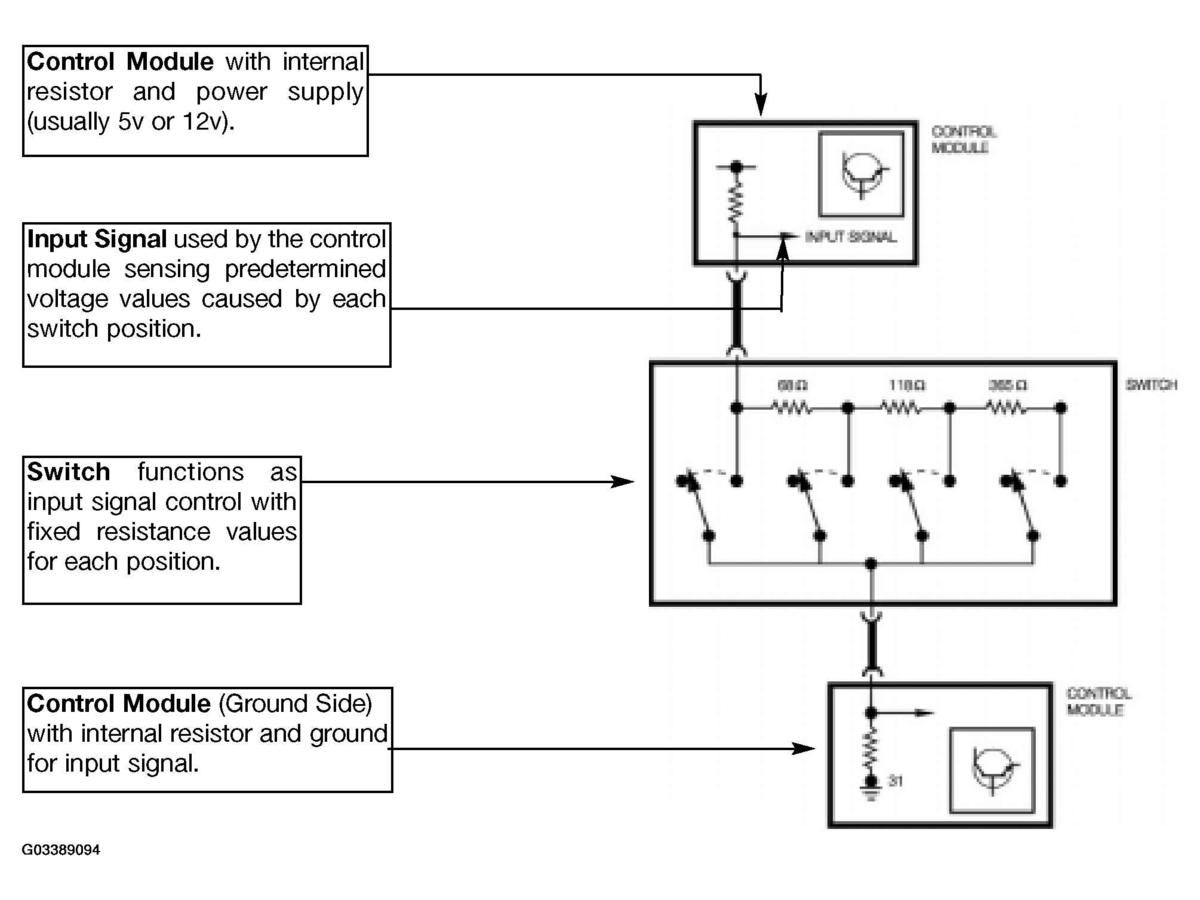

Fig 1: Identifying Designated Value Signals

Courtesy of BMW OF NORTH AMERICA, INC.

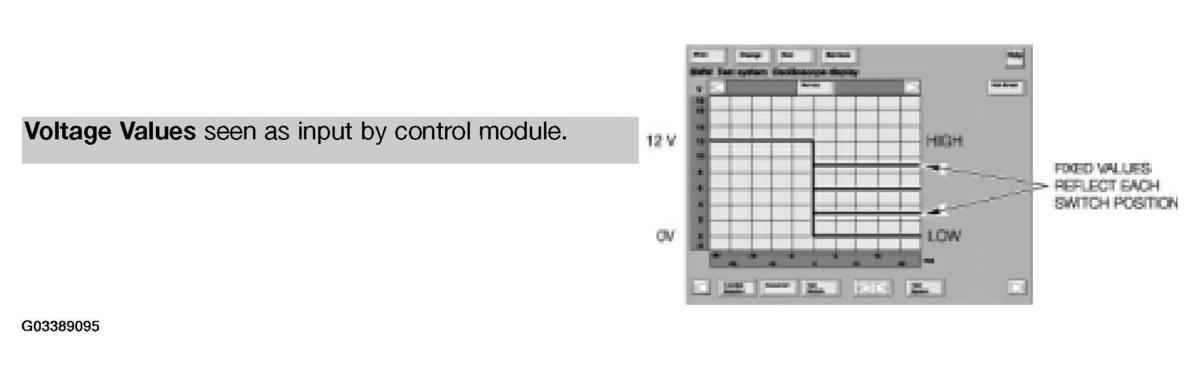

Voltage Values  seen as input by control module.

Fig 2: Voltage Values Display

Courtesy of BMW OF NORTH AMERICA, INC.

Typical Application of Designated Values:

• Cruise Control Switch On E 32.
• Seat and Mirror Memory Position Buttons.
