Transistor Function: Notes

The transistor takes on a number of applications that must be understood to effectively analyze a circuit.

The transistor in operation functions as two parts much like a relay. Both the relay and the transistor control high currents with a low current signal.

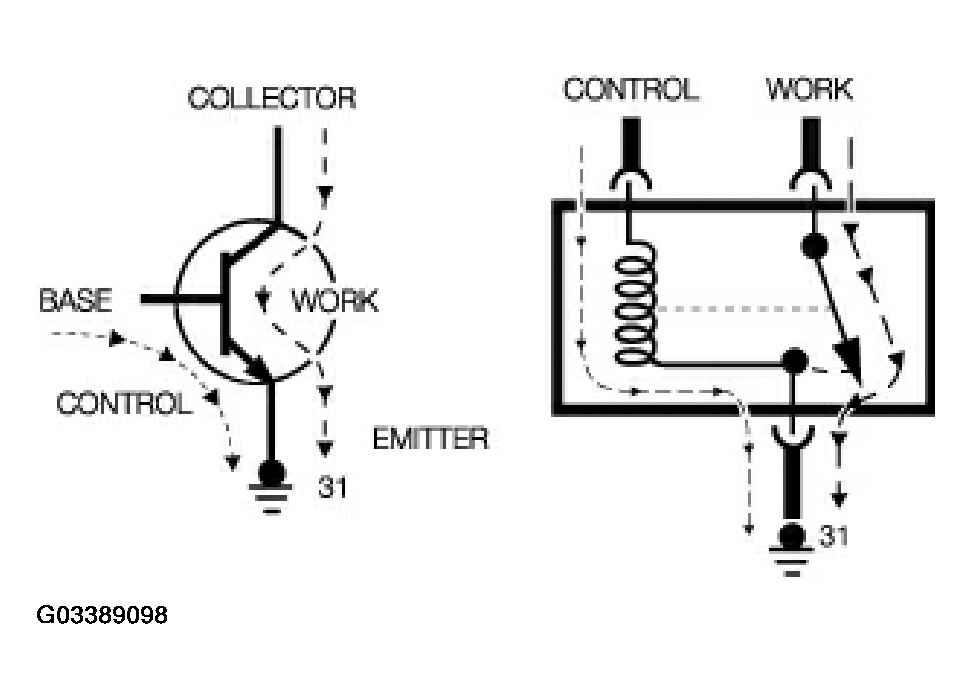

Fig 1: Identifying Transistor Final Stage Function (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

The base/emitter path functions as the control circuit activated by the control module to oversee or control the work.

The collector/emitter path functions as the work side of the circuit, supplying power or switching on the work.

In operation the transistor can be switched ON momentarily, or supply a constant power or ground.

The transistor can also be modulated or pulsed to supply a modulated square wave signal.

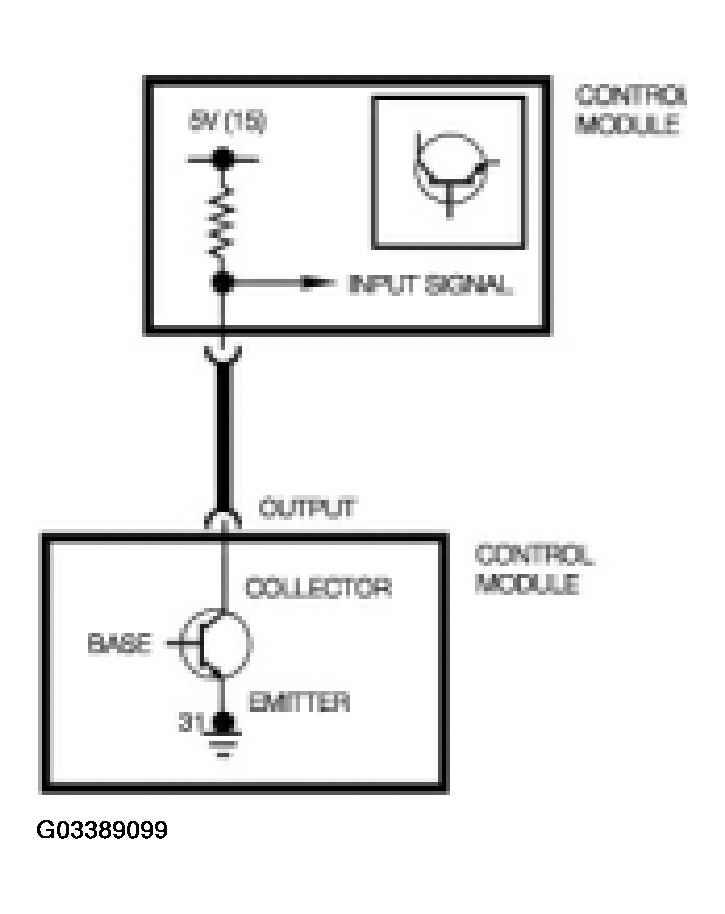

Fig 2: Identifying Transistor Final Stage Function (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
