Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

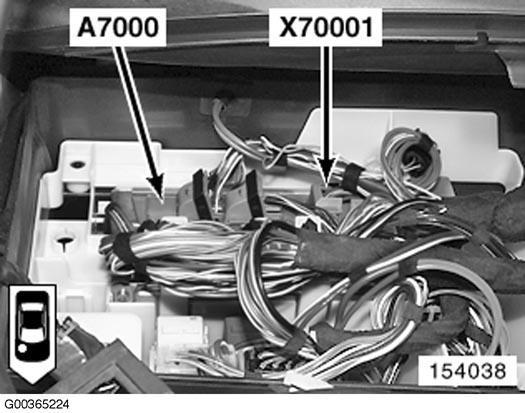

| AGS Transmission Control Module (A7000) | Right rear engine compartment. See Figure. |

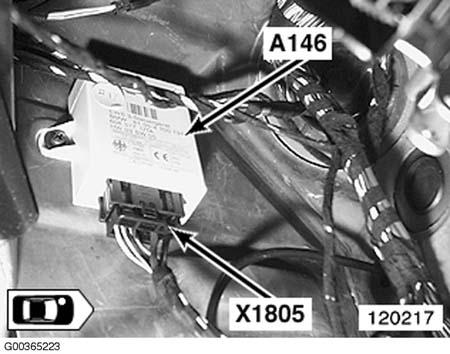

| Electronic Immobilizer Control Unit (EWS) (A146) | Left kick panel. See Figure. |

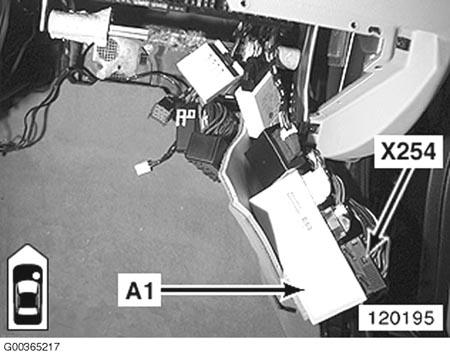

| General Module (A1) | Behind glove box. See Figure. |

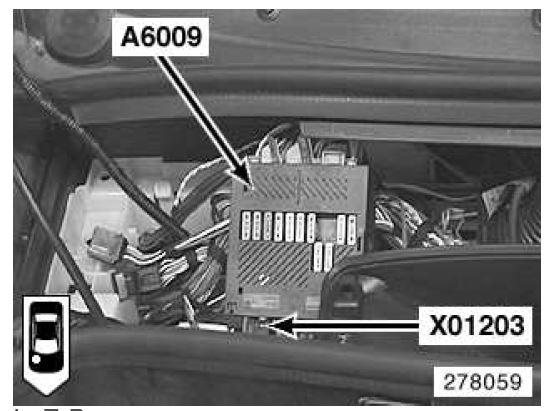

| Integrated Supply Module (A6009) | upper right end engine compt. See Figure. |

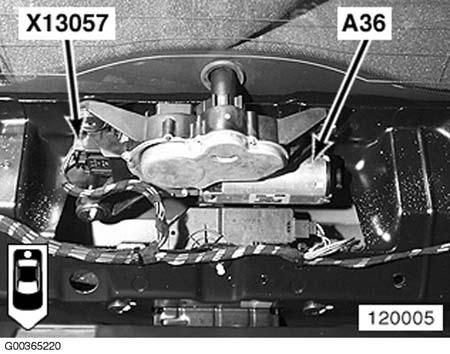

| Intermittent Wipe/Wash Control Unit (Rear) (A36) | Tailgate. See Figure. |

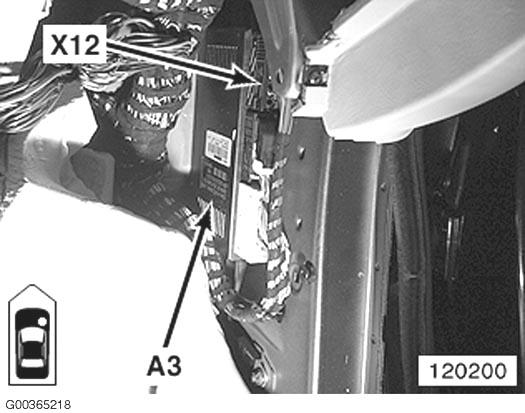

| Light Module (A3) | Right kick panel. See Figure. |

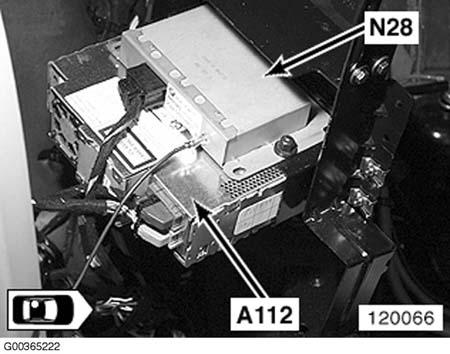

| Navigation Control Module (A112) | Left rear passenger compartment. See Figure. |

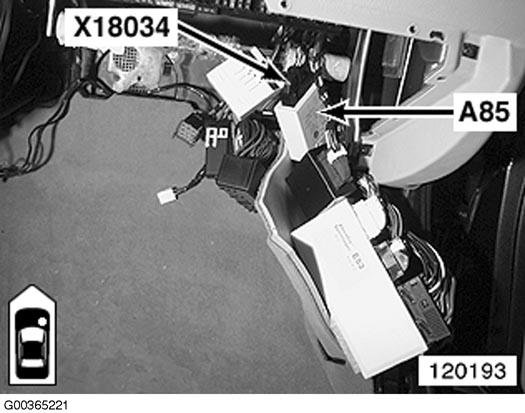

| RDC Control Module (A85) | Behind glove box. See Figure. |

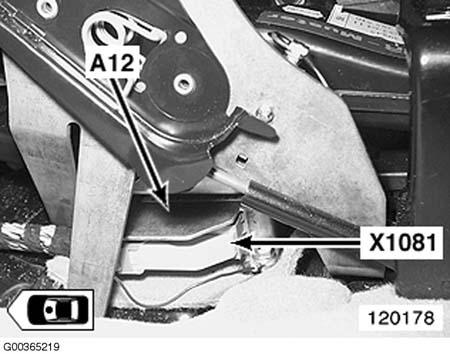

| Supplemental Restraint System Control Module (A12) | Below center console. See Figure. |
| Transfer Case Control Module (A70006) | Below left rear seat. See Figure. |
