Toe-In Adjustment: Front

  1. If necessary, remove steering gear cover. Slacken clamping nut (2) while gripping tie rod end (1). See Fig 1 .
  2. Remove tie rod clamp (4). Turn tie rod (3) to adjust toe-in to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
  3. Install tie rod clamp (4). Tighten tie rod clamping nut to specification while gripping tie rod end (1). See TORQUE SPECIFICATIONS  .

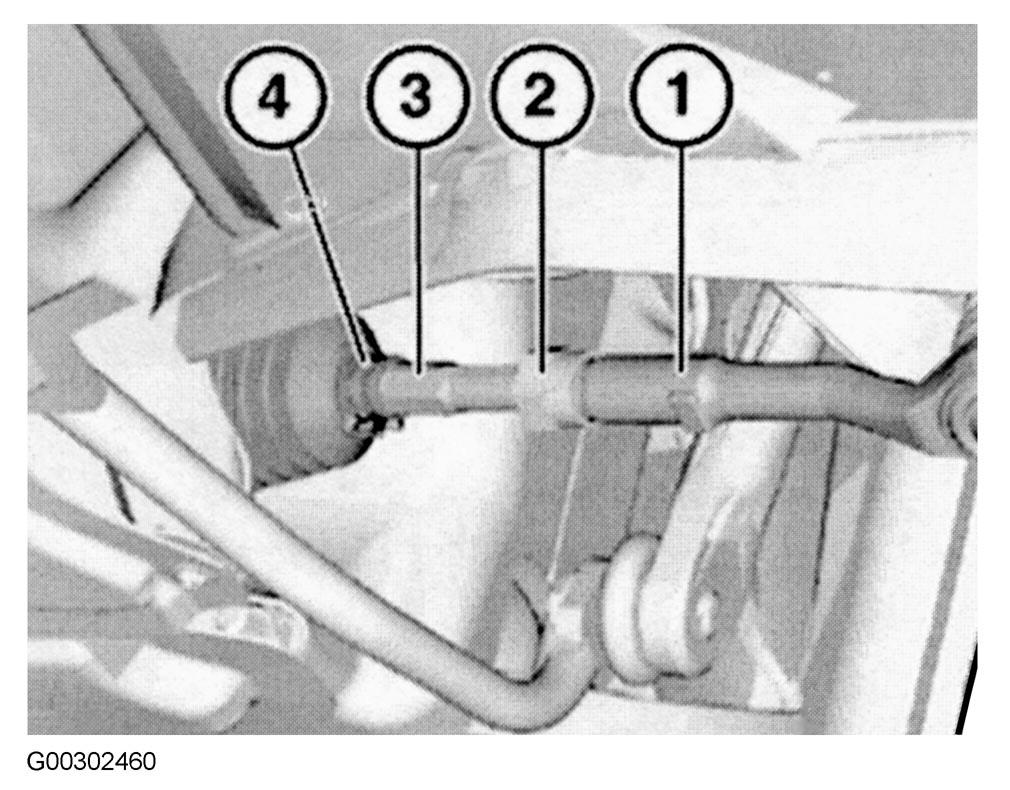

Fig 1: Adjusting Front Toe-In
G00302460Courtesy of BMW OF NORTH AMERICA, INC.
