Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Behind Glove Box

G00420912

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Under Left Side Of Dash

G00420913

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Driver's Door

G00420914

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Passenger's Door

G00420915

Courtesy of BMW OF NORTH AMERICA, INC.

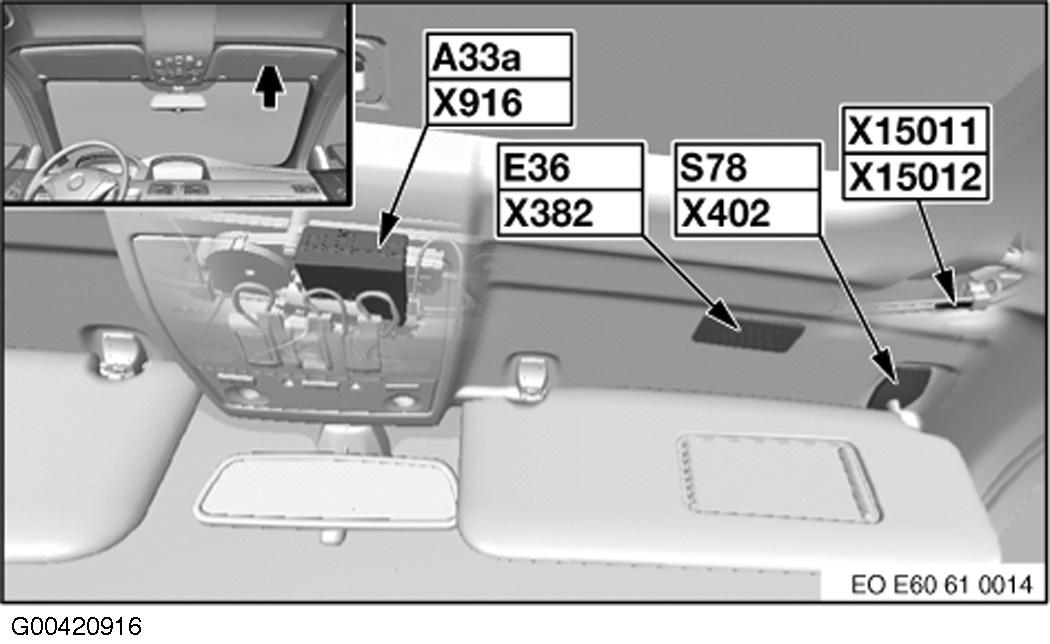

Fig 5: Front Of Roof

G00420916

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Behind Glove Box

G00420917

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Luggage Compartment

G00420918

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Right Side Of Engine Compartment

G00420919

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Luggage Compartment

G00420920

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Left "B" Pillar (Convertible)

G00420921

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Under Front Passenger's Seat

G00420922

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Front Of Vehicle

G00420923

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Right Kick Panel

G00420924

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Left Side Of Dash

G00420925

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Left "B" Pillar (Coupe)

G00420926

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Center Console

G00420927

Courtesy of BMW OF NORTH AMERICA, INC.

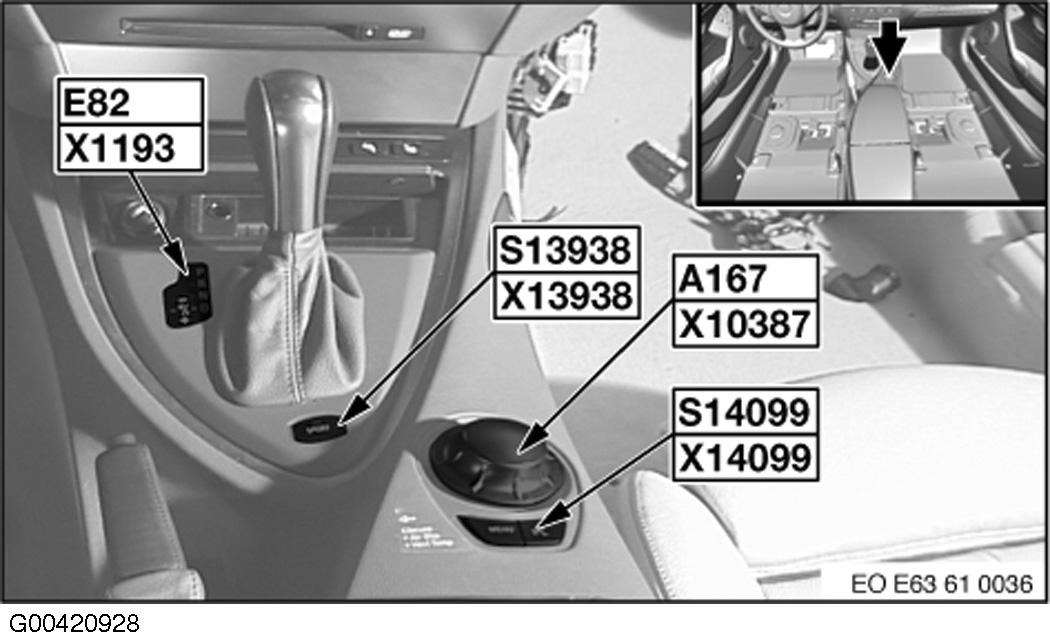

Fig 17: Center Console

G00420928

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Front Passenger's Seat (Convertible)

G00420929

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Front Passenger's Seat (Coupe)

G00420930

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Driver's Seat (Coupe)

G00420931

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 21: Driver's Seat (Convertible)

G00420932

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Left Side Of Luggage Compartment

G00420933

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 23: Passenger's Seat (Coupe)

G00420935

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 24: Passenger's Seat (Convertible)

G00420936

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 25: Right Front Floor

G00420937

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 26: Right Rear Of Engine Compartment

G00420938

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 27: Right Rear Of Engine Compartment

G00420939

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 28: Engine (M6)

G00420940

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 29: Engine (M6)

G00420941

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Transmission (A/T)

G00420942

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 31: Right Rear Of Engine Compartment

G00420943

Courtesy of BMW OF NORTH AMERICA, INC.

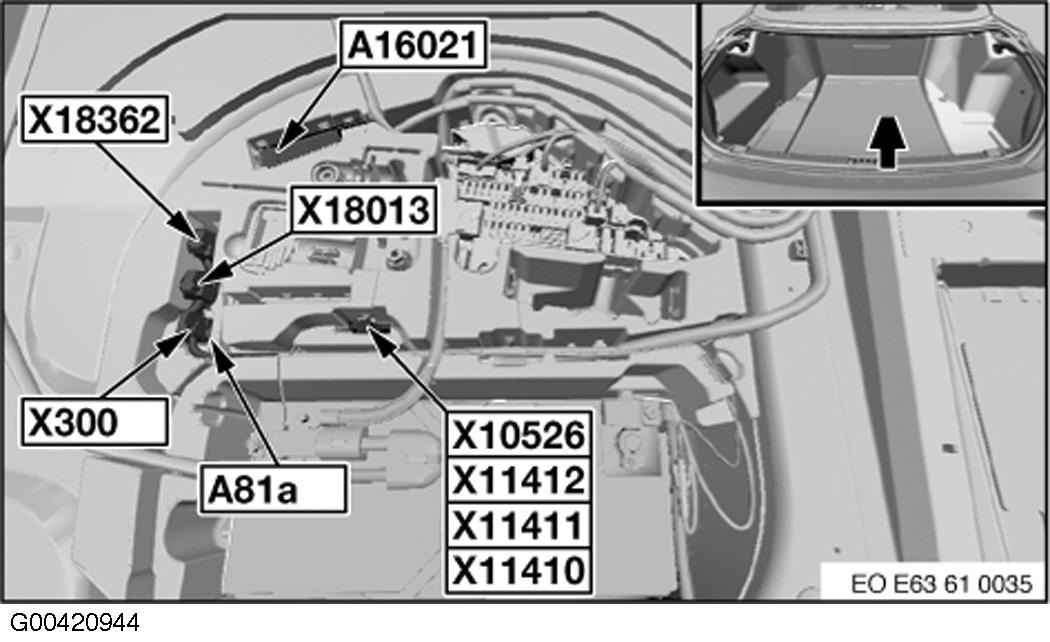

Fig 32: Luggage Compartment

G00420944

Courtesy of BMW OF NORTH AMERICA, INC.

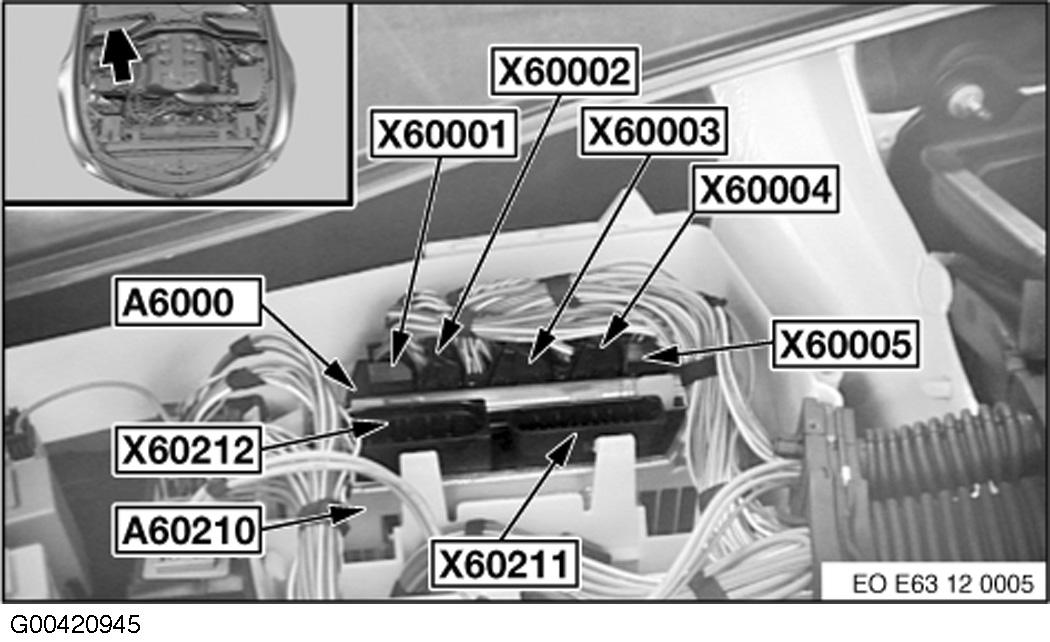

Fig 33: Right Rear Of Engine Compartment

G00420945

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 34: Right Rear Of Engine Compartment

G00420946

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 35: Under Left Side Of Dash

G00420947

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 36: Behind Center Of Dash

G00420948

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 37: Behind Center Of Dash

G00420949

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 38: Left Side Of Dash

G00420951

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 39: Lower Left Side Of Engine Compartment

G00420952

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 40: Left Rear Of Engine Compartment

G00420953

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 41: Right Front Wheelwell

G00420955

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 42: Right Rear Wheelwell

G00420956

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 43: Luggage Compartment

G00420958

Courtesy of BMW OF NORTH AMERICA, INC.

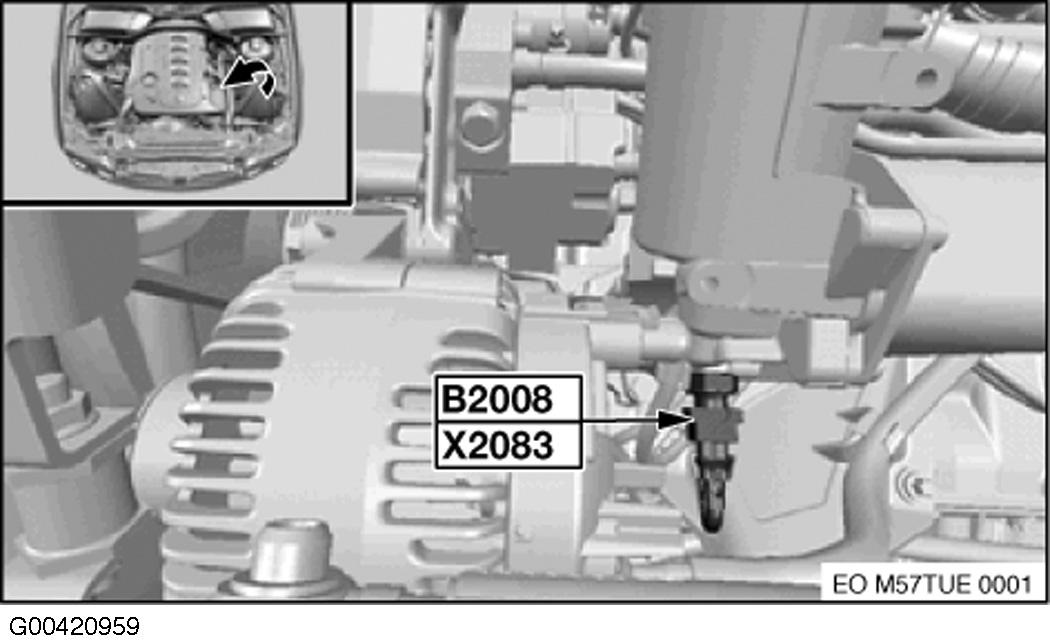

Fig 44: Left Side Of Engine

G00420959

Courtesy of BMW OF NORTH AMERICA, INC.

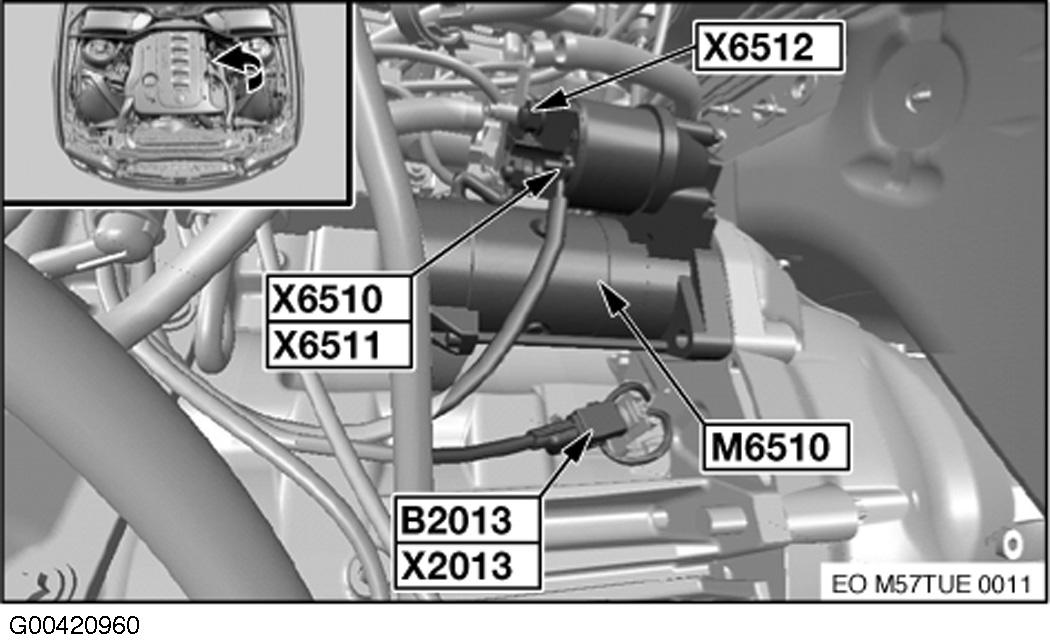

Fig 45: Left Side Of Engine

G00420960

Courtesy of BMW OF NORTH AMERICA, INC.

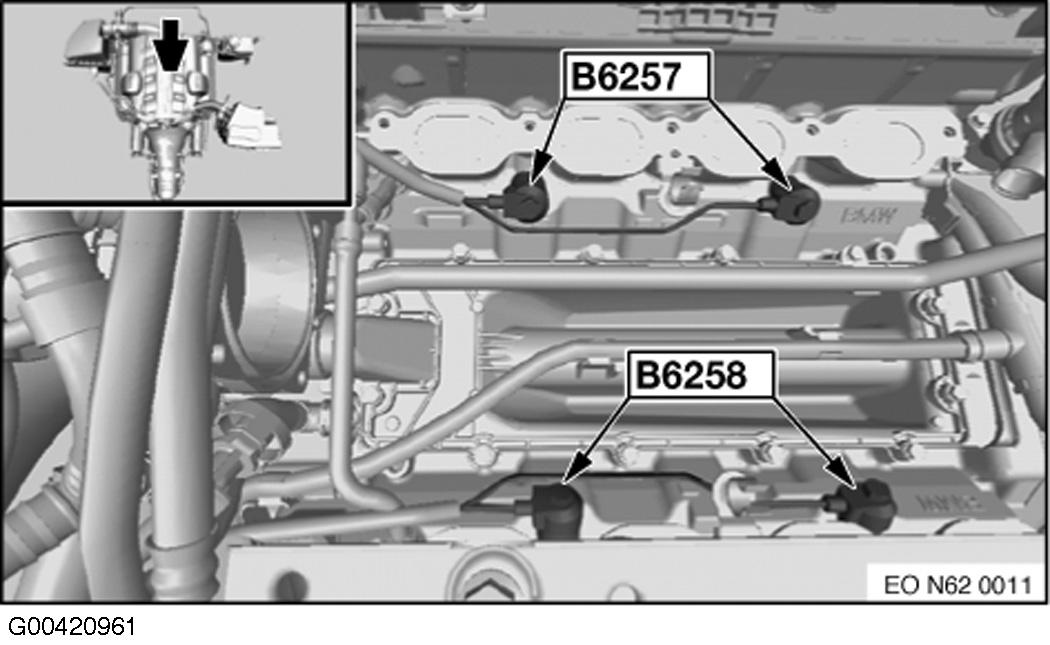

Fig 46: Top Of Engine (Under Intake)

G00420961

Courtesy of BMW OF NORTH AMERICA, INC.

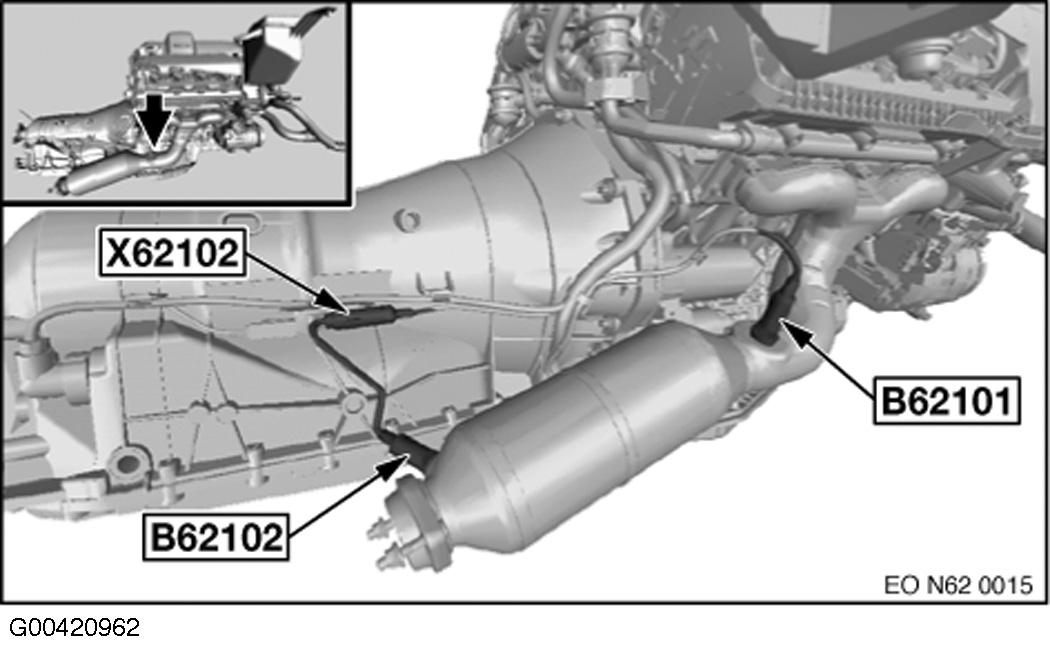

Fig 47: Exhaust System (Right)

G00420962

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Right Front Wheelwell

G00420963

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 49: Left Front Wheelwell

G00420964

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 50: Right Side Of Dash

G00420966

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 51: Left Side Of Dash

G00420967

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 52: Luggage Compartment

G00420970

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 53: Luggage Compartment Lid

G00420971

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 54: Right Rear Of Engine Compartment

G00420972

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 55: Right Rear Of Engine Compartment

G00420974

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 56: Under Rear Seat

G00420975

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 57: Left Front Wheelwell

G00420977

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 58: Front Of Engine Compartment

G00420978

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 59: Rear Of Vehicle

G00420980

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 60: Left Side Of Luggage Compartment

G00420981

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 61: Left Side Of Luggage Compartment

G00420982

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 62: Top Of Engine

G00420983

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 63: Top Of Engine

G00420984

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 64: Left Side Of Engine Compartment

G00420985

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 65: Center Console

G00420986

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 66: Center Console

G00420987

Courtesy of BMW OF NORTH AMERICA, INC.

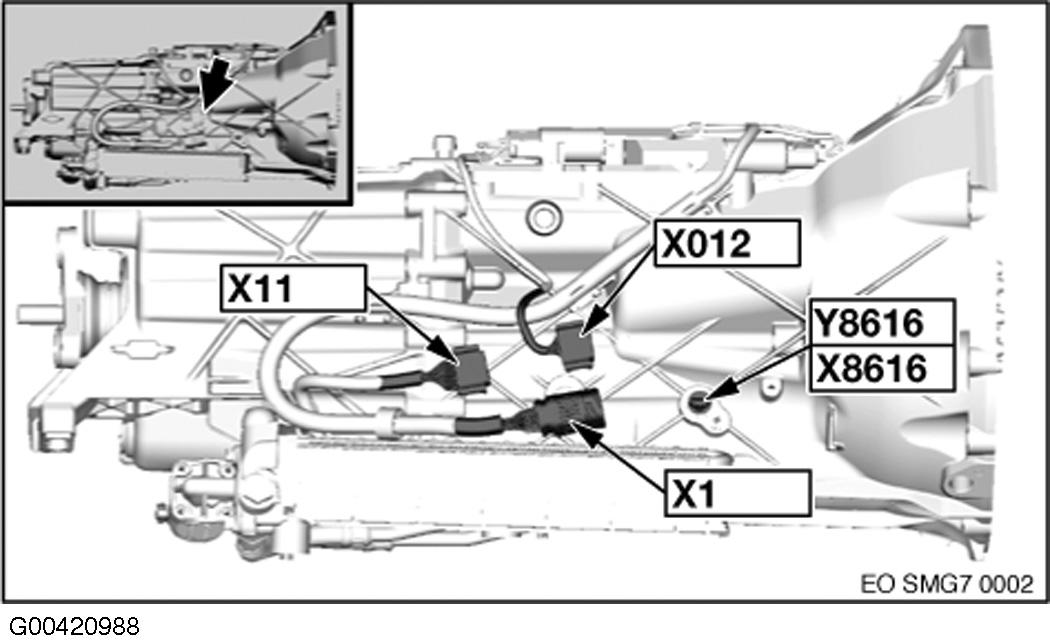

Fig 67: Right Side Of Transmission

G00420988

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 68: Rear Of Hood

G00420989

Courtesy of BMW OF NORTH AMERICA, INC.

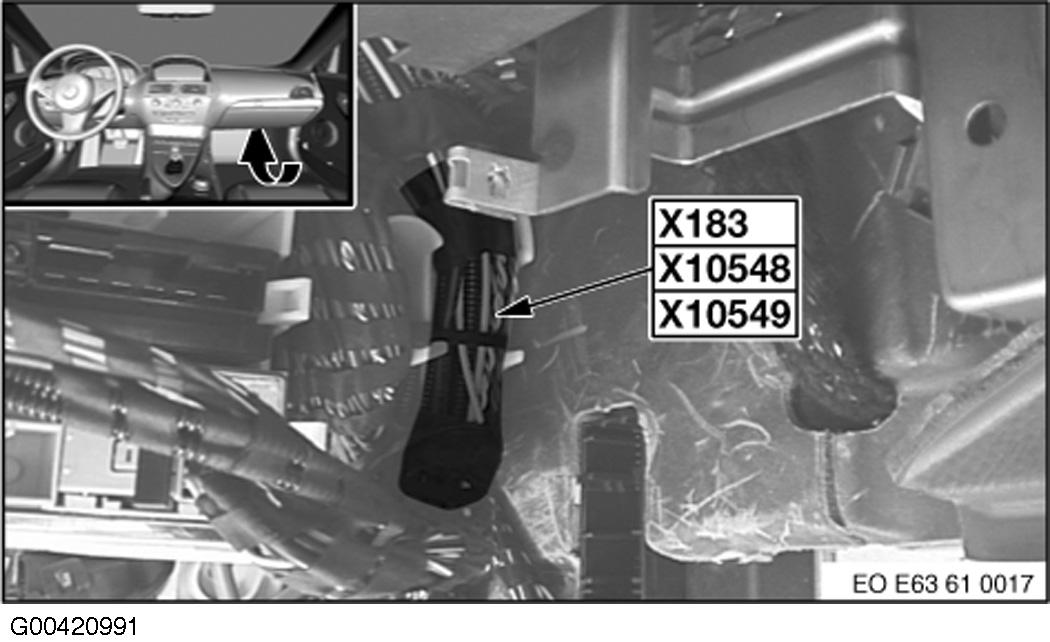

Fig 69: Right Side Of Dash

G00420991

Courtesy of BMW OF NORTH AMERICA, INC.

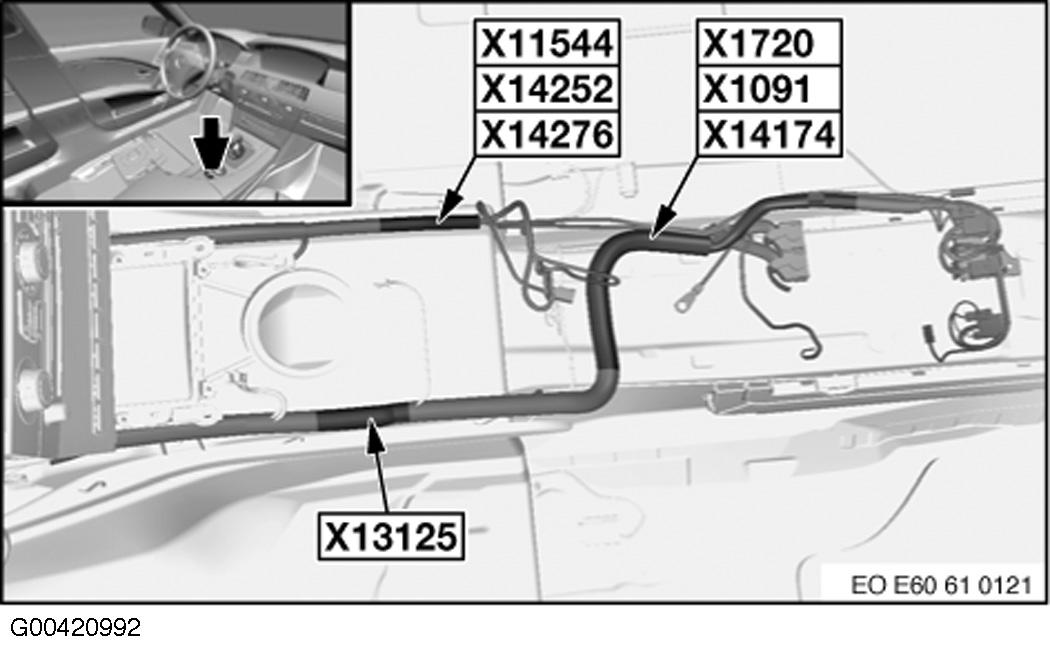

Fig 70: Under Center Console

G00420992

Courtesy of BMW OF NORTH AMERICA, INC.

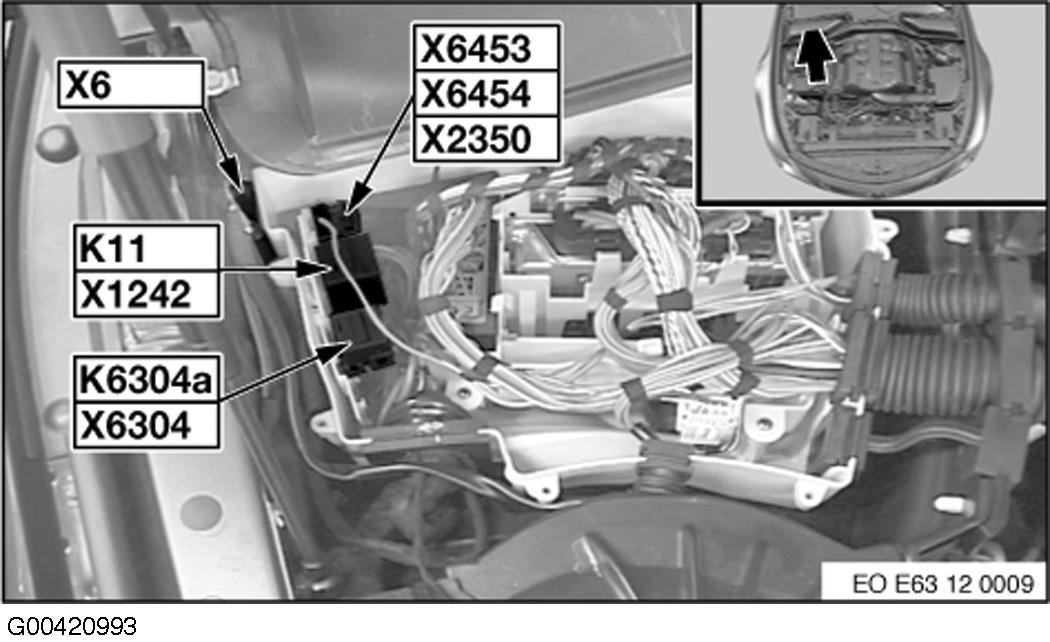

Fig 71: Right Rear Of Engine Compartment

G00420993

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 72: Left Kick Panel

G00420994

Courtesy of BMW OF NORTH AMERICA, INC.
