Ultrasonic Interior Motion Sensor

The ultrasonic interior motion sensor uses ultrasonic waves to monitor the vehicle interior. Movement is detected if the reflection (echo) of the ultrasonic waves changes. The sensitivity of the ultrasonic interior motion sensor can be adapted to different conditions (e.g. sliding/tilting sunroof open).

USIS with integrated DWA module

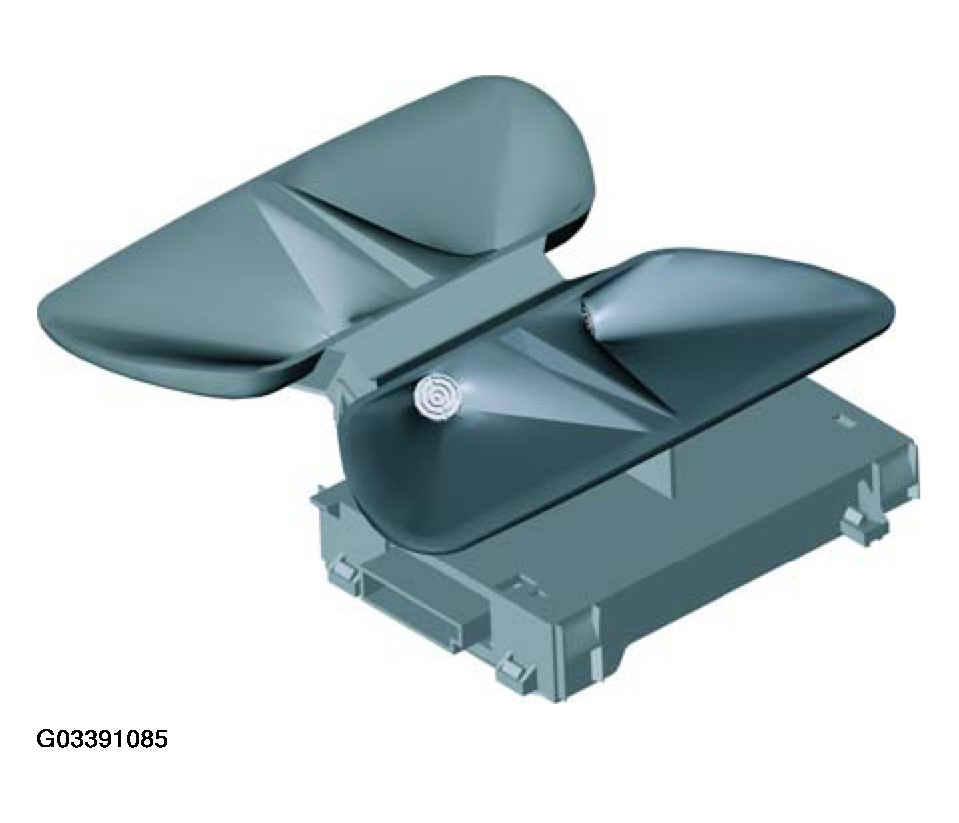

Fig 1: USIS With Integrated DWA Module
G03391085Courtesy of BMW OF NORTH AMERICA, INC.
