Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Basic Body Module (A1) | Behind glove box. See Figure. |
| Dynamic Stability Control (A65a) | Right front of engine compartment. See Figure. |
| Dynamic Stability Control (M5) (A65a) | Left front wheelwell. See Figure. |

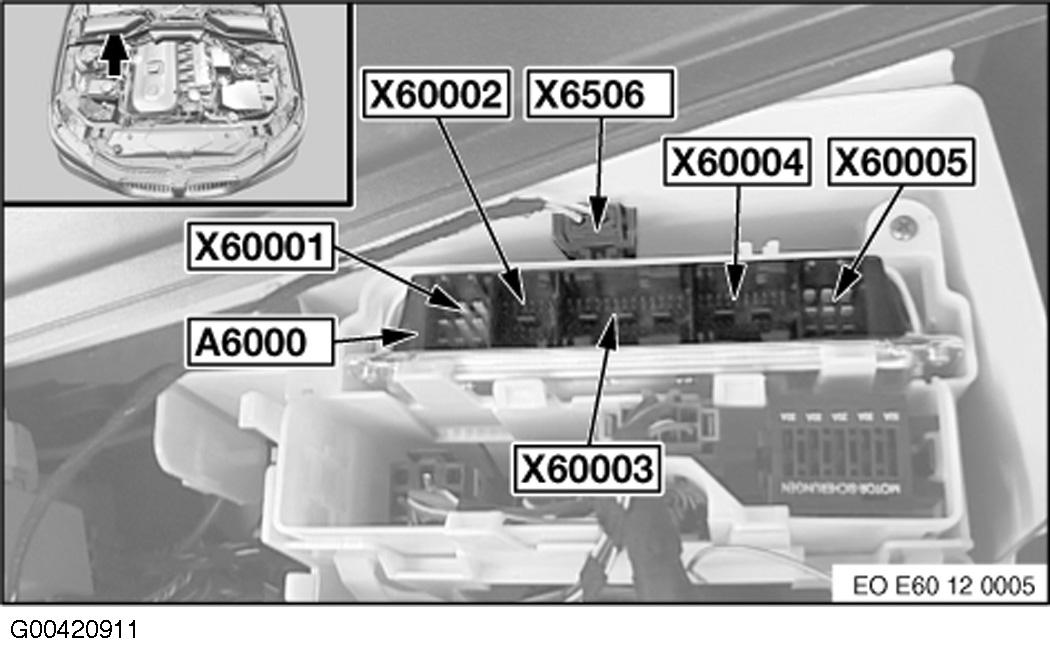

| Engine Control Module (DME) (A6000) | Right rear engine compartment. See Figure. |
| Heating And A/C Control Module (A11a) | Center of dash. See Figure. |
| Light Module (A3) | Right kick panel. See Figure. |

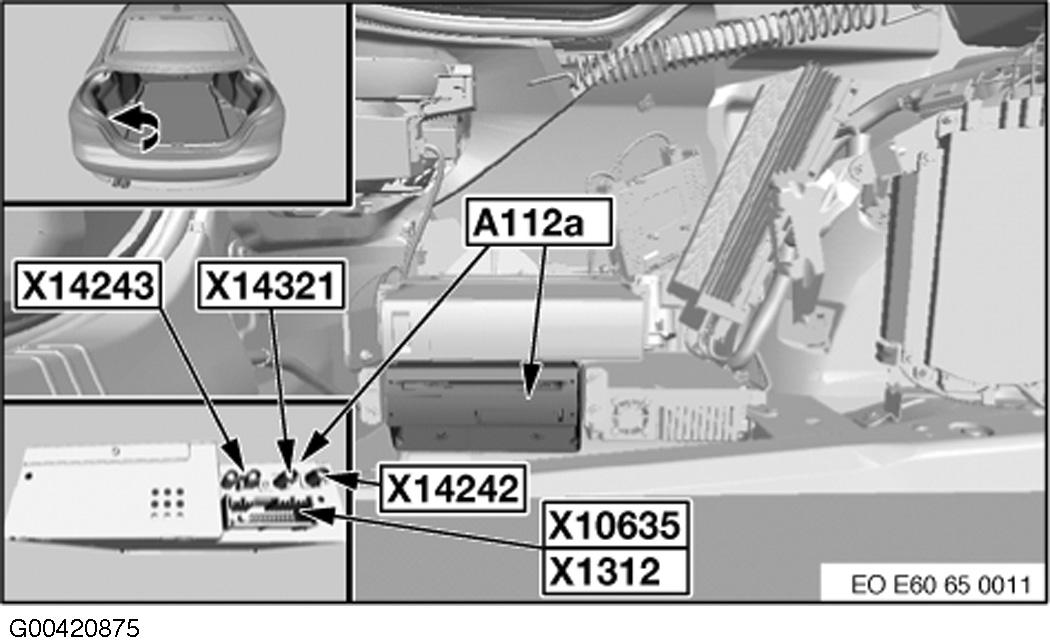

| Navigation Control Module (A112a) | Left rear luggage compartment. See Figure. |
| Sunroof Module (A33a) | Front of roof. See Figure. |
