Instrument Cluster: Notes

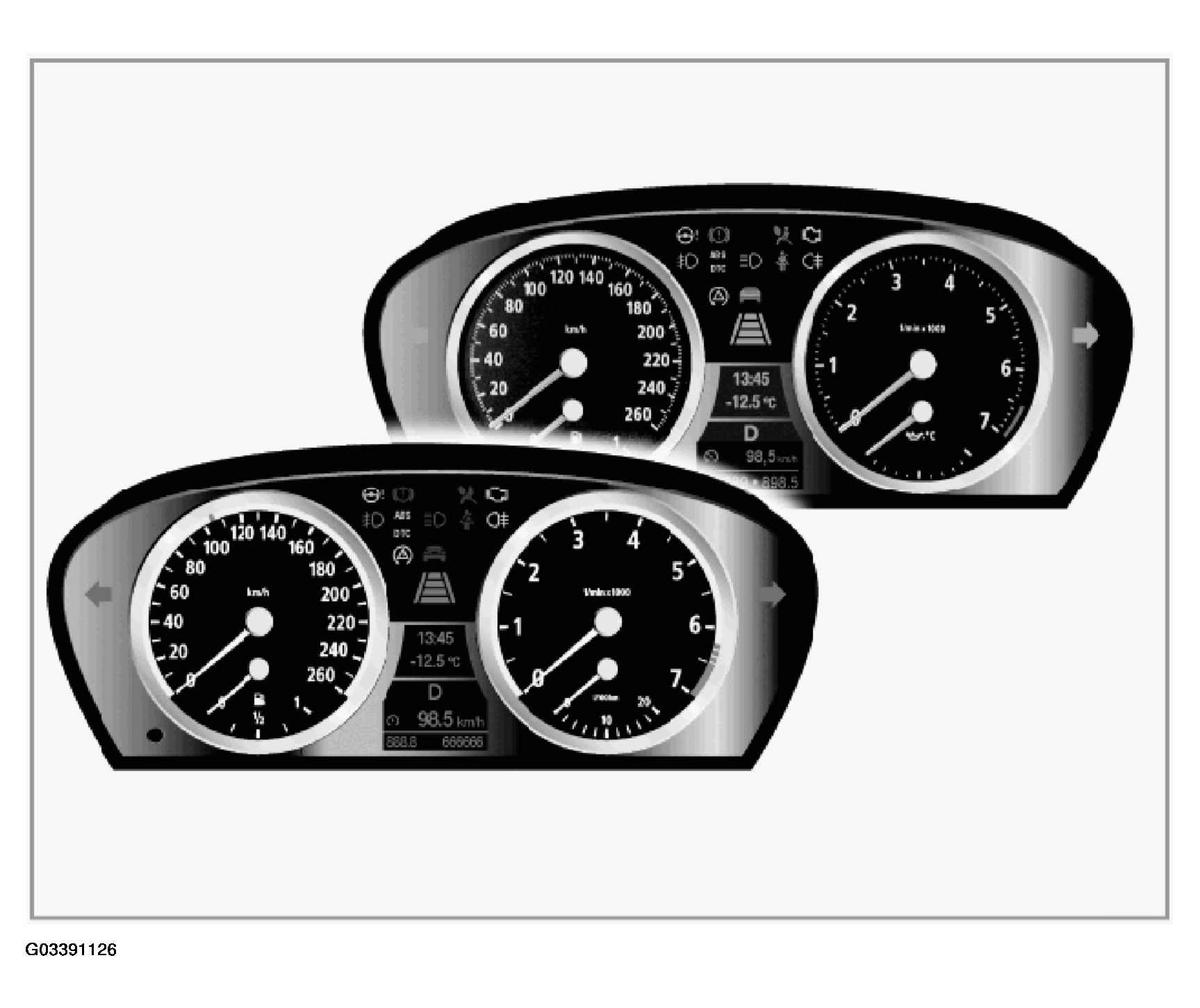

The instrument clusters used in the new 5 and 6 series vehicle are similar in appearance and operation. There are slight differences which can be distinguished by the gauge configurations. The E63/E64 instrument cluster uses a speedometer which has a slightly finer scale and there is an oil temperature gauge located below the tachometer.

The E60 and future E61 uses the more familiar fuel consumption indicator in the tachometer area.

Both clusters use the new annular indicators. For the first time, this type of gauge display is used by BMW for the two main instruments. This represents an innovation in display technology. This system has enabled the displays for the cruise control system set speed and the variable engine speed warning zone to be visually illustrated.

The indicator lamp for the fuel reserve has been replaced by a Check Control message in text and graphics. Likewise, the Check Control texts are no longer displayed in the instrument cluster but in the status bar of the Central Information Display (CID).

Two large instrument dials show vehicle speed and engine speed. The scales on the instrument cluster are specific to each country, vehicle and engine. Most of the indicator lamps are located in the center at the top between the two large instrument dials. Also in the center between the two large instrument dials are the two LC Displays.
