Telephone System: Compensator

The compensator is connected in the aerial cable between the telephone and the roof aerial. It balances out the losses of the aerial cable. The compensator is fitted in the luggage compartment on the separating wall to the left of the TCU.

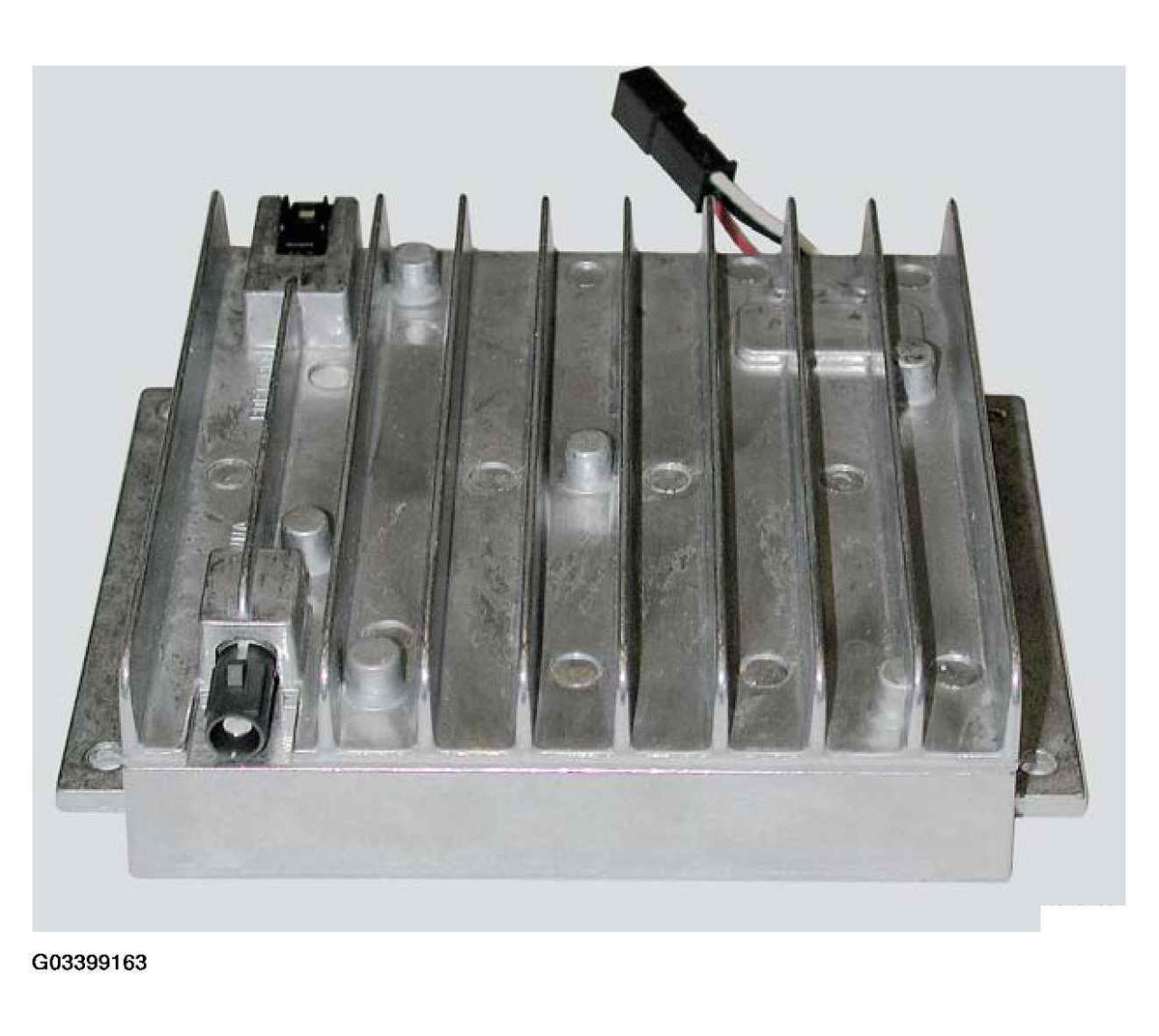

Fig 1: Identifying Compensator Connect
G03399163Courtesy of BMW OF NORTH AMERICA, INC.
