Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

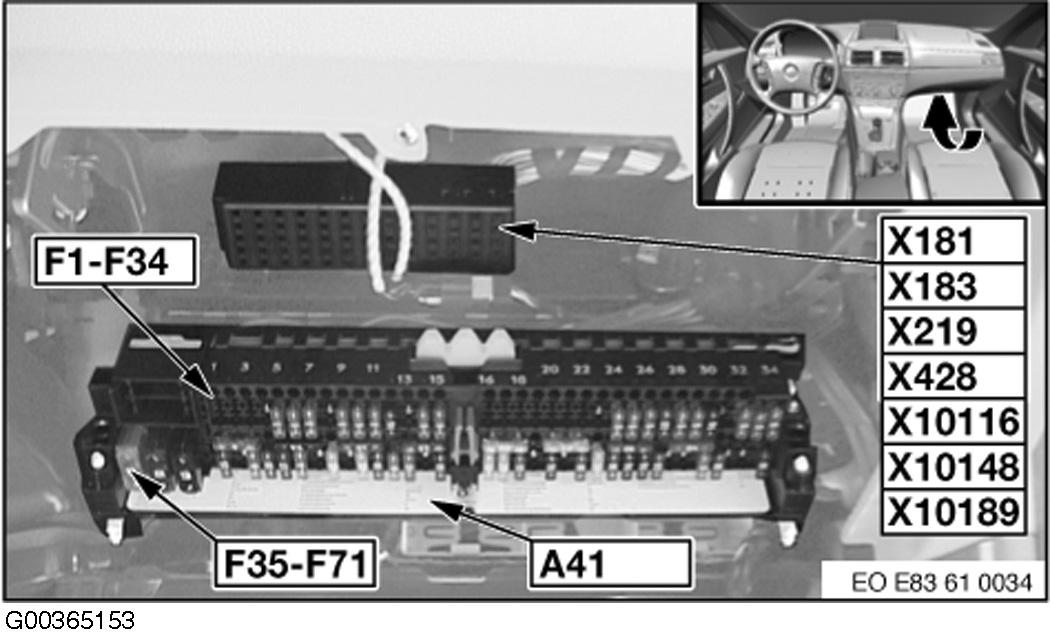

| X181 | Right side of dash. See Figure. |
| X183 | Right side of dash. See Figure. |
| X217 | Left side of dash. See Figure. |
| X219 | Right side of dash. See Figure. |
| X428 | Right side of dash. See Figure. |
| X10116 | Right side of dash. See Figure. |
| X10148 | Right side of dash. See Figure. |
| X10189 | Right side of dash. See Figure. |
| X10237 | Center of dash. See Figure. |
