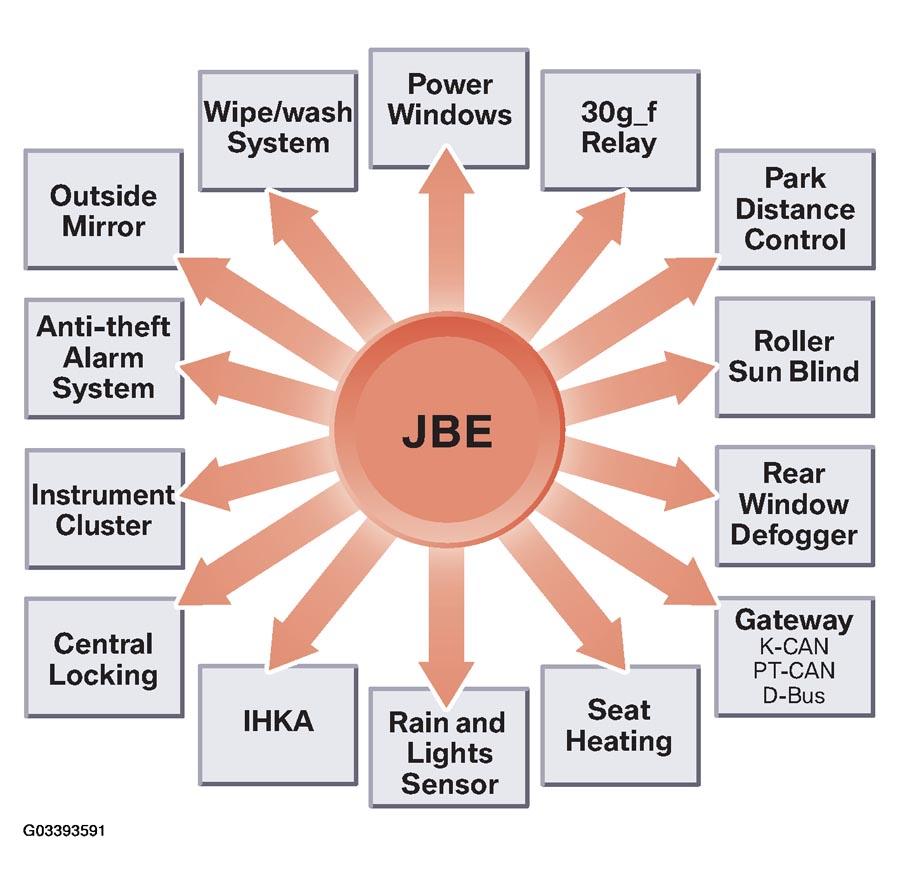

Functions Of Junction Box Electronics Control Module
The Junction Box Electronics Control Module (JBE) serves as:
- Gateway Module for vehicle Bus System (provides a pass-through function for F-CAN)
- Evaluator and transmitter of sensor data for Kombi such as Engine Coolant Level, Washer Fluid Level, Fuel Level, Hand Brake Contact (evaluated data is transmitted on to the Instrument Cluster)
- Evaluator and transmitter of sensor data for IHKA such as Automatic Recirculation Air Control, Coolant Pressure (evaluated data is transmitted on to the IHKA module)
- Activator of Compressor Valve and Rear Window Defogger (activation control data is transmitted from IHKA module)
- Controller of Wipe/Wash functions, Heated Washer Jets, Seat Heating, Mirror Heating, Water Valve, Relay 30g_f, Rear Power Windows, Rear Window Sun Shade
- Locking & Unlocking of complete vehicle
- Pass-through for Outside Temp Sensor
