23 .. ... Universal Transmission Retaining Bridge
Special tools required:
NOTE:
- The transmission retaining bridge 24 0 200 is suitable for both manual and automatic transmissions
IMPORTANT:
Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

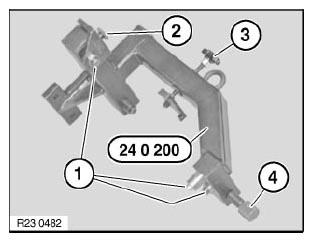

Adapt adapters (1) and spindle with thrust piece (3) to transmission.
Adapt length with slide (2).
Screw in spindle (4).
IMPORTANT:
Before mounting on assembly stand 00 1 450 , check retaining bridge for secure seating.
