31 Spring Strut
>>
31 .. .. Layout Of Spring Strut Shock Absorber
31 .. .. Layout Of Spring Strut Shock Absorber

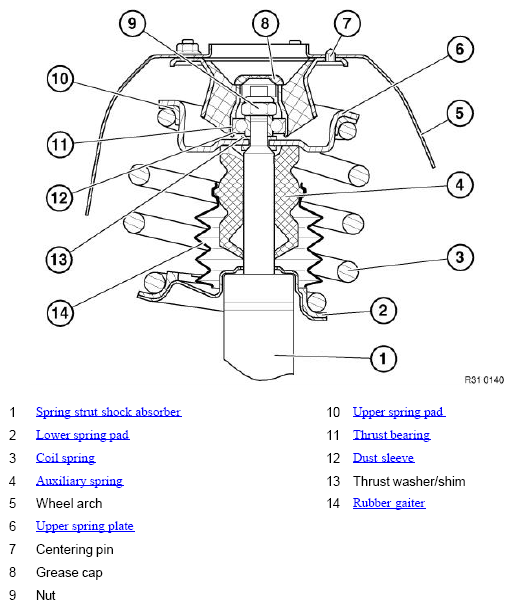

Fig 1: Identifying Spring Strut Shock Absorber Components
Courtesy of BMW OF NORTH AMERICA, INC.
