Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

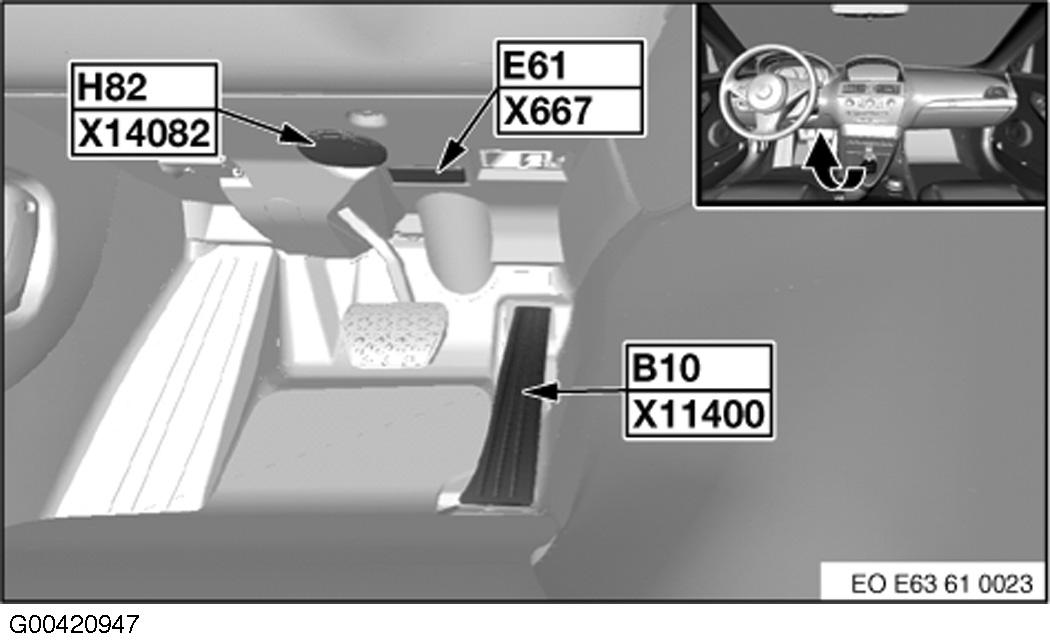

| Accelerator Pedal Module | At accelerator pedal. See Figure. |

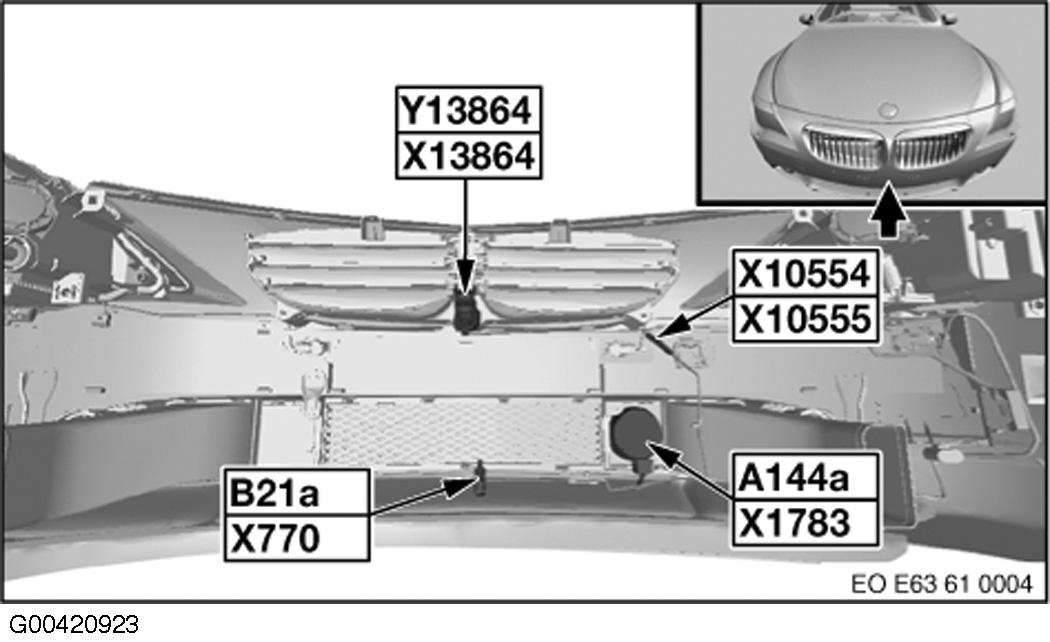

| Active Cruise Control (A144a) | Front of vehicle. See Figure. |

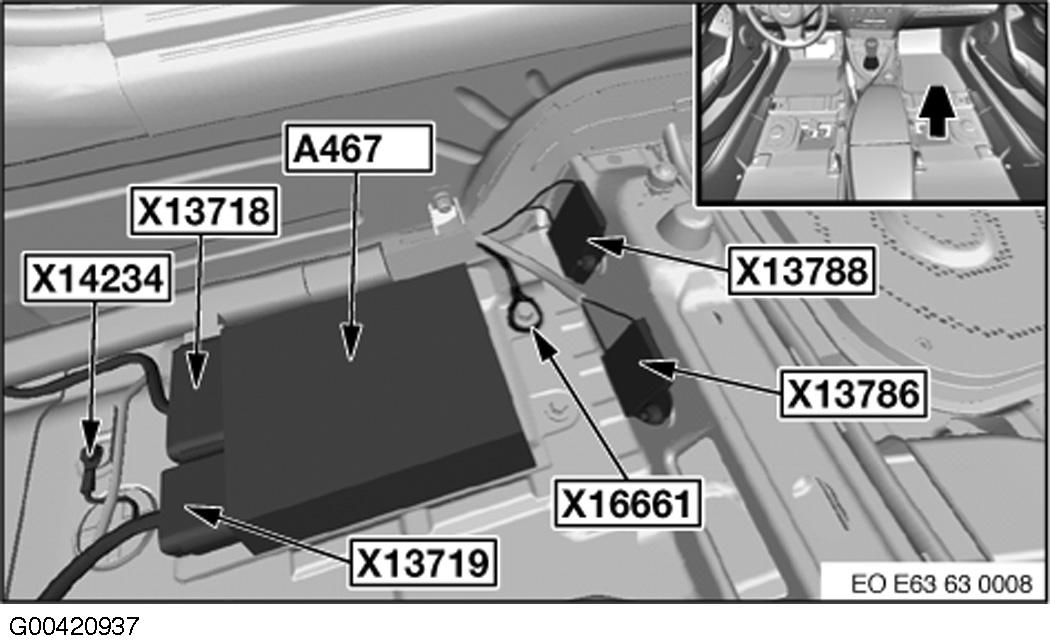

| Active Steering Module (A467) | Right front floor. See Figure. |
| Adaptive Headlight (A214) | Under right side of dash. See Figure. |

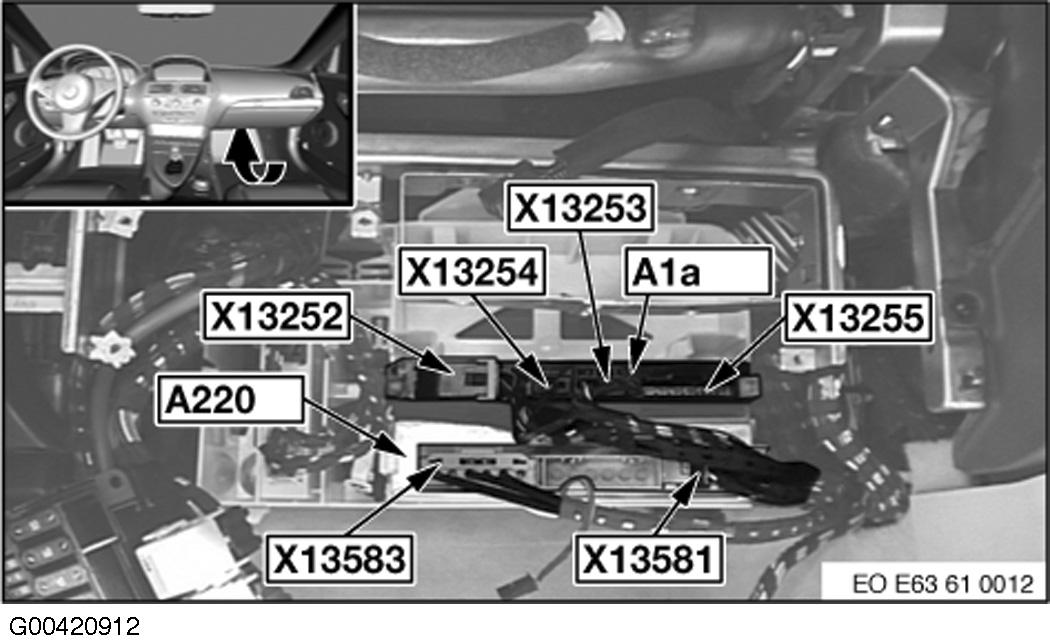

| Basic Body Module (A1a) | Behind glove box. See Figure. |

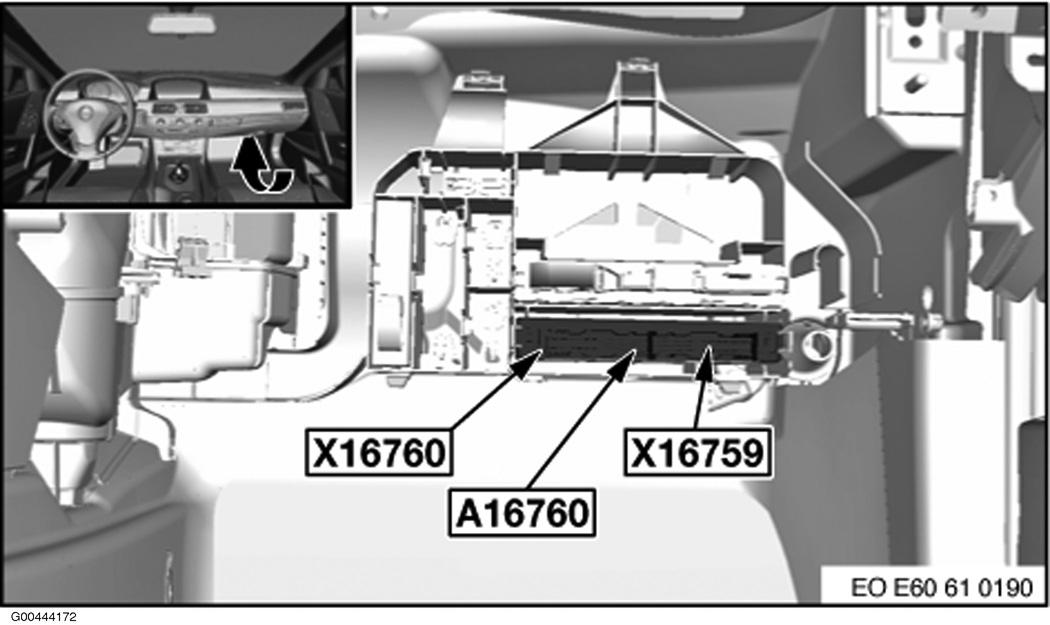

| Body-Gateway Module (A16760) | Under right side of dash. See Figure. |

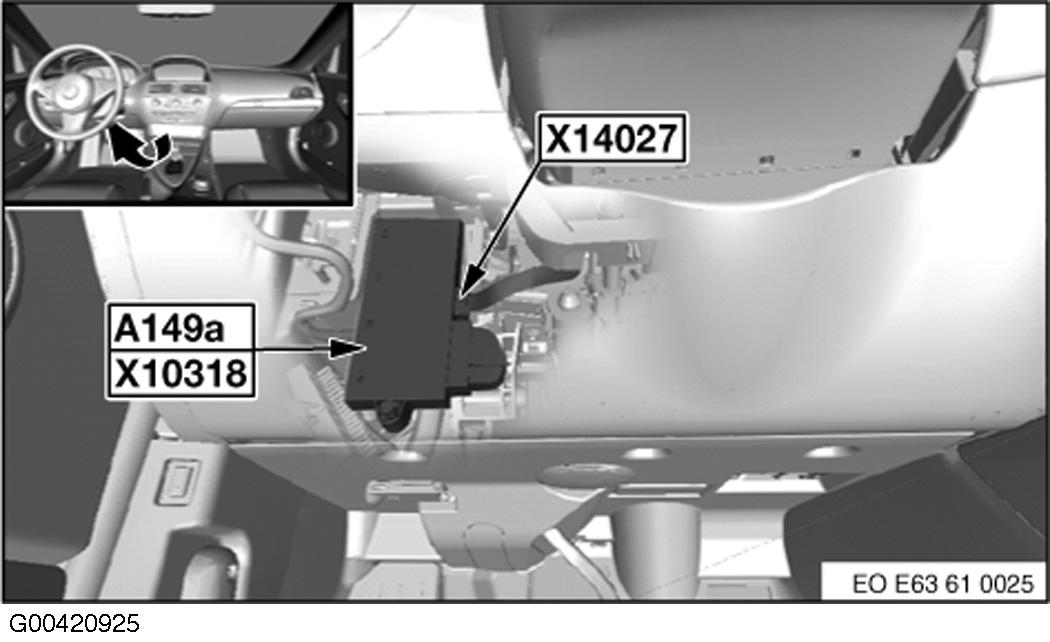

| Car Access Module (A149a) | Behind left side of dash. See Figure. |

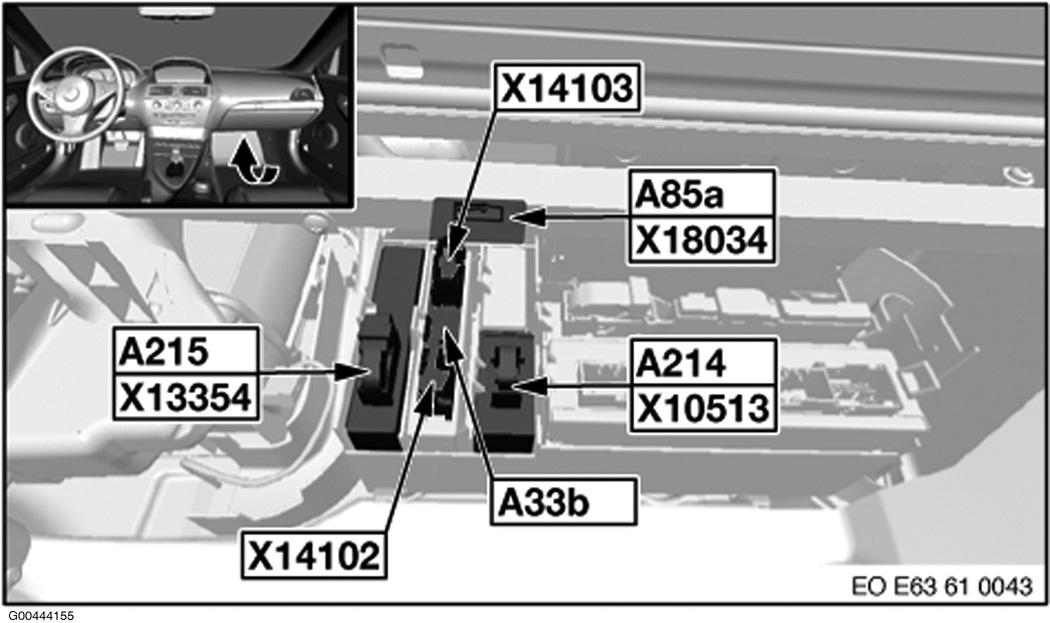

| Comfort Access Control Module (A215) | Under right side of dash. See Figure. |

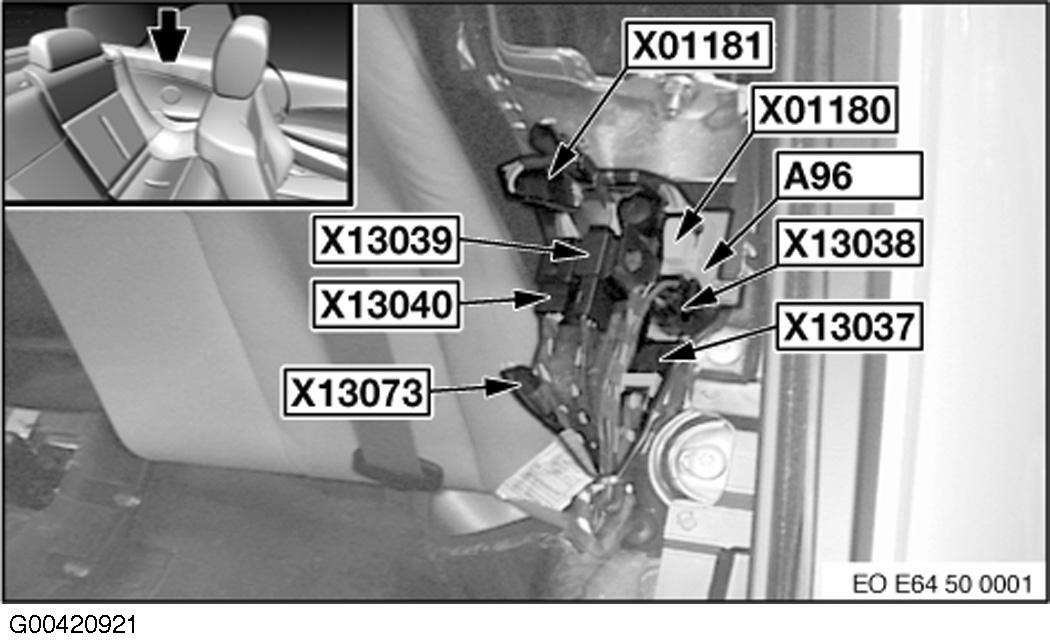

| Convertible Top Module (A96) | Near left "C" pillar. See Figure. |

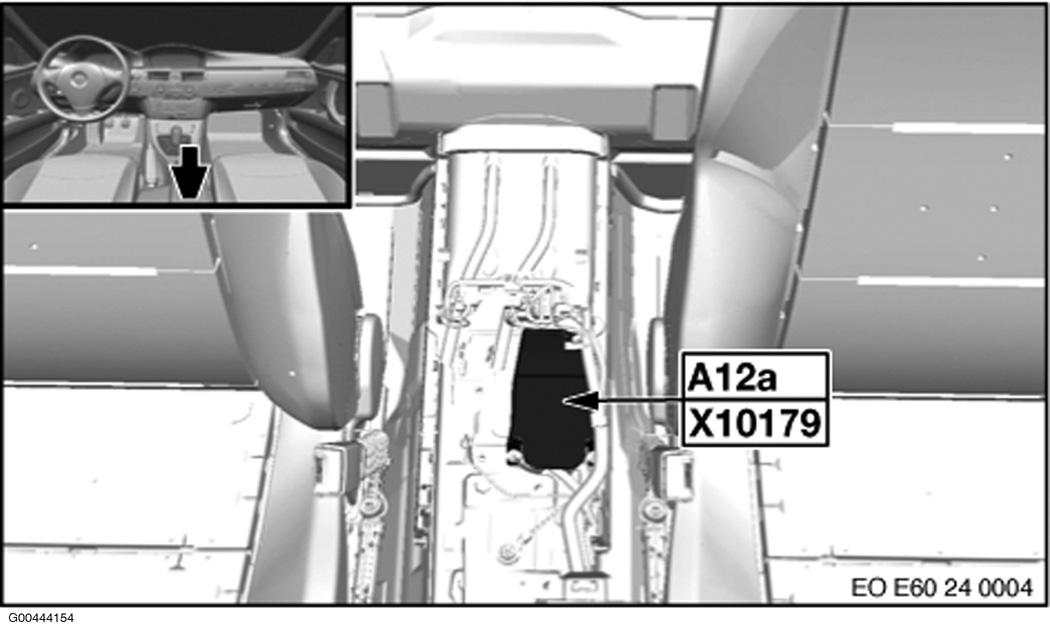

| Crash Safety Module (A12a) | Left side of center console. See Figure. |

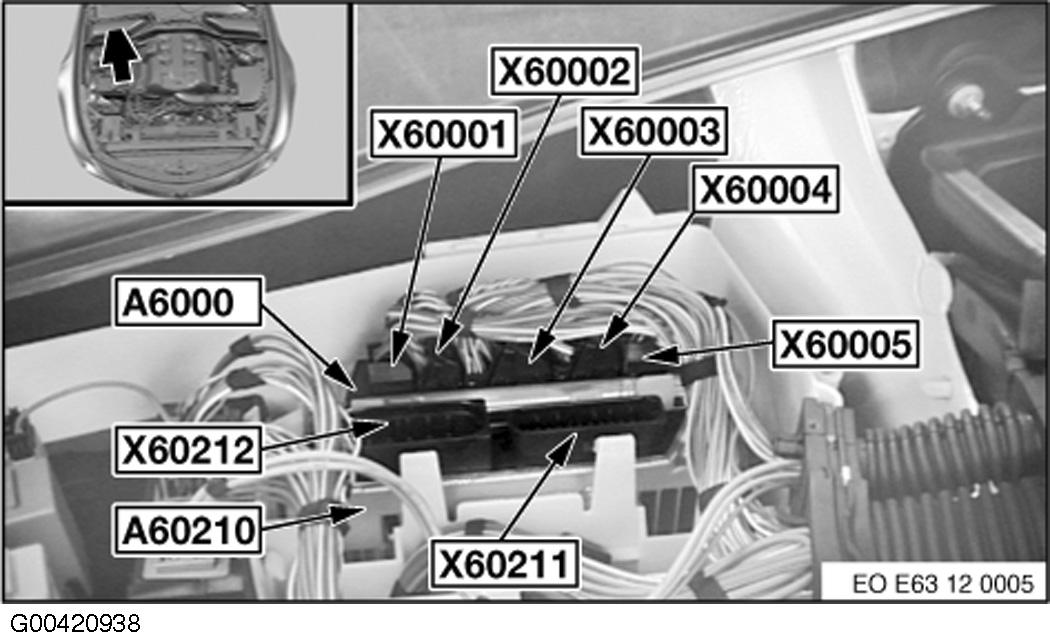

| Digital Motor Electronics (DME) Control Module (A6000) | Right rear engine compartment. See Figure. |

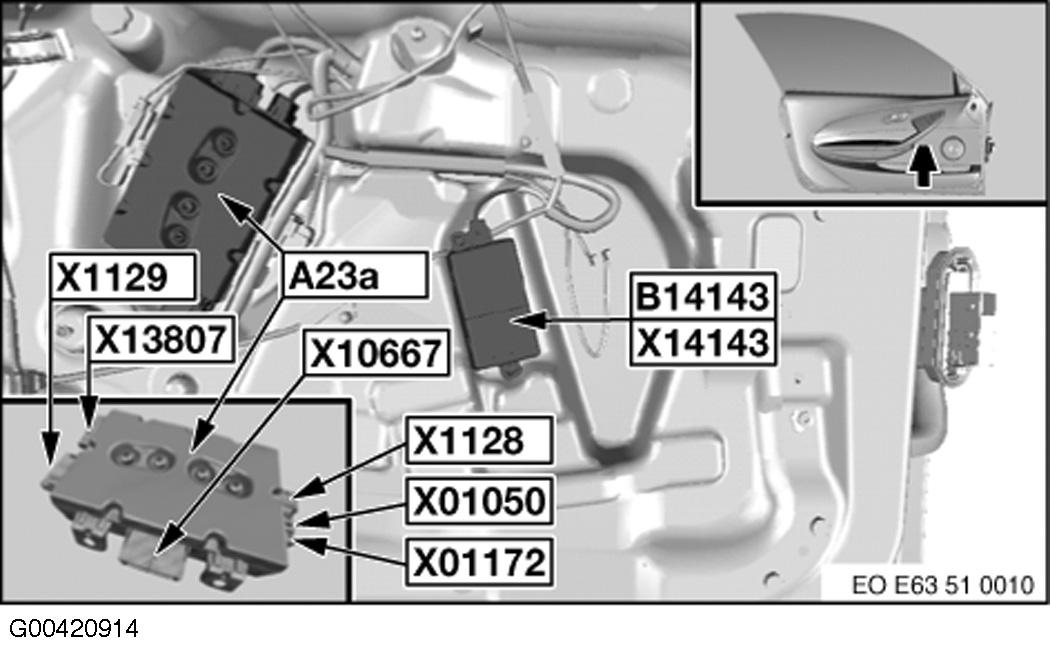

| Driver's Door Module (A23a) | In driver's door. See Figure. |

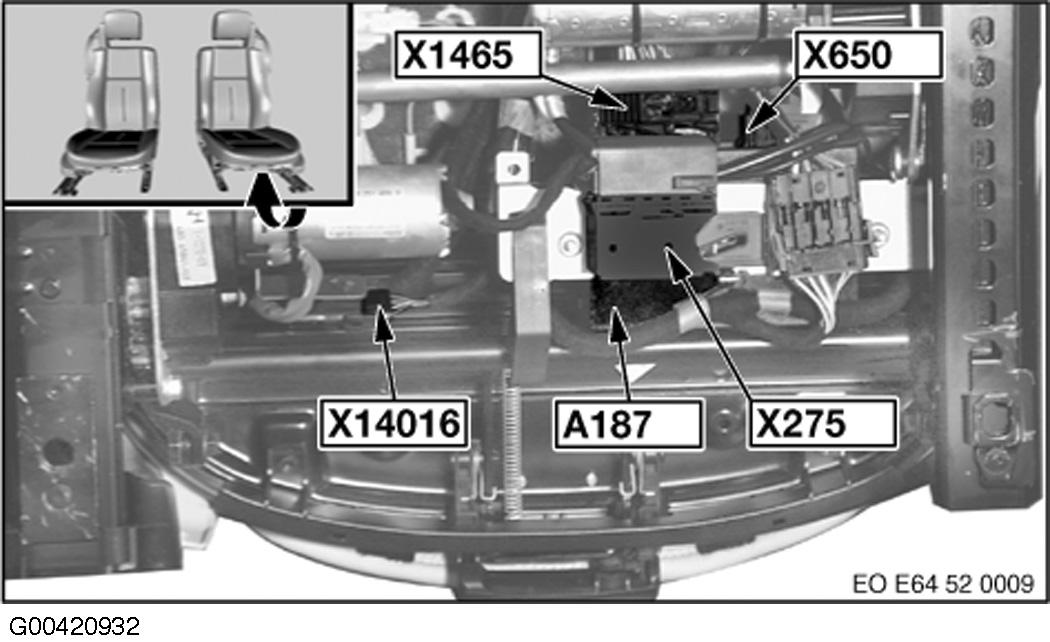

| Driver's Seat Module (Convertible) (A187) | Under driver's seat. See Figure. |

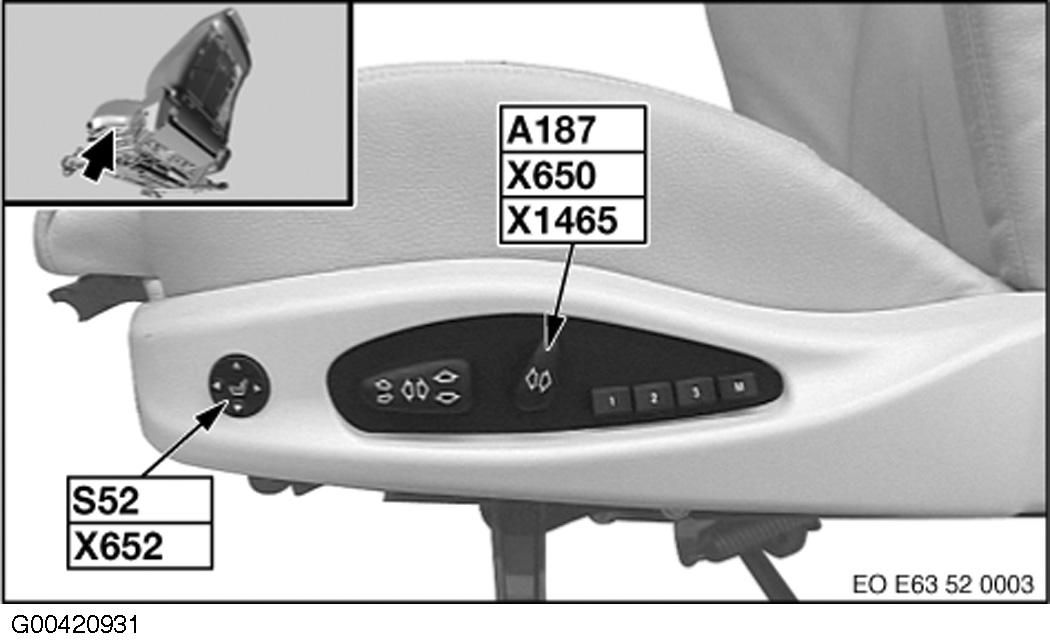

| Driver's Seat Module (Coupe) (A187) | Side of driver's seat. See Figure. |

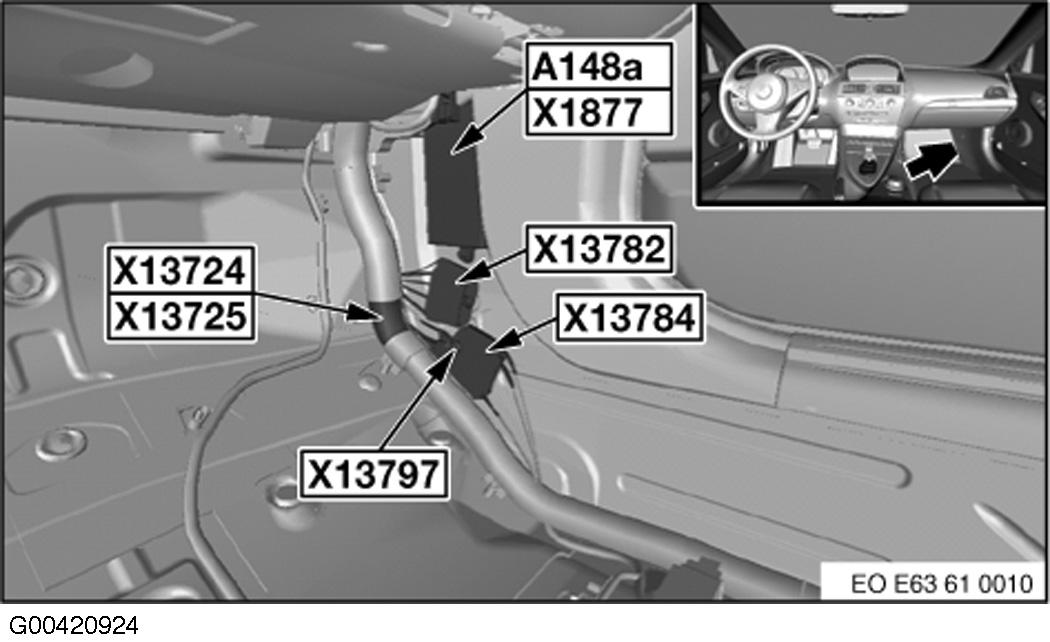

| Dynamic Drive Control Module (A148a) | Right kick panel. See Figure. |

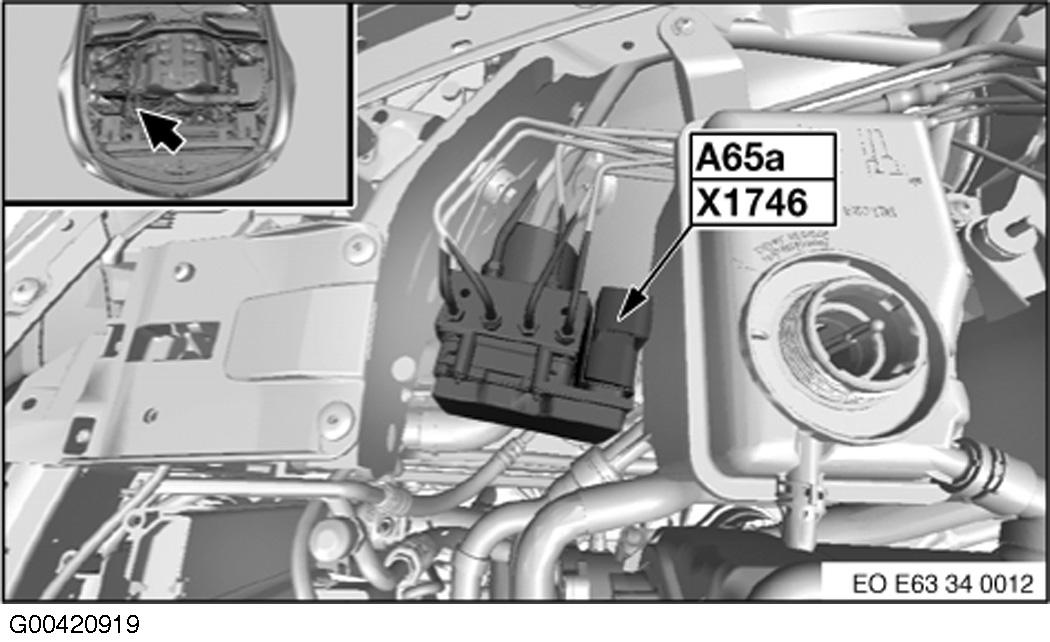

| Dynamic Stability Control (DSC) (A65a) | Right front of engine compartment. See Figure. |

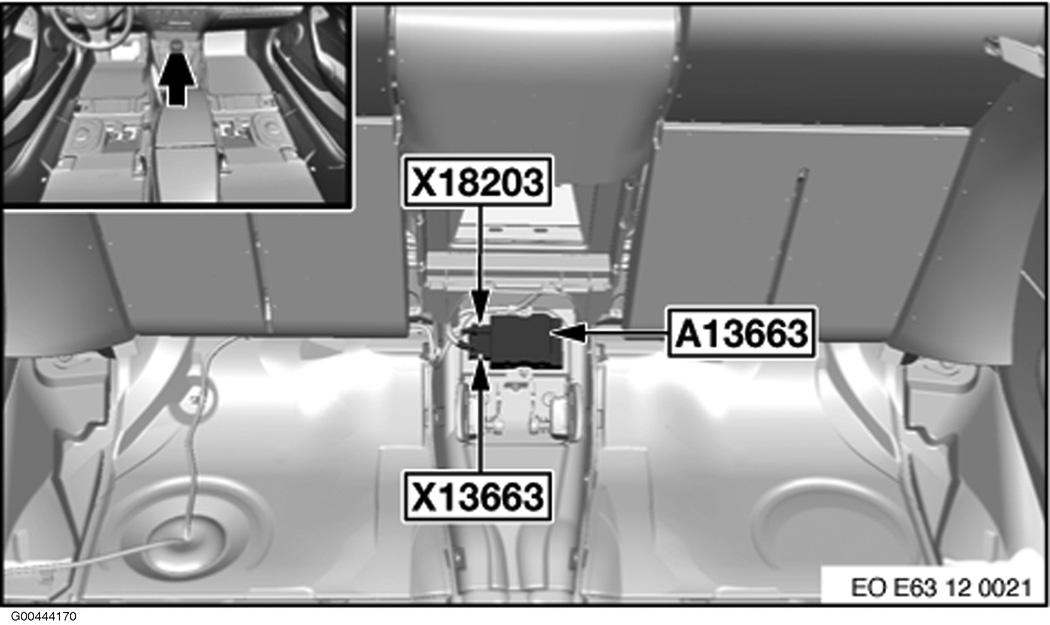

| Electronically Controlled Fuel Pump (A13663) | Front of center console. See Figure. |

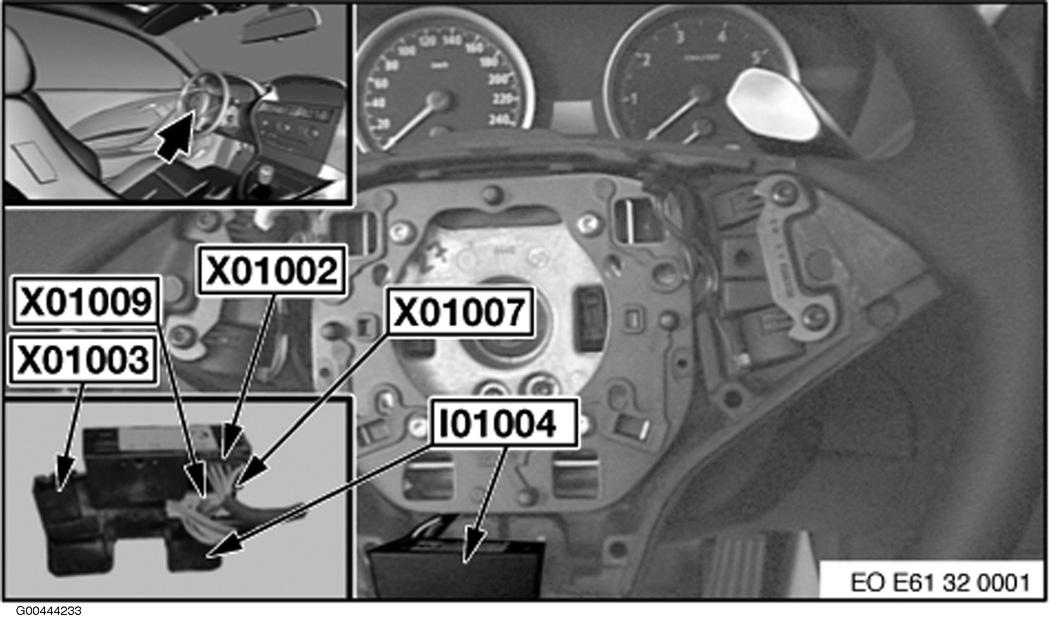

| Electronic Steering Wheel Module (I01004) | Part of steering wheel. See Figure. |

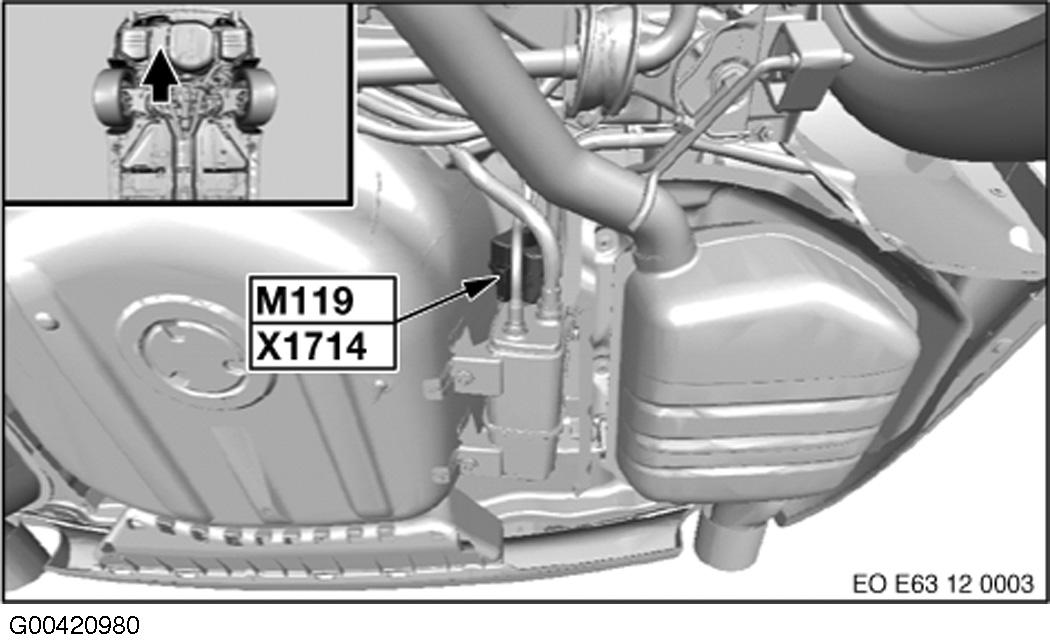

| Fuel Tank Leakage Diagnosis Module (M119) | Under rear of vehicle. See Figure. |
| Heating/Air Conditioning System (A11a) | Center of dash. See Figure. |

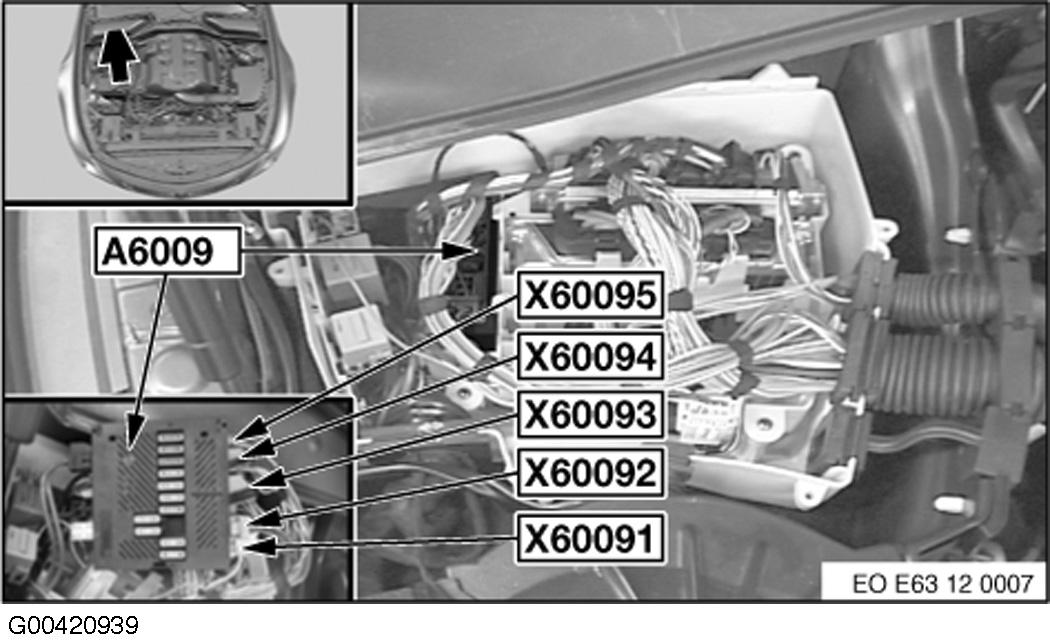

| Integrated Supply Module (IVM) (A6009) | Right rear of engine compartment. See Figure. |

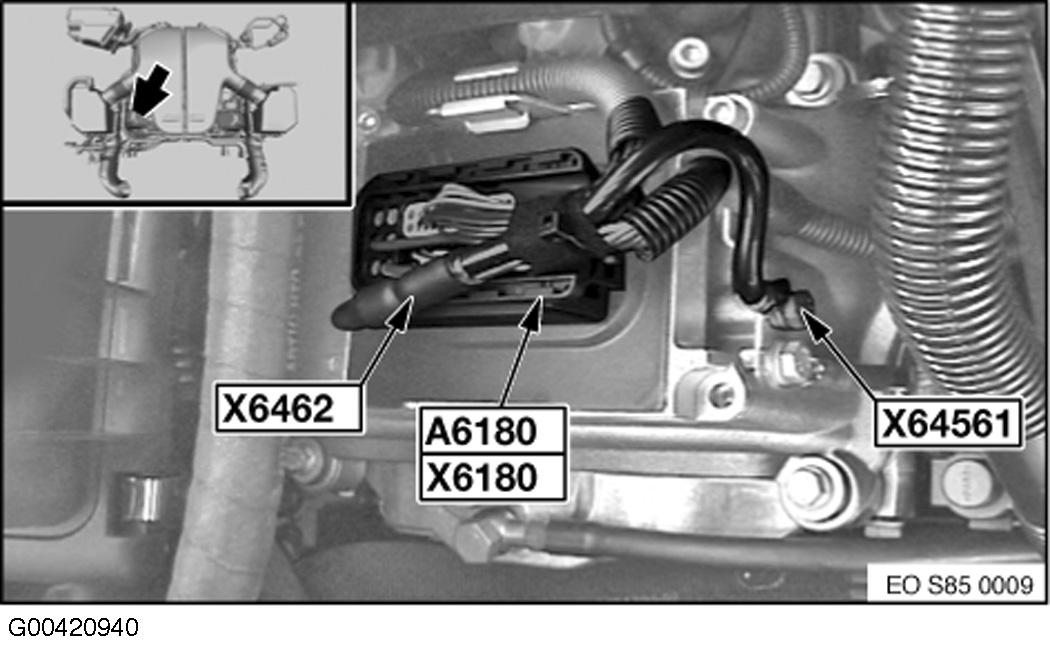

| Ionic Current Control Module 1 (A6180) | Right front of engine. See Figure. |

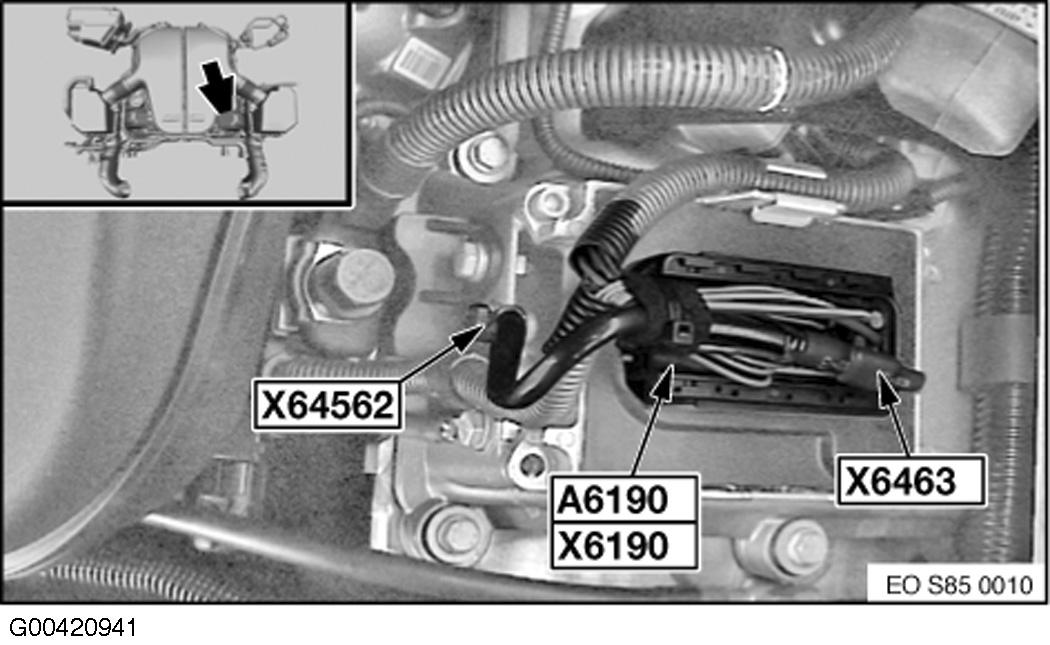

| Ionic Current Control Module 2 (A6190) | Left front of engine. See Figure. |

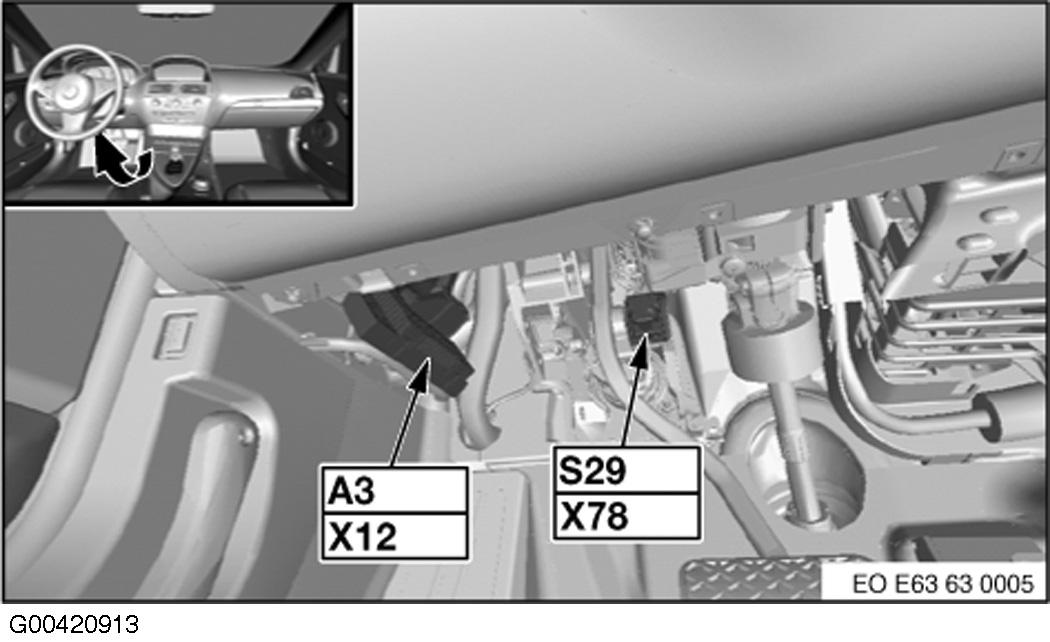

| Light Module (A3) | Near left kick panel. See Figure. |

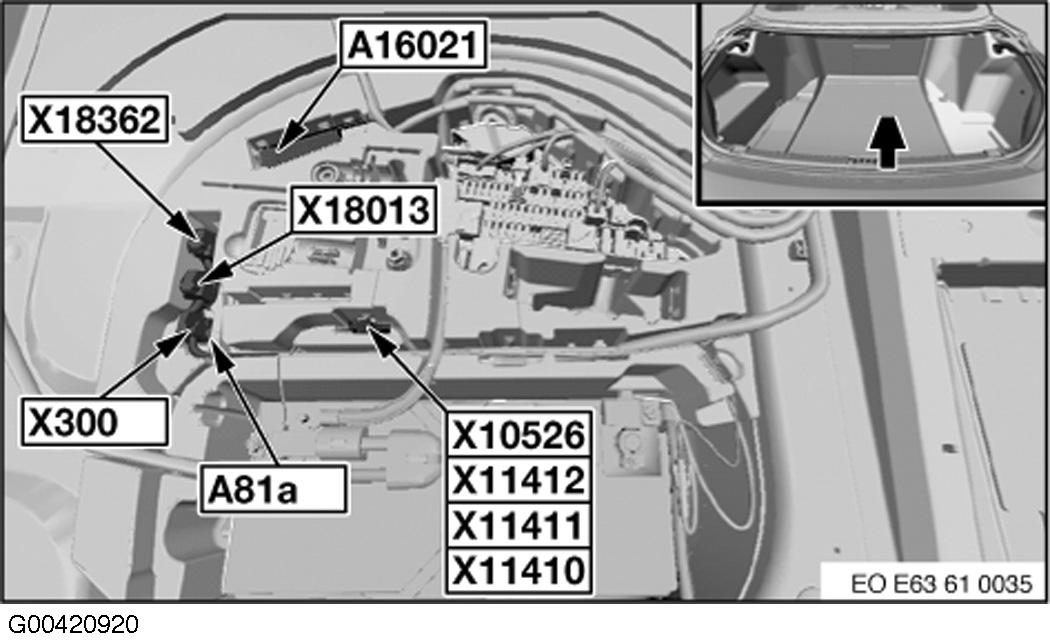

| Micro-Power Module (A16021) | In luggage compartment. See Figure. |

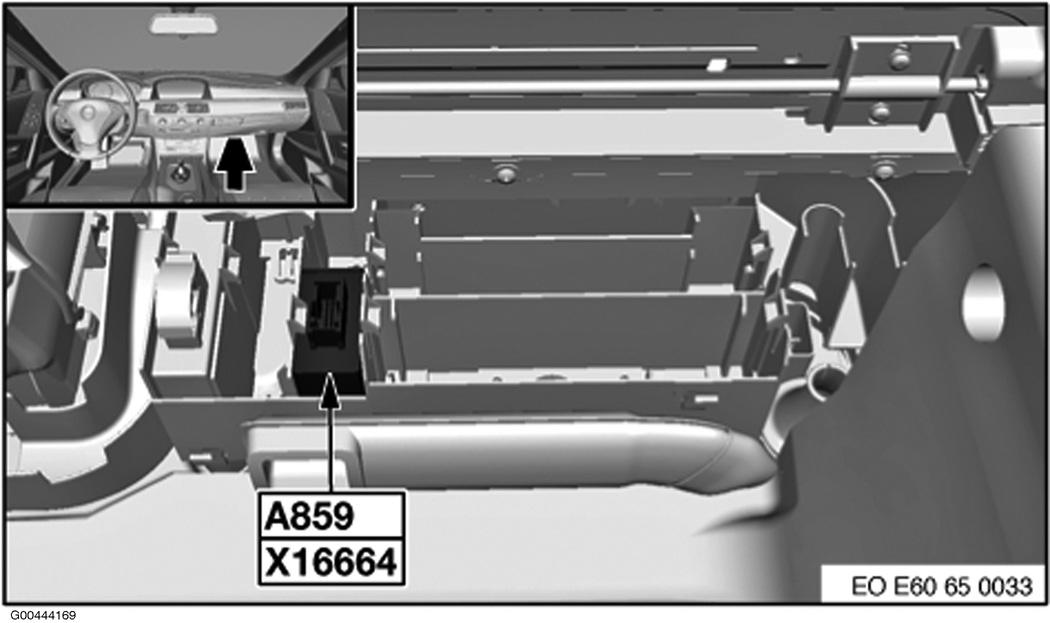

| Night Vision Control (A859) | Under right side of dash. See Figure. |
| Park Distance Control (PDC) (A81a) | In luggage compartment. See Figure. |

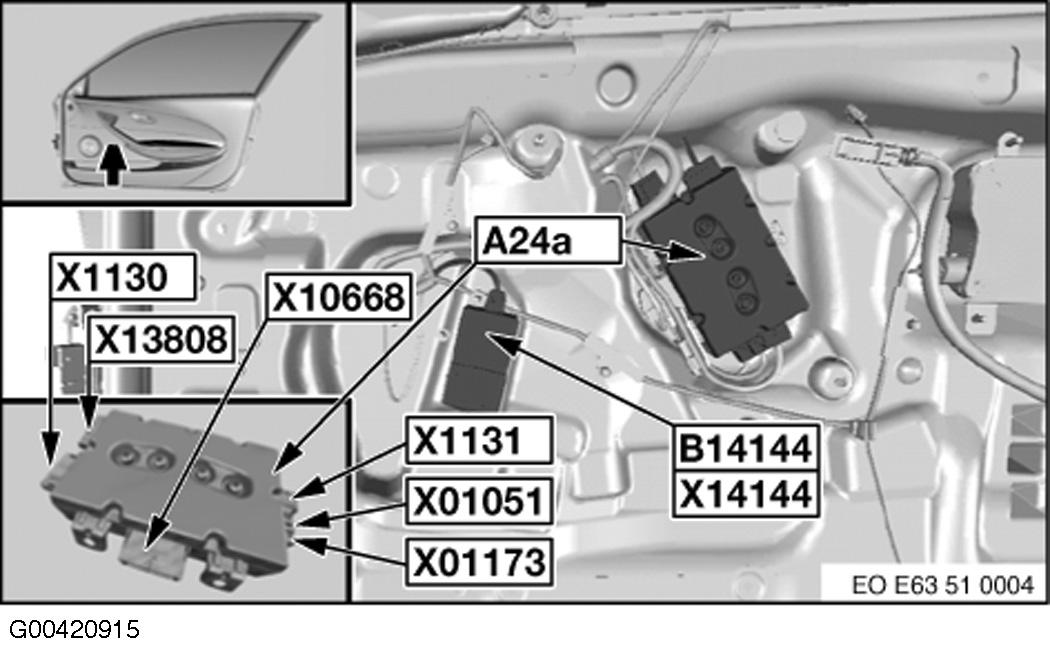

| Passenger's Door Module (A24a) | In passenger's door. See Figure. |

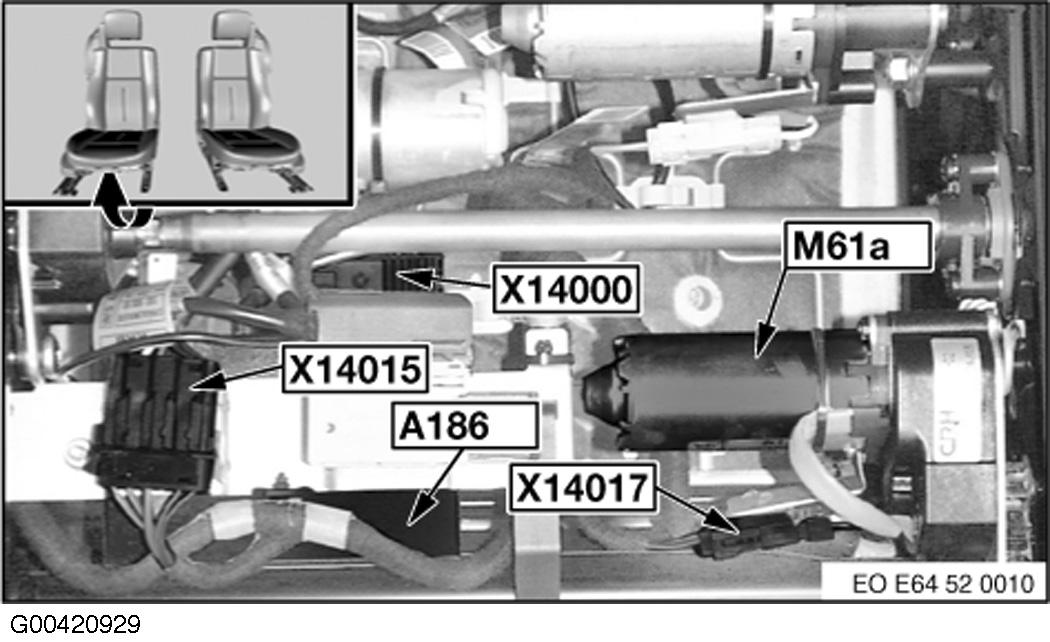

| Passenger's Seat Module (Convertible) (A186) | Under passenger's seat. See Figure. |

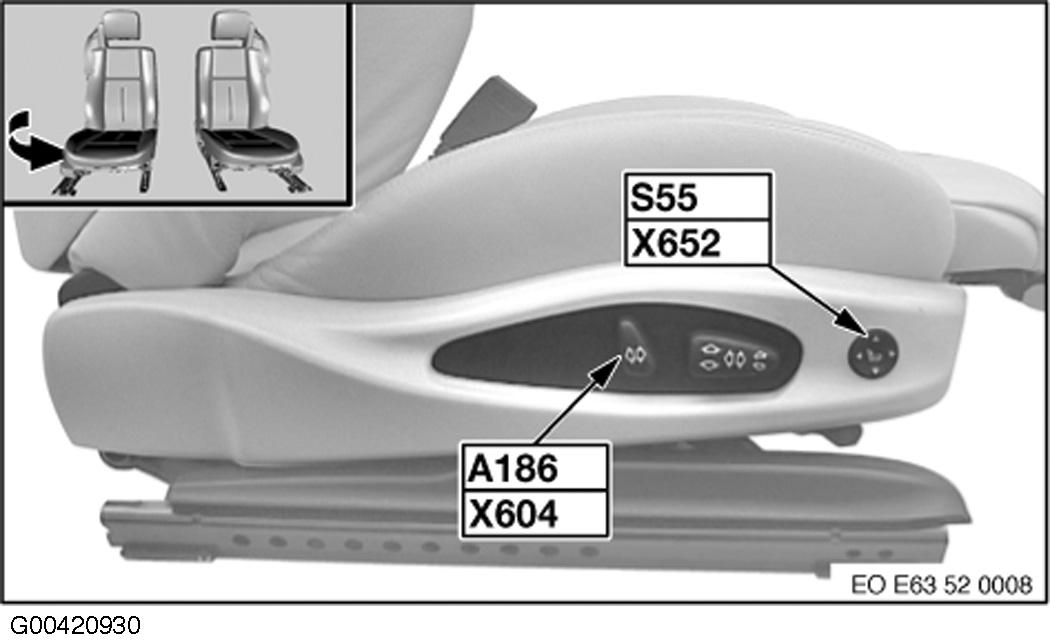

| Passenger's Seat Module (Coupe) (A186) | Side of passenger's seat. See Figure. |
| Safety & Gateway Module (A220) | Behind glove box. See Figure. |

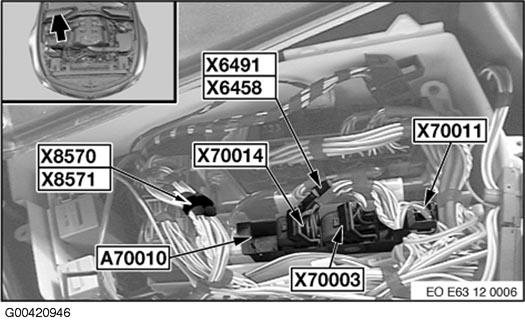

| Sequential Manual Transmission (SMG) (A70010) | Right rear of engine compartment. See Figure. |
| Sunroof Module (A33b) | Front of roof. See Figure. |
| Tire Pressure Control (RDC) (A85a) | Under right side of dash. See Figure. |

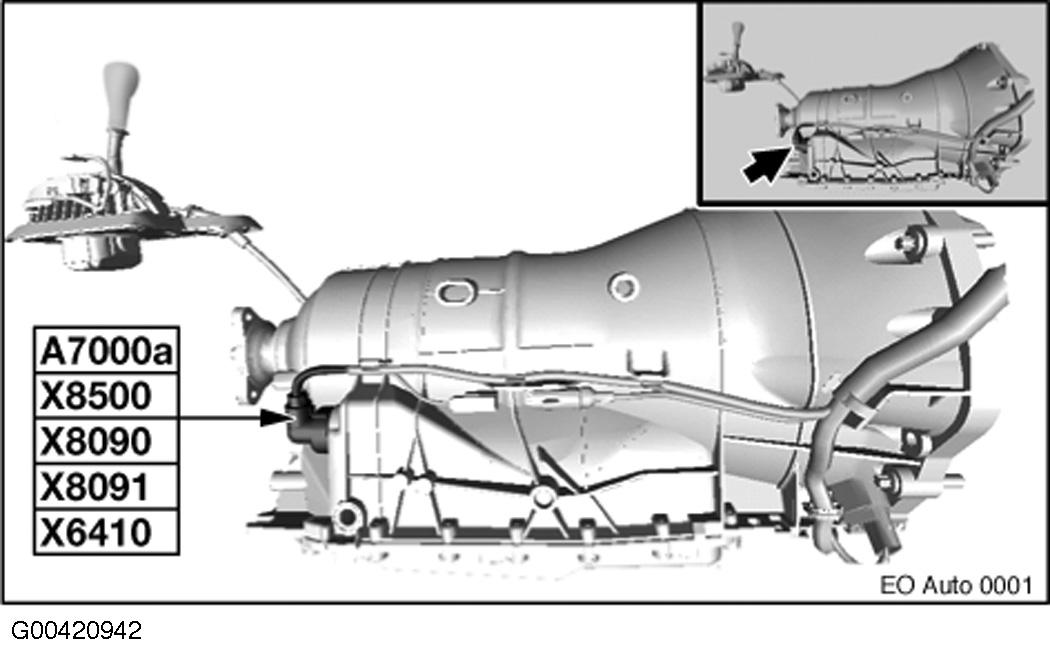

| Transmission Control Module (A/T) | Rear of transmission. See Figure. |
| Variable Valve Timing Gear Control Module (A60210) | Right rear of engine compartment. See Figure. |

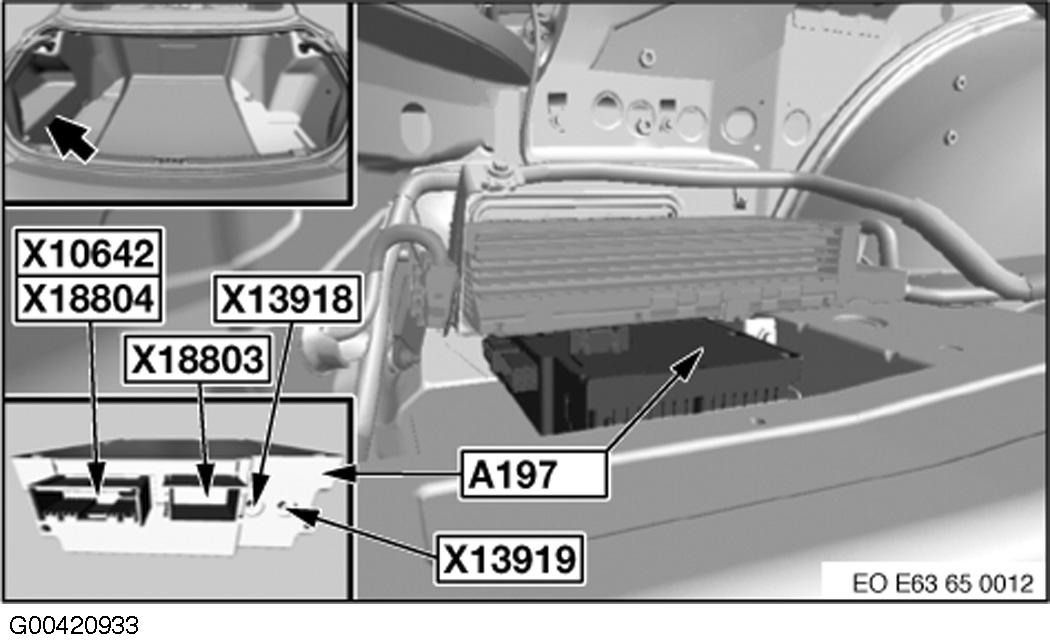

| Video Module (A197) | Left side of luggage compartment. See Figure. |
