Wheel Alignment Specifications

Car loaded down to normal position. Vehicle with complete equipment for normal operation with: 2 x 68 kg on front seats (seats in central position); 1 x 14 kg in luggage compartment (centre) and full fuel tank. For wheel alignment specifications, see Fig 1 and Fig 2 .

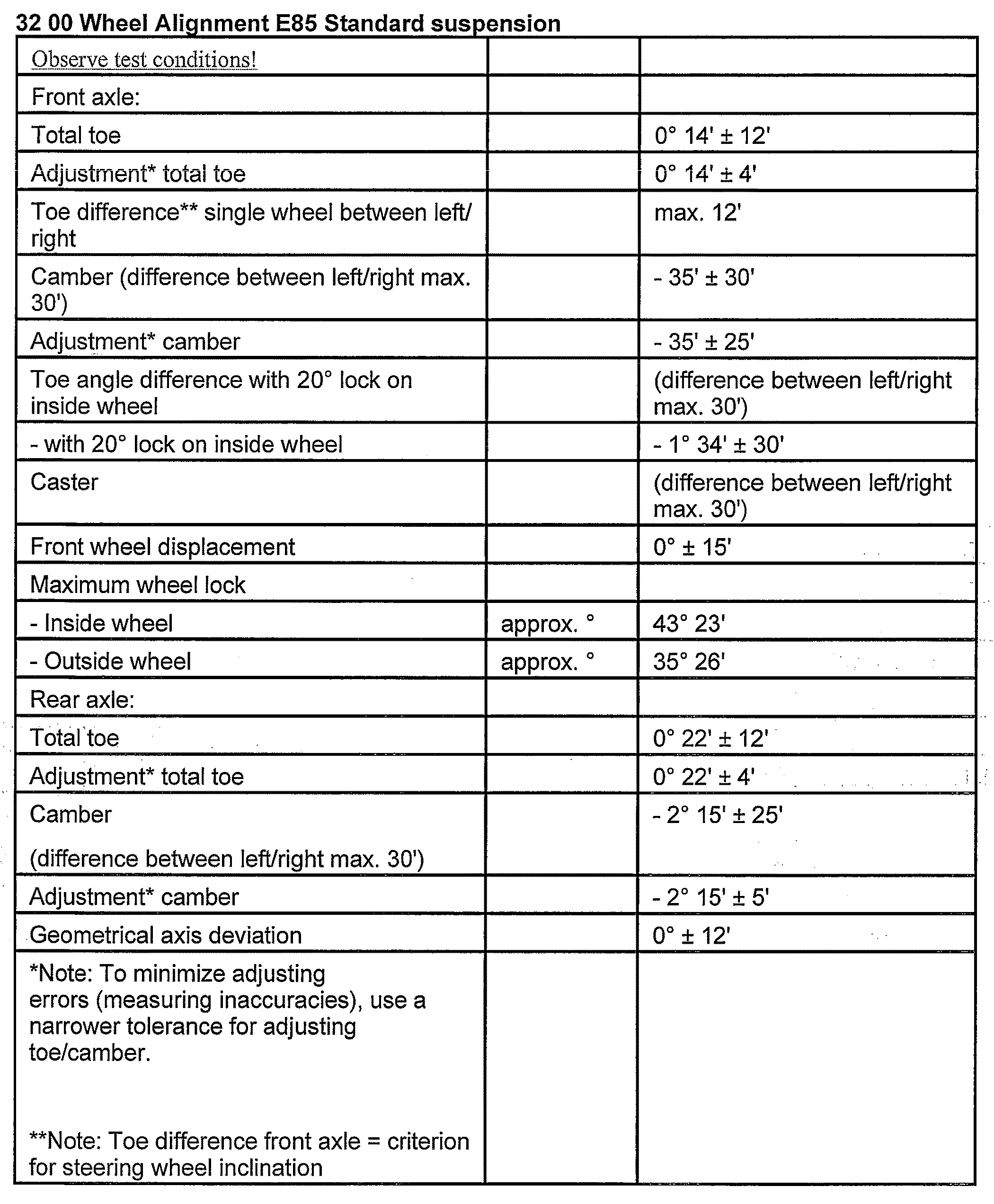

Fig 1: Z4 Alignment Specifications (Normal Suspension)

Courtesy of BMW OF NORTH AMERICA, INC.

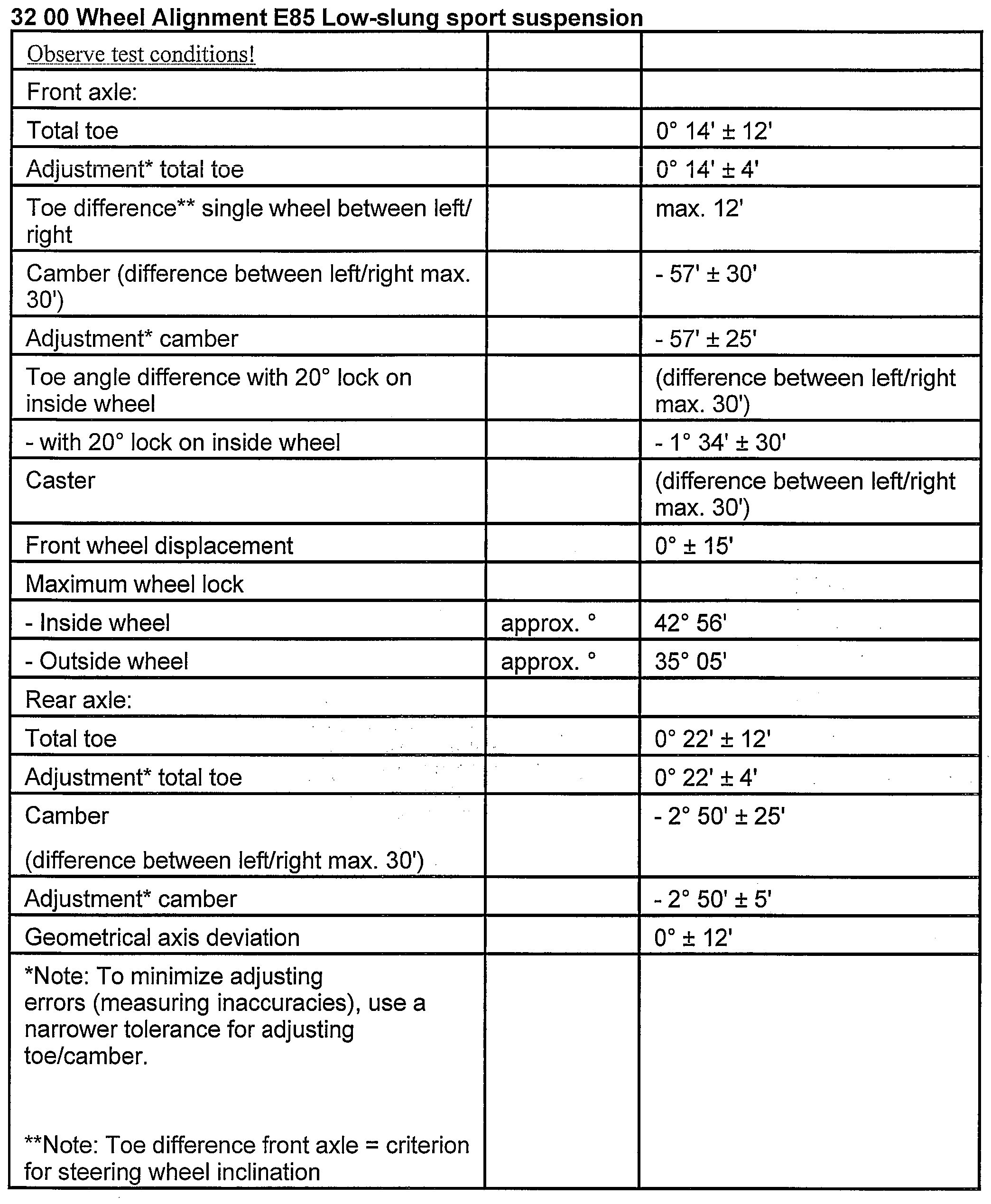

Fig 2: Z4 Alignment Specifications (Sports Suspension)

Courtesy of BMW OF NORTH AMERICA, INC.
