Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

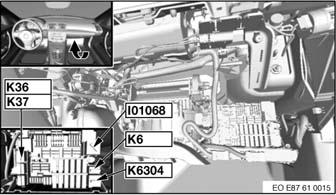

Fig 1: Junction Box (A4010)

G00459891

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Right Rear Of Engine Compartment

G00459933

Courtesy of BMW OF NORTH AMERICA, INC.

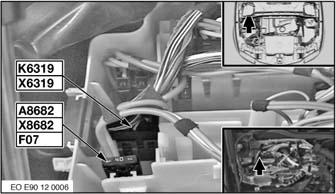

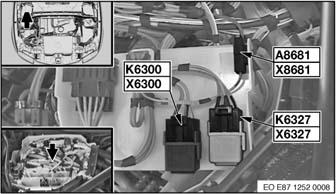

Fig 3: Right Rear Of Engine Compartment

G00459935

Courtesy of BMW OF NORTH AMERICA, INC.

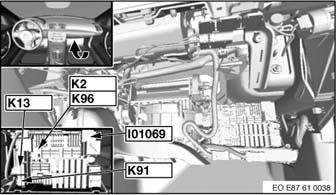

Fig 4: Junction Box (A4010)

G00460019

Courtesy of BMW OF NORTH AMERICA, INC.

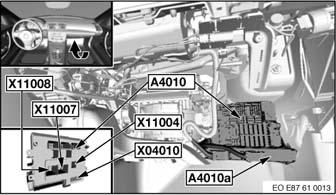

Fig 5: Under Right Side Of Dash

G00459890

Courtesy of BMW OF NORTH AMERICA, INC.

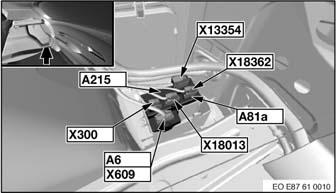

Fig 6: Right Side Of Rear Compartment

G00459889

Courtesy of BMW OF NORTH AMERICA, INC.

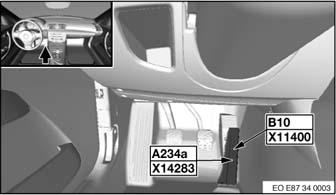

Fig 7: Part Of Accelerator Pedal

G00459862

Courtesy of BMW OF NORTH AMERICA, INC.

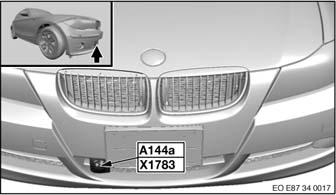

Fig 8: Center Of Front Bumper

G00459873

Courtesy of BMW OF NORTH AMERICA, INC.

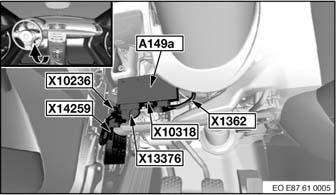

Fig 9: Under Left Side Of Dash

G00459886

Courtesy of BMW OF NORTH AMERICA, INC.

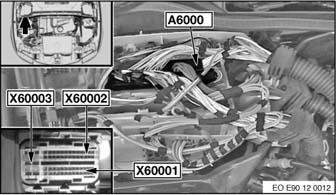

Fig 10: Right Rear Of Engine Compartment

G00459936

Courtesy of BMW OF NORTH AMERICA, INC.

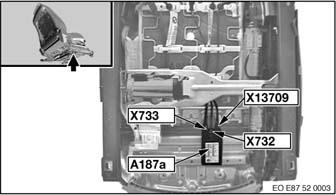

Fig 11: Under Driver Seat

G00459878

Courtesy of BMW OF NORTH AMERICA, INC.

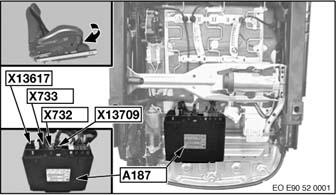

Fig 12: Under Driver Seat

G00459950

Courtesy of BMW OF NORTH AMERICA, INC.

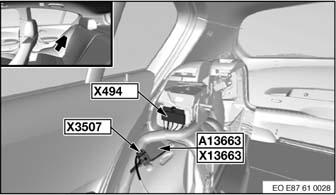

Fig 13: Right Rear Side Interior Panel

G00459894

Courtesy of BMW OF NORTH AMERICA, INC.

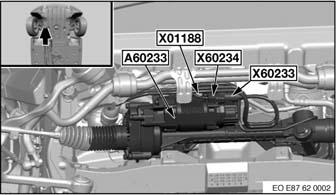

Fig 14: Under Vehicle, Near Right Front Wheel

G00459915

Courtesy of BMW OF NORTH AMERICA, INC.

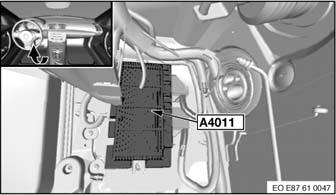

Fig 15: Under Left Side Of Dash

G00459907

Courtesy of BMW OF NORTH AMERICA, INC.

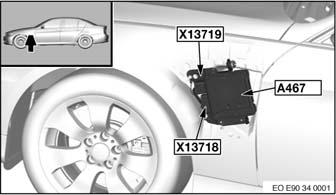

Fig 16: Behind Left Front Wheel

G00459944

Courtesy of BMW OF NORTH AMERICA, INC.

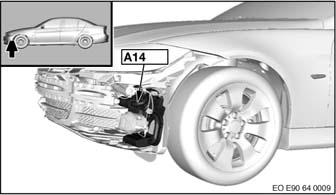

Fig 17: Left Side Of Front Bumper

G00459970

Courtesy of BMW OF NORTH AMERICA, INC.

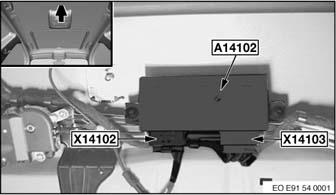

Fig 18: Front Of Sunroof

G00460018

Courtesy of BMW OF NORTH AMERICA, INC.

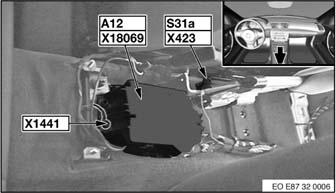

Fig 19: Rear Of Center Console

G00459856

Courtesy of BMW OF NORTH AMERICA, INC.

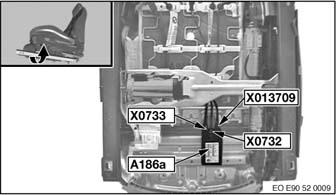

Fig 20: Under Front Passenger Seat

G00459955

Courtesy of BMW OF NORTH AMERICA, INC.

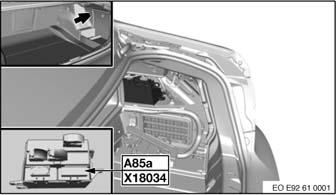

Fig 21: Right Side Of Rear Compartment

G00459984

Courtesy of BMW OF NORTH AMERICA, INC.

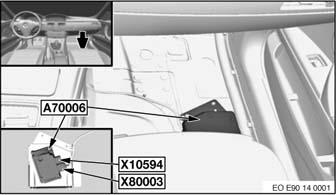

Fig 22: Under Carpet, On Right Side Footwell

G00459938

Courtesy of BMW OF NORTH AMERICA, INC.

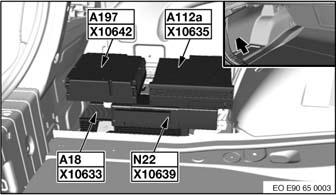

Fig 23: Left Side Of Rear Compartment

G00459971

Courtesy of BMW OF NORTH AMERICA, INC.

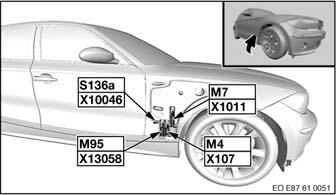

Fig 24: Behind Right Front Wheel

G00459909

Courtesy of BMW OF NORTH AMERICA, INC.

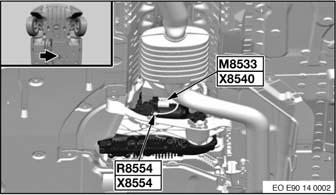

Fig 25: Under Vehicle

G00459939

Courtesy of BMW OF NORTH AMERICA, INC.

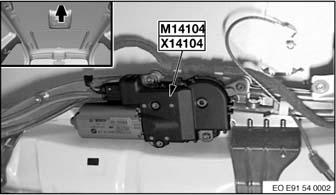

Fig 26: Front Of Roof

G00459973

Courtesy of BMW OF NORTH AMERICA, INC.

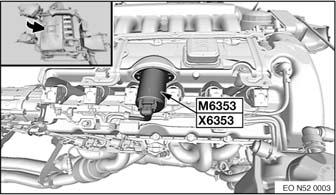

Fig 27: Right Side Of Engine

G00459991

Courtesy of BMW OF NORTH AMERICA, INC.

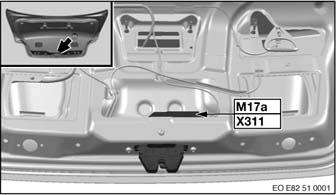

Fig 28: Rear Compartment Door

G00459847

Courtesy of BMW OF NORTH AMERICA, INC.

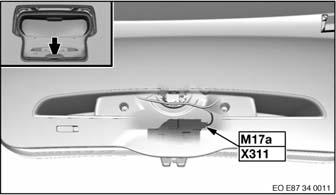

Fig 29: Rear Compartment Door

G00459869

Courtesy of BMW OF NORTH AMERICA, INC.

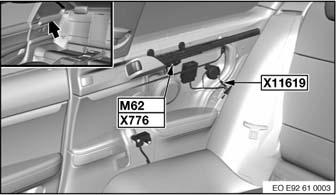

Fig 30: Right Rear Side Interior Panel

G00459986

Courtesy of BMW OF NORTH AMERICA, INC.

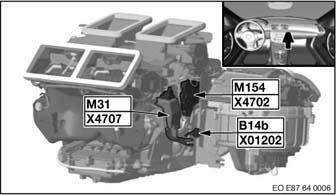

Fig 31: Center Of Dash, Above Radio

G00459920

Courtesy of BMW OF NORTH AMERICA, INC.

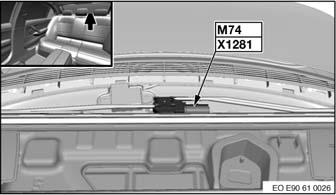

Fig 32: Behind Rear Seats, Center Of Rear Window

G00459965

Courtesy of BMW OF NORTH AMERICA, INC.

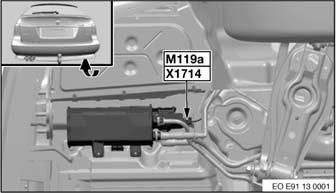

Fig 33: Rear Compartment Door

G00459972

Courtesy of BMW OF NORTH AMERICA, INC.

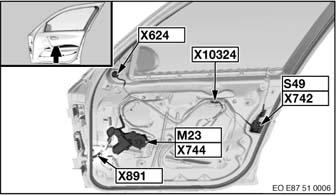

Fig 34: Right Front Door

G00459876

Courtesy of BMW OF NORTH AMERICA, INC.

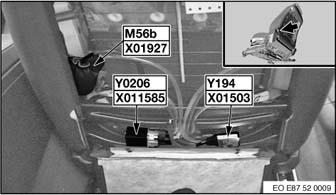

Fig 35: Left Side Of Passenger Seat Back

G00459883

Courtesy of BMW OF NORTH AMERICA, INC.

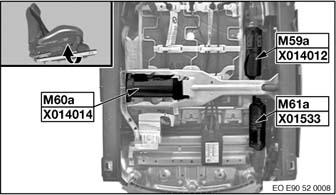

Fig 36: Under Passenger Seat, On Track

G00459954

Courtesy of BMW OF NORTH AMERICA, INC.

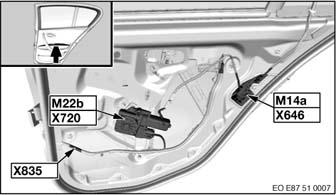

Fig 37: Right Rear Door

G00459877

Courtesy of BMW OF NORTH AMERICA, INC.

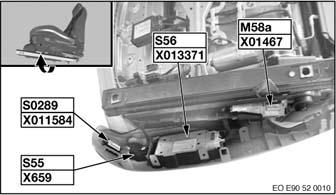

Fig 38: Under Passenger Seat, On Track

G00459956

Courtesy of BMW OF NORTH AMERICA, INC.

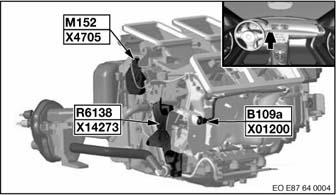

Fig 39: Center Of Dash, Above Radio

G00459919

Courtesy of BMW OF NORTH AMERICA, INC.

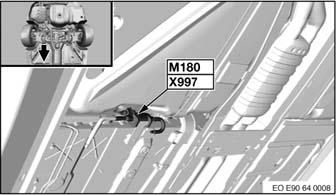

Fig 40: Under Vehicle

G00459969

Courtesy of BMW OF NORTH AMERICA, INC.

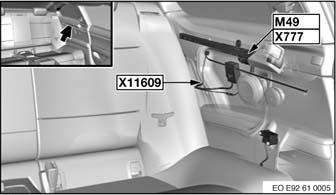

Fig 41: Left Rear Side Interior Panel

G00459988

Courtesy of BMW OF NORTH AMERICA, INC.

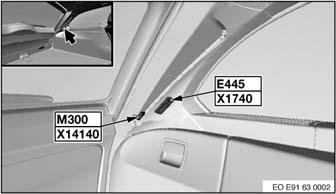

Fig 42: Left Side Of Rear Compartment

G00459975

Courtesy of BMW OF NORTH AMERICA, INC.

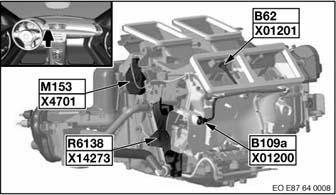

Fig 43: Center Of Dash, Above Radio

G00459921

Courtesy of BMW OF NORTH AMERICA, INC.

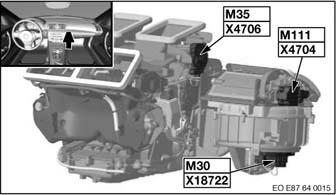

Fig 44: Behind Right Side Of Dash

G00459922

Courtesy of BMW OF NORTH AMERICA, INC.

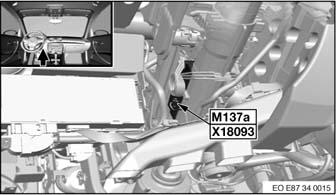

Fig 45: Behind Steering Wheel

G00459872

Courtesy of BMW OF NORTH AMERICA, INC.

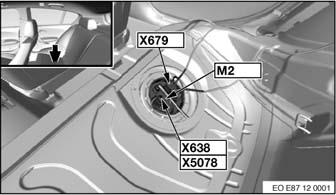

Fig 46: Under Right Rear Seat

G00459850

Courtesy of BMW OF NORTH AMERICA, INC.

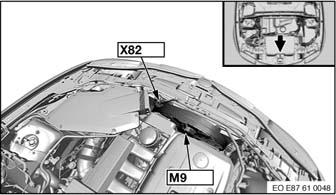

Fig 47: Behind Right Front Wheel

G00459908

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 48: Rear Of Engine

G00459995

Courtesy of BMW OF NORTH AMERICA, INC.

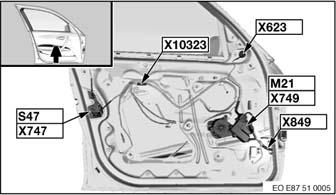

Fig 49: Left Front Door

G00459875

Courtesy of BMW OF NORTH AMERICA, INC.

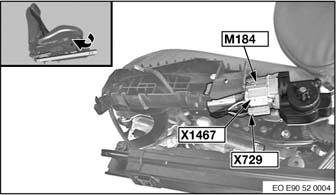

Fig 50: Under Driver Seat

G00459952

Courtesy of BMW OF NORTH AMERICA, INC.

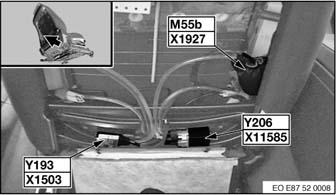

Fig 51: Right Side Of Driver Seat Back

G00459882

Courtesy of BMW OF NORTH AMERICA, INC.

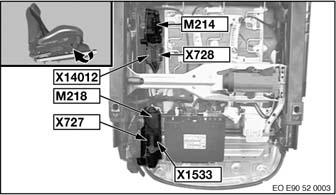

Fig 52: Under Driver Seat

G00459951

Courtesy of BMW OF NORTH AMERICA, INC.

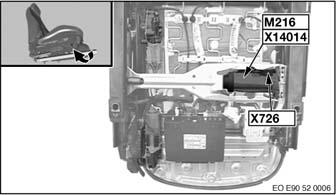

Fig 53: Under Driver Seat

G00459953

Courtesy of BMW OF NORTH AMERICA, INC.

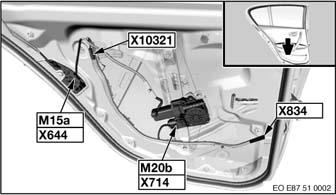

Fig 54: Left Rear Door

G00459874

Courtesy of BMW OF NORTH AMERICA, INC.

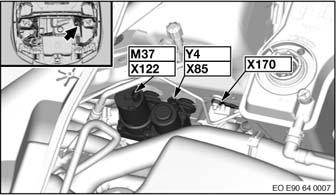

Fig 55: Left Rear Of Engine Compartment

G00459968

Courtesy of BMW OF NORTH AMERICA, INC.

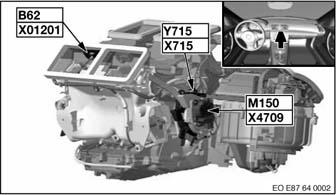

Fig 56: Center Of Dash, Above Radio

G00459917

Courtesy of BMW OF NORTH AMERICA, INC.

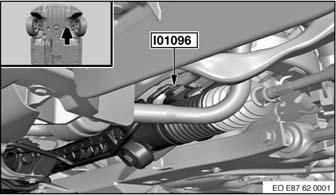

Fig 57: Under Vehicle

G00459914

Courtesy of BMW OF NORTH AMERICA, INC.

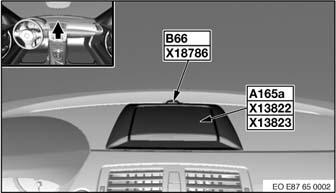

Fig 58: Top Center Of Dash

G00459924

Courtesy of BMW OF NORTH AMERICA, INC.

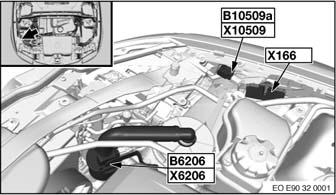

Fig 59: Right Side Of Engine Compartment

G00459940

Courtesy of BMW OF NORTH AMERICA, INC.

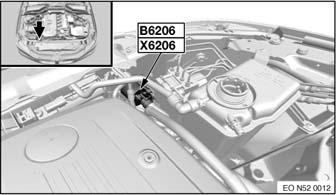

Fig 60: Right Side Of Engine Compartment

G00459999

Courtesy of BMW OF NORTH AMERICA, INC.

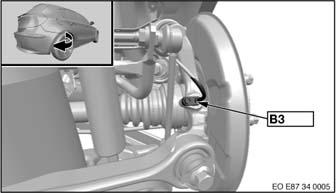

Fig 61: Behind Right Rear Wheel

G00459864

Courtesy of BMW OF NORTH AMERICA, INC.

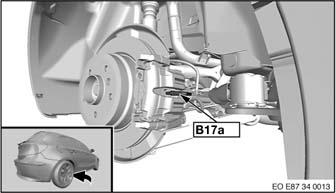

Fig 62: Front Of Right Rear Wheel

G00459870

Courtesy of BMW OF NORTH AMERICA, INC.

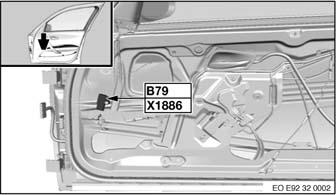

Fig 63: Rear Of Right Front Door

G00459978

Courtesy of BMW OF NORTH AMERICA, INC.

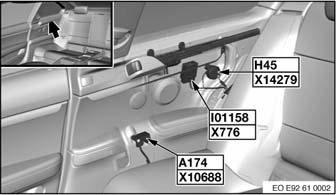

Fig 64: Right Rear Side Of Interior Panel

G00459985

Courtesy of BMW OF NORTH AMERICA, INC.

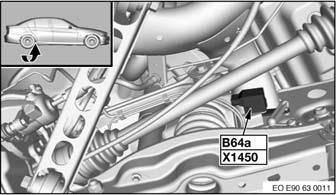

Fig 65: Front Of Right Rear Wheel

G00459966

Courtesy of BMW OF NORTH AMERICA, INC.

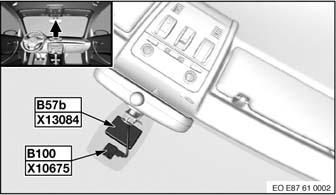

Fig 66: Center Of Windshield

G00459884

Courtesy of BMW OF NORTH AMERICA, INC.

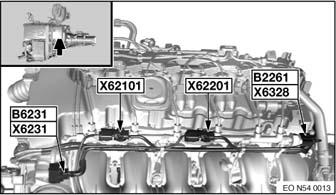

Fig 67: Left Side Of Engine

G00460014

Courtesy of BMW OF NORTH AMERICA, INC.

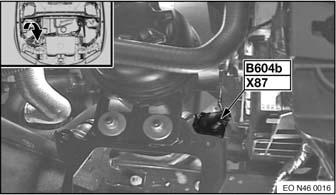

Fig 68: Right Side Of Engine

G00459990

Courtesy of BMW OF NORTH AMERICA, INC.

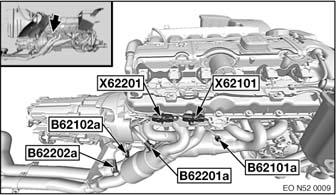

Fig 69: Right Rear Of Engine

G00459996

Courtesy of BMW OF NORTH AMERICA, INC.

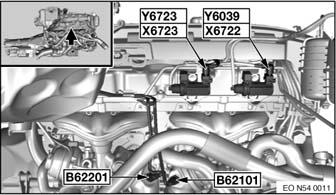

Fig 70: Right Side Of Engine

G00460013

Courtesy of BMW OF NORTH AMERICA, INC.

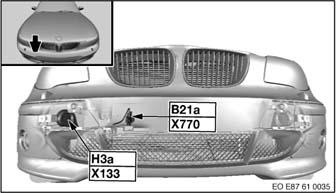

Fig 71: Front Center Of Bumper

G00459899

Courtesy of BMW OF NORTH AMERICA, INC.

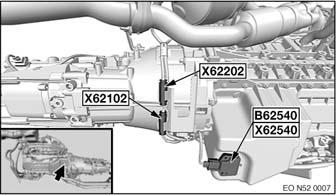

Fig 72: Rear Of Engine, Near Transmission

G00459994

Courtesy of BMW OF NORTH AMERICA, INC.

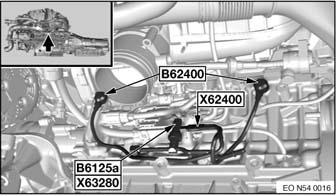

Fig 73: Left Side Of Engine

G00460016

Courtesy of BMW OF NORTH AMERICA, INC.

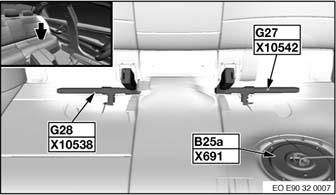

Fig 74: Under Left Rear Seat

G00459942

Courtesy of BMW OF NORTH AMERICA, INC.

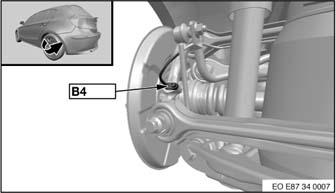

Fig 75: Behind Left Rear Wheel

G00459865

Courtesy of BMW OF NORTH AMERICA, INC.

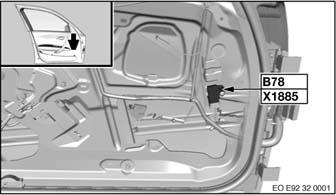

Fig 76: Front Of Left Front Door

G00459977

Courtesy of BMW OF NORTH AMERICA, INC.

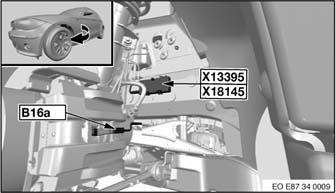

Fig 77: Behind Left Front Wheel

G00459867

Courtesy of BMW OF NORTH AMERICA, INC.

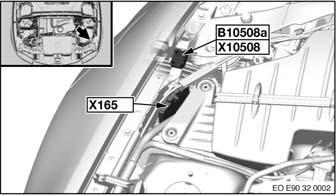

Fig 78: Left Side Of Engine Compartment

G00459941

Courtesy of BMW OF NORTH AMERICA, INC.

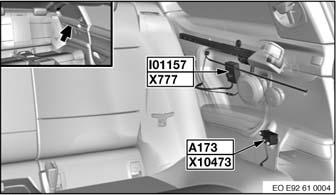

Fig 79: Left Rear Side Of Interior Panel

G00459987

Courtesy of BMW OF NORTH AMERICA, INC.

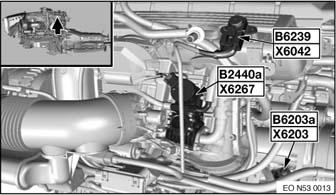

Fig 80: Top Left Side Of Engine

G00460005

Courtesy of BMW OF NORTH AMERICA, INC.

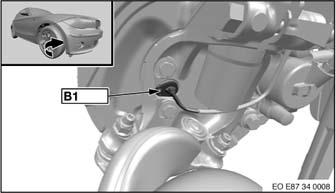

Fig 81: Front Of Right Front Wheel

G00459866

Courtesy of BMW OF NORTH AMERICA, INC.

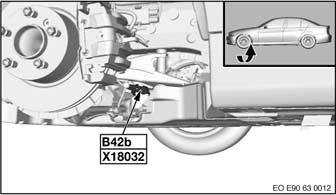

Fig 82: Behind Left Front Wheel

G00459967

Courtesy of BMW OF NORTH AMERICA, INC.

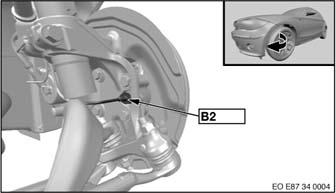

Fig 83: Front Of Left Front Wheel

G00459863

Courtesy of BMW OF NORTH AMERICA, INC.

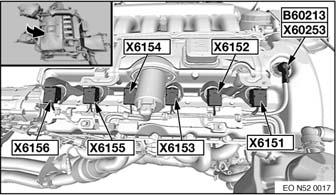

Fig 84: Top Of Engine

G00460004

Courtesy of BMW OF NORTH AMERICA, INC.

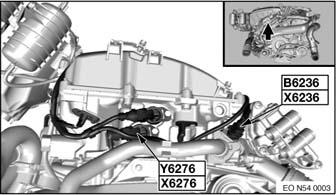

Fig 85: Rear Of Engine

G00460008

Courtesy of BMW OF NORTH AMERICA, INC.

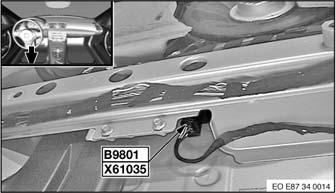

Fig 86: Left Front Footwell

G00459871

Courtesy of BMW OF NORTH AMERICA, INC.

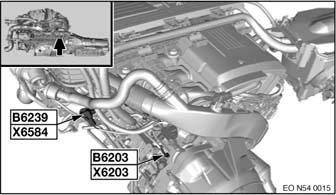

Fig 87: Top Of Engine

G00460015

Courtesy of BMW OF NORTH AMERICA, INC.

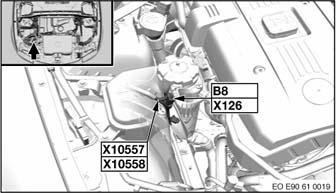

Fig 88: Right Front Of Engine Compartment

G00459961

Courtesy of BMW OF NORTH AMERICA, INC.

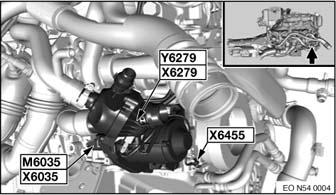

Fig 89: Rear Of Engine

G00460009

Courtesy of BMW OF NORTH AMERICA, INC.

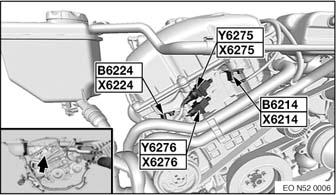

Fig 90: Front Of Engine

G00459992

Courtesy of BMW OF NORTH AMERICA, INC.

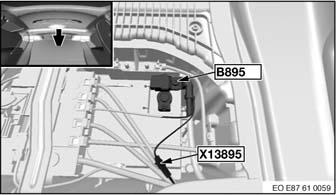

Fig 91: Right Side Of Rear Compartment

G00459910

Courtesy of BMW OF NORTH AMERICA, INC.

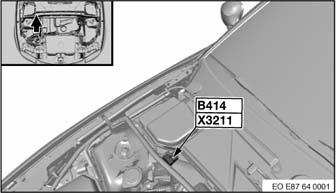

Fig 92: Right Rear Of Engine Compartment

G00459916

Courtesy of BMW OF NORTH AMERICA, INC.

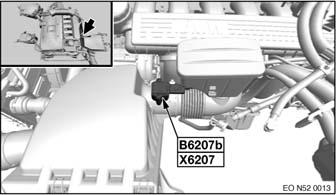

Fig 93: Left Side Of Engine

G00460001

Courtesy of BMW OF NORTH AMERICA, INC.

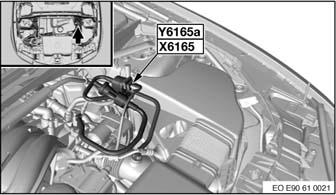

Fig 94: Left Side Of Engine Compartment

G00459962

Courtesy of BMW OF NORTH AMERICA, INC.

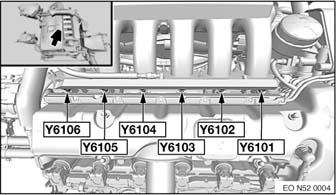

Fig 95: Top Of Engine

G00459993

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 96: Top Of Engine

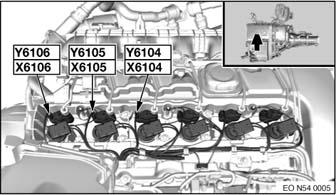

G00460010

Courtesy of BMW OF NORTH AMERICA, INC.

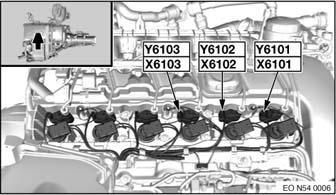

Fig 97: Top Of Engine

G00460011

Courtesy of BMW OF NORTH AMERICA, INC.

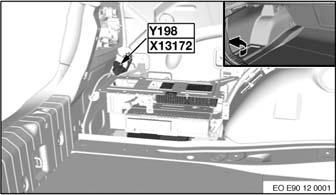

Fig 98: Left Side Of Rear Compartment

G00459934

Courtesy of BMW OF NORTH AMERICA, INC.

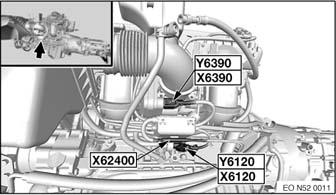

Fig 99: Left Side Of Engine

G00459998

Courtesy of BMW OF NORTH AMERICA, INC.

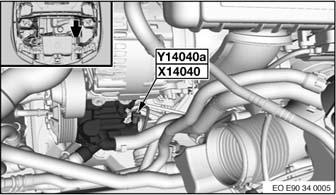

Fig 100: Under Starter

G00459945

Courtesy of BMW OF NORTH AMERICA, INC.

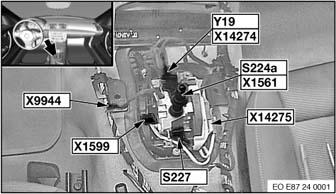

Fig 101: Under Shifter, In Center Console

G00459853

Courtesy of BMW OF NORTH AMERICA, INC.

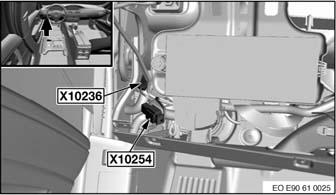

Fig 102: Right End Of Dash, Near Right Front Door

G00459943

Courtesy of BMW OF NORTH AMERICA, INC.

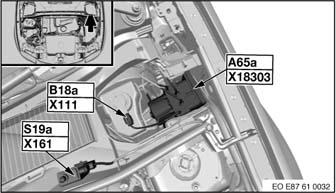

Fig 103: Left Rear Of Engine Compartment

G00459897

Courtesy of BMW OF NORTH AMERICA, INC.

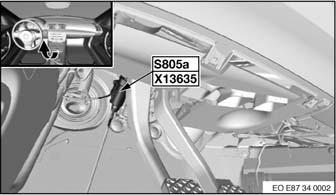

Fig 104: Under Left Side Of Dash

G00459861

Courtesy of BMW OF NORTH AMERICA, INC.

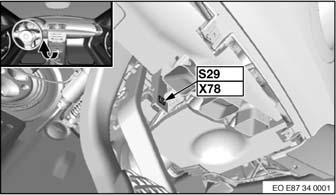

Fig 105: Under Left Side Of Dash

G00459860

Courtesy of BMW OF NORTH AMERICA, INC.

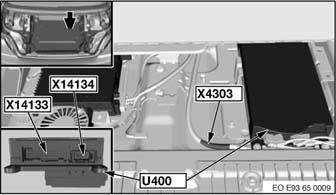

Fig 106: Center Of Rear Compartment

G00459989

Courtesy of BMW OF NORTH AMERICA, INC.

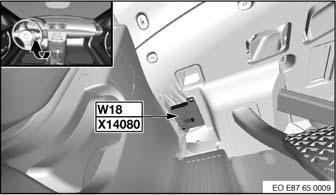

Fig 107: Under Left Side Of Dash

G00459926

Courtesy of BMW OF NORTH AMERICA, INC.

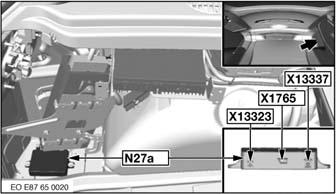

Fig 108: Left Side Of Rear Compartment

G00459931

Courtesy of BMW OF NORTH AMERICA, INC.

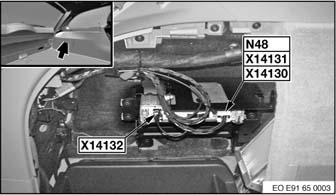

Fig 109: Left Side Of Rear Compartment

G00459976

Courtesy of BMW OF NORTH AMERICA, INC.

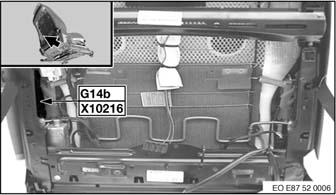

Fig 110: Left Side Of Driver Seat Back

G00459880

Courtesy of BMW OF NORTH AMERICA, INC.

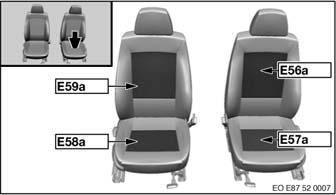

Fig 111: Driver Seat Back

G00459881

Courtesy of BMW OF NORTH AMERICA, INC.

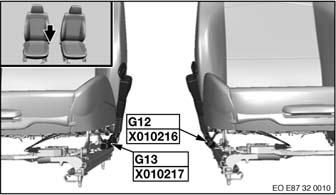

Fig 112: Part Of Seat Belt Buckle Assembly

G00459859

Courtesy of BMW OF NORTH AMERICA, INC.

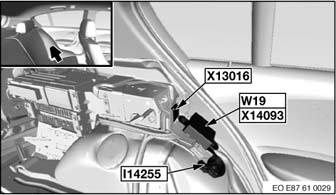

Fig 113: Left Rear Side Of Interior Panel

G00459895

Courtesy of BMW OF NORTH AMERICA, INC.

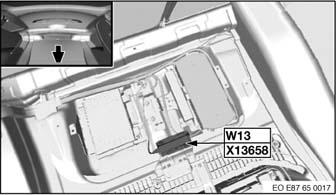

Fig 114: Center Of Rear Compartment

G00459928

Courtesy of BMW OF NORTH AMERICA, INC.

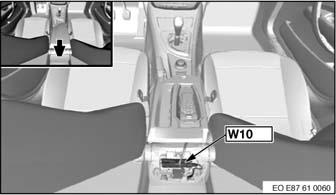

Fig 115: Rear Of Center Console

G00459911

Courtesy of BMW OF NORTH AMERICA, INC.

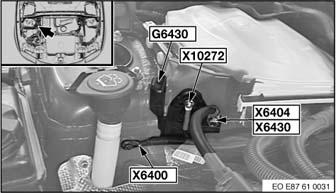

Fig 116: Right Side Of Engine Compartment

G00459896

Courtesy of BMW OF NORTH AMERICA, INC.

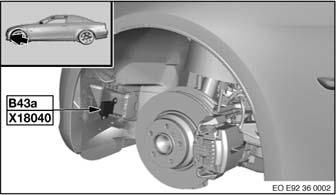

Fig 117: Front Of Left Front Wheel

G00459980

Courtesy of BMW OF NORTH AMERICA, INC.

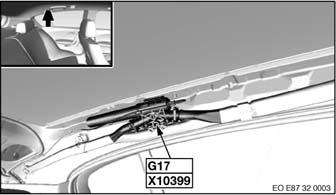

Fig 118: Left Headliner

G00459855

Courtesy of BMW OF NORTH AMERICA, INC.

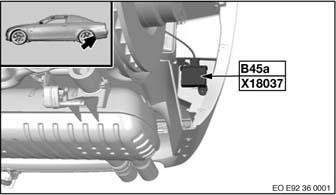

Fig 119: Behind Left Rear Wheel

G00459979

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 120: Top Right Side Of Dash

G00459858

Courtesy of BMW OF NORTH AMERICA, INC.

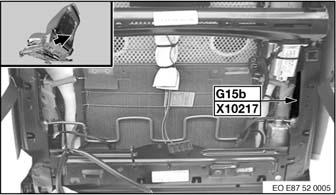

Fig 121: Right Side Of Passenger Seat Back

G00459879

Courtesy of BMW OF NORTH AMERICA, INC.

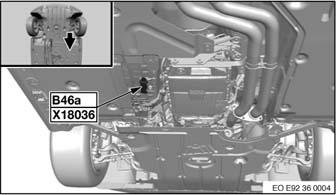

Fig 122: Under Vehicle

G00459982

Courtesy of BMW OF NORTH AMERICA, INC.

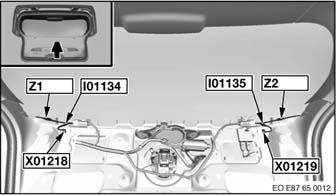

Fig 123: Left Side Of Rear Window Panel

G00459927

Courtesy of BMW OF NORTH AMERICA, INC.

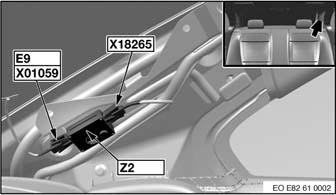

Fig 124: Left Side Of Rear Window Panel

G00459849

Courtesy of BMW OF NORTH AMERICA, INC.

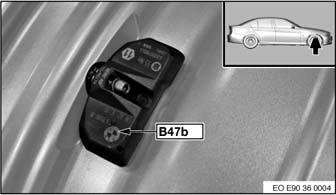

Fig 125: Front Of Right Front Wheel

G00459949

Courtesy of BMW OF NORTH AMERICA, INC.

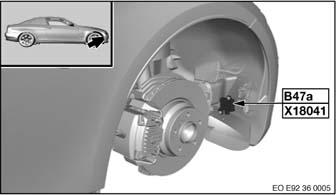

Fig 126: Front Of Right Front Wheel

G00459983

Courtesy of BMW OF NORTH AMERICA, INC.

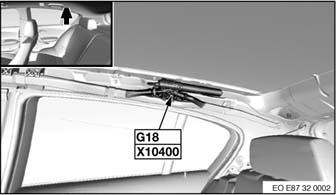

Fig 127: Right Headliner

G00459854

Courtesy of BMW OF NORTH AMERICA, INC.

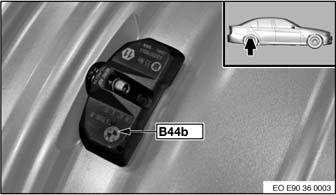

Fig 128: Behind Right Rear Wheel

G00459948

Courtesy of BMW OF NORTH AMERICA, INC.

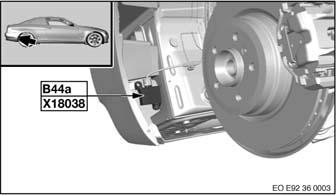

Fig 129: Behind Right Rear Wheel

G00459981

Courtesy of BMW OF NORTH AMERICA, INC.

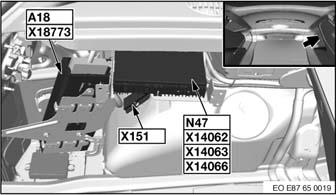

Fig 130: Left Side Of Rear Compartment

G00459930

Courtesy of BMW OF NORTH AMERICA, INC.

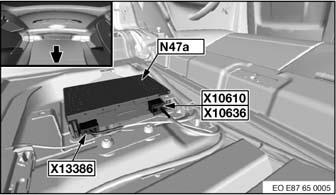

Fig 131: Left Side Of Rear Compartment

G00459925

Courtesy of BMW OF NORTH AMERICA, INC.

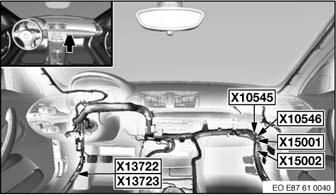

Fig 132: Under Left Of Dash

G00459901

Courtesy of BMW OF NORTH AMERICA, INC.

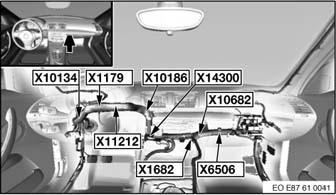

Fig 133: Right Side Of Dash

G00459902

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 134: Right Side Of Dash

G00459903

Courtesy of BMW OF NORTH AMERICA, INC.

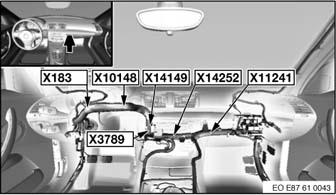

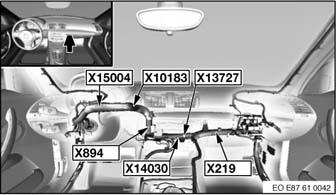

Fig 135: Right Side Of Dash

G00459904

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Right Side Of Dash

G00459905

Courtesy of BMW OF NORTH AMERICA, INC.

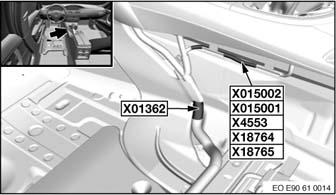

Fig 137: Left Side Of Center Console

G00459958

Courtesy of BMW OF NORTH AMERICA, INC.

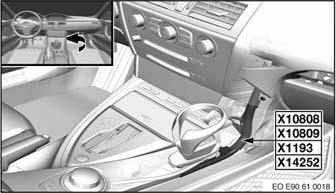

Fig 138: Right Side Of Center Dash

G00459960

Courtesy of BMW OF NORTH AMERICA, INC.

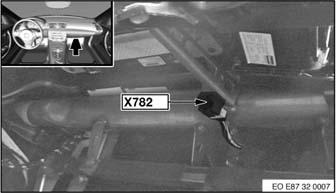

Fig 139: Top Right Side Of Dash

G00459857

Courtesy of BMW OF NORTH AMERICA, INC.

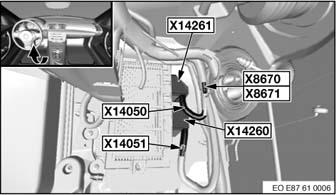

Fig 140: Under Left Side Of Dash

G00459887

Courtesy of BMW OF NORTH AMERICA, INC.

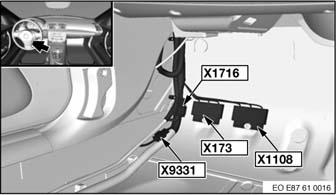

Fig 141: Under Left Side Of Dash

G00459893

Courtesy of BMW OF NORTH AMERICA, INC.

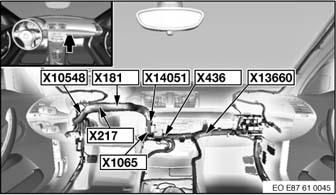

Fig 142: Under Right Side Of Dash

G00459906

Courtesy of BMW OF NORTH AMERICA, INC.

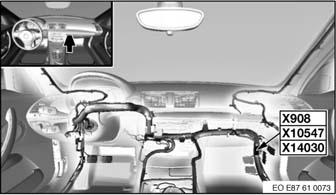

Fig 143: Under Right Side Of Dash

G00459912

Courtesy of BMW OF NORTH AMERICA, INC.

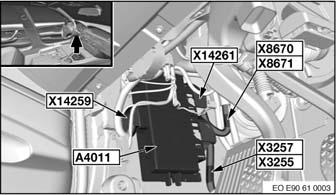

Fig 144: Under Left Side Of Dash

G00459957

Courtesy of BMW OF NORTH AMERICA, INC.

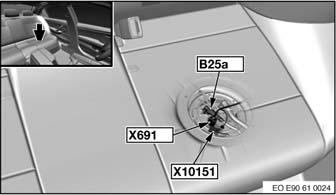

Fig 145: Under Left Rear Seat

G00459963

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 146: Under Left Side Of Dash

G00459964

Courtesy of BMW OF NORTH AMERICA, INC.

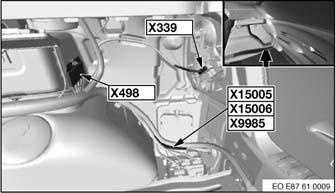

Fig 147: Right Side Of Rear Compartment

G00459888

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 148: Left Side Of Engine Compartment

G00459898

Courtesy of BMW OF NORTH AMERICA, INC.

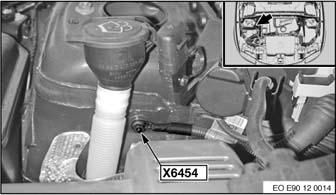

Fig 149: Right Rear Of Engine Compartment

G00459937

Courtesy of BMW OF NORTH AMERICA, INC.

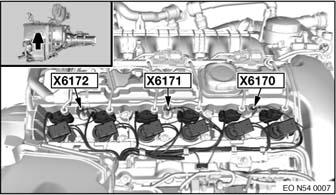

Fig 150: Top Of Engine

G00460012

Courtesy of BMW OF NORTH AMERICA, INC.

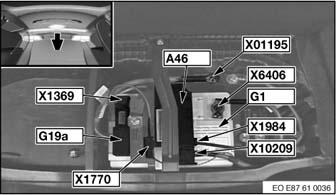

Fig 151: Right Side Of Rear Compartment

G00459900

Courtesy of BMW OF NORTH AMERICA, INC.

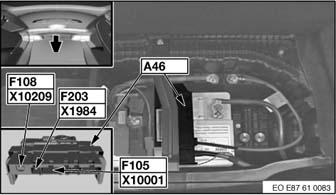

Fig 152: Right Side Of Rear Compartment

G00459913

Courtesy of BMW OF NORTH AMERICA, INC.

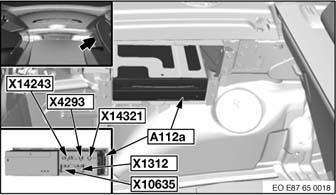

Fig 153: Left Side Of Rear Compartment

G00459929

Courtesy of BMW OF NORTH AMERICA, INC.

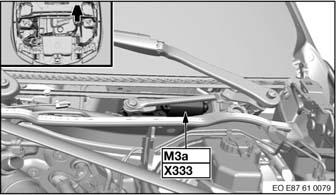

Fig 154: Left Side Of Windshield

G00460017

Courtesy of BMW OF NORTH AMERICA, INC.

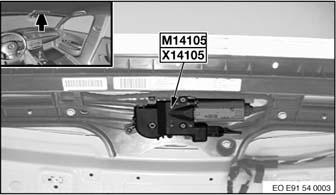

Fig 155: Front Center Of Roof

G00459974

Courtesy of BMW OF NORTH AMERICA, INC.
