Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Compartment

G00444870

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Center Console

G00444871

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Under Vehicle

G00444872

Courtesy of BMW OF NORTH AMERICA, INC.

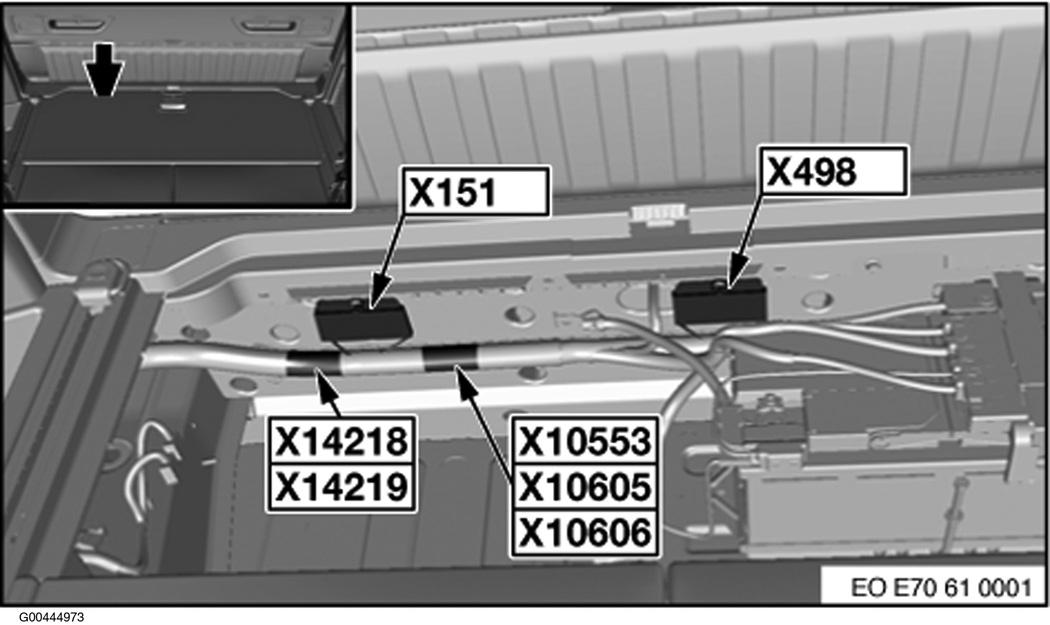

Fig 4: Rear Compartment

G00444873

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Right Side Of Engine Compartment

G00444874

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Left Side Of Dash

G00444875

Courtesy of BMW OF NORTH AMERICA, INC.

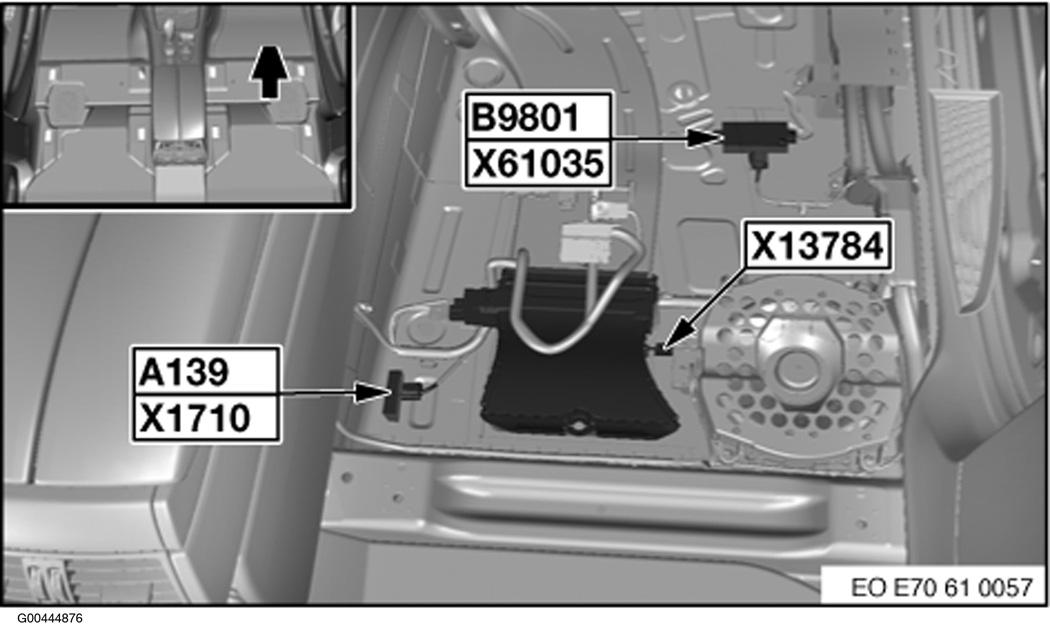

Fig 7: Under Front Passenger's Seat

G00444876

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Right Side Of Dash

G00444877

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Left Side Of Dash

G00444878

Courtesy of BMW OF NORTH AMERICA, INC.

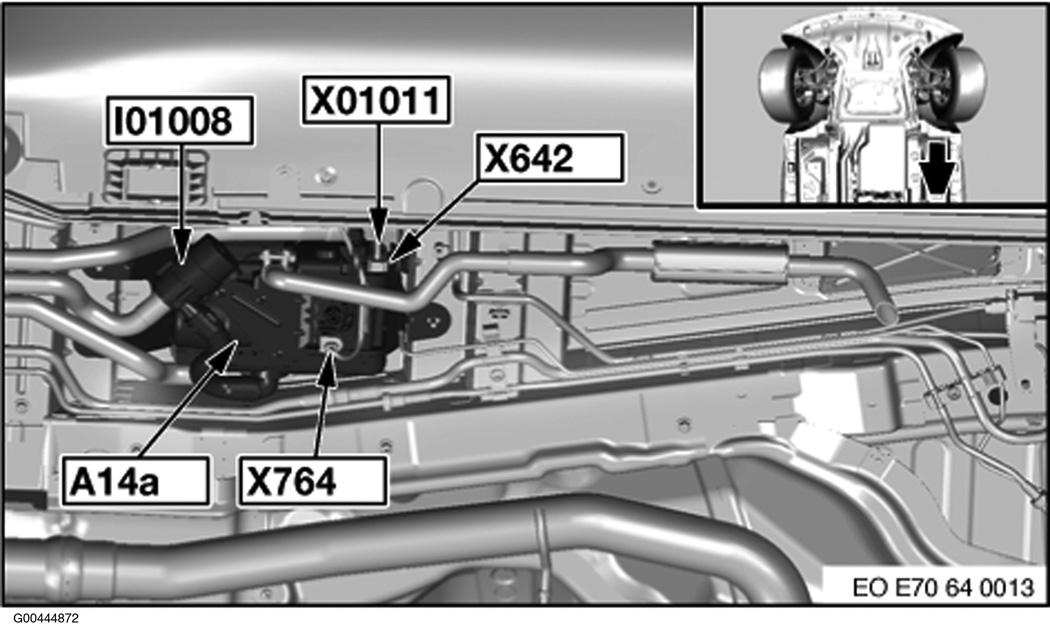

Fig 10: Under Vehicle

G00444879

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Rear Compartment

G00444880

Courtesy of BMW OF NORTH AMERICA, INC.

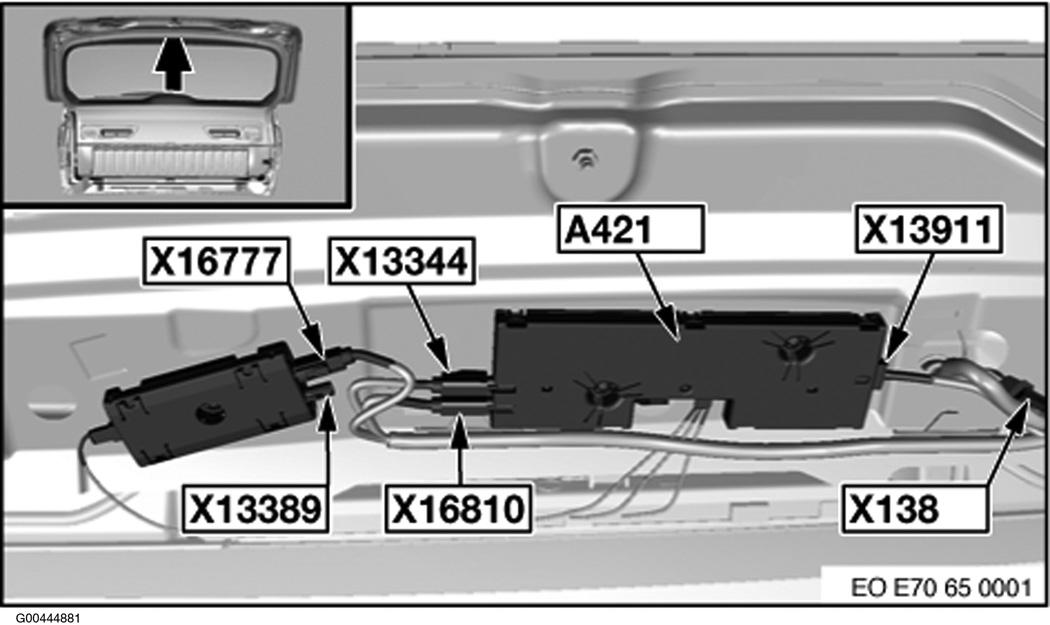

Fig 12: Rear Compartment Door

G00444881

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Left Front Wheelwell

G00444882

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Right Side Of Dash

G00444883

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Left "A" Pillar

G00444884

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Rear Compartment

G00444885

Courtesy of BMW OF NORTH AMERICA, INC.

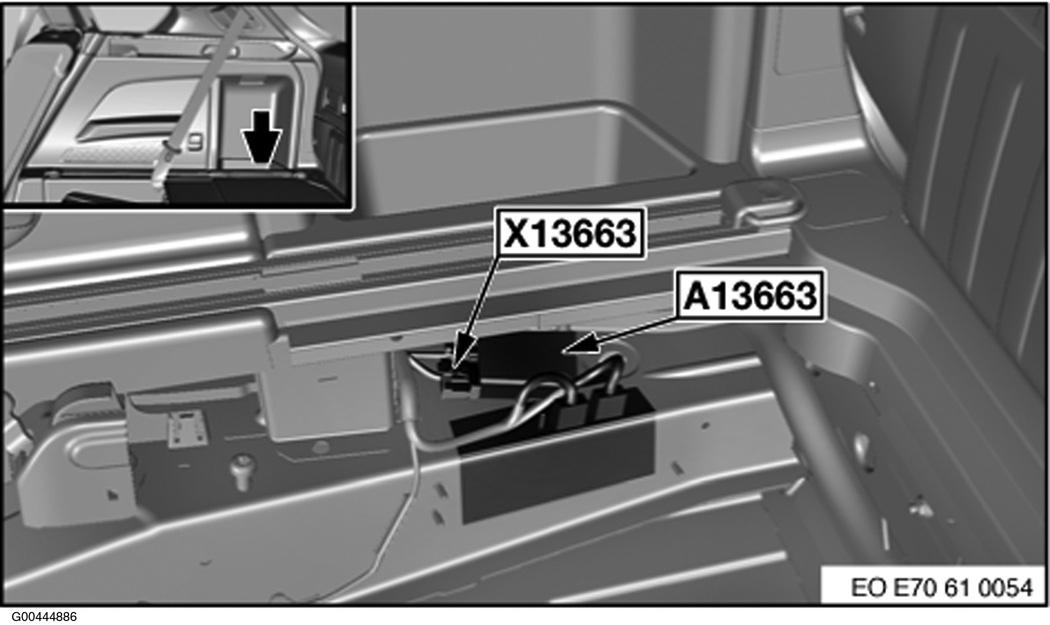

Fig 17: Rear Compartment

G00444886

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 18: Right Front Wheelwell

G00444887

Courtesy of BMW OF NORTH AMERICA, INC.

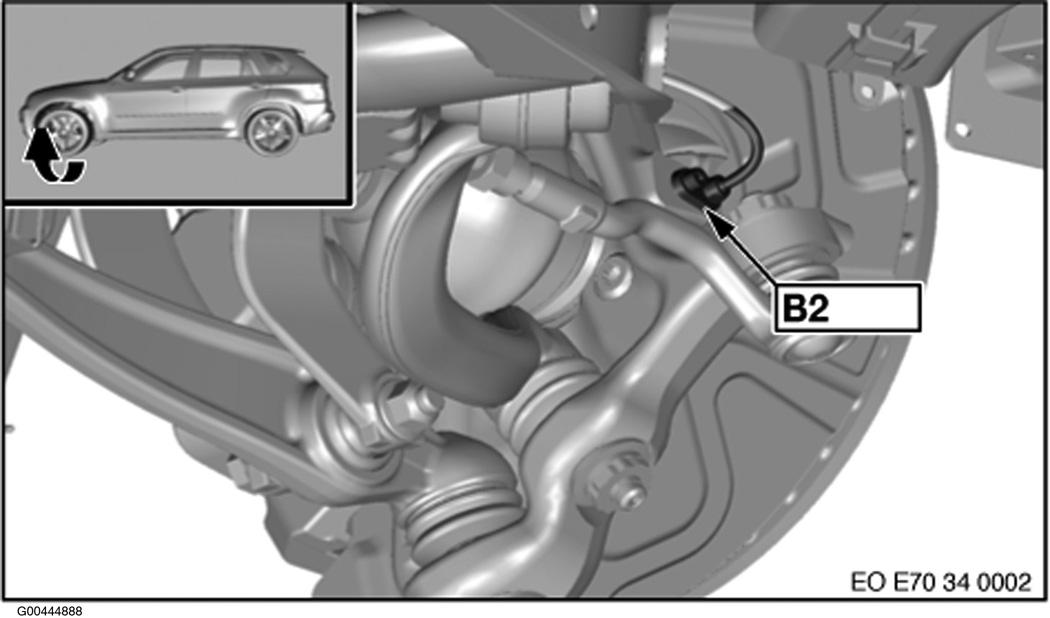

Fig 19: Left Front Wheelwell

G00444888

Courtesy of BMW OF NORTH AMERICA, INC.

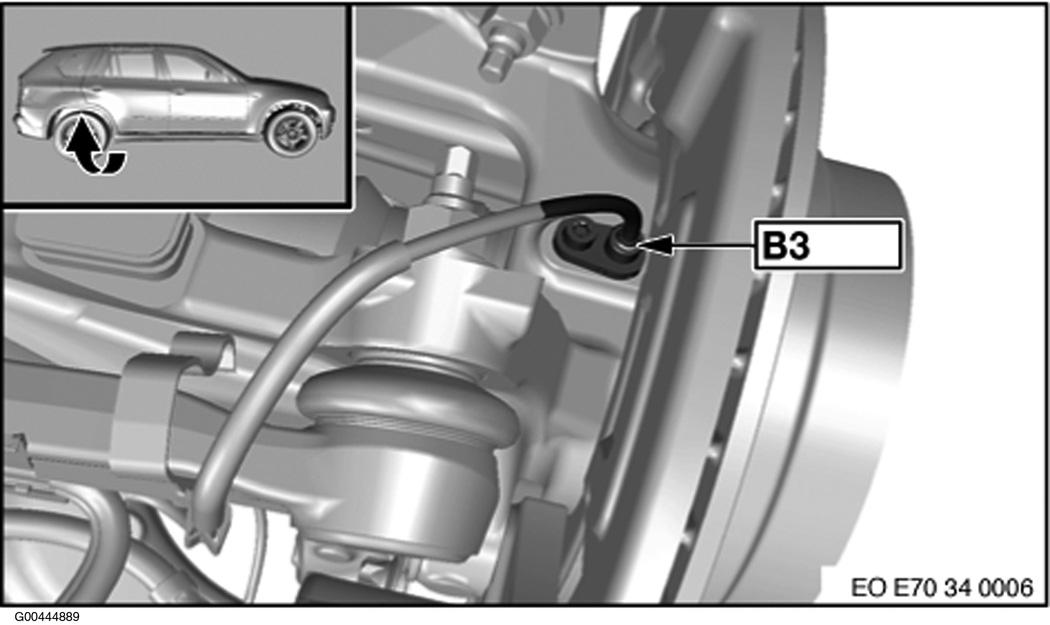

Fig 20: Right Rear Wheelwell

G00444889

Courtesy of BMW OF NORTH AMERICA, INC.

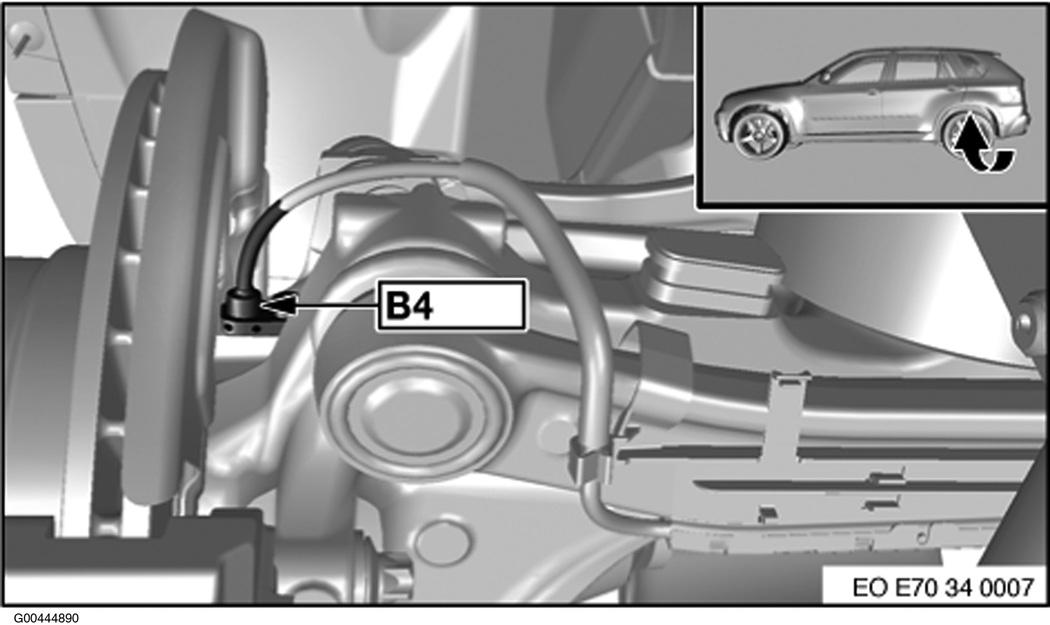

Fig 21: Left Rear Wheelwell

G00444890

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 22: Part Of Acceleration Pedal Assembly

G00444891

Courtesy of BMW OF NORTH AMERICA, INC.

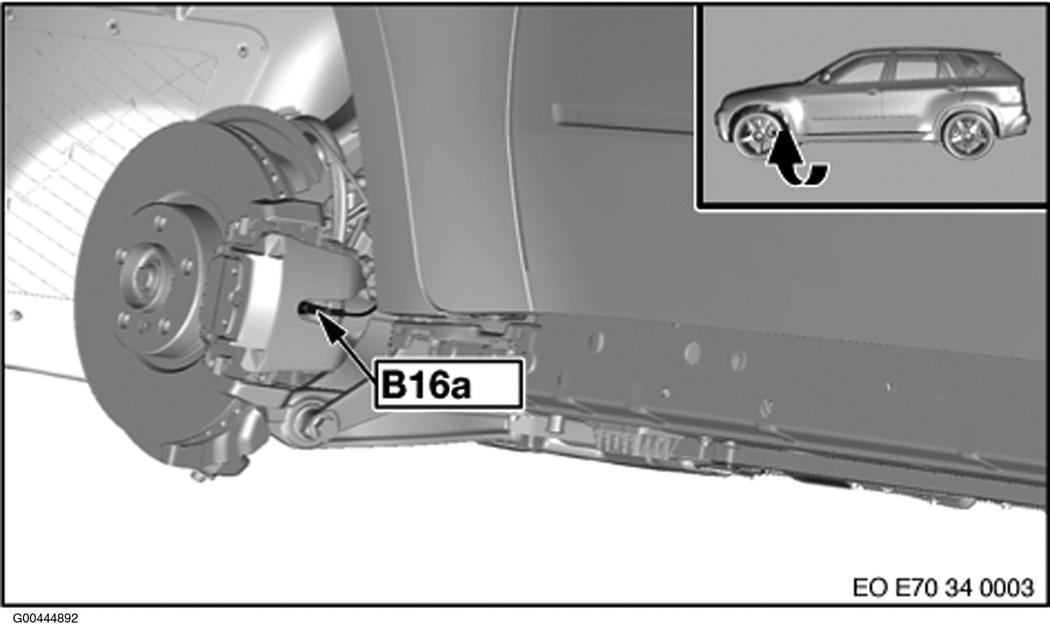

Fig 23: Left Front Wheelwell

G00444892

Courtesy of BMW OF NORTH AMERICA, INC.

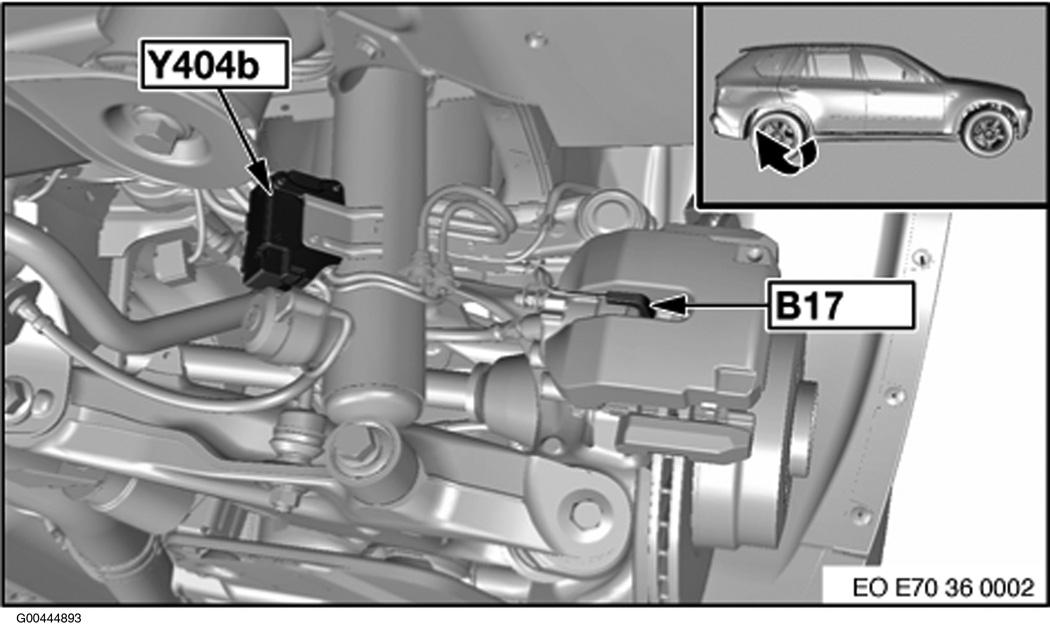

Fig 24: Right Rear Wheelwell

G00444893

Courtesy of BMW OF NORTH AMERICA, INC.

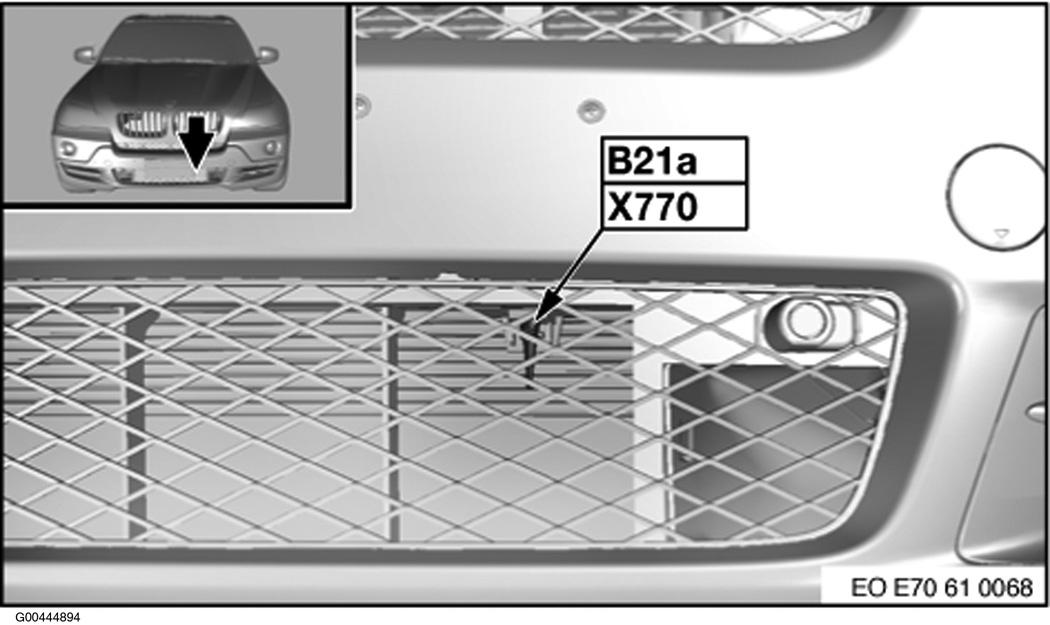

Fig 25: Front Bumper

G00444894

Courtesy of BMW OF NORTH AMERICA, INC.

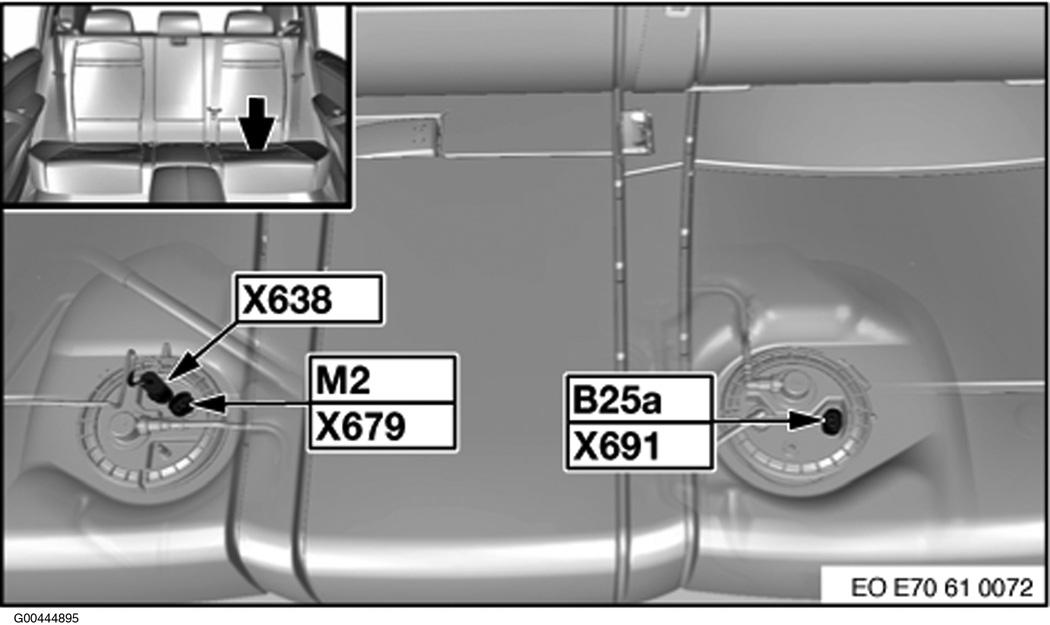

Fig 26: Under Left Rear Seat

G00444895

Courtesy of BMW OF NORTH AMERICA, INC.

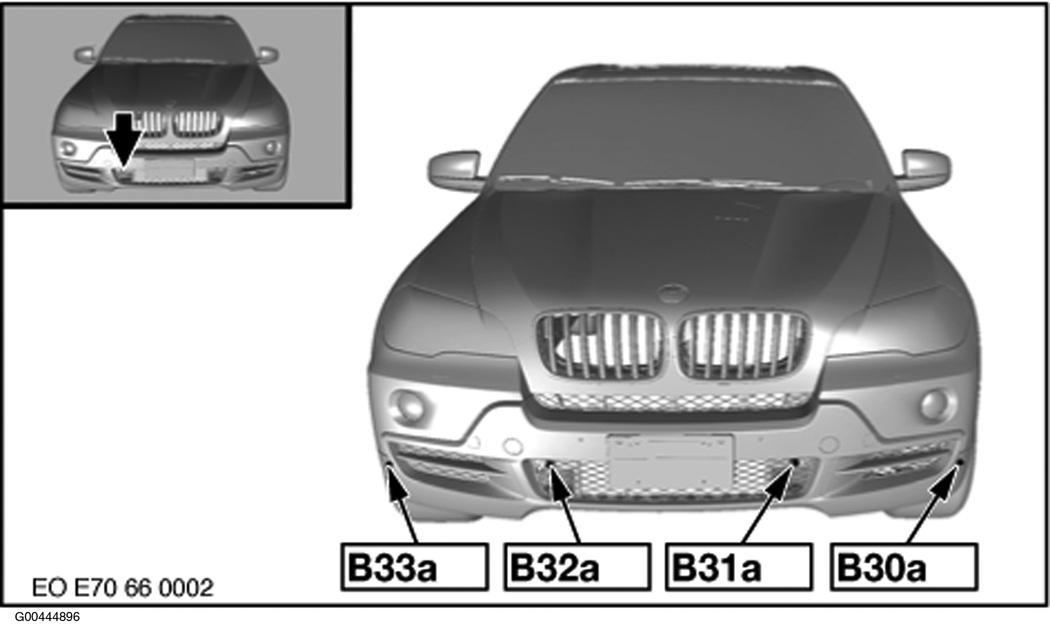

Fig 27: Front Bumper

G00444896

Courtesy of BMW OF NORTH AMERICA, INC.

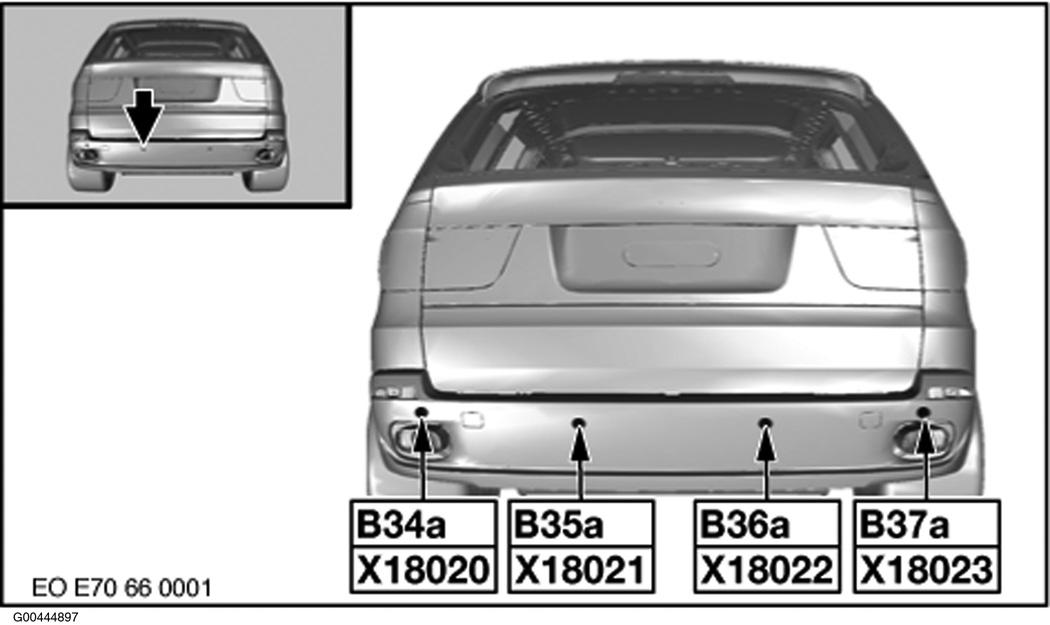

Fig 28: Rear Bumper

G00444897

Courtesy of BMW OF NORTH AMERICA, INC.

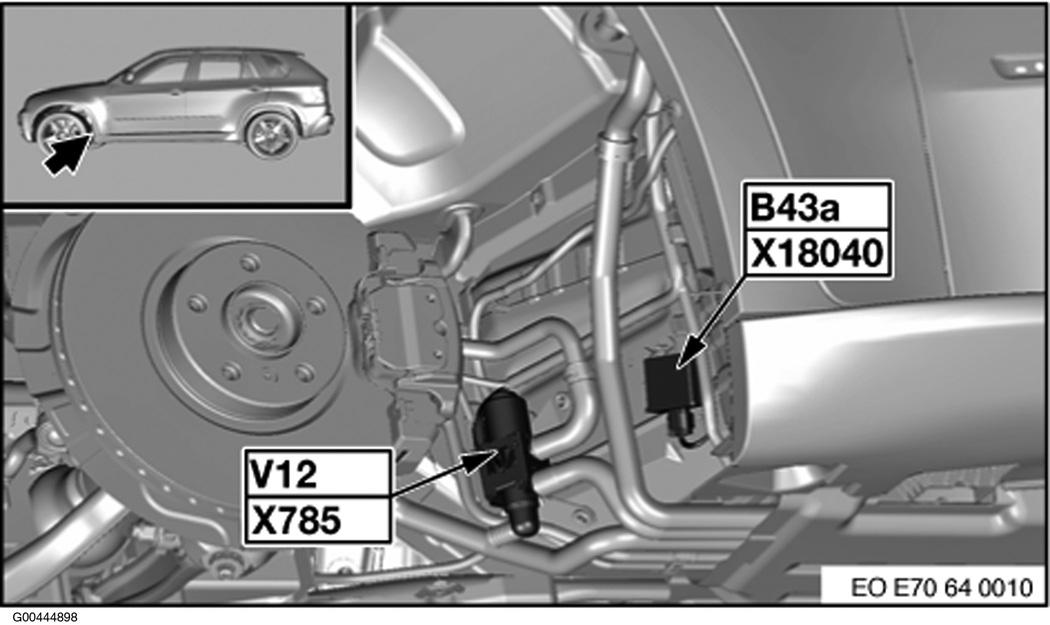

Fig 29: Left Front Wheelwell

G00444898

Courtesy of BMW OF NORTH AMERICA, INC.

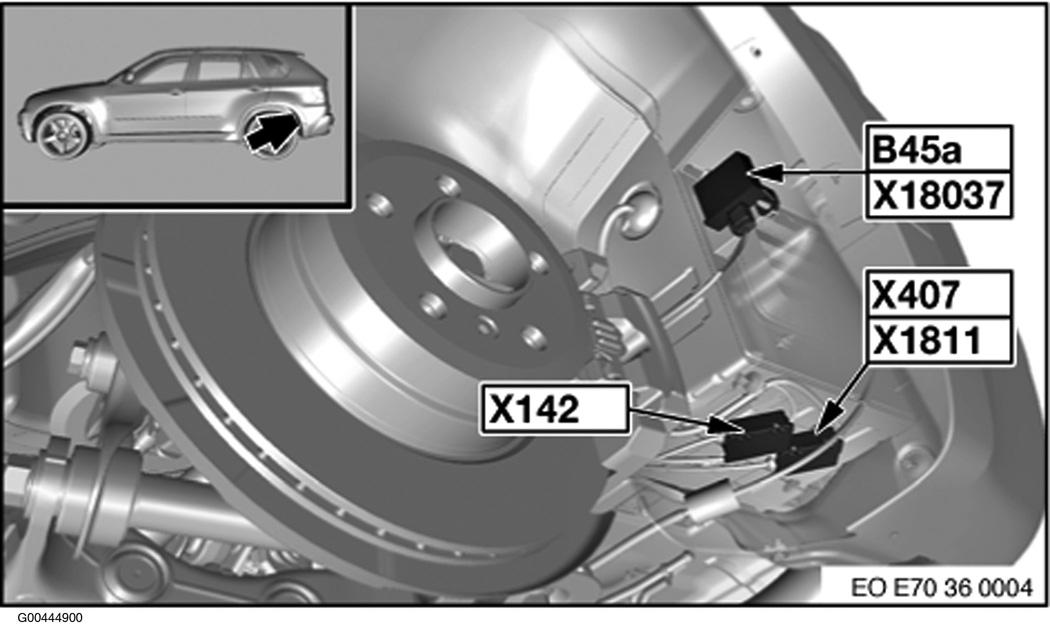

Fig 30: Left Rear Wheelwell

G00444900

Courtesy of BMW OF NORTH AMERICA, INC.

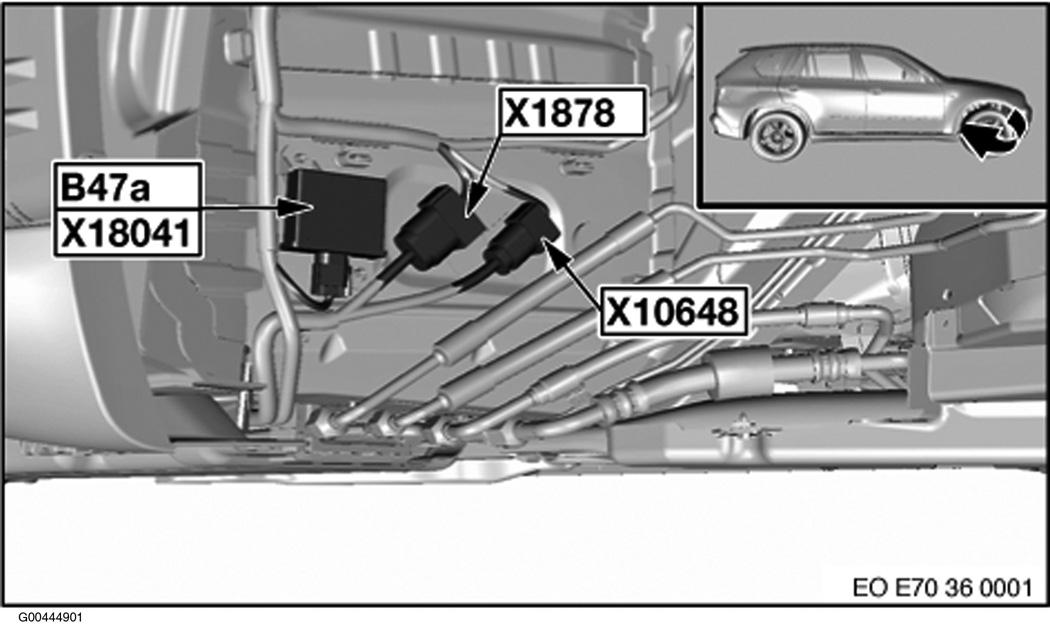

Fig 31: Right Front Wheelwell

G00444901

Courtesy of BMW OF NORTH AMERICA, INC.

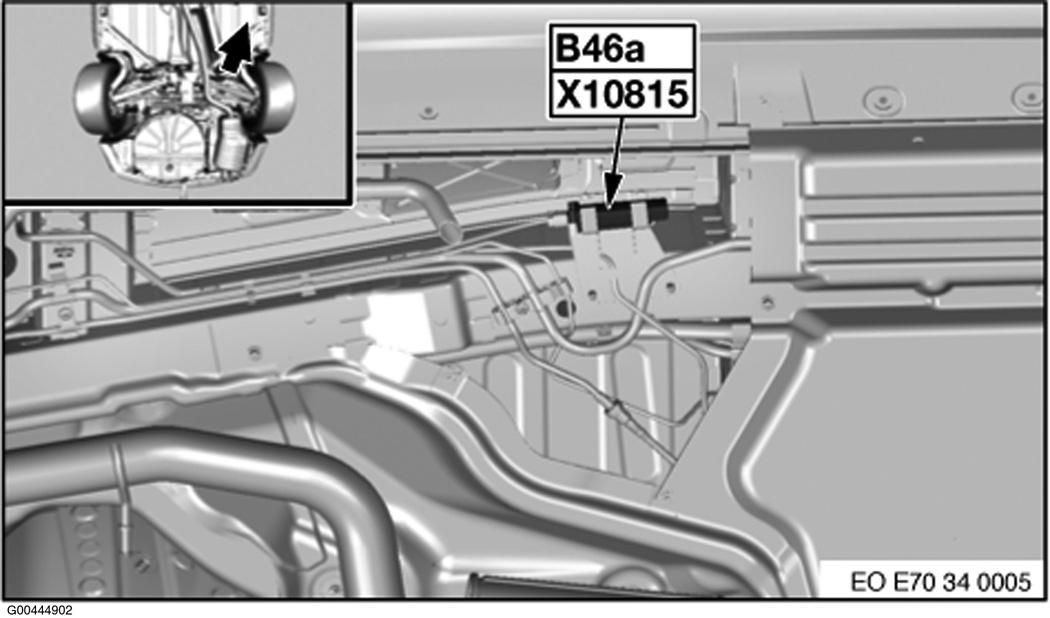

Fig 32: Under Vehicle

G00444902

Courtesy of BMW OF NORTH AMERICA, INC.

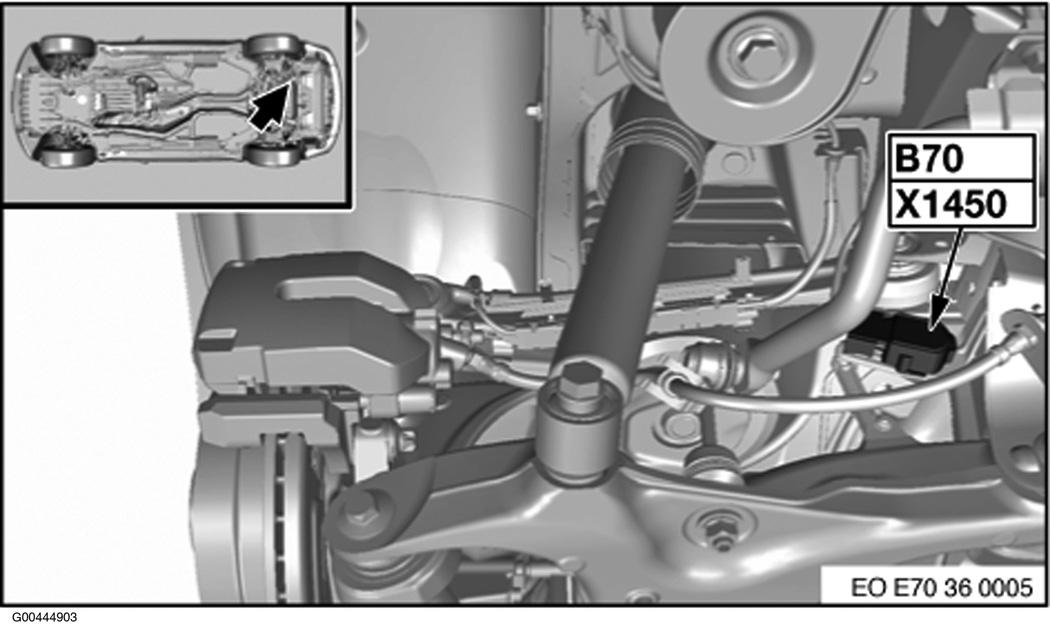

Fig 33: Under Vehicle

G00444903

Courtesy of BMW OF NORTH AMERICA, INC.

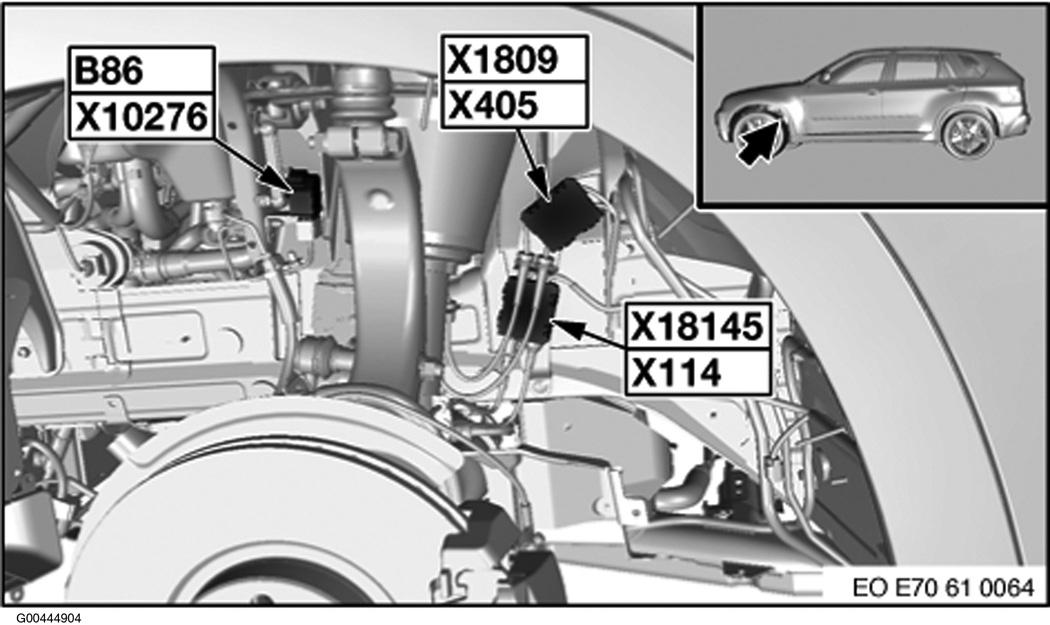

Fig 34: Left Front Wheelwell

G00444904

Courtesy of BMW OF NORTH AMERICA, INC.

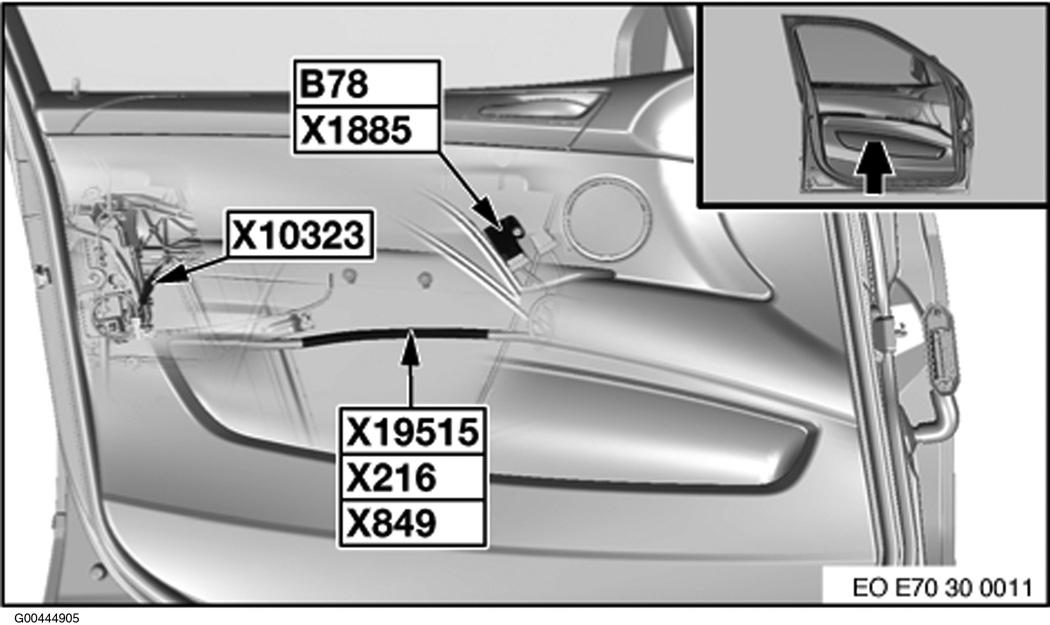

Fig 35: Driver's Door

G00444905

Courtesy of BMW OF NORTH AMERICA, INC.

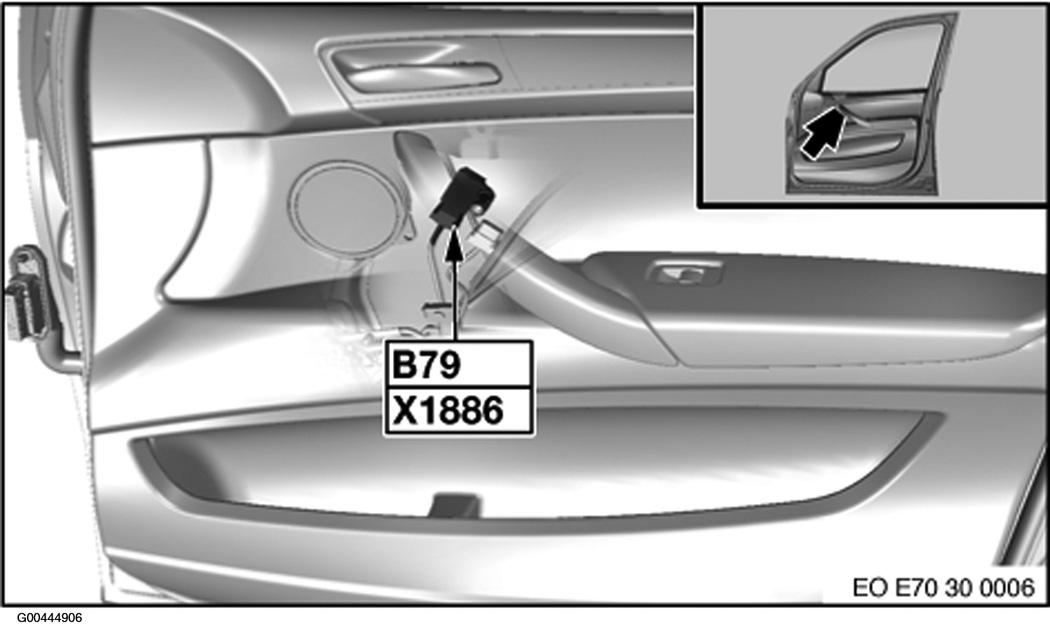

Fig 36: Front Passenger's Door

G00444906

Courtesy of BMW OF NORTH AMERICA, INC.

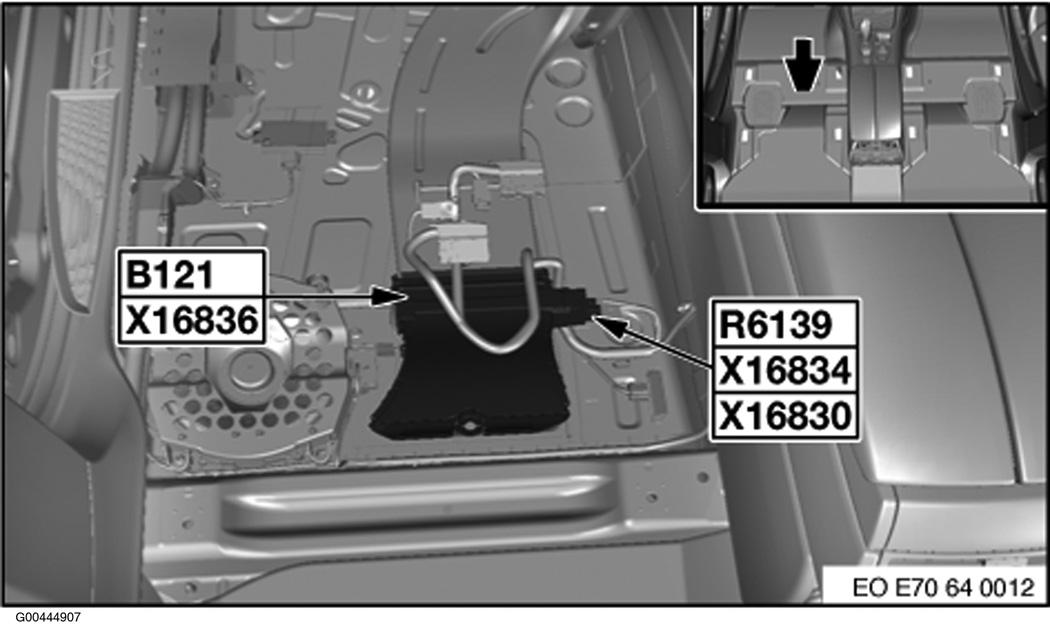

Fig 37: Under Left Rear Seat

G00444907

Courtesy of BMW OF NORTH AMERICA, INC.

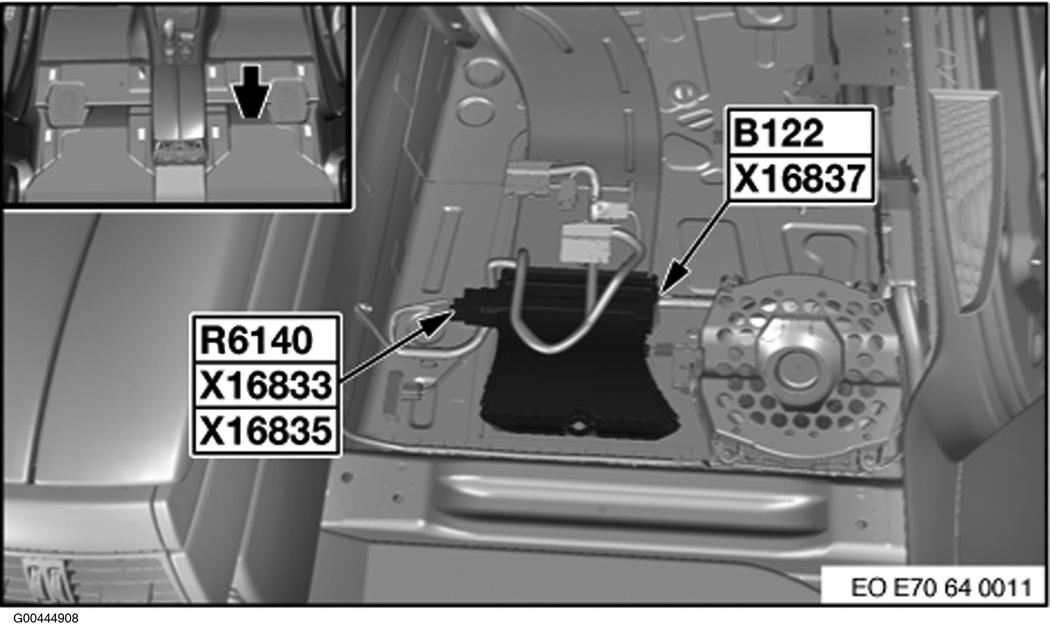

Fig 38: Under Right Rear Seat

G00444908

Courtesy of BMW OF NORTH AMERICA, INC.

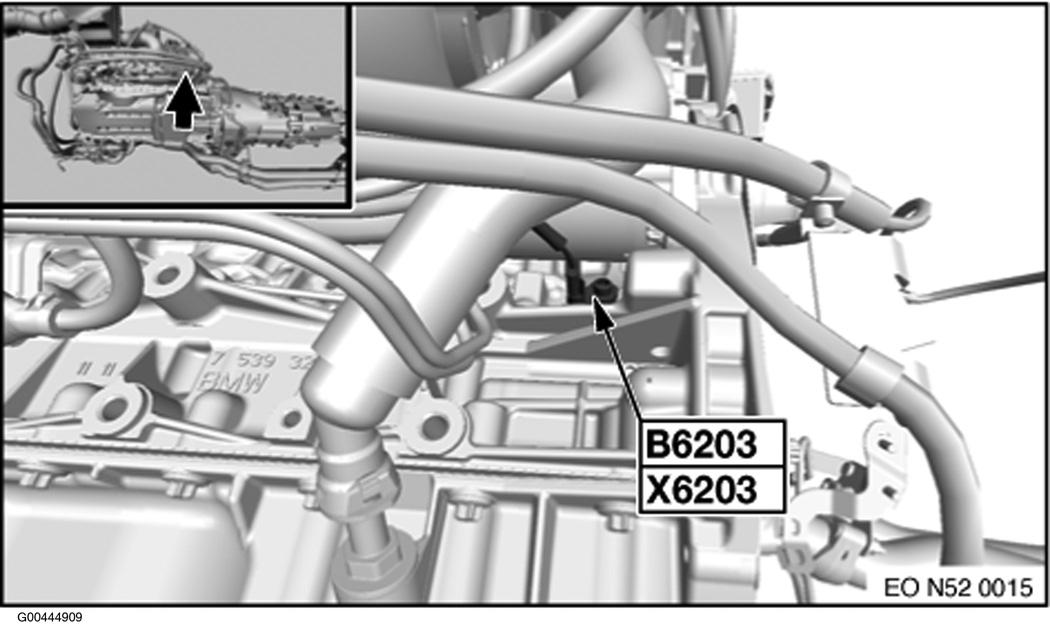

Fig 39: Left Side Of Engine (3.0L)

G00444909

Courtesy of BMW OF NORTH AMERICA, INC.

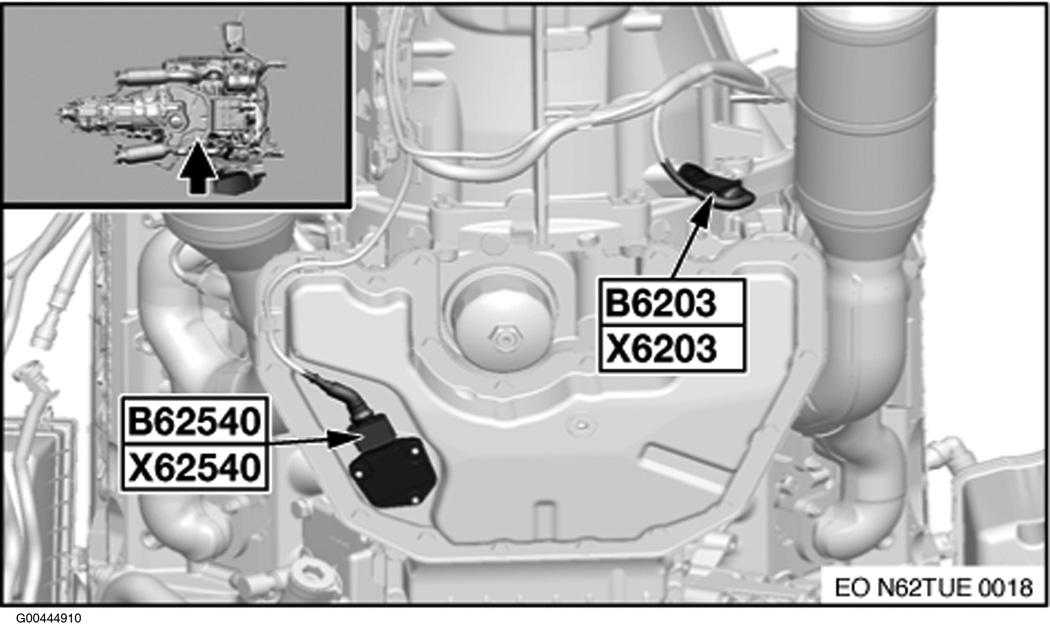

Fig 40: Top Of Engine (4.8L)

G00444910

Courtesy of BMW OF NORTH AMERICA, INC.

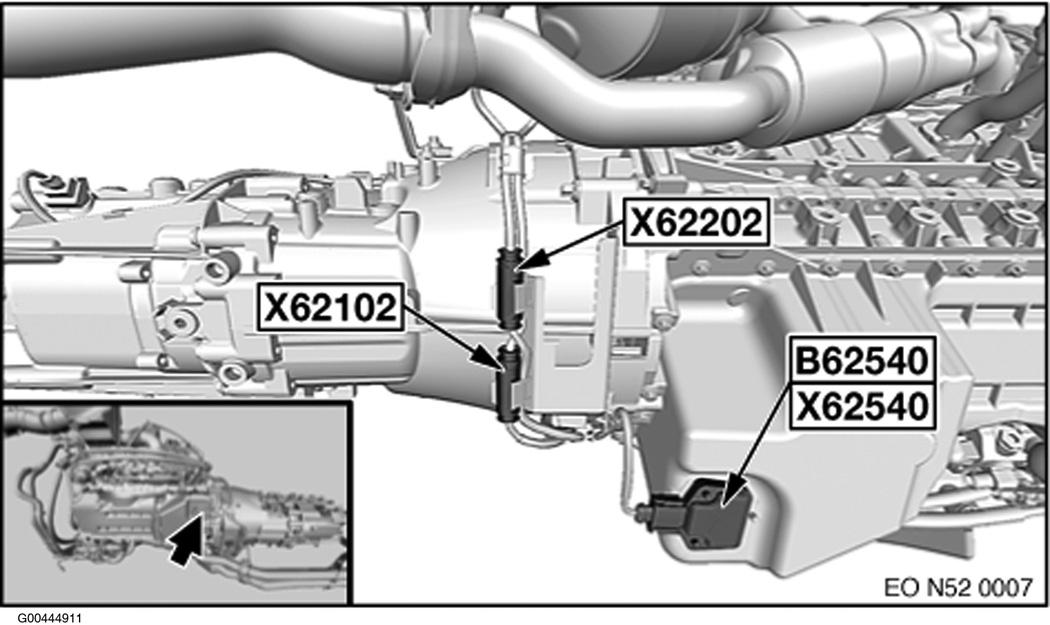

Fig 41: Rear Of Engine (3.0L)

G00444911

Courtesy of BMW OF NORTH AMERICA, INC.

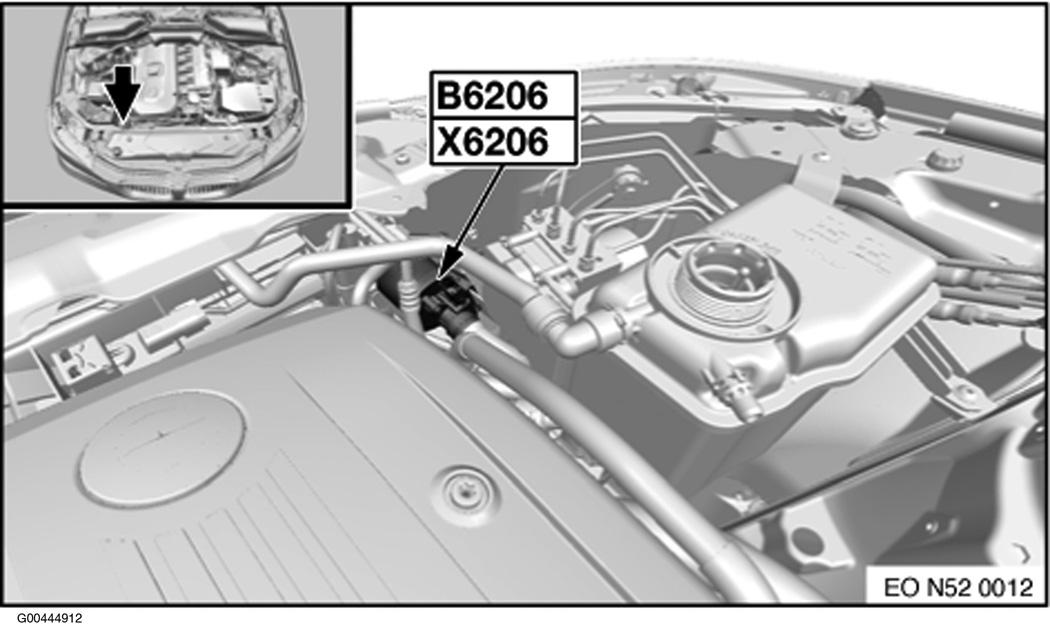

Fig 42: Right Front Of Engine Compartment (3.0L)

G00444912

Courtesy of BMW OF NORTH AMERICA, INC.

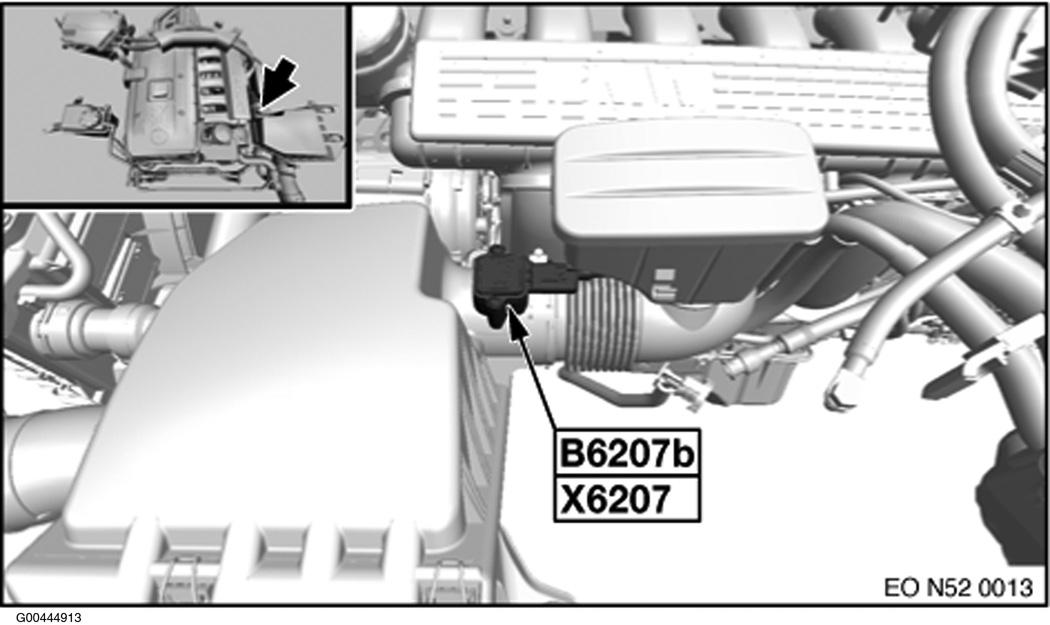

Fig 43: Top Of Engine (3.0L)

G00444913

Courtesy of BMW OF NORTH AMERICA, INC.

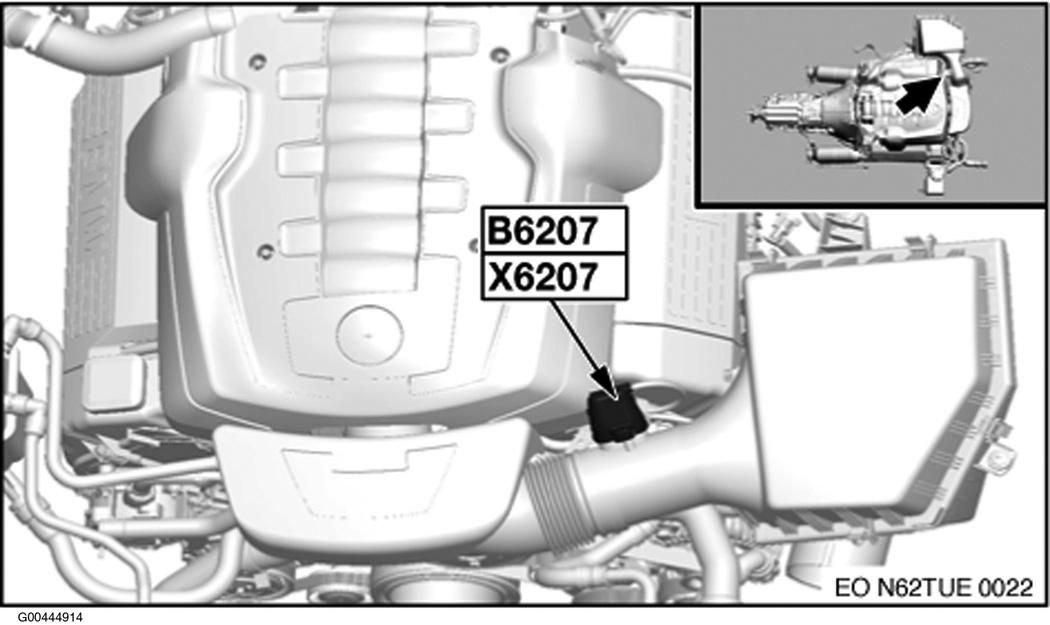

Fig 44: Top Of Engine (4.8L)

G00444914

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 45: Front Of Engine (3.0L)

G00565915

Courtesy of BMW OF NORTH AMERICA, INC.

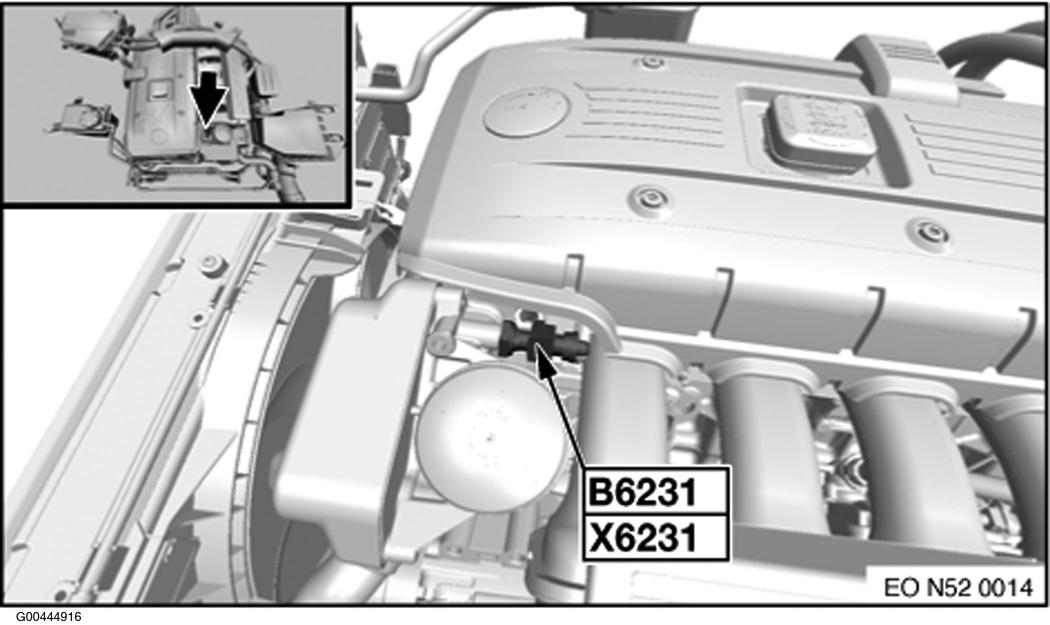

Fig 46: Top Of Engine (3.0L)

G00444916

Courtesy of BMW OF NORTH AMERICA, INC.

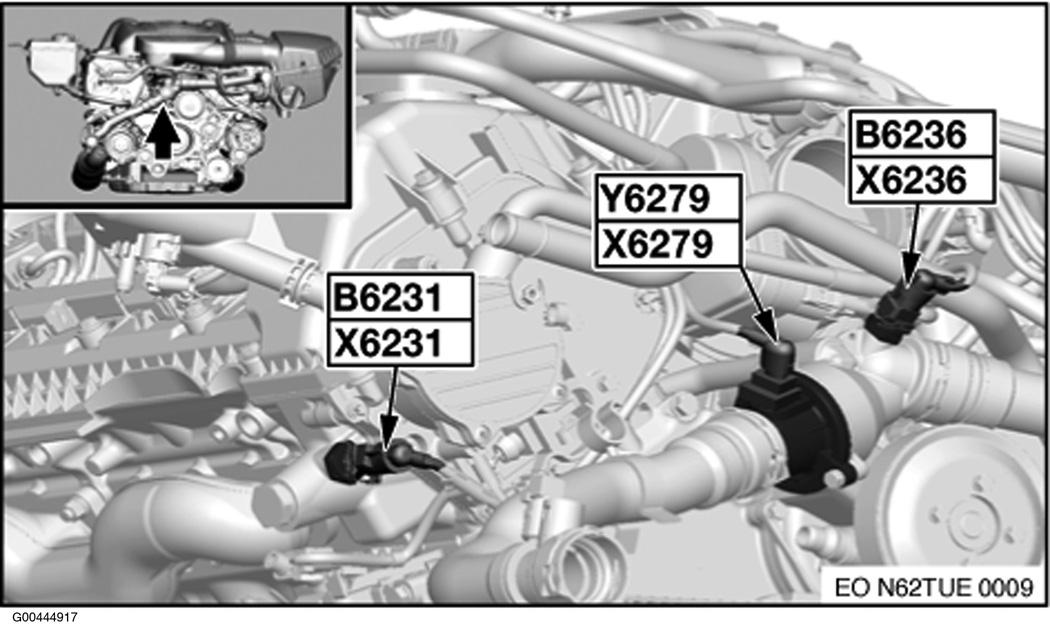

Fig 47: Front Of Engine (4.8L)

G00444917

Courtesy of BMW OF NORTH AMERICA, INC.

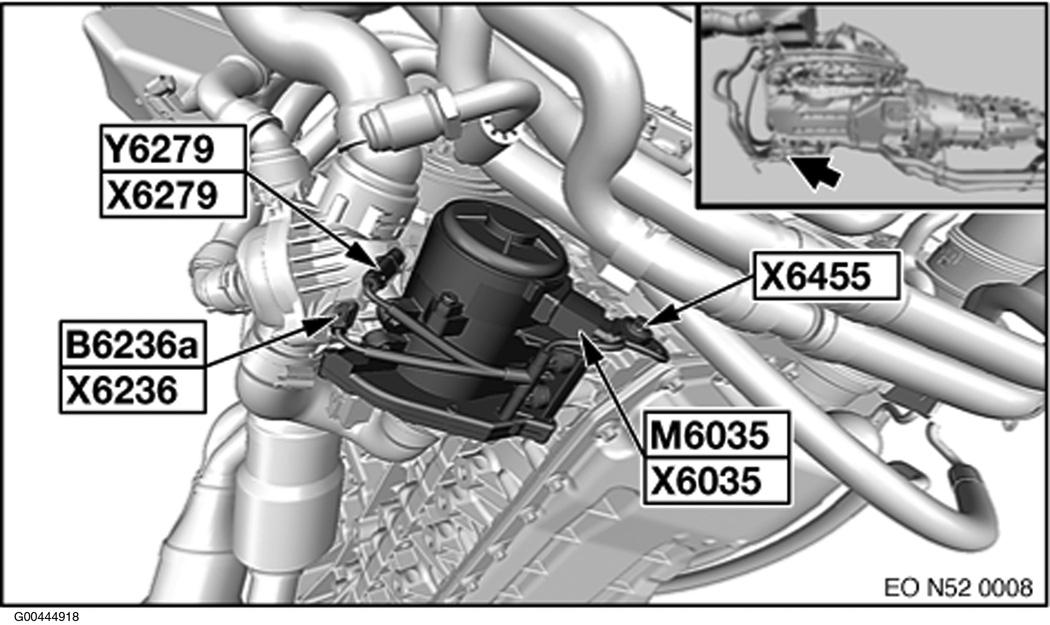

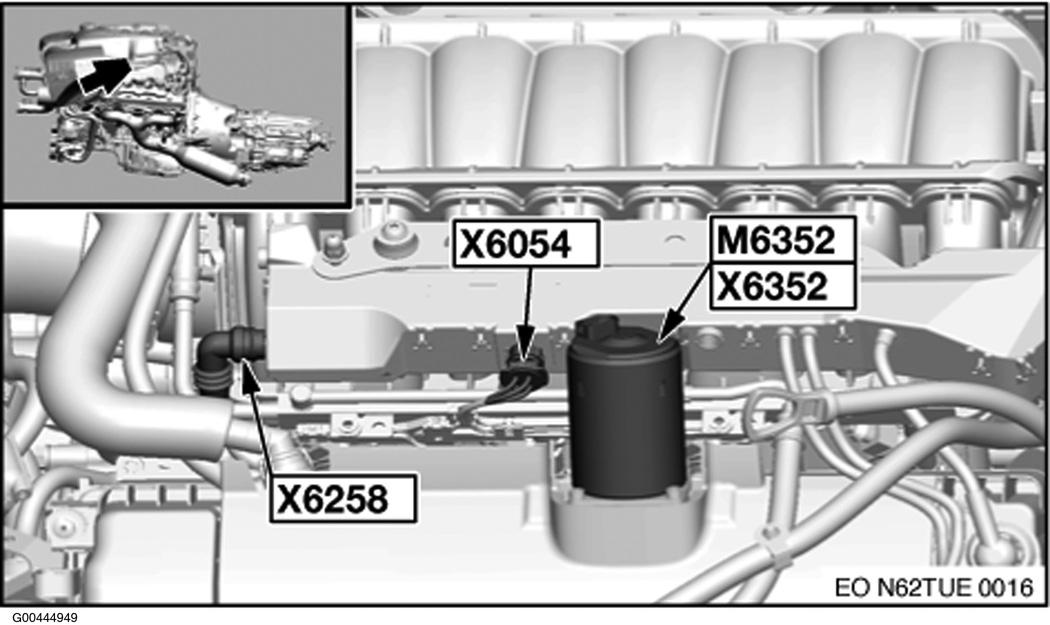

Fig 48: Left Side Of Engine (3.0L)

G00444918

Courtesy of BMW OF NORTH AMERICA, INC.

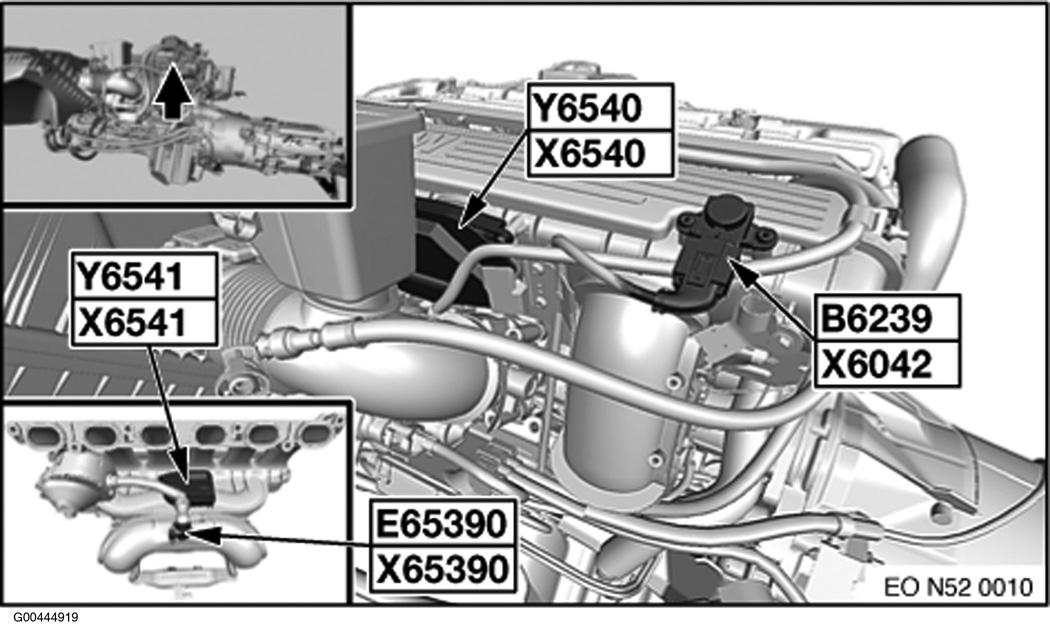

Fig 49: Left Side Of Engine (3.0L)

G00444919

Courtesy of BMW OF NORTH AMERICA, INC.

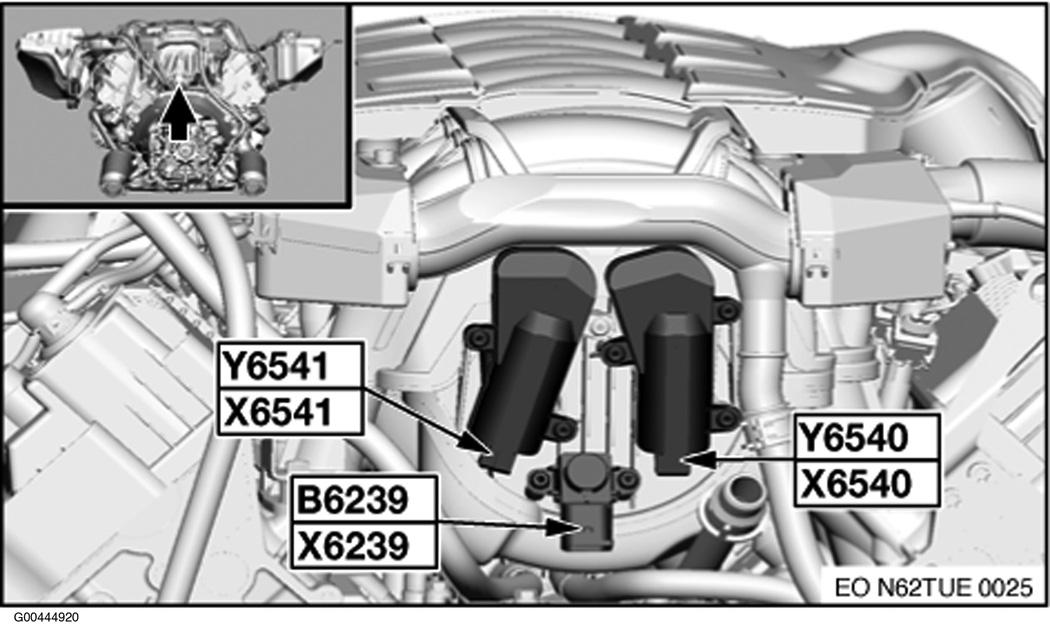

Fig 50: Front Of Engine (4.8L)

G00444920

Courtesy of BMW OF NORTH AMERICA, INC.

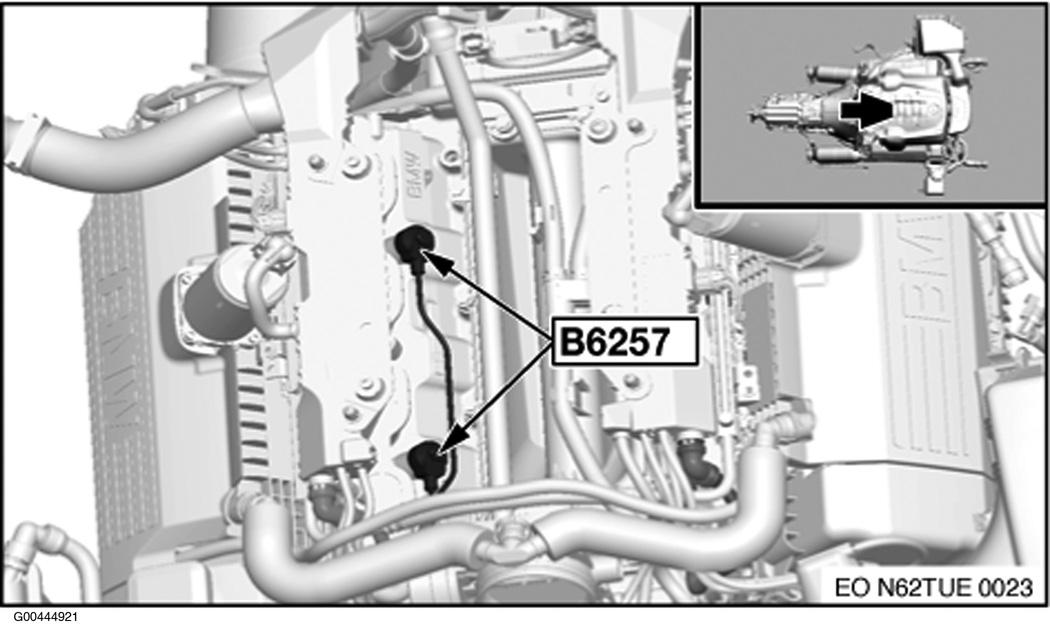

Fig 51: Top Of Engine (4.8L)

G00444921

Courtesy of BMW OF NORTH AMERICA, INC.

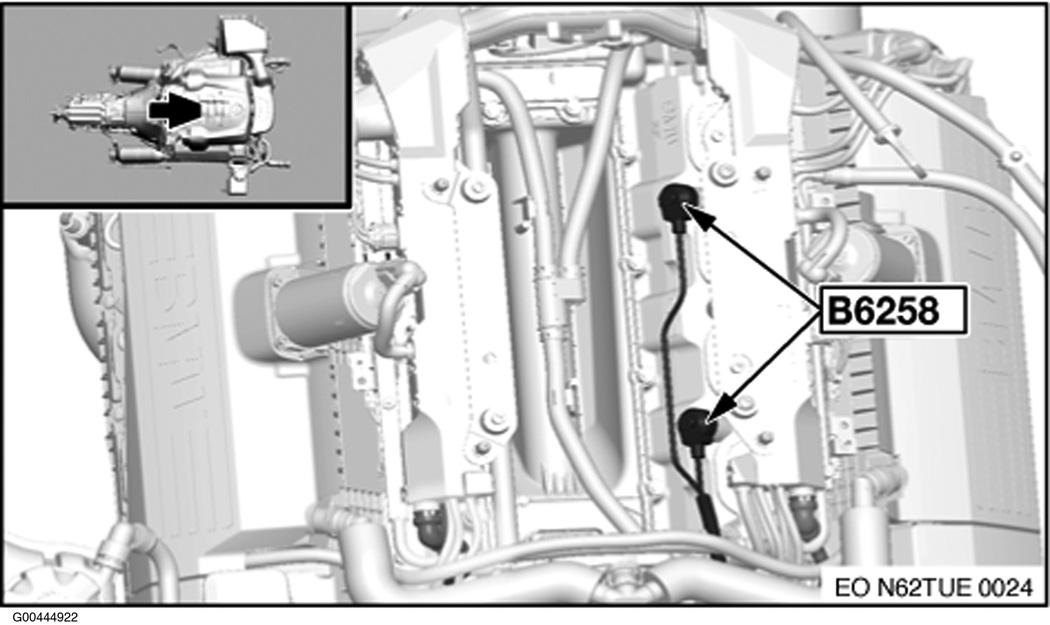

Fig 52: Top Of Engine (4.8L)

G00444922

Courtesy of BMW OF NORTH AMERICA, INC.

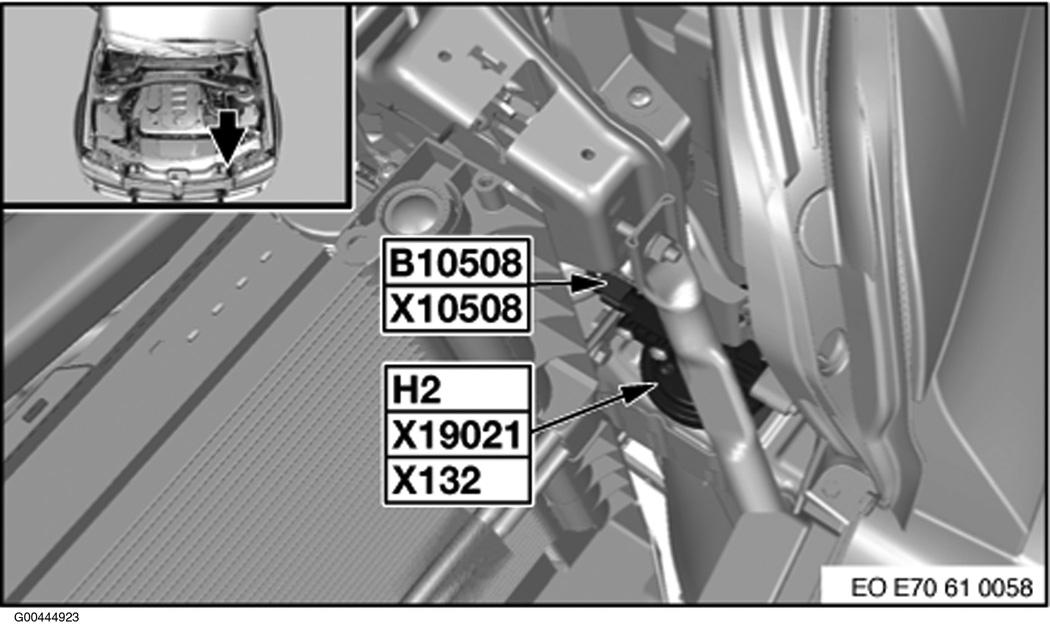

Fig 53: Left Front Of Engine Compartment

G00444923

Courtesy of BMW OF NORTH AMERICA, INC.

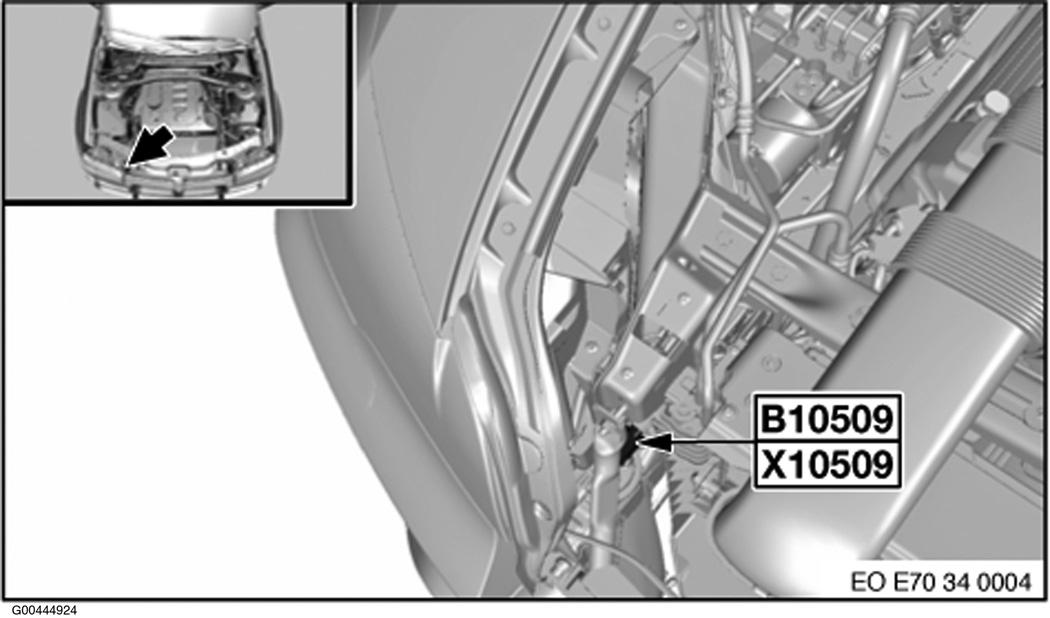

Fig 54: Right Front Of Engine Compartment

G00444924

Courtesy of BMW OF NORTH AMERICA, INC.

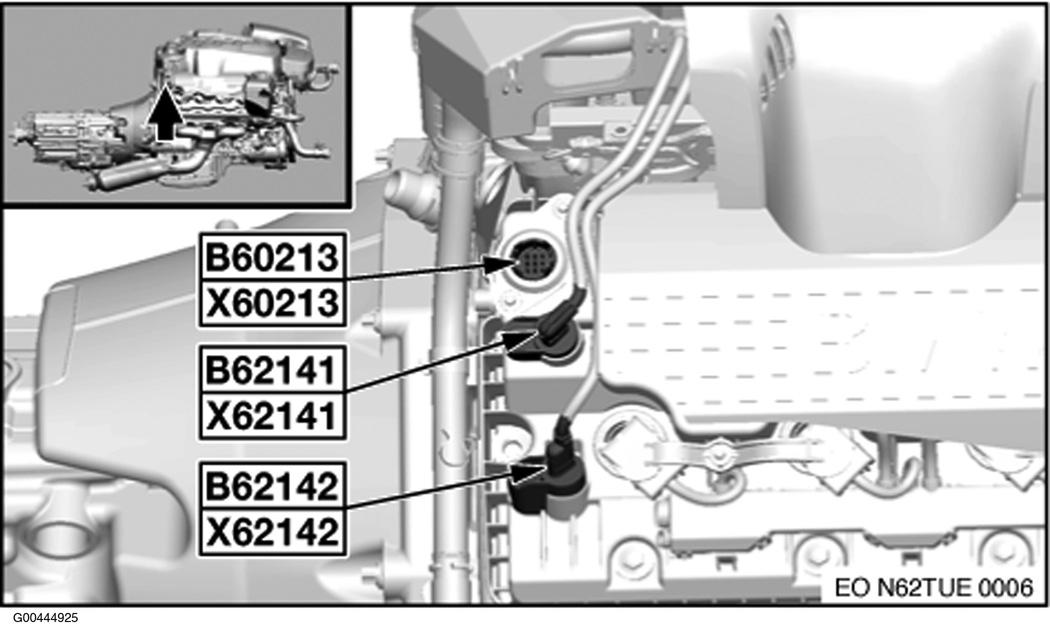

Fig 55: Right Side Of Engine (4.8L)

G00444925

Courtesy of BMW OF NORTH AMERICA, INC.

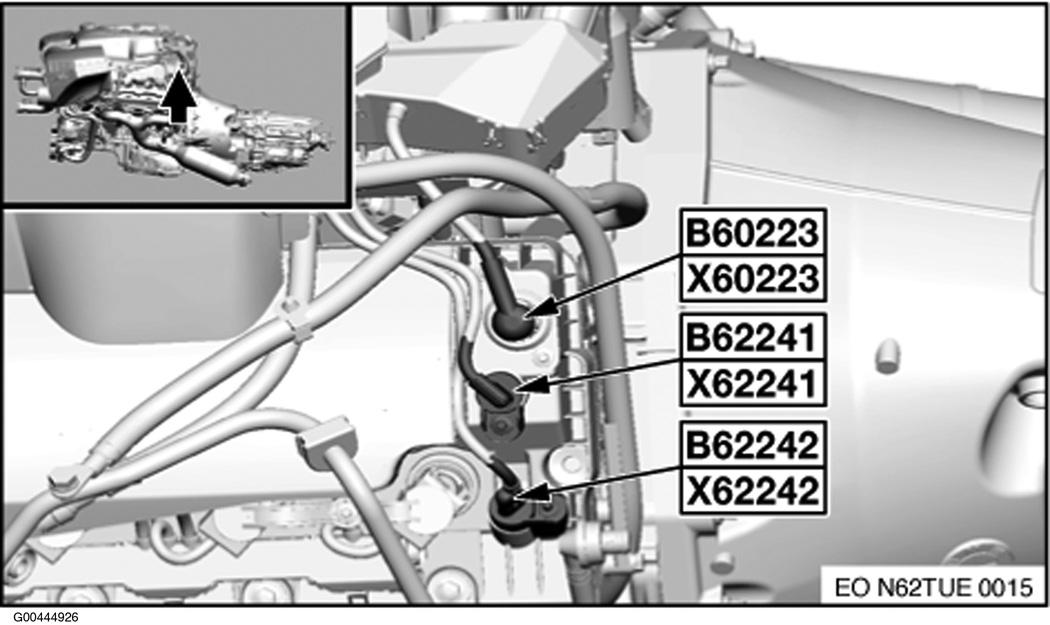

Fig 56: Left Side Of Engine (4.8L)

G00444926

Courtesy of BMW OF NORTH AMERICA, INC.

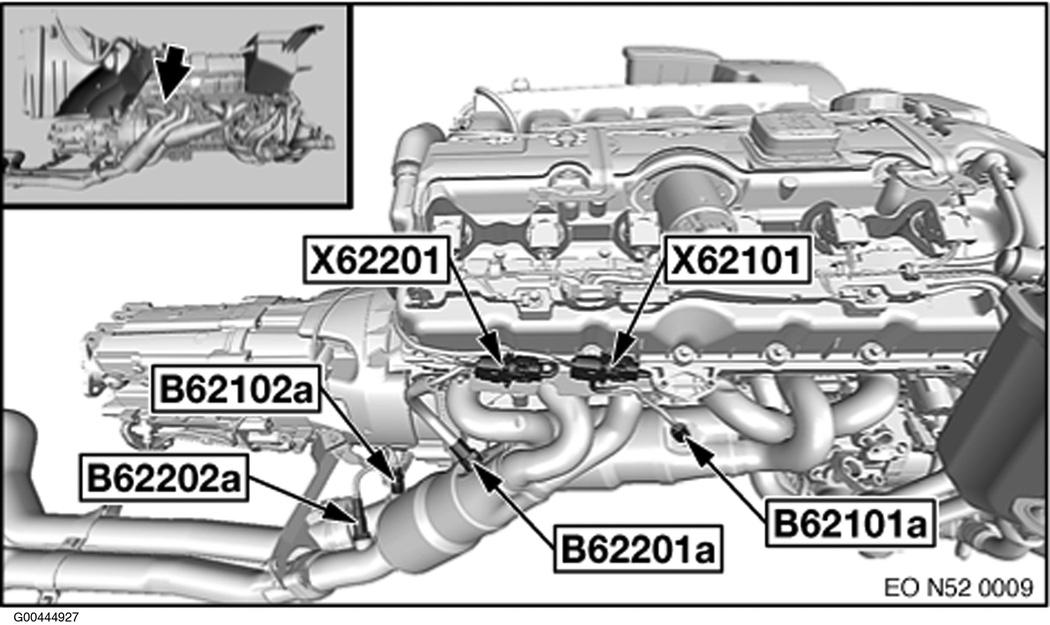

Fig 57: Right Side Of Engine (3.0L)

G00444927

Courtesy of BMW OF NORTH AMERICA, INC.

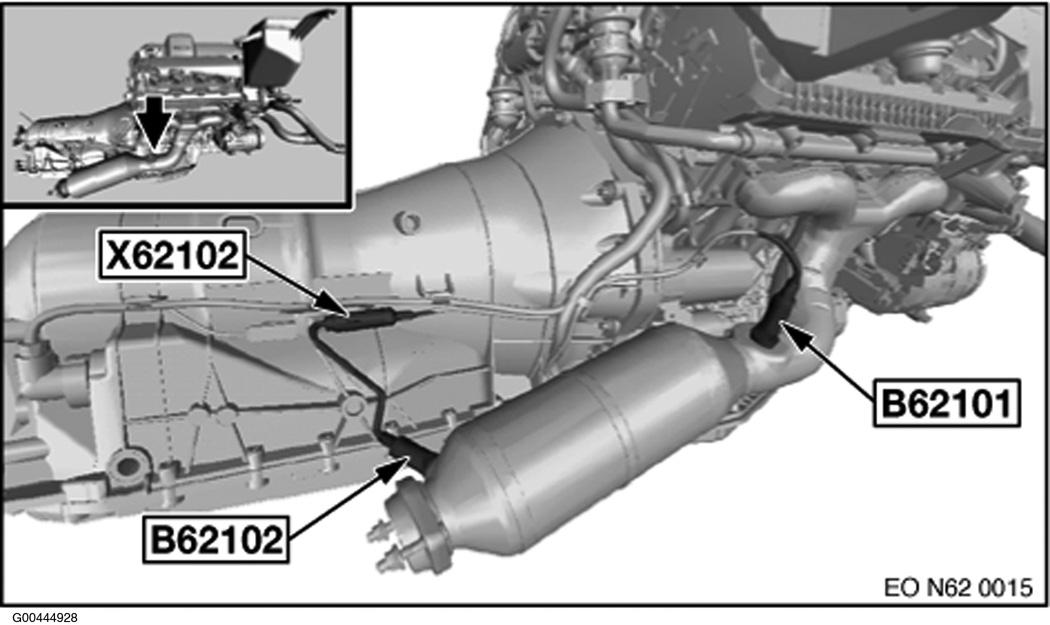

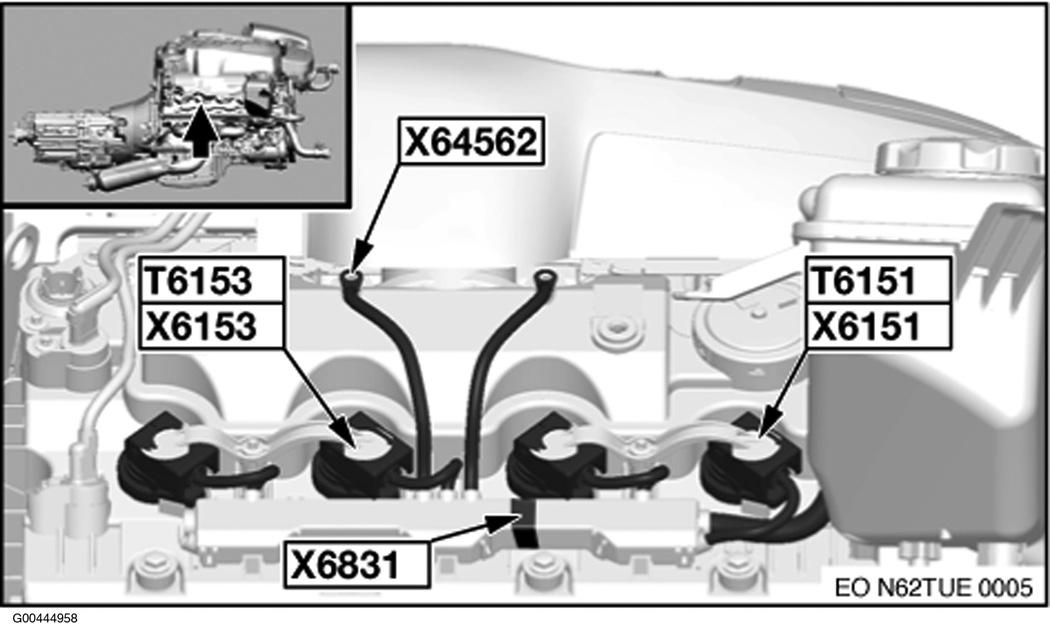

Fig 58: Right Side Of Engine (4.8L)

G00444928

Courtesy of BMW OF NORTH AMERICA, INC.

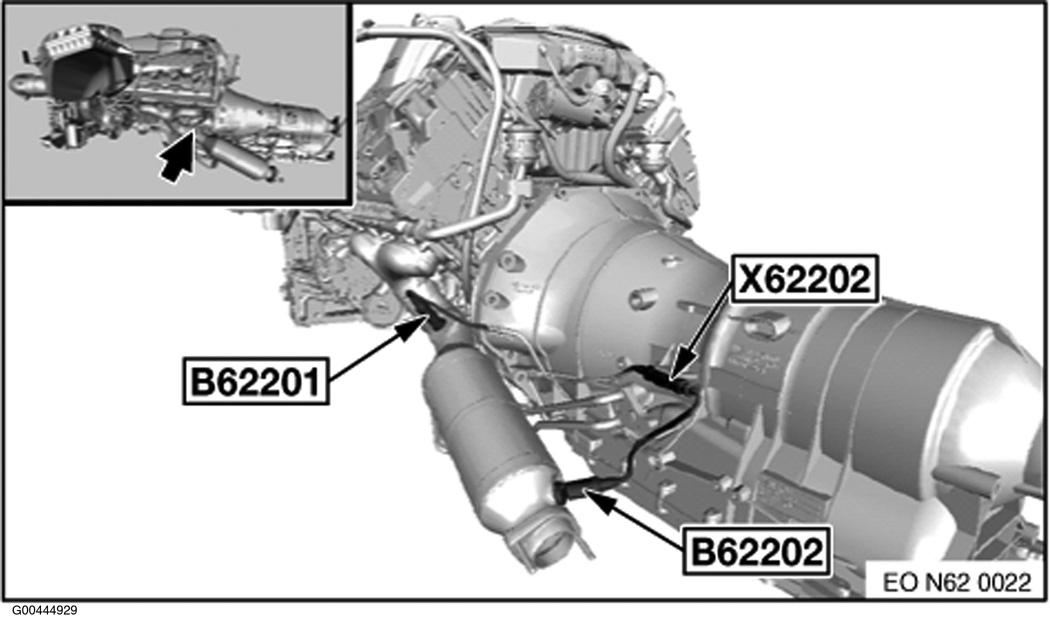

Fig 59: Rear Of Engine (4.8L)

G00444929

Courtesy of BMW OF NORTH AMERICA, INC.

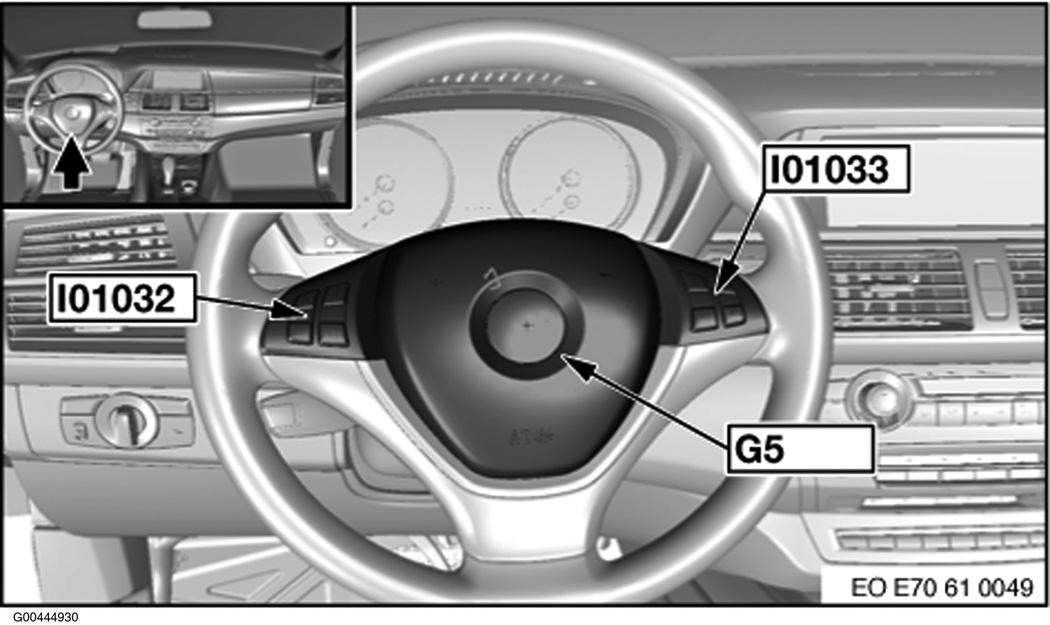

Fig 60: Part Of Steering Wheel

G00444930

Courtesy of BMW OF NORTH AMERICA, INC.

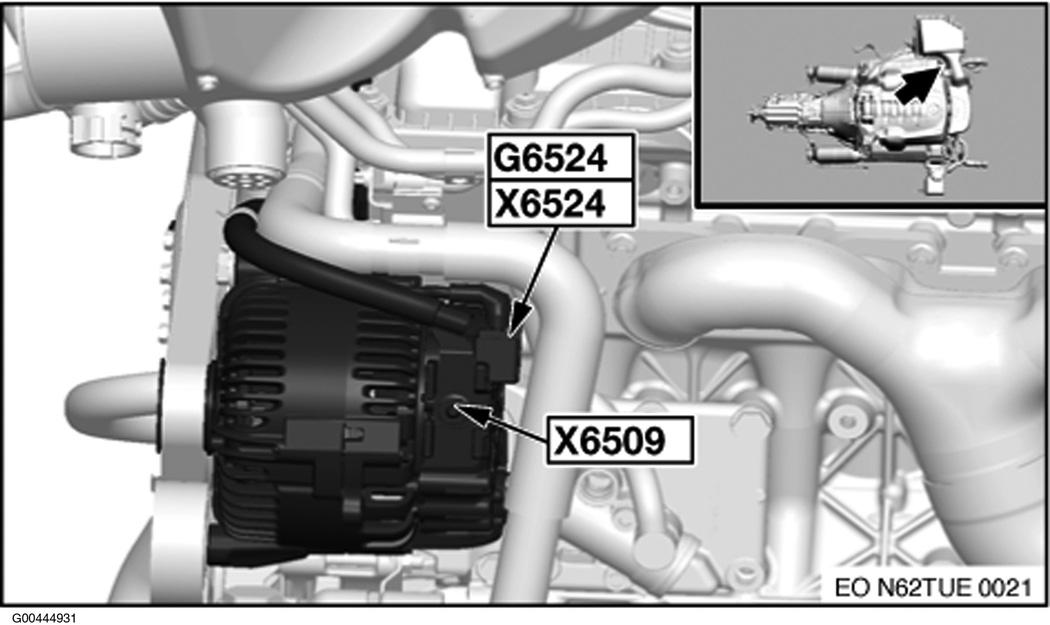

Fig 61: Top Of Engine (4.8L)

G00444931

Courtesy of BMW OF NORTH AMERICA, INC.

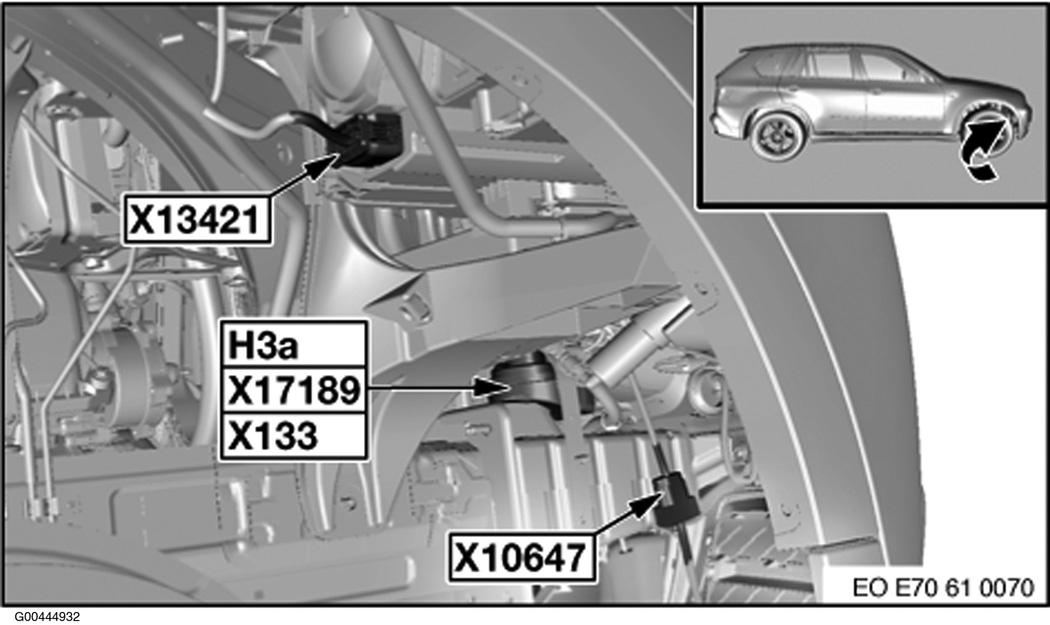

Fig 62: Right Front Wheelwell

G00444932

Courtesy of BMW OF NORTH AMERICA, INC.

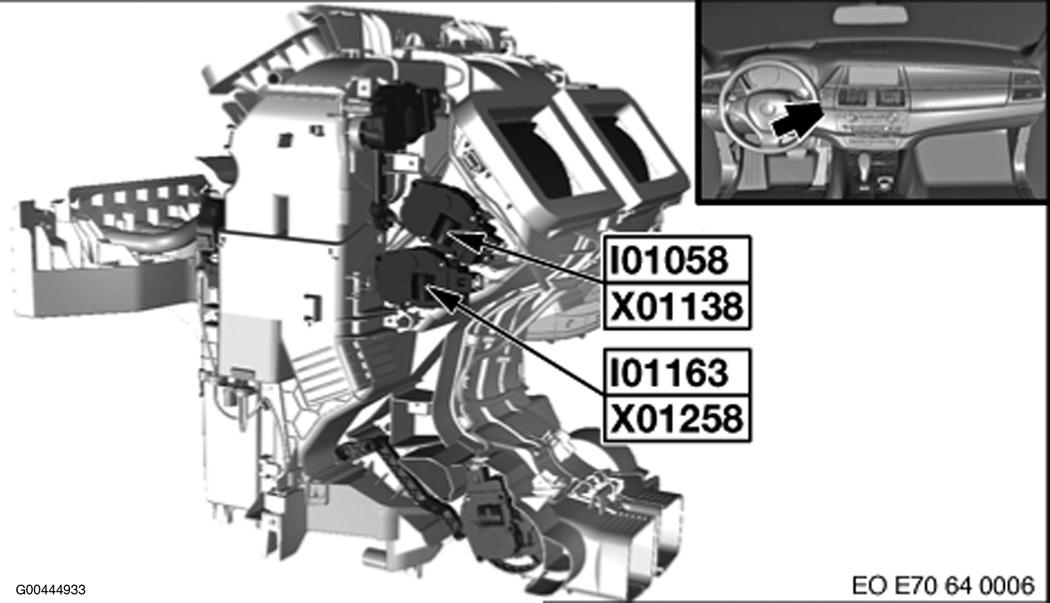

Fig 63: Center Of Dash

G00444933

Courtesy of BMW OF NORTH AMERICA, INC.

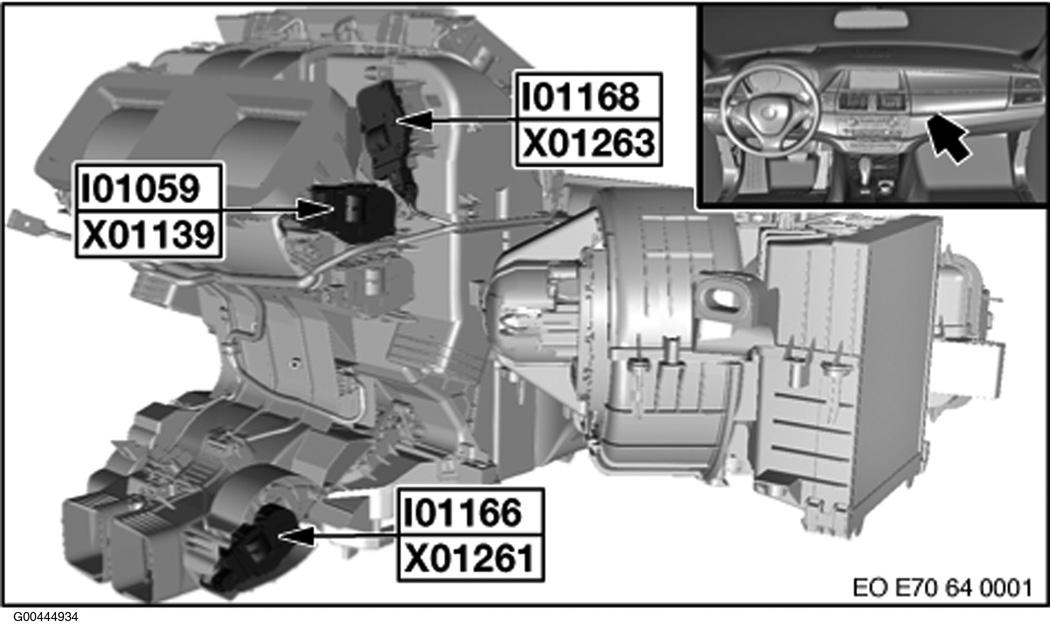

Fig 64: Center Of Dash

G00444934

Courtesy of BMW OF NORTH AMERICA, INC.

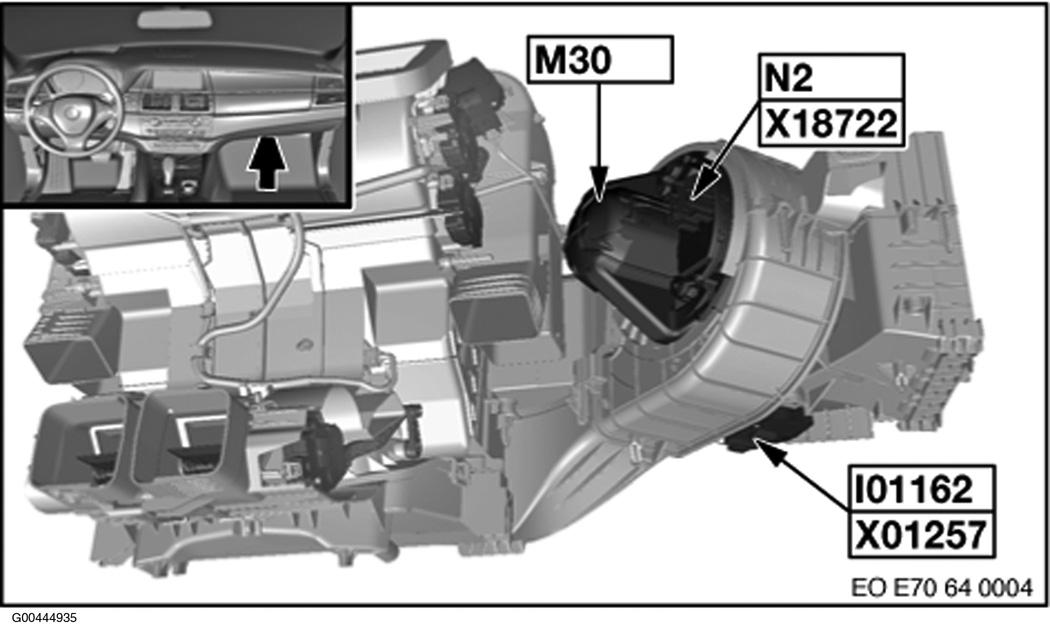

Fig 65: Right Side Of Dash

G00444935

Courtesy of BMW OF NORTH AMERICA, INC.

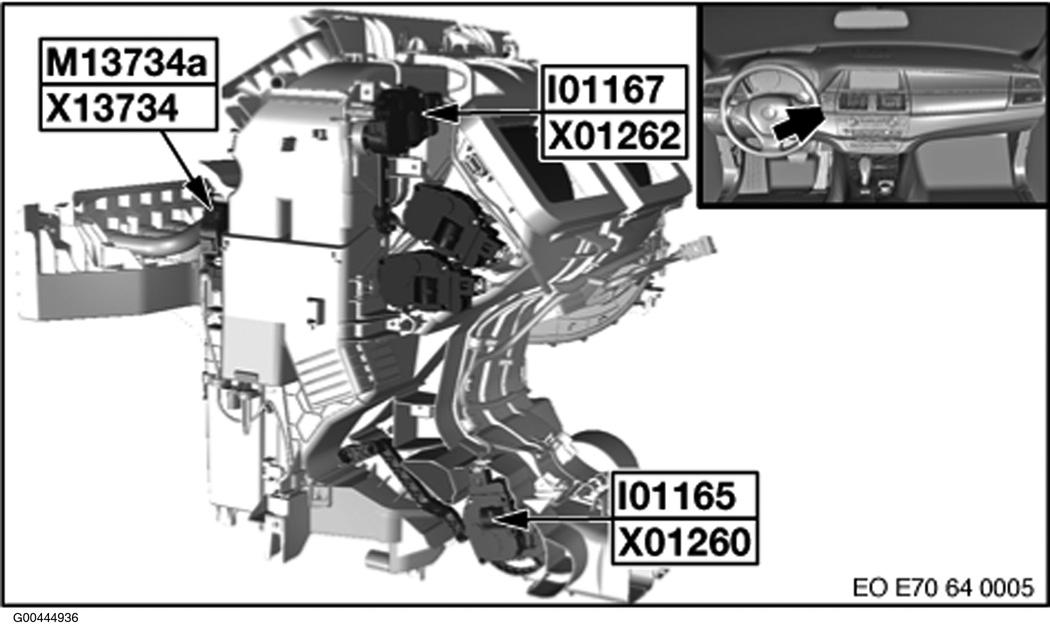

Fig 66: Center Of Dash

G00444936

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Right Front Wheelwell

G00444937

Courtesy of BMW OF NORTH AMERICA, INC.

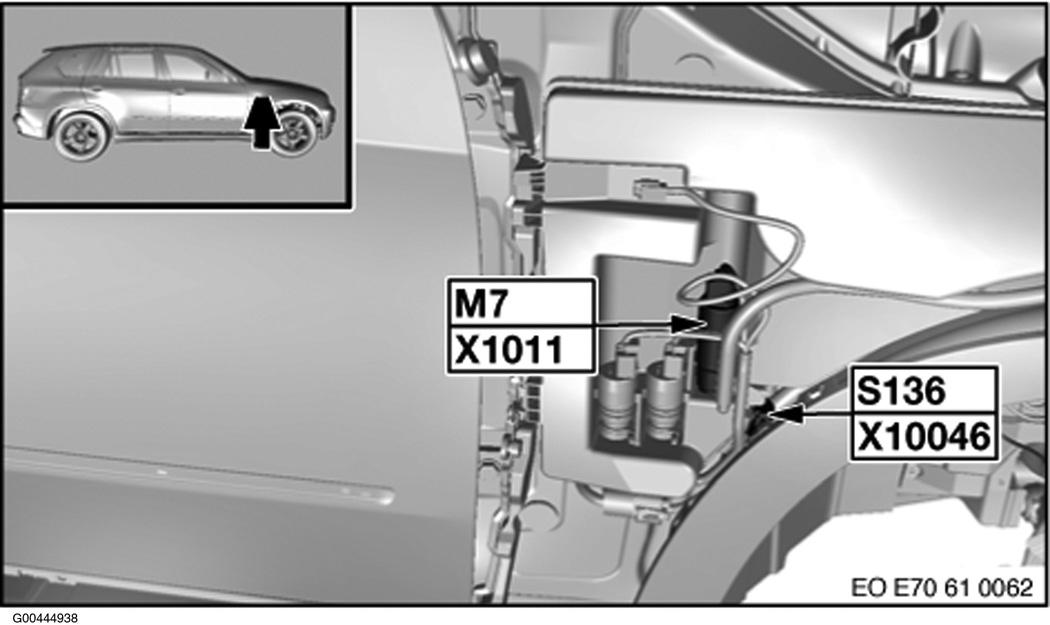

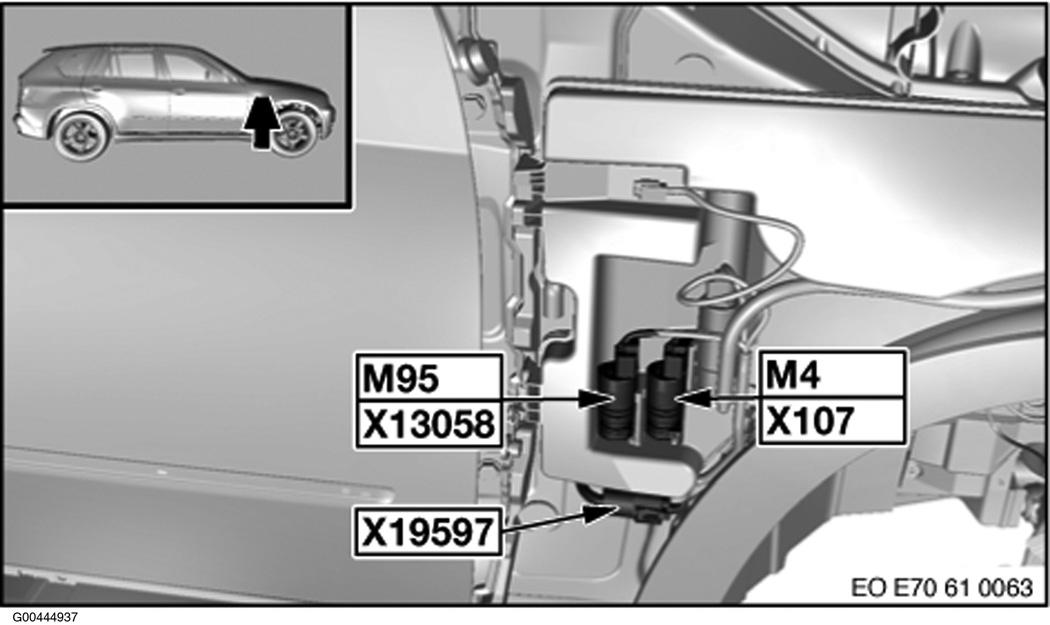

Fig 68: Right Front Wheelwell

G00444938

Courtesy of BMW OF NORTH AMERICA, INC.

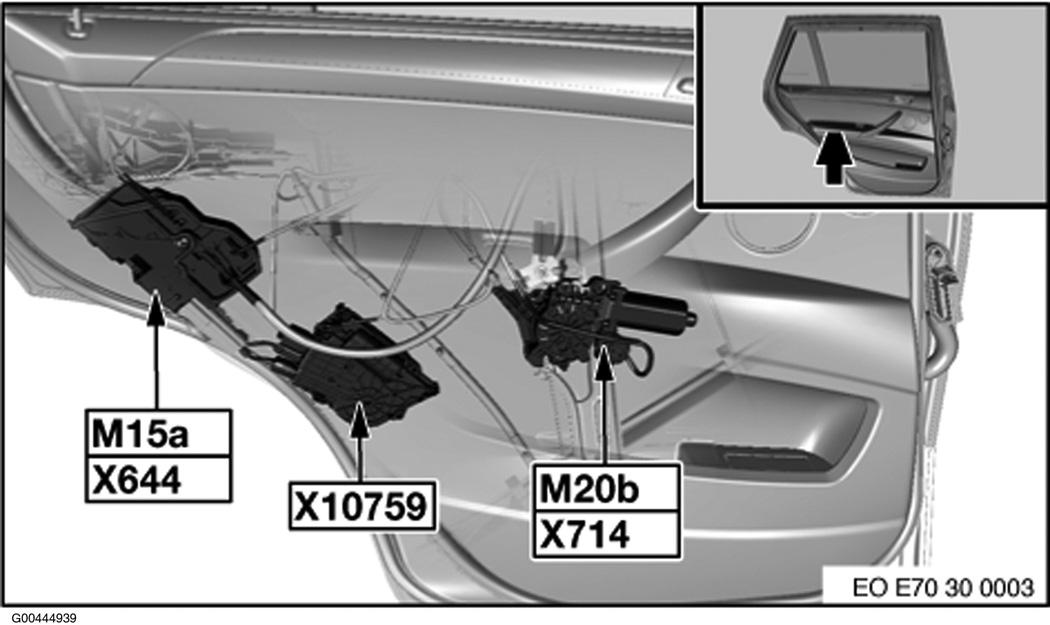

Fig 69: Left Rear Door

G00444939

Courtesy of BMW OF NORTH AMERICA, INC.

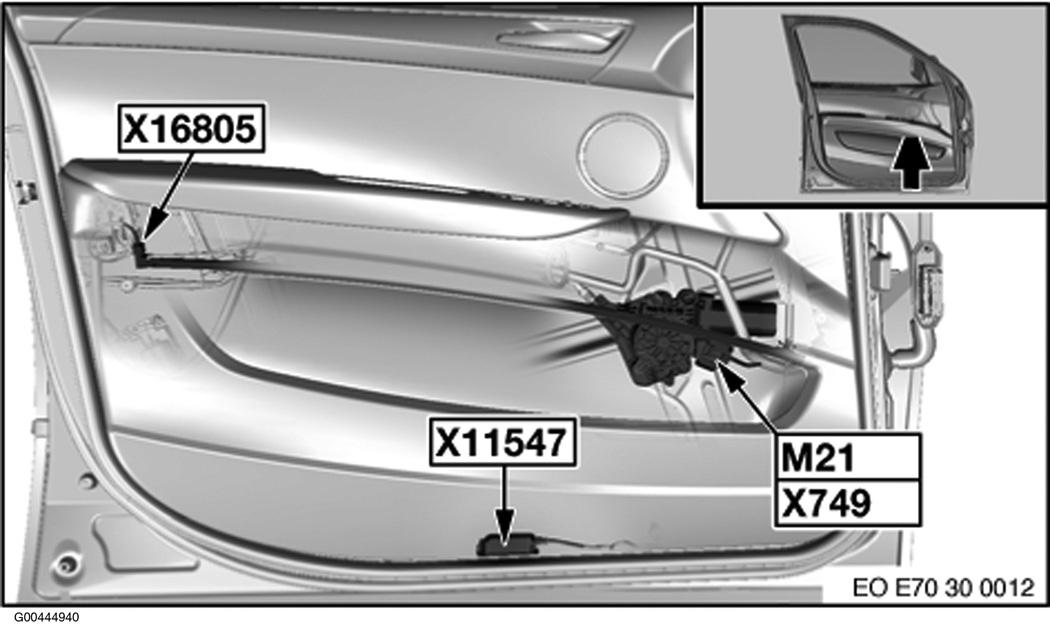

Fig 70: Driver's Door

G00444940

Courtesy of BMW OF NORTH AMERICA, INC.

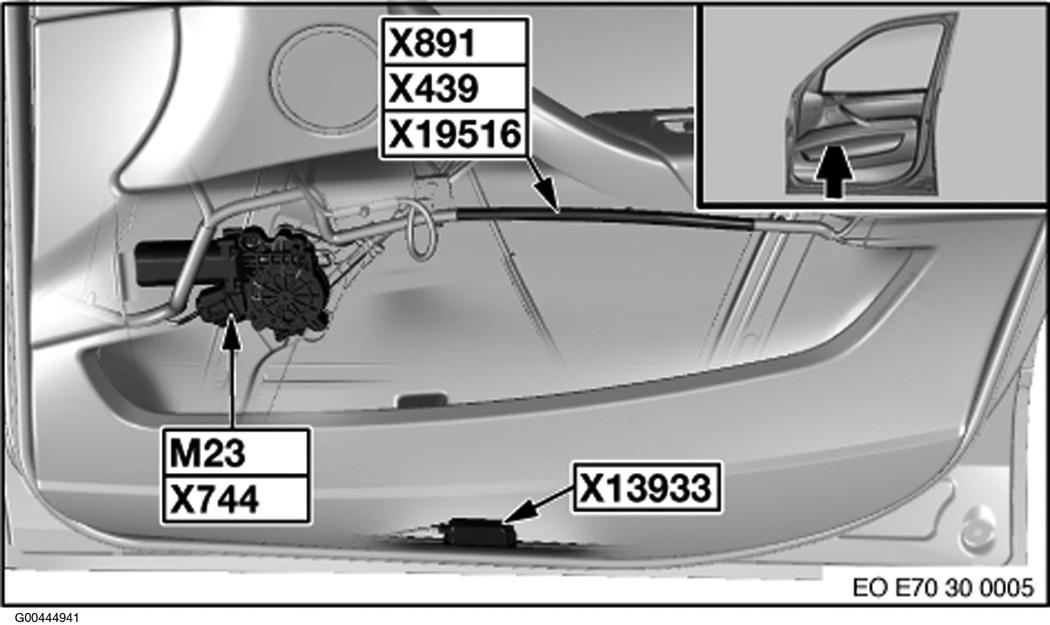

Fig 71: Front Passenger's Door

G00444941

Courtesy of BMW OF NORTH AMERICA, INC.

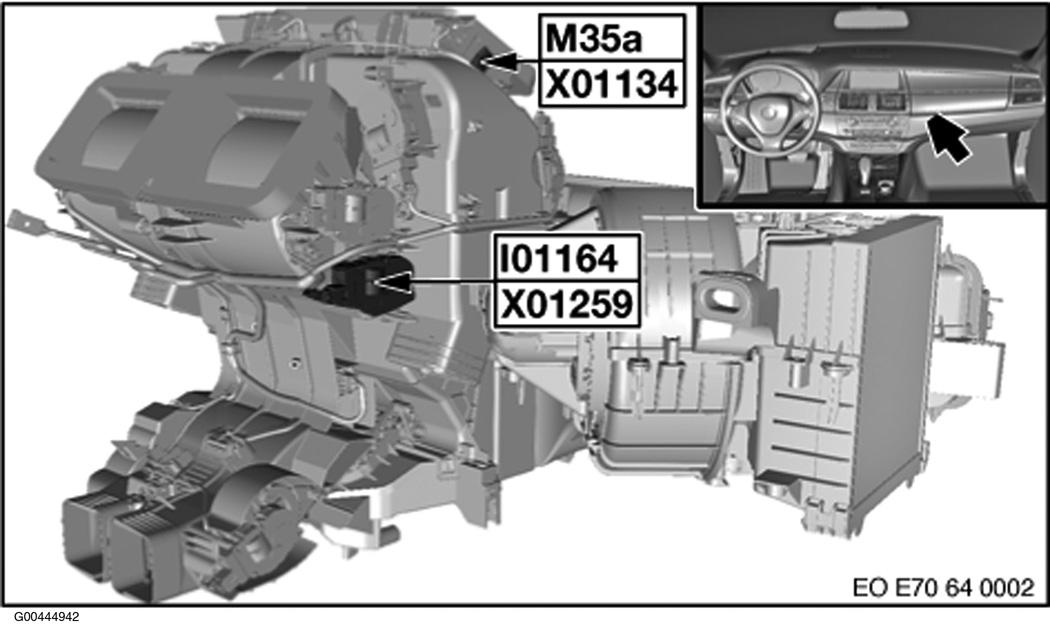

Fig 72: Center Of Dash

G00444942

Courtesy of BMW OF NORTH AMERICA, INC.

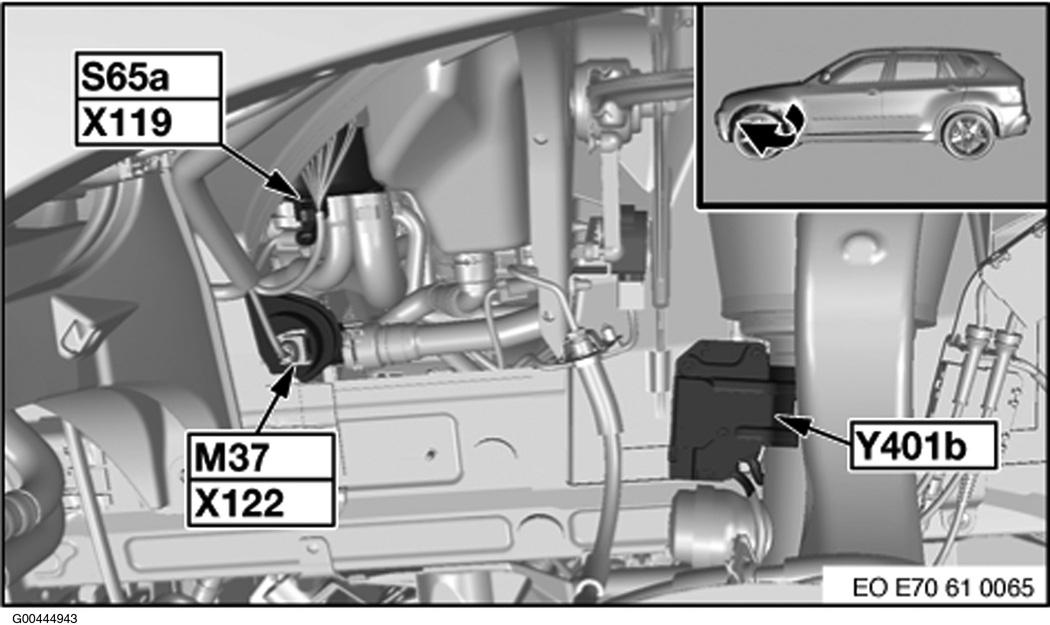

Fig 73: Left Front Wheelwell

G00444943

Courtesy of BMW OF NORTH AMERICA, INC.

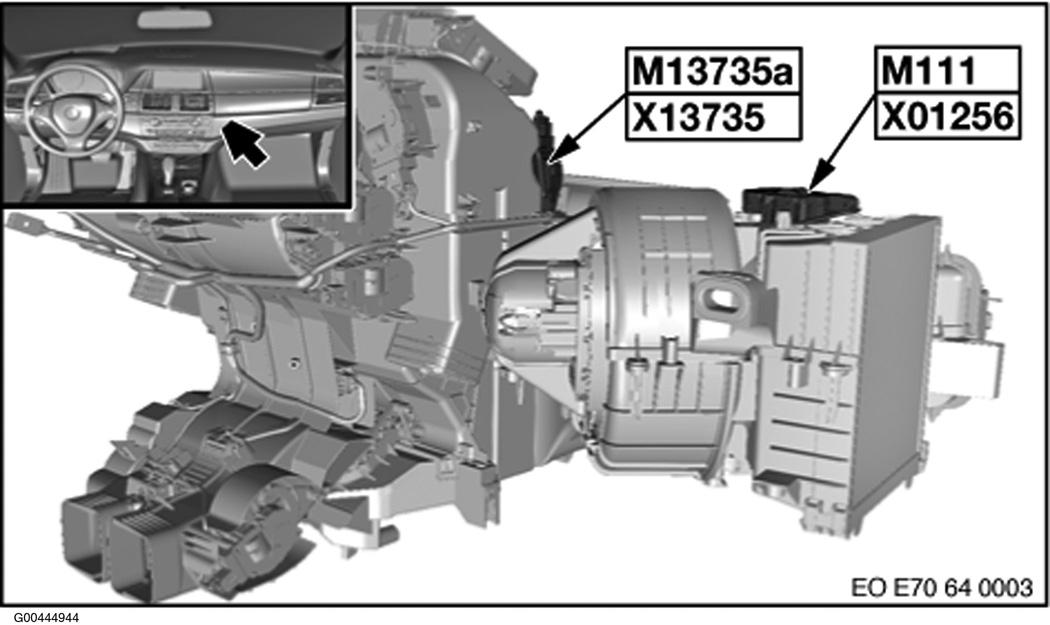

Fig 74: Center Of Dash

G00444944

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 75: Right Rear Wheelwell

G00444945

Courtesy of BMW OF NORTH AMERICA, INC.

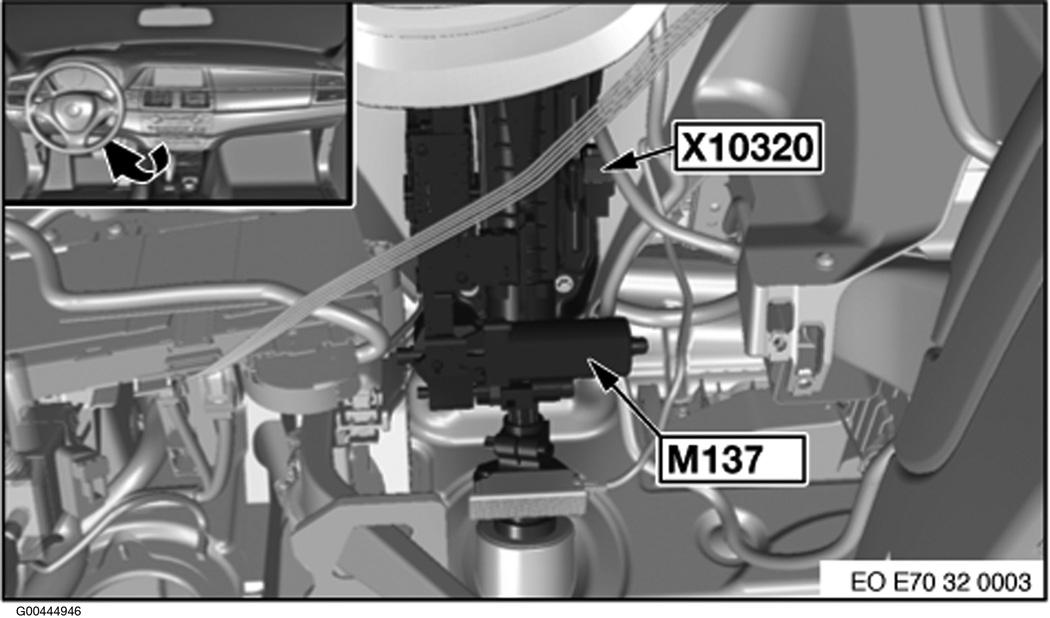

Fig 76: Left Side Of Dash

G00444946

Courtesy of BMW OF NORTH AMERICA, INC.

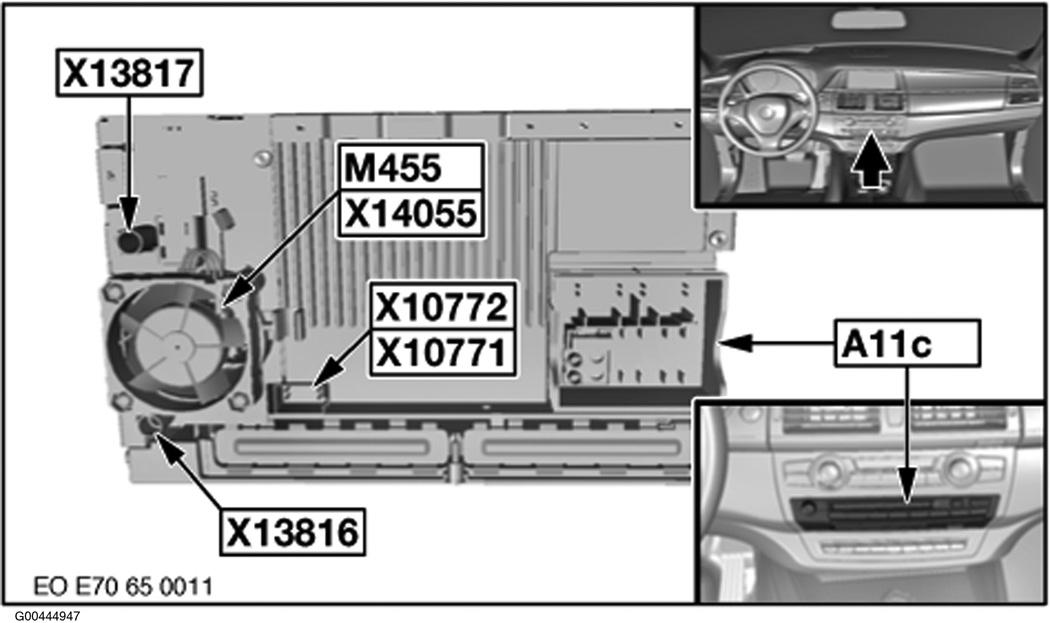

Fig 77: Center Of Dash

G00444947

Courtesy of BMW OF NORTH AMERICA, INC.

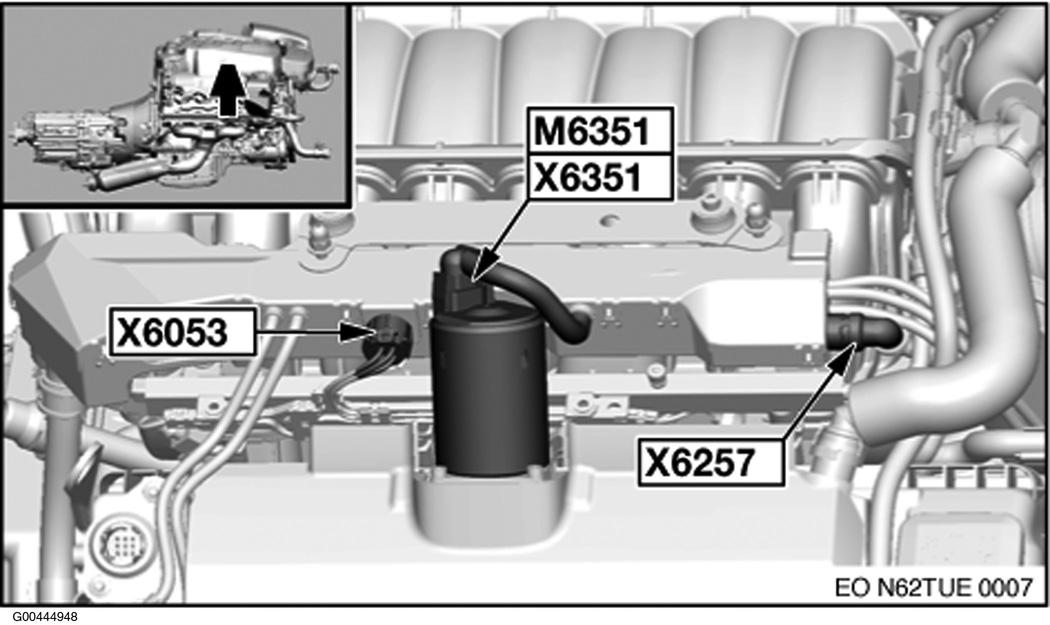

Fig 78: Right Side Of Engine (4.8L)

G00444948

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 79: Left Side Of Engine (4.8L)

G00444949

Courtesy of BMW OF NORTH AMERICA, INC.

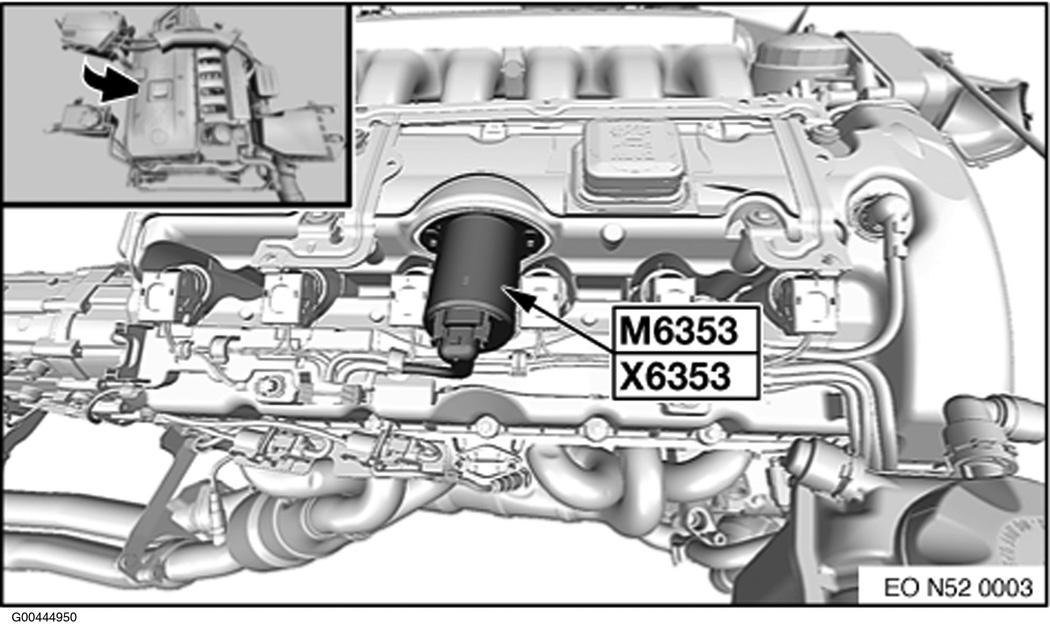

Fig 80: Top Of Engine (3.0L)

G00444950

Courtesy of BMW OF NORTH AMERICA, INC.

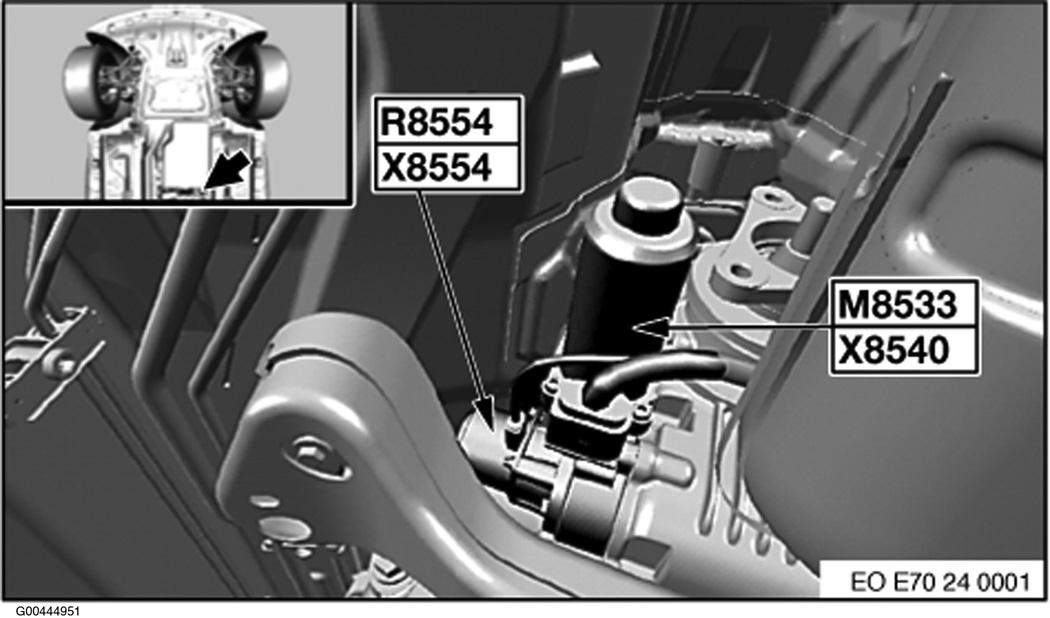

Fig 81: Under Vehicle

G00444951

Courtesy of BMW OF NORTH AMERICA, INC.

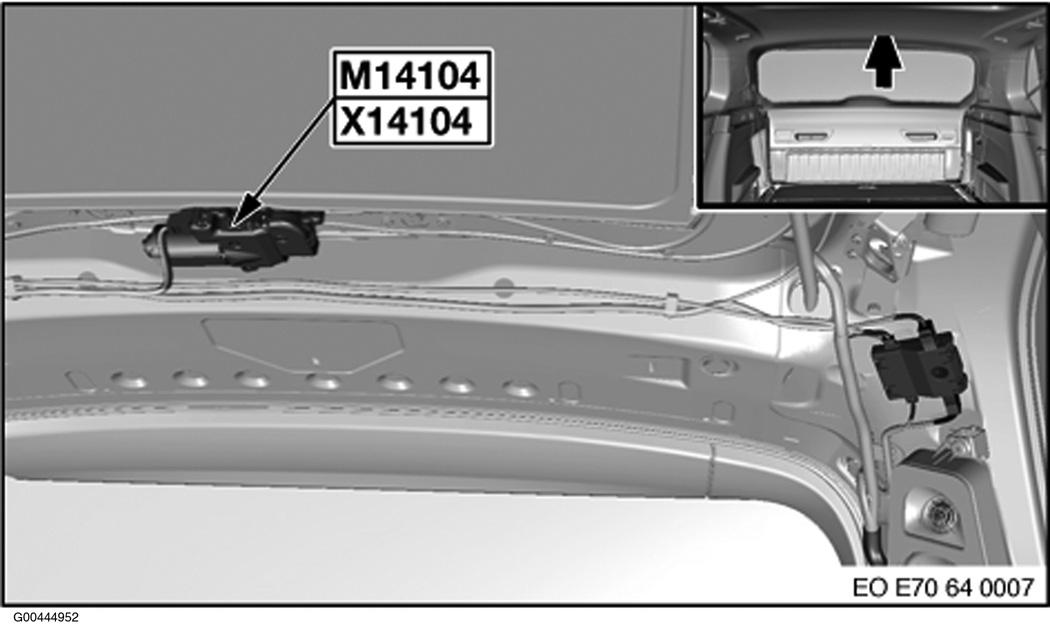

Fig 82: Rear Of Roof

G00444952

Courtesy of BMW OF NORTH AMERICA, INC.

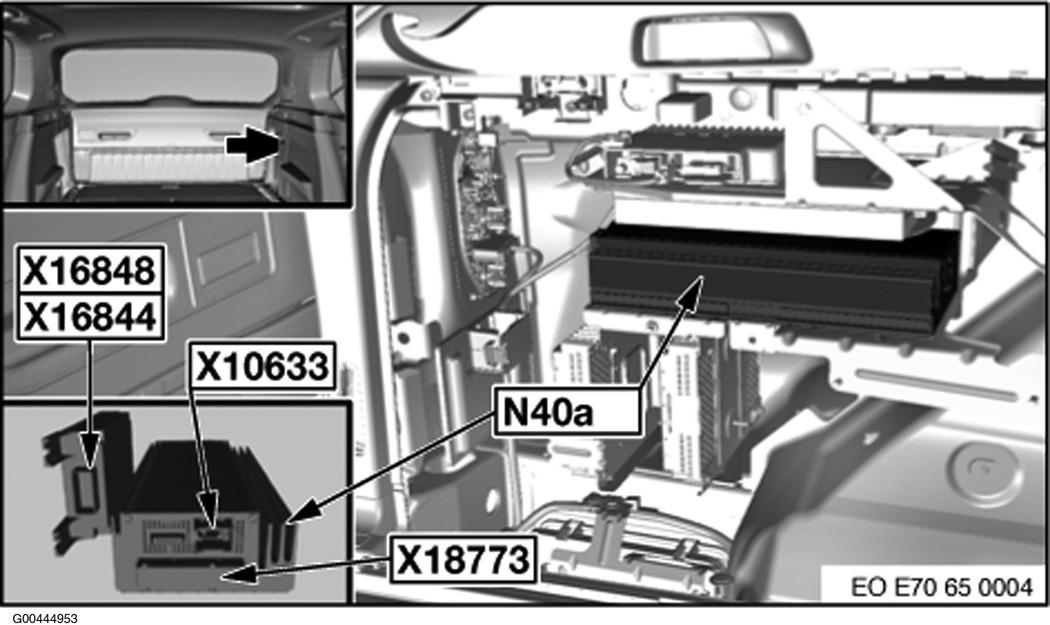

Fig 83: Rear Compartment

G00444953

Courtesy of BMW OF NORTH AMERICA, INC.

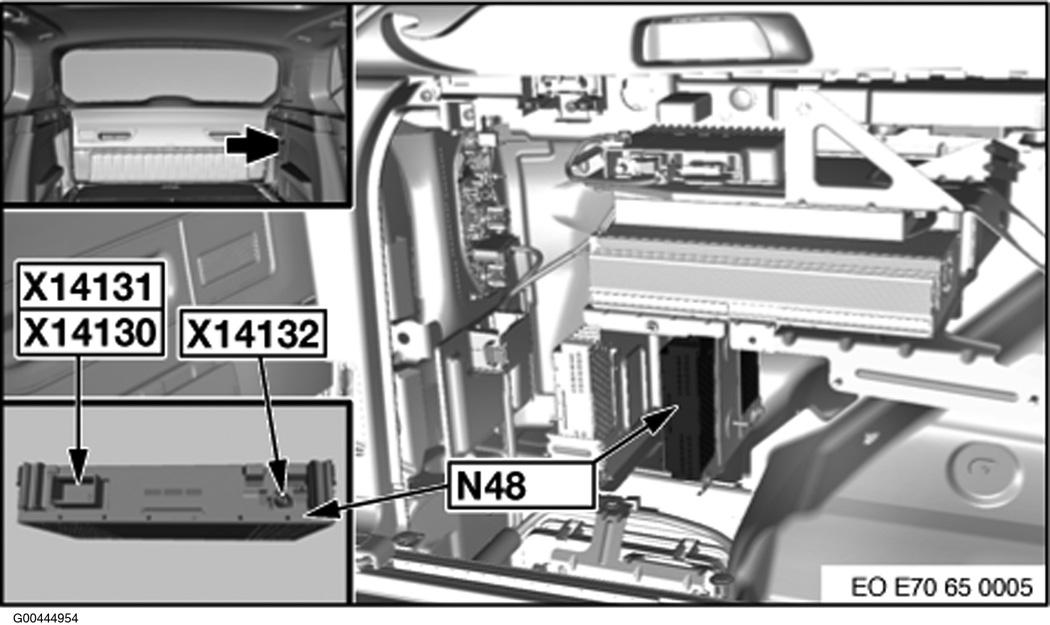

Fig 84: Rear Compartment

G00444954

Courtesy of BMW OF NORTH AMERICA, INC.

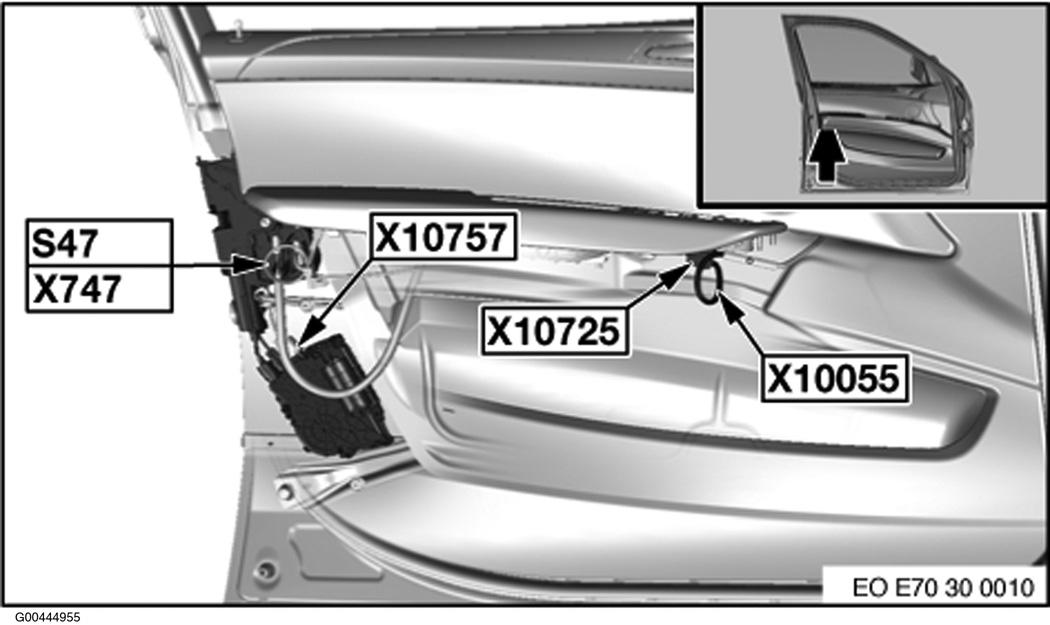

Fig 85: Driver's Door

G00444955

Courtesy of BMW OF NORTH AMERICA, INC.

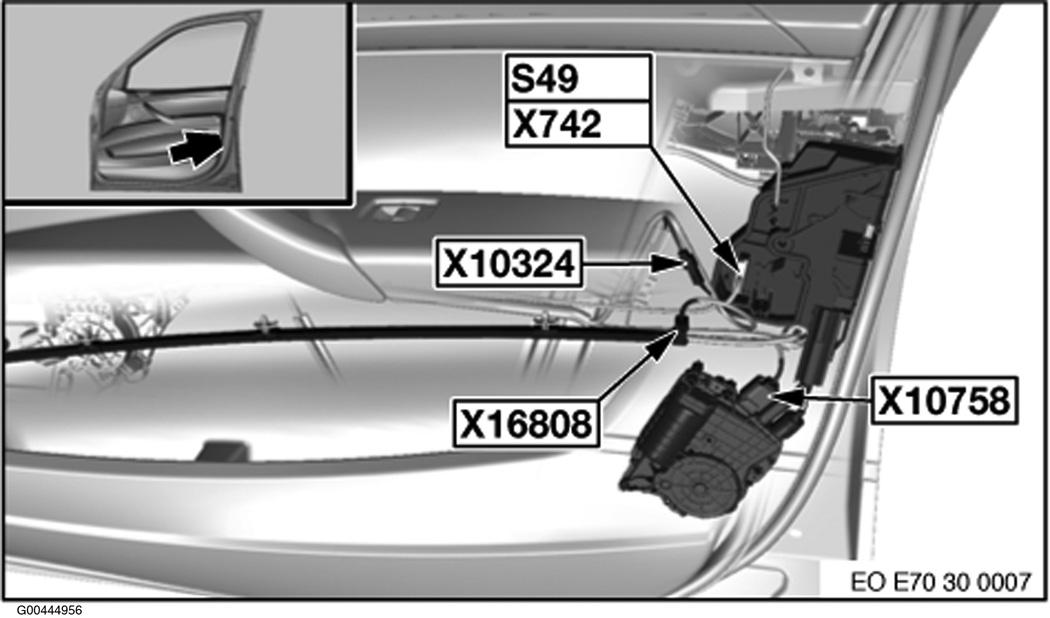

Fig 86: Front Passenger's Door

G00444956

Courtesy of BMW OF NORTH AMERICA, INC.

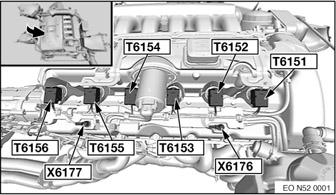

Fig 87: Top Of Engine (3.0L)

G00444957

Courtesy of BMW OF NORTH AMERICA, INC.

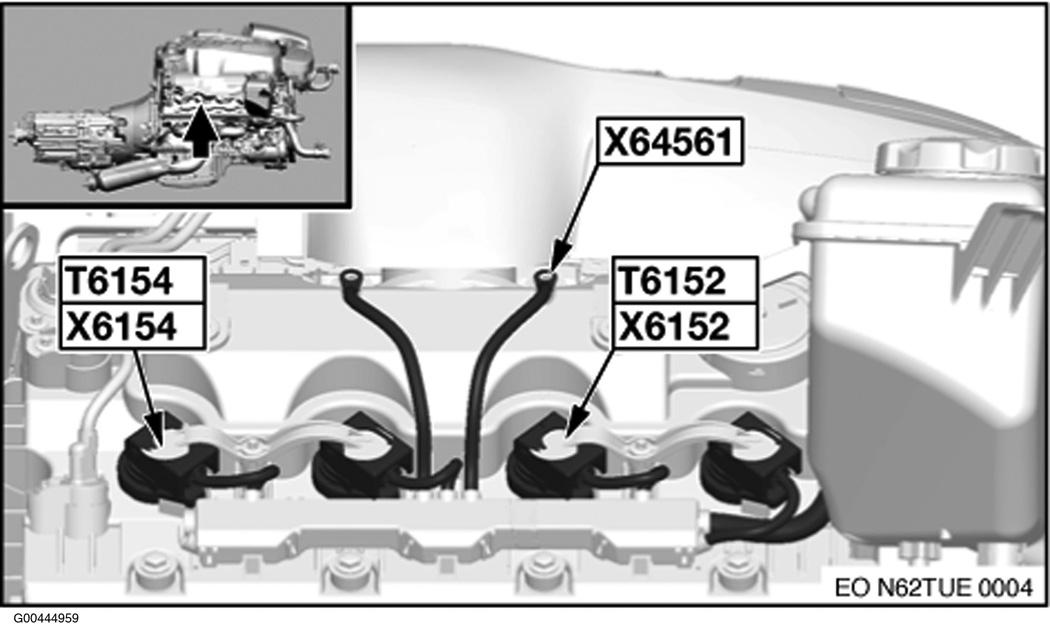

Fig 88: Right Side Of Engine (4.8L)

G00444958

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 89: Right Side Of Engine (4.8L)

G00444959

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 90: Left Side Of Engine (4.8L)

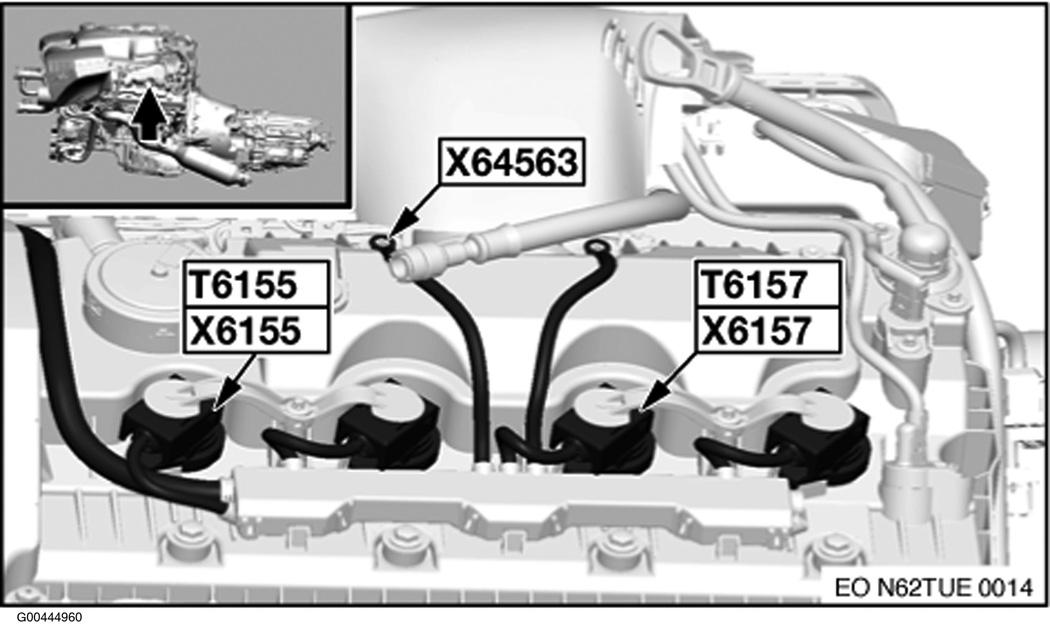

G00444960

Courtesy of BMW OF NORTH AMERICA, INC.

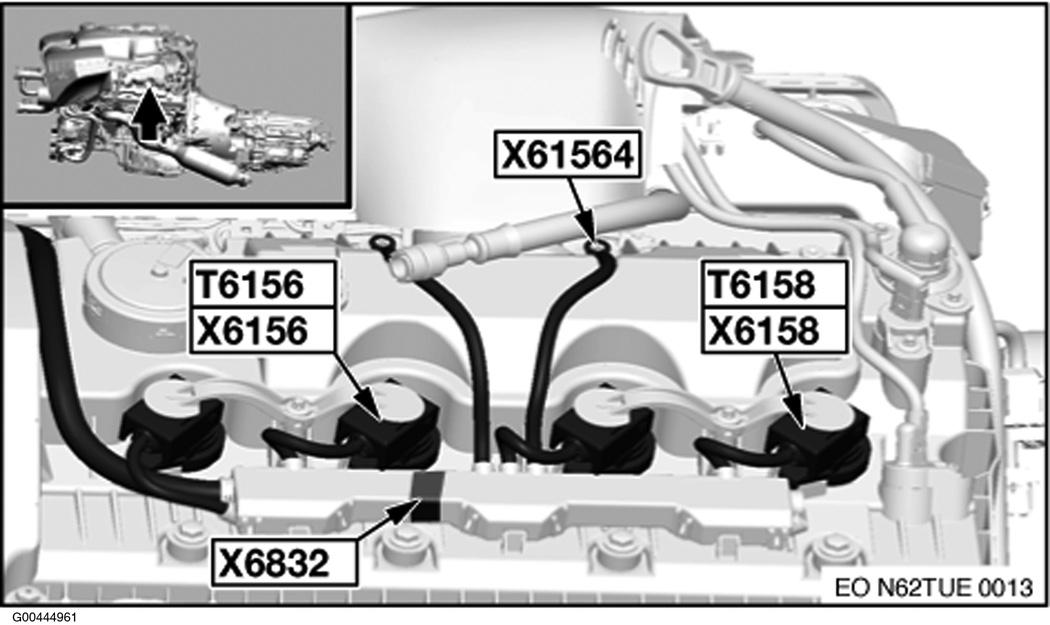

Fig 91: Left Side Of Engine (4.8L)

G00444961

Courtesy of BMW OF NORTH AMERICA, INC.

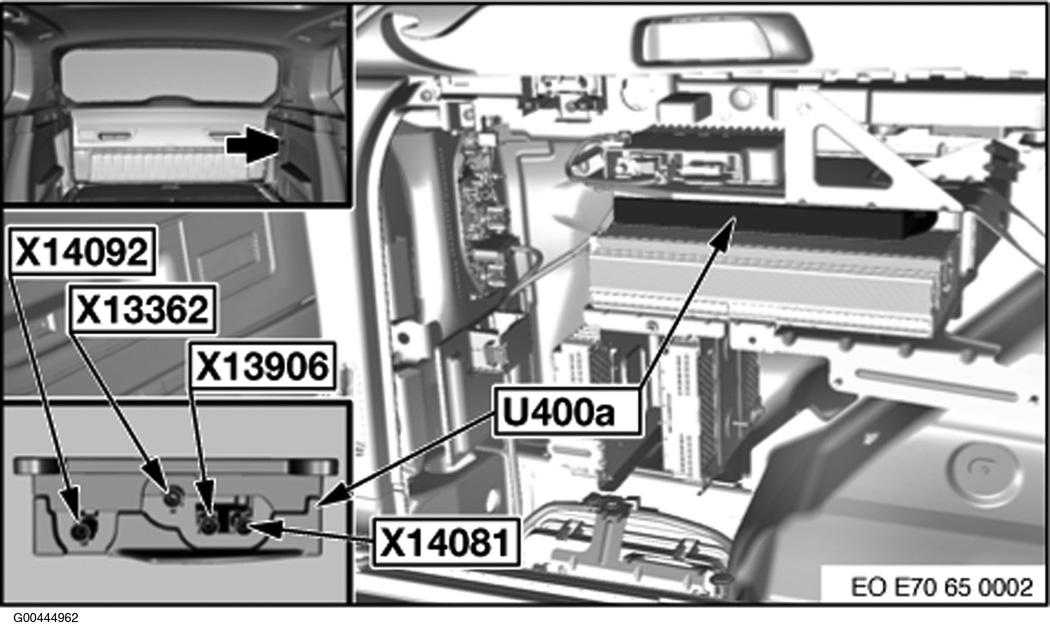

Fig 92: Rear Compartment

G00444962

Courtesy of BMW OF NORTH AMERICA, INC.

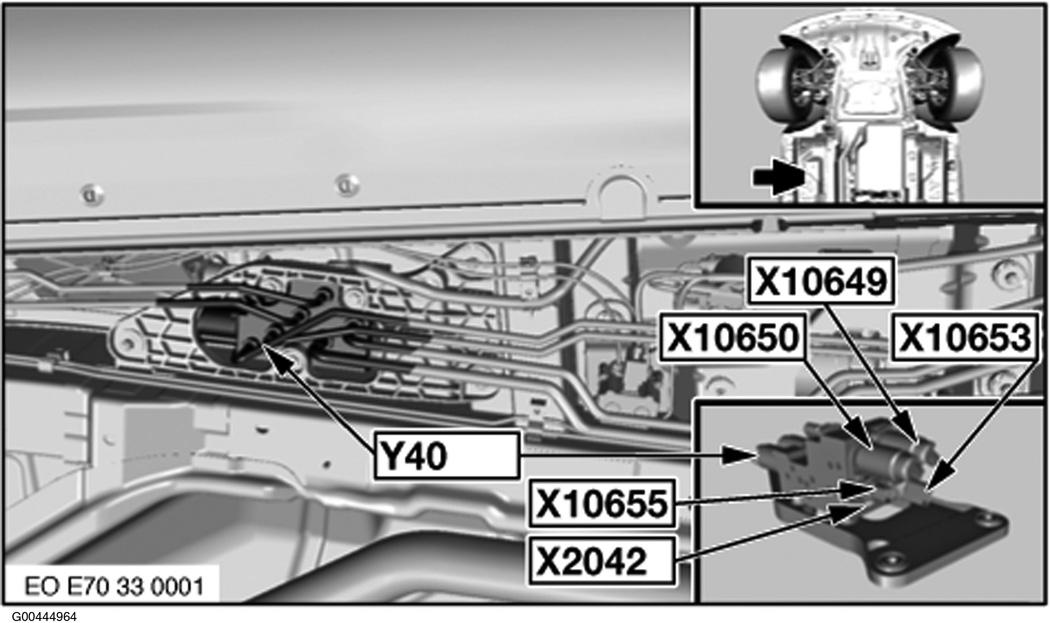

Fig 93: Under Vehicle

G00444964

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 94: Top Of Engine (3.0L)

G00444966

Courtesy of BMW OF NORTH AMERICA, INC.

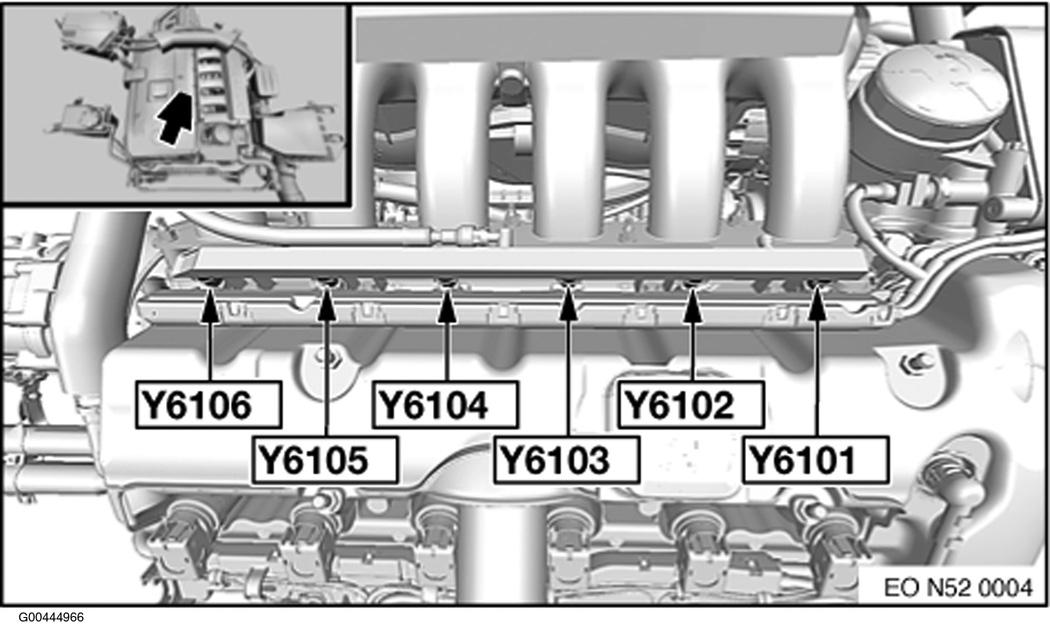

Fig 95: Top Of Engine (4.8L)

G00444967

Courtesy of BMW OF NORTH AMERICA, INC.

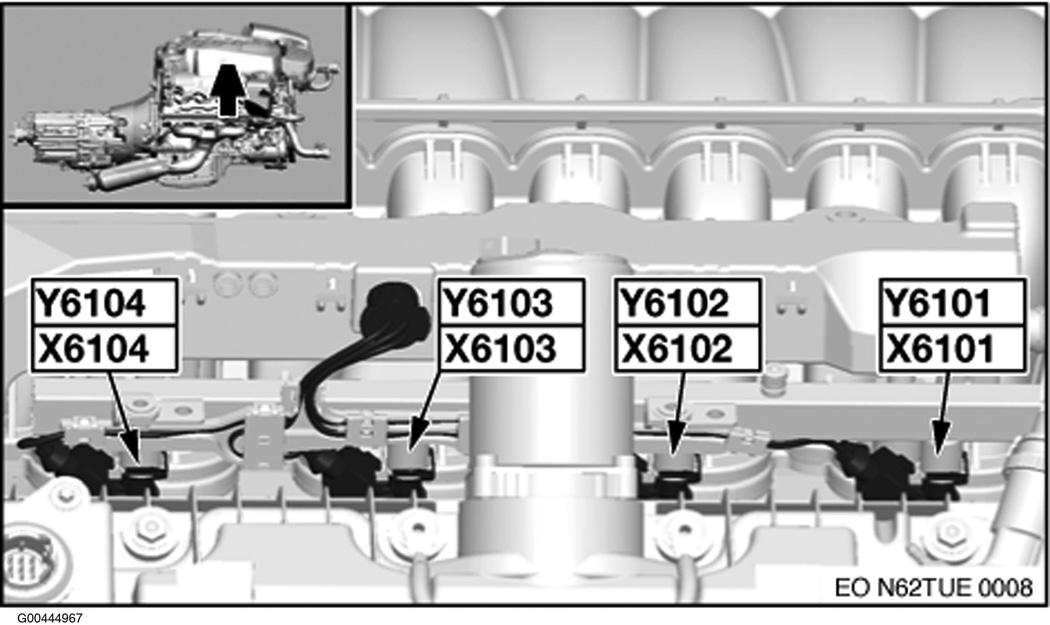

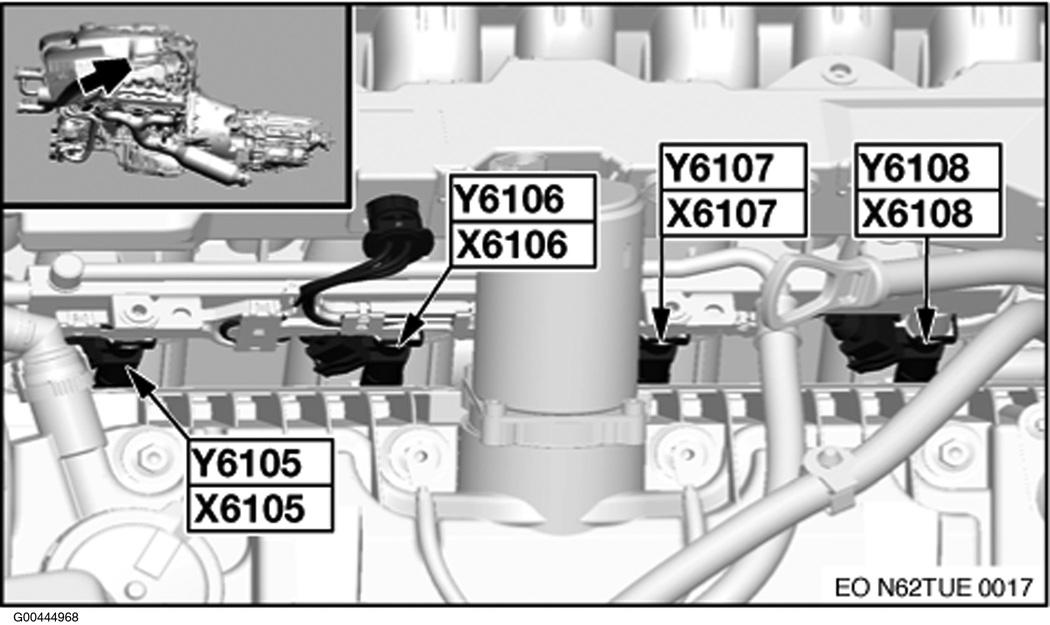

Fig 96: Top Of Engine (4.8L)

G00444968

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 97: Left Side Of Engine (3.0L)

G00444969

Courtesy of BMW OF NORTH AMERICA, INC.

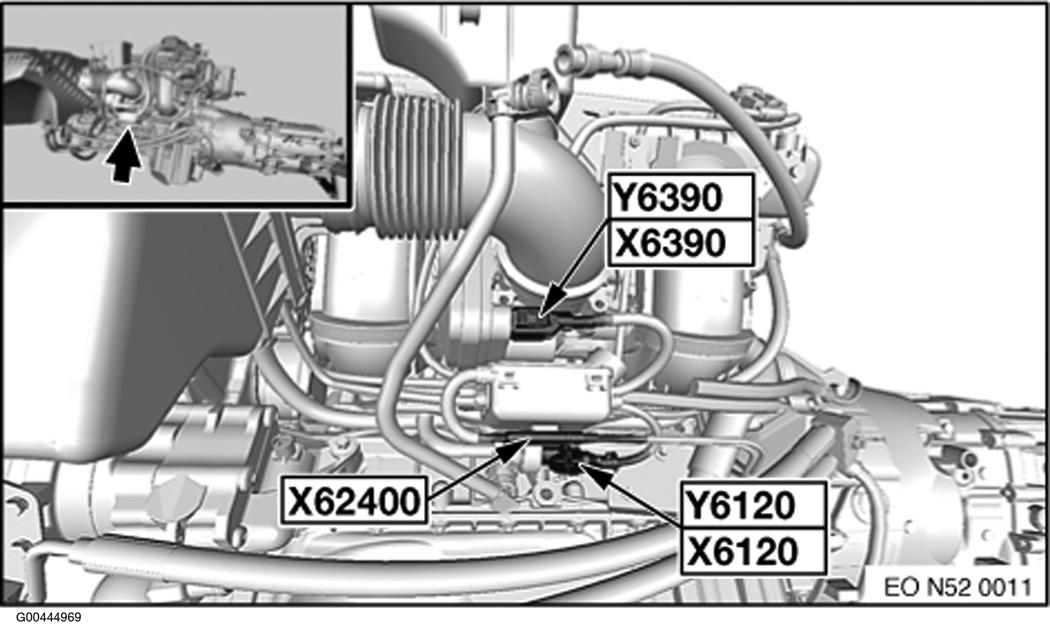

Fig 98: Front Of Engine (4.8L)

G00444970

Courtesy of BMW OF NORTH AMERICA, INC.

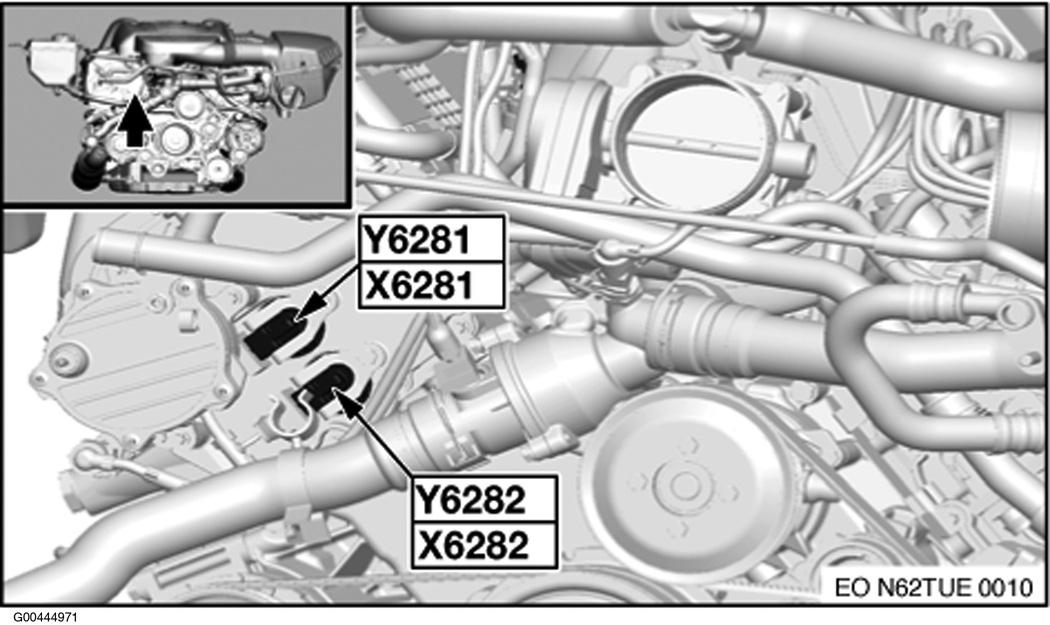

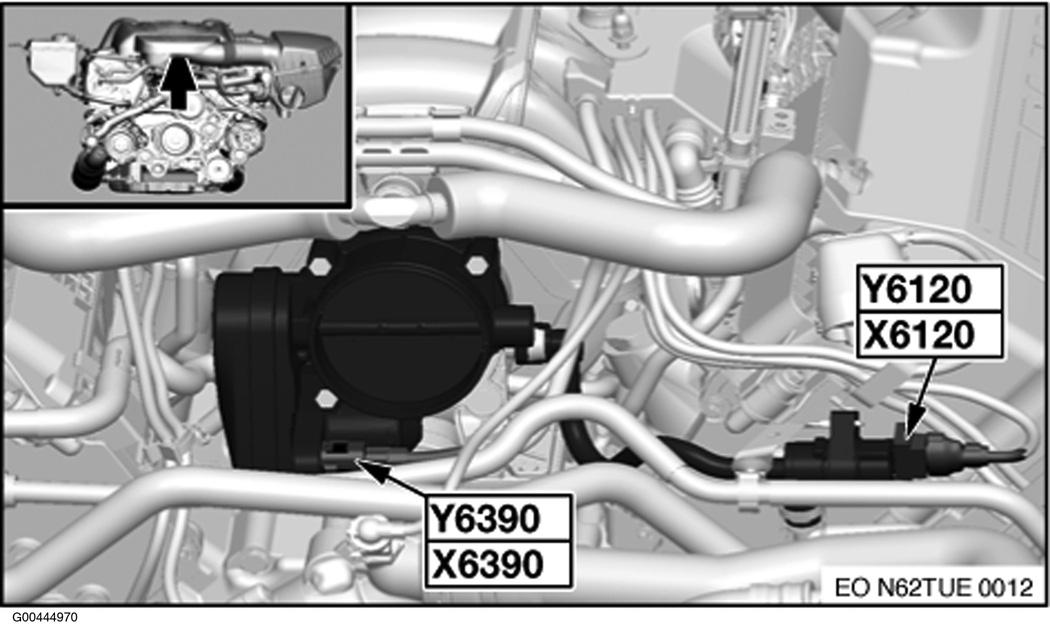

Fig 99: Front Of Engine (4.8L)

G00444971

Courtesy of BMW OF NORTH AMERICA, INC.

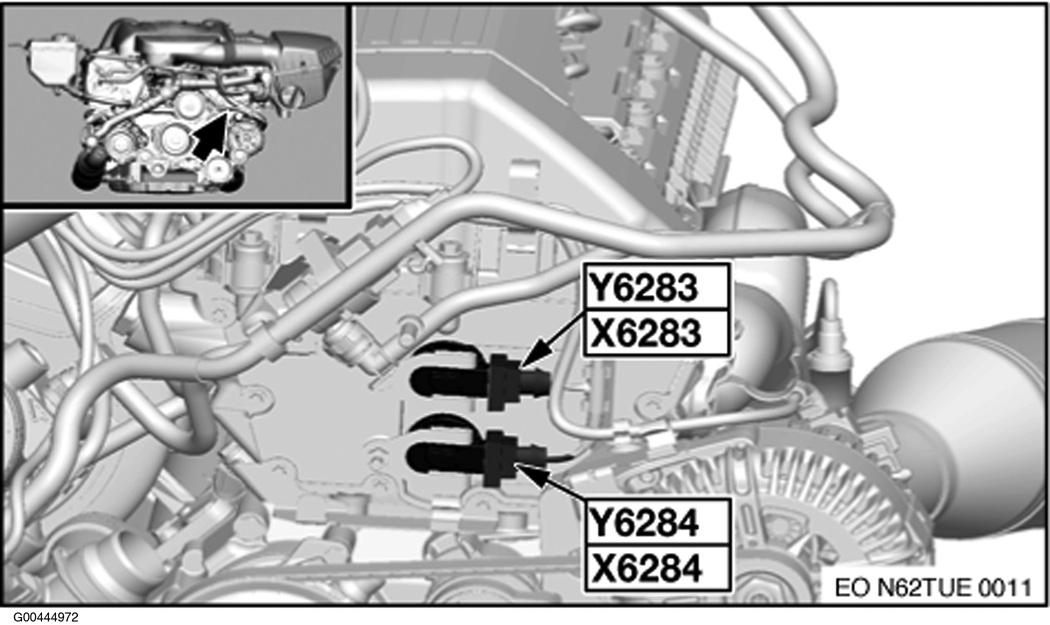

Fig 100: Front Of Engine (4.8L)

G00444972

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 101: Rear Compartment

G00444973

Courtesy of BMW OF NORTH AMERICA, INC.

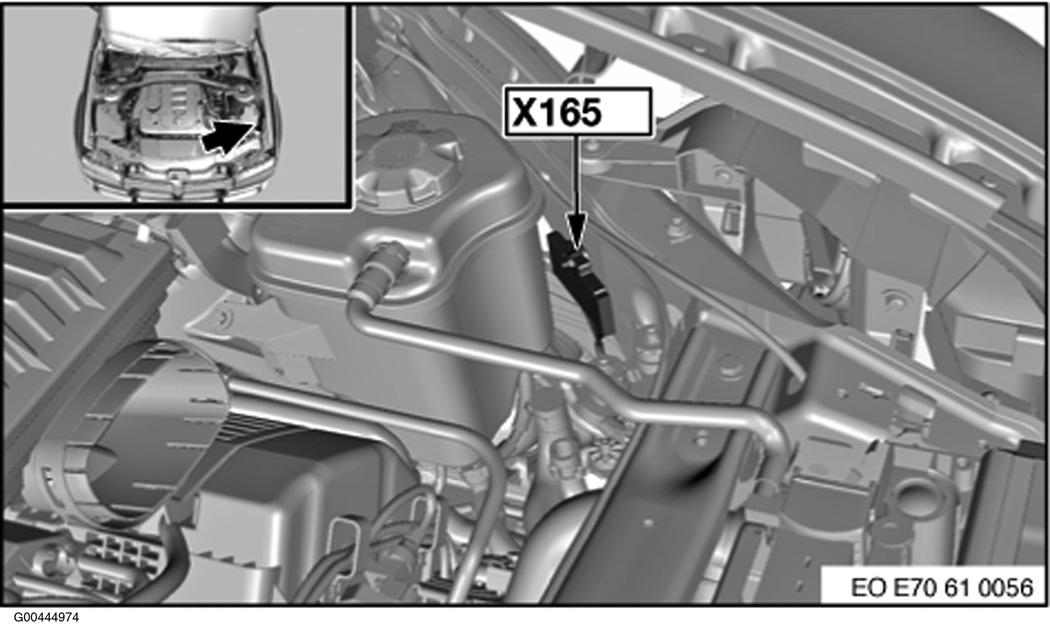

Fig 102: Left Front Of Engine Compartment

G00444974

Courtesy of BMW OF NORTH AMERICA, INC.

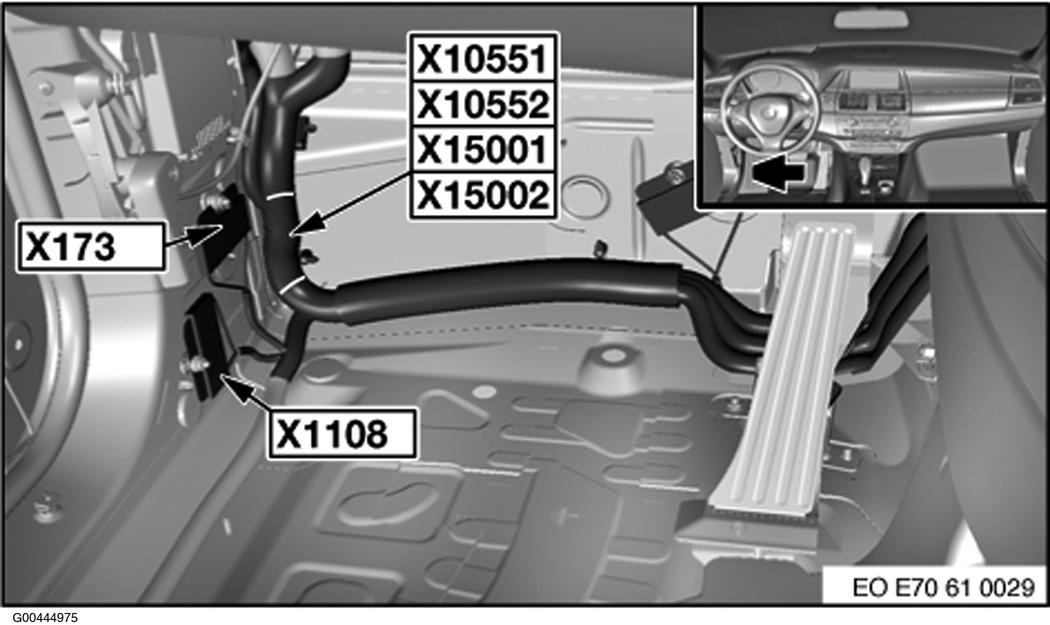

Fig 103: Left "A" Pillar

G00444975

Courtesy of BMW OF NORTH AMERICA, INC.

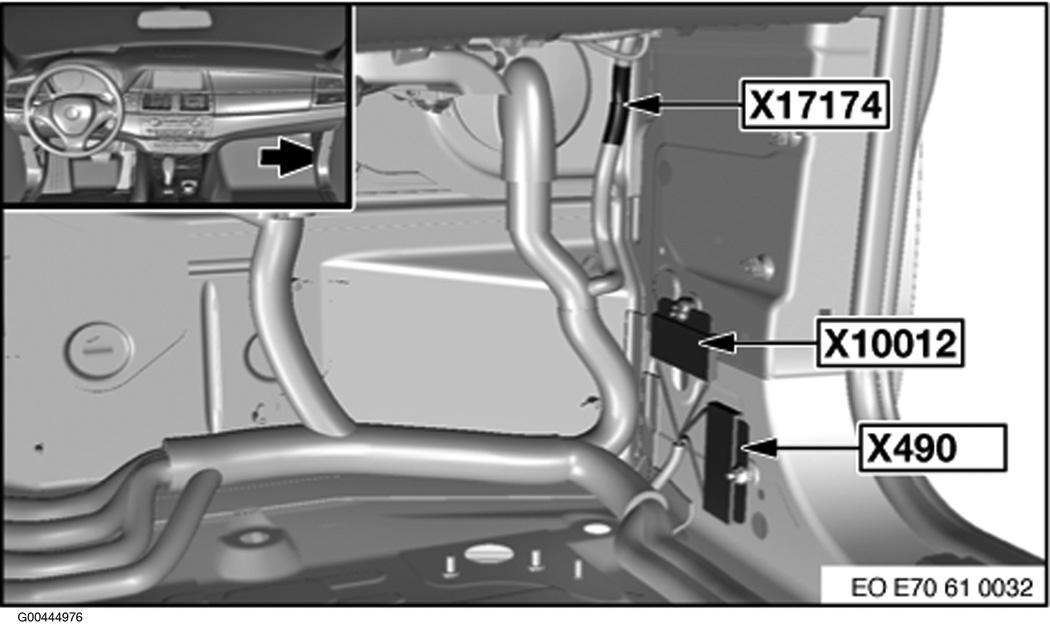

Fig 104: Right "A" Pillar

G00444976

Courtesy of BMW OF NORTH AMERICA, INC.

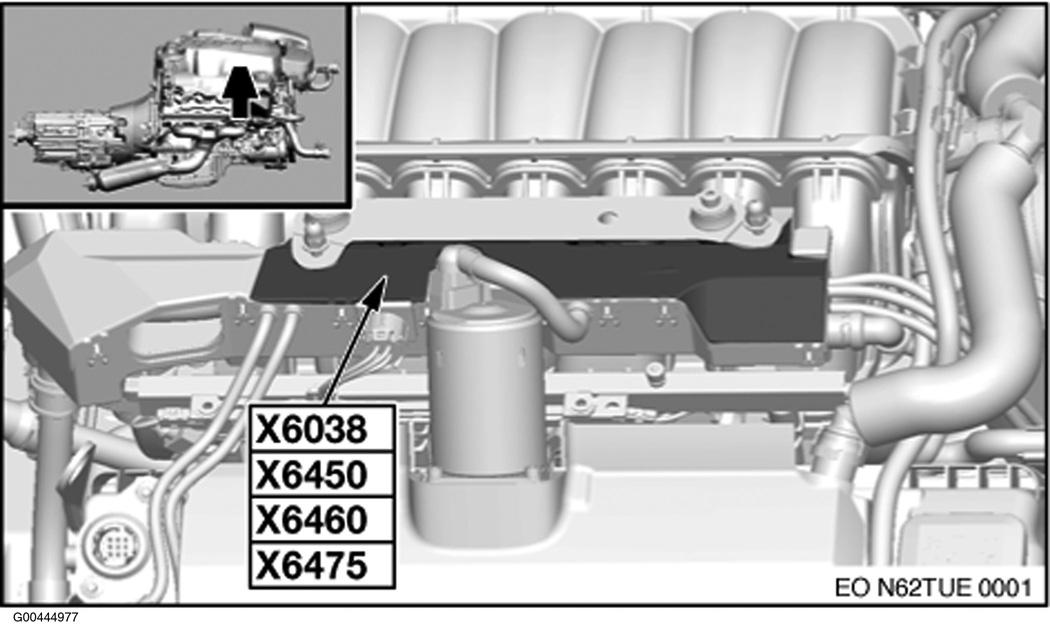

Fig 105: Right Side Of Engine (4.8L)

G00444977

Courtesy of BMW OF NORTH AMERICA, INC.

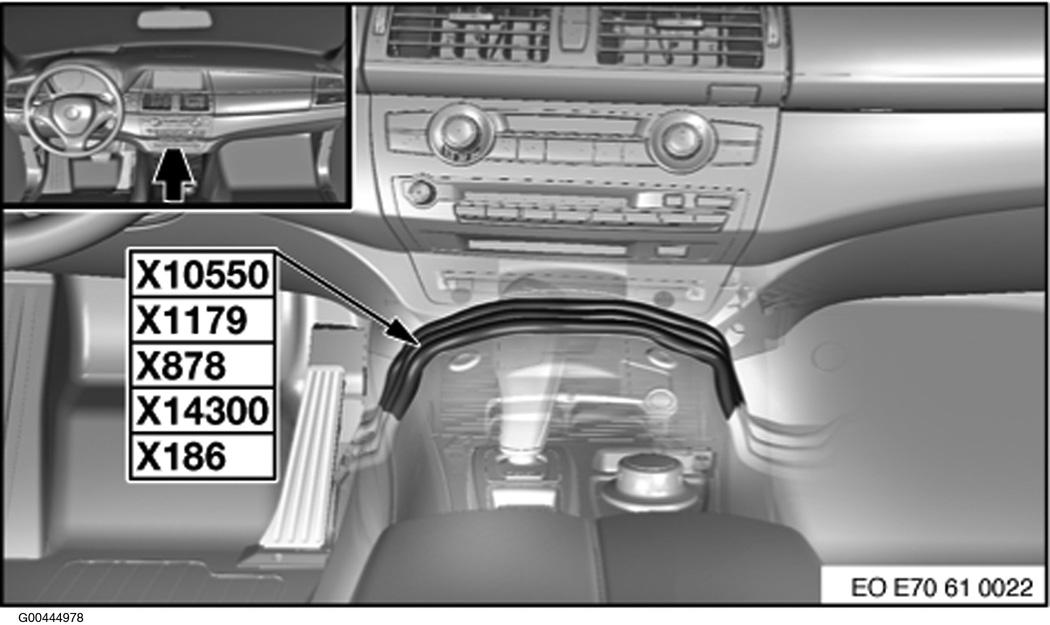

Fig 106: Center Of Dash

G00444978

Courtesy of BMW OF NORTH AMERICA, INC.

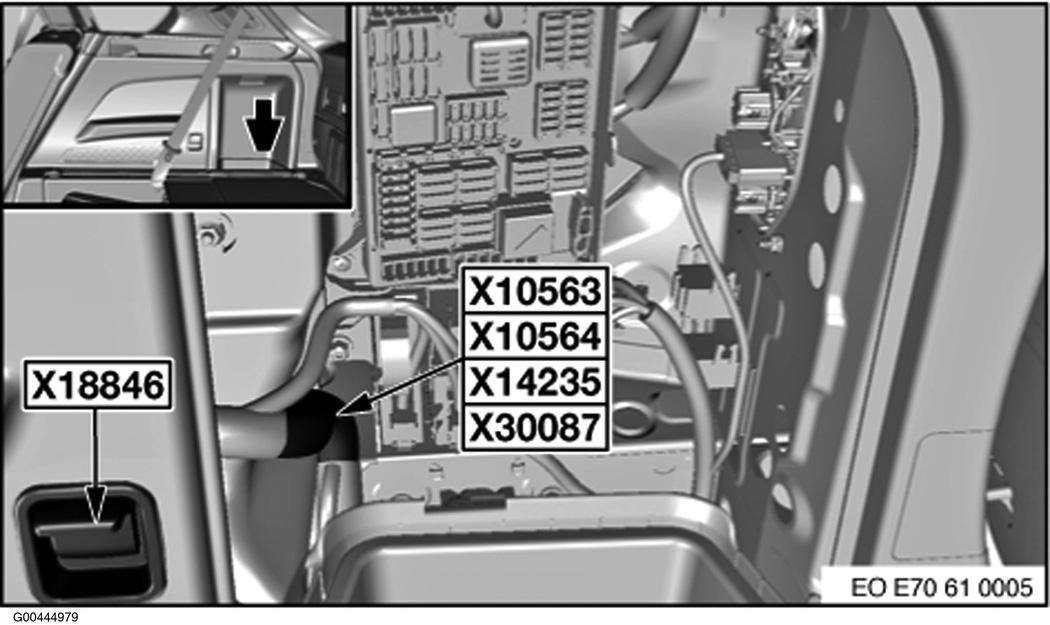

Fig 107: Rear Compartment

G00444979

Courtesy of BMW OF NORTH AMERICA, INC.

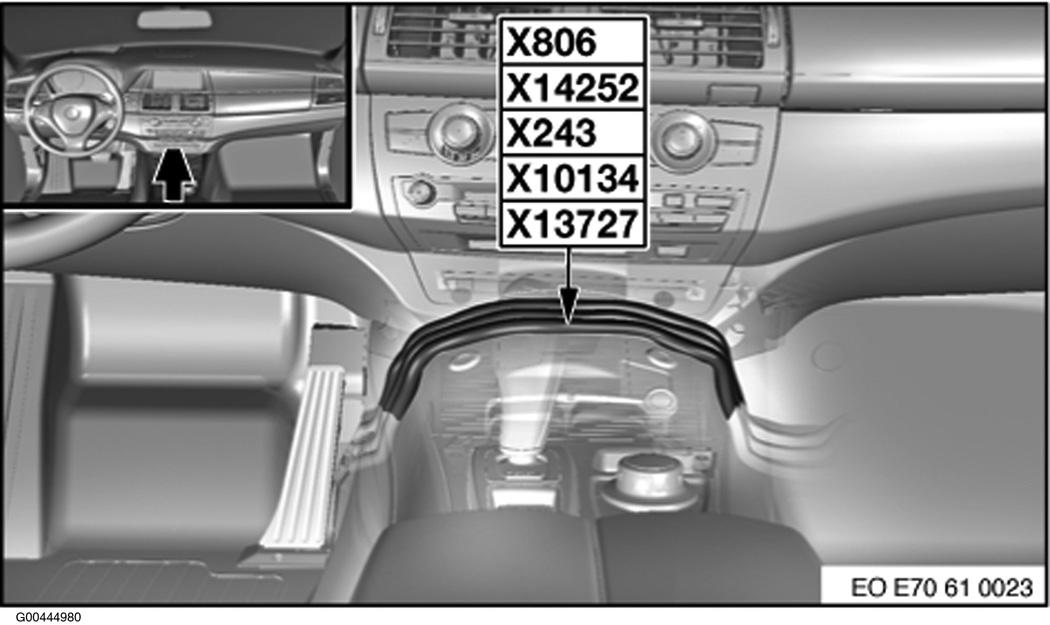

Fig 108: Center Of Dash

G00444980

Courtesy of BMW OF NORTH AMERICA, INC.

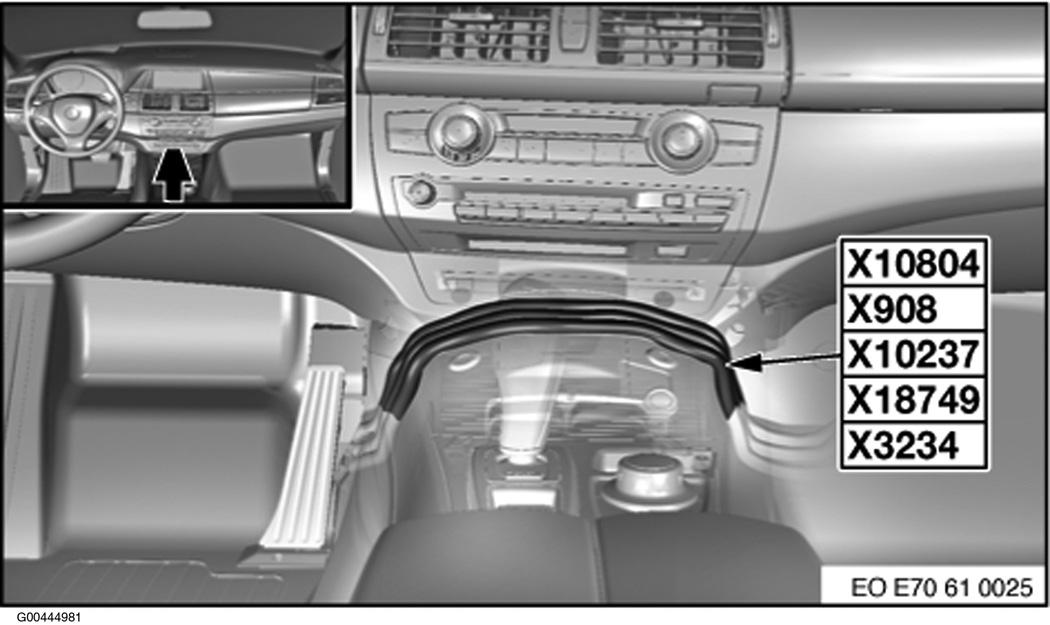

Fig 109: Center Of Dash

G00444981

Courtesy of BMW OF NORTH AMERICA, INC.

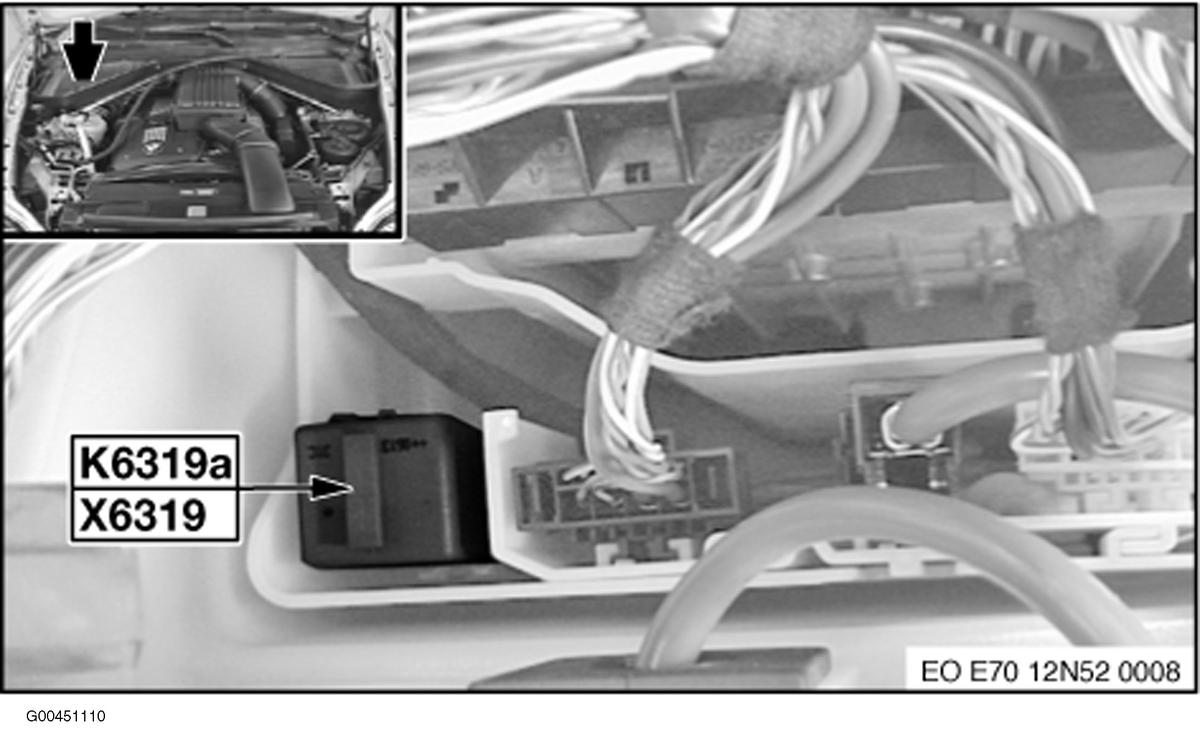

Fig 110: Right Side Of Dash

G00451110

Courtesy of BMW OF NORTH AMERICA, INC.

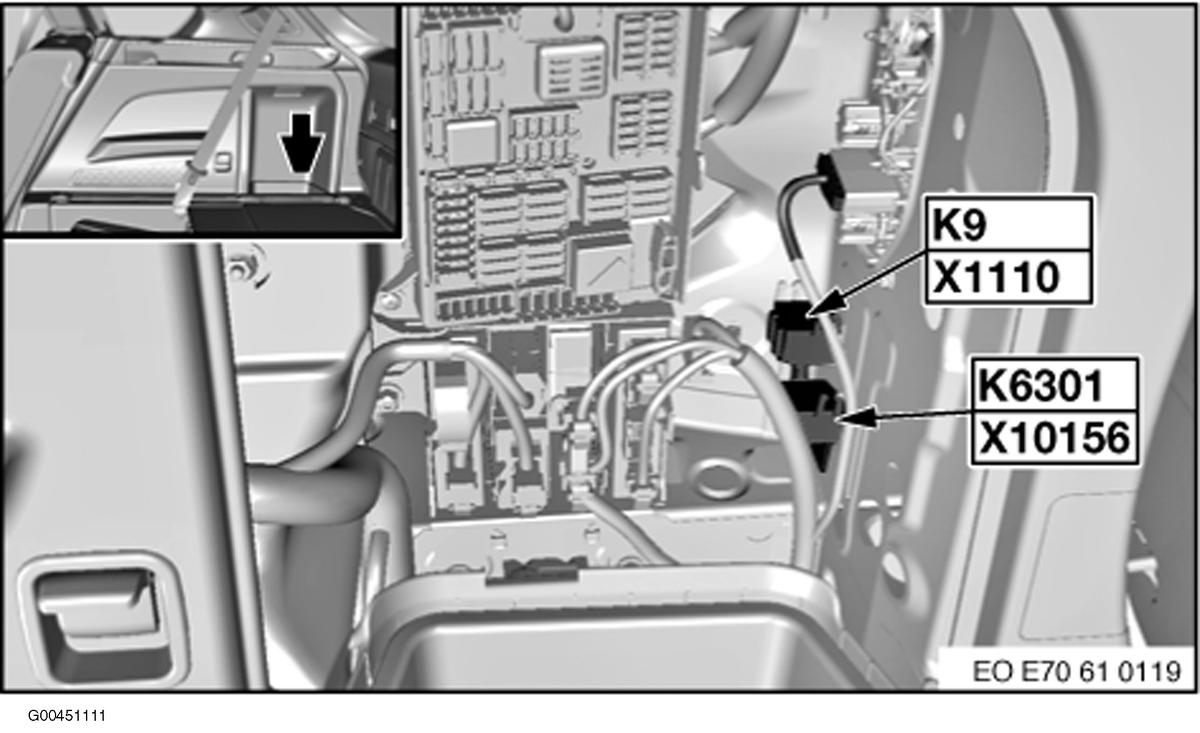

Fig 111: Cargo Area

G00451111

Courtesy of BMW OF NORTH AMERICA, INC.

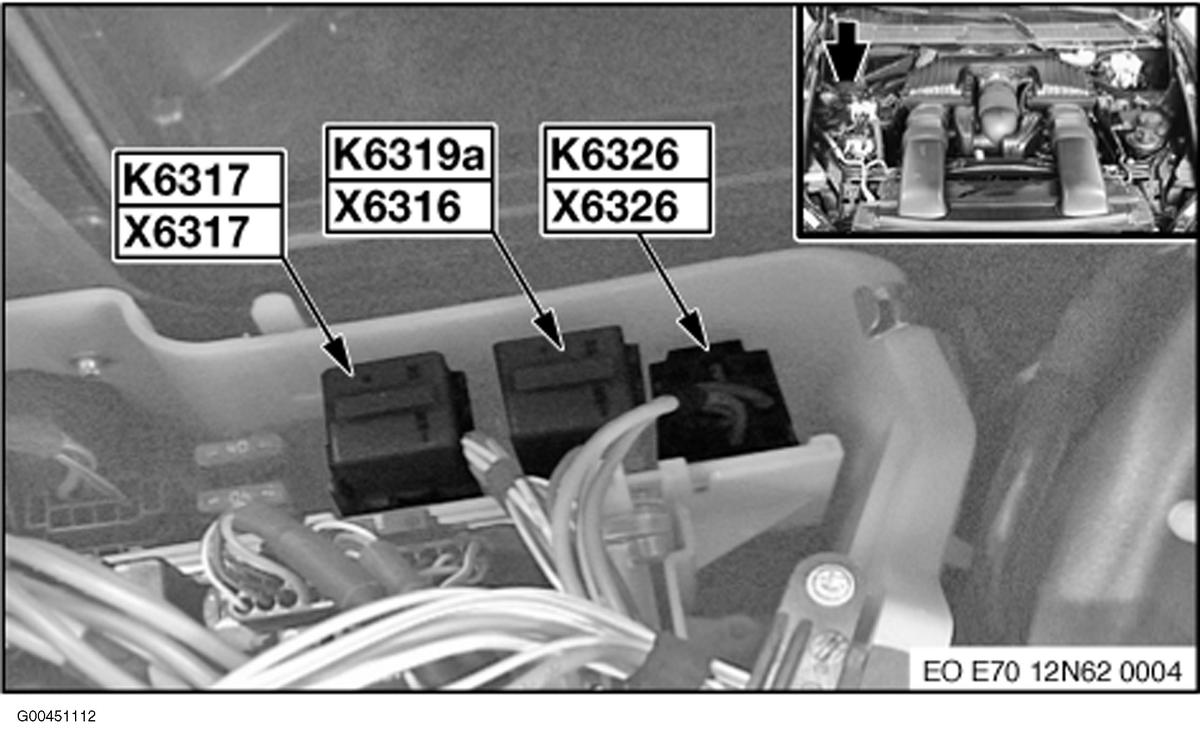

Fig 112: Right Side Of Engine Compartment

G00451112

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 113: Left Front Of Engine

G00467536

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 114: Right Rear Of Engine Compartment

G00467537

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 115: Left Front Of Engine

G00467538

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 116: Left Front Of Engine

G00467539

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 117: Right Front Of Engine

G00467540

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 118: Left Rear Of Engine

G00467541

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 119: Front Of Engine

G00467542

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 120: Front Of Engine

G00467543

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 121: Right Side Of Engine

G00467544

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 122: Rear Of Engine

G00467545

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 123: Left Side Of Engine

G00467546

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 124: Left Rear Of Engine

G00467547

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 125: Right Rear Of Engine

G00467548

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 126: Front Of Engine

G00467549

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 127: Left Rear Of Engine

G00467550

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 128: Right Rear Of Engine

G00467551

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 129: Left Side Of Engine

G00467552

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 130: Left Side Of Engine

G00467553

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 131: Bottom Of Engine

G00467554

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 132: Top Of Engine

G00467555

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 133: Top Of Engine

G00467556

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 134: Under Right Front Fender

G00467557

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 135: Left Rear Of Engine

G00467558

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Left Front Of Engine

G00467559

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 137: Top Of Engine

G00467560

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 138: Left Side Of Engine

G00467561

Courtesy of BMW OF NORTH AMERICA, INC.

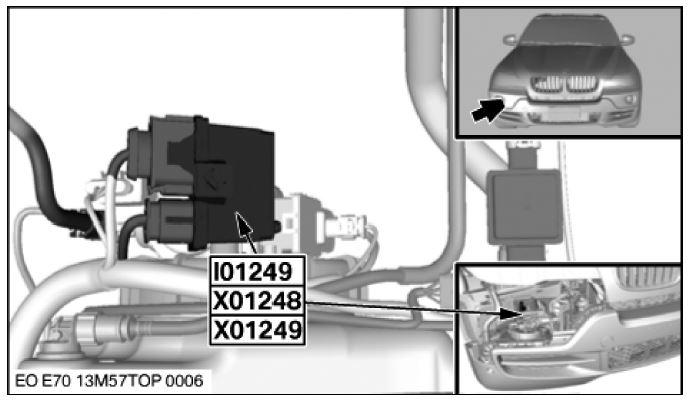

Fig 139: Behind Right Bumper Cover

G00405733

Courtesy of BMW OF NORTH AMERICA, INC.
