Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| B+ Potential Distributor (A2076) | Right rear of engine compartment. See Figure. |
| E Box | Right rear of engine compartment. |

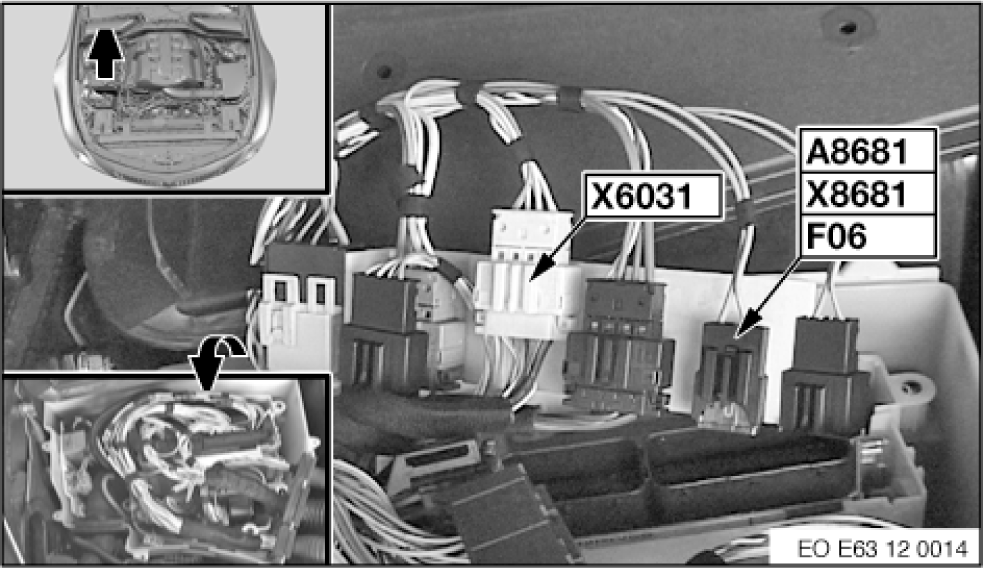

| Fuse-Carrier - Motor Electronics (A8681) | In right plenum chamber E-box. See Figure. |
| Fuse-Carrier - Motor Electronics (A8683) | Right rear of engine compartment. See Figure. |
| Fuse Holder (Front) (A41a) | Behind glove box. See Figure. |
| Fuse Holder (Rear) (A46) | In luggage compartment. See Figure. |
