Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Inside Transmission

G00472292

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Right Rear Of Engine Compartment

G00472293

Courtesy of BMW OF NORTH AMERICA, INC.

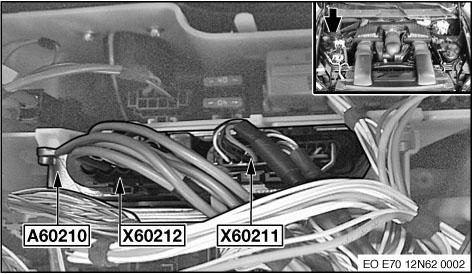

Fig 3: Right Rear Of Engine Compartment

G00472294

Courtesy of BMW OF NORTH AMERICA, INC.

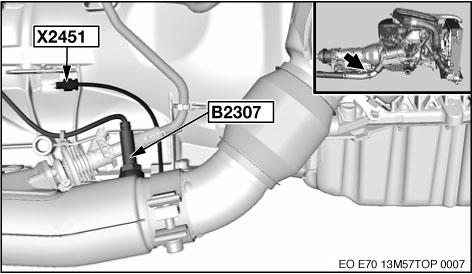

Fig 4: Right Rear Of Engine

G00472295

Courtesy of BMW OF NORTH AMERICA, INC.

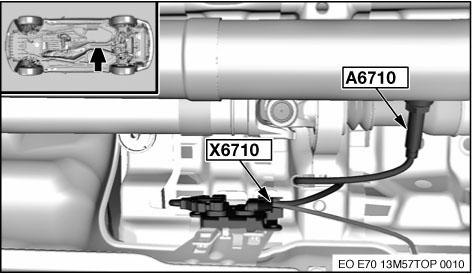

Fig 5: Right Rear Of Engine

G00472296

Courtesy of BMW OF NORTH AMERICA, INC.

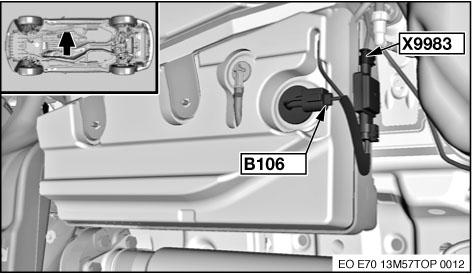

Fig 6: Top Of Left Fuel Tank

G00472297

Courtesy of BMW OF NORTH AMERICA, INC.

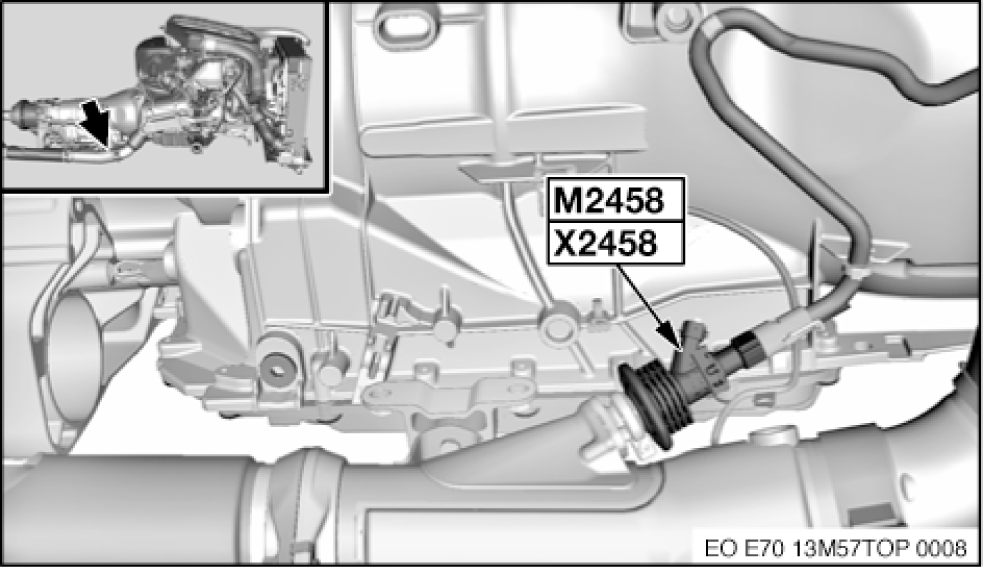

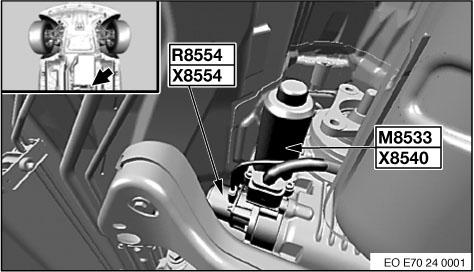

Fig 7: Rear Of Transmission, Under Vehicle

G00472298

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Left Rear Cargo Area

G00472299

Courtesy of BMW OF NORTH AMERICA, INC.

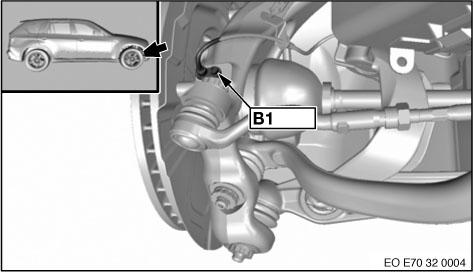

Fig 9: Right Front Hub

G00472300

Courtesy of BMW OF NORTH AMERICA, INC.

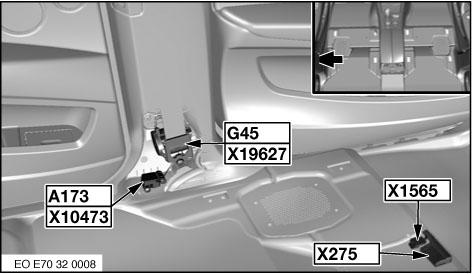

Fig 10: Left "B" Pillar

G00472301

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 11: Under Front Of Floor Console

G00472302

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Right Side Of Dash

G00472303

Courtesy of BMW OF NORTH AMERICA, INC.

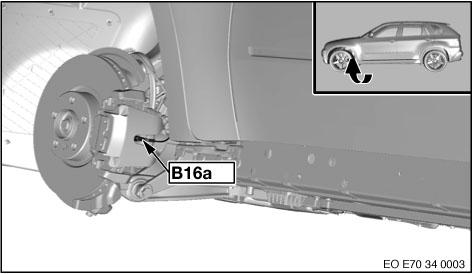

Fig 13: In Left Brake Caliper

G00472304

Courtesy of BMW OF NORTH AMERICA, INC.

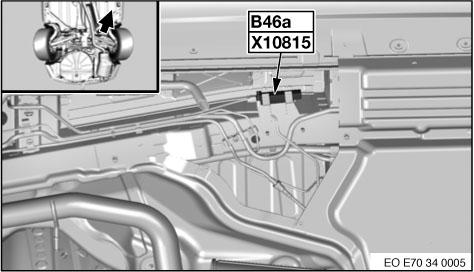

Fig 14: Under Body, Behind Left Front Tire

G00472305

Courtesy of BMW OF NORTH AMERICA, INC.

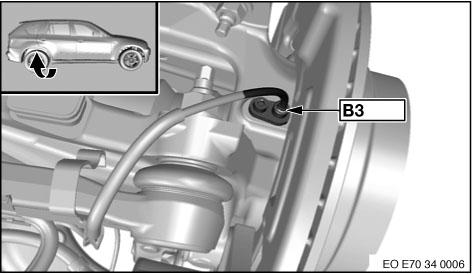

Fig 15: Right Rear Hub

G00472306

Courtesy of BMW OF NORTH AMERICA, INC.

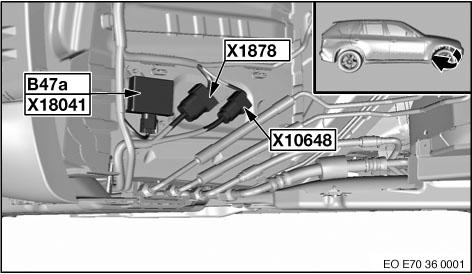

Fig 16: Under Body, Behind Right Front Tire

G00472307

Courtesy of BMW OF NORTH AMERICA, INC.

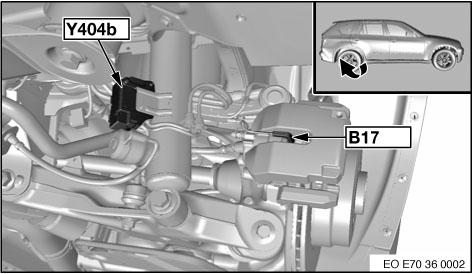

Fig 17: On Rear Brake Caliper

G00472308

Courtesy of BMW OF NORTH AMERICA, INC.

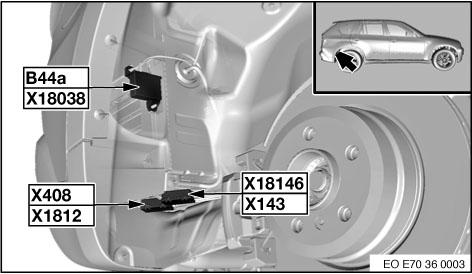

Fig 18: Rear Wheel Well

G00472309

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Left Front Suspension

G00472310

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: In Each Wheel Valve

G00472311

Courtesy of BMW OF NORTH AMERICA, INC.

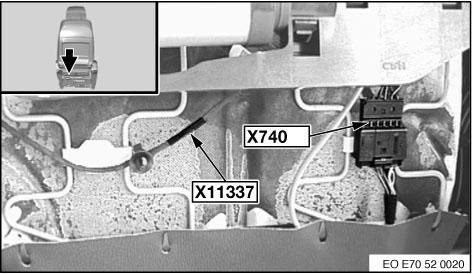

Fig 21: Under Passenger Seat

G00472312

Courtesy of BMW OF NORTH AMERICA, INC.

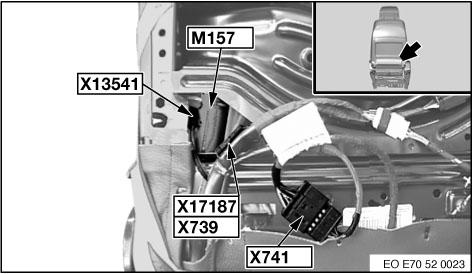

Fig 22: Under Passenger Seat

G00472313

Courtesy of BMW OF NORTH AMERICA, INC.

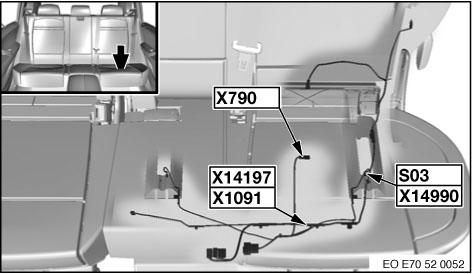

Fig 23: Under Left Rear Passenger Seat

G00472314

Courtesy of BMW OF NORTH AMERICA, INC.

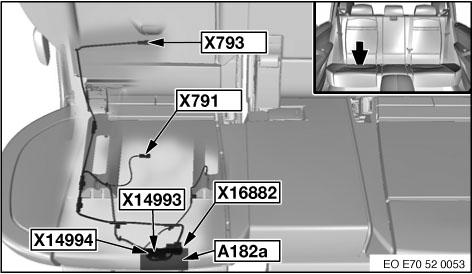

Fig 24: Under Right Rear Passenger Seat

G00472315

Courtesy of BMW OF NORTH AMERICA, INC.

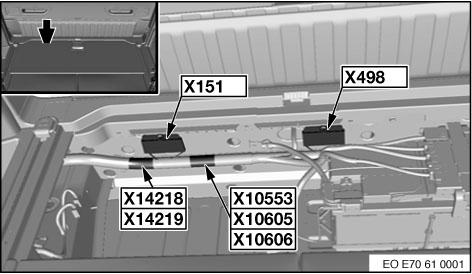

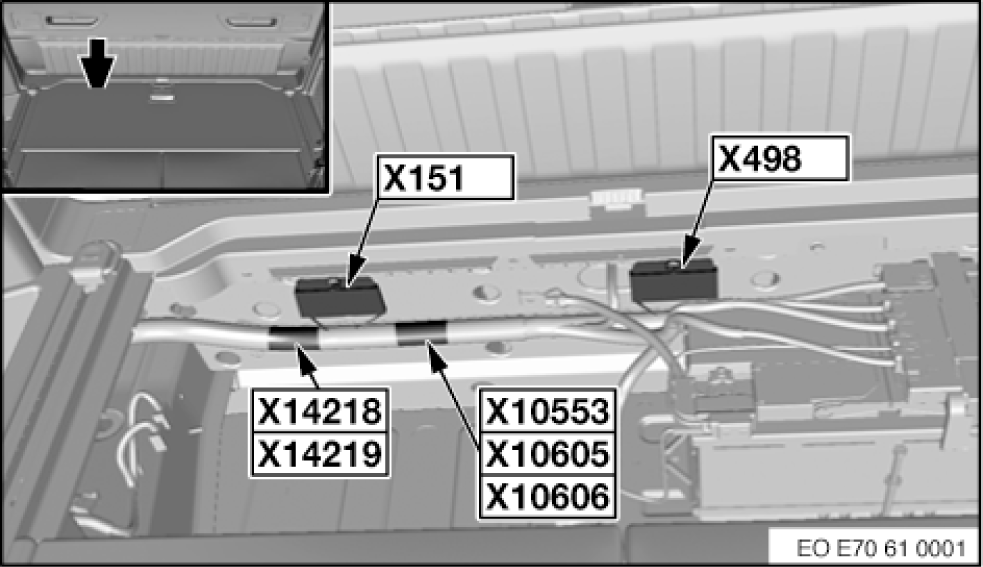

Fig 25: Cargo Area

G00472316

Courtesy of BMW OF NORTH AMERICA, INC.

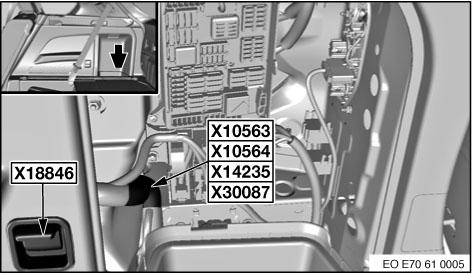

Fig 26: Right Rear Quarter Panel

G00472317

Courtesy of BMW OF NORTH AMERICA, INC.

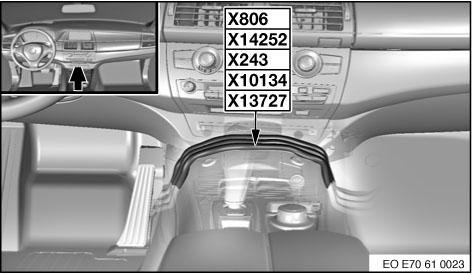

Fig 27: On Floor, Under Center Of Dash

G00472320

Courtesy of BMW OF NORTH AMERICA, INC.

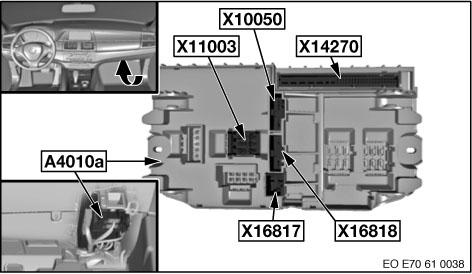

Fig 28: Under Right Side Of Dash

G00472322

Courtesy of BMW OF NORTH AMERICA, INC.

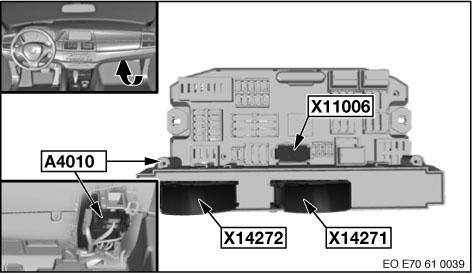

Fig 29: Under Right Side Of Dash

G00473808

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 30: Left Side Of Dash

G00473809

Courtesy of BMW OF NORTH AMERICA, INC.

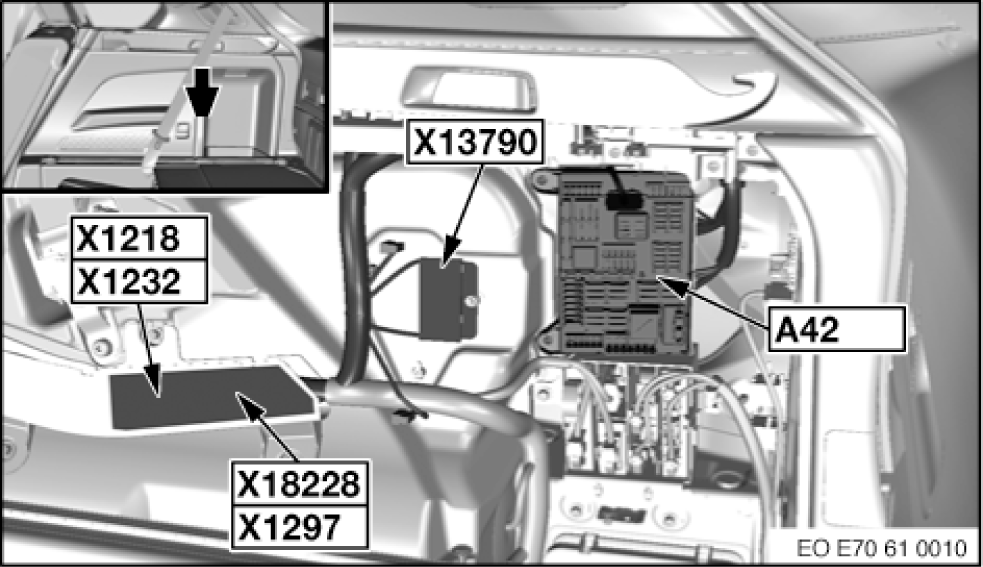

Fig 31: Right Rear Quarter Panel

G00473810

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 32: Under Right Front Seat

G00473811

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 33: Right Front Of Engine Compartment

G00473812

Courtesy of BMW OF NORTH AMERICA, INC.

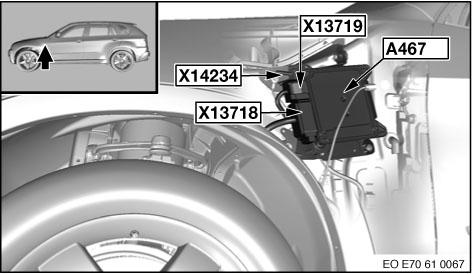

Fig 34: Under Rear Of Left Front Fender

G00473813

Courtesy of BMW OF NORTH AMERICA, INC.

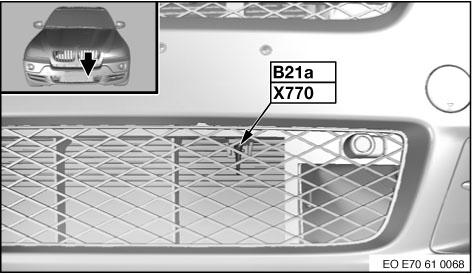

Fig 35: Behind Left Front Grille

G00473814

Courtesy of BMW OF NORTH AMERICA, INC.

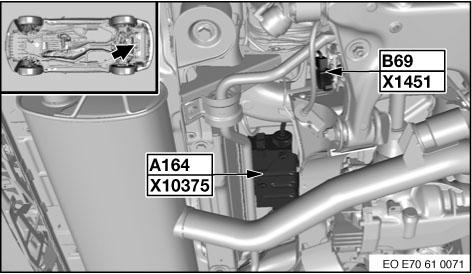

Fig 36: Under Rear Of Vehicle

G00473815

Courtesy of BMW OF NORTH AMERICA, INC.

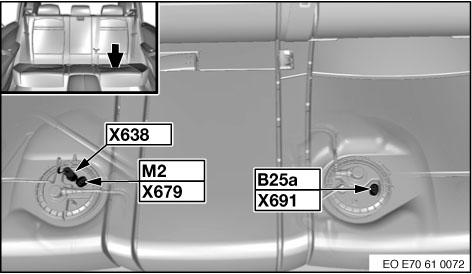

Fig 37: Under Rear Passenger Seat

G00473816

Courtesy of BMW OF NORTH AMERICA, INC.

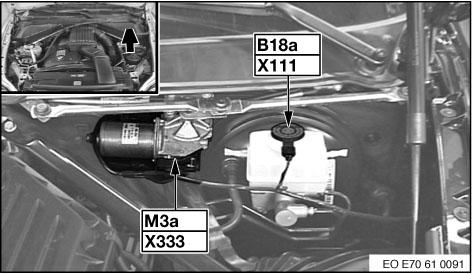

Fig 38: Left Rear Of Engine Compartment

G00473817

Courtesy of BMW OF NORTH AMERICA, INC.

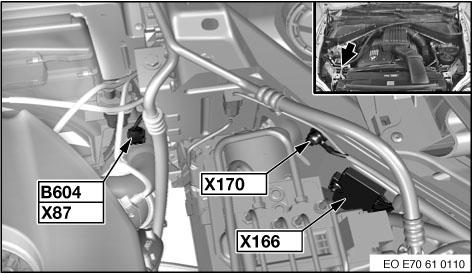

Fig 39: Engine Compartment

G00473818

Courtesy of BMW OF NORTH AMERICA, INC.

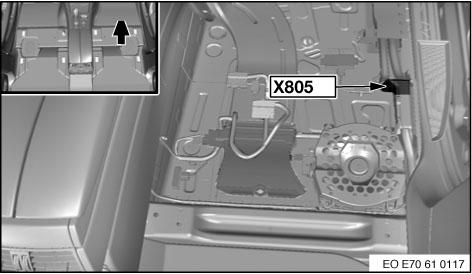

Fig 40: Under Front Passenger Seat

G00473819

Courtesy of BMW OF NORTH AMERICA, INC.

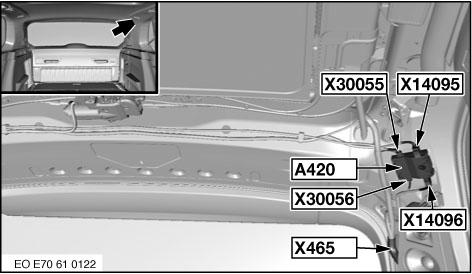

Fig 41: Top Of Left Rear Quarter Panel

G00473820

Courtesy of BMW OF NORTH AMERICA, INC.

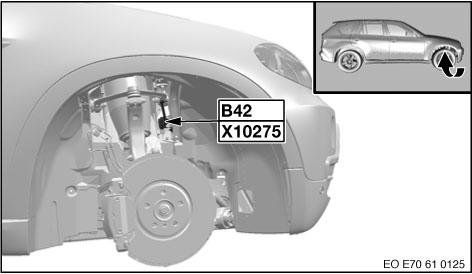

Fig 42: Left Front Suspension

G00473821

Courtesy of BMW OF NORTH AMERICA, INC.

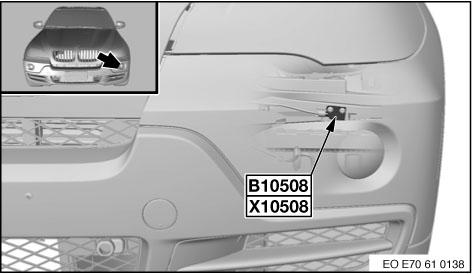

Fig 43: Behind Left Front Turn Signal

G00473822

Courtesy of BMW OF NORTH AMERICA, INC.

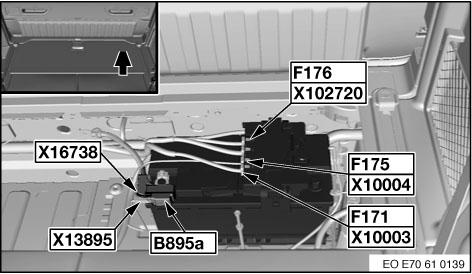

Fig 44: Under Rear Cargo Floor

G00473823

Courtesy of BMW OF NORTH AMERICA, INC.

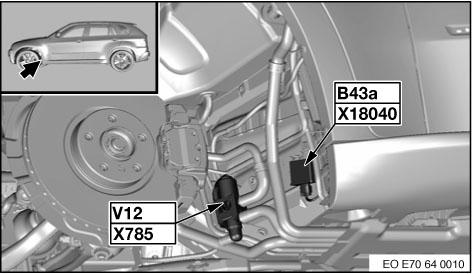

Fig 45: Behind Left Front Wheel

G00473824

Courtesy of BMW OF NORTH AMERICA, INC.

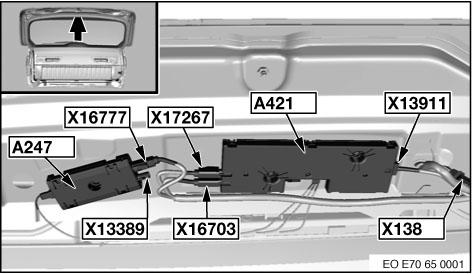

Fig 46: Inside Bottom Of Liftgate

G00473825

Courtesy of BMW OF NORTH AMERICA, INC.

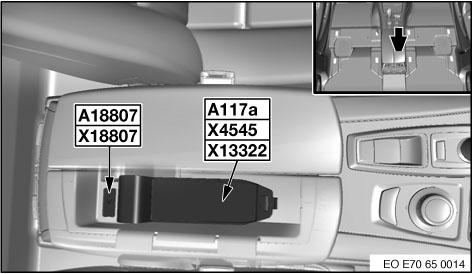

Fig 47: Under Rear Of Floor Console

G00473826

Courtesy of BMW OF NORTH AMERICA, INC.

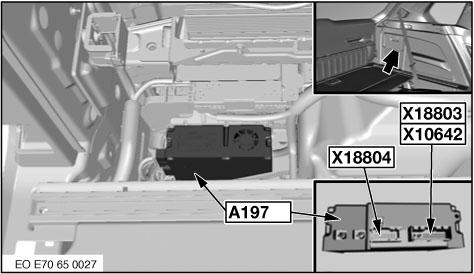

Fig 48: Under Left Rear Quarter Panel

G00473827

Courtesy of BMW OF NORTH AMERICA, INC.

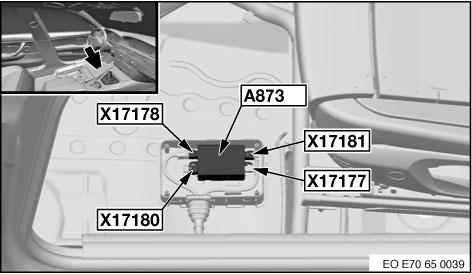

Fig 49: Driver Side Front Floor

G00473828

Courtesy of BMW OF NORTH AMERICA, INC.

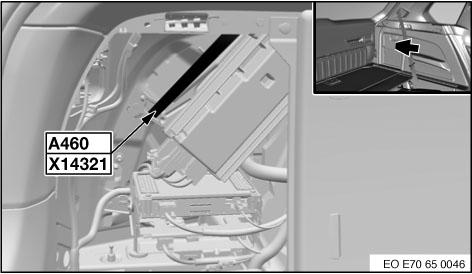

Fig 50: Under Left Rear Quarter Panel

G00473829

Courtesy of BMW OF NORTH AMERICA, INC.

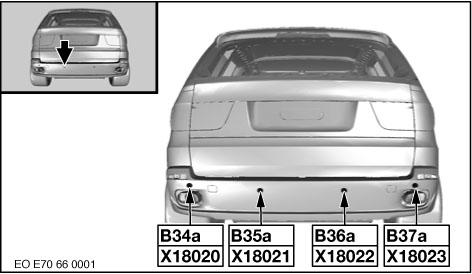

Fig 51: Rear Bumper Cover

G00473830

Courtesy of BMW OF NORTH AMERICA, INC.

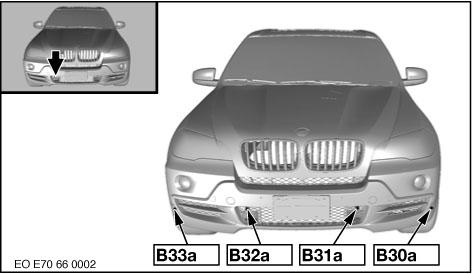

Fig 52: Front Bumper Cover

G00473831

Courtesy of BMW OF NORTH AMERICA, INC.

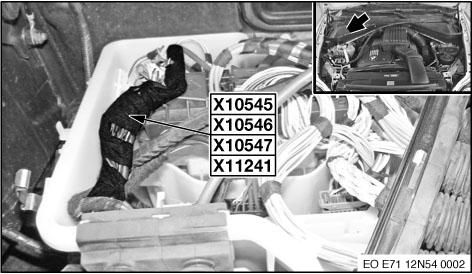

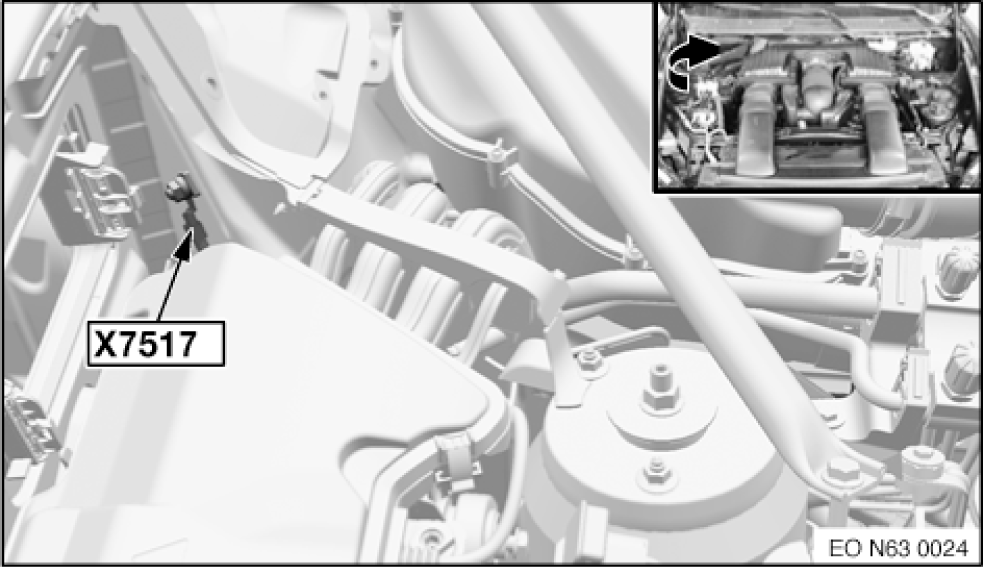

Fig 53: Right Rear Of Engine Compartment

G00473832

Courtesy of BMW OF NORTH AMERICA, INC.

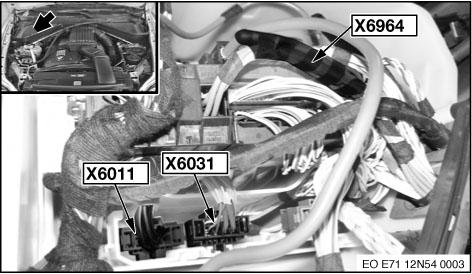

Fig 54: Right Rear Of Engine Compartment

G00473833

Courtesy of BMW OF NORTH AMERICA, INC.

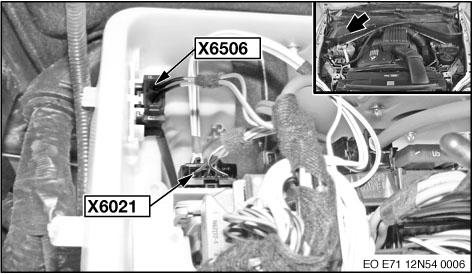

Fig 55: Right Rear Of Engine Compartment

G00473834

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 56: Right Rear Of Engine Compartment

G00473835

Courtesy of BMW OF NORTH AMERICA, INC.

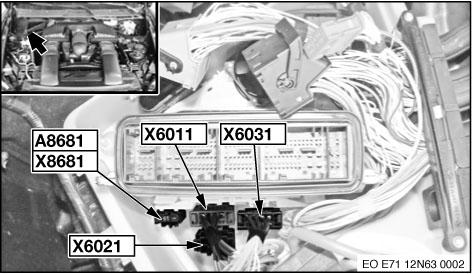

Fig 57: Right Rear Of Engine Compartment

G00473836

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 58: Underneath Rear Of Floor Console

G00473837

Courtesy of BMW OF NORTH AMERICA, INC.

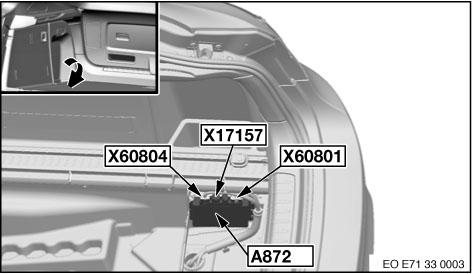

Fig 59: Under Right Rear Of Cargo Floor

G00473838

Courtesy of BMW OF NORTH AMERICA, INC.

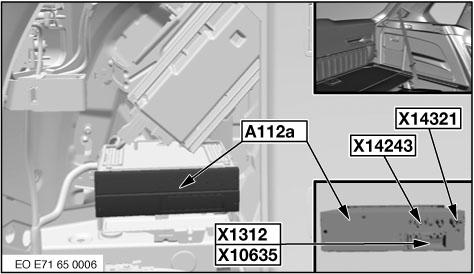

Fig 60: Top Of Right Rear Quarter Panel

G00473839

Courtesy of BMW OF NORTH AMERICA, INC.

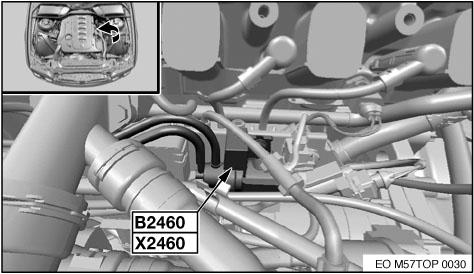

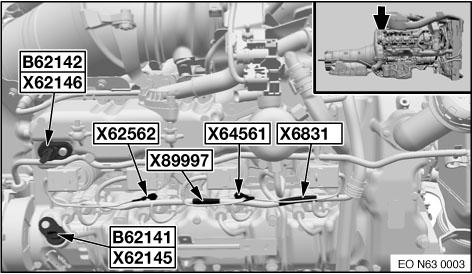

Fig 61: Top Of Engine

G00473840

Courtesy of BMW OF NORTH AMERICA, INC.

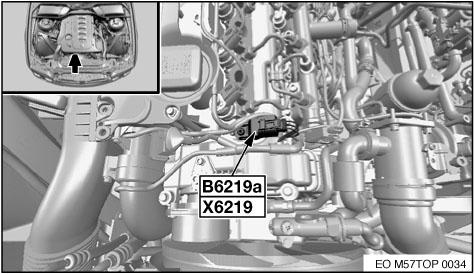

Fig 62: Front Of Engine

G00473841

Courtesy of BMW OF NORTH AMERICA, INC.

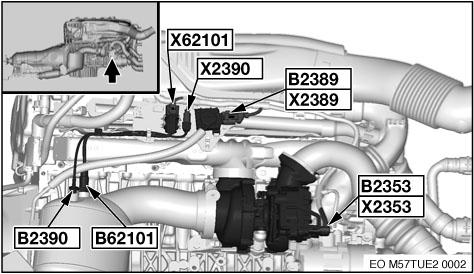

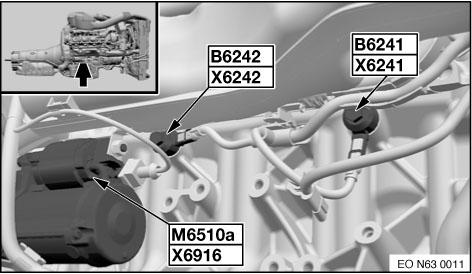

Fig 63: Left Side Of Engine

G00473842

Courtesy of BMW OF NORTH AMERICA, INC.

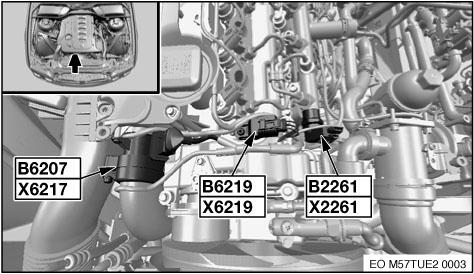

Fig 64: Front Of Engine

G00473843

Courtesy of BMW OF NORTH AMERICA, INC.

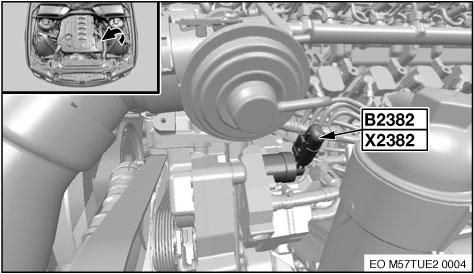

Fig 65: Top Of Engine

G00473844

Courtesy of BMW OF NORTH AMERICA, INC.

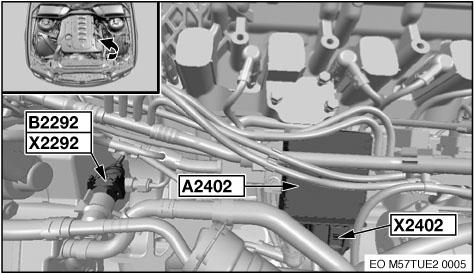

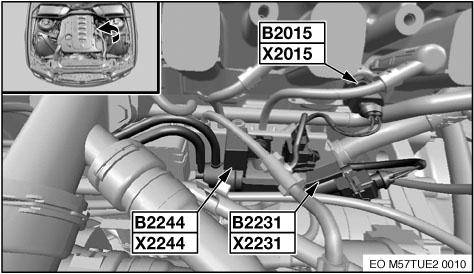

Fig 66: Top Of Engine

G00473845

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 67: Top Of Engine

G00473846

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 68: Front Of Engine

G00473847

Courtesy of BMW OF NORTH AMERICA, INC.

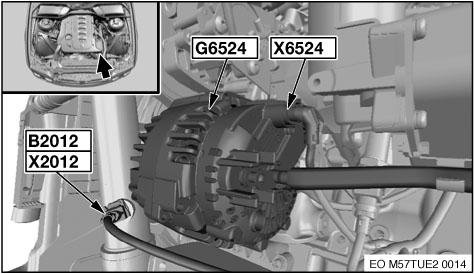

Fig 69: Front Of Engine

G00473848

Courtesy of BMW OF NORTH AMERICA, INC.

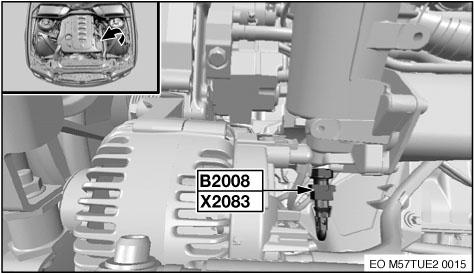

Fig 70: Left Side Of Engine

G00473849

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 71: Front Of Engine

G00473850

Courtesy of BMW OF NORTH AMERICA, INC.

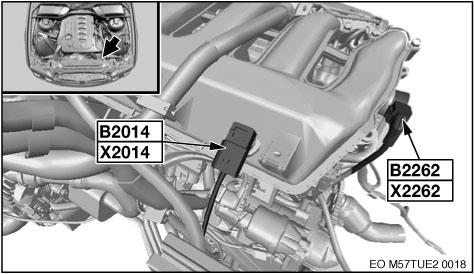

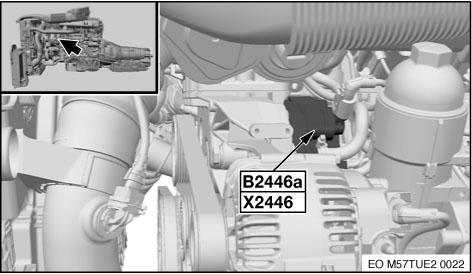

Fig 72: Left Side Of Engine

G00473851

Courtesy of BMW OF NORTH AMERICA, INC.

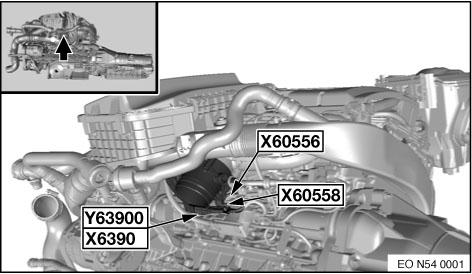

Fig 73: Left Side Of Engine

G00473852

Courtesy of BMW OF NORTH AMERICA, INC.

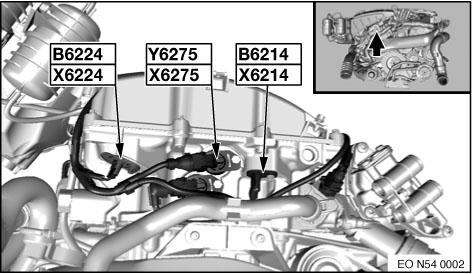

Fig 74: Front Of Engine

G00473853

Courtesy of BMW OF NORTH AMERICA, INC.

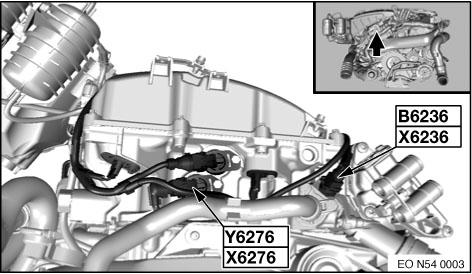

Fig 75: Front Of Engine

G00473854

Courtesy of BMW OF NORTH AMERICA, INC.

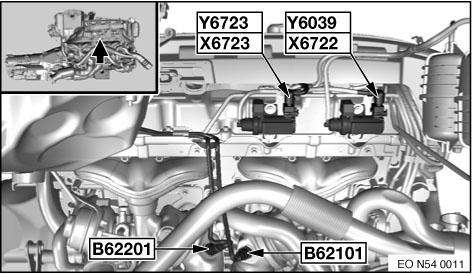

Fig 76: Right Side Of Engine

G00473855

Courtesy of BMW OF NORTH AMERICA, INC.

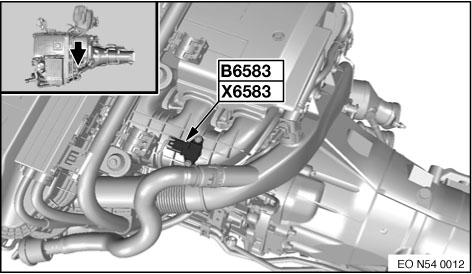

Fig 77: Top Of Engine

G00473856

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 78: Top Left Side Of Engine

G00473857

Courtesy of BMW OF NORTH AMERICA, INC.

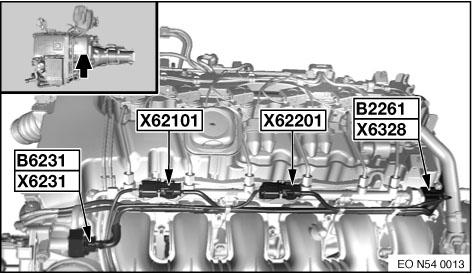

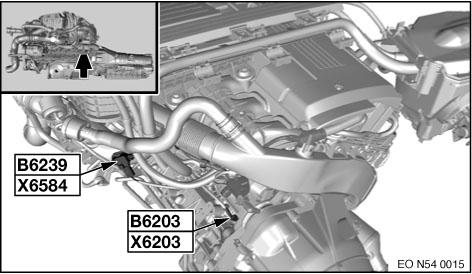

Fig 79: Left Rear Of Engine

G00473858

Courtesy of BMW OF NORTH AMERICA, INC.

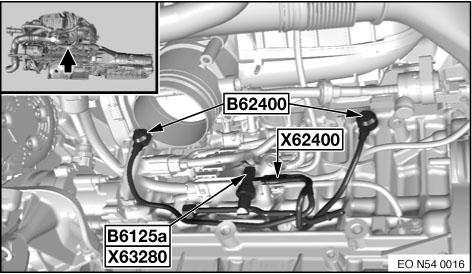

Fig 80: Left Side Of Engine

G00473859

Courtesy of BMW OF NORTH AMERICA, INC.

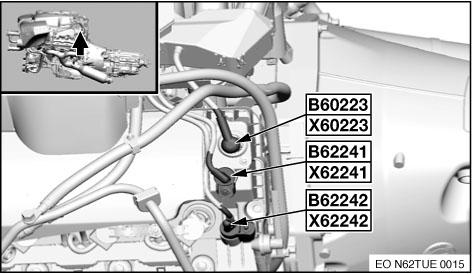

Fig 81: Left Rear Of Engine

G00473860

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 82: Top Of Engine

G00473861

Courtesy of BMW OF NORTH AMERICA, INC.

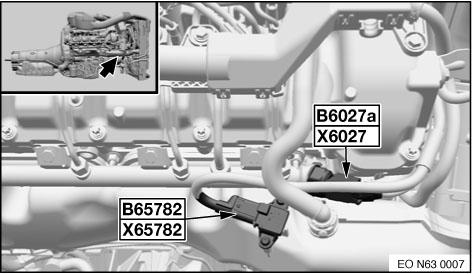

Fig 83: Right Side Of Engine

G00473862

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 84: Left Side Of Engine

G00473863

Courtesy of BMW OF NORTH AMERICA, INC.

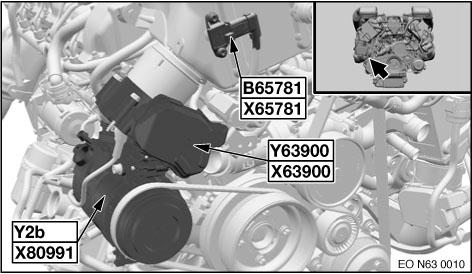

Fig 85: Front Of Engine

G00473864

Courtesy of BMW OF NORTH AMERICA, INC.

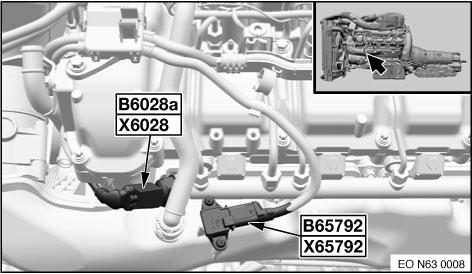

Fig 86: Right Side Of Engine

G00473865

Courtesy of BMW OF NORTH AMERICA, INC.

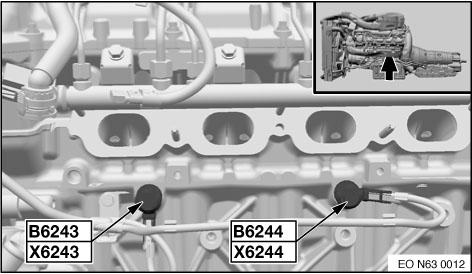

Fig 87: Left Side Of Engine

G00473866

Courtesy of BMW OF NORTH AMERICA, INC.

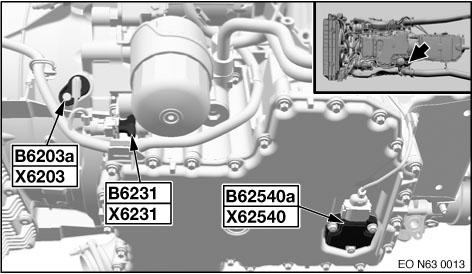

Fig 88: Bottom Of Engine

G00473867

Courtesy of BMW OF NORTH AMERICA, INC.

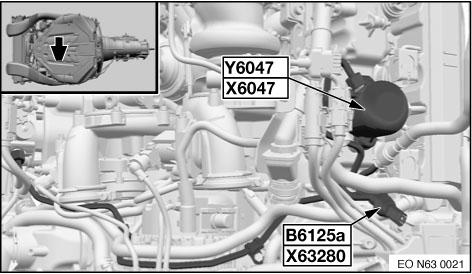

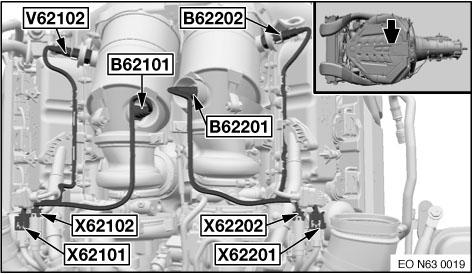

Fig 89: Top Of Engine

G00473869

Courtesy of BMW OF NORTH AMERICA, INC.

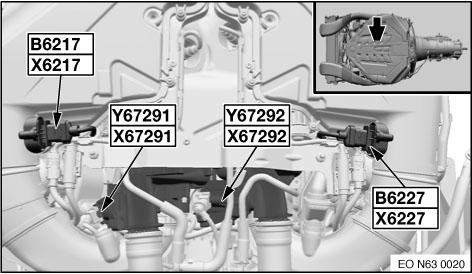

Fig 90: Top Of Engine

G00473870

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 91: Top Of Engine

G00473871

Courtesy of BMW OF NORTH AMERICA, INC.

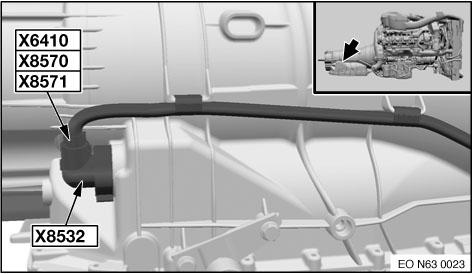

Fig 92: Right Rear Of Transmission

G00473872

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 93: Right Side Of Engine

G00473874

Courtesy of BMW OF NORTH AMERICA, INC.

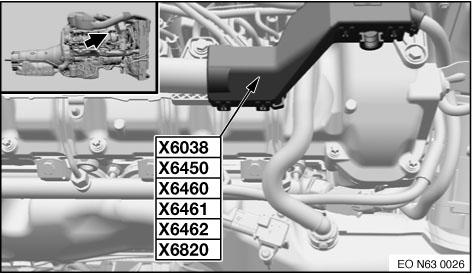

Fig 94: Right Side Of Engine

G00473875

Courtesy of BMW OF NORTH AMERICA, INC.

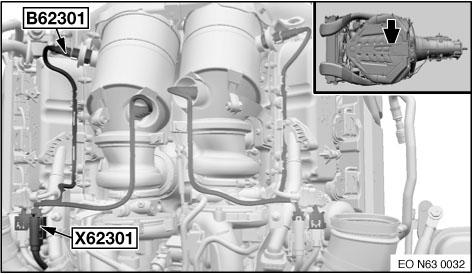

Fig 95: Top Of Engine

G00473876

Courtesy of BMW OF NORTH AMERICA, INC.

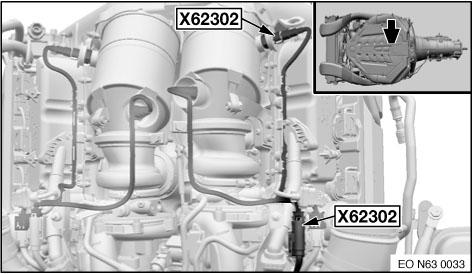

Fig 96: Top Of Engine

G00473877

Courtesy of BMW OF NORTH AMERICA, INC.

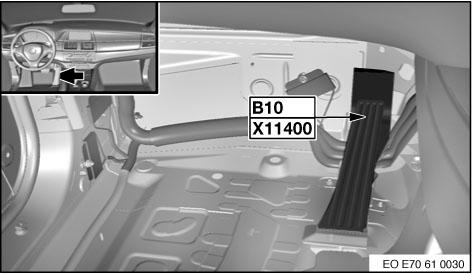

Fig 97: Driver Side Floor, Below Dash

G00472321

Courtesy of BMW OF NORTH AMERICA, INC.

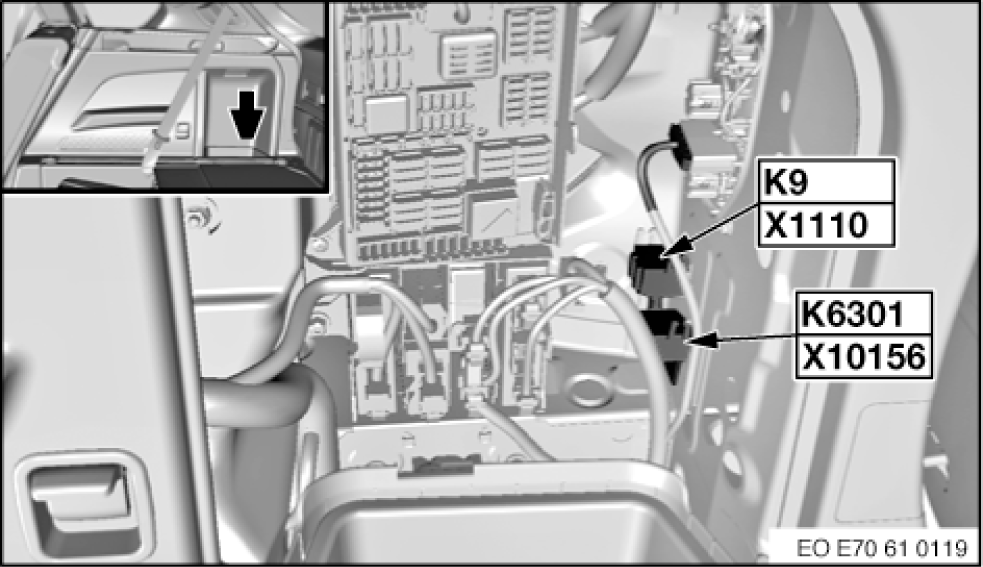

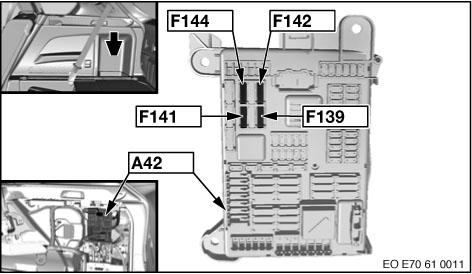

Fig 98: Right Rear Quarter Panel

G00472319

Courtesy of BMW OF NORTH AMERICA, INC.

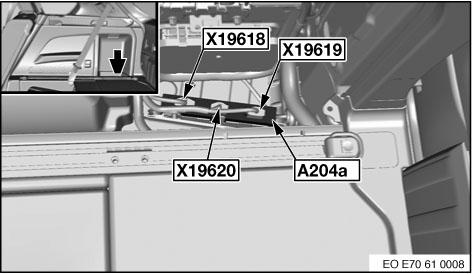

Fig 99: Right Rear Quarter Panel

G00472318

Courtesy of BMW OF NORTH AMERICA, INC.

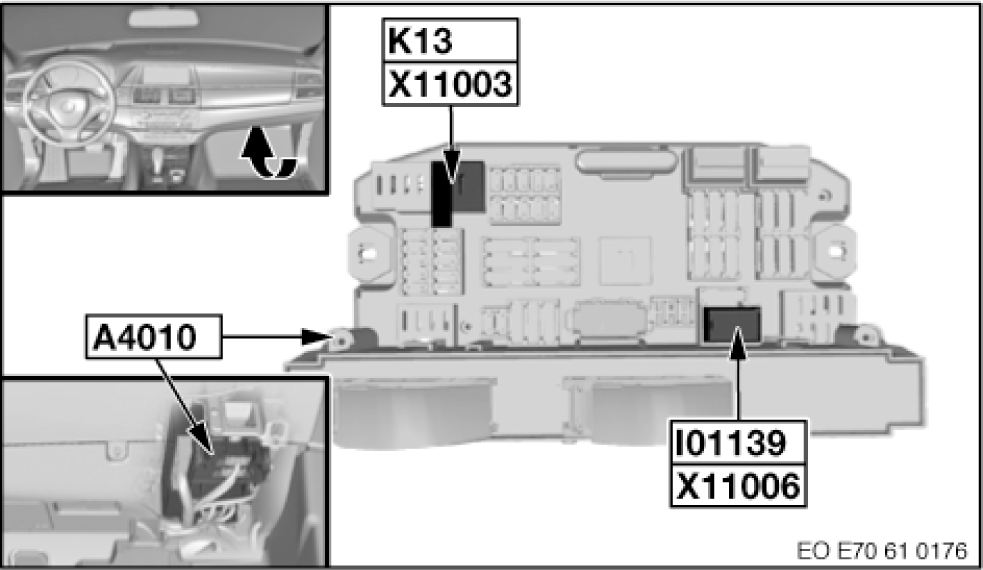

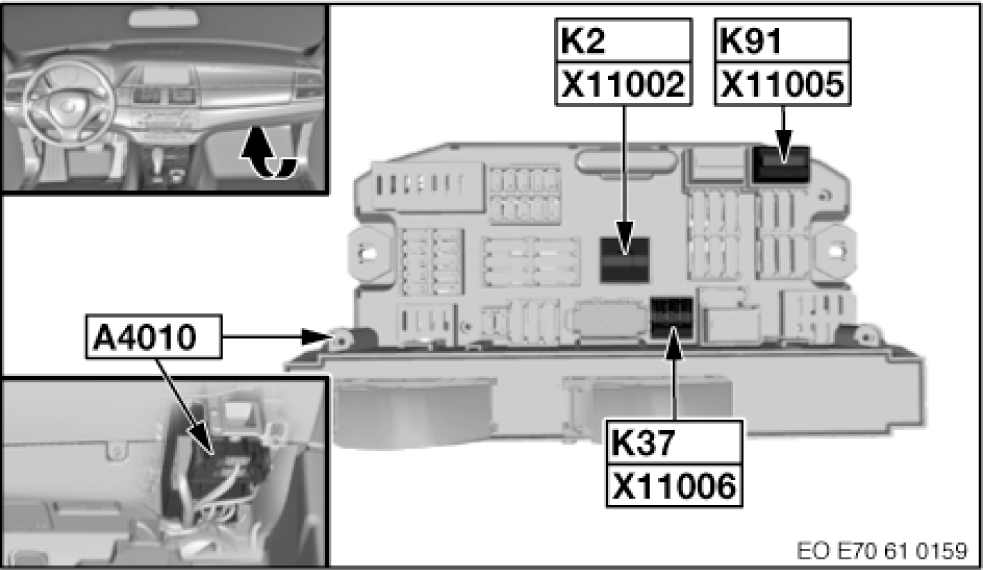

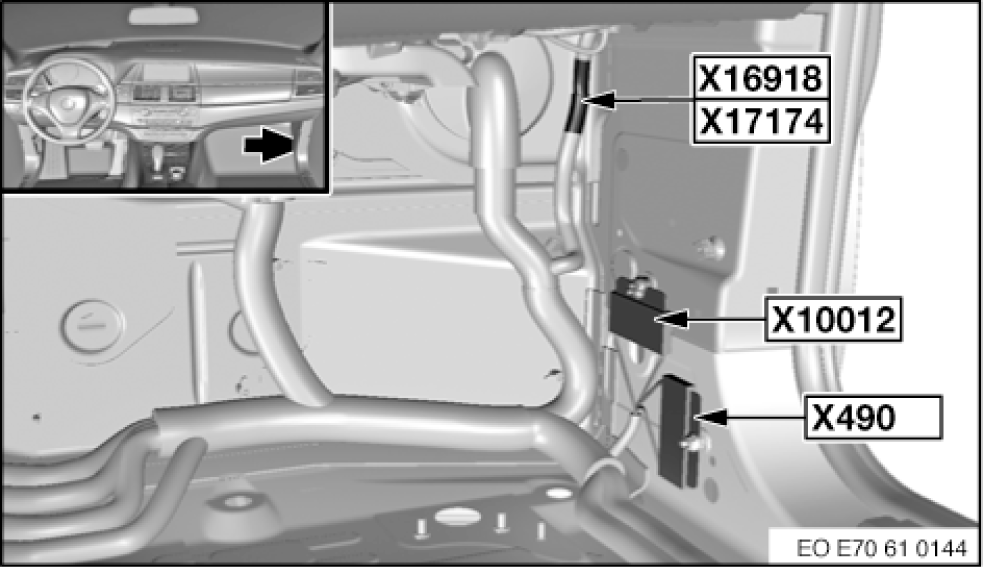

Fig 100: Right Side Of Dash

G00496001

Courtesy of BMW OF NORTH AMERICA, INC.

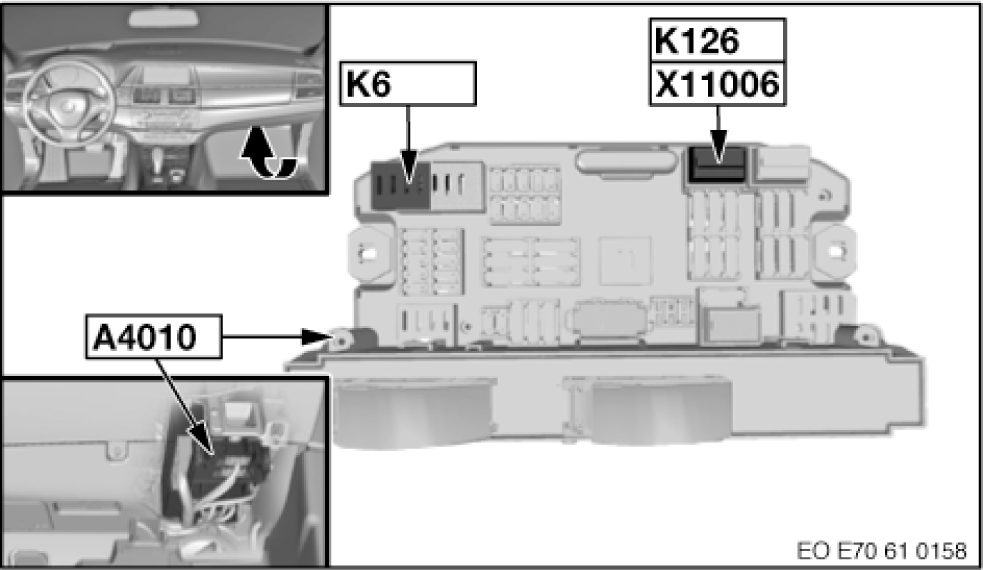

Fig 101: Right Side Of Dash

G00496002

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 102: Right Rear Quarterpanel

G00496003

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 103: Right Side Of Dash

G00496004

Courtesy of BMW OF NORTH AMERICA, INC.

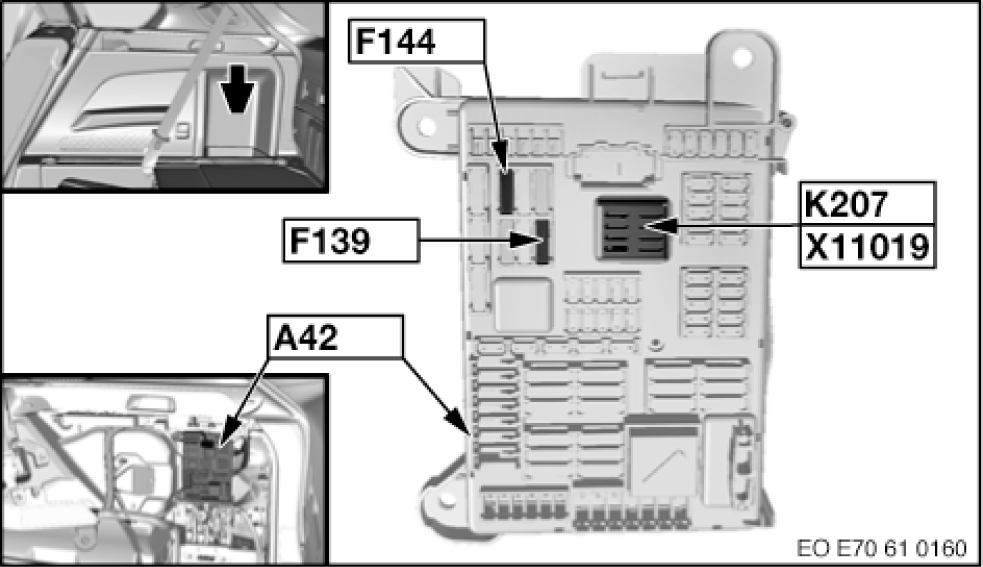

Fig 104: Right Rear Quarterpanel

G00496005

Courtesy of BMW OF NORTH AMERICA, INC.

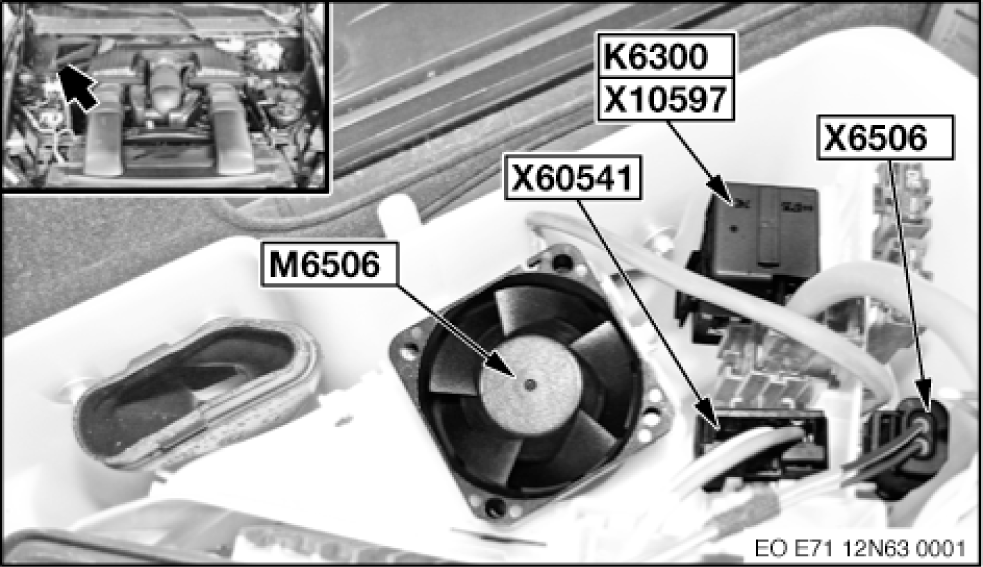

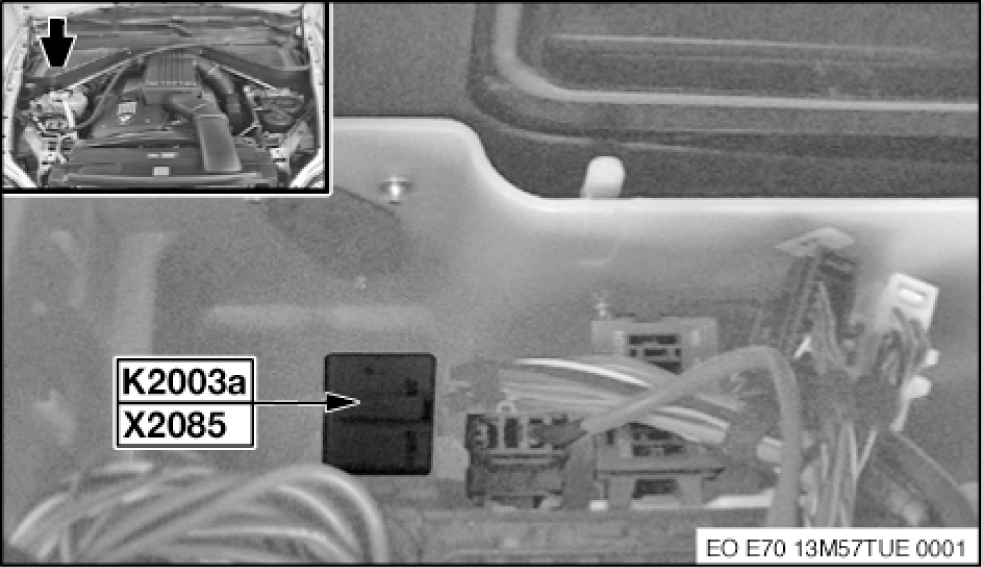

Fig 105: Engine Compartment

G00496006

Courtesy of BMW OF NORTH AMERICA, INC.

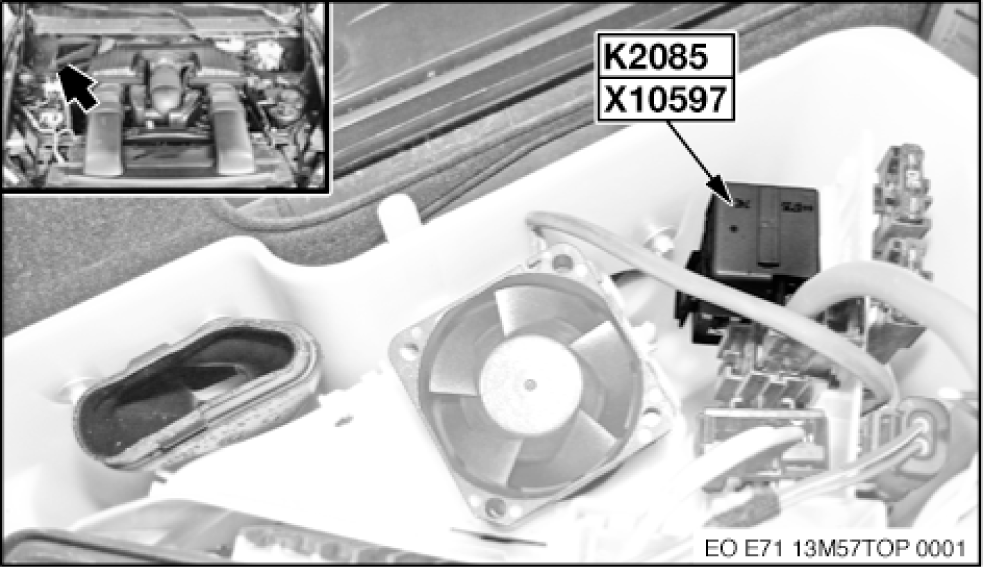

Fig 106: Engine Compartment

G00496007

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 107: Engine Compartment

G00496008

Courtesy of BMW OF NORTH AMERICA, INC.

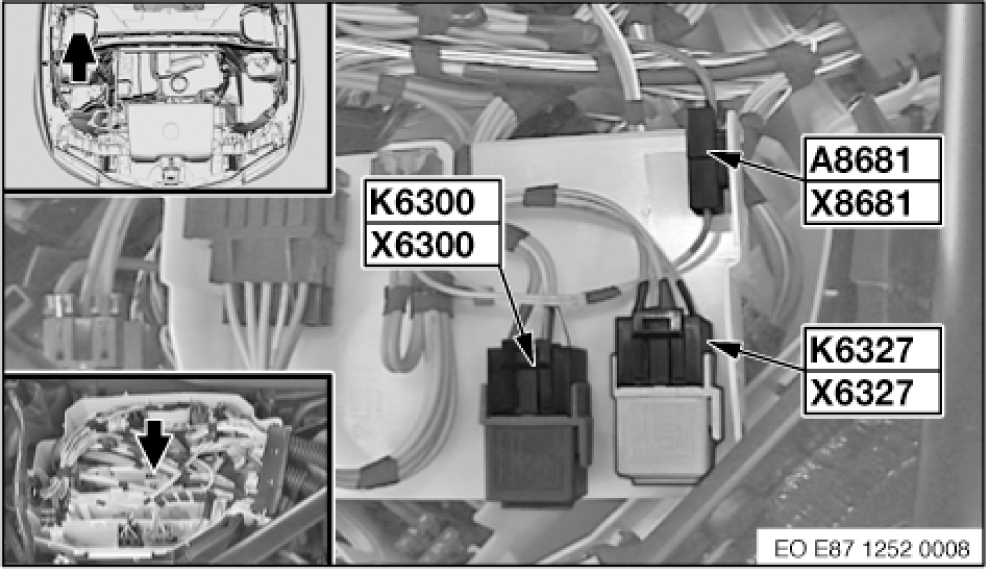

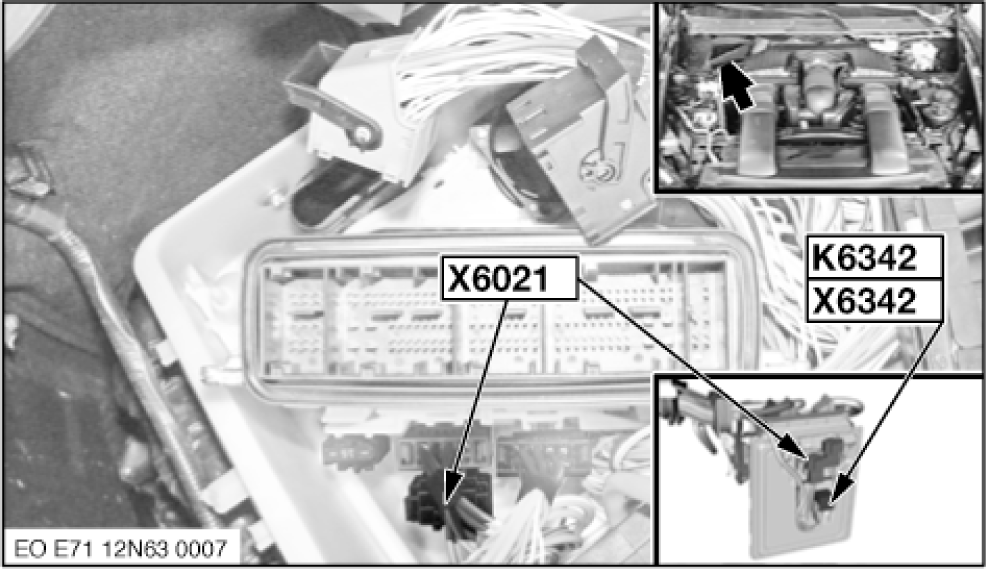

Fig 108: Engine Compartment

G00496009

Courtesy of BMW OF NORTH AMERICA, INC.

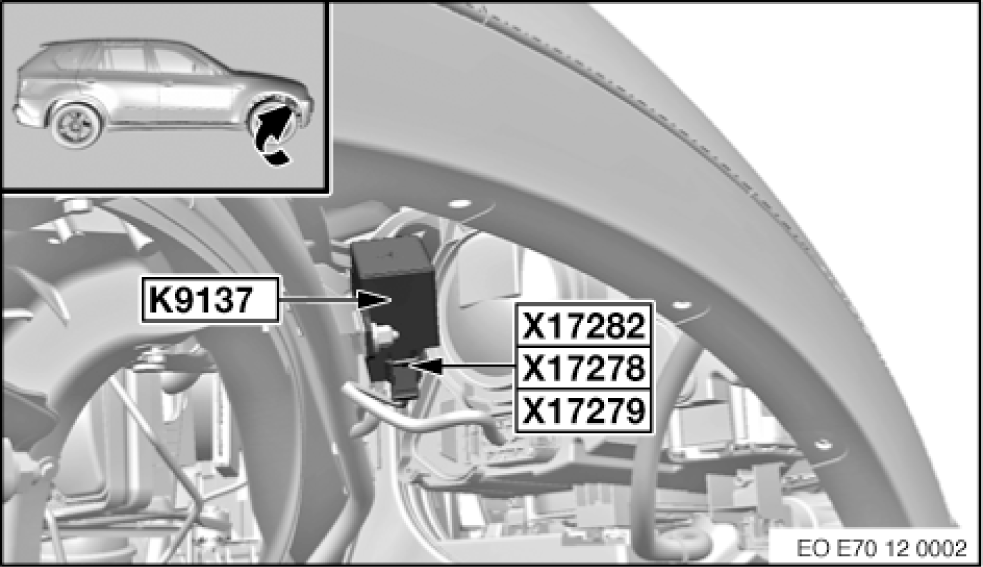

Fig 109: Right Front Wheelwell

G00496010

Courtesy of BMW OF NORTH AMERICA, INC.

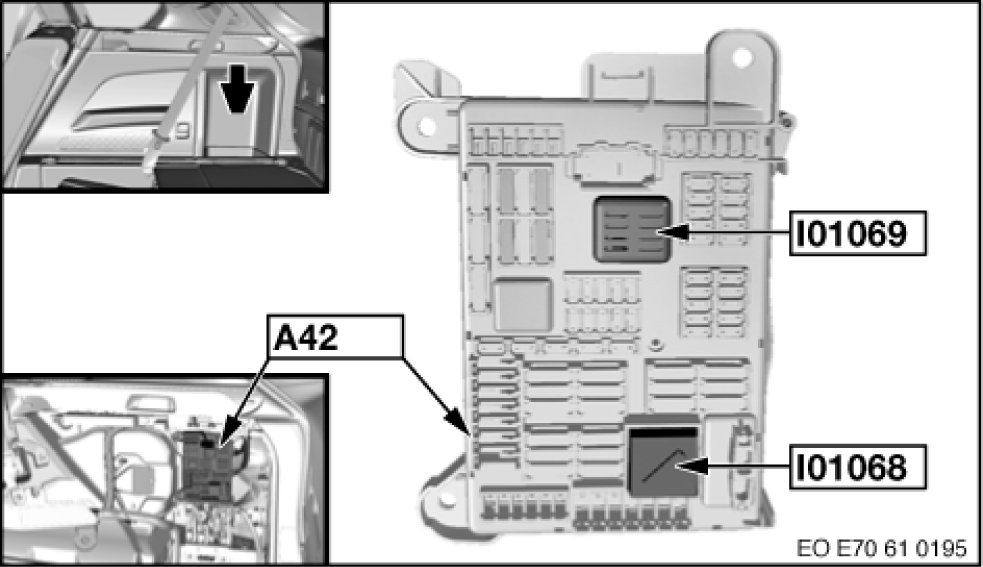

Fig 110: Right Rear Quarterpanel

G00496011

Courtesy of BMW OF NORTH AMERICA, INC.

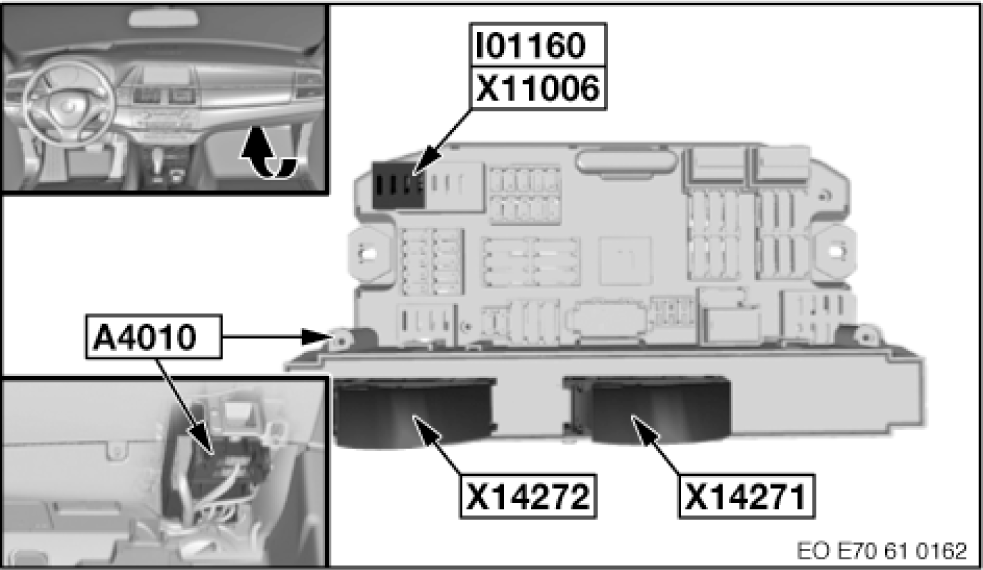

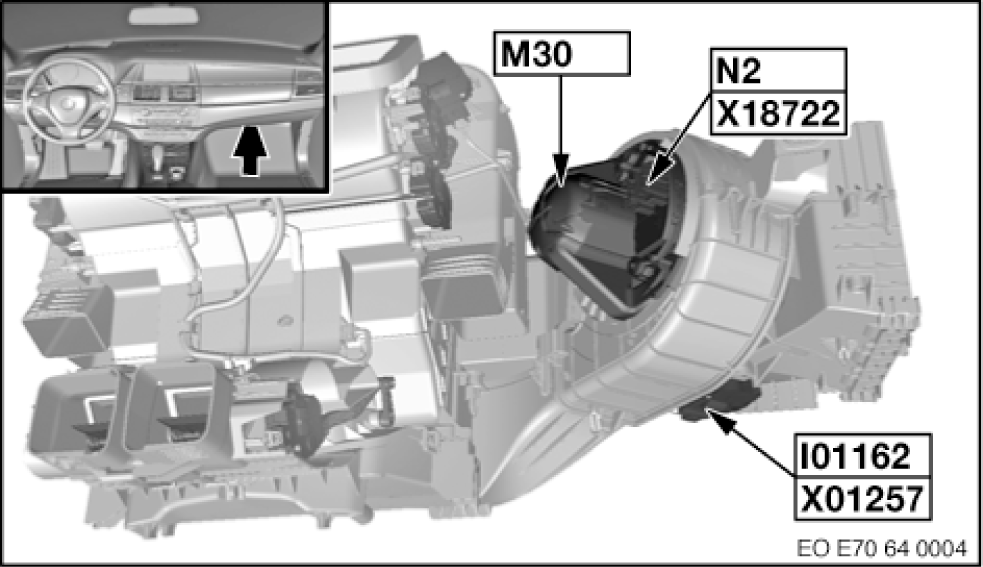

Fig 111: Right Side Of Dash

G00496012

Courtesy of BMW OF NORTH AMERICA, INC.

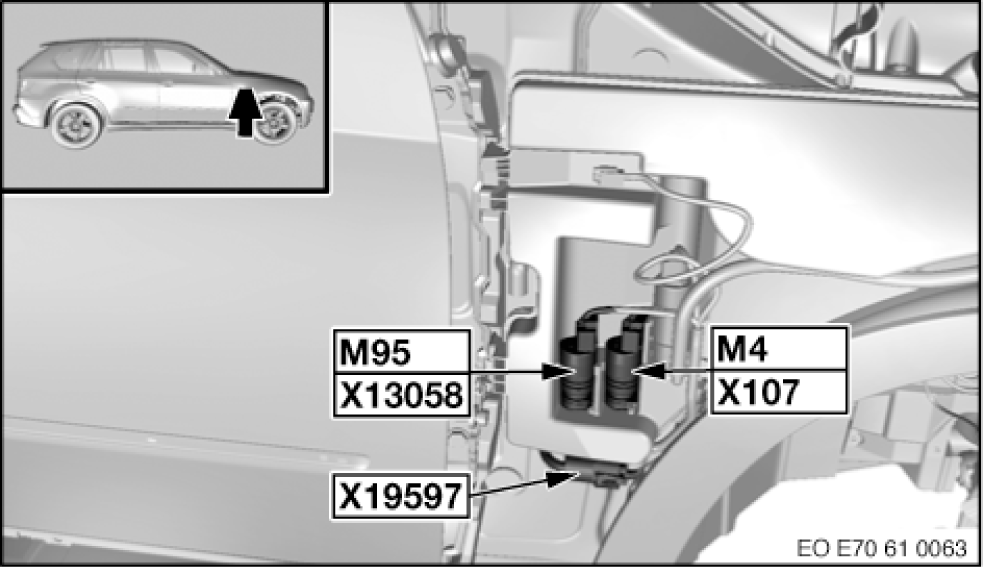

Fig 112: Right Front Fender

G00496013

Courtesy of BMW OF NORTH AMERICA, INC.

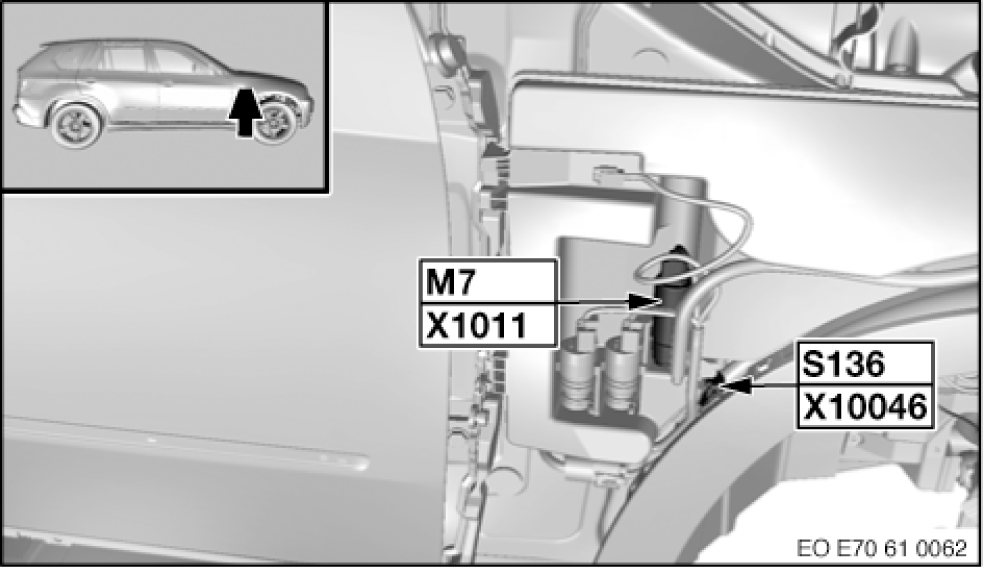

Fig 113: Right Front Fender

G00496014

Courtesy of BMW OF NORTH AMERICA, INC.

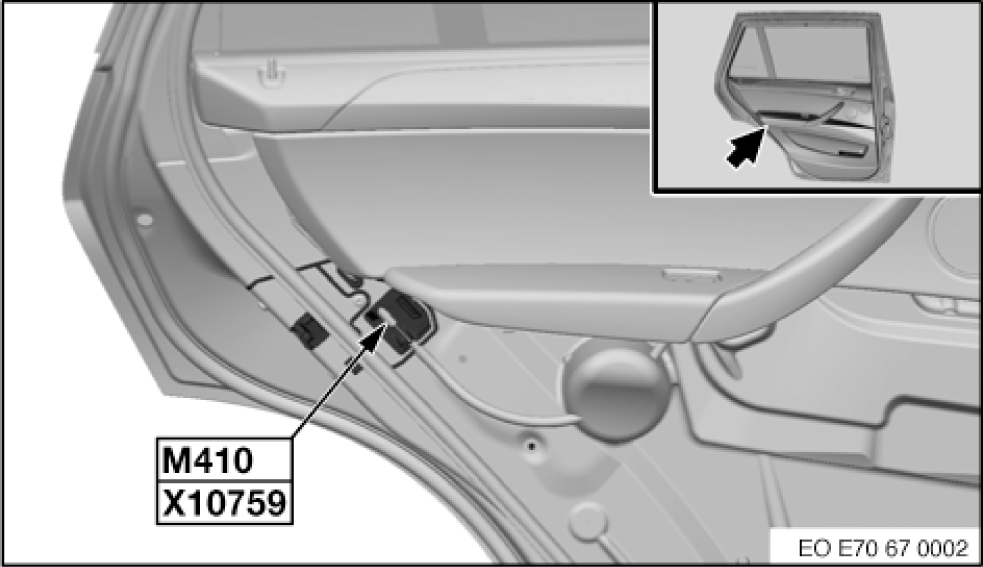

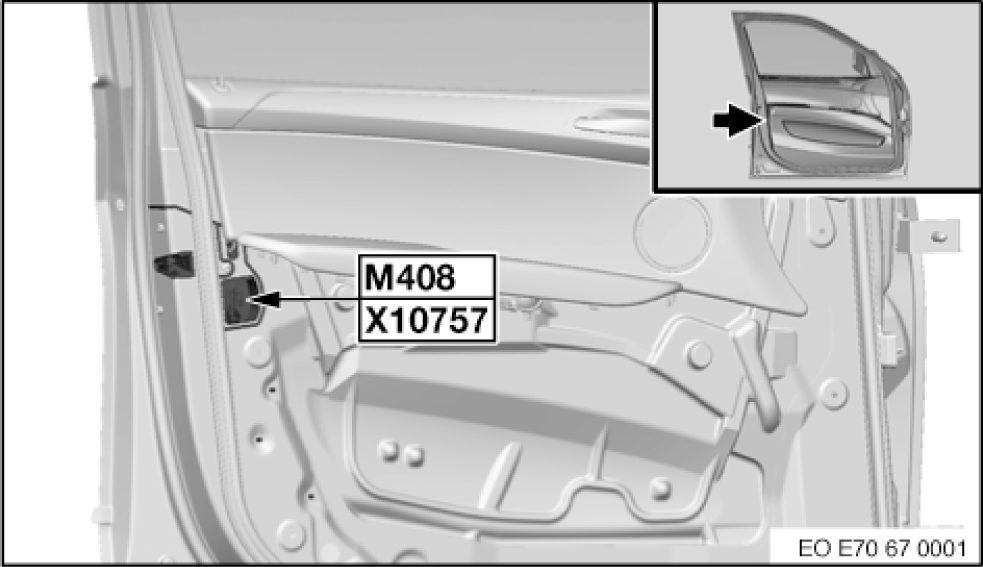

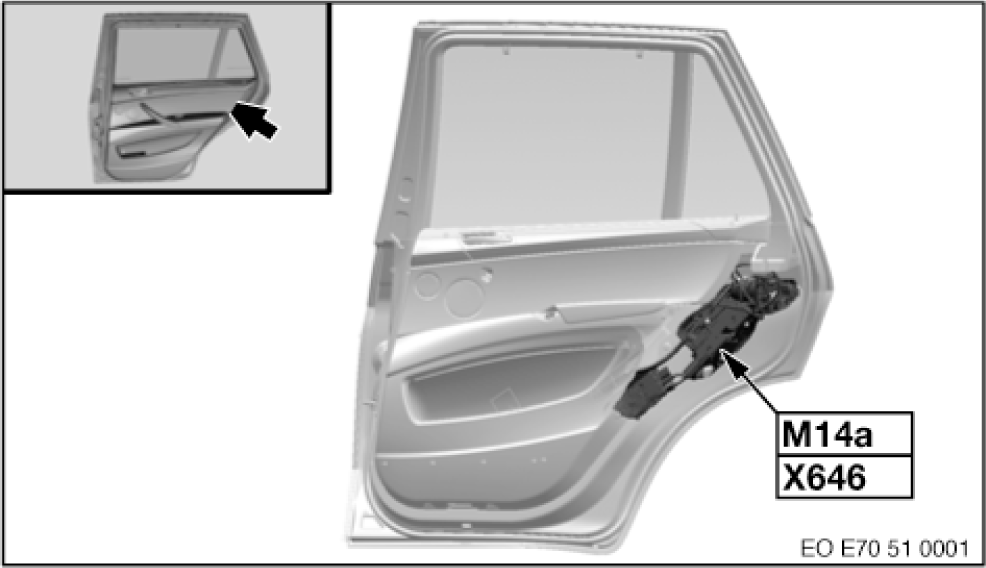

Fig 114: Right Rear Door (Left Similar)

G00496015

Courtesy of BMW OF NORTH AMERICA, INC.

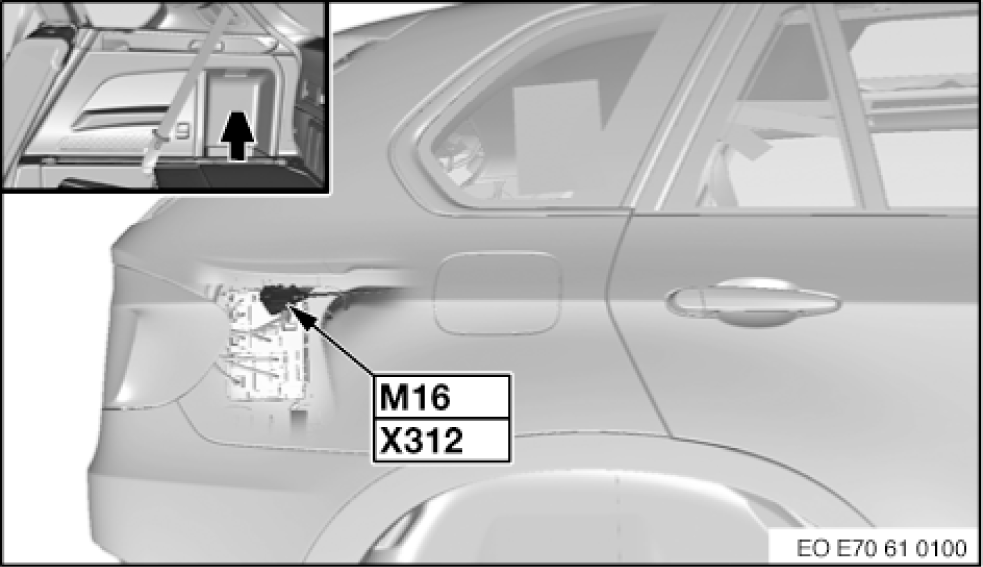

Fig 115: Right Rear Quarterpanel

G00496016

Courtesy of BMW OF NORTH AMERICA, INC.

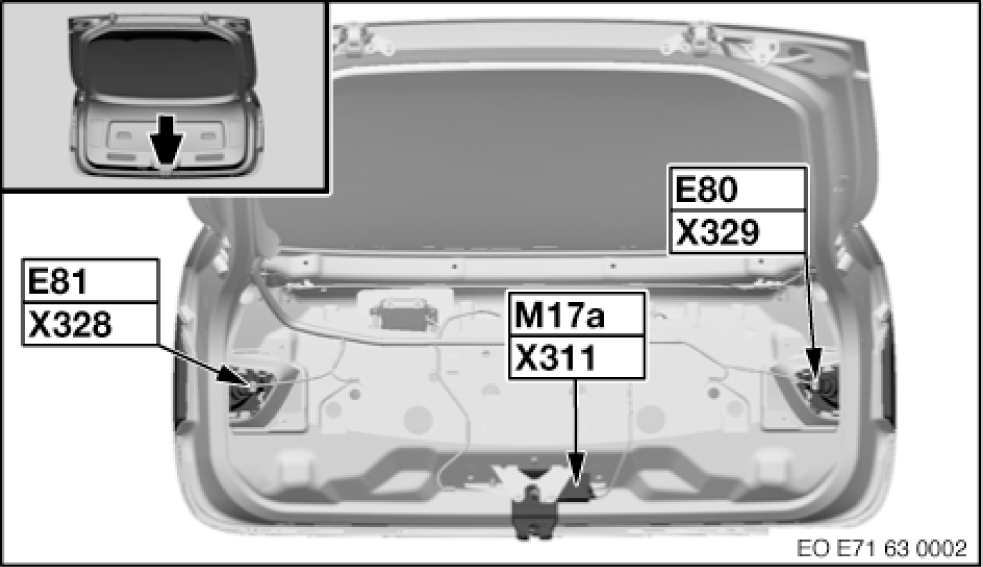

Fig 116: Luggage Compartment

G00496017

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 117: Right Side Of Dash

G00496018

Courtesy of BMW OF NORTH AMERICA, INC.

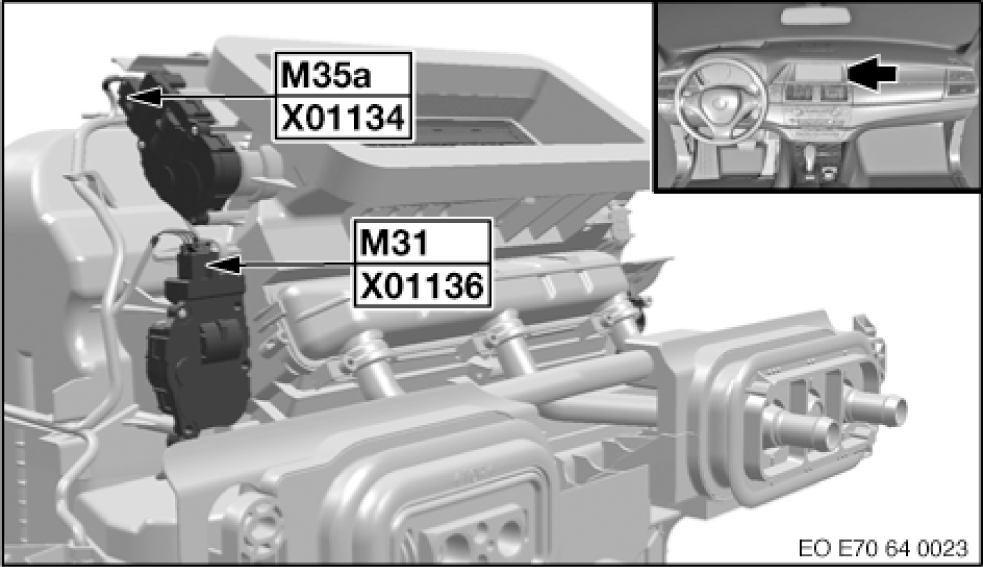

Fig 118: Right Side Of Dash

G00496019

Courtesy of BMW OF NORTH AMERICA, INC.

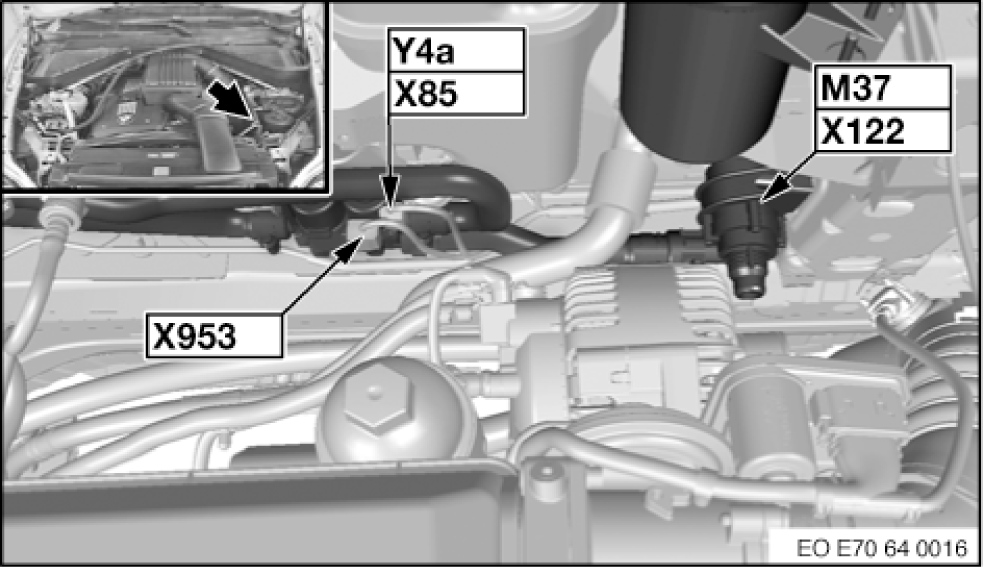

Fig 119: Left Side Of Engine Compartment

G00496020

Courtesy of BMW OF NORTH AMERICA, INC.

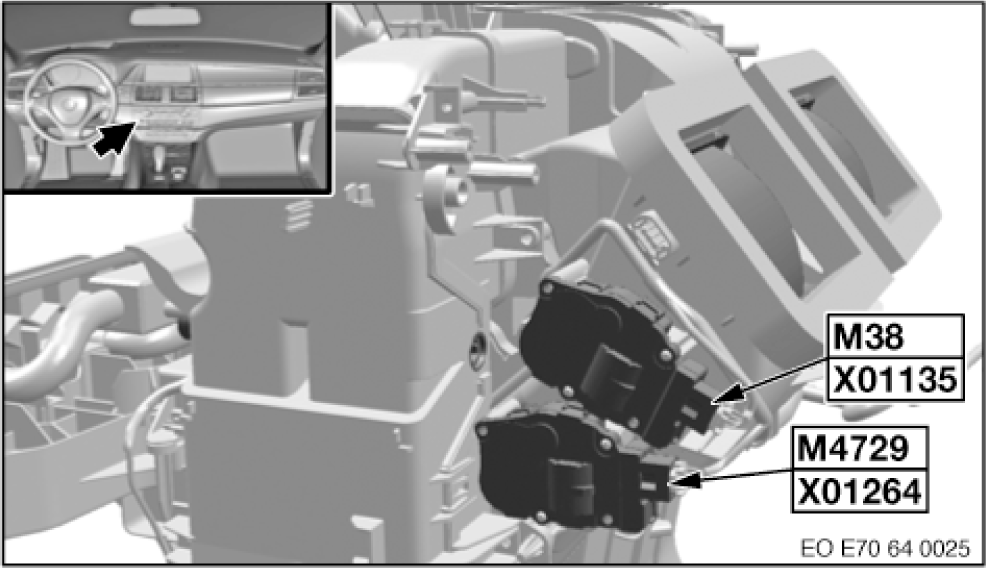

Fig 120: Left Side Of Dash

G00496021

Courtesy of BMW OF NORTH AMERICA, INC.

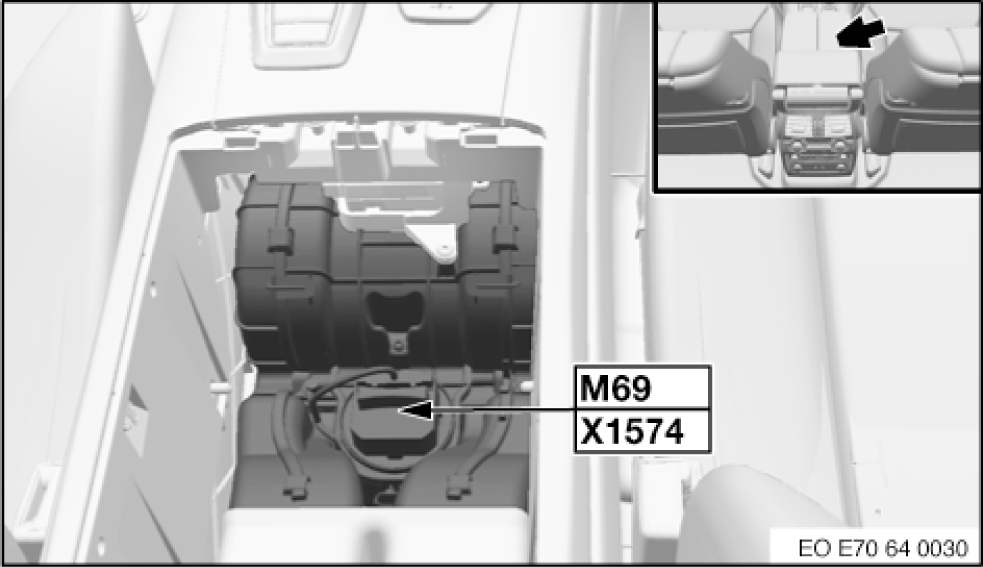

Fig 121: Center Console

G00496022

Courtesy of BMW OF NORTH AMERICA, INC.

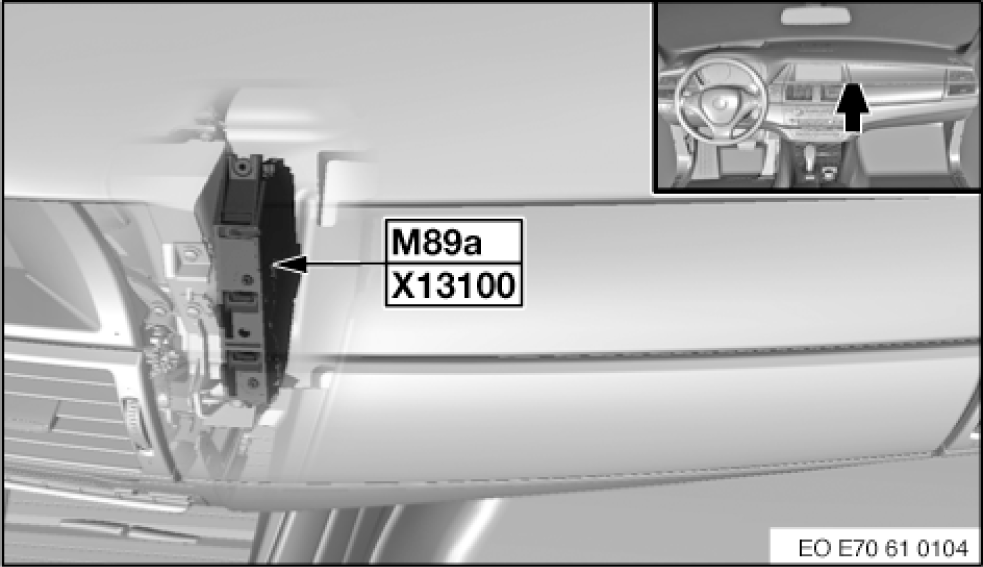

Fig 122: Dash

G00496023

Courtesy of BMW OF NORTH AMERICA, INC.

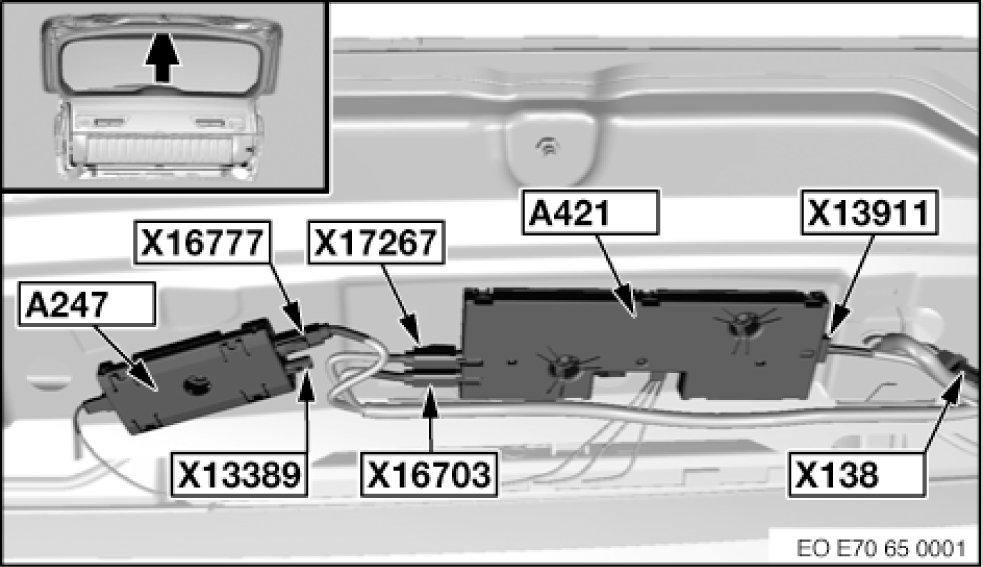

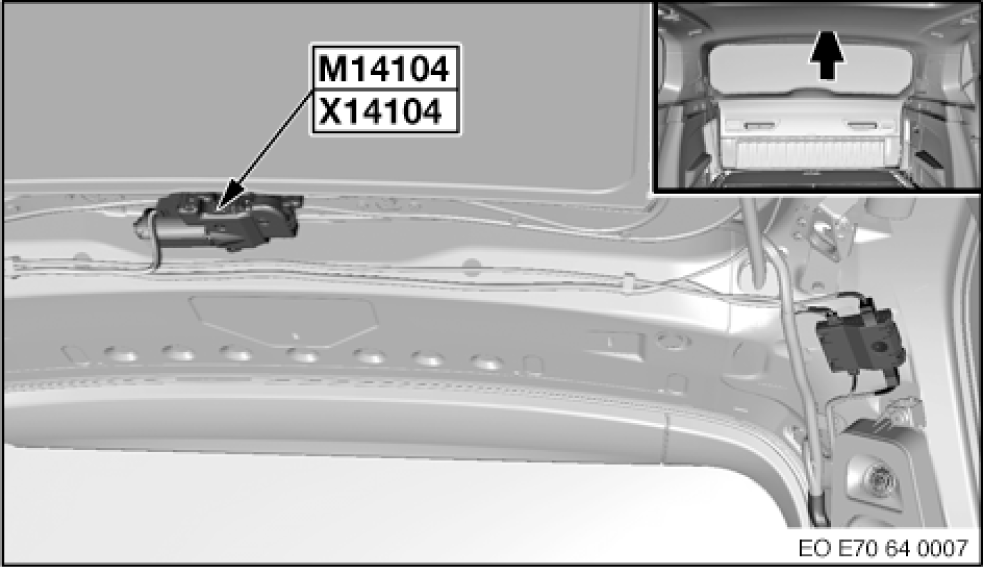

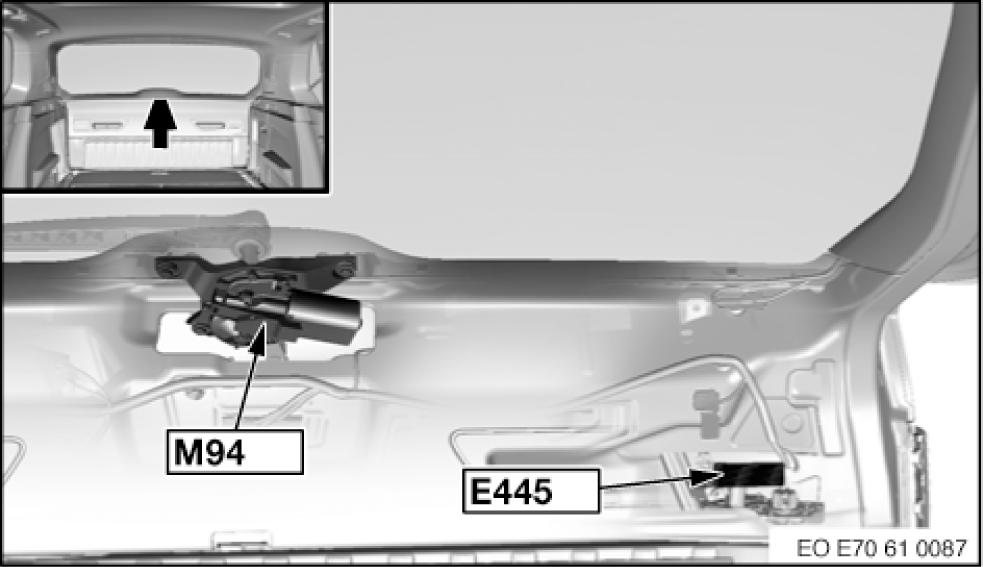

Fig 123: Tailgate

G00496024

Courtesy of BMW OF NORTH AMERICA, INC.

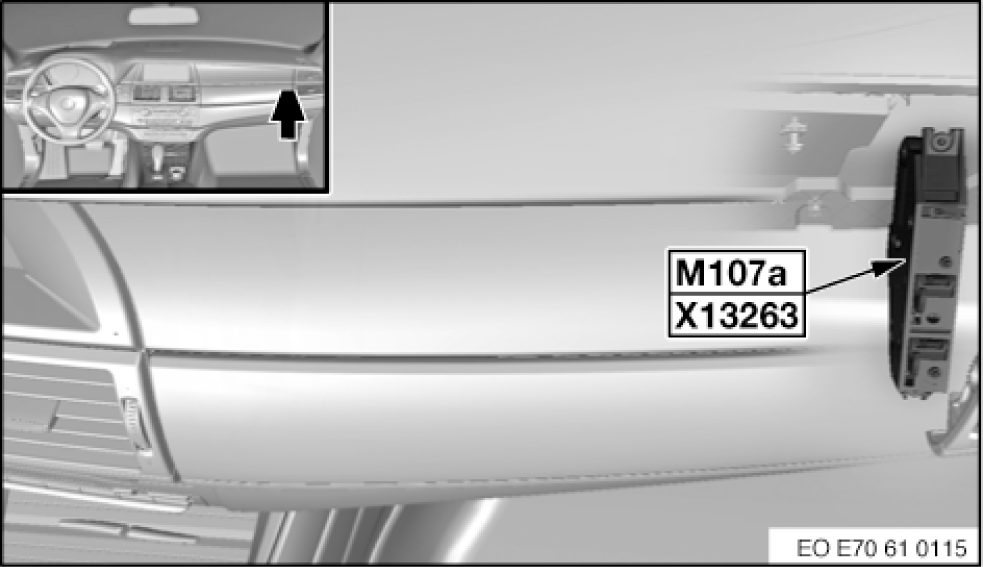

Fig 124: Dash

G00496025

Courtesy of BMW OF NORTH AMERICA, INC.

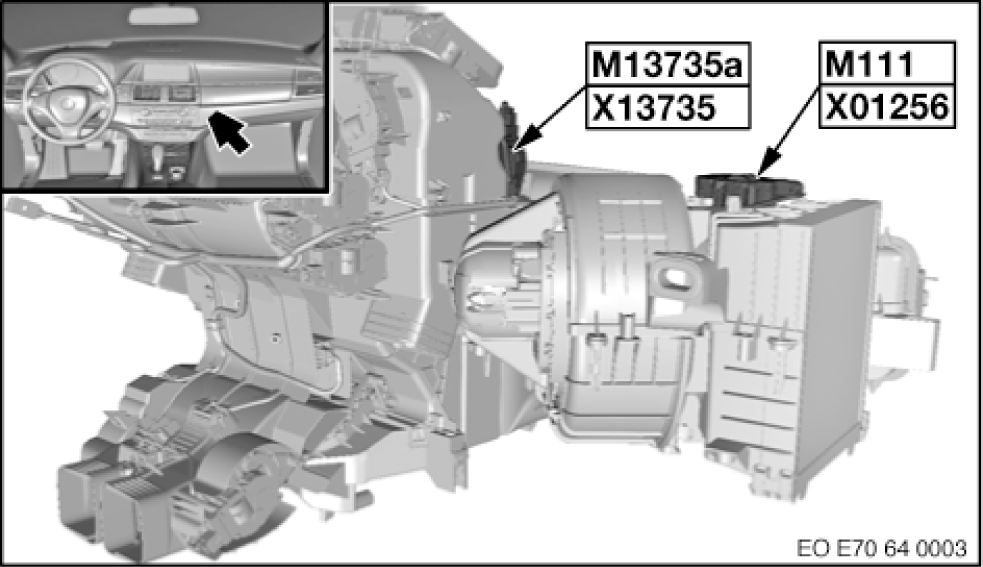

Fig 125: Behind Left Side Of Dash

G00496026

Courtesy of BMW OF NORTH AMERICA, INC.

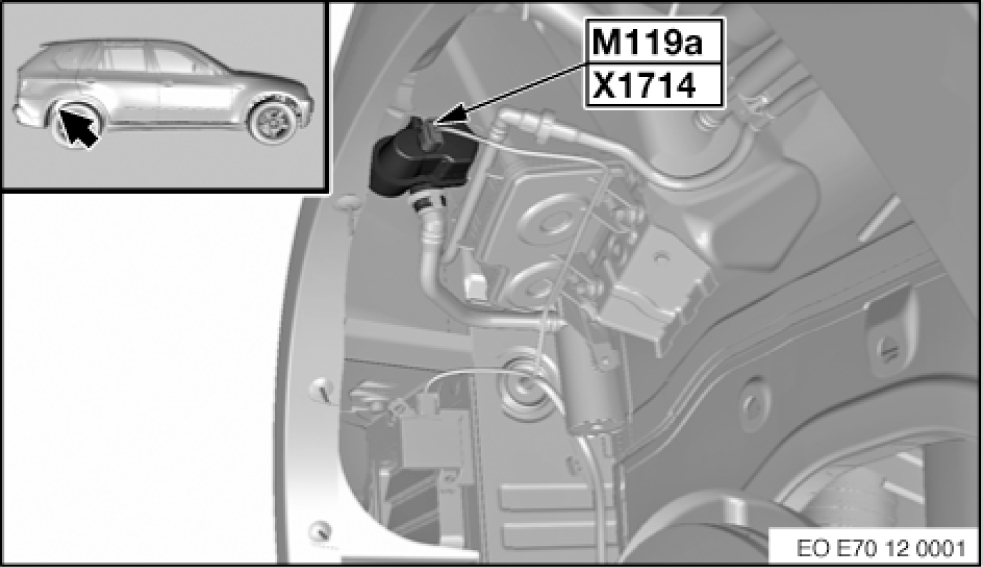

Fig 126: Right Rear Wheelwell

G00496027

Courtesy of BMW OF NORTH AMERICA, INC.

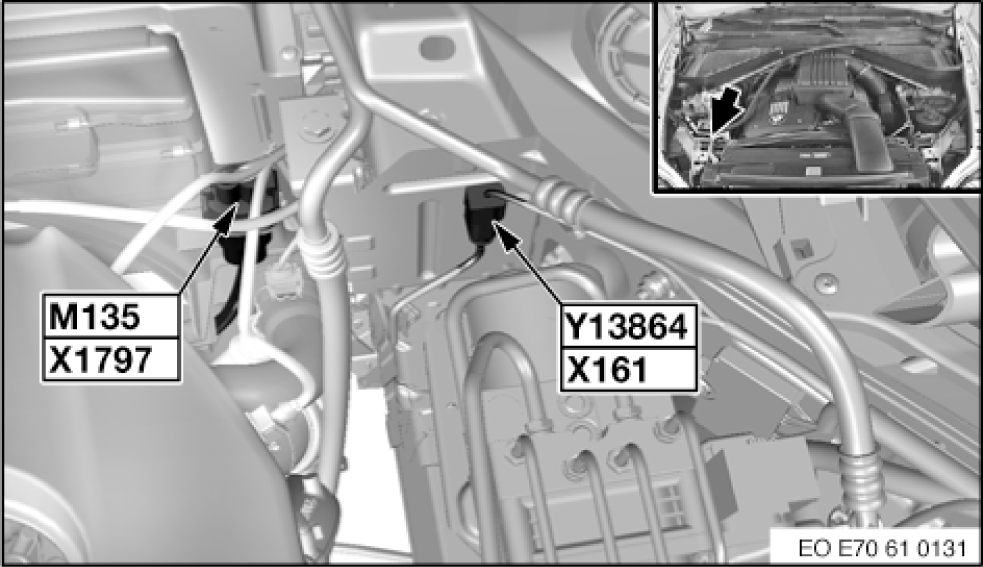

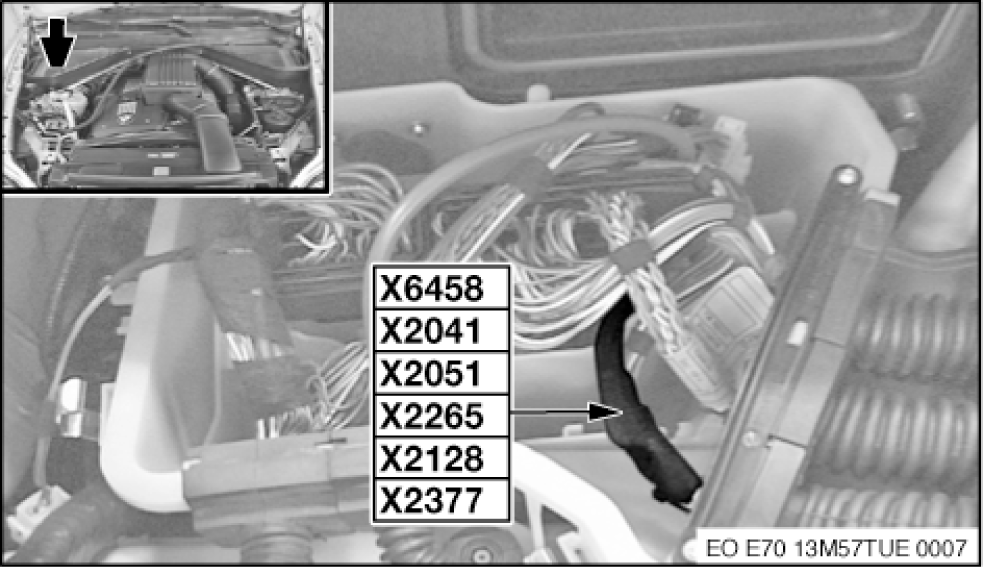

Fig 127: Engine Compartment

G00496028

Courtesy of BMW OF NORTH AMERICA, INC.

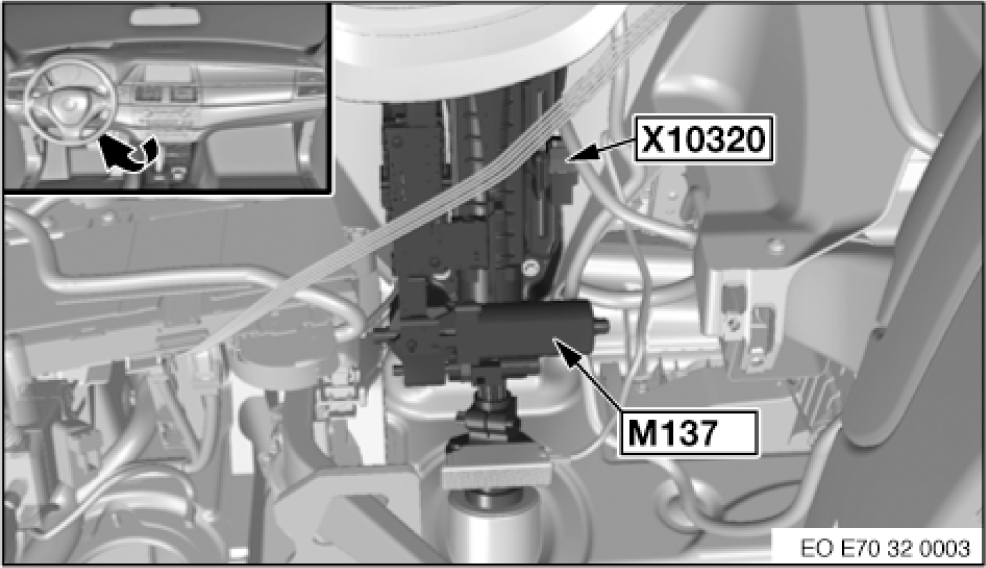

Fig 128: Left Side Of Dash

G00496029

Courtesy of BMW OF NORTH AMERICA, INC.

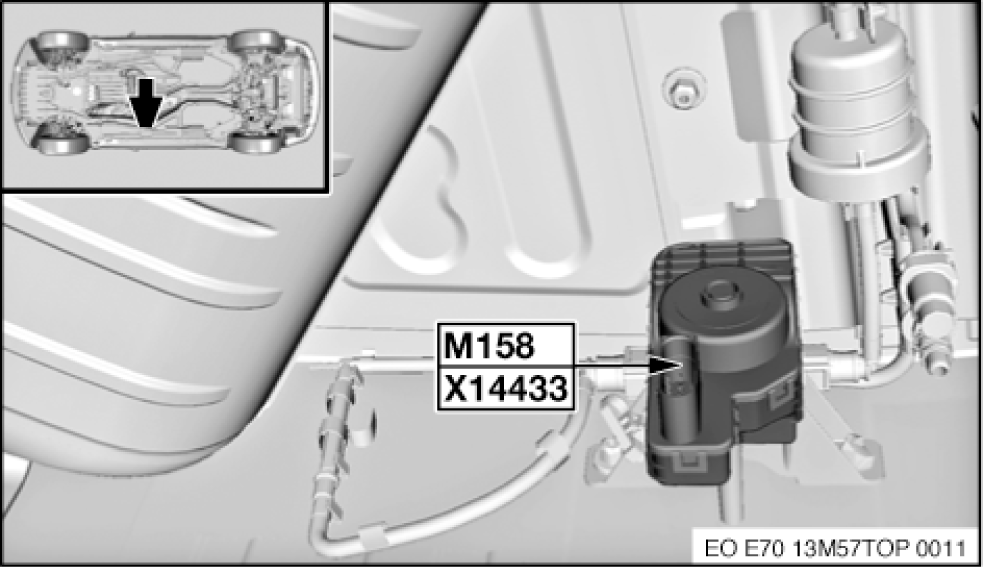

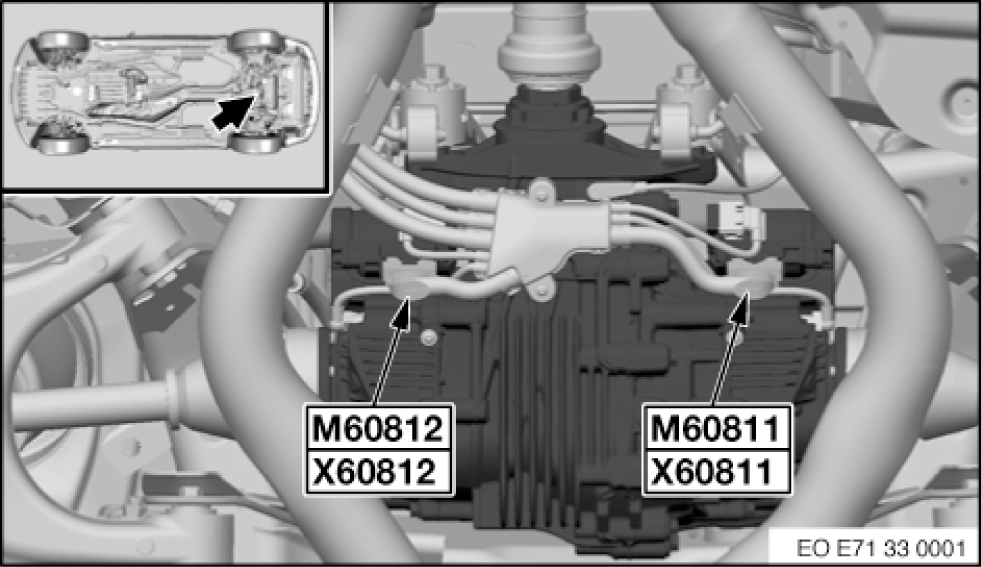

Fig 129: Vehicle Underside

G00496030

Courtesy of BMW OF NORTH AMERICA, INC.

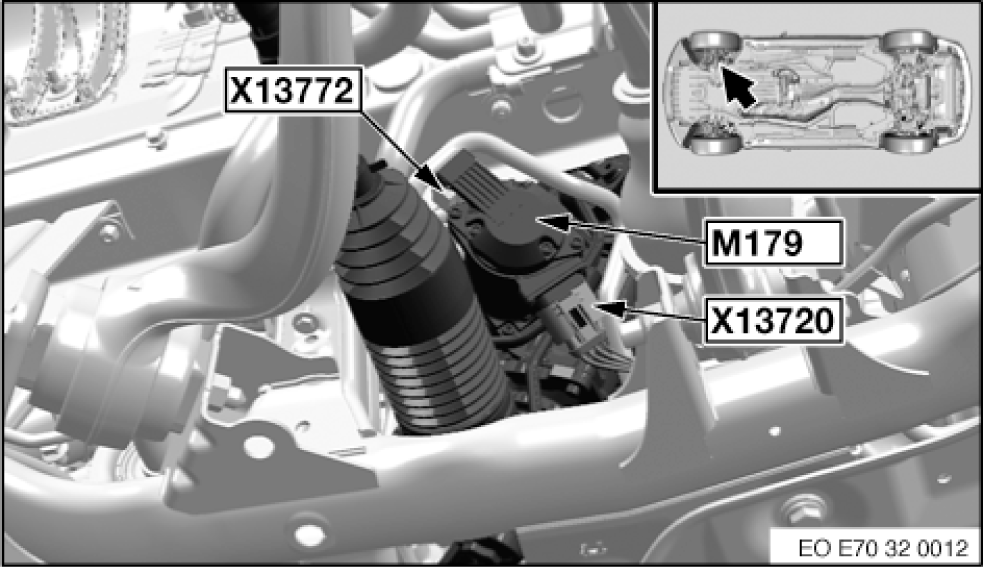

Fig 130: Vehicle Underside

G00496031

Courtesy of BMW OF NORTH AMERICA, INC.

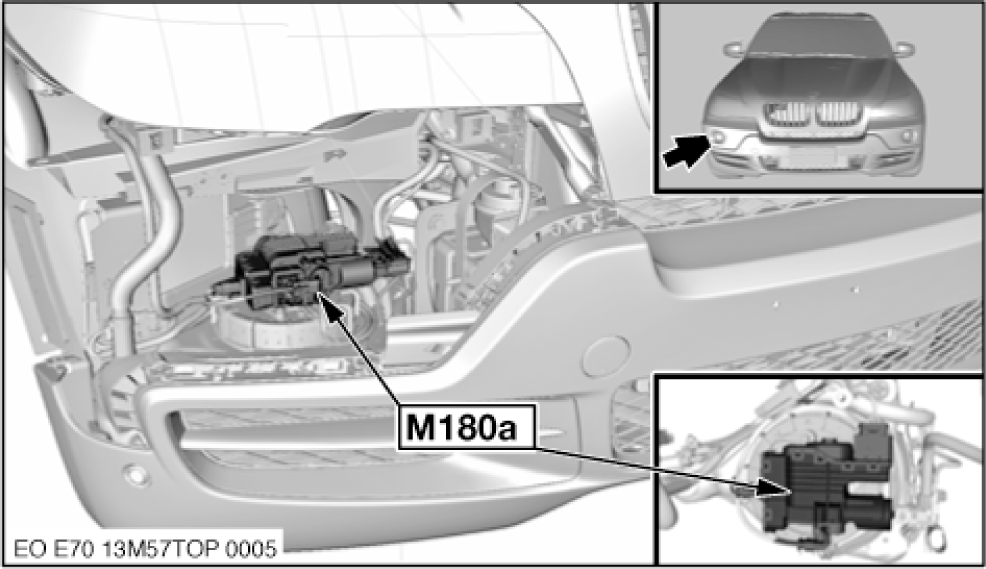

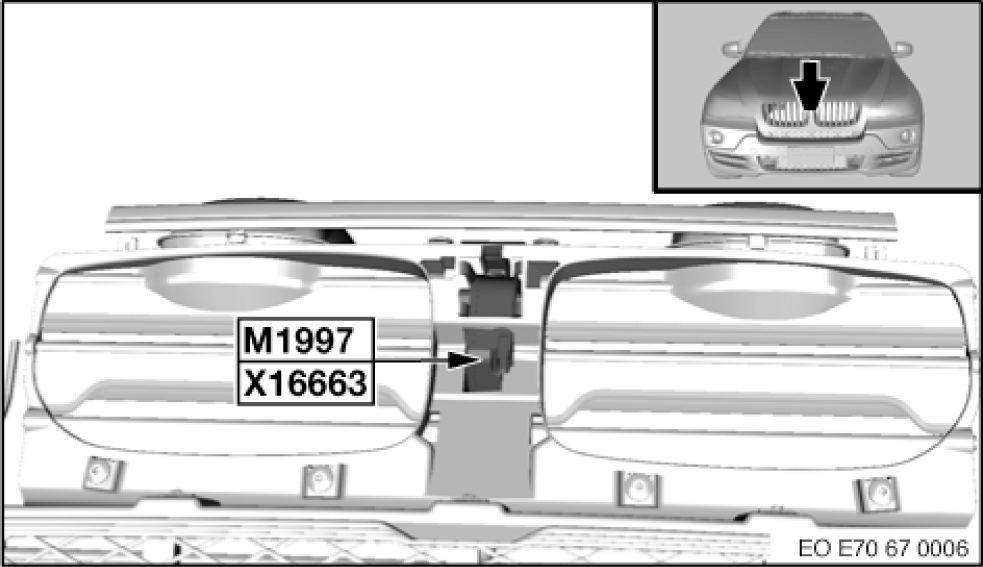

Fig 131: Front Bumper

G00496032

Courtesy of BMW OF NORTH AMERICA, INC.

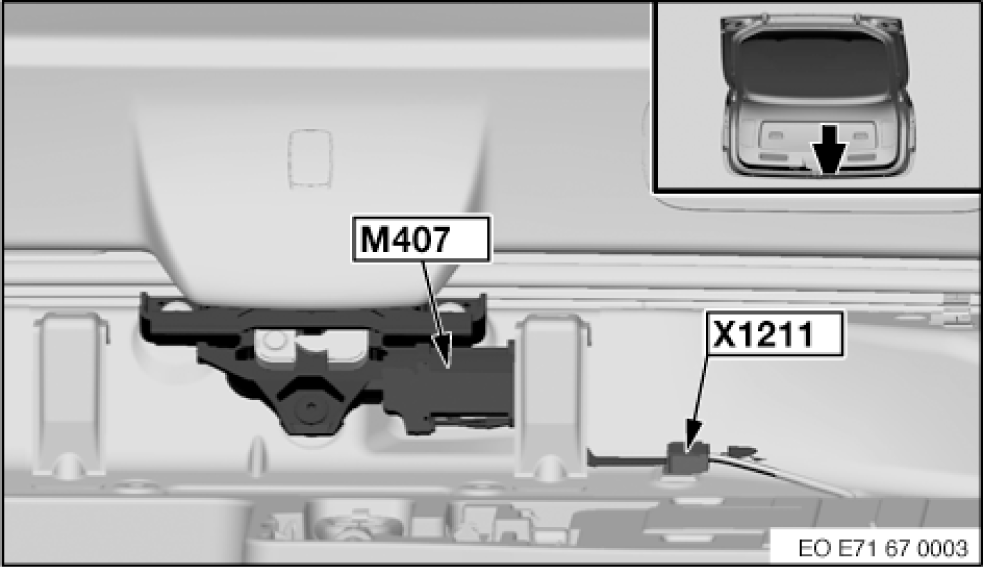

Fig 132: Luggage Compartment

G00496033

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 133: Driver's Door (Front Passenger's Similar)

G00496034

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 134: Left Rear Door (Right Similar)

G00496035

Courtesy of BMW OF NORTH AMERICA, INC.

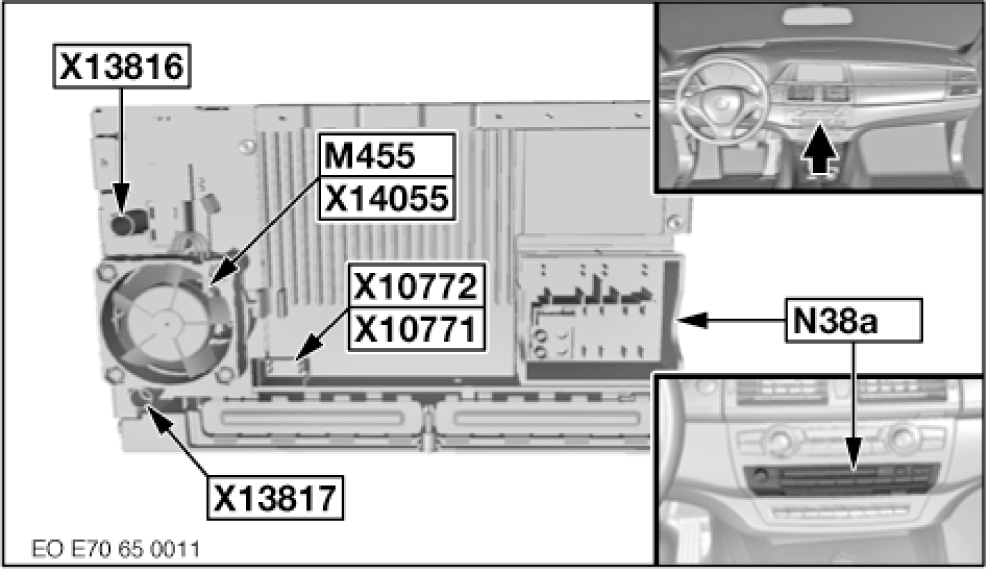

Fig 135: Center Of Dash

G00496036

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 136: Front Of Vehicle

G00496037

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 137: Right Side Of Engine

G00496038

Courtesy of BMW OF NORTH AMERICA, INC.

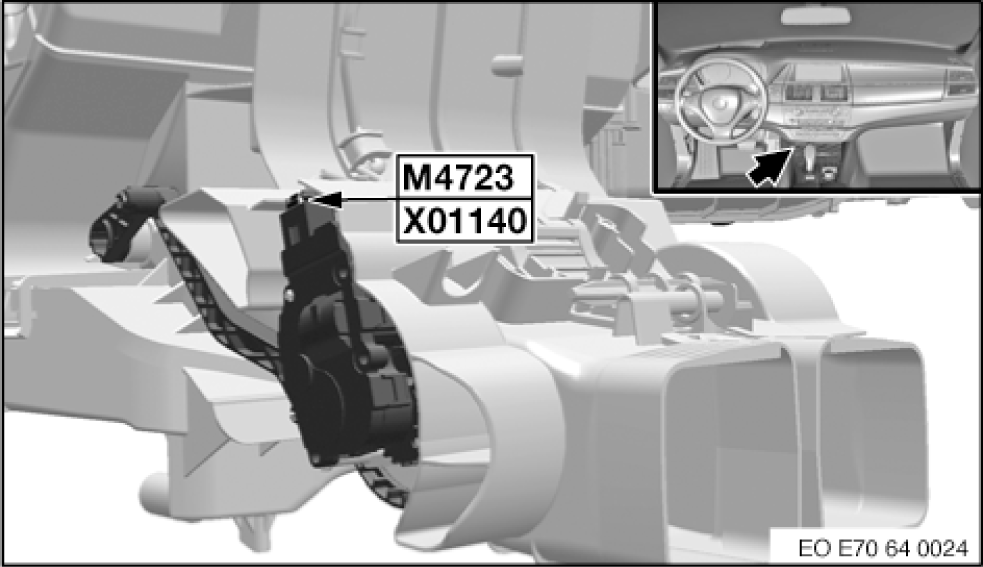

Fig 138: Center Of Dash

G00496039

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 139: Right Rear Of Engine Compartment

G00496040

Courtesy of BMW OF NORTH AMERICA, INC.

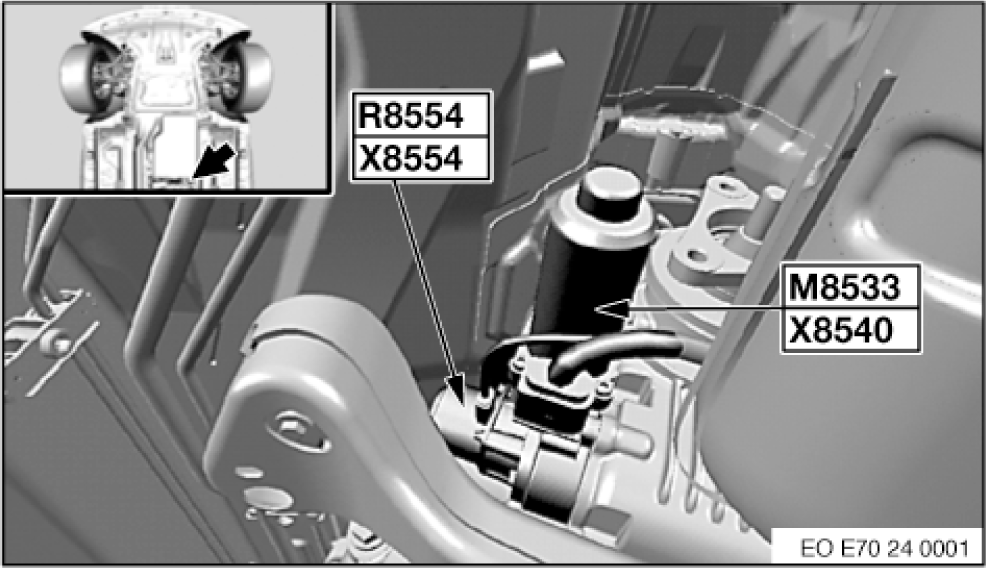

Fig 140: Vehicle Underside

G00496041

Courtesy of BMW OF NORTH AMERICA, INC.

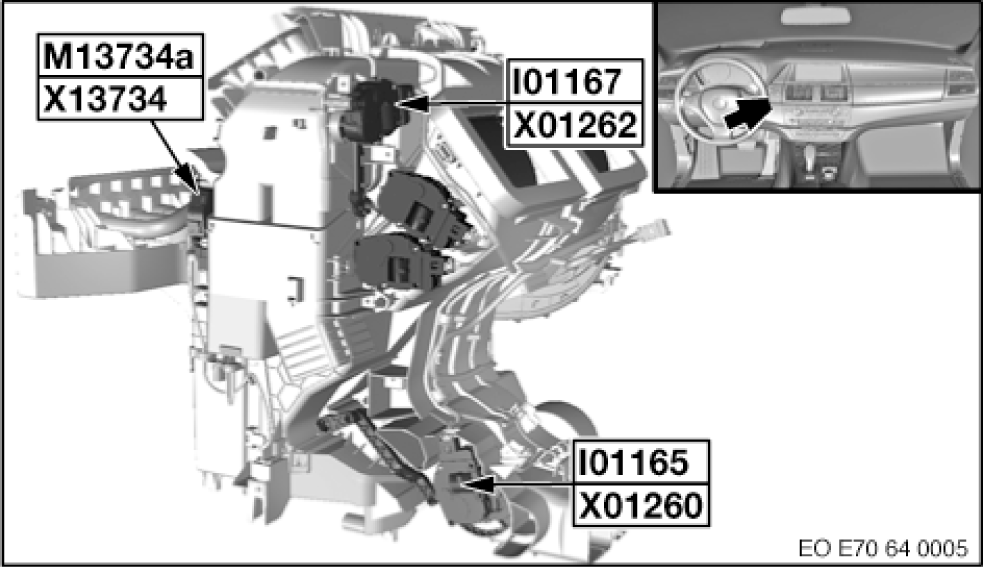

Fig 141: Behind Center Of Dash

G00496042

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 142: Rear Of Roof

G00496043

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 143: Right Side Of Engine

G00496044

Courtesy of BMW OF NORTH AMERICA, INC.

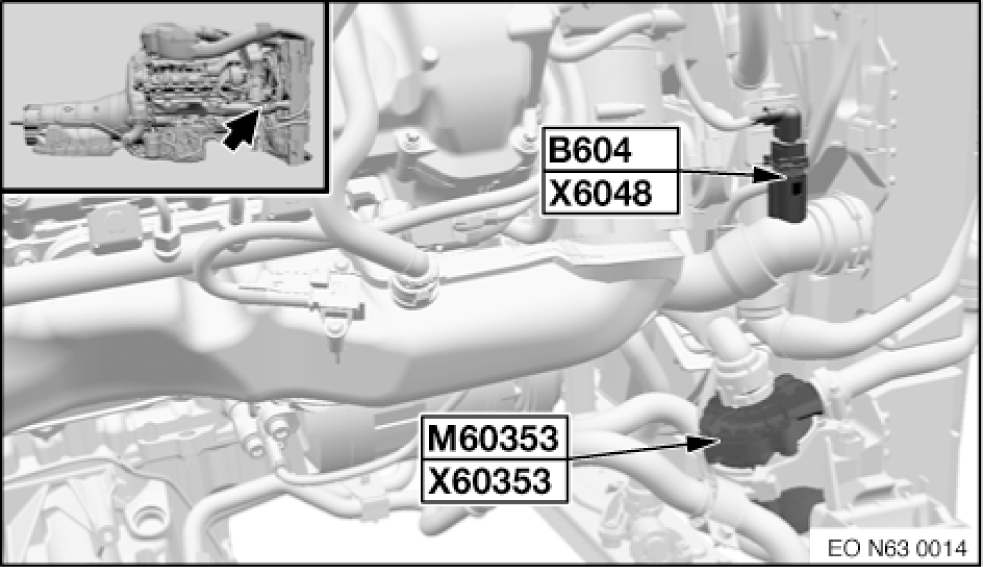

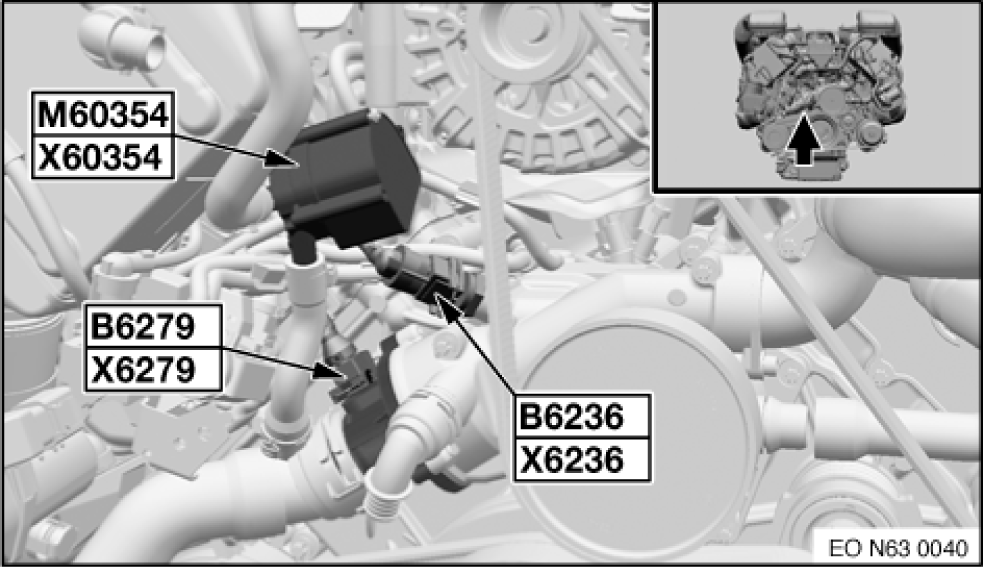

Fig 144: Front Of Engine

G00496045

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 145: Vehicle Underside

G00496046

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 146: Right Kick Panel

G00496047

Courtesy of BMW OF NORTH AMERICA, INC.

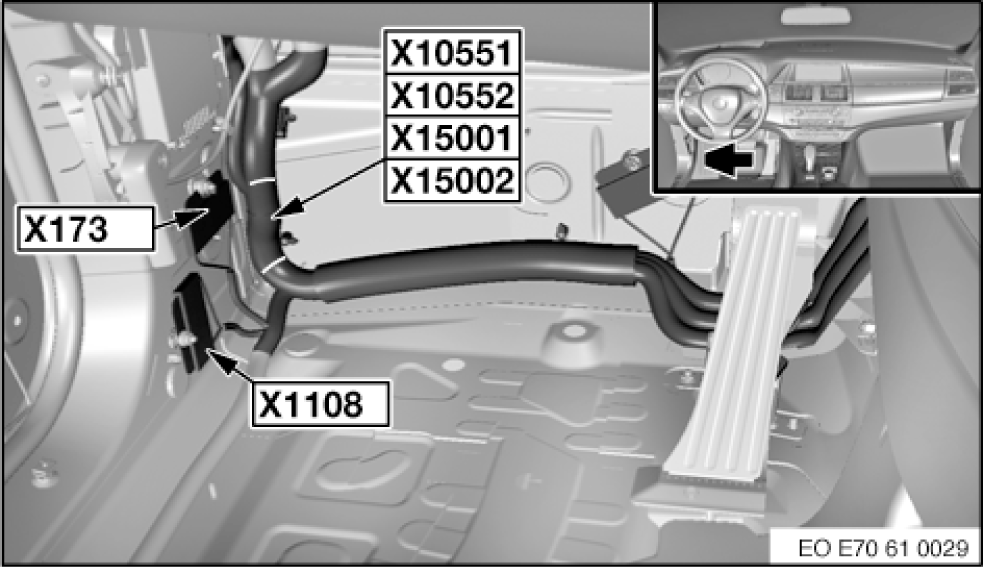

Fig 147: Left Kick Panel

G00496048

Courtesy of BMW OF NORTH AMERICA, INC.

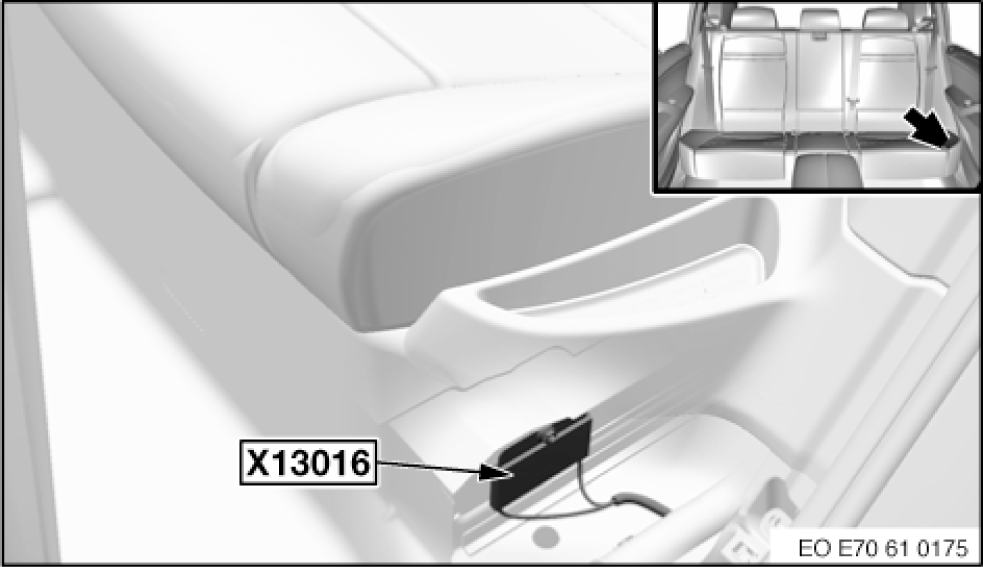

Fig 148: Rear Seats

G00496049

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 149: Right Rear Quarterpanel

G00496050

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 150: Luggage Compartment

G00496051

Courtesy of BMW OF NORTH AMERICA, INC.

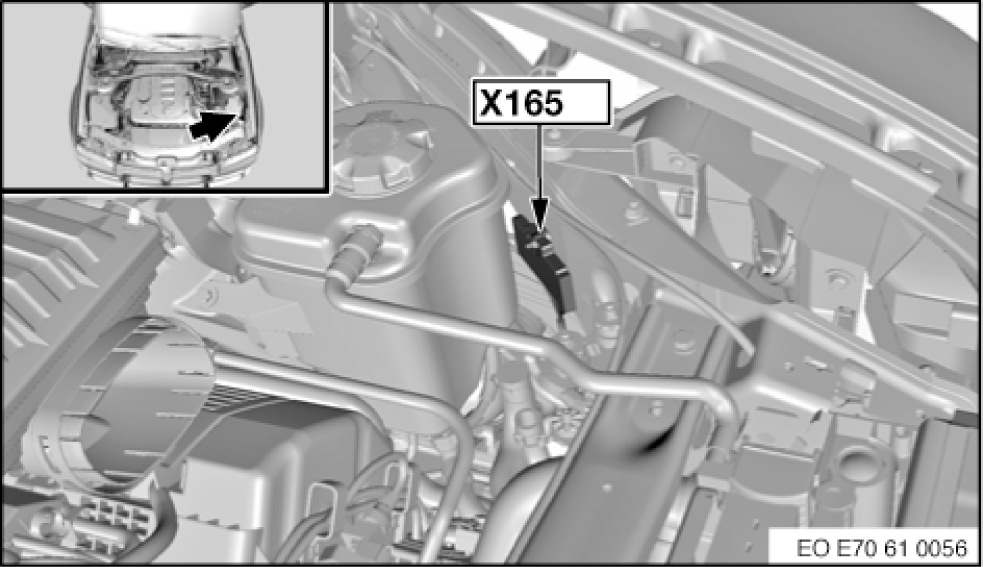

Fig 151: Engine Compartment

G00496052

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 152: Liftgate

G00496053

Courtesy of BMW OF NORTH AMERICA, INC.

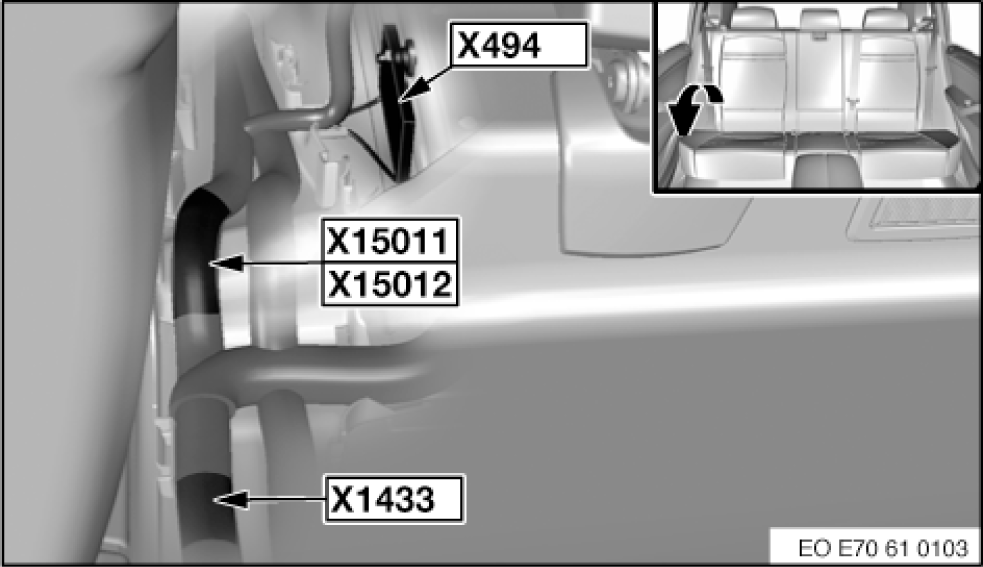

Fig 153: Rear Seats

G00496054

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 154: Engine Compartment

G00496055

Courtesy of BMW OF NORTH AMERICA, INC.

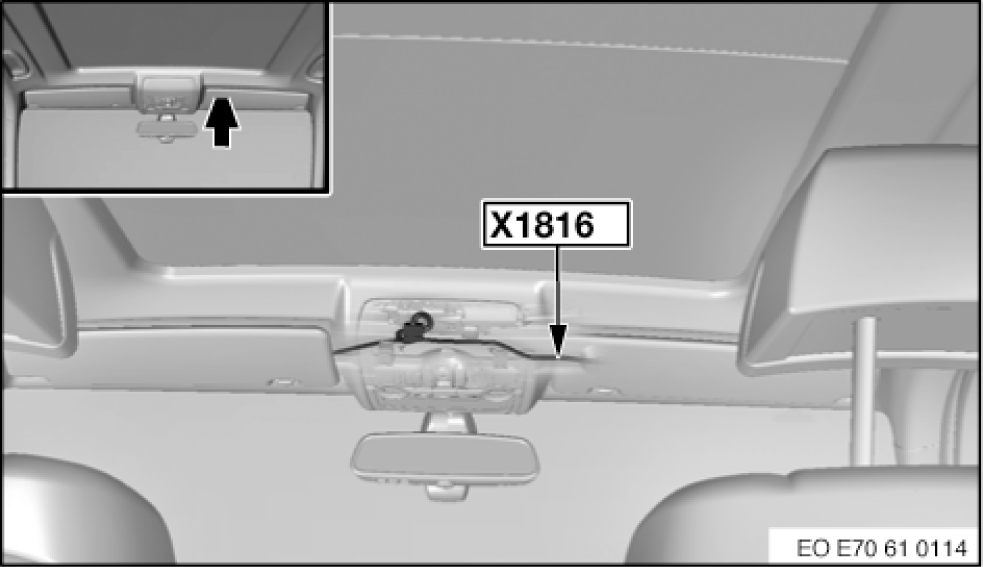

Fig 155: Front Of Roof

G00496056

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 156: Engine Compartment

G00496057

Courtesy of BMW OF NORTH AMERICA, INC.
