Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

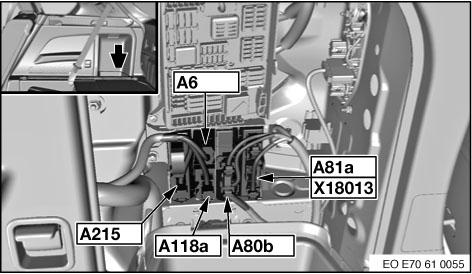

| Comfort Access Control Module (A215) | Right rear quarter panel. See Figure. |
| Control Module, Transfer Box (A70006) | Left rear cargo area. See Figure. |

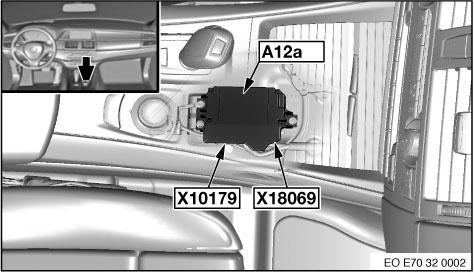

| Crash Safety Module (A12a) | Under front of floor console. See Figure. |

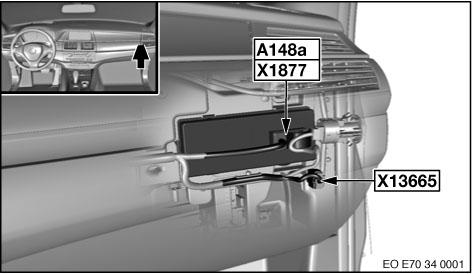

| Dynamic Drive (A148a) | Right side of dash. See Figure. |

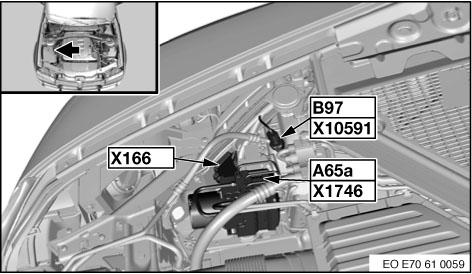

| Dynamic Stability Control (DSC) (A65) | Right front engine compartment. See Figure. |
| Electronic Ride Height Control (A1178a) | Right rear quarter panel. See Figure. |

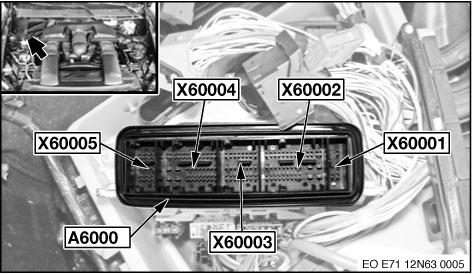

| Engine Control Module (DME) (A6000) | Right rear of engine compartment. See Figure. |

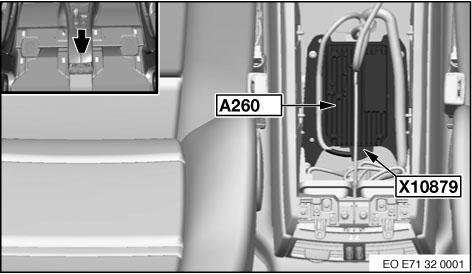

| Integrated Chassis Management (ICM) (A260) | Under the rear of the floor console. See Figure. |

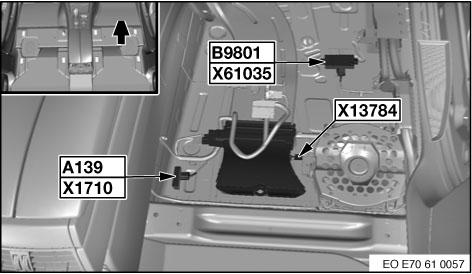

| Lateral-Acceleration Sensor, Dynamic Drive (A139) | Under right front seat. See Figure. |
| Park Distance Control (PDC) (A81a) | Right rear quarter panel. See Figure. |
| Parking Brake Control Module (A164a) | Under rear of vehicle. See Figure. |

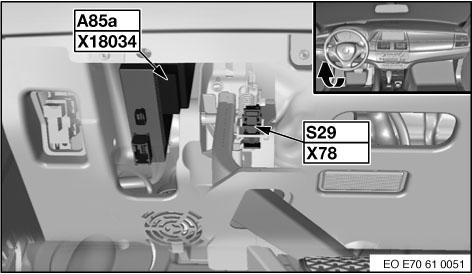

| Tire Pressure Control (RDC) (A85a) | Left side of dash. See Figure. |

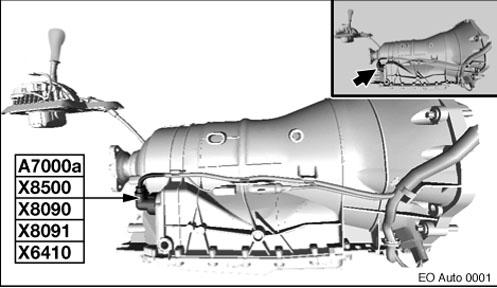

| Transmission Control (A7000) | In transmission. See Figure. |

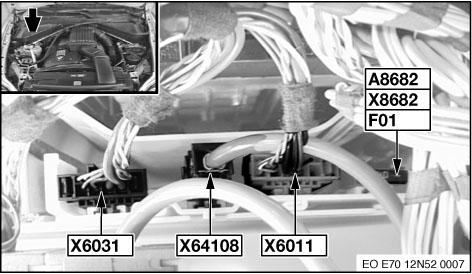

| Variable Valve Timing Gear Control Module (A60210) | Right rear of engine compartment. See Figure. |
| Vertical Dynamics Management (A80b) | Right rear quarter panel. See Figure. |
