Unlocking the Service Menu Option: Navigation

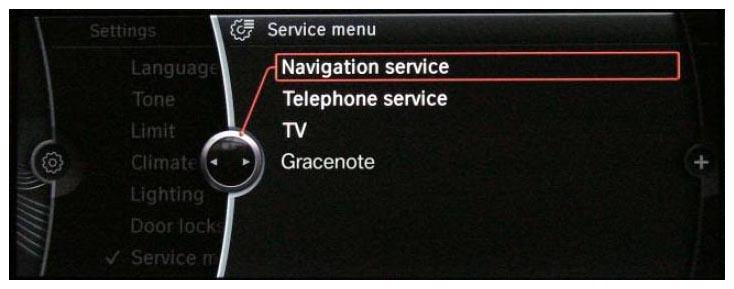

Fig 1: CIC Service Menu With Navigation Item Selected

Courtesy of BMW OF NORTH AMERICA, INC.

NAVIGATION EXPLANATION CHART

Navigation	Screen content (example)	Explanation
GPS
GPS	Status Latitude: 12°34'56" N	GPS position data
GPS	Tracking 01: 03 14,3, 02 xx, yy, z	GPS satellites
GPS	Version Receiver SW Version/Date	Software version and date of manufacture of GPS receiver
Sensor test	Wheel sensors, GPS satellites, Gyro	Check of input signals
Map version	Map Database: 1.067	Map version number Database: 1.067
Location entry	Location Entry: Entry	loop same as destination entry
Voice output test

NOTE: Although it appears in the Service menu, TV is not available on US vehicles.
