Unlocking the Service Menu Option: Notes

Several important functions can be checked directly at the CIC with the aid of the Service menu. This menu can be used to select and adjust settings that are not visible for the customer.

The procedure for starting the Service menu with the "safe grip" has changed compared to the CCC system:

• Call up Start menu
• Push controller in up direction for at least 10 s
• Controller 3 notches to the right
• Controller 3 notches to the left
• Controller 1 notch to the right
• Controller 1 notch to the left
• Controller 1 notch to the right
• Press controller once
• The Service menu is now added as the last submenu to "Settings"

Four selection menus are available in the Service menu of the CIC:

• Navigation
• Telephone and BMW Service
• TV (Not for US)
• Gracenote
  Fig 1: Service Menu Hidden

  Courtesy of BMW OF NORTH AMERICA, INC.

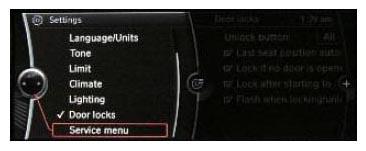

  Fig 2: Service Menu "Unlocked"

  Courtesy of BMW OF NORTH AMERICA, INC.
