Fixed Components: Notes
Some of the components that were modular in the Car Communication Computer are now integrated into the CIC as solid state components.
In the event of defects to some of the components, it may be necessary to replace the entire head unit after submitting a PuMA case.

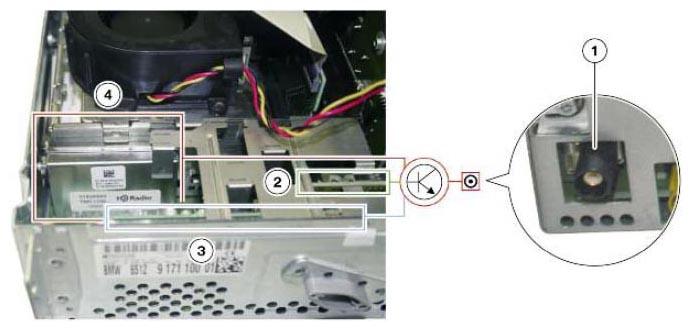

CIC COMPONENTS EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | FM/AM aerial connection |
| 2 | FM - TMC module |
| 3 | FM/AM double tuner module |
| 4 | IBOC decoder |
